U5X-RE324Wireless Security Translator

RE324HD_HNW-to-DSC_Wireless_Translator.doc Page 1 of 4 6/29/2010 www.ResolutionProducts.com Wireless Security Solutions RE324HD Honeywell ® -to-DSC ® Wireless Translator™ Features • Listens to Honeywell protocol wireless devices. • Transmits DSC protocol wireless. • Enrolls up to 63 devices. • Unique wireless ESN for each zone, plus 1 for main device. • All sensor alarm, supervisory and trouble signals a re passed through. • Dual antennas for both Receive and Transmit diversi ty for reliable range. • Back-up battery operation. • Complete supervision of tampers, external power sup ply fault and low battery. Key Instructions • External supply: 12V DC at least 50 mA. • 3 AAA Alkaline batteries give 72 hours backup if ex ternal supply fails. INSTALL BATTERIES ONLY WHEN EXTERNAL SUPPLY IS READ Y TO CONNECT. • Enrolling:
Sensor enrollment into Translator: 1. Press Enroll switch repeatedly until Device Type LE D matches the type of device you’re enrolling. ENROLLING AS WRON G DEVICE TYPE CAN CAUSE IMPROPER OPERATION. 2. Activate particular Honeywell sensor as follows: o PIR: Tamper – ENROLL PIRs FIRST o Panic: Button o Key Fob: Lower Right o DWS: Tamper 3. Automatic responses: o Green LED blinks indicating receipt of Honeywell-compatible packets. o Translator beeps indicating each enrollment into Translator. o Red LED blinks indicating transmit of DSC-compatibl e packet to panel. o The Translator transmits packets to the panel as so on as it learns a new sensor. So the panel, if it’s in enro ll mode, will recognize the DSC-compatible packets. The DSC panel then requires affirmation to accept the sensor. NOTE: The ESNs that the DSC panel sees do not look anything like the xxx-yyyy IDs on the Honeywell sen sors. RE324HD_HNW-to-DSC_Wireless_Translator.doc Page 2 of 4 6/29/2010 www.ResolutionProducts.com
Main Translator device enrolled into panel by tampe r switch on the board. • Deleting sensors enrolled in Translator:
Delete all sensors: 1. Press enroll button repeatedly until all Device Typ e LEDs are off. 2. Press and hold enroll key for 5 seconds until beep.
Delete one Device Type: 1. Press enroll button repeatedly until target Device Type LED is lit. 2. Press and hold enroll key for 5 seconds until beep. Operation • Existing Honeywell protocol sensors transmit as usu al. Translator passes information on to control panel as if they were DSC transmitters.
Honeywell fob buttons: OFF / ON / Left / Ri ght, translate to DSC fob functions: OFF / AWAY / HOME / Panic • Translator Module Zone wireless transmission ( uniq ue ID): Tamper, when cover opened. Also sends restore. Low battery, when low battery. Also sends restore. Supervisory every hour. Supervisory stopped if 12V DC power absent. Translator Module does not send any alarm signals a bout itself. • LED Operation
Green LED • On if 12V DC power present. • Blinks on receipt of Honeywell-compatible packets.
Red LED • On if device low battery (unless there’s no 12V DC power). • Blinks on transmit of GE-compatible packets. • Application Diagram New DSC Wireless System New DSC Wireless Sensors Existing HoneywellWireless Sensors RE324HD_HNW-to-DSC_Wireless_Translator.doc Page 3 of 4 6/29/2010 www.ResolutionProducts.com Specifications Receiver and Transmitter: Listens to SAW and crysta l transmitters. Talks to SAW and crystal receivers. Backup batteries: Three AAA Alkaline. External supply: 12V DC, at least 50mA. Current draw with supply: 4mA, normal operation. Power Fail Conditions: 12V DC gone. Translator dev ice ID supervisories (including low battery reports) are stopped during 12V DC loss. Back-up Battery Life on 12V DC Fail: 72 hours (cu mulative). Device Low Battery: When approximately 48 hours rem ain in back-up. Housing dimensions: 4x6x1 inches Specifications subject to change without notice. Internal Picture Device Type select switch Power Terminals Tamper Switch & spring Device Type Indicator LEDs Battery bucket for 3 AAAs Indicator LEDs & buzzer 2 Antennas for: Dual Diversity Receive and Dual Diversity Transmit Note: Antennas mounted on outer terminals RE324HD_HNW-to-DSC_Wireless_Translator.doc Page 4 of 4 6/29/2010 www.ResolutionProducts.com Notices “GE”, “Honeywell”, and “DSC” are trademarks owned by General Electric Company, Honeywell International Inc., and Tyco Safety Products Canada LTD, respectively. Resolution Products, Inc. products will function wi th one of either GE, DSC or Honeywell systems. However, no Resolution product is produced by, endo rsed by, nor is officially associated with GE, Honeywell or DSC. Resolution recommends verifying proper enrollment and operation, per control panel installation instructions, at install ation. Do not use Translator for life safety devices, such as smoke or CO sensors. Warranty Resolution Products, Inc. will replace products tha t are defective in their first year. FCC Notice This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: This device may not cause harmful interference. This device must accept any interference that may b e received, including interference that may cause undesired operation. Changes or modifications not expressly approved by Resolution Products, Inc. could void the user's authority to operate this equipment. FCC ID: U5X-RE324 IC Notice This product meets the applicable Industry Canada t echnical specifications/Le présent materiel est conforme aux specifications techniques applicables d’Industrie Canada. Operation is subject to the following two condition s: 1. This device may not cause interference, and 2. This device must accept any interference, includ ing interference that may cause undesired operation of the device. To reduce potential radio interference to other use rs, the antenna type and its gain should be so chosen that the equivalent isotropical ly radiated power (e.i.r.p.) is not more than that permitted for successful communication. IC: 8310A-RE324 Patents Patent Pending.

September 15, 2010 RE: U5X-RE324 Confidentiality To Whom It May Concern: The following information is to be held confidential pursuant of 47 CFR Part 0 ｧ0.459 and Section 552(b)(4) of the Freedom of Information Act, because the information provided contains trade secrets and is proprietary. If made public, the information might be used to our disadvantage as in the market place. lSchematics lTechnical Product Description/Operational Description lBlock Diagram Sincerely, Paul Saldin Vice President Resolution Products, Inc.

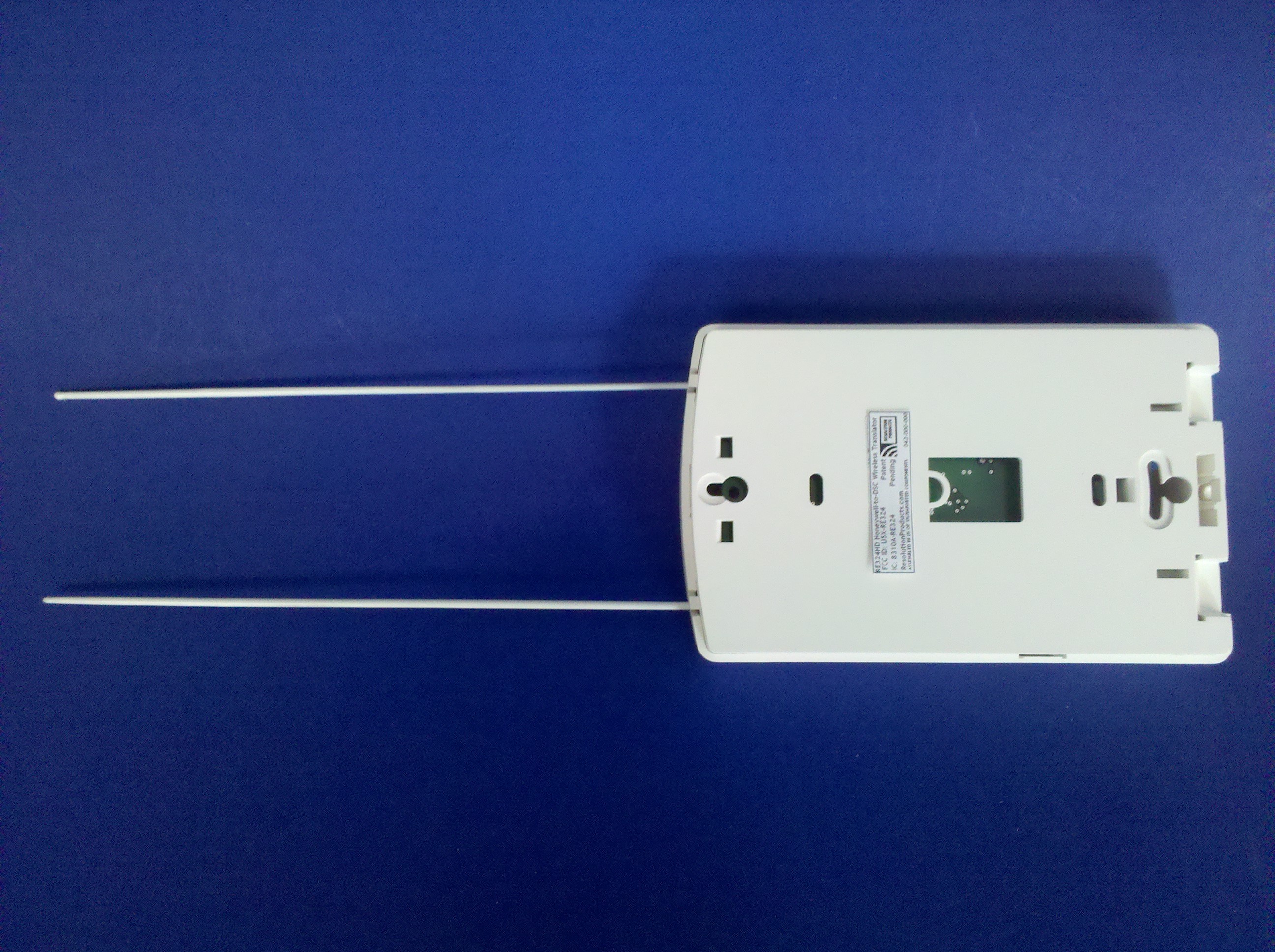

U5X-RE324 External Photo

U5X-RE324 ID Label Photo

U5X-RE324 Internal Photos

Resolution Products, Inc. Security Repeater FCC ID: U5X-RE324 Certification Test Report October 4, 2010 U5X-RE324 Resolution Products, Inc.10/4/10Page 1 of 7 Test Report 226 Locust Street, Suite 4 Hudson, WI 54016 Contents 1. Introduction.................................................................................................................................................................3 2. Statement of Compliance............................................................................................................................................3 2.1. FCC Part 2 §2.907................................................................................................................................................3 2.2. FCC Part 2 §2.911................................................................................................................................................3 2.3. FCC Part 2 §2.913................................................................................................................................................3 2.4. FCC Part 2 §2.915................................................................................................................................................3 2.5. FCC Part 2 §2.925................................................................................................................................................3 2.6. FCC Part 2 §2.943, 2.945....................................................................................................................................3 2.7. FCC Part 2 §2.947................................................................................................................................................3 2.8. FCC Part 2 §2.948................................................................................................................................................4 2.9. FCC Part 2 §2.1033..............................................................................................................................................5 3. Discussion of Laboratory Measurements and Rules Compliance...............................................................................6 3.1. FCC Part 15 §15.231(a)(1)..................................................................................................................................6 3.2. FCC Part 15 §15.231(a)(3)..................................................................................................................................6 3.3. FCC Part 15 §15.231(a)(4)..................................................................................................................................6 3.4. FCC Part 15 §15.231(a)(5)..................................................................................................................................6 3.5. FCC Part 15 §15.231(b).......................................................................................................................................6 3.5.1. Raw Field Strength Limits............................................................................................................................6 3.5.2. Duty Cycle Correction Factor and Resulting Limits.....................................................................................7 3.5.3. Measured Radiated Field Strength Data.......................................................................................................7 3.6. FCC Part 15 §15.231(c).......................................................................................................................................7 U5X-RE324 Resolution Products, Inc.10/4/10Page 2 of 7 Test Report 226 Locust Street, Suite 4 Hudson, WI 54016 1.Introduction This device is a repeater for use in a wireless security system. The unit is powered by a 12VDC or 9-18VAC power supply and is backed up by three AAA alkaline batteries. The transmitter is centered at 433.93MHz and is controlled by an Infineon PLL chip. The device measures 6.25 x 4 x 1.25” and weighs approximately 8.3 ounces. Certification is requested under FCC Rules, Part 15, Subpart C, Paragraph 15.231. 2.Statement of Compliance Specific sections of FCC Rules Part 2 that require information or listing are given below. 2.1.FCC Part 2 §2.907 This is an application for certification of original equipment 2.2.FCC Part 2 §2.911 a)This application has been filed electronically using form 731. b)All required information has been supplied in this application and its attachments. c)This application has been electronically signed by an officer of Resolution Products, Inc. d)The technical test data has been signed by the agency performing the testing. e)Signature supplied in appropriate block on form 731. f)Processing fee has been paid by credit card. g)Signatures have been supplied electronically. 2.3.FCC Part 2 §2.913 a)This application has been filed electronically. b)Appropriate fees have been filed electronically. c)Equipment samples shall be supplied as requested. 2.4.FCC Part 2 §2.915 We are requesting a grant of certification. This application shows compliance with the technical standards. 2.5.FCC Part 2 §2.925 A label shall be affixed to each piece of equipment, showing the FCC identifier. The label shall read “FCC ID: U5X- RE324”. See Exhibit A for a photograph showing the label and location on the device. 2.6.FCC Part 2 §2.943, 2.945 Sample production equipment shall be submitted to the FCC upon request. 2.7.FCC Part 2 §2.947 a)Measurement procedure follows ANSI C63.4. b)A description of utilized test equipment is contained in the report. 2.8.FCC Part 2 §2.948 Radiated measurements were taken at the following FCC-approved facility: Rhein Tech Laboratories, Inc. 360 Herndon Pkwy, Suite 1400 Herndon, VA 20170 Contact: Rick McMurray 703-689-0368 A photograph of the test site is shown below: 2.9.FCC Part 2 §2.1033 a)Form 731 has been filed electronically. b)The technical report, along with its …

Text truncated - open the document above for the full version.

360 Herndon Parkway, Suite 1400 Herndon, VA 20170 Tel: 703-689-0368 Fax: 703-689-2056 Page 1 of 6 Engineering and Testing for EMC and Safety Compliance FCC 15.231 Radiated Test Data for Model: RE324 433.9 MHz for Resolution Engineering RTL Project Number 2010117 Test Engineer: Jon Wilson 360 Herndon Parkway, Suite 1400 Herndon, VA 20170 Tel: 703-689-0368 Fax: 703-689-2056 Page 2 of 6 Radiated Test Data - OATS 1 Test Date: June 24, 2010 Work Order: 2010117 Customer Reference: na Model: RE324 Mode: Antenna 1 Name: Jon Wilson Limit/Distance: FCC B/3m Emission Frequency (MHz) Test Detector Antenna Polarity (H/V) Analyzer Reading (dBuV) Site Correction Factor (dB/m) Emission Level (dBuV/m) Limit (dBuV/m) Margin (dB) Pass/ Fail 433.930 Peak V 63.5 32.9 96.4 100.8 -4.4 Pass 867.838 Peak V 45.2 0.7 45.9 80.8 -34.9 Pass 1301.778 Peak H 70.2 8.4 78.6 80.8 -2.2 Pass 1735.698 Peak H 49.1 13.1 62.2 80.8 -18.6 Pass 2169.650 Peak V 63.0 -3.4 59.6 80.8 -21.2 Pass 2603.580 Peak H 59.6 -2.2 57.4 80.8 -23.4 Pass 3037.510 Peak V 55.4 -1.6 53.8 80.8 -27.0 Pass 3471.440 Peak V 49.3 -1.3 48.0 80.8 -32.8 Pass 3905.370 Peak H 57.5 0.0 57.5 80.8 -23.3 Pass 4339.300 Peak H 40.9 4.6 45.5 80.8 -35.3 Pass Radiated Test Data - OATS 1 Test Date: June 24, 2010 Work Order: 2010117 Customer Reference: na Model: RE324 Mode: Antenna 2 Name: Jon Wilson Limit/Distance: FCC B/3m Emission Frequency (MHz) Test Detector Antenna Polarity (H/V) Analyzer Reading (dBuV) Site Correction Factor (dB/m) Emission Level (dBuV/m) Limit (dBuV/m) Margin (dB) Pass/ Fail 433.93 Peak H 62.8 32.9 95.7 100.8 -5.1 Pass 867.84 Peak V 46.4 0.7 47.1 80.8 -33.7 Pass 1301.782 Peak H 70.2 8.4 78.6 80.8 -2.2 Pass 1735.698 Peak H 46.8 13.1 59.9 80.8 -20.9 Pass 2169.650 Peak H 62.4 -3.4 59.0 80.8 -21.8 Pass 2603.580 Peak H 58.9 -2.2 56.7 80.8 -24.1 Pass 3037.510 Peak H 55.7 -1.6 54.1 80.8 -26.7 Pass 3471.440 Peak H 51.2 -1.3 49.9 80.8 -30.9 Pass 3905.370 Peak H 56.8 0.0 56.8 80.8 -24.0 Pass 4339.300 Peak H 40.9 4.6 45.5 80.8 -35.3 Pass Notes: Device was tested through its thee orthogonal planes (X, Y, Z axis) as shown in the photographs beginning on p. 3. The test antenna was raised and lowered from 1-4 meters and polarized. These steps were taken in order to find the maximum emission level at each frequency. 360 Herndon Parkway, Suite 1400 Herndon, VA 20170 Tel: 703-689-0368 Fax: 703-689-2056 Page 3 of 6 Radiated Emissions Test Equipment Part Manufacturer Model Serial Number RTL Bar Code Calibration Due Date Amplifier (20 MHz-2 GHz) Rhein Tech Laboratories, Inc. PR-1040 900905 900905 4/10/2011 Bilog Periodic Antenna (25 MHz-2 GHz) Schaffner Chase CBL6112 2099 900791 12/12/2010 EMI Receiver RF Section (9 KHz-6.5 GHz) Hewlett Packard 85462A 3325A00159 900913 6/8/2011 RF Filter Section (100 KHz-6.5 GHz) Hewlett Packard 85460A 3330A00107 900914 6/8/2011 Spectrum Analyzer Hewlett Packard 8596EM 3826A00144 901215 11/23/2010 Amplifier (1 GHz – 26.4 GHz) Rhein Tech Laboratories, Inc. JS4-01002600-36-5P 849863 901364 2/22/2010 Horn Antenna, 2.0-4.0 GHz EMCO 3161-02 9804-1044 900772 6/13/2011 Horn Antenna, 4.0-8.2 GHz EMCO 3161-03 9508-1020 900321 6/13/2011 Emissions Testing Software Rhein Tech Laboratories, Inc. Automated Emission Tester Rev. 14.0.2 N/A N/A 360 Herndon Parkway, Suite 1400 Herndon, VA 20170 Tel: 703-689-0368 Fax: 703-689-2056 Page 4 of 6 Test Photographs X-Axis 360 Herndon Parkway, Suite 1400 Herndon, VA 20170 Tel: 703-689-0368 Fax: 703-689-2056 Page 5 of 6 Y-Axis 360 Herndon Parkway, Suite 1400 Herndon, VA 20170 Tel: 703-689-0368 Fax: 703-689-2056 Page 6 of 6 Z-Axis

U5X-RE324 Test Setup Photos
