U5X-RE351Wireless Hidden Keypad

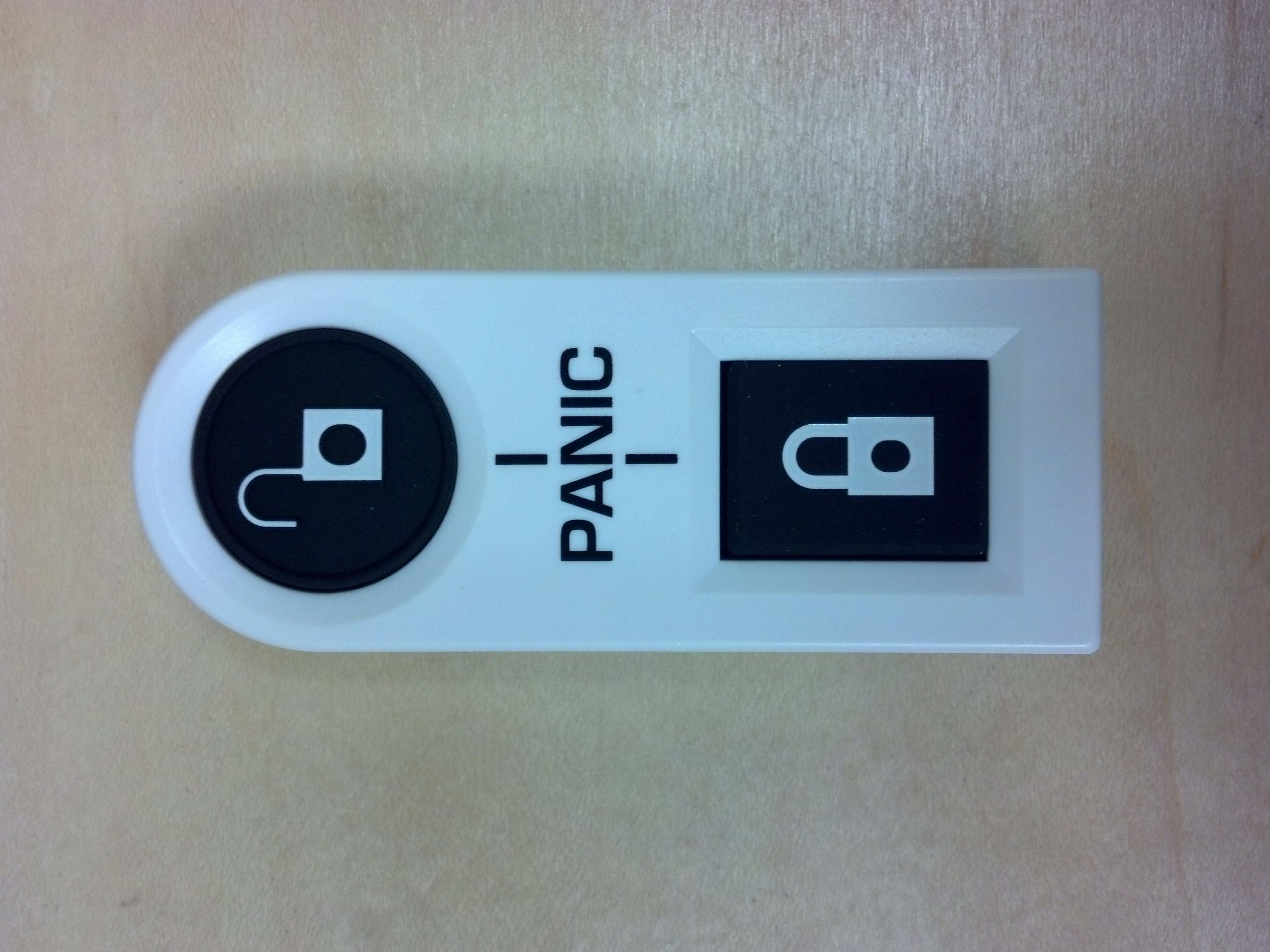

RE351_DSC-Compat_Hidden_Panic.doc Page 1 of 3 29-Ma y-13 www.ResolutionProducts.com Wireless Security Solutions RE351 DSC-Compatible Hidden Panic Features • Hidden mounting • 1-button arming and disarming • Large, easy-to-differentiate buttons • Mounts in hidden locations via VHB® tape, or screws • Strong, reliable RF signal. • 4-6 year battery life on CR2032 battery. Key Instructions • Enrolling: 1. Refer to the DSC control unit installation manual. 2. If panel is capable of Wireless Enrollment Mode, pu t the control panel in that mode and press any button. Or, put panel in Serial Number Entry Mode and progr am in the printed ESN. 3. Set up as you would a WS4949 2-Button Fob. Operation Lock & Unlock buttons simultaneously for 3 seconds
Panic Alarm. Lock + Unl ock = Panic (Enroll) RE351_DSC-Compat_Hidden_Panic.doc Page 2 of 3 29-Ma y-13 www.ResolutionProducts.com Specifications A fixed location alternative to the WS4949 2-Button Fob. Not supervised. Replacement Battery: CR2032 Lithium / Manganese Dio xide Temperature Range: 0F to 120F Housing dimensions: 3 x 1.2 x 0.52 inches Specifications subject to change without notice. Pictures Battery Replacement CR2032 Battery + Terminal up Insert Screwdriver here to open RE351_DSC-Compat_Hidden_Panic.doc Page 3 of 3 29-Ma y-13 www.ResolutionProducts.com Notices “GE”, “Honeywell”, and “DSC” are trademarks owned by General Electric Company, Honeywell International Inc., and Tyco Safety Produ cts Canada LTD, respectively. Resolution Products, Inc. products will function wi th one of either GE, DSC or Honeywell systems. However, no Resolution product is produce d by, endorsed by, nor is officially associated with GE, Honeywell or DSC. Resolution recommends verifying operation at installation. Warranty Resolution Products, Inc. will replace products tha t are defective in their first year. FCC Notice This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: This device may not cause harmful interference. This device must accept any interference that may b e received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the Resolution Products, Inc. could void the user's authority to operate this equipment . FCC ID: U5X-RE351 IC Notice This product meets the applicable Industry Canada t echnical specifications/Le présent materiel est conforme aux specifications techniques applicables d’Industrie Canada. IC: 8310A-RE351

May 29, 2013 RE: Confidentiality Request for U5X-RE351/8310A-RE351 To Whom It May Concern: Pursuant to FCC 47 CRF 0.457(d) and 0.459 and IC RSP-100, Section 10, the applicant requests that a part of the subject FCC application be held confidential. Type of Confidentiality RequestedExhibit Short Term PermanentBlock Diagrams Short TermExternal Photos Short Term Permanent* 1 Internal Photos Short Term PermanentOperation Description/Theory of Operation Short Term PermanentParts List & Placement/BOM Short Term PermanentTune-Up Procedure Short Term PermanentSchematics Short TermTest Setup Photos Short Term Permanent*User’s Manual *Note: ______(Insert Explanation as Necessary)______ Resolution Products, Inc. has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. Permanent Confidentiality: The applicant requests the exhibits listed above as permanently confidential be permanently withheld from public review due to materials that contain trade secrets and proprietary information not customarily released to the public. Short-Term Confidentiality: The applicant requests the exhibits selected above as short term confidential be withheld from public view for a period of ___(specify number of days not to exceed 180 ) 2 ___ days from the date of the Grant of Equipment Authorization and prior to marketing. This is to avoid premature release of sensitive information prior to marketing or release of the 1 - The asterisked items (*) require further justification before permanent confidentiality will be allowed. These also currently require review by the FCC under their Permit-But-Ask policy before the grant is issued and can delay completion of an application. Further justification should be added to the note above. One such example for a potted device would be: “The EUT is FULLY potted using a non-removable epoxy based material. Removal of potting material causes irreparable damage to internal circuitry. See photographs exhibits that outline the device before and after potting.” 2 - Please refer to http://atcb.com/publicdocs/Memo-Short-Term-Vs-Standard-Confidentiality.pdf for complete details. product to the public. Applicant is also aware that they are responsible to notify ACB in the event information regarding the product or the product is made available to the public. ACB will then release the documents listed above for public disclosure pursuant to FCC Public Notice DA 04-1705. NOTE for Industry Canada Applications: The applicant understands that until such time that IC distinguishes between Short Term and Permanent Confidentiality, either type of marked exhibit above will simply be marked Confidential when submitted to IC. Sincerely, By:__________________________ Paul Saldin, Vice President (Signature/Title 3 )(Print name) 3 - Must be signed by applicant contact given for applicant on the FCC site, or by the authorized agent if an appropriate authorized agent letter has been provided. Letters should be placed on appropriate letterhead.

Exhibit A RE351 External Photos

Exhibit B RE351 ID Label Photos

Exhibit C RE351 Internal Photos

Engineering Solutions & Electromagnetic Compatibility Services 360 Herndon Pkwy | Suite 1400 | Herndon | Virginia 20170 Phone: 703.689.0368 | Fax: 703.689.2056 | www.rheintech.com FCC Part 15.231 Test Data EUT: 56-0046-03 Rev A00 Hidden FOB 433.92 MHz for Resolution Products 226 Locust Street, Suite 4 Hudson, WI 54016 Contact: Josh Gathje Testing Conducted By Rhein Tech Laboratories, Inc. 360 Herndon Parkway, Suite 1400 Herndon, VA 20170 RTL Test Engineer: Jon Wilson RTL Project/Report Number: 2013093 April 30, 2013 This report may not be reproduced, except in full, without the full written approval of Rhein Tech Laboratories, Inc. and Resolution Products. Test results relate only to the item tested. These tests are accredited and meet the requirements of ISO/IEC 17025 as verified by ANSI-ASQ National Accreditation Board/ACLASS. Refer to certificate and scope of accreditation AT-1445. Rhein Tech Laboratories, Inc. Client: Resolution Products 360 Herndon Parkway, Suite 1400 EUT: 56-0046-03 Rev A00 Hidden FOB Herndon, VA 20170 Standards: FCC Parts 2, 15 http://www.rheintech.com Report #: 2013093 Page 2 of 7 Testing Represented in Report The data and limits presented in this report are for peak emissions limiting per 15.231(b)(2) which references 15.35(b), and peak limiting for restricted bands per 15.209(e), which again references 15.35(b)(2), as procured by Resolution Products. No average data is presented in this report. The Equipment Under Test (EUT) was the 56-0046-03 Rev A00 Hidden FOB 433.92 MHz (RTL Bar Code 20885). Test Procedure Radiated fundamental and spurious emissions were tested at three meters. The EUT was tested in the three orthogonal planes with the receive antenna in both horizontal and vertical polarities. The emissions were maximized per ANSI C63.4:2003 8.3.1.2; that is, the measurement antenna height was varied between 1 and 4 m, and the EUT was rotated through 360° on a rotating turntable until the maximum emissions were found. A resolution bandwidth of 100 kHz was used for frequencies less than 1000 MHz, and a resolution bandwidth of 1 MHz was used for frequencies greater than or equal to 1000 MHz. The video bandwidth was set to a value at least three times greater than the resolution bandwidth. EUT Disposition The EUT was adapted to continuously transmit for testing purposes. 15.231 Radiated Emissions Test Data – FCC Limits/3m Distance Emission Frequency (MHz) Test Detector Antenna Polarity (H/V) Analyzer Reading (dBuV) Site Correction Factor (dB/m) Emission Level (dBuV/m) Limit (dBuV/m) Margin (dB) Pass/ Fail 433.935 Peak V 66.0 29.5 95.5 100.8 -5.3 Pass 867.855 Peak V 40.9 -5.2 35.7 80.8 -45.1 Pass 1301.775 Peak V 40.8 0.3 41.1 74.0 -32.9 Pass 1735.695 Peak H 43.1 4.6 47.7 80.8 -33.1 Pass 2169.605 Peak V 66.6 -18.6 48.0 80.8 -32.8 Pass 2603.525 Peak H 69.2 -18.5 50.7 80.8 -30.1 Pass 3037.445 Peak H 71.1 -18.6 52.5 80.8 -28.3 Pass 3471.365 Peak V 75.2 -17.2 58.0 80.8 -22.8 Pass 3905.285 Peak H 59.2 -16.8 42.4 74.0 -31.6 Pass 4339.205 Peak H 54.1 -11.2 42.9 74.0 -31.1 Pass * all spurious emissions in the applicable frequency range were investigated, only harmonic emissions were present, as noted above Rhein Tech Laboratories, Inc. Client: Resolution Products 360 Herndon Parkway, Suite 1400 EUT: 56-0046-03 Rev A00 Hidden FOB Herndon, VA 20170 Standards: FCC Parts 2, 15 http://www.rheintech.com Report #: 2013093 Page 3 of 7 Radiated Emissions Test Equipment Part Manufacturer Model Serial Number RTL Bar Code Calibration Due Date Amplifier (20 MHz - 2 GHz) Rhein Tech Laboratories, Inc. PR-1040 900905 900905 8/20/13 Bilog Periodic Antenna (25 MHz - 2 GHz) Schaffner Chase CBL6112 2099 900791 2/2/14 EMI Receiver RF Section (9 kHz - 6.5 GHz) Hewlett Packard 85462A 3325A00159 900913 9/20/13 RF Filter Section (100 kHz - 6.5 GHz) Hewlett Packard 85460A 3330A00107 900914 9/20/13 Spectrum Analyzer Rohde & Schwarz FSU 1166.1660.50 901581 6/4/13 Amplifier (1 GHz – 26.0 GHz) Rhein Tech Laboratories, Inc. PR-1042 N/A 901364 9/28/13 Horn Antenna (2.0 - 4.0 GHz) EMCO 3161-02 9804-1044 900772 4/20/15 Horn Antenna (4.0 - 8.2 GHz) EMCO 3161-03 9508-1020 900321 4/20/15 Emissions Testing Software Rhein Tech Laboratories, Inc. Automated Emission Tester Rev. 14.0.2 N/A N/A Test Personnel: Jon Wilson April 24-25, 2013 Test Engineer Signature Dates of Test FCC/IC Cross Reference FCC 15.231(b)(2) RSS-210 Issue 8 A1.1 FCC 15.35(b) RSS-Gen Issue 3 7.2.3 FCC 15.205 RSS-Gen Issue 3 7.2.2 FCC 15.209 RSS-Gen Issue 3 7.2.5 Rhein Tech Laboratories, Inc. Client: Resolution Products 360 Herndon Parkway, Suite 1400 EUT: 56-0046-03 Rev A00 Hidden FOB Herndon, VA 20170 Standards: FCC Parts 2, 15 http://www.rheintech.com Report #: 2013093 Page 4 of 7 Test Configuration Photograph Radiated Emissions Rhein Tech Laboratories, Inc. Client: Resolution Products 360 Herndon Parkway, Suite 1400 EUT: 56-0046-03 Rev A00 Hidden FOB Herndon, VA 20170 Standards: FCC Parts 2, 15 http://www.rheintech.com Report #: 2013093 Page 5 of 7 EUT Photographs Rhein Tech Laboratories, Inc. Client: Resolution Products 360 Herndon Parkway, Suite 1400 EUT: 56-0046-03 Rev A00 Hidden FOB Herndon, VA 20170 Standards: FCC Parts 2, 15 http://www.rheintech.com Report #: 2013093 Page 6 of 7 Rhein Tech Laboratories, Inc. Client: Resolution Products 360 Herndon Parkway, Suite 1400 EUT: 56-0046-03 Rev A00 Hidden FOB Herndon, VA 20170 Standards: FCC Parts 2, 15 http://www.rheintech.com Report #: 2013093 Page 7 of 7

Resolution Products, Inc. Wireless Hidden Keypad FCC ID: U5X-RE351 Certification Test Report May 29, 2013 U5X-RE351 Resolution Products, Inc.5/29/13Page 1 of 8 Test Report 1402 Heggen St. Hudson, WI 54016 Contents 1. Introduction.................................................................................................................................................................3 2. Statement of Compliance............................................................................................................................................3 2.1. FCC Part 2 §2.907................................................................................................................................................3 2.2. FCC Part 2 §2.911................................................................................................................................................3 2.3. FCC Part 2 §2.913................................................................................................................................................3 2.4. FCC Part 2 §2.915................................................................................................................................................3 2.5. FCC Part 2 §2.925................................................................................................................................................3 2.6. FCC Part 2 §2.943, 2.945....................................................................................................................................3 2.7. FCC Part 2 §2.947................................................................................................................................................3 2.8. FCC Part 2 §2.948................................................................................................................................................4 2.9. FCC Part 2 §2.1033..............................................................................................................................................4 3. Discussion of Laboratory Measurements and Rules Compliance...............................................................................5 3.1. FCC Part 15 §15.231(a)(1)..................................................................................................................................5 3.2. FCC Part 15 §15.231(a)(3)..................................................................................................................................5 3.3. FCC Part 15 §15.231(a)(4)..................................................................................................................................5 3.4. FCC Part 15 §15.231(a)(5)..................................................................................................................................6 3.5. FCC Part 15 §15.231(b).......................................................................................................................................6 3.5.1. Raw Field Strength Limits............................................................................................................................6 3.5.2. Duty Cycle Correction Factor and Resulting Limits.....................................................................................6 3.5.3. Measured Radiated Field Strength Data.......................................................................................................7 3.6. FCC Part 15 §15.231(c).......................................................................................................................................7 U5X-RE351 Resolution Products, Inc.5/29/13Page 2 of 8 Test Report 1402 Heggen St. Hudson, WI 54016 1.Introduction This device is a small two button keypad with a wireless transmitter. The device transmits keypresses for the purpose of controlling a security system. A PIC16LF1823 microcontroller monitors the keypad and transmits data packets when valid keypresses are detected. The device measures approximately 3” x 1.25” x 0.5” and weights about an ounce. The transmitter circuit consists of a 13.56MHz crystal and a Micrel MICRF113YM6 PLL Chip. This chip multiplies the crystal frequency to 433.92MHz. It also includes a circuit that allows ASK modulation of the 433.92MHz signal. A printed antenna on the PCB radiates the RF signal. Certification is requested under FCC Rules, Part 15, Subpart C, Paragraph 15.231. 2.Statement of Compliance Specific sections of FCC Rules Part 2 that require information or listing are given below. 2.1.FCC Part 2 §2.907 This is an application for certification of original equipment 2.2.FCC Part 2 §2.911 a)This application has been filed electronically using form 731. b) All required information has been supplied in this application and its attachments. c)This application has been electronically signed by an officer of Resolution Products, Inc. d) The technical test data has been signed by the agency performing the testing. e)Signature supplied in appropriate block on form 731. f)Processing fee has been paid. g) Signatures have been supplied electronically. 2.3.FCC Part 2 §2.913 a)This application has been filed electronically. b) Appropriate fees have been filed electronically. c)Equipment samples shall be supplied as requested. 2.4.FCC Part 2 §2.915 We are requesting a grant of certification. This application shows compliance with the technical standards. 2.5.FCC Part 2 §2.925 A label shall be affixed to each piece of equipment, showing the FCC identifier. The label shall read “FCC ID: U5X- RE351”. See Exhibit B for a photograph showing the label and location on the device. 2.6.FCC Part 2 §2.943, 2.945 Sample production equipment shall be submitted to the FCC upon request. 2.7.FCC Part 2 §2.947 a)Measurement procedure follows ANSI C63.4: 2009. b) A description of utilized test equipment is contained in the report. 2.8.FCC Part 2 §2.948 Radiated measurements were taken at the following FCC-approved f…

Text truncated - open the document above for the full version.

U5X-RE351 8310A-RE351 Test Setup Photos
