U5X-RE403Wireless Panic Transmitter, 315MHz

RE403V_Visonic-Compat_Panic.doc Page 1 of 2 22-Feb- 13 www.ResolutionProducts.com Wireless Security Solutions RE403V Visonic®-Compatible Panic Features • Portable device for emergency initiation of system. • Single, red button with comfortable feel. • Fully sealed, water resistant housing. • Strong, reliable RF signal. • Comes with comfortable, elastic band for easy remov ability. • 4-6 year battery life. Key Instructions • Enrolling:
Refer to the AMBER SELECT control unit installation manual. Operation User presses button in emergency. Unit will send low battery signals. Unit sends supervisory signals twice daily. Press Red button for Alarm S OLID LIGHT on b utton press = GOOD battery . BLINKING LIGHT on button press = LOW battery RE403V_Visonic-Compat_Panic.doc Page 2 of 2 22-Feb- 13 www.ResolutionProducts.com Specifications Compatibly Replaces: MCT-212 AMBER Button Function: Press=Fault, Release=Restore Supervisory signals: sent every 12 hours (although panel doesn’t listen for them). Battery: Sealed in unit; not replaceable Low battery signal sent upon detecting low battery Water resistant: Not submersible, but tested to 1 m eter depth Temperature Range: 0F to 120F Housing dimensions: 1.5x1.2x0.6 inches Specifications subject to change without notice. Notices “GE”, “Honeywell”, “DSC”, and “Visonic” are tradema rks owned by General Electric Company, Honeywell International Inc., Tyco Safety Products Canada LTD, and Visonic, LTD respectively. Resolution Products, Inc. products will function wi th one of either GE, DSC, Visonic or Honeywell systems. However, no Resolution product is produced by, endorsed by, nor is officially associated with GE, Honeywell or DSC. Resolution recommends verifying proper enrollment and operation, per control panel install ation instructions, at installation. Warranty Resolution Products, Inc. will replace products tha t are defective in their first year. FCC Notice This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: This device may not cause harmful interference. This device must accept any interference that may b e received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the Resolution Products, Inc. could void the user's authority to operate this equipment . FCC ID: U5X-RE403 IC Notice This device complies with Industry Canada license-e xempt RSS standard(s). Operation is subject to the following two conditions: 1. This device may not cause interference, and 2. This device must accept any interference, includ ing interference that may cause undesired operation of the device. Cet appareil est conforme avec d’Industrie Canada R SS standard exempts de licence. Son fonctionnement est soumis aux deux conditions s uivantes: 1. Ce dispositif ne peut causer des interférences, et 2. Ce dispositif doit accepter toute interférence, y compris les interférences qui peuvent causer un mauvais fonctionnement du dis positif. IC: 8310A-RE403

February 22, 2013 RE: Confidentiality Request for U5X-RE403/8310A-RE403 To Whom It May Concern: Pursuant to FCC 47 CRF 0.457(d) and 0.459 and IC RSP-100, Section 10, the applicant requests that a part of the subject FCC application be held confidential. Type of Confidentiality RequestedExhibit Short Term PermanentBlock Diagrams Short TermExternal Photos Short Term Permanent* 1 Internal Photos Short Term PermanentOperation Description/Theory of Operation Short Term PermanentParts List & Placement/BOM Short Term PermanentTune-Up Procedure Short Term PermanentSchematics Short TermTest Setup Photos Short Term Permanent*User’s Manual *Note: ______(Insert Explanation as Necessary)______ Resolution Products, Inc. has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. Permanent Confidentiality: The applicant requests the exhibits listed above as permanently confidential be permanently withheld from public review due to materials that contain trade secrets and proprietary information not customarily released to the public. Short-Term Confidentiality: The applicant requests the exhibits selected above as short term confidential be withheld from public view for a period of ___(specify number of days not to exceed 180 ) 2 ___ days from the date of the Grant of Equipment Authorization 1 - The asterisked items (*) require further justification before permanent confidentiality will be allowed. These also currently require review by the FCC under their Permit-But-Ask policy before the grant is issued and can delay completion of an application. Further justification should be added to the note above. One such example for a potted device would be: “The EUT is FULLY potted using a non-removable epoxy based material. Removal of potting material causes irreparable damage to internal circuitry. See photographs exhibits that outline the device before and after potting.” 2 - Please refer to http://atcb.com/publicdocs/Memo-Short-Term-Vs-Standard-Confidentiality.pdf for complete details. and prior to marketing. This is to avoid premature release of sensitive information prior to marketing or release of the product to the public. Applicant is also aware that they are responsible to notify ACB in the event information regarding the product or the product is made available to the public. ACB will then release the documents listed above for public disclosure pursuant to FCC Public Notice DA 04-1705. NOTE for Industry Canada Applications: The applicant understands that until such time that IC distinguishes between Short Term and Permanent Confidentiality, either type of marked exhibit above will simply be marked Confidential when submitted to IC. Sincerely, By: __________________________ Paul Saldin, Vice President (Signature/Title 3 )(Print name) 3 - Must be signed by applicant contact given for applicant on the FCC site, or by the authorized agent if an appropriate authorized agent letter has been provided. Letters should be placed on appropriate letterhead.

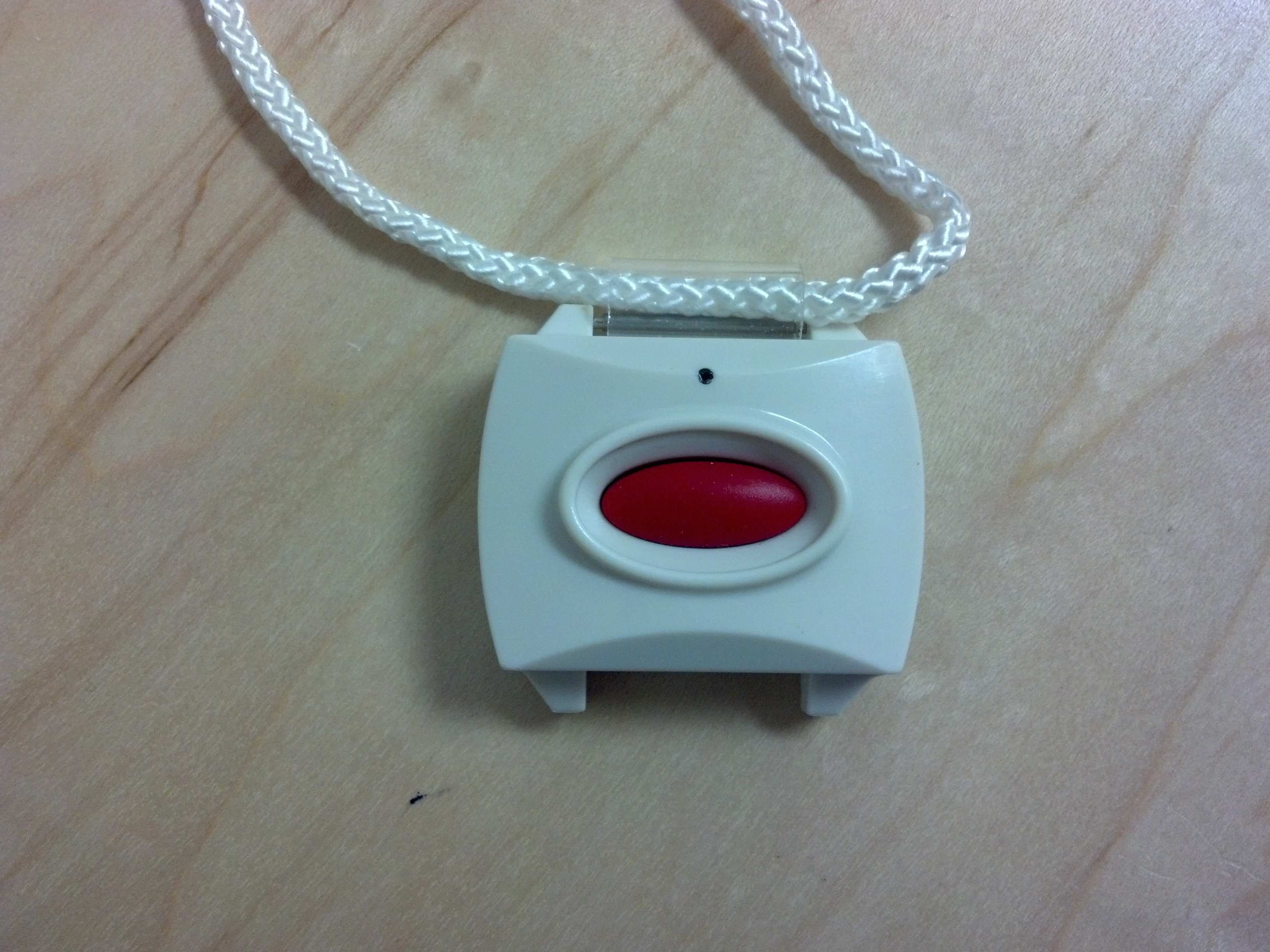

Exhibit A RE403 External Photos Exhibit C RE403 Internal Photos

Exhibit B RE403 ID Label Photos

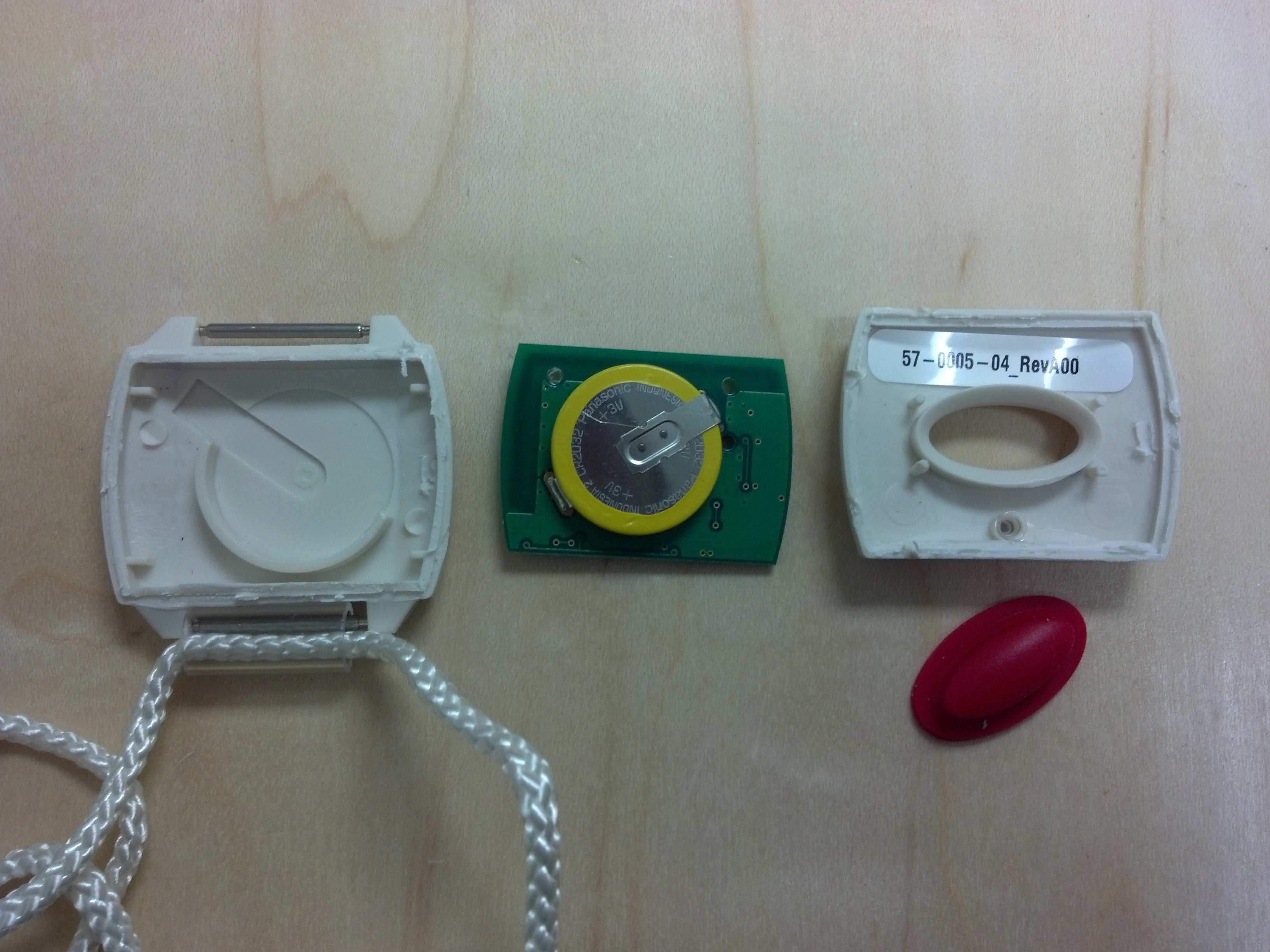

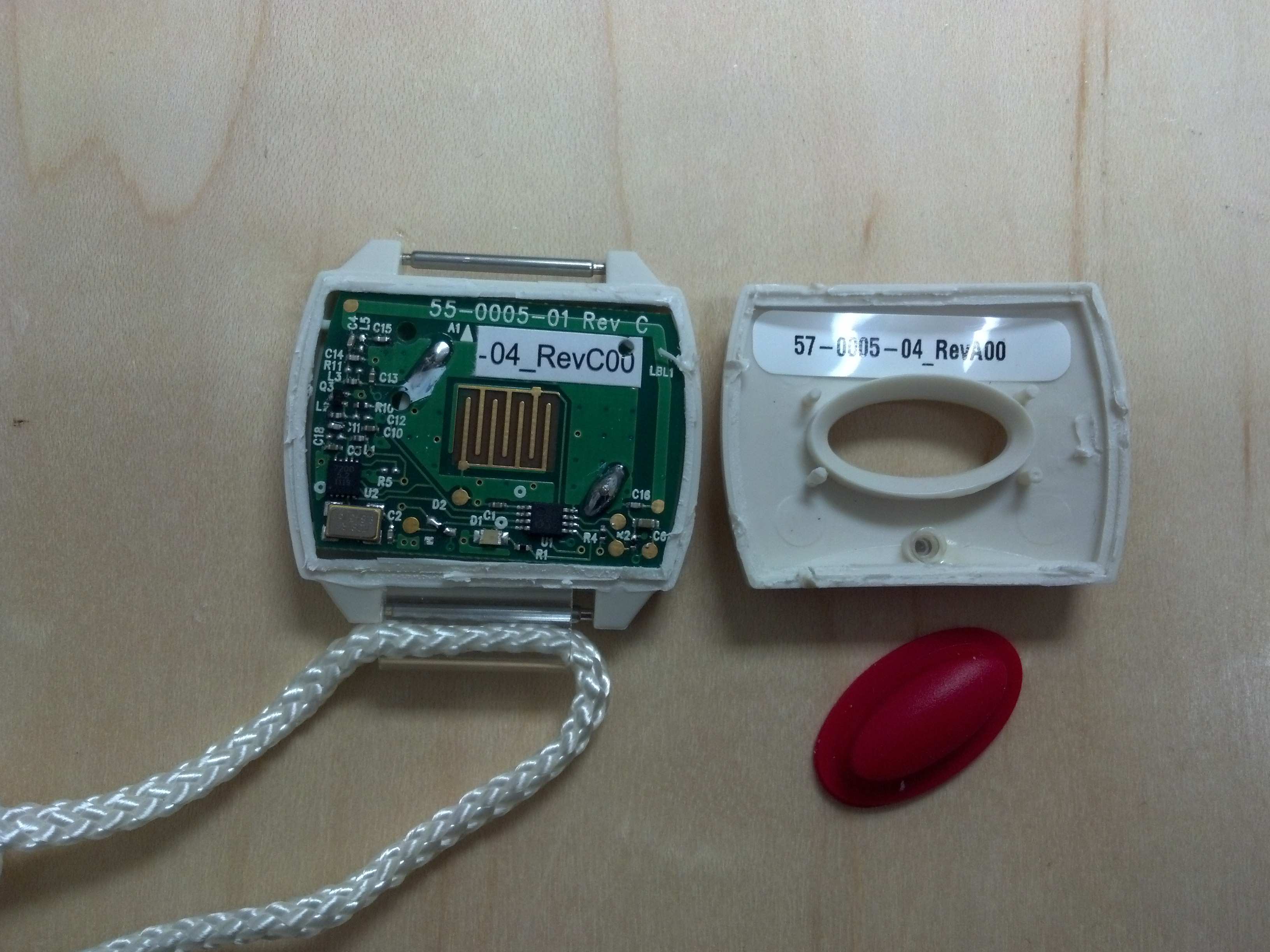

Exhibit C RE403 Internal Photos

Engineering Solutions & Electromagnetic Compatibility Services 360 Herndon Pkwy | Suite 1400 | Herndon | Virginia 20170 Phone: 703.689.0368 | Fax: 703.689.2056 | www.rheintech.com FCC Part 15.231 Test Data EUT: 56-0005 Panic 315 MHz for Resolution Engineering, Inc. 226 Locust Street, Suite 4 Hudson, WI 54016 Contact: Josh Gathje Testing Conducted By Rhein Tech Laboratories, Inc. 360 Herndon Parkway, Suite 1400 Herndon, VA 20170 RTL Test Engineer: Jon Wilson RTL Project/Report Number: 2013027 February 26, 2013 This report may not be reproduced, except in full, without the full written approval of Rhein Tech Laboratories, Inc. and Resolution Engineering. Test results relate only to the item tested. These tests are accredited and meet the requirements of ISO/IEC 17025 as verified by ANSI-ASQ National Accreditation Board/ACLASS. Refer to certificate and scope of accreditation AT-1445. Rhein Tech Laboratories, Inc. Client: Resolution Engineering 360 Herndon Parkway, Suite 1400 EUT: 56-0005 Panic 315 MHz Herndon, VA 20170 Standards: FCC Parts 2, 15 http://www.rheintech.com Report #: 2013027 2 of 5 Testing Represented in Report The data and limits presented in this report are for peak emissions limiting per 15.231(b)(2) which references 15.35(b), and peak limiting for restricted bands per 15.209(e), which again references 15.35(b)(2), as procured by Resolution Engineering. No average data is presented in this report. The Equipment Under Test (EUT) was the 56-0005 Panic 315 MHz (RTL Bar Code 20849). 15.231 Radiated Emissions Test Data – FCC Limits / 3m Distance Emission Frequency (MHz) Test Detector Antenna Polarity (H/V) Analyzer Reading (dBuV) Site Correction Factor (dB/m) Emission Level (dBuV/m) Limit (dBuV/m) Margin (dB) Pass/ Fail 315.030 Pk V 54.8 25.8 80.6 95.6 -15.0 Pass 630.045 Pk V 47.8 -9.5 38.3 75.6 -37.3 Pass 945.060 Pk H 48.0 -5.3 42.7 75.6 -32.9 Pass 1260.080* Pk V 46.6 -1.1 45.5 74.0 -28.5 Pass 1575.100 Pk V 36.9 2.0 38.9 74.0 -35.1 Pass 1890.105 Pk V 47.5 6.3 53.8 75.6 -21.8 Pass 2205.140 Pk H 63.4 -10.6 52.8 74.0 -21.2 Pass 2520.175 Pk V 74.4 -9.9 64.5 75.6 -11.1 Pass 2835.210 Pk V 70.8 -10.4 60.4 74.0 -13.6 Pass 3150.245 Pk H 44.9 -9.0 35.9 75.6 -39.7 Pass *IC restricted band ** all spurious emissions in the applicable frequency range were investigated, only harmonic emissions were present as noted above Test Procedure Radiated fundamental and spurious emissions were tested at three meters. The EUT was tested in the three orthogonal planes with the receive antenna in both polarities. The emissions were maximized per ANSI C63.4:2003 8.3.1.2; that is, the measurement antenna height was varied between 1 and 4 m, and the EUT was rotated through 360° on a rotating turntable until the maximum emissions were found. Both horizontal and vertical measurement antenna polarizations were used. A resolution bandwidth of 100 kHz was used for frequencies less than 1000 MHz, and a resolution bandwidth of 1 MHz was used for frequencies greater than or equal to 1000 MHz. The video bandwidth was set to a value at least three times greater than the resolution bandwidth. EUT Disposition The EUT was adapted to continuously transmit for testing purposes. Rhein Tech Laboratories, Inc. Client: Resolution Engineering 360 Herndon Parkway, Suite 1400 EUT: 56-0005 Panic 315 MHz Herndon, VA 20170 Standards: FCC Parts 2, 15 http://www.rheintech.com Report #: 2013027 3 of 5 Radiated Emissions Test Equipment Part Manufacturer Model Serial Number RTL Bar Code Calibration Due Date Amplifier (20 MHz-2 GHz) Rhein Tech Laboratories, Inc. PR-1040 900905 900905 8/20/13 Bilog Periodic Antenna (25 MHz-2 GHz) Schaffner Chase CBL6112 2099 900791 2/2/14 EMI Receiver RF Section (9 kHz-6.5 GHz) Hewlett Packard 85462A 3325A00159 900913 9/20/13 RF Filter Section (100 kHz-6.5 GHz) Hewlett Packard 85460A 3330A00107 900914 9/20/13 Spectrum Analyzer Rohde & Schwarz FSU 1166.1660.50 901581 6/4/13 Amplifier (1 GHz–26.0 GHz) Rhein Tech Laboratories, Inc. PR-1042 N/A 901364 9/28/13 Horn Antenna (2.0-4.0 GHz) EMCO 3161-02 9804-1044 900772 4/20/15 Horn Antenna (4.0-8.2 GHz) EMCO 3161-03 9508-1020 900321 4/20/15 Emissions Testing Software Rhein Tech Laboratories, Inc. Automated Emission Tester Rev. 14.0.2 N/A N/A Test Personnel: Jon Wilson January 31, 2013 February 21, 2013 Test Engineer Signature Date of Test Rhein Tech Laboratories, Inc. Client: Resolution Engineering 360 Herndon Parkway, Suite 1400 EUT: 56-0005 Panic 315 MHz Herndon, VA 20170 Standards: FCC Parts 2, 15 http://www.rheintech.com Report #: 2013027 4 of 5 Test Configuration Photograph Radiated Emissions Rhein Tech Laboratories, Inc. Client: Resolution Engineering 360 Herndon Parkway, Suite 1400 EUT: 56-0005 Panic 315 MHz Herndon, VA 20170 Standards: FCC Parts 2, 15 http://www.rheintech.com Report #: 2013027 5 of 5 EUT Photograph

Resolution Products, Inc. Wireless Panic Transmitter FCC ID: U5X-RE403 Certification Test Report February 28, 2013 U5X-RE403 Resolution Products, Inc.2/28/13Page 1 of 8 Test Report 1402 Heggen Street Hudson, WI 54016 Contents 1. Introduction.................................................................................................................................................................3 2. Statement of Compliance............................................................................................................................................3 2.1. FCC Part 2 §2.907................................................................................................................................................3 2.2. FCC Part 2 §2.911................................................................................................................................................3 2.3. FCC Part 2 §2.913................................................................................................................................................3 2.4. FCC Part 2 §2.915................................................................................................................................................3 2.5. FCC Part 2 §2.925................................................................................................................................................3 2.6. FCC Part 2 §2.943, 2.945....................................................................................................................................4 2.7. FCC Part 2 §2.947................................................................................................................................................4 2.8. FCC Part 2 §2.948................................................................................................................................................4 2.9. FCC Part 2 §2.1033..............................................................................................................................................4 3. Discussion of Laboratory Measurements and Rules Compliance...............................................................................5 3.1. FCC Part 15 §15.231(a)(1)..................................................................................................................................5 3.2. FCC Part 15 §15.231(a)(3)..................................................................................................................................5 3.3. FCC Part 15 §15.231(a)(4)..................................................................................................................................6 3.4. FCC Part 15 §15.231(a)(5)..................................................................................................................................6 3.5. FCC Part 15 §15.231(b).......................................................................................................................................6 3.5.1. Raw Field Strength Limits............................................................................................................................6 3.5.2. Duty Cycle Correction Factor and Resulting Limits.....................................................................................6 3.5.3. Measured Radiated Field Strength Data.......................................................................................................7 3.6. FCC Part 15 §15.231(c).......................................................................................................................................8 U5X-RE403 Resolution Products, Inc.2/28/13Page 2 of 8 Test Report 1402 Heggen Street Hudson, WI 54016 1.Introduction This device is a handheld wireless transmitter for use in a wireless security system. The unit is powered by a 3V lithium battery. The transmitter is centered at 315.0MHz and is controlled by a SAW resonator. The device measures 1.125 x 1.5 x 0.5” and weighs approximately half an ounce. This transmitter is manually activated via a pushbutton switch. Transmission of 6 packets are sent by the device upon valid keypress activation. These packets are 44.28ms in length and are sent with a spacing of 4.18ms. The 6 packet sequence is preceded by a 50mS 'front porch' on time followed by a 100mS 'off' time. The device will send another 6 packets every 7 seconds for the pendency of the alarm condition, as allowed, as long as the switch is held down by the user. The unit then goes into sleep mode and will not transmit again until another valid keypress is detected. Three supervisory packets are sent by the device every 12 hours, with the same spacing described above. Certification is requested under FCC Rules, Part 15, Subpart C, Paragraph 15.231. 2.Statement of Compliance Specific sections of FCC Rules Part 2 that require information or listing are given below. 2.1.FCC Part 2 §2.907 This is an application for certification of original equipment 2.2.FCC Part 2 §2.911 a)This application has been filed electronically using form 731. b) All required information has been supplied in this application and its attachments. c)This application has been electronically signed by an officer of Resolution Products, Inc. d) The technical test data has been signed by the agency performing the testing. e)Signature supplied in appropriate block on form 731. f)Processing fee has been paid. g) Signatures have been supplied electronically. 2.3.FCC Part 2 §2.913 a)This application has been filed electronically. b) Appropriate fees have been filed electronically. c)Equipment samples shall be supplied as requested. 2.4.FCC Part 2 §2.915 We are requesting a grant of certification. This application shows compliance with the technical standards. 2.5.FCC Part 2 §2.925 A label shall be affixed to each piece of equipment, showing the FCC identifier. The label shall read “FCC ID: U5X- RE403”. See Exhibit B for a photograph showing the lab…

Text truncated - open the document above for the full version.

U5X-RE403 8310A-RE403 Test Setup Photos
