U5X-RE403FWireless Panic Transmitter, 315MHz

RE403V_Visonic-Compat_Panic-RevF+ Page 1 of 2 22-Jan-14 www.ResolutionProducts.com Wireless Security Solutions RE403V Visonic®-Compatible Panic Features • Portable device for emergency initiation of system. • Single, red button with comfortable feel. • Fully sealed, water resistant housing. • Strong, reliable RF signal. • Comes with comfortable, elastic band for easy removability. • 4-6 year battery life. Key Instructions • Enrolling:
Refer to the AMBER SELECT control unit installation manual. Operation User presses button in emergency. Unit will send low battery signals. Unit sends supervisory signals twice daily. Press Red button for Alarm SOLID LIGHT on button press = GOOD battery. BLINKING LIGHT on button press = LOW battery RE403V_Visonic-Compat_Panic-RevF+ Page 2 of 2 22-Jan-14 www.ResolutionProducts.com Specifications Compatibly Replaces: MCT-212 AMBER Button Function: Press=Fault, Release=Restore Supervisory signals: sent every 12 hours (although panel doesn’t listen for them). Battery: Sealed in unit; not replaceable Low battery signal sent upon detecting low battery Water resistant: Not submersible, but tested to 1 meter depth Temperature Range: 0F to 120F Housing dimensions: 1.5x1.2x0.6 inches Specifications subject to change without notice. Notices “GE”, “Honeywell”, “DSC”, and “Visonic” are trademarks owned by General Electric Company, Honeywell International Inc., Tyco Safety Products Ca nada LTD, and Visonic, LTD respectively. Resolution Products, Inc. products will function with one of either GE, DSC, Visonic or Honeywell systems. However, no Resolution product is prod uced by, endorsed by, nor is officially associated with GE, Honeywell or DSC. Reso lution recommends verifying proper enrollment and operation, per control panel install ation instructions, at installation. Warranty Resolution Products, Inc. will replace products that a re defective in their first two (2) years. FCC Notice This device complies with Part 15 of the FCC rules. O peration is subject to the following two conditions: This device may not cause harmful interference. This device must accept any interference that may be r eceived, including interference that may cause undesired operation. Changes or modifications not expressly approved by the Resolution Products, Inc. could void the user's authority to operate this equipment. FCC ID: U5X-RE403F IC Notice This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: (1)This device may not cause interference, and (2)This device must accept any interference, includi ng interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d'Industrie C anada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1)l'appareil ne doit pas produire de brouillage, et (2)l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. IC: 8310A-RE403F

March 14, 2014 RE: Confidentiality Request for U5X-RE403F/8310A-RE403F To Whom It May Concern: Pursuant to FCC 47 CRF 0.457(d) and 0.459 and IC RSP-100, Section 10, the applicant requests that a part of the subject FCC application be held confidential. Type of Confidentiality RequestedExhibit Short Term PermanentBlock Diagrams Short TermExternal Photos Short Term Permanent* 1 Internal Photos Short Term PermanentOperation Description/Theory of Operation Short Term PermanentParts List & Placement/BOM Short Term PermanentTune-Up Procedure Short Term PermanentSchematics Short TermTest Setup Photos Short Term Permanent*User’s Manual *Note: ______(Insert Explanation as Necessary)______ Resolution Products, Inc. has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. Permanent Confidentiality: The applicant requests the exhibits listed above as permanently confidential be permanently withheld from public review due to materials that contain trade secrets and proprietary information not customarily released to the public. Short-Term Confidentiality: The applicant requests the exhibits selected above as short term confidential be withheld from public view for a period of ___(specify number of days not to exceed 180 ) 2 ___ days from the date of the Grant of Equipment Authorization and prior to marketing. This is to avoid premature release of sensitive information prior to marketing or release of the 1 - The asterisked items (*) require further justification before permanent confidentiality will be allowed. These also currently require review by the FCC under their Permit-But-Ask policy before the grant is issued and can delay completion of an application. Further justification should be added to the note above. One such example for a potted device would be: “The EUT is FULLY potted using a non-removable epoxy based material. Removal of potting material causes irreparable damage to internal circuitry. See photographs exhibits that outline the device before and after potting.” 2 - Please refer to http://atcb.com/publicdocs/Memo-Short-Term-Vs-Standard-Confidentiality.pdf for complete details. product to the public. Applicant is also aware that they are responsible to notify ACB in the event information regarding the product or the product is made available to the public. ACB will then release the documents listed above for public disclosure pursuant to FCC Public Notice DA 04-1705. NOTE for Industry Canada Applications: The applicant understands that until such time that IC distinguishes between Short Term and Permanent Confidentiality, either type of marked exhibit above will simply be marked Confidential when submitted to IC. Sincerely, By:__________________________ Paul Saldin, Vice President (Signature/Title 3 )(Print name) 3 - Must be signed by applicant contact given for applicant on the FCC site, or by the authorized agent if an appropriate authorized agent letter has been provided. Letters should be placed on appropriate letterhead.

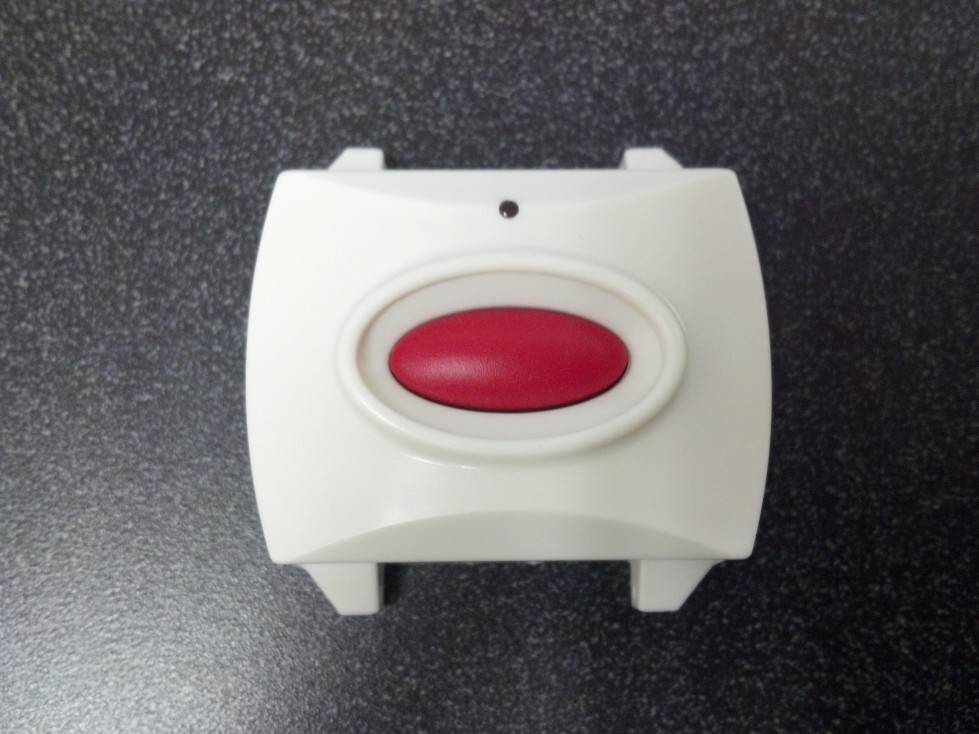

Exhibit A RE403 External Photos

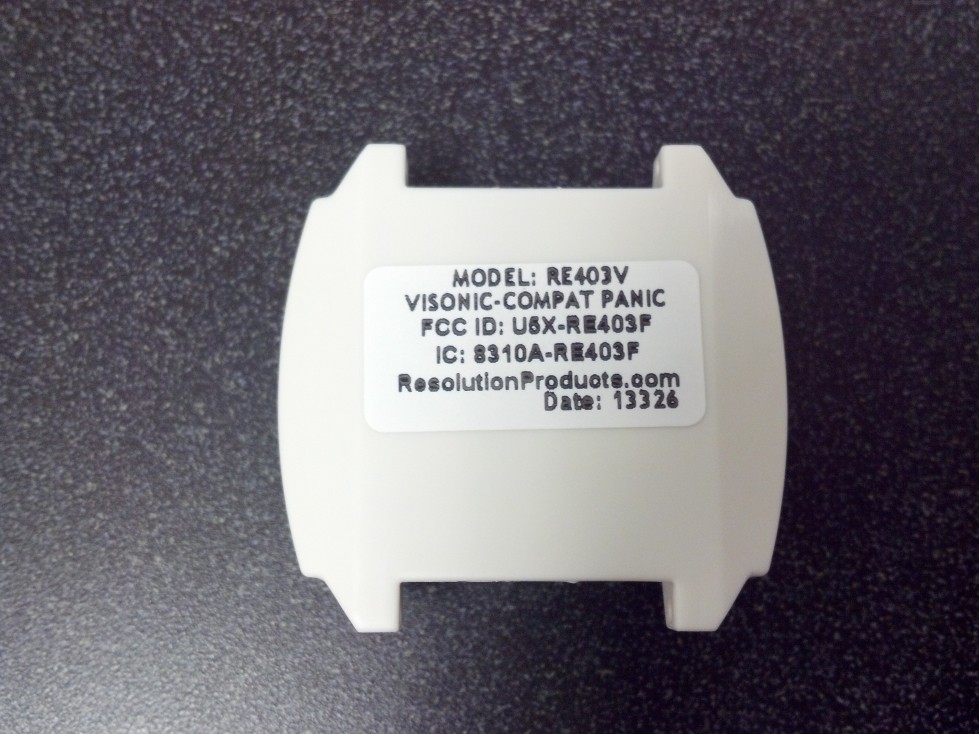

Exhibit B RE403 ID Label Photos

Exhibit C RE403 Internal Photos

Engineering Solutions & Electromagnetic Compatibility Services 360 Herndon Pkwy | Suite 1400 | Herndon | Virginia 20170 Phone: 703.689.0368 | Fax: 703.689.2056 | www.rheintech.com FCC Part 15.231 Test Data EUT: 56-0005-04 Rev F01 315 MHz Wrist Panic for Resolution Engineering, Inc. 1402 Heggen Street Hudson, WI 54016 Contact: Josh Gathje Testing Conducted By Rhein Tech Laboratories, Inc. 360 Herndon Parkway, Suite 1400 Herndon, VA 20170 RTL Test Engineer: Dan Baltzell RTL Project/Report Number: 2014029 February 18, 2014 This report may not be reproduced, except in full, without the full written approval of Rhein Tech Laboratories, Inc. and Resolution Engineering. Test results relate only to the item tested. These tests are accredited and meet the requirements of ISO/IEC 17025 as verified by ANSI-ASQ National Accreditation Board/ACLASS. Refer to certificate and scope of accreditation AT-1445. Rhein Tech Laboratories, Inc. Client: Resolution Engineering 360 Herndon Parkway, Suite 1400 EUT: 56-0005-04 Rev F01 315 MHz Wrist Panic Herndon, VA 20170 Standards: FCC Parts 2, 15 http://www.rheintech.com Report #: 2014029 2 of 5 Testing Represented in Report The data and limits presented in this report are for radiated emissions per 15.231(b)(2) which references 15.35(b), and peak limiting for restricted bands per 15.209(e), which again references 15.35(b)(2), as procured by Resolution Engineering. No average data is presented in this report. Data is also presented for spurious, non-harmonic radiated emissions per 15.209. The Equipment Under Test (EUT) was the 56- 0005-04 Rev F01 315 MHz Wrist Panic (RTL Bar Code 21110). 15.231 Radiated Emissions Test Data – FCC Limits/ 3m Distance Emission Test Antenna Analyzer Site Emission Pass/ Frequency Detector Polarity Reading Correction Level Limit Margin Fail (MHz) (H/V) (dBuV) Factor (dBuV/m) (dBuV/m) (dB) (dB/m) 315.0 Peak H 69.5 16.1 85.6 95.9 -10.3 Pass 630.0 Peak H 19.8 22.1 41.9 75.9 -34.0 Pass 945.0 Peak V 19.6 24.8 44.4 75.9 -31.5 Pass 1260.0 Peak* H 7.8 28.5 36.3 74.0 -37.7 Pass 1575.0 Peak H 13.6 29.5 43.1 74.0 -30.9 Pass 1890.0 Peak H 3.4 33.8 37.2 75.9 -38.7 Pass 2205.0 Peak H 65.3 -8.8 56.5 74.0 -17.5 Pass 2520.0 Peak V 45.3 -9.1 36.2 75.9 -39.7 Pass 2835.0 Peak H 57.2 -9.1 48.1 74.0 -25.9 Pass 3150.0 Peak V 54.0 -8.4 45.6 75.9 -30.3 Pass * IC restricted band Test Procedure Radiated fundamental and spurious emissions were tested at three meters. The EUT was tested in the three orthogonal planes with the receive antenna in both polarities. The emissions were maximized per ANSI C63.4:2003 8.3.1.2; that is, the measurement antenna height was varied between 1 and 4 m, and the EUT was rotated through 360° on a rotating turntable until the maximum emissions were found. Both horizontal and vertical measurement antenna polarizations were used. A resolution bandwidth of 100 kHz was used for frequencies less than 1000 MHz, and a resolution bandwidth of 1 MHz was used for frequencies greater than or equal to 1000 MHz. The video bandwidth was set to a value at least three times greater than the resolution bandwidth. EUT Disposition The EUT was adapted to continuously transmit for testing purposes. Rhein Tech Laboratories, Inc. Client: Resolution Engineering 360 Herndon Parkway, Suite 1400 EUT: 56-0005-04 Rev F01 315 MHz Wrist Panic Herndon, VA 20170 Standards: FCC Parts 2, 15 http://www.rheintech.com Report #: 2014029 3 of 5 Radiated Emissions Test Equipment Part Manufacturer Model Serial Number RTL Bar Code Calibration Due Date 901592 Insulated Wire Inc. KPS-1503- 3600-KPR SMK RF Cables 20’ NA 8/27/14 901593 Insulated Wire Inc. KPS-1503- 360-KPR SMK RF Cables 36” NA 8/27/14 900772 EMCO 3161-02 Horn Antenna 2 - 4 GHz 9804-1044 4/19/14 900932 Hewlett Packard 8449B OPT H02 Preamplifier 1-26.5 GHz 3008A00505 8/27/14 900791 Chase CBL6111B Bilog antenna (30 MHz – 2000 MHz) N/A 2/2/15 901581 Rohde & Schwarz FSU Spectrum Analyzer 1166.1660.50 11/13/14 Test Personnel: Dan Baltzell February 18, 2014 Test Engineer Signature Date of Test FCC/IC Cross Reference FCC 15.231(b)(2) RSS-210 Issue 8 A1.1 FCC 15.35(b) RSS-Gen Issue 3 7.2.3 FCC 15.205 RSS-Gen Issue 3 7.2.2 FCC 15.209 RSS-Gen Issue 3 7.2.5 Rhein Tech Laboratories, Inc. Client: Resolution Engineering 360 Herndon Parkway, Suite 1400 EUT: 56-0005-04 Rev F01 315 MHz Wrist Panic Herndon, VA 20170 Standards: FCC Parts 2, 15 http://www.rheintech.com Report #: 2014029 4 of 5 Test Configuration Photograph Radiated Emissions Rhein Tech Laboratories, Inc. Client: Resolution Engineering 360 Herndon Parkway, Suite 1400 EUT: 56-0005-04 Rev F01 315 MHz Wrist Panic Herndon, VA 20170 Standards: FCC Parts 2, 15 http://www.rheintech.com Report #: 2014029 5 of 5

Resolution Products, Inc. Wireless Panic Transmitter FCC ID: U5X-RE403F Certification Test Report March 14, 2014 U5X-RE403F Resolution Products, Inc.3/14/14Page 1 of 8 Test Report 1402 Heggen Street Hudson, WI 54016 Contents 1.Introduction..................................................................................................................................................................3 2.Statement of Compliance.............................................................................................................................................3 2.1.FCC Part 2 §2.907................................................................................................................................................3 2.2.FCC Part 2 §2.911.................................................................................................................................................3 2.3.FCC Part 2 §2.913................................................................................................................................................3 2.4.FCC Part 2 §2.915................................................................................................................................................3 2.5.FCC Part 2 §2.925................................................................................................................................................3 2.6.FCC Part 2 §2.943, 2.945.....................................................................................................................................3 2.7.FCC Part 2 §2.947................................................................................................................................................4 2.8.FCC Part 2 §2.948................................................................................................................................................4 2.9.FCC Part 2 §2.1033..............................................................................................................................................4 3.Discussion of Laboratory Measurements and Rules Compliance...............................................................................5 3.1.FCC Part 15 §15.231(a)(1)...................................................................................................................................5 3.2.FCC Part 15 §15.231(a)(3)...................................................................................................................................5 3.3.FCC Part 15 §15.231(a)(4)...................................................................................................................................6 3.4.FCC Part 15 §15.231(a)(5)...................................................................................................................................6 3.5.FCC Part 15 §15.231(b)........................................................................................................................................6 3.5.1.Raw Field Strength Limits.............................................................................................................................6 3.5.2.Duty Cycle Correction Factor and Resulting Limits.....................................................................................6 3.5.3.Measured Radiated Field Strength Data........................................................................................................7 3.6.FCC Part 15 §15.231(c)........................................................................................................................................8 U5X-RE403F Resolution Products, Inc.3/14/14Page 2 of 8 Test Report 1402 Heggen Street Hudson, WI 54016 1.Introduction The RE403V is a small keypad with a wireless transmitter. The device transmits a panic transmission to a security system. A PIC12LF1501 microcontroller monitors the key and transmits data packets when valid key presses are detected. The device is about the size of a wrist watch, measures approximately 1.5 x 1.25 x 0.5” and weights less than an ounce. The RE403V transmitter circuit consists of a 9.84375MHz crystal and a Micrel MICRF113YM6 PLL Chip. This chip multiplies the crystal frequency to 315MHz. It also includes a circuit that allows ASK modulation of the 315MHz signal. A printed antenna radiates the RF signal. Certification is requested under FCC Rules, Part 15, Subpart C, Paragraph 15.231. 2.Statement of Compliance Specific sections of FCC Rules Part 2 that require information or listing are given below. 2.1.FCC Part 2 §2.907 This is an application for certification of original equipment 2.2.FCC Part 2 §2.911 a)This application has been filed electronically using form 731. b)All required information has been supplied in this application and its attachments. c)This application has been electronically signed by an officer of Resolution Products, Inc. d)The technical test data has been signed by the agency performing the testing. e)Signature supplied in appropriate block on form 731. f)Processing fee has been paid. g)Signatures have been supplied electronically. 2.3.FCC Part 2 §2.913 a)This application has been filed electronically. b)Appropriate fees have been filed electronically. c)Equipment samples shall be supplied as requested. 2.4.FCC Part 2 §2.915 We are requesting a grant of certification. This application shows compliance with the technical standards. 2.5.FCC Part 2 §2.925 A label shall be affixed to each piece of equipment, showing the FCC identifier. The label shall read “FCC ID: U5X-RE403F”. See Exhibit B for a photograph showing the label and location on the device. 2.6.FCC Part 2 §2.943, 2.945 Sample production equipment shall be submitted to the FCC upon request. 2.7.FCC Part 2 §2.947 a)Measurement procedure follows ANSI C63.4: 2009. b)A description of utilized test equipment is contained in the report. 2.8.FCC Part 2 §2.948 Radiated measurements were taken at the following FCC-approved …

Text truncated - open the document above for the full version.

U5X-RE403F 8310A-RE403F Test Setup Photos
