U5X-RE603Wireless Panic Transmitter, 433MHz

Wireless Security Solutions RE603 CryptiX-Compatible Panic Features Portable device for emergency initiation of system. Single, red button with comfortable feel. Fully sealed, water resistant housing. Strong, reliable RF signal. “Heartbeat” LED blinks every minute to assure user. Comes with comfortable, elastic band for easy removability. 4-6 year battery life. Key Instructions Enrolling: Refer to the ResolutionProducts control unit installation manual. Put the control panel in RF Learning mode. Once panel is in RF learning mode, press the red button on the panic sensor. Panel will show ID of sensor if successful enrollment Operation User presses button in emergency. Unit will send low battery signals. Unit sends supervisory signals hourly. Page 1 of 2 24-Hour Tech Support Line: (715)808-0164 www.ResolutionProducts.com Red button is Loop 1 Heartbeat LED blinks every 60 seconds Specifications Button Function: Press=alarm/enrollment, no release function Supervisory signals:sent every hour. Battery:Sealed in unit; not replaceable Water resistant:Not submersible, but tested to 1 meter depth Temperature Range:0F to 120F Housing dimensions:1.5x1.2x0.6 inches Specifications subject to change without notice. Notices Warranty Resolution Products, Inc. will replace products that are defective in their first two (2) years. FCC Notice This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: This device may not cause harmful interference. This device must accept any interference that may be received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the Resolution Products, Inc. could void the user's authority to operate this equipment. FCC ID: U5X-RE603 IC Notice This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: (1)This device may not cause interference, and (2)This device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1)l'appareil ne doit pas produire de brouillage, et (2)l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. IC: 8310A-RE603 Model: RE603 Page 2 of 2 24-Hour Tech Support Line: (715)808-0164 www.ResolutionProducts.com

June 20th, 2014 RE: Confidentiality Request for U5X-RE603/8310A-RE603 To Whom It May Concern: Pursuant to FCC 47 CRF 0.457(d) and 0.459 and IC RSP-100, Section 10, the applicant requests that a part of the subject FCC application be held confidential. Type of Confidentiality RequestedExhibit Short Term PermanentBlock Diagrams Short TermExternal Photos Short Term Permanent* 1 Internal Photos Short Term PermanentOperation Description/Theory of Operation Short Term PermanentParts List & Placement/BOM Short Term PermanentTune-Up Procedure Short Term PermanentSchematics Short TermTest Setup Photos Short Term Permanent*User’s Manual *Note: ______(Insert Explanation as Necessary)______ Resolution Products, Inc. has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. Permanent Confidentiality: The applicant requests the exhibits listed above as permanently confidential be permanently withheld from public review due to materials that contain trade secrets and proprietary information not customarily released to the public. Short-Term Confidentiality: The applicant requests the exhibits selected above as short term confidential be withheld from public view for a period of ___(specify number of days not to exceed 180 ) 2 ___ days from the date of the Grant of Equipment Authorization and prior to marketing. This is to avoid premature release of sensitive information prior to marketing or release of the 1 - The asterisked items (*) require further justification before permanent confidentiality will be allowed. These also currently require review by the FCC under their Permit-But-Ask policy before the grant is issued and can delay completion of an application. Further justification should be added to the note above. One such example for a potted device would be: “The EUT is FULLY potted using a non-removable epoxy based material. Removal of potting material causes irreparable damage to internal circuitry. See photographs exhibits that outline the device before and after potting.” 2 - Please refer to http://atcb.com/publicdocs/Memo-Short-Term-Vs-Standard-Confidentiality.pdf for complete details. product to the public. Applicant is also aware that they are responsible to notify ACB in the event information regarding the product or the product is made available to the public. ACB will then release the documents listed above for public disclosure pursuant to FCC Public Notice DA 04-1705. NOTE for Industry Canada Applications: The applicant understands that until such time that IC distinguishes between Short Term and Permanent Confidentiality, either type of marked exhibit above will simply be marked Confidential when submitted to IC. Sincerely, By:__________________________ Paul Saldin, Vice President (Signature/Title 3 )(Print name) 3 - Must be signed by applicant contact given for applicant on the FCC site, or by the authorized agent if an appropriate authorized agent letter has been provided. Letters should be placed on appropriate letterhead.

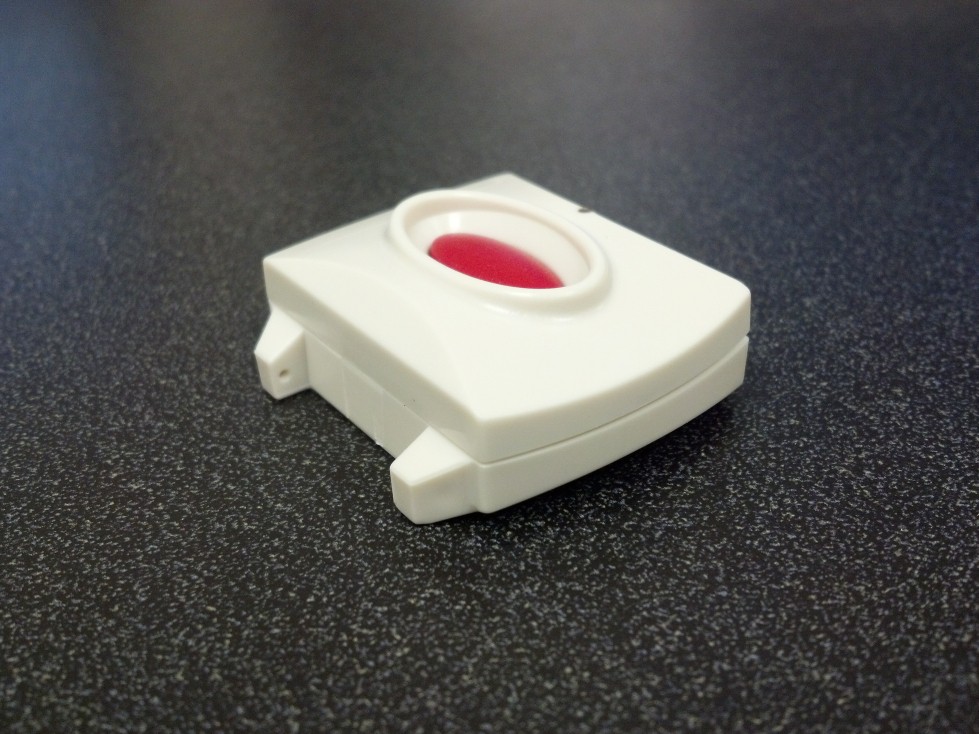

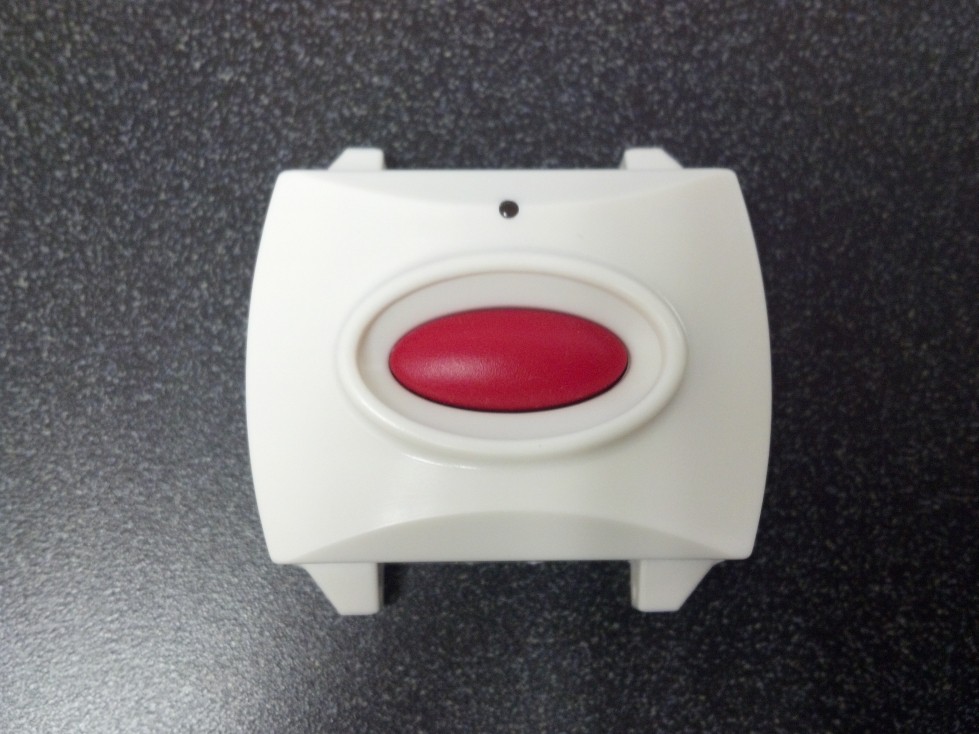

Exhibit A RE603 External Photos

Exhibit B RE603 ID Label Photos

Exhibit C RE603 Internal Photos

Engineering Solutions & Electromagnetic Compatibility Services 360 Herndon Pkwy | Suite 1400 | Herndon | Virginia 20170 Phone: 703.689.0368 | Fax: 703.689.2056 | www.rheintech.com FCC Part 15.231 Test Data EUT: 56-0005-03 Rev F00 433.92 MHz Wrist Panic for Resolution Engineering, Inc. 226 Locust Street, Suite 4 Hudson, WI 54016 Contact: Josh Gathje Testing Conducted By Rhein Tech Laboratories, Inc. 360 Herndon Parkway, Suite 1400 Herndon, VA 20170 RTL Test Engineer: Jon Wilson RTL Project/Report Number: 2013187 August 28, 2013 This report may not be reproduced, except in full, without the full written approval of Rhein Tech Laboratories, Inc. and Resolution Engineering. Test results relate only to the item tested. These tests are accredited and meet the requirements of ISO/IEC 17025 as verified by ANSI-ASQ National Accreditation Board/ACLASS. Refer to certificate and scope of accreditation AT-1445. Rhein Tech Laboratories, Inc. Client: Resolution Engineering 360 Herndon Parkway, Suite 1400 EUT: 56-0005-03 Rev F00 Herndon, VA 20170 Standards: FCC Parts 2, 15 http://www.rheintech.com Report #: 2013187 2 of 6 Testing Represented in Report The data and limits presented in this report are for peak emissions limiting per 15.231(b)(2) which references 15.35(b), and peak limiting for restricted bands per 15.209(e), which again references 15.35(b)(2), as procured by Resolution Engineering. No average data is presented in this report. The Equipment Under Test (EUT) was the 56-0005-03 Rev F00 (RTL Bar Code 21092). 15.231 Radiated Emissions Test Data – FCC Limits / 3m Distance Emission Frequency (MHz) Test Detector Antenna Polarity (H/V) Analyzer Reading (dBuV) Site Correction Factor (dB/m) Emission Level (dBuV/m) Limit (dBuV/m) Margin (dB) Pass/ Fail 433.920 Peak V 69.4 29.6 99.0 100.8 -1.8 Pass 867.840 Peak V 56.7 -4.4 52.3 80.8 -28.5 Pass 1301.763 Peak V 40.4 0.9 41.3 74.0 -32.7 Pass 1735.688 Peak H 44.6 2.8 47.4 80.8 -33.4 Pass 2169.590 Peak V 70.2 -18.7 51.5 80.8 -29.3 Pass 2603.510 Peak V 65.9 -18.5 47.4 80.8 -33.4 Pass 3037.430 Peak H 58.8 -18.6 40.2 80.8 -40.6 Pass 3471.350 Peak H 58.8 -17.2 41.6 80.8 -39.2 Pass 3905.270 Peak V 61.8 -16.8 45.0 74.0 -29.0 Pass 4339.190 Peak H 48.2 -11.2 37.0 74.0 -37.0 Pass * all spurious emissions in the applicable frequency range were investigated, only harmonic emissions were present as noted above Test Procedure Radiated fundamental and spurious emissions were tested at three meters. The EUT was tested in the three orthogonal planes with the receive antenna in both polarities. The emissions were maximized per ANSI C63.4:2003 8.3.1.2; that is, the measurement antenna height was varied between 1 and 4 m, and the EUT was rotated through 360° on a rotating turntable until the maximum emissions were found. Both horizontal and vertical measurement antenna polarizations were used. A resolution bandwidth of 100 kHz was used for frequencies less than 1000 MHz, and a resolution bandwidth of 1 MHz was used for frequencies greater than or equal to 1000 MHz. The video bandwidth was set to a value at least three times greater than the resolution bandwidth. EUT Disposition The EUT was adapted to continuously transmit for testing purposes. Rhein Tech Laboratories, Inc. Client: Resolution Engineering 360 Herndon Parkway, Suite 1400 EUT: 56-0005-03 Rev F00 Herndon, VA 20170 Standards: FCC Parts 2, 15 http://www.rheintech.com Report #: 2013187 3 of 6 Radiated Emissions Test Equipment Part Manufacturer Model Serial Number RTL Bar Code Calibration Due Date Amplifier (20 MHz-2 GHz) Rhein Tech Laboratories, Inc. PR-1040 900905 900905 8/20/14 Bilog Periodic Antenna (25 MHz-2 GHz) Schaffner Chase CBL6112 2099 900791 2/2/14 EMI Receiver RF Section (9 kHz-6.5 GHz) Hewlett Packard 85462A 3325A00159 900913 9/20/13 RF Filter Section (100 kHz-6.5 GHz) Hewlett Packard 85460A 3330A00107 900914 9/20/13 Spectrum Analyzer Hewlett Packard 8596EM 3826A00144 901215 3/15/14 Amplifier (1 GHz–26.0 GHz) Rhein Tech Laboratories, Inc. PR-1042 N/A 901364 9/28/13 Horn Antenna (2.0-4.0 GHz) EMCO 3161-02 9804-1044 900772 4/20/15 Emissions Testing Software Rhein Tech Laboratories, Inc. Automated Emission Tester Rev. 14.0.2 N/A N/A Test Personnel: Jon Wilson August 23, 2013 Test Engineer Signature Date of Test FCC/IC Cross Reference FCC 15.231(b)(2) RSS-210 Issue 8 A1.1 FCC 15.35(b) RSS-Gen Issue 3 7.2.3 FCC 15.205 RSS-Gen Issue 3 7.2.2 FCC 15.209 RSS-Gen Issue 3 7.2.5 Rhein Tech Laboratories, Inc. Client: Resolution Engineering 360 Herndon Parkway, Suite 1400 EUT: 56-0005-03 Rev F00 Herndon, VA 20170 Standards: FCC Parts 2, 15 http://www.rheintech.com Report #: 2013187 4 of 6 Test Configuration Photographs Radiated Emissions Rhein Tech Laboratories, Inc. Client: Resolution Engineering 360 Herndon Parkway, Suite 1400 EUT: 56-0005-03 Rev F00 Herndon, VA 20170 Standards: FCC Parts 2, 15 http://www.rheintech.com Report #: 2013187 5 of 6 Rhein Tech Laboratories, Inc. Client: Resolution Engineering 360 Herndon Parkway, Suite 1400 EUT: 56-0005-03 Rev F00 Herndon, VA 20170 Standards: FCC Parts 2, 15 http://www.rheintech.com Report #: 2013187 6 of 6 EUT Photograph

Resolution Products, Inc. Wireless Panic Transmitter FCC ID: U5X-RE603 Certification Test Report June 20, 2014 U5X-RE603 Resolution Products, Inc.6/20/14Page 1 of 8 Test Report 1402 Heggen Street Hudson, WI 54016 Contents 1.Introduction..................................................................................................................................................................3 2.Statement of Compliance.............................................................................................................................................3 2.1.FCC Part 2 §2.907................................................................................................................................................3 2.2.FCC Part 2 §2.911.................................................................................................................................................3 2.3.FCC Part 2 §2.913................................................................................................................................................3 2.4.FCC Part 2 §2.915................................................................................................................................................3 2.5.FCC Part 2 §2.925................................................................................................................................................3 2.6.FCC Part 2 §2.943, 2.945.....................................................................................................................................3 2.7.FCC Part 2 §2.947................................................................................................................................................4 2.8.FCC Part 2 §2.948................................................................................................................................................4 2.9.FCC Part 2 §2.1033..............................................................................................................................................4 3.Discussion of Laboratory Measurements and Rules Compliance...............................................................................5 3.1.FCC Part 15 §15.231(a)(1)...................................................................................................................................5 3.2.FCC Part 15 §15.231(a)(3)...................................................................................................................................5 3.3.FCC Part 15 §15.231(a)(4)...................................................................................................................................6 3.4.FCC Part 15 §15.231(a)(5)...................................................................................................................................6 3.5.FCC Part 15 §15.231(b)........................................................................................................................................6 3.5.1.Raw Field Strength Limits.............................................................................................................................6 3.5.2.Duty Cycle Correction Factor and Resulting Limits.....................................................................................6 3.5.3.Measured Radiated Field Strength Data........................................................................................................7 3.6.FCC Part 15 §15.231(c)........................................................................................................................................8 U5X-RE603 Resolution Products, Inc.6/20/14Page 2 of 8 Test Report 1402 Heggen Street Hudson, WI 54016 1.Introduction The RE603 is a small device with single button and a wireless transmitter. The device transmits a panic transmission to a security system. A PIC12LF1572 microcontroller monitors the button and transmits alarm data packets when button presses are detected. The device is about the size of a wrist watch, measures approximately 1.5 x 1.25 x 0.5” and weights less than an ounce. The RE603 transmitter circuit consists of a 13.225MHz crystal and a Micrel MICRF113YM6 PLL Chip. This chip multiplies the crystal frequency to 433.92MHz. It also includes a circuit that allows ASK modulation of the 433.92MHz signal. A printed antenna radiates the RF signal. Certification is requested under FCC Rules, Part 15, Subpart C, Paragraph 15.231. 2.Statement of Compliance Specific sections of FCC Rules Part 2 that require information or listing are given below. 2.1.FCC Part 2 §2.907 This is an application for certification of original equipment 2.2.FCC Part 2 §2.911 a)This application has been filed electronically using form 731. b)All required information has been supplied in this application and its attachments. c)This application has been electronically signed by an officer of Resolution Products, Inc. d)The technical test data has been signed by the agency performing the testing. e)Signature supplied in appropriate block on form 731. f)Processing fee has been paid. g)Signatures have been supplied electronically. 2.3.FCC Part 2 §2.913 a)This application has been filed electronically. b)Appropriate fees have been filed electronically. c)Equipment samples shall be supplied as requested. 2.4.FCC Part 2 §2.915 We are requesting a grant of certification. This application shows compliance with the technical standards. 2.5.FCC Part 2 §2.925 A label shall be affixed to each piece of equipment, showing the FCC identifier. The label shall read “FCC ID: U5X-RE603”. See Exhibit B for a photograph showing the label and location on the device. 2.6.FCC Part 2 §2.943, 2.945 Sample production equipment shall be submitted to the FCC upon request. 2.7.FCC Part 2 §2.947 a)Measurement procedure follows ANSI C63.4: 2009. b)A description of utilized test equipment is contained in the report. 2.8.FCC Part 2 §2.948 Radiated measurements were taken at the f…

Text truncated - open the document above for the full version.

U5X-RE603 8310A-RE603 Test Setup Photos
