U5X-RE6100Wireless Security Panel

RE6100 Communicator Features Main communicator hub in system Receives and processes data from Resolution narrow-band and Bluetooth LE sensors Communicates to server over IP link Standard ethernet port Optional WiFi or Cellular communication options 24 hour battery backup Wall mount and shelf/desk bracket option LED Status available on front panel Operation The RE6100-P is a hardened, battery-backed unit that serves as the main communication hub of the system. It receives and intelligently processes Resolution sensor data. The aggregated sensor data is then communicated to the Server over an ethernet, WiFi, or cellular data link. RE6100 Manual.docPage 1 of 517-Dec-14 www.ResolutionProducts.com Back Panel Factory Default Button Press and hold for 5 seconds: Resets the board and keeps all settings Press and hold for 10 seconds: Reverts board back to the factory default settings RE6100 Manual.docPage 2 of 517-Dec-14 www.ResolutionProducts.com Factory Default Button Screw Closure Power Connector Ethernet Connector Front Panel LEDsIndication PowerON when the unit is powered and running CommON when communications interface is connected (IP address assigned for WiFi/Ethernet, or connected to GSM network for GSM) CSUnused (off) PlatformON when connected to Server StatusUnused (off) TroubleUnused (off) RFFlashes for every wireless packet received OpenUnused (off) RE6100 Manual.docPage 3 of 517-Dec-14 www.ResolutionProducts.com Power Comm CS Platform Status Trouble RF Open Specifications Current Draw:120 mA Nominal Temperature Range:0F to 120F Power Supply12VDC, 1A Battery6.0V NiMH Rechargeable Battery Life24 hours Ethernet 10/100Base-T WiFi802.11b/g with WPS Support Cellular3G CDMA 1xRTT Narrow-Band Receiver433.92MHz,150kHz BW, Spatial Diversity Nominal NB Sensor Range600m Bluetooth ModeBluetooth Smart/LE, Spatial Diversity Nominal Bluetooth Range100m Specifications subject to change without notice. Notices Warranty Resolution Products, Inc. will replace products that are defective in their first five (5) years. FCC Notice This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference. (2)This device must accept any interference that may be received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the Resolution Engineering, Inc. could void the user's authority to operate this equipment. FCC ID: U5X-RE6100 Device may contain one or more of the following: FCC ID: W7OMRF24WG0MAMB FCC ID: RI7CE910-DUAL FCC ID: QISMU509C FCC ID: U5X-RE934Z When using one or more of these options, a distance of 20cm to the user should always be maintained. IC Notice This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: (1)This device may not cause interference, and (2)This device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1)l'appareil ne doit pas produire de brouillage, et (2)l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, RE6100 Manual.docPage 4 of 517-Dec-14 www.ResolutionProducts.com même si le brouillage est susceptible d'en compromettre le fonctionnement. Model: RE6100 IC: 8310A-RE6100 Device may contain one or more of the following: IC: 7693A-24WG0MAMB IC: 5131A-CE910DUAL IC: 6369A-MU509C IC: 8310A-RE934Z When using one or more of these options, a distance of 20cm to the user should always be maintained. RE6100 Manual.docPage 5 of 517-Dec-14 www.ResolutionProducts.com

Engineering Solutions & Electromagnetic Compatibility Services 360 Herndon Pkwy | Suite 1400 | Herndon | Virginia 20170 Phone: 703.689.0368 | Fax: 703.689.2056 | www.rheintech.com December 17, 2014 Resolution Engineering, Inc. 1402 Heggen Street Hudson, WI 54016 ATTESTATION: I attest that the following units were tested for co-location and no issues were found. Per FCC guidance, no data is being reported. FCC ID: U5X-RE6100 FCC ID: W7OMRF24WG0MAMB FCC ID: RI7CE910-DUAL FCC ID: QISMU509C FCC ID: U5X-RE934Z Sincerely, Richard B. McMurray, P.E.

December 3rd, 2014 RE: Confidentiality Request for U5X-RE6100/8310A-RE6100 To Whom It May Concern: Pursuant to FCC 47 CRF 0.457(d) and 0.459 and IC RSP-100, Section 10, the applicant requests that a part of the subject FCC application be held confidential. Type of Confidentiality RequestedExhibit Short Term PermanentBlock Diagrams Short TermExternal Photos Short Term Permanent* 1 Internal Photos Short Term PermanentOperation Description/Theory of Operation Short Term PermanentParts List & Placement/BOM Short Term PermanentTune-Up Procedure Short Term PermanentSchematics Short TermTest Setup Photos Short Term Permanent*User’s Manual *Note: ______(Insert Explanation as Necessary)______ Resolution Products, Inc. has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. Permanent Confidentiality: The applicant requests the exhibits listed above as permanently confidential be permanently withheld from public review due to materials that contain trade secrets and proprietary information not customarily released to the public. Short-Term Confidentiality: The applicant requests the exhibits selected above as short term confidential be withheld from public view for a period of ___(specify number of days not to exceed 180) 2 ___ days from the date of the Grant of Equipment Authorization and prior to marketing. This is to avoid premature release of sensitive information prior to marketing or release of the 1 - The asterisked items (*) require further justification before permanent confidentiality will be allowed. These also currently require review by the FCC under their Permit-But-Ask policy before the grant is issued and can delay completion of an application. Further justification should be added to the note above. One such example for a potted device would be: “The EUT is FULLY potted using a non-removable epoxy based material. Removal of potting material causes irreparable damage to internal circuitry. See photographs exhibits that outline the device before and after potting.” 2 - Please refer to http://atcb.com/publicdocs/Memo-Short-Term-Vs-Standard-Confidentiality.pdf for complete details. product to the public. Applicant is also aware that they are responsible to notify ACB in the event information regarding the product or the product is made available to the public. ACB will then release the documents listed above for public disclosure pursuant to FCC Public Notice DA 04-1705. NOTE for Industry Canada Applications: The applicant understands that until such time that IC distinguishes between Short Term and Permanent Confidentiality, either type of marked exhibit above will simply be marked Confidential when submitted to IC. Sincerely, By:__________________________ Paul Saldin, Vice President (Signature/Title 3 )(Print name) 3 - Must be signed by applicant contact given for applicant on the FCC site, or by the authorized agent if an appropriate authorized agent letter has been provided. Letters should be placed on appropriate letterhead.

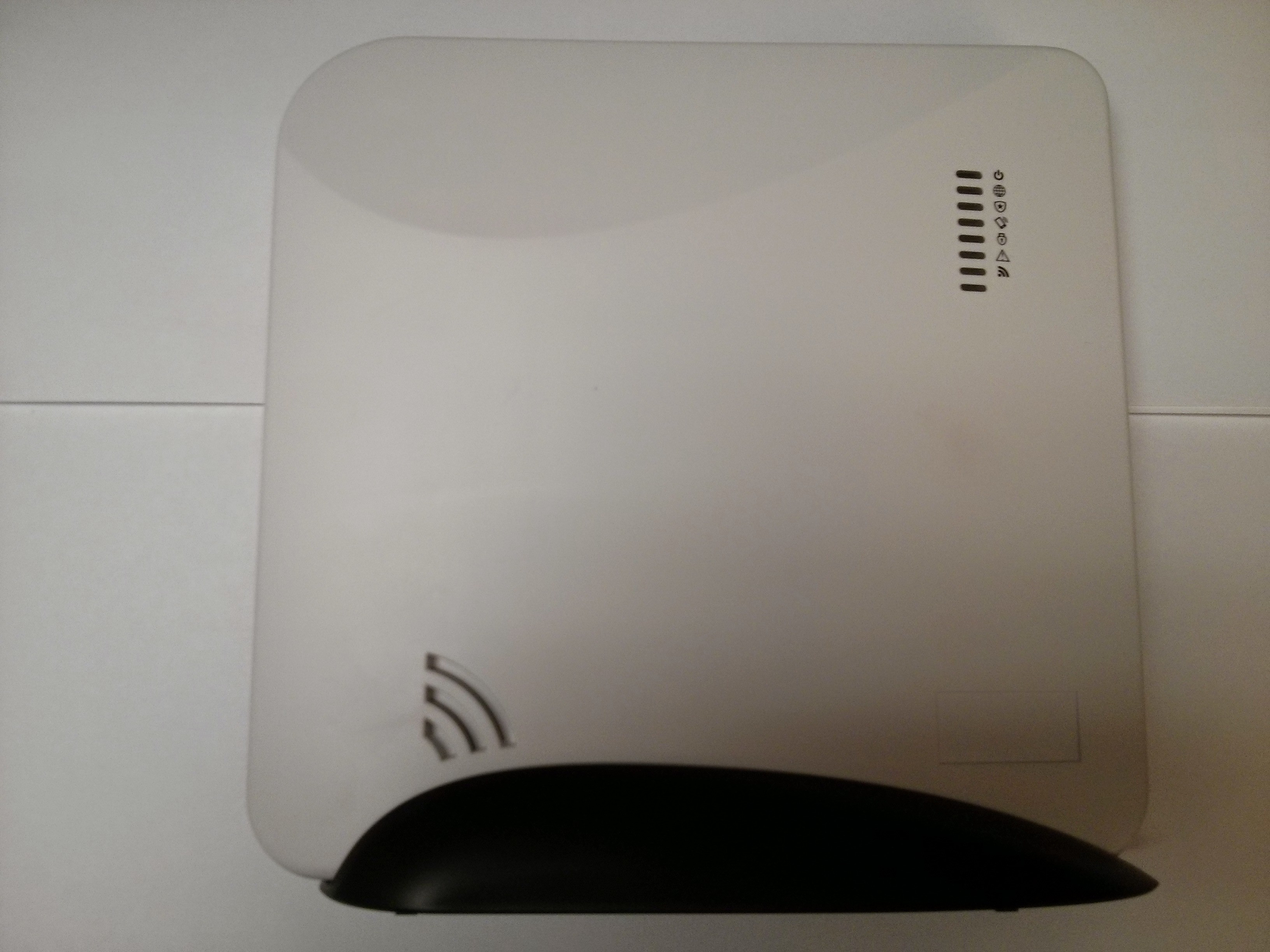

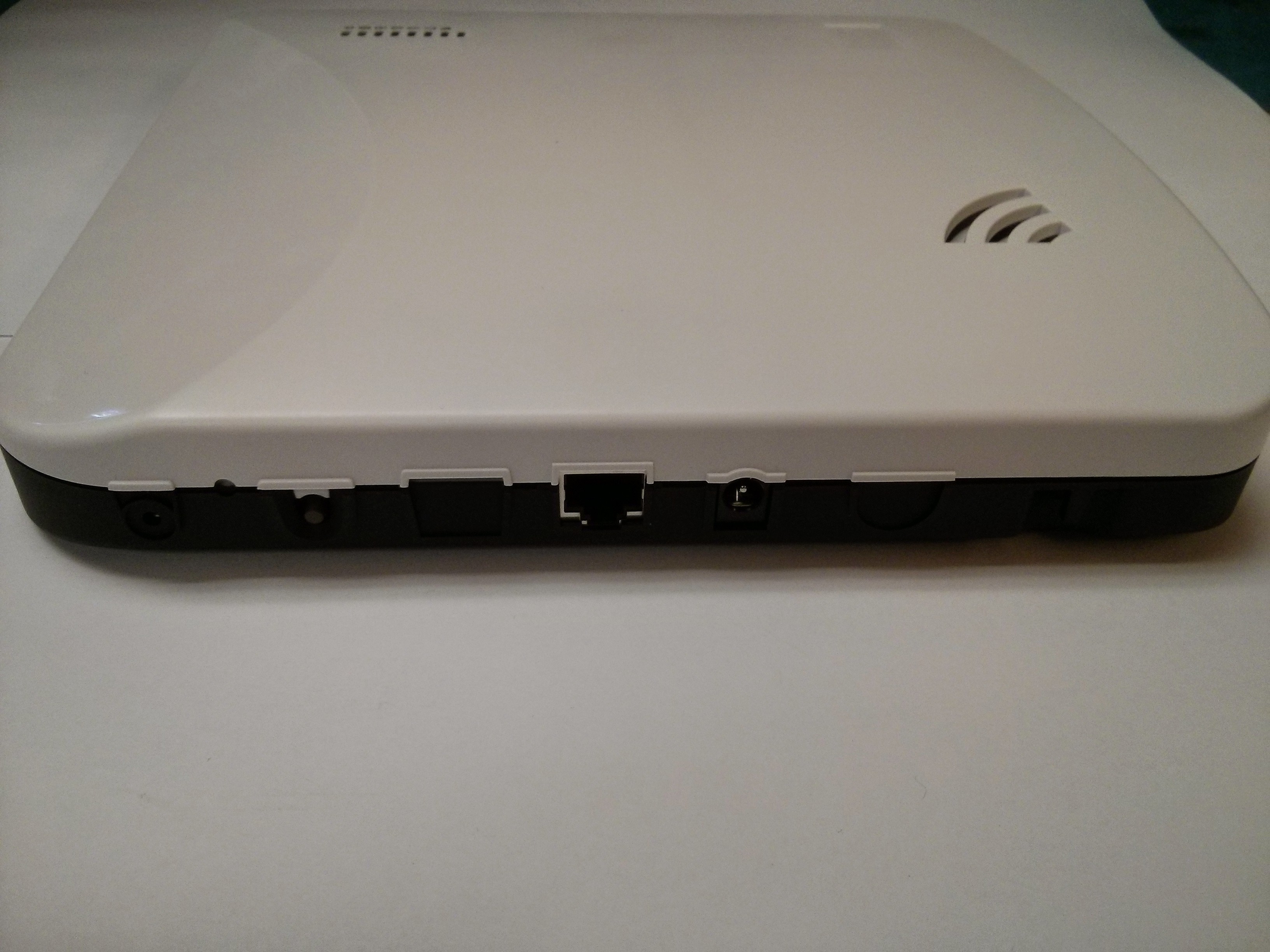

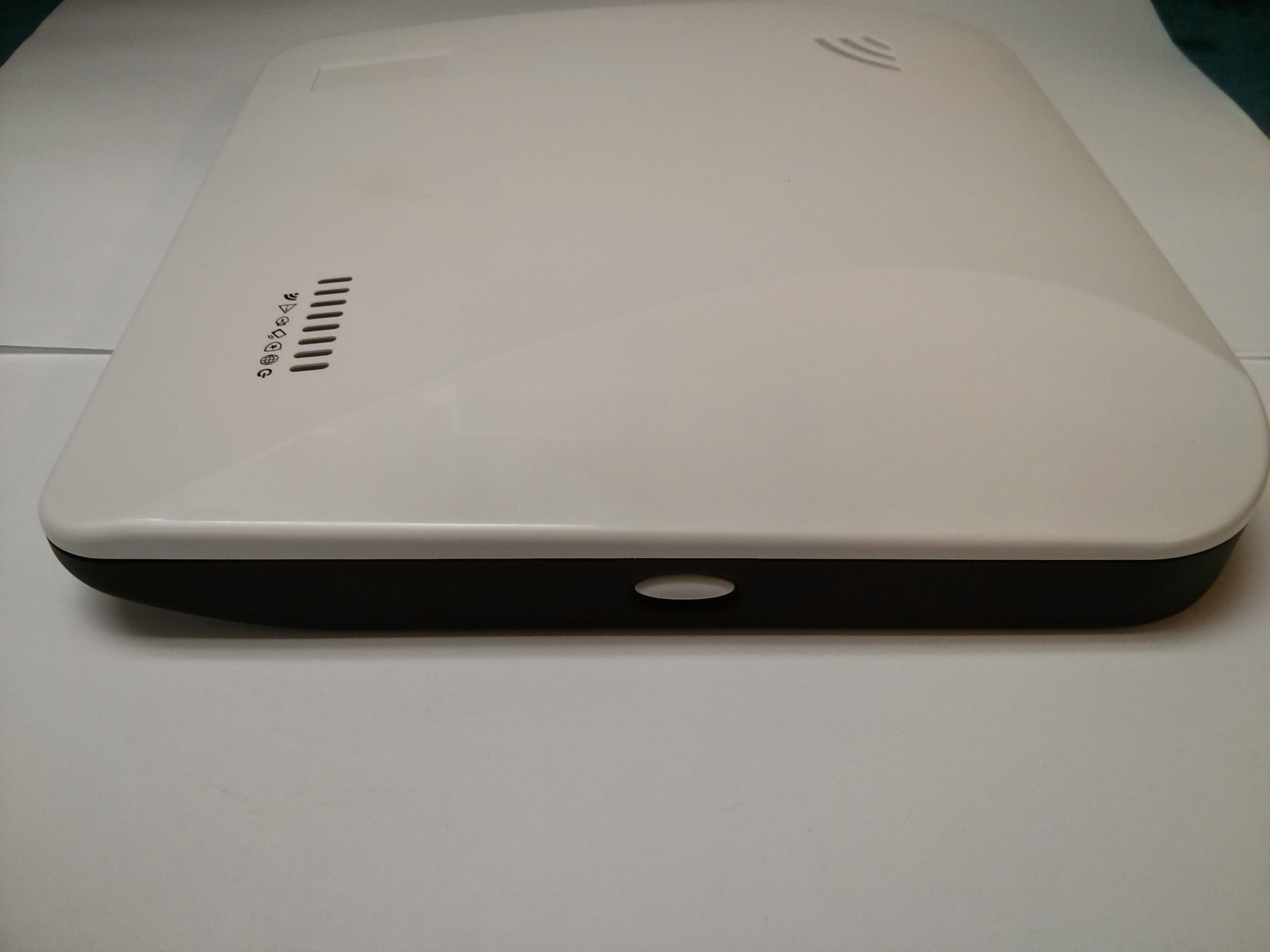

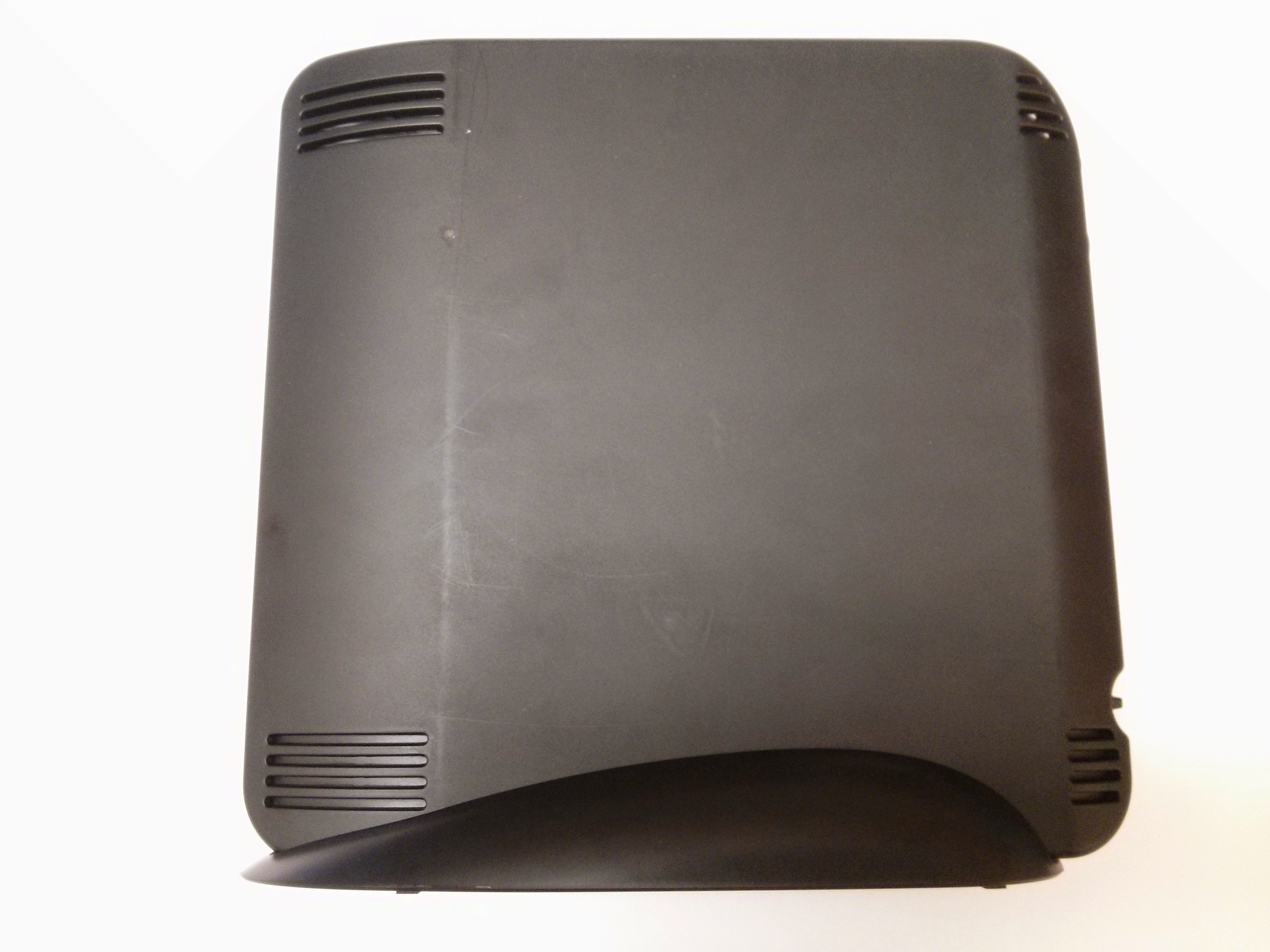

Exhibit A RE6100 External Photos

Exhibit B RE6100 ID Label Photos

Exhibit C RE6100 Internal Photos

Engineering Solutions & Electromagnetic Compatibility Services 360 Herndon Pkwy | Suite 1400 | Herndon | Virginia 20170 Phone: 703.689.0368 | Fax: 703.689.2056 | www.rheintech.com FCC Part 15.249 Test Data EUT: 2.4 GHz Panel 56-0053-00 Rev G01 for Resolution Engineering, Inc. 1402 Heggen Street Hudson, WI 54016 Contact: Jake Peterson Testing Conducted By Rhein Tech Laboratories, Inc. 360 Herndon Parkway, Suite 1400 Herndon, VA 20170 RTL Test Engineer: Jon Wilson RTL Project/Report Number: 2014154DTS September 2, 2014 This report may not be reproduced, except in full, without the full written approval of Rhein Tech Laboratories, Inc. and Resolution Engineering. Test results relate only to the item tested. These tests are accredited and meet the requirements of ISO/IEC 17025 as verified by ANSI-ASQ National Accreditation Board/ACLASS. Refer to certificate and scope of accreditation AT-1445. Rhein Tech Laboratories, Inc. Client: Resolution Engineering 360 Herndon Parkway, Suite 1400 EUT: 2.4 GHz Panel 56-0053-00 Rev G01 Herndon, VA 20170 Standards: FCC Parts 2, 15 http://www.rheintech.com Report #: 2014154DTS 2 of 18 Testing Represented in Report 15.249 The data and limits presented in this report are for radiated emissions per 15.249 which references 15.35(b), and peak limiting for restricted bands per 15.209(e), which again references 15.35(b)(2), as procured by Resolution Engineering. No average data is presented in this report. Data is also presented for spurious, non-harmonic radiated emissions per 15.209. 15.207 Unintentional digital emissions, mains conducted. The Equipment Under Test (EUT) was the 2.4 GHz Panel 56-0053-00 Rev G01 (RTL Bar Code 21477) with AC Adapter (RTL Bar Code 21476). 15.249 Radiated Emissions Test Data – FCC Limits/ 3m Distance Side Antenna, 2.4 GHz Emission Frequency (MHz) Test Detector Antenna Polarity (H/V) Analyzer Reading (dBuV Site Correction Factor (dB/m) Emission Level (dBuV/m) Limit (dBuV/m) Margin (dB) Pass/ Fail 2402.0 Peak H 82.2 26.0 108.2 114.0 -5.8 Pass 4804.0 Peak V 64.3 -0.3 64.0 74.0 -10.0 Pass 7206.0 Peak H 61.8 2.9 64.7 74.0 -9.3 Pass 12010.0 Peak H 53.6 10.0 63.6 74.0 -10.4 Pass 19216.0 Peak V 45.6 21.4 67.0 74.0 -7.0 Pass 21618.0 Peak V 44.9 22.6 67.5 74.0 -6.5 Pass 24020.0 Peak V 39.9 27.1 67.0 74.0 -7.0 Pass Bottom Antenna, 2.4 GHz Emission Frequency (MHz) Test Detector Antenna Polarity (H/V) Analyzer Reading (dBuV Site Correction Factor (dB/m) Emission Level (dBuV/m) Limit (dBuV/m) Margin (dB) Pass/ Fail 2402.0 Peak V 83.2 26.0 109.2 114.0 -4.8 Pass 4804.0 Peak V 63.3 -0.3 63.0 74.0 -11.0 Pass 7206.0 Peak V 60.3 2.9 63.2 74.0 -10.8 Pass 12010.0 Peak V 51.8 10.0 61.8 74.0 -12.2 Pass 19216.0 Peak H 45.7 21.4 67.1 74.0 -6.9 Pass 21618.0 Peak H 45.0 22.6 67.6 74.0 -6.4 Pass 24020.0 Peak V 40.0 27.1 67.1 74.0 -6.9 Pass Rhein Tech Laboratories, Inc. Client: Resolution Engineering 360 Herndon Parkway, Suite 1400 EUT: 2.4 GHz Panel 56-0053-00 Rev G01 Herndon, VA 20170 Standards: FCC Parts 2, 15 http://www.rheintech.com Report #: 2014154DTS 3 of 18 Side Antenna, 2.44 GHz Emission Frequency (MHz) Test Detector Antenna Polarity (H/V) Analyzer Reading (dBuV Site Correction Factor (dB/m) Emission Level (dBuV/m) Limit (dBuV/m) Margin (dB) Pass/ Fail 2440.0 Peak H 82.1 26.0 108.1 114.0 -5.9 Pass 4880.0 Peak V 66.5 0.1 66.6 74.0 -7.4 Pass 7320.0 Peak H 61.3 2.9 64.2 74.0 -9.8 Pass 9760.0 Peak H 47.2 9.9 57.1 74.0 -16.9 Pass 12200.0 Peak H 49.7 10.2 59.9 74.0 -14.1 Pass 14640.0 Peak H 45.2 15.7 60.9 74.0 -13.1 Pass 17080.0 Peak V 46.1 18.2 64.3 74.0 -9.7 Pass 19520.0 Peak V 44.9 21.6 66.5 74.0 -7.5 Pass 21960.0 Peak V 43.8 23.9 67.7 74.0 -6.3 Pass 24400.0 Peak V 40.2 26.3 66.5 74.0 -7.5 Pass Bottom Antenna, 2.44 GHz Emission Frequency (MHz) Test Detector Antenna Polarity (H/V) Analyzer Reading (dBuV Site Correction Factor (dB/m) Emission Level (dBuV/m) Limit (dBuV/m) Margin (dB) Pass/ Fail 2440.0 Peak H 82.0 26.0 108.0 114.0 -6.0 Pass 4880.0 Peak V 66.7 0.1 66.8 74.0 -7.2 Pass 7320.0 Peak H 59.3 2.9 62.2 74.0 -11.8 Pass 9760.0 Peak H 48.2 9.9 58.1 74.0 -15.9 Pass 12200.0 Peak V 49.3 10.2 59.5 74.0 -14.5 Pass 14640.0 Peak V 45.3 15.7 61.0 74.0 -13.0 Pass 17080.0 Peak V 46.2 18.2 64.4 74.0 -9.6 Pass 19520.0 Peak H 45.3 21.6 66.9 74.0 -7.1 Pass 21960.0 Peak H 44.0 23.9 67.9 74.0 -6.1 Pass 24400.0 Peak H 40.1 26.3 66.4 74.0 -7.6 Pass Rhein Tech Laboratories, Inc. Client: Resolution Engineering 360 Herndon Parkway, Suite 1400 EUT: 2.4 GHz Panel 56-0053-00 Rev G01 Herndon, VA 20170 Standards: FCC Parts 2, 15 http://www.rheintech.com Report #: 2014154DTS 4 of 18 Side Antenna, 2.48 GHz Emission Frequency (MHz) Test Detector Antenna Polarity (H/V) Analyzer Reading (dBuV Site Correction Factor (dB/m) Emission Level (dBuV/m) Limit (dBuV/m) Margin (dB) Pass/ Fail 2480.0 Peak H 79.9 26.0 105.9 114.0 -8.1 Pass 4960.0 Peak V 61.7 0.0 61.7 74.0 -12.3 Pass 7440.0 Peak H 57.1 2.9 60.0 74.0 -14.0 Pass 9920.0 Peak V 46.5 9.0 55.5 74.0 -18.5 Pass 12400.0 Peak H 48.1 13.5 61.6 74.0 -12.4 Pass 14880.0 Peak H 44.0 15.8 59.8 74.0 -14.2 Pass 17360.0 Peak V 46.1 18.7 64.8 74.0 -9.2 Pass 19840.0 Peak V 45.3 21.9 67.2 74.0 -6.8 Pass 22320.0 Peak V 39.9 26.0 65.9 74.0 -8.1 Pass 24800.0 Peak H 40.1 27.6 67.7 74.0 -6.3 Pass Bottom Antenna, 2.48 GHz Emission Frequency (MHz) Test Detector Antenna Polarity (H/V) Analyzer Reading (dBuV Site Correction Factor (dB/m) Emission Level (dBuV/m) Limit (dBuV/m) Margin (dB) Pass/ Fail 2480.0 Peak H 81.2 26.0 107.2 114.0 -6.8 Pass 4960.0 Peak H 61.9 0.0 61.9 74.0 -12.1 Pass 7440.0 Peak H 55.7 2.9 58.6 74.0 -15.4 Pass 9920.0 Peak V 46.6 9.0 55.6 74.0 -18.4 Pass 12400.0 Peak H 48.3 13.5 61.8 74.0 -12.2 Pass 14880.0 Peak H 44.1 15.8 59.9 74.0 -14.1 Pass 17360.0 Peak H 46.2 18.7 64.9 74.0 -9.1 Pass 19840.0 Peak V 45.5 21.9 67.4 74.0 -6.6 Pass 22320.0 Peak V 40.1 26.0 66.1 74.0 -7.9 Pass 24800.0 Peak V 40.1 27.6 67.7 74.0 -6.3 Pass FCC/IC Cross Reference FCC 15.249 RSS-210 Issue 8 A2.9 FCC 15.35(b) RSS-Gen Issue 3 7.2.3 FCC 15.205 RSS-Gen Issue 3 7.2.2 F…

Text truncated - open the document above for the full version.

Resolution Products, Inc. Wireless Security Panel FCC ID: U5X-RE6100 Certification Test Report 15.249 Bluetooth LE December 3, 2014 U5X-RE6100 Resolution Products, Inc. 12/3/14Page 1 of 10 Test Report 1402 Heggen Street Hudson, WI 54016 Contents 1.Introduction..................................................................................................................................................................3 2.Statement of Compliance.............................................................................................................................................3 2.1.FCC Part 2 §2.907.................................................................................................................................................3 2.2.FCC Part 2 §2.911.................................................................................................................................................3 2.3.FCC Part 2 §2.913.................................................................................................................................................3 2.4.FCC Part 2 §2.915.................................................................................................................................................3 2.5.FCC Part 2 §2.925.................................................................................................................................................3 2.6.FCC Part 2 §2.943, 2.945.....................................................................................................................................3 2.7.FCC Part 2 §2.947.................................................................................................................................................4 2.8.FCC Part 2 §2.948.................................................................................................................................................4 2.9.FCC Part 2 §2.1033...............................................................................................................................................4 3.Discussion of Laboratory Measurements and Rules Compliance................................................................................5 3.1.FCC Part 15 §15.249(a) - Raw Field Strength Limits...........................................................................................5 3.2.FCC Part 15 §15.249(e) - Duty Cycle Correction and Resulting Limits..............................................................5 3.3.Measured Radiated Field Strength Data...............................................................................................................6 3.3.1.2402 MHz Channel Fundamental and Harmonics.........................................................................................6 3.3.2.2440 MHz Channel Fundamental and Harmonics.........................................................................................6 3.3.3.2480 MHz Channel Fundamental and Harmonics.........................................................................................6 3.4.FCC Part 15 §15.249(d) Non-harmonic Spurious Emissions...............................................................................7 3.4.1.2402 MHz Channel Band-Edge.....................................................................................................................7 3.4.2.2480 MHz Channel Band-Edge.....................................................................................................................9 3.5.FCC Part 15 §15.207..........................................................................................................................................10 U5X-RE6100 Resolution Products, Inc. 12/3/14Page 2 of 10 Test Report 1402 Heggen Street Hudson, WI 54016 1.Introduction The RE6100 is a wireless security system. The unit is powered by a 12VDC power supply and is backed up by a rechargeable NiMH battery. The device measures 8.8 x 8.9 x 2.8”. The device communicates to and from security devices at 433.92MHz. It also communicates with Bluetooth LE devices in the 2.4GHz band. This report pertains to the 2.4GHz Bluetooth LE transceiver. A separate report will cover the 433.92MHz transceiver. In addition to testing each radio independently, Co-location testing between the 433.92MHz and 2.4GHz radios was performed, and no further emissions were found. Certification is requested under FCC Rules, Part 15, Subpart C, Paragraph 15.249. Equipment class for this transceiver is DXX, Low Power Communication Device Transmitter. 2.Statement of Compliance Specific sections of FCC Rules Part 2 that require information or listing are given below. 2.1.FCC Part 2 §2.907 This is an application for certification of original equipment 2.2.FCC Part 2 §2.911 a)This application has been filed electronically using form 731. b)All required information has been supplied in this application and its attachments. c)This application has been electronically signed by an officer of Resolution Products, Inc. d)The technical test data has been signed by the agency performing the testing. e)Signature supplied in appropriate block on form 731. f)Processing fee has been paid. g)Signatures have been supplied electronically. 2.3.FCC Part 2 §2.913 a)This application has been filed electronically. b)Appropriate fees have been filed electronically. c)Equipment samples shall be supplied as requested. 2.4.FCC Part 2 §2.915 We are requesting a grant of certification. This application shows compliance with the technical standards. 2.5.FCC Part 2 §2.925 A label shall be affixed to each piece of equipment, showing the FCC identifier. The label shall read “FCC ID: U5X- RE6100”. See Exhibit B for a photograph showing the label and location on the device. 2.6.FCC Part 2 §2.943, 2.945 Sample production equipment shall be submitted to the FCC upon request. 2.7.FCC Part 2 §2.947 a)Measurement procedure follows ANSI C63.4: 2009. b)A description of utilized test equipmen…
