U5X-RE627Wireless NAPS Sleep Sensor

RE627 Wireless NAPS Sleep Sensor - BTLE Features: •Pairs exclusively with Resolution Products Helix Panel receiver. •Monitors patient's heart rate, breathing rate and restlessness through the provided pressure sensor placed under bed sheets, no electrodes required. •Wirelessly transmits patient's vitals to the Helix Panel receiver, then through the internet to a monitoring center server. •Screw on power supply cord and pressure sensor hose to protect against accidental damage or disconnection. Key Instructions: •Attached external supply, screw the power cord onto the NAPS sensor connector. •With the cover open, verify that the power LED starts to flash. •Put Helix receiver into enrollment mode, press the button on the NAPS sensor. ◦NAPS sensor says in enrollment mode for 15 seconds. •Attach/screw on the pressure sensor hose to the NAPS sensor. ◦Make the connection as finger tight as possible, however do not use tools as this may damage the hose connector. •Place pressure sensor on TOP of the mattress, but UNDER the sheets. Orient the pressure sensor perpendicularly to body, and position the sensor directly under chest plate, this will receive the best signal from the body. LED Operation (for troubleshooting): •Green power LED: ◦Normal operation, the led will toggle on and off every 2 seconds. ◦In enrollment mode, the led will toggle much faster, around every 1/4 th second. •Green and Red Heart rate LEDS: ◦Once heart rate has established, the green and red leds will briefly flash for every detected heart beat. If the heart beat is below 25bpm only the red led will flash with the heart beat, if above 100bpm, both red and green will flash. •Green and Red Breathing rate LEDS: ◦Once breathing rate has established, the green and red leds will briefly flash for every detected breath. If the breathing rate is below 6 breaths per minute, the red led will flash with the breathing, if above 30 breaths per minute, both red and green will flash. •If movement is detected, the heart rate and breathing rate green LEDs will turn on and stay on for as long as movement is detected. Wireless NAPS Sleephttp://resolutionproducts.com/Page 1 of 3 Sensor User Manual •After 5 seconds of no movement detected, the breathing rate and heart rate LEDs will turn to red for 5 second. •If still no movement is detected after another 5 seconds, the breathing rate and heart rate LEDs will flash yellow for 1 second to indicate all movement has stopped. The LEDs will then resume flashing for the breathing rate and heart rate measurements. Specifications: •External power supply: 6VDC. If using different supply, 100mA minimum required, and 6-12VDC will work. •Dimensions: 4 ¾” x 3 ¾” x 1” •Internal antennas •Bluetooth chip CC2541 Wireless NAPS Sleephttp://resolutionproducts.com/Page 2 of 3 Sensor User Manual Barrel power connector Enrollment button Cover latch Pressure sensor Hose connector Notices: FCC Notice This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference that may be received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the Resolution Engineering, Inc. or Lifeshield Inc. could void the user's authority to operate this equipment. FCC ID: U5X-RE627 Model: RE627 Wireless NAPS Sleephttp://resolutionproducts.com/Page 3 of 3 Sensor User Manual

September 10th, 2014 RE: Confidentiality Request for U5X-RE627 To Whom It May Concern: Pursuant to FCC 47 CRF 0.457(d) and 0.459 and IC RSP-100, Section 10, the applicant requests that a part of the subject FCC application be held confidential. Type of Confidentiality RequestedExhibit Short Term PermanentBlock Diagrams Short TermExternal Photos Short Term Permanent* 1 Internal Photos Short Term PermanentOperation Description/Theory of Operation Short Term PermanentParts List & Placement/BOM Short Term PermanentTune-Up Procedure Short Term PermanentSchematics Short TermTest Setup Photos Short Term Permanent*User’s Manual *Note: ______(Insert Explanation as Necessary)______ Resolution Products, Inc. has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. Permanent Confidentiality: The applicant requests the exhibits listed above as permanently confidential be permanently withheld from public review due to materials that contain trade secrets and proprietary information not customarily released to the public. Short-Term Confidentiality: The applicant requests the exhibits selected above as short term confidential be withheld from public view for a period of ___(specify number of days not to exceed 180 ) 2 ___ days from the date of the Grant of Equipment Authorization and prior to marketing. This is to avoid premature release of sensitive information prior to marketing or release of the 1 - The asterisked items (*) require further justification before permanent confidentiality will be allowed. These also currently require review by the FCC under their Permit-But-Ask policy before the grant is issued and can delay completion of an application. Further justification should be added to the note above. One such example for a potted device would be: “The EUT is FULLY potted using a non-removable epoxy based material. Removal of potting material causes irreparable damage to internal circuitry. See photographs exhibits that outline the device before and after potting.” 2 - Please refer to http://atcb.com/publicdocs/Memo-Short-Term-Vs-Standard-Confidentiality.pdf for complete details. product to the public. Applicant is also aware that they are responsible to notify ACB in the event information regarding the product or the product is made available to the public. ACB will then release the documents listed above for public disclosure pursuant to FCC Public Notice DA 04-1705. NOTE for Industry Canada Applications: The applicant understands that until such time that IC distinguishes between Short Term and Permanent Confidentiality, either type of marked exhibit above will simply be marked Confidential when submitted to IC. Sincerely, By:__________________________ Paul Saldin, Vice President (Signature/Title 3 )(Print name) 3 - Must be signed by applicant contact given for applicant on the FCC site, or by the authorized agent if an appropriate authorized agent letter has been provided. Letters should be placed on appropriate letterhead.

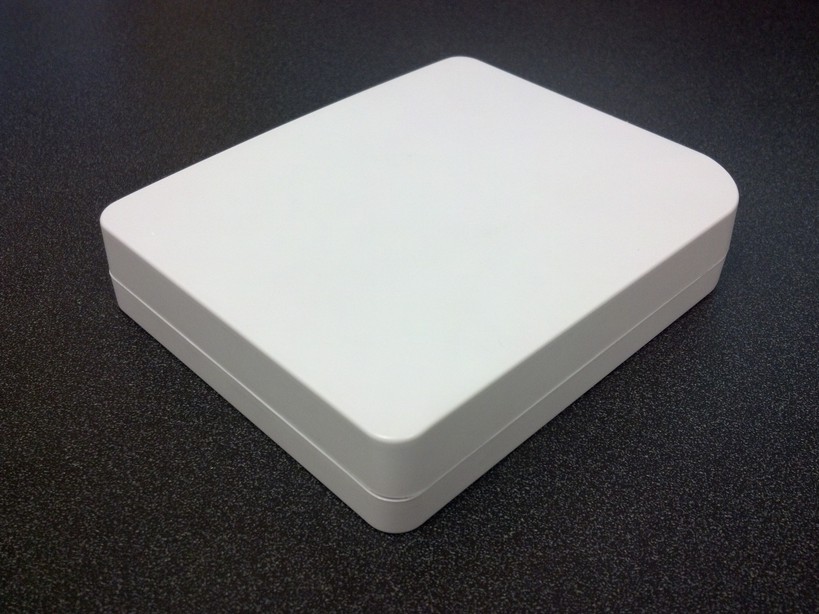

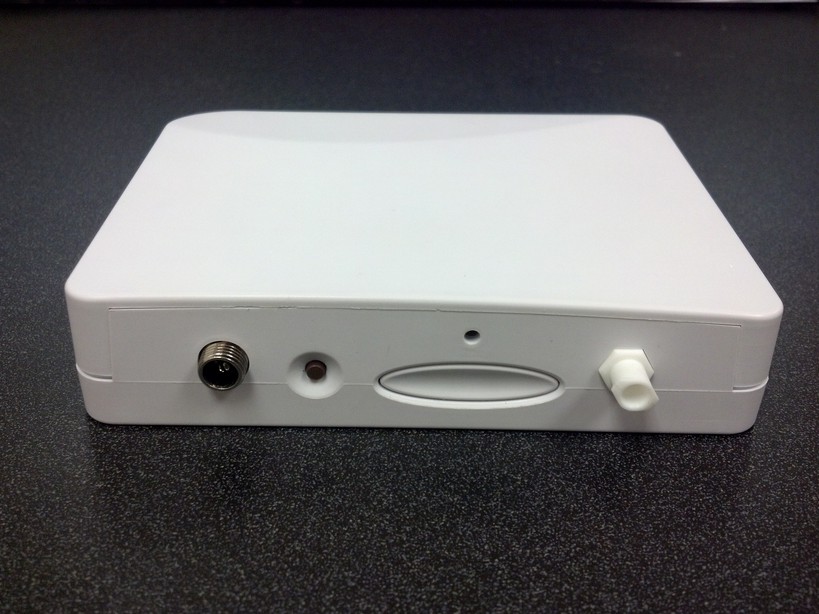

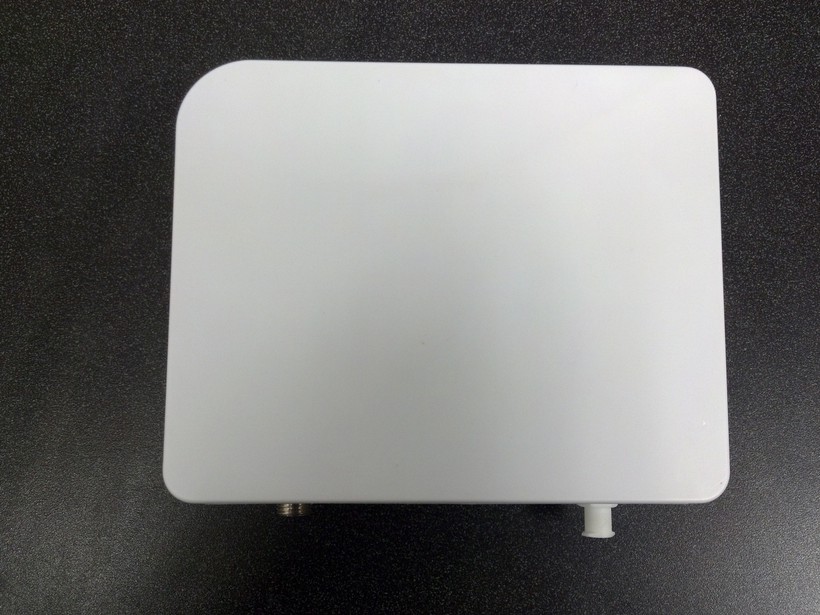

Exhibit A RE627 External Photos

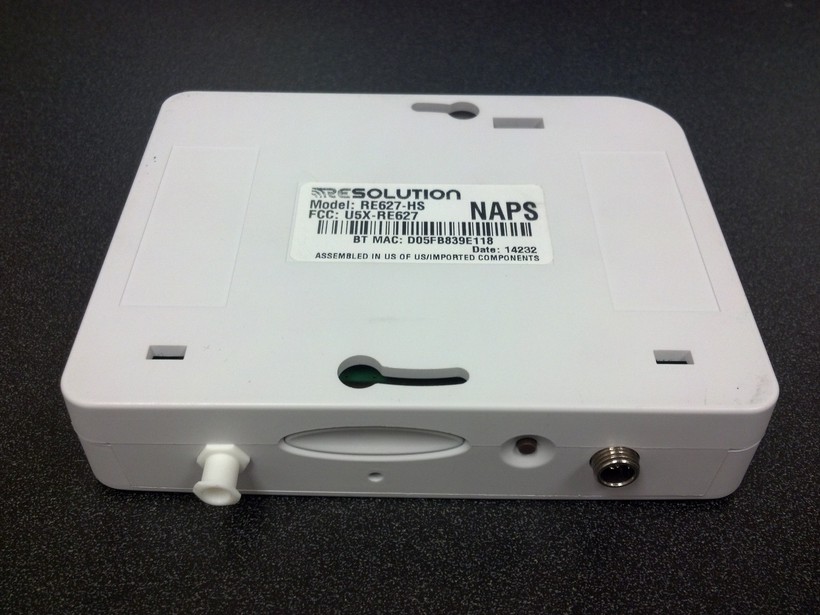

Exhibit B RE627 ID Label Photos

Exhibit C RE627 Internal Photos

Engineering Solutions & Electromagnetic Compatibility Services 360 Herndon Pkwy | Suite 1400 | Herndon | Virginia 20170 Phone: 703.689.0368 | Fax: 703.689.2056 | www.rheintech.com FCC Part 15.249 Test Data EUT: 2.4 GHz NAPs for Resolution Engineering, Inc. 1402 Heggen Street Hudson, WI 54016 Contact: Jake Peterson Testing Conducted By Rhein Tech Laboratories, Inc. 360 Herndon Parkway, Suite 1400 Herndon, VA 20170 RTL Test Engineer: Jon Wilson RTL Project/Report Number: 2014155 September 2, 2014 This report may not be reproduced, except in full, without the full written approval of Rhein Tech Laboratories, Inc. and Resolution Engineering. Test results relate only to the item tested. These tests are accredited and meet the requirements of ISO/IEC 17025 as verified by ANSI-ASQ National Accreditation Board/ACLASS. Refer to certificate and scope of accreditation AT-1445. Rhein Tech Laboratories, Inc. Client: Resolution Engineering 360 Herndon Parkway, Suite 1400 EUT: 2.4 GHz NAPs Herndon, VA 20170 Standards: FCC Parts 2, 15 http://www.rheintech.com Report #: 2014155 2 of 14 Testing Represented in Report 15.249 The data and limits presented in this report are for radiated emissions per 15.249 which references 15.35(b), and peak limiting for restricted bands per 15.209(e), which again references 15.35(b)(2), as procured by Resolution Engineering. No average data is presented in this report. Data is also presented for spurious, non-harmonic radiated emissions per 15.209. 15.207 Unintentional digital emissions, mains conducted. The Equipment Under Test (EUT) was the 2.4 GHz NAPs (RTL Bar Code 21480) with AC Adapter (RTL Bar Code 21479). 15.249 Radiated Emissions Test Data – FCC Limits/ 3m Distance 2.402 GHz Emission Frequency (MHz) Test Detector Antenna Polarity (H/V) Analyzer Reading (dBuV) Site Correction Factor (dB/m) Emission Level (dBuV/m) Limit (dBuV/m) Margin (dB) Pass/ Fail 2402.0 Peak V 68.1 26.0 94.1 114.0 -19.1 Pass 4804.0 Peak V 51.7 -0.3 51.4 74.0 -22.6 Pass 7206.0 Peak V 46.4 2.9 49.3 74.0 -24.7 Pass 9608.0 Peak H 46.7 10.7 57.4 74.0 -16.6 Pass 12010.0 Peak V 46.1 10.0 56.1 74.0 -17.9 Pass 14412.0 Peak V 45.7 15.7 61.4 74.0 -12.6 Pass 16814.0 Peak V 48.6 17.4 66.0 74.0 -8.0 Pass 19216.0 Peak H 43.6 21.4 65.0 74.0 -9.0 Pass 21618.0 Peak H 45.7 22.6 68.3 74.0 -5.7 Pass 24020.0 Peak V 39.8 27.1 66.9 74.0 -7.1 Pass Rhein Tech Laboratories, Inc. Client: Resolution Engineering 360 Herndon Parkway, Suite 1400 EUT: 2.4 GHz NAPs Herndon, VA 20170 Standards: FCC Parts 2, 15 http://www.rheintech.com Report #: 2014155 3 of 14 2.440 GHz Emission Frequency (MHz) Test Detector Antenna Polarity (H/V) Analyzer Reading (dBuV) Site Correction Factor (dB/m) Emission Level (dBuV/m) Limit (dBuV/m) Margin (dB) Pass/ Fail 2440.0 Peak H 70.5 26.0 96.5 114.0 -17.5 Pass 4880.0 Peak H 45.3 0.1 45.4 74.0 -28.6 Pass 7320.0 Peak H 45.6 2.9 48.5 74.0 -25.5 Pass 9760.0 Peak H 46.6 9.9 56.5 74.0 -17.5 Pass 12200.0 Peak V 46.0 10.2 56.2 74.0 -17.8 Pass 14640.0 Peak V 45.9 15.7 61.6 74.0 -12.4 Pass 17080.0 Peak H 48.0 18.2 66.2 74.0 -7.8 Pass 19520.0 Peak V 43.5 21.6 65.1 74.0 -8.9 Pass 21960.0 Peak V 45.3 23.9 69.2 74.0 -4.8 Pass 24400.0 Peak V 39.9 26.3 66.2 74.0 -7.8 Pass 2.480 GHz Emission Frequency (MHz) Test Detector Antenna Polarity (H/V) Analyzer Reading (dBuV) Site Correction Factor (dB/m) Emission Level (dBuV/m) Limit (dBuV/m) Margin (dB) Pass/ Fail 2480.0 Peak H 67.6 26.0 93.6 114.0 -20.4 Pass 4960.0 Peak H 50.7 0.0 50.7 74.0 -23.3 Pass 7440.0 Peak V 45.8 2.9 48.7 74.0 -25.3 Pass 9920.0 Peak V 46.5 9.0 55.5 74.0 -18.5 Pass 12400.0 Peak V 45.8 13.5 59.3 74.0 -14.7 Pass 14880.0 Peak V 45.7 15.8 61.5 74.0 -12.5 Pass 17360.0 Peak V 47.9 18.7 66.6 74.0 -7.4 Pass 19840.0 Peak H 43.6 21.9 65.5 74.0 -8.5 Pass 22320.0 Peak H 43.0 26.0 69.0 74.0 -5.0 Pass 24800.0 Peak H 39.9 27.6 67.5 74.0 -6.5 Pass Non-Harmonic Spurious Emissions Emission Frequency (MHz) Test Detector Antenna Polarity (H/V) Analyzer Reading (dBuV) Site Correction Factor (dB/m) Emission Level (dBuV/m) Limit (dBuV/m) Margin (dB) Pass/ Fail 88.890 QP V 49.7 -18.9 30.8 43.5 -12.7 Pass Rhein Tech Laboratories, Inc. Client: Resolution Engineering 360 Herndon Parkway, Suite 1400 EUT: 2.4 GHz NAPs Herndon, VA 20170 Standards: FCC Parts 2, 15 http://www.rheintech.com Report #: 2014155 4 of 14 FCC/IC Cross Reference FCC 15.249 RSS-210 Issue 8 A2.9 FCC 15.35(b) RSS-Gen Issue 3 7.2.3 FCC 15.205 RSS-Gen Issue 3 7.2.2 FCC 15.209 RSS-Gen Issue 3 7.2.5 Test Procedure Radiated fundamental and spurious emissions were tested at three meters. The EUT was tested in the three orthogonal planes with the receive antenna in both polarities. The emissions were maximized per ANSI C63.4:2003 8.3.1.2; that is, the measurement antenna height was varied between 1 and 4 m, and the EUT was rotated through 360° on a rotating turntable until the maximum emissions were found. Both horizontal and vertical measurement antenna polarizations were used. A resolution bandwidth of 100 kHz was used for frequencies less than 1000 MHz, and a resolution bandwidth of 1 MHz was used for frequencies greater than or equal to 1000 MHz. The video bandwidth was set to a value at least three times greater than the resolution bandwidth. EUT Disposition The EUT was adapted to continuously transmit for testing purposes. Radiated Emissions Test Equipment Part Manufacturer Model Serial Number RTL Bar Code Calibration Due Date Amplifier (20 MHz-2 GHz) Rhein Tech Laboratories, Inc. PR-1040 900905 900905 9/4/14 Spectrum Analyzer (10 Hz-26.5 GHz) Agilent EXA N9010 MY51250846 901583 4/16/15 Bilog Periodic Antenna (25 MHz-2000 MHz) ARA LPB-2520 1037 900724 4/19/15 Amplifier (1 GHz–26.5 GHz) Hewlett Packard 8449B OPT H02 3008A00505 900932 8/27/2014 Horn Antenna (2.0-4.0 GHz) EMCO 3161-02 9804-1044 900772 4/20/15 Horn Antenna (4.0-8.0 GHz) EMCO 3161-03 9508-1020 900321 4/20/17 Horn Antenna (8.0-12.4 GHz) EMCO 3160-07 9605-1054 900323 4/20/17 Horn Antenna (12.4-18.0 GHz) EMCO 3160-08 9607-1044 900356 4/20/17 Horn Ant…

Text truncated - open the document above for the full version.

Resolution Products, Inc. Wireless NAPS Sleep Sensor FCC ID: U5X-RE627 Certification Test Report 15.249 Bluetooth LE September 10, 2014 U5X-RE627 Resolution Products, Inc.9/10/14Page 1 of 10 Test Report 1402 Heggen Street Hudson, WI 54016 Contents 1.Introduction..................................................................................................................................................................3 2.Statement of Compliance.............................................................................................................................................3 2.1.FCC Part 2 §2.907.................................................................................................................................................3 2.2.FCC Part 2 §2.911.................................................................................................................................................3 2.3.FCC Part 2 §2.913.................................................................................................................................................3 2.4.FCC Part 2 §2.915.................................................................................................................................................3 2.5.FCC Part 2 §2.925.................................................................................................................................................3 2.6.FCC Part 2 §2.943, 2.945.....................................................................................................................................3 2.7.FCC Part 2 §2.947.................................................................................................................................................3 2.8.FCC Part 2 §2.948.................................................................................................................................................4 2.9.FCC Part 2 §2.1033...............................................................................................................................................4 3.Discussion of Laboratory Measurements and Rules Compliance................................................................................5 3.1.FCC Part 15 §15.249(a) - Raw Field Strength Limits...........................................................................................5 3.2.FCC Part 15 §15.249(e) - Duty Cycle Correction and Resulting Limits..............................................................5 3.3.Measured Radiated Field Strength Data...............................................................................................................6 3.3.1.2402 MHz Channel Fundamental and Harmonics.........................................................................................6 3.3.2.2440 MHz Channel Fundamental and Harmonics.........................................................................................6 3.3.3.2480 MHz Channel Fundamental and Harmonics.........................................................................................6 3.4.FCC Part 15 §15.249(d) Non-harmonic Spurious Emissions...............................................................................7 3.4.1.2402 MHz Channel Band-Edge.....................................................................................................................7 3.4.2.2480 MHz Channel Band-Edge.....................................................................................................................9 3.5.FCC Part 15 §15.207..........................................................................................................................................10 U5X-RE627 Resolution Products, Inc.9/10/14Page 2 of 10 Test Report 1402 Heggen Street Hudson, WI 54016 1.Introduction The RE627 is a wireless sleep and heart rate detection pressure sensor for use in nursing homes. The unit is powered by a 6VDC power supply. The device measures 4 ¾” x 3 ¾” x 1”. The device communicates to a security system using Bluetooth LE in the 2.4GHz band. Certification is requested under FCC Rules, Part 15, Subpart C, Paragraph 15.249. Equipment class for this transceiver is DXX, Low Power Communication Device Transmitter. 2.Statement of Compliance Specific sections of FCC Rules Part 2 that require information or listing are given below. 2.1.FCC Part 2 §2.907 This is an application for certification of original equipment 2.2.FCC Part 2 §2.911 a)This application has been filed electronically using form 731. b)All required information has been supplied in this application and its attachments. c)This application has been electronically signed by an officer of Resolution Products, Inc. d)The technical test data has been signed by the agency performing the testing. e)Signature supplied in appropriate block on form 731. f)Processing fee has been paid. g)Signatures have been supplied electronically. 2.3.FCC Part 2 §2.913 a)This application has been filed electronically. b)Appropriate fees have been filed electronically. c)Equipment samples shall be supplied as requested. 2.4.FCC Part 2 §2.915 We are requesting a grant of certification. This application shows compliance with the technical standards. 2.5.FCC Part 2 §2.925 A label shall be affixed to each piece of equipment, showing the FCC identifier. The label shall read “FCC ID: U5X- RE627”. See Exhibit B for a photograph showing the label and location on the device. 2.6.FCC Part 2 §2.943, 2.945 Sample production equipment shall be submitted to the FCC upon request. 2.7.FCC Part 2 §2.947 a)Measurement procedure follows ANSI C63.4: 2009. b)A description of utilized test equipment is contained in the report. 2.8.FCC Part 2 §2.948 Radiated measurements were taken at the following FCC-approved facility: Rhein Tech Laboratories, Inc. 360 Herndon Parkway, Suite 1400 Herndon, VA 20170 USA Contact: Rick McMurray 703-689-0368 Photographs of the test site are shown in Exhibit J. 2.9.FCC Part 2 §2.1033 a)…
