U5X-RE920IP Module

RE920 PA IP Module Features •Connects in daughterboard slot of SimonXT panel •Allows reporting of alarm and status conditions over IP connection •Allows control of system functions (arming, disarming, etc) over IP connection •Allows control of lights and other Zwave devices over IP connection Key Instructions •Install RE920 unit in slot at back of panel •Power up the panel •Connect ethernet cable •Connect to configuration software and enter MAC address •Configure RE920 to correct IP address for reporting •Configure RE920 to correct IP address for system control LED Operation •"L and S" LEDs are normal ethernet LEDs and indicate healthy ethernet network connection •"Power" LED lights green when powered and shows heartbeat for processor functioning correctly •"Local" LED lights when proper connection to local router established •"CS" LED lights when connected to Central Station •"Platform" LED lights when connected to interactive platform website RE920_IP_Module_Manual.doc Page 1 of 407-Jan-11 www.ResolutionProducts.com Specifications Panel Compatibility:GE/Interlogix SimonXT External supply: 9-18V DC, at least 100mA. Current draw:60mA, normal operation. PCB dimensions:1.9 x 4.1 inches Specifications subject to change without notice. Internal Picture RE920_IP_Module_Manual.doc Page 2 of 407-Jan-11 www.ResolutionProducts.com Ethernet LEDs Ethernet Connector Factory Default Switch Status LEDs Printed Zwave Antenna Mounting Holes OEM Installation Instructions The RE920 module is installed in the SimonXT host as follows: 1.The SimonXT should be powered down. 2.Expose the back of the panel as shown in the following picture. 3.The module is installed in the expansion slot on the left, as shown in the picture. 4.Unwrap the module from its packaging and carefully slide the module underneath the plastic tabs at the top of the expansion slot. 5.Gently press down on the bottom of the module so that it engages with the connector on the panel. 6.Secure the module in place using four screws in the provided holes. 7.Attach ethernet cable to the connector and arrange it so that it exits the enclosure with out strain. 8.Connect to the module using the configuration IP Address and configure the module's IP Addresses and other information with the configuration interface. RE920_IP_Module_Manual.doc Page 3 of 407-Jan-11 www.ResolutionProducts.com Notices “GE” is a trademark owned by General Electric Company. "Interlogix" is a trademark of UTC. This Resolution product is not produced by, endorsed by, or officially associated with GE or UTC. Resolution recommends verifying operation at installation. This product is only usable with the GE/Interlogix SimonXT alarm panel. FCC Notice This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: This device may not cause harmful interference. This device must accept any interference that may be received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the Resolution Engineering, Inc. could void the user's authority to operate this equipment. FCC ID: U5X-RE920 RE920_IP_Module_Manual.doc Page 4 of 407-Jan-11 www.ResolutionProducts.com

g Simon XT User Manual CopyrightCopyright © 2007 GE Security. All rights reserved. This document may not be copied in whole or in part or otherwise reproduced without prior written consent from GE Security except where specifically permitted under US and international copyright law. Document number/ 466-2266B (March 2007). DisclaimerThe information in this document is subject to change without notice. GE Security , Inc. (“GE Security”) assumes no responsibility for inaccuracies or omissions and specifically disclaims any liabilities, losses, or risks, personal or otherwise, incurred as a consequence, directly or indirectly, of the use or application of any of the contents of this document . For the latest documentation, contact your local supplier or visit us online at www.gesecurity.com. This publication may contain examples of screen captures and reports used in daily operations. Examples may include fictitious names of individuals and companies. Any similarity to names and addresses of actual businesses or persons is entirely coincidental. Trademarks and patentsGE and the GE monogram are registered trademarks of General Electric Company. Simon XT product and logo are registered trademarks of GE Security. Other trade names used in this document may be trademarks or registered trademarks of the manufacturers or vendors of the respective products. This product and the use of this product may be covered by one or more of the following patents: 5,805,063, 5,872,512, 5,942,981, 5,686,896, 5,686,885, 4,855,713. Except expressly provided herein, the purchase of this product shall not constitute a license or otherwise provide a right to practice a method covered by any of the identified patents. GE Security hereby grants the purchaser of this product a limited, nonexclusive license to practice the methods patented in the identified patents solely with products manufactured, sold or licensed by GE Security. This license grant does not extend to the use of unlicensed, third party products with this product . Software license agreementImportant: This end-user license agreement (“Agreement”) is a legal agreement between GE SECURITY and You. Read the following terms and conditions carefully before installing or using this Software. This agreement provides a license from GE SECURITY to use the Software. It also contains warranty information, disclaimers, and liability limitations. Installing and/or using the Software confirms Your agreement to be bound by these terms and conditions. If You do not agree with these terms and conditions, do not install or use the Software or, if already installed, immediately cease all use of the Software and promptly uninstall all components of the Software. 1. Definitions. The following definitions apply to this document: a. “GE SECURITY”, with respect to title to or warranty of the Software, means GE Security Inc., a Delaware corporation. b. “Software” means the executable software or firmware programs and accompanying documentation installed on the GE SECURITY products, plus any upgrades, modified versions, updates, additions, and copies of the software furnished to Customer during the term of the license granted herein. c. “Documentation” means all associated media, printed materials, and electronic docu - mentation accompanying the Software. d. “Licensed Product” means the Software and Documentation. e. “Customer” means the person or organization, or parent or subsidiary thereof, who uses the Software for its intended purposes, and excludes distributors, authorized resellers, value-added resellers and original equipment manufacturers. Customer may be referred to as You or Your, whether an individual or a business entity of any kind. f. “Machine” means the computer, workstation, terminal, or other hardware product on which the Software is installed. iii 2. License. All rights to and in the Licensed Product , including, but not limited to, copyrights, patents, trademarks, and trade secrets, belong to GE SECURITY, and GE SECURITY retains title to each copy of the Software. You agree that GE SECURITY at any time, upon reasonable notice, may audit Your use of the Software for compliance with the terms and conditions of this Agreement . Subject to the terms and conditions of this Agreement , GE SECURITY grants You a nonexclusive license to use the Software, but only in the country where acquired, provided that You agree to the following: You may: a. install and use the Software on a single Machine at one time, unless You have purchased additional copies of the Software, in which case You may install the software on the number of Machines for which You have purchased copies of the Software; b. use the original copy of the Software provided to You for backup purposes. You may not: a. transfer or distribute the Licensed Product to others, in electronic format or otherwise, and this Agreement shall automatically terminate in the event of such a transfer or distribution; b. use the Software over a computer network; c. sell, rent , lease, or sublicense the Software; d. copy or modify the Licensed Product for any purpose, including for backup purposes. 3. Term. This Agreement is effective until terminated. You may terminate this Agreement by uninstalling all components of the Software from all Machines and returning the Software to GE SECURITY. GE SECURITY may terminate this Agreement if You breach any of these terms and conditions. Upon termination of this Agreement for any reason, You agree to uninstall all components of the Software and return the Licensed Product to GE SECURITY. All provisions of this Agreement relating to (i) disclaimer of warranties; (ii) limitations on liability, remedies, and damages; and (iii) GE SECURITY’s proprietary rights, shall survive termination of this Agreement . 4. Object code. The Software is delivered in object code only. You may not alter, merge, modify, adapt , or translate the Software, nor decompile, disassemble, reverse-engineer, or …

Text truncated - open the document above for the full version.

December 30, 2010 RE: U5X-RE920 Confidentiality To Whom It May Concern: The following information is to be held confidential pursuant of 47 CFR Part 0 ｧ0.459 and Section 552(b)(4) of the Freedom of Information Act, because the information provided contains trade secrets and is proprietary. If made public, the information might be used to our disadvantage as in the market place. lSchematics lTechnical Product Description/Operational Description lBlock Diagram Sincerely, Paul Saldin Vice President Resolution Products, Inc.

January 5, 2011 RE: U5X-RE920 Request for Limited Modular Approval To Whom It May Concern: We hereby request Limited Modular Approval for U5X-RE920 as described under 47 CFR 15.212(b). This device is usable on only one host device, and that fact has been stated in the manual. The following pages describe the compliance with this device with the requirements. Sincerely, Paul Saldin Vice President Resolution Products, Inc. Applicant/GranteeResolution Products, Inc FCC ID:U5X-RE920 Section 15.212 Modular Transmitters Request for Modular ApprovalRequest for Limited Modular Approval RequirementsEUT ConditionsComply (Y/N) Single Modular Approval Requirements 1 The radio elements of the modular transmitter must have their own shielding. The physical crystal and tuning capacitors may be located external to the shielded radio elements. The module does not have RF shielding N 2 The modular transmitter must have buffered modulation/data inputs (if such inputs are provided) to ensure that the module will comply with Part 15 requirements under conditions of excessive data rates or over-modulation. These inputs are not provided N 3 The modular transmitter must have its own power supply regulation. Not available N 4 The modular transmitter must comply with the antenna and transmission system requirements of Sections 15.203, 15.204(b) and 15.204(c). The antenna must either be permanently attached or employ a “unique” antenna coupler (at all connections between the module and the antenna, including the cable). The “professional installation” provision of Section 15.203 is not applicable to modules but can apply to limited modular approvals under paragraph (b) of this section. The antenna is permanently attached since it is a PCB trace. Y 5 The modular transmitter must be tested in a stand-alone configuration, i.e., the module must not be inside another device during testing for compliance with Part 15 requirements. Unless the transmitter module will be battery powered, it must comply with the AC line conducted requirements found in Section 15.207. AC or DC power lines and data input/output lines connected to the module must not contain ferrites, unless they will be marketed with the module (see Section 15.27(a)). The length of these lines shall be the length typical of actual use or, if that length is unknown, at least 10 centimeters to insure that there is no coupling between the case of the module and supporting equipment. Any accessories, peripherals, Not required for LMA. As specified in 15.212(b), the manufacturer must only "demonstrate by alternative means in the application for equipment authorization that the modular transmitter meets all the applicable Part 15 requirements under the operating conditions in which the transmitter will be used." We have done this by testing the device in the host with which it will be used. This is the ONLY host that may be used with this device. N or support equipment connected to the module during testing shall be unmodified and commercially available (see Section 15.31(i)). 6 The modular transmitter must be equipped with either a permanently affixed label or must be capable of electronically displaying its FCC identification number. (A) If using a permanently affixed label, the modular transmitter must be labeled with its own FCC identification number, and, if the FCC identification number is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. This exterior label can use wording such as the following: “Contains Transmitter Module FCC ID: XYZMODEL1” or “Contains FCC ID: XYZMODEL1.” Any similar wording that expresses the same meaning may be used. The Grantee may either provide such a label, an example of which must be included in the application for equipment authorization, or, must provide adequate instructions along with the module which explain this requirement. In the latter case, a copy of these instructions must be included in the application for equipment authorization. (B) If the modular transmitter uses an electronic display of the FCC identification number, the information must be readily accessible and visible on the modular transmitter or on the device in which it is installed. If the module is installed inside another device, then the outside of the device into which the module is installed must display a label referring to the enclosed module. This exterior label can use wording such as the following: “Contains FCC certified transmitter module(s).” Any similar wording that expresses the same meaning may be used. The user manual must include instructions on how to access the electronic display. A copy of these instructions must be included in the application for equipment authorization. FCC label shall be affixed to the top of the device so that it is visible when the module is installed in the host. Please see Internal Photos and ID Label Photos which show this. Y 7 The modular transmitter must comply with any specific rules or operating requirements that ordinarily apply to a complete transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements. A copy of these instructions must be included in the application for equipment authorization. We have provided instructions in the user manual. Y 8 The modular transmitter must comply N/A - this device is not meant to be used Y with any applicable RF exposure requirements in its final configuration. near the body A limited modular approval may be granted for single or split modular transmitters that do not comply with all of the above requirements, e.g., shielding, minimum signaling amplitude, buffered modulation/data inputs, or power supply regulation, if the manufacturer can demonstrate by alternative means in the application for equipment authorization that the modular transmitter meets all the applicable Par…

Text truncated - open the document above for the full version.

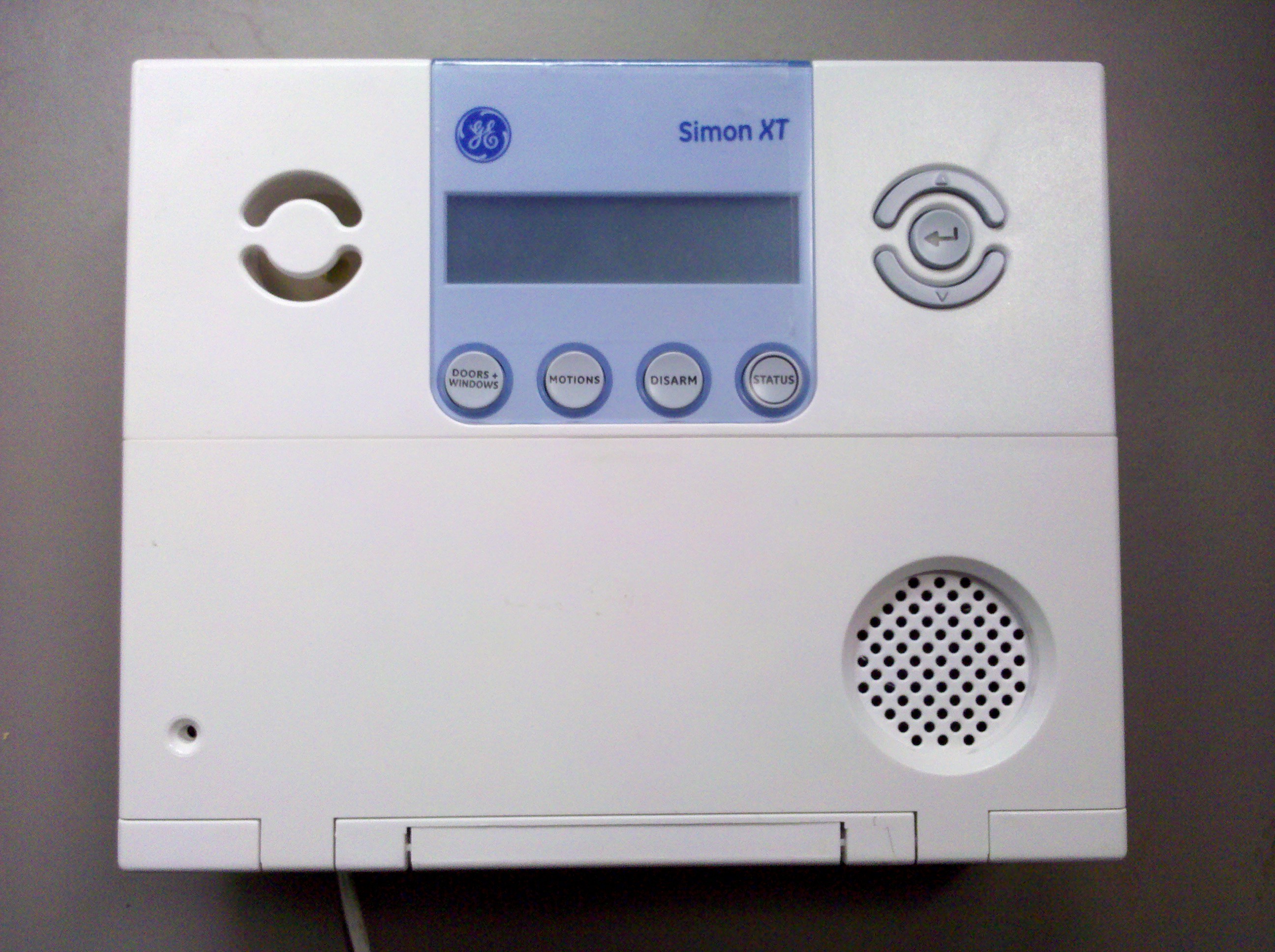

U5X-RE920 External Photo Front Rear Rear, Open

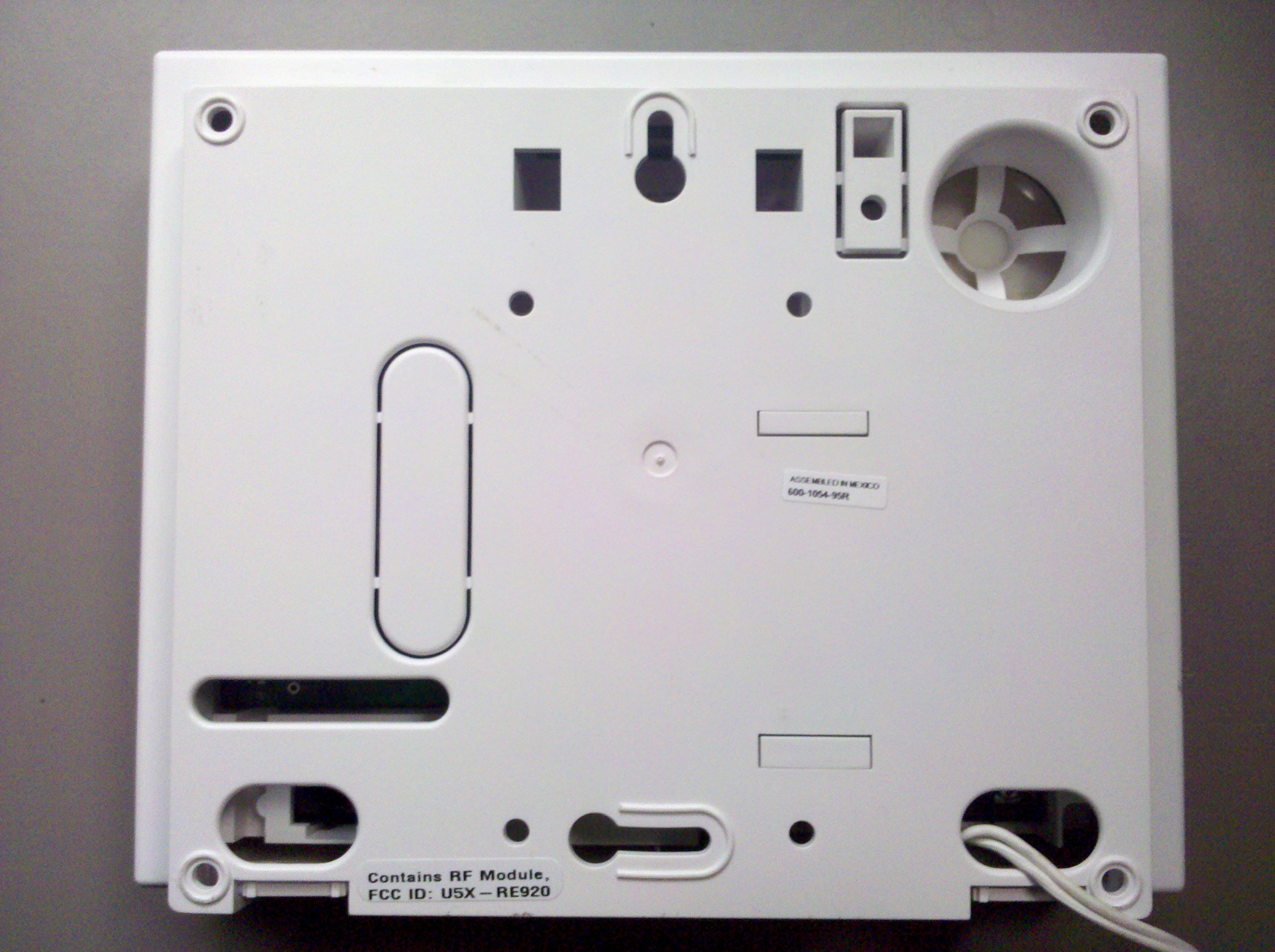

U5X-RE920 ID Label Photos

U5X-RE920 Internal Photos

Resolution Products, Inc. Home Automation Device FCC ID: U5X-RE920 Certification Test Report December 30, 2010 U5X-RE920 Resolution Products, Inc.12/30/10Page 1 of 7 Test Report 226 Locust Street, Suite 4 Hudson, WI 54016 Contents 1. Introduction.................................................................................................................................................................3 2. Statement of Compliance............................................................................................................................................3 2.1. FCC Part 2 §2.907................................................................................................................................................3 2.2. FCC Part 2 §2.911................................................................................................................................................3 2.3. FCC Part 2 §2.913................................................................................................................................................3 2.4. FCC Part 2 §2.915................................................................................................................................................3 2.5. FCC Part 2 §2.925................................................................................................................................................3 2.6. FCC Part 2 §2.943, 2.945....................................................................................................................................3 2.7. FCC Part 2 §2.947................................................................................................................................................3 2.8. FCC Part 2 §2.948................................................................................................................................................4 2.9. FCC Part 2 §2.1033..............................................................................................................................................5 3. Discussion of Laboratory Measurements and Rules Compliance...............................................................................6 3.1. FCC Part 15 §15.249(a).......................................................................................................................................6 3.1.1. Raw Field Strength Limits............................................................................................................................6 3.1.2. Measured Radiated Field Strength Data.......................................................................................................6 3.2. FCC Part 15 §15.249(d).......................................................................................................................................7 U5X-RE920 Resolution Products, Inc.12/30/10Page 2 of 7 Test Report 226 Locust Street, Suite 4 Hudson, WI 54016 1.Introduction This device is a transceiver for use in home automation applications. It controls other devices such as lights, thermostats, etc. The device is powered by a GE SimonXT security system through its rear connector. The SimonXT supplies 10VDC. The transmitter is controlled by a Zensys ZM3102N Zwave module centered at 908.415MHz. The device measures 4.1 x 1.9”. Certification is requested under FCC Rules, Part 15, Subpart C, Paragraph 15.249. 2.Statement of Compliance Specific sections of FCC Rules Part 2 that require information or listing are given below. 2.1.FCC Part 2 §2.907 This is an application for certification of original equipment 2.2.FCC Part 2 §2.911 a)This application has been filed electronically using form 731. b)All required information has been supplied in this application and its attachments. c)This application has been electronically signed by an officer of Resolution Products, Inc. d)The technical test data has been signed by the agency performing the testing. e)Signature supplied in appropriate block on form 731. f)Processing fee has been paid by credit card. g)Signatures have been supplied electronically. 2.3.FCC Part 2 §2.913 a)This application has been filed electronically. b)Appropriate fees have been filed electronically. c)Equipment samples shall be supplied as requested. 2.4.FCC Part 2 §2.915 We are requesting a grant of certification. This application shows compliance with the technical standards. 2.5.FCC Part 2 §2.925 A label shall be affixed to each piece of equipment, showing the FCC identifier. The label shall read “FCC ID: U5X- RE920”. See Exhibit A for a photograph showing the label and location on the device. 2.6.FCC Part 2 §2.943, 2.945 Sample production equipment shall be submitted to the FCC upon request. 2.7.FCC Part 2 §2.947 a)Measurement procedure follows ANSI C63.4. b)A description of utilized test equipment is contained in the report. 2.8.FCC Part 2 §2.948 Radiated measurements were taken at the following FCC-approved facility: Rhein Tech Laboratories, Inc. 360 Herndon Pkwy, Suite 1400 Herndon, VA 20170 Contact: Rick McMurray 703-689-0368 A photograph of the test site is shown below: 2.9.FCC Part 2 §2.1033 a)Form 731 has been filed electronically. b)The technical report, along with its exhibits, contains the information as follows: (1)full name and mailing address of the manufacturer of the device and the applicant for certification: Resolution Products, Inc. 226 Locust Street, Suite 4 Hudson, WI 54016 (2)FCC Identifier is U5X-RE920 (3)Copy of the installation/user instructions is furnished as Exhibit E. (4)A brief description of the device and operation is furnished in Exhibit F. Schematic is furnished in Exhibit G. (5)Block diagram furnished in Exhibit H. (6)This document constitutes a technical test report. (7)Internal and external photographs have been furnished in Exhibits A - C. (8)Not applicable. There are no peripheral or accessory devices used with this device. It is a standalone device. (9)This application not pu…

Text truncated - open the document above for the full version.

360 Herndon Parkway, Suite 1400 Herndon, VA 20170 Tel: 703-689-0368 Fax: 703-689-2056 Page 1 of 5 Engineering and Testing for EMC and Safety Compliance Fcc 15.249 Radiated Test Data for Model: RE920 for Resolution Engineering RTL Project Number 2010107 Test Engineer: Jon Wilson 360 Herndon Parkway, Suite 1400 Herndon, VA 20170 Tel: 703-689-0368 Fax: 703-689-2056 Page 2 of 5 Radiated Test Data - OATS 1 Test Date: July 08, 2010 Work Order: 2010107 Customer Reference: na Model: RE920 908.4MHz Name: Jon Wilson Limit/Distance: FCC B/3m Emission Frequency (MHz) Test Detector Antenna Polarity (H/V) Analyzer Reading (dBuV) Site Correction Factor (dB/m) Emission Level (dBuV/m) Limit (dBuV/m) Margin (dB) Pass/ Fail 908.415 Peak H 43.6 44.3 87.9 94.0 -6.1 Pass 1,816.830 Peak V 37.7 14.1 51.8 74.0 -22.2 Pass 2,725.275 Peak V 37.0 -7.1 29.9 74.0 -44.1 Pass 3,633.700 Peak H 32.0 -4.9 27.1 74.0 -46.9 Pass 4,542.125 Peak H 30.0 0.4 30.4 74.0 -43.6 Pass 5,450.550 Peak H 30.0 2.7 32.7 74.0 -41.3 Pass 6,358.975 Peak V 29.6 4.1 33.7 74.0 -40.3 Pass 7,267.400 Peak V 29.3 5.4 34.7 74.0 -39.3 Pass 8,175.825 Peak V 28.7 11.9 40.6 74.0 -33.4 Pass 9,084.250 Peak V 27.6 12.3 39.9 74.0 -34.1 Pass Notes: Device was tested through its thee orthogonal planes (X, Y, Z axis) as shown in the photographs beginning on p. 3. The test antenna was raised and lowered from 1-4 meters and polarized. These steps were taken in order to find the maximum emission level at each frequency. Radiated Emissions Test Equipment Part Manufacturer Model Serial Number RTL Bar Code Calibration Due Date Amplifier (20 MHz-2 GHz) Rhein Tech Laboratories, Inc. PR-1040 900905 900905 4/10/2011 Bilog Periodic Antenna (25 MHz-2 GHz) Schaffner Chase CBL6112 2099 900791 12/12/2010 EMI Receiver RF Section (9 KHz-6.5 GHz) Hewlett Packard 85462A 3325A00159 900913 6/8/2011 RF Filter Section (100 KHz-6.5 GHz) Hewlett Packard 85460A 3330A00107 900914 6/8/2011 Spectrum Analyzer Hewlett Packard 8596EM 3826A00144 901215 11/23/2010 Amplifier (1 GHz – 26.4 GHz) Hewlett Packard 8449B OPT H02 3008A00505 900932 2/22/2011 Horn Antenna, 2.0-4.0 GHz EMCO 3161-02 9804-1044 900772 6/13/2011 Horn Antenna, 4.0-8.2 GHz EMCO 3161-03 9508-1020 900321 6/13/2011 Horn Antenna, 8.2-12.4 GHz EMCO 3161-07 9605-1054 900323 6/13/2011 Emissions Testing Software Rhein Tech Laboratories, Inc. Automated Emission Tester Rev. 14.0.2 N/A N/A 360 Herndon Parkway, Suite 1400 Herndon, VA 20170 Tel: 703-689-0368 Fax: 703-689-2056 Page 3 of 5 Test Photographs X-Axis 360 Herndon Parkway, Suite 1400 Herndon, VA 20170 Tel: 703-689-0368 Fax: 703-689-2056 Page 4 of 5 Y-Axis 360 Herndon Parkway, Suite 1400 Herndon, VA 20170 Tel: 703-689-0368 Fax: 703-689-2056 Page 5 of 5 Z-Axis

U5X-RE920 Test Setup Photos
