U6A-BR080N11n Mini Router

Version 1.0.15 1 11n Mini Router BR080n User Manual Version 1.0.15 2 Table of Contents FCC Caution .......................................................................................................................................... 6 Safe Seating Gestures .......................................................................................................................... 7 Chapter 1 Introduction ................................................................................................................. 8 1.1 Overview ...................................................................................................................... 8 Features......................................................................................................................................... 9 1.2 Specifications............................................................................................................ 10 1.2.1 Six Views of Product Appearance .................................................................. 11 1.2.2 LED Indicator Status Description ................................................................... 11 1.3 System Requirements .............................................................................................. 11 1.4 WAN Network Plug and Play.................................................................................... 12 1.5 Get Your IP Automatically & Manually .................................................................... 12 1.5.1 Network Testing................................................................................................ 15 1.5.2 Testing with Internet Browser ......................................................................... 15 1.5.2.1 Testing with DOS (Windows XP Platform)......................................................... 16 Chapter 2 Hardware Installation................................................................................................ 18 2.1 Diagram of Connecting Hardware to 11N Mini Router .......................................... 18 2.1.1 Hardware Connection and Application for Router Mode ............................. 18 2.1.2 Hardware Connection and Application for AP Mode .................................... 19 2.1.3 Hardware Connection and Application for Wi-Fi AP Mode .......................... 19 Chapter 3 One Button Setup...................................................................................................... 20 3.1 One Button Setup configuration for Router Mode ................................................ 20 3.2 One Button Setup configuration for AP Mode ....................................................... 22 3.3 One Button Setup configuration for WiFi AP Mode............................................... 24 Chapter 4 Basic Setup................................................................................................................ 28 4.1 Router Mode .............................................................................................................. 28 4.1.1 Switch to Router Mode .................................................................................... 28 4.1.2 Administrator Setup Instruction ..................................................................... 28 4.2 AP Mode ..................................................................................................................... 29 4.2.1 Switch to AP Mode ........................................................................................... 29 4.3 WiFi AP Mode ............................................................................................................ 30 4.3.1 Switch to WiFi AP Mode................................................................................... 30 Chapter 5 Advanced Configuration for Router Mode ............................................................. 31 5.1 IP Configuration ........................................................................................................ 31 5.1.1 WAN ................................................................................................................... 31 5.1.1.1 WAN Interface– Ethernet Port............................................................................. 31 5.1.1.2 WAN Interface– Wireless.................................................................................... 32 Version 1.0.15 3 5.1.1.3 WAN Access Type – Static IP.............................................................................. 33 5.1.1.4 WAN Access Type – Dynamic IP........................................................................ 35 5.1.1.5 WAN Access Type – PPPoE................................................................................ 37 5.1.1.6 WAN Access Type – PPTP.................................................................................. 40 5.1.1.7 WAN Access Type – L2TP................................................................................... 42 5.1.2 LAN Interface Setup ......................................................................................... 44 5.1.3 Dynamic DNS Setting....................................................................................... 45 5.2 Wireless Setup .......................................................................................................... 47 5.2.1 Wireless Basic Settings................................................................................... 47 5.2.2 Wireless Advanced Settings ........................................................................... 52 5.2.3 Wireless Security Setup .................................................................................. 53 5.2.4 Wireless Access Control ................................................................................. 56 5.2.5 WDS Settings .................................................................................................... 57 5.2.6 WPS ......................................................…

Text truncated - open the document above for the full version.

Version 1.0.15 91 Click Multiple APs to set up 4 different SSIDs to deploy a shared WLAN. Users can add or limit the properties for each SSID, increasing the flexibility and efficiency of the network. (1.) Enable: check it for enable or not. (2.) Band: select the frequency from the drop down list. (3.) SSID: please enter different SSID in each class. (4.) Data Rate: please select the data transmission rate. (5.) Access: defined the access type. a. LAN+WAN: the client can access to the Internet and connect to 11N Mobile Router’s GUI to setup. b. WAN: the client can only access to the Internet. (6.) Active Client List: display the properties of the client which is connecting successfully. (7.) Apply Changes: Please click Apply Changes to initiate or click Reset to cancel. 4. Network Type： Please select “Infrastructure” or “Ad hoc.” The default is “Infrastructure.” The selection is disabled when wireless mode is selected to AP. 5. SSID： Please input your wireless network name. Default is “11N_Mini_Router”. 6. Channel Width Please select “20MHZ” or “40MHZ” channel width to change the transmission channels. Version 1.0.15 92 7. ControlSideband Setting the Sideband "Upper" or "Lower.” 8. Channel Number Please select your wireless network channel. There are Auto, 2~11. 9. Broadcast SSID Enable or disable the SSID broadcast function. Disable this feature can provide more security of your WLAN. 10. Data Rate Rate at which data can be communicated (bps); auto, 1M, 2M, 5.5M, 11M, 6M, 9M, 12M, 18M, 24M, 36M, 48M or 54M to be selected from the drop-down list. 11. Associated Clients Check the WiFi ISP connectors and the connecting status. 12. Enable Mac Clone (Single Ethernet Client) Copy the MAC Address for identity of some ISPs. 13. Enable Universal Repeater Mode (Acting as AP and Client simultaneously) Enable Universal Repeater Mode, 11N Mini Router will act as a wireless AP and AP client at the same time, and able to link to another AP.. It uses AP client function to connect to a Root AP (any AP) and uses AP function to service all wireless stations within its coverage. All the stations within the coverage of 11N Mini Router can be bridged to the Root AP. It can help user to extend the coverage of wireless network. How to Enable URM (Universal Repeater Mode) User could enable URM in wireless basic setting page as shown in following figures. Step 1. Get back to menu “Network Config” and write down the SSID, channel and security. Version 1.0.15 93 Step 2. Setting the same SSID, channel and security you got form “Network Config” and Click on Apply Changes to save the setting Note: The DHCP server should be disabled under menu “LAN Interface Setup” and then the URM could be enabled. Step 3. Check the AP connectors and the Wireless connecting status. Version 1.0.15 94 14. SSID of Extended Interface When mode is set to “AP” and Universal Repeater Mode is enabled, user should input SSID of another AP (the upper level device) in the field of SSID of Extended Interface. 15. Apply Changes & Reset Click on “Apply Changes” to save the setting data. Or you may click on “Reset” to clear all the input data. 6.2.2 Wireless Advanced Settings Please follow the instructions to configure the Wireless settings. Version 1.0.15 95 1. Fragment Threshold To identify the maximum length of packet, the overflow packet length wil be fragmentized. The allowed range is 256-2364, and default length is 2346 bytes. 2. RTS Threshold This value should remain at its default setting of 2347. The range is 0~2347. Should you encounter inconsistent data flow, only minor modifications are recommended. If a network packet is smaller than the present RTS threshold size, the RTS/CTS mechanism will not be enabled. The router sends Request to Send (RTS) frames to a particular receiving station and negotiates the sending of a data frame. After receiving an RTS, the wireless station responds with a Clear to Send (CTS) frame to acknowledge the right to begin transmission. Fill the range from 0 to 2347 into this blank. 3. Beacon Interval Beacons are packets sent by an access point to synchronize a wireless network. Specify a beacon interval value. The allowed setting range is 20-1024 ms. 4. Preamble Type The preamble (also called “a header”) is a section of data at the head of a packet that contains information that wireless devices need when they send and receive packets. Short preambles improve throughput performance, but some wireless devices require long preambles. Select the suitable preamble as short or long preamble. 5. IAPP Version 1.0.15 96 Inter Access Point Protocol. Allow seamless roaming between Access Points in your wireless network. Coupled with superior RF performance 6. Protection Select to enable the wireless protection or not. 7. Aggregation Data aggregation can reduce the amount of data routed through the network, and increasing throughput. 8. Short GI Enabling the Short Guard Interval increases the wireless transmission. 9. RF Output Power User can adjust the RF output power to get the best wireless connection. There are 5 power types available: 100%, 70%, 50%, 35%, and 15%. 10. Apply Changes & Reset Click on “Apply Changes” to save the setting data. Or you may click on “Reset” to clear all the input data. 6.2.3 Wireless Security Setup 4 encryption types can be selected here, please follow the instructions below for each. 1. Encryption – WEP Version 1.0.15 97 Enabling WEP can protect your data from eavesdroppers. If you do not need this feature, select “None” to skip the following setting. 11N Mini Router supports both 64-bit and 128-bit encryption using the Wired Equivalent Privacy (WEP) algorithm. Select the type of encryption you want to use (64 or 128 bit) and configure one to four WEP Keys. The “1280bit” method is more secure than the “64-bit”. Use 802.1x Authentication Enable 802.1x Authentication so that a wireless node must be authenticated before it can gain access to other LAN resources. Key Length: For 64bits WEP ke…

Text truncated - open the document above for the full version.

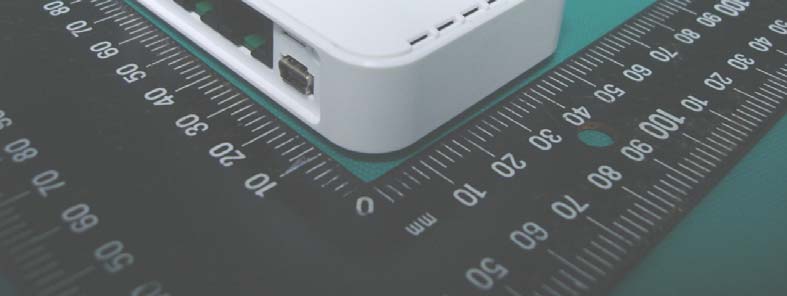

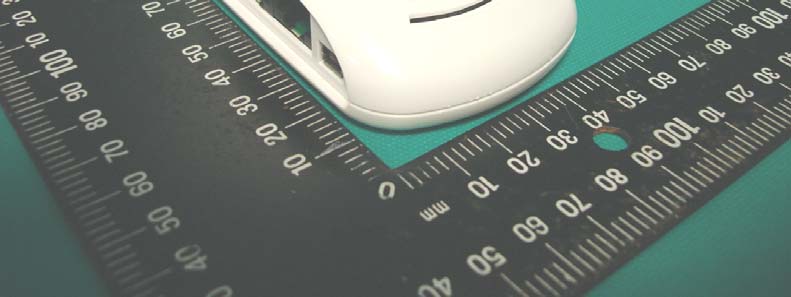

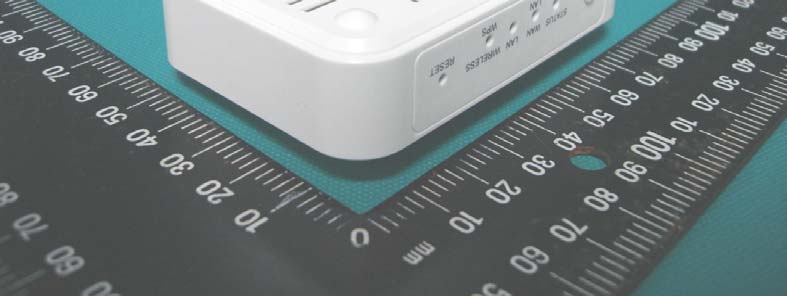

Compliance Certification Services Inc. Report No.:T100707401 Date of Issue: August 23, 2010 Page 1 Total Page: 6 Rev. 00 PHOTOGRAPHS OF EUT EXTERNAL PHOTO (1) Compliance Certification Services Inc. Report No.:T100707401 Date of Issue: August 23, 2010 Page 2 Rev. 00 EXTERNAL PHOTO (2) Compliance Certification Services Inc. Report No.:T100707401 Date of Issue: August 23, 2010 Page 3 Rev. 00

BR080n Diagram Label Location FCC ID: XV3AVK01 FCC Caution: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. PBLCDM530NC

Compliance Certification Services Inc. Report No.:T100707401 Date of Issue: August 23, 2010 Page 4 Rev. 00 Compliance Certification Services Inc. Report No.:T100707401 Date of Issue: August 23, 2010 Page 5 Rev. 00 INTERNAL PHOTO Compliance Certification Services Inc. Report No.:T100707401 Date of Issue: August 23, 2010 Page 6 Rev. 00

Description of Operation The EUT is a 11n AP (11n Mini Router) with IEEE 802.11b/g/n (1T1R) . And this device provided of transmitting speed: IEEE 802.11b : 11, 5.5, 2, 1 Mbps IEEE 802.11g : 54, 48 ,36, 24, 18, 12, 9, 6 Mbps IEEE 802.11n: HT20： (MCS0-MCS7) 6.5M、13M、19.5M、26M、39M、52M、58.5M、65M (MCS8-MCS15) 13M、26M、39M、52M、78M、104M、117M、130M HT40： (MCS0-MCS7) 13.5M、27M、40.5M、54M、81M、108M、121.5M、135M (MCS8-MCS15) 27M、54M、81M、108M、162M、216M、243M、270M the device of RF carrier is CCK, DQPSK, DBPSK, 64QAM, 16QAM,256QAM, QPSK and BPSK. The device adapts DSSS and OFDM modulation. And the antenna was a Dipole Antenna and provided diversity function to improve the receiving function. It allows your computer to connect to a wireless network and to share resources, such as files or printers without being bound to the network wires. And this EUT Operation in 2.4GHz Direct Sequence Spread Spectrum (D.S.S.S) and Orthogonal Frequency division Multiplex (O.F.D.M) radio transmission. In addition, its standard compliance ensures that it can communicate with any 802.11b/g/n network. The other instruction, please have a look at the user’s manual.

Compliance Certification Services Inc. Reference No.: 91002401-RP1 Report No.：T100707401-RP1 FCC ID：U6A-BR080N Date of Issue: August 23, 2010 Page 1 FCC 47 CFR PART 15 SUBPART C: 2008 AND ANSI C63.4: 2003 TEST REPORT For 11n Mini Router Model Number: BR080n Brand: ETOP Issued for E-Top Network Technology Inc. No. 82, Gongye 2nd Rd., Tainan City 70955, Taiwan, R.O.C. Issued by Compliance Certification Services Inc. Tainan Lab. No. 8, Jiu Cheng Ling, Jiaokeng Village,Sinhua Township, Tainan Hsien 712, Taiwan R.O.C. TEL: 886-6-580-2201 FAX: 886-6-580-2202 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. Ltd. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document Total Page: 116 Compliance Certification Services Inc. Reference No.: 91002401-RP1 Report No.：T100707401-RP1 FCC ID：U6A-BR080N Date of Issue: August 23, 2010 Page 2 REVISION HISTORY Rev. Issue Date Revisions Effect Page Revised By 00 August 23, 2010 Initial Issue ALL Leah Peng Compliance Certification Services Inc. Reference No.: 91002401-RP1 Report No.：T100707401-RP1 FCC ID：U6A-BR080N Date of Issue: August 23, 2010 Page 3 TABLE OF CONTENTS APPENDIX EUT PHOTOS A1-1 ................................................................................................... 3 1. TEST REPORT CERTIFICATION ........................................................................................... 4 2. EUT DESCRIPTION .................................................................................................................... 5 2.1 DESCRIPTION OF EUT & POWER ......................................................................................................5 3. DESCRIPTION OF TEST MODES............................................................................................ 7 4. TEST METHODOLOGY.............................................................................................................7 5. FACILITIES AND ACCREDITATIONS................................................................................... 8 5.1 FACILITIES.............................................................................................................................................8 5.2 EQUIPMENT ...........................................................................................................................................8 5.3 FACILITIES.............................................................................................................................................8 5.4 ACCREDITATIONS ...............................................................................................................................9 6. CALIBRATION AND UNCERTAINTY .................................................................................... 10 6.1 MEASURING INSTRUMENT CALIBRATION....................................................................................10 6.2 MEASUREMENT UNCERTAINTY ......................................................................................................10 7. SETUP OF EQUIPMENT UNDER TEST ................................................................................. 11 7.1 SETUP CONFIGURATION OF EUT .....................................................................................................11 7.2 SUPPORT EQUIPMENT ........................................................................................................................11 7.3 EUT OPERATING CONDITION............................................................................................................12 8. APPLICABLE LIMITS AND TEST RESULTS........................................................................ 13 8.1 6DB BANDWIDTH .................................................................................................................................13 8.2 MAXIMUM PEAK OUTPUT POWER & AVERAGE POWER ...........................................................24 8.3 MAXIMUM PERMISSIBLE EXPOSURE .............................................................................................36 8.4 POWER SPECTRAL DENSITY .............................................................................................................38 8.5 CONDUCTED SPURIOUS EMISSION .................................................................................................48 8.6 RADIATED EMISSIONS........................................................................................................................61 8.7 POWERLINE CONDUCTED EMISSIONS ...........................................................................................108 9. ANTENNA REQUIREMENT...................................................................................................... 112 9.1 STANDARD APPLICABLE ...................................................................................................................112 9.2 ANTENNA CONNECTED CONSTRUCTION ......................................................................................112 APPENDIX SETUP PHOTOS......................................................................................................... 113 APPENDIX EUT PHOTOS ............................................................................................................A1-1 Compliance Certification Services Inc. Reference No.: 91002401-RP1 Report No.：T100707401-RP1 FCC ID：U6A-BR080N Date of Issue: August 23, 2010 Page 4 1. TEST REPORT CERTIFICATION Applicant ： E-Top Network Technology Inc. Address ： No. 82, Gongye 2nd Rd., Tainan City 70955, Taiwan, R.O.C. Manufacture ： E-Top Network Technology Inc. Address ： No. 82, Gongye 2nd Rd., Tainan City 70955, Taiwan, R.O.C. Equipment Under Test ： 11n Mini Router Model Number ： BR080n Brand Name ： ETOP Date of Test ： July 8, 2010 - July 26, 2010 APPLICABLE STANDARD STANDARD TEST RESULT FCC Part 15 S…
