U6A-BR081N11n Mini Router

Version 1.0.15 1 11N Mini Broadband Router BR081n User Manual Version 1.0.15 2 Table of Contents FCC Caution .......................................................................................................................................... 6 Safe Seating Gestures .......................................................................................................................... 7 CE Statement of Conformity ................................................................................................................ 7 Chapter 1 Introduction ................................................................................................................. 8 1.1 Overview ...................................................................................................................... 8 Features......................................................................................................................................... 9 1.2 Specifications............................................................................................................ 10 1.2.1 Six Views of Product Appearance .................................................................. 11 1.2.2 LED Indicator Status Description ................................................................... 11 1.3 System Requirements .............................................................................................. 11 1.4 WAN Network Plug and Play.................................................................................... 12 1.5 Get Your IP Automatically & Manually .................................................................... 12 1.5.1 Network Testing................................................................................................ 15 1.5.2 Testing with Internet Browser ......................................................................... 15 1.5.2.1 Testing with DOS (Windows XP Platform)......................................................... 16 Chapter 2 Hardware Installation................................................................................................ 18 2.1 Diagram of Connecting Hardware to 11N Mini Broadband Router ...................... 18 2.1.1 Hardware Connection and Application for Router Mode ............................. 18 Hardware Connection and Application for AP Mode ..................................................... 19 2.1.2 Hardware Connection and Application for Wi-Fi AP Mode .......................... 19 Chapter 3 One Button Setup...................................................................................................... 20 3.1 One Button Setup configuration for Router Mode ................................................ 20 3.2 One Button Setup configuration for AP Mode ....................................................... 22 3.3 One Button Setup configuration for WiFi AP Mode............................................... 24 Chapter 4 Basic Setup................................................................................................................ 28 4.1 Router Mode .............................................................................................................. 28 4.1.1 Switch to Router Mode .................................................................................... 28 4.1.2 Administrator Setup Instruction ..................................................................... 28 4.2 AP Mode ..................................................................................................................... 29 4.2.1 Switch to AP Mode ........................................................................................... 29 4.3 WiFi AP Mode ............................................................................................................ 30 4.3.1 Switch to WiFi AP Mode................................................................................... 30 Chapter 5 Advanced Configuration for Router Mode ............................................................. 31 5.1 IP Configuration ........................................................................................................ 31 5.1.1 WAN ................................................................................................................... 31 5.1.1.1 WAN Interface– Ethernet Port............................................................................. 33 Version 1.0.15 3 5.1.1.2 WAN Interface– Wireless.................................................................................... 34 5.1.1.3 WAN Access Type – Static IP.............................................................................. 35 5.1.1.4 WAN Access Type – Dynamic IP........................................................................ 37 5.1.1.5 WAN Access Type – PPPoE................................................................................ 39 5.1.1.6 WAN Access Type – PPTP.................................................................................. 42 5.1.1.7 WAN Access Type – L2TP................................................................................... 44 5.1.2 LAN Interface Setup ......................................................................................... 46 5.1.3 Dynamic DNS Setting....................................................................................... 47 5.2 Wireless Setup .......................................................................................................... 49 5.2.1 Wireless Basic Settings................................................................................... 49 5.2.2 Wireless Advanced Settings ........................................................................... 54 5.2.3 Wireless Security Setup .................................................................................. 55 5.2.4 Wireless Access Control ................................................................................. 58 5.2.5 WDS Settings ...............…

Text truncated - open the document above for the full version.

Version 1.0.15 101 3. Apply Changes & Reset Click on Apply Changes to save the setting data. Or you may click on Reset to clear all the input data. Version 1.0.15 102 6.2.4 Wireless Access Control With the MAC address, you may allow or disallow the access to your AP. 1. Wireless Access Control Mode “Allowed Listed” means only the MAC address listed on the allowed list can access to your wireless network. “Deny Listed” means the listed MAC Address are not allowed to link to your wireless network. “Disable” for function disuse. 2. MAC Address Please input the allowed or denied MAC address, for example, 001122334455. 3. Comment You may input the comments for the set MAC Address. 4. Apply Changes & Reset Click on “Apply Change” to save the setting data. Or you may click on “Reset” to clear all the input data. 5. Current Access Control List In this list, all the MAC info you input will be displayed. Version 1.0.15 103 6. Delete Selected and Delete All Click on “Delete Selected” to erase the selected MAC address. Click on “Delete All” to erase all the entered MAC Address. 6.2.5 WDS Settings WDS (Wireless Distribution System) is a Wireless Access Point mode that enables wireless bridging in which only WDS APs communicate with each other (without allowing for wireless clients or stations to access them), and/or wireless repeating in which APs communicate both with each other and with wireless stations (at the expense of half the throughput). Internet AP Router WDS AP Router WDS Wireless Connection Wired Connection Please follow the instructions to setup WDS connections. Version 1.0.15 104 Step 1. Check the MAC address and Channel number of the device you want to setup WDS with 11N Mini Broadband Router . Step 2. Get back to the menu “Wireless Basic Settings” of 11N Mini Broadband Router . Select AP+WDS mode, and then select the Channel Number. Click Apply Changes to save the setting data. Version 1.0.15 105 Step 3. Enter the WDS Settings page, select Enable WDS, and then input the MAC address of the paired device. Click Apply Changes to save the setting data. Step 4. When the time counts down to 0, you will see the MAC address of the paired device displaying on Current WDS AP List. Version 1.0.15 106 Step 5. Head back to LAN Interface, disable DHCP option, and then click Apply Changes to save the setting data. Step 6. Doing the same way to setup the MAC address in the paired device. Launch the UT to the menu “WDS settings” of the paired device, and input router’s MAC address. Click Apply Changes to save the setting data. Version 1.0.15 107 Step 7. After initiating the paired device, please check Local Area Connections. Click Supports to check out the IP address which is assigned by the paired device. Step 8. You can input http://192.168.9.9 in IE browser to enter the GUI page of the paired device and make sure the connection. Input the MAC address here. Version 1.0.15 108 6.2.6 WPS Wi-Fi Protected Setup (WPS) is an easy way to establish a secured wireless network between 11N Mini Broadband Router and wireless card. Users do not need to manually entering a creative, yet predictable security key on both Wi-Fi devices to prevent unwanted access to their wireless network. With WPS, it can automatically configure a wireless network with a network name (SSID) and strong WPA data encryption and authentication. WPS can be enabled by 2 methods: 1. PBC (Push button configuration) Method, in which the user simply has to push a button, either an actual or a virtual one, on both WPS devices to connect. 2. PIN (Personal Identification Number) Method, in which a PIN has to be taken either from a sticker label or from the web interface of the WPS device. This PIN will then be entered in the AP or client WPS device to connect. Please follow instructions below to enable the WPS function. Start PBC: Version 1.0.15 109 (1.) Press the WPS button from 11N Mini Broadband Router or click Start PBC from menu “Wi-Fi Protected Setup”, and waiting for the WPS wireless card setting. or (2.) Open the “Wireless Utility” of your wireless card, and click its “PBC” button, to start auto pairing. Version 1.0.15 110 (3.) While scanning is successful, the information of the wireless card appears in the windows below. Version 1.0.15 111 Start PIN: (1.) Open the “Wireless Utility” of your wireless card. Follow its PIN instruction to get a new PIN number. Write it down. (2.) Open menu “Wi-Fi Protected Setup” of 11N Mini Broadband Router , input the PIN number from the wireless card then click Start PIN. (3.) Back to “Wireless Utility” and press the “Start PIN” button to complete the auto-paring process. Version 1.0.15 112 (4.) When you can see the IP information below, the connection is established Version 1.0.15 113 6.3 System Management 11N Mini Broadband Router provides system management including password changing, firmware upgrade, time setting, user’s account setting and other detail settings. Following is detail explanation for each. 6.3.1 Change Password Users can set or change their password in this section. 1. New Password Enter the new password you want to change. 2. New Password (Confirm) Enter the new password again for confirming. 3. Apply Changes & Reset Version 1.0.15 114 Click on Apply Changes to save the setting data. Or you may click on Reset to clear all the input data. Note: 1. Only the password can be changed, the user name for administrator is admin and not to be changed. 2. If you forget administrator’s password, please reset 11N WLAN Mobile Server Router to default setting by pressing the “Reset” button on the rear panel over 10 seconds. And the password will return to admin. 6.3.2 Upgrade Firmware There is certain risk while upgrading firmware. Upgrading firmware is not recommended unless the significant faulty is found. You can upgrade the firmware of 11N Mini Broadband Router on this page. Make sure the firmware you want to use is on the local hard drive of the computer. Click Upgrade Firmware to proceed. 1…

Text truncated - open the document above for the full version.

E-TOP Network Technology Inc. No . 82, Gongye 2 nd Rd. , Tainan City 70955 , Taiwan , R.O.C. Date: Feb. 15, 2011 Subject: Ad Hoc Mode Function Declaration FCC ID: U6A-BR081N To Whom it may concern, This device is acting as master and operating on 2.4GHz band. Ad Hoc function is available on client mode and not able to work on non-US frequencies. Please contact the one signed below or the authorized agent for this filing. Thank you. Regards, Name: Ren Chen Title: Director Tel: 06-3840077-3601 E-mail: [email protected] Date: 2011 / 2 / 15

U6A-BR081N E-TOP Network Technology Inc. No . 82, Gongye 2nd Rd. , Tainan City 70955 , Taiwan , R.O.C. Date: January 17, 2011 Subject: DoC declaration To Whom it may concern, We, as the grantee of this project FCC ID: composite portion categorized as computer peripheral has been authorized under the Declaration of Conformity procedures. Regards, ( Signature Here) Name: Title: Tel: E-mail: Date: , would like to declare that the

E-TOP Network Technology Inc. Date: 2011/02/15 To whom it may concern: According to the internal photos, some modifications are made and we, E-TOP declared that it will be implemented to the production. Component LocationManufactureModelSize (L x W x H) Quantity Core POWER cable ၫᣪ M2 16*28*9 1pcs. Core USB wire ၫᣪ M3 10*20*5 1pcs. Sincerely Yours, Name: Ren Chen Title: Director Tel: 06-3840077-3601 E-mail: [email protected]

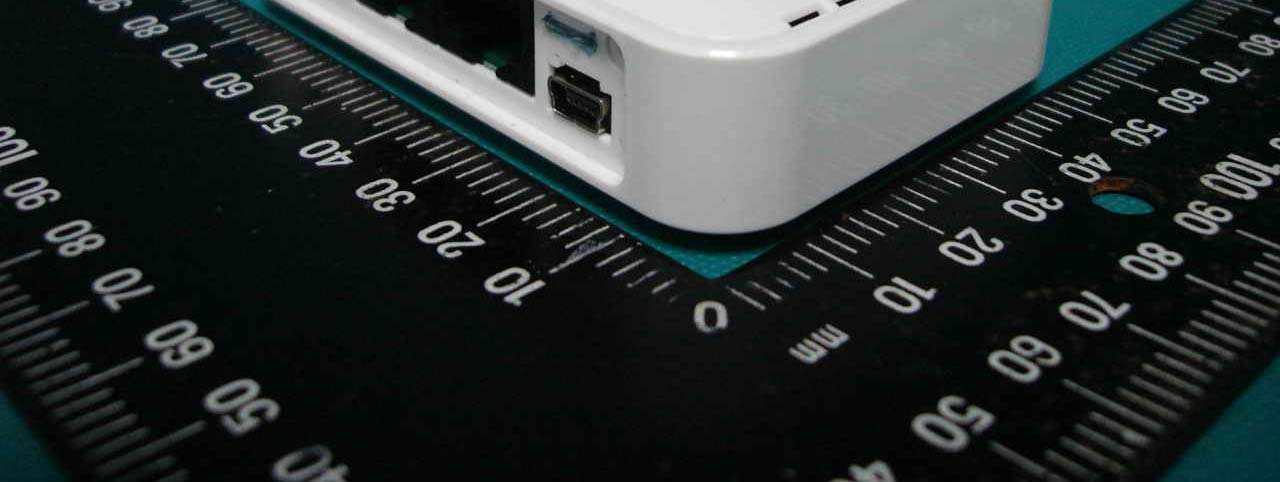

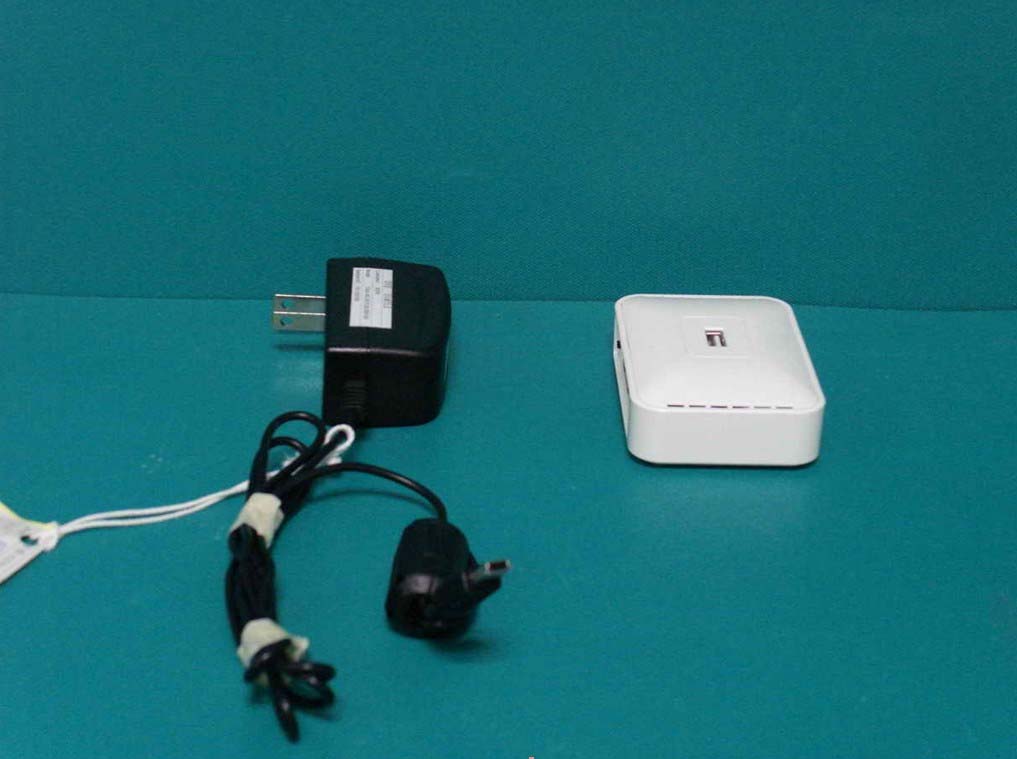

Compliance Certification Services Inc. Report No.：T110107404 External Photo Compliance Certification Services Inc. Report No.：T110107404 Compliance Certification Services Inc. Report No.：T110107404

Diagram Label location 19mm 43mm Label size: 19mm*43mm ETOP / BR081n / 11n Mini Router

Compliance Certification Services Inc. Report No.：T110107404 Internal Photo Compliance Certification Services Inc. Report No.：T110107404 Compliance Certification Services Inc. Report No.：T110107404 Antenna(Model: EM-15)

EM-15 測試日期：99/06/23 專案編號：PJ-25 客戶：易通達 機種：白色 微AP Efficiency (%)：34.4772 專案名稱：WIFI 2400 MHz Gain (dBi)：0.1284 EM-15 測試日期：99/06/23 專案編號：PJ-25 客戶：易通達 機種：白色 微AP Efficiency (%)：36.5509 專案名稱：WIFI 2450 MHz Gain (dBi)：0.6024 EM-15 測試日期：99/06/23 專案編號：PJ-25 客戶：易通達 機種：白色 微AP Efficiency (%)：37.0411 專案名稱：WIFI 2500 MHz Gain (dBi)：1.2726

Compliance Certification Services Inc. Reference No.: T100909406-RP1 Report No.：T110107404-RP1 FCC ID：U6A-BR081N Date of Issue: January 28, 2011 Page 37 8.3 MAXIMUM PERMISSIBLE EXPOSURE According to FCC 1.1310 : The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b)LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (A) Limits for Occupational / Control Exposures 300-1,500 -- -- F/300 6 1,500-100,000 -- -- 5 6 (B) Limits for General Population / Uncontrol Exposures 300-1,500 -- -- F/1500 6 1,500-100,000 -- -- 1 30 CALCULATIONS Given d GP E ×× = 30 & 3770 2 E S = Where E = Field strength in Volts / meter P = Power in Watts G = Numeric antenna gain d = Distance in meters S = Power density in milliwatts / square centimeter Combining equations and re-arranging the terms to express the distance as a function of the remaining variables yields: 2 3770 30 d GP S ×× = Changing to units of mW and cm, using: P (mW) = P (W) / 1000 and d (cm) = d(m) / 100 Yields () () 2 2 0796.0 100/3770 1000/30 d GP d GP S × ×= × ×× = Where d = Distance in cm P = Power in mW G = Numeric antenna gain S = Power density in mW / cm 2 Compliance Certification Services Inc. Reference No.: T100909406-RP1 Report No.：T110107404-RP1 FCC ID：U6A-BR081N Date of Issue: January 28, 2011 Page 38 LIMIT Power Density Limit, S=1.0mW/cm 2 TEST RESULTS No non-compliance noted. () () 22 0796.0 100/3770 1000/30 d GP d GP S × ×= × ×× = G=1.276dBi=1.34047895 dB IEEE 802.11b=0.0796*40.17908*1.58489319/400=0.011618 IEEE 802.11g=0.0796*111.6863*1.58489319/400=0.021238 IEEE 802.11n HT20 =0.0796*102.8016*1.58489319/400=0.017952 IEEE 802.11n HT40 =0.0796*77.09035*1.58489319/400=0.015492 Mode Minimum separation distance (cm) Output Power (dBm) Output Power (mw) Antenna Gain (dBi) Power Density Limit (mW/cm 2 ) Power Density at 20cm (mW/cm 2 ) IEEE 802.11b 20 16.39 43.55 1.27 1.00 0.011618 IEEE 802.11g 20 19.01 79.62 1.27 1.00 0.021238 IEEE 802.11n HT2020 18.28 67.30 1.27 1.00 0.017952 IEEE 802.11n HT4020 17.64 58.08 1.27 1.00 0.015492 REMARK: For mobile or fixed location transmitters, the maximum power density is 1.0 mW/cm 2 even if the calculation indicates that the power density would be larger.

Compliance Certification Services Inc. Reference No.: T100909406-RP1 Report No.：T110107404-RP1 FCC ID：U6A-BR081N Date of Issue: January 28, 2011 Page 1 FCC 47 CFR PART 15 SUBPART C: 2009 AND ANSI C63.4: 2003 TEST REPORT For 11n Mini Router Model Number : BR081n Data Applies To : BR080n Brand: ETOP Issued for E-Top Network Technology Inc. No. 82 ,Gongye 2nd Rd.,Tainan City 70955,Taiwan,R.O.C. Issued by Compliance Certification Services Inc. Tainan Lab. No. 8, Jiu Cheng Ling, Jiaokeng Village,Sinhua Township, Tainan Hsien 712, Taiwan R.O.C. TEL: 886-6-580-2201 FAX: 886-6-580-2202 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. Ltd. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document Total Page: 118 Compliance Certification Services Inc. Reference No.: T100909406-RP1 Report No.：T110107404-RP1 FCC ID：U6A-BR081N Date of Issue: January 28, 2011 Page 2 REVISION HISTORY Rev. Issue Date Revisions Effect Page Revised By 00 January 28, 2010 Initial Issue ALL Kate Shi Compliance Certification Services Inc. Reference No.: T100909406-RP1 Report No.：T110107404-RP1 FCC ID：U6A-BR081N Date of Issue: January 28, 2011 Page 3 TABLE OF CONTENTS 1. TEST REPORT CERTIFICATION ........................................................................................... 4 2. EUT DESCRIPTION .................................................................................................................... 5 2.1 DESCRIPTION OF EUT & POWER........................................................................................ 5-7 3. DESCRIPTION OF TEST MODES............................................................................................ 7 4. TEST METHODOLOGY.............................................................................................................8 5. FACILITIES AND ACCREDITATIONS................................................................................... 8 5.1 FACILITIES .............................................................................................................................. 8 5.2 EQUIPMENT ............................................................................................................................ 8 5.3 LABORATORY ACCREDITATIONS LISTINGS .................................................................. 8 5.4 TABLE OF ACCREDITATIONS AND LISTINGS................................................................. 9 6. CALIBRATION AND UNCERTAINTY .................................................................................... 10 6.1 MEASURING INSTRUMENT CALIBRATION ..................................................................... 10 6.2 MEASUREMENT UNCERTAINTY........................................................................................ 10 7. SETUP OF EQUIPMENT UNDER TEST ................................................................................. 11 7.1 SETUP CONFIGURATION OF EUT....................................................................................... 11 Above 1GHz Test Setup: ................................................................................................................. 11 Below 1GHz Test Setup: ................................................................................................................. 11 7.2 SUPPORT EQUIPMENT ..........................................................................................................12 7.3 EUT OPERATING CONDITION ............................................................................................. 13 8. APPLICABLE LIMITS AND TEST RESULTS........................................................................ 14 8.1 6DB BANDWIDTH .................................................................................................................. 14-25 8.2 MAXIMUM PEAK OUTPUT POWER.................................................................................... 25-28 IEEE 802.11b mode ......................................................................................................................... 28-37 8.3 MAXIMUM PERMISSIBLE EXPOSURE............................................................................... 37 8.3 MAXIMUM PERMISSIBLE EXPOSURE............................................................................... 37-39 8.4 POWER SPECTRAL DENSITY............................................................................................... 39-49 8.5 CONDUCTED SPURIOUS EMISSION................................................................................... 49-62 8.6 RADIATED EMISSIONS .........................................................................................................62 8.6.1 TRANSMITTER RADIATED SUPURIOUS EMSSIONS .............................................. 62-66 8.6.2 WORST-CASE RADIATED EMISSION BELOW 1 GHz .............................................. 66 8.6.3 TRANSMITTER RADIATED EMISSION ABOVE 1 GHz ............................................ 67-91 8.6.4 RESTRICTED BAND EDGES ......................................................................................... 91-109 8.7 POWERLINE CONDUCTED EMISSIONS............................................................................. 109-113 9. ANTENNA REQUIREMENT...................................................................................................... 113 9.1 STANDARD APPLICABLE..................................................................................................... 113 9.2 ANTENNA CONNECTED CONSTRUCTION ....................................................................... 113 APPENDIX SETUP PHOTOS......................................................................................................... 114-118 !!Compliance Certification Services Inc.!!!!!!!Reference No.: T100909406-RP1 Report No.ΚT110107404-RP1 FCC ID˖U6A-BR081N…

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. Reference No.: T100909406-RP1 Report No.：T110107404-RP1 FCC ID：U6A-BR081N Date of Issue: January 28, 2011 Page 114 APPENDIX SETUP PHOTOS RADIATED EMISSION MEASUREMENT SETUP Compliance Certification Services Inc. Reference No.: T100909406-RP1 Report No.：T110107404-RP1 FCC ID：U6A-BR081N Date of Issue: January 28, 2011 Page 115 RADIATED RF MEASUREMENT SETUP Compliance Certification Services Inc. Reference No.: T100909406-RP1 Report No.：T110107404-RP1 FCC ID：U6A-BR081N Date of Issue: January 28, 2011 Page 116 Compliance Certification Services Inc. Reference No.: T100909406-RP1 Report No.：T110107404-RP1 FCC ID：U6A-BR081N Date of Issue: January 28, 2011 Page 117 RF CONDUCTED SETUP Compliance Certification Services Inc. Reference No.: T100909406-RP1 Report No.：T110107404-RP1 FCC ID：U6A-BR081N Date of Issue: January 28, 2011 Page 118 POWERLINE CONDUCTED EMISSIONS MEASUREMENT SETUP End of report
