1 N+ Mobile Router BR182n User Manual 2 Table of Contents FCC Caution .......................................................................................................................................... 4 Safe Seating Gestures .......................................................................................................................... 5 Chapter 1 Introduction ................................................................................................................. 6 1.1 Overview ...................................................................................................................... 6 1.2 Features .......................................................................................................................7 1.3 Specifications .............................................................................................................. 8 1.3.1 Six Views of Product Appearance .................................................................... 9 1.3.2 LED Indicator Status Description ..................................................................... 9 1.4 System Requirements .............................................................................................. 10 1.5 Get Your IP Automatically & Manually .................................................................... 10 1.5.1 Network Testing................................................................................................ 13 1.5.2 Testing with Internet Browser ......................................................................... 13 1.5.2.1 Testing with DOS (Windows XP Platform)......................................................... 13 Chapter 2 One Button Setup...................................................................................................... 16 2.1 One Button Setup configuration for Router Mode ................................................ 16 Chapter 3 Advanced Configuration for Router Mode ............................................................. 19 3.1 IP Configuration ........................................................................................................ 19 3.1.1 WAN ................................................................................................................... 19 3.1.1.1 WAN Interface– Ethernet Port............................................................................. 20 3.1.1.2 WAN Interface– Wireless.................................................................................... 21 3.1.1.3 WAN Access Type – Static IP.............................................................................. 22 3.1.1.4 WAN Access Type –Dynamic IP......................................................................... 24 3.1.1.5 WAN Access Type –PPPoE................................................................................. 26 3.1.1.6 WAN Access Type – PPTP.................................................................................. 29 3.1.1.7 WAN Access Type – L2TP................................................................................... 31 3.1.2 LAN Interface Setup ......................................................................................... 33 3.1.3 Dynamic DNS Setting....................................................................................... 35 3.2 Wireless Setup .......................................................................................................... 36 3.2.1 Wireless Basic Settings................................................................................... 37 3.2.2 Wireless Advanced Settings ........................................................................... 41 3.2.3 Wireless Security Setup .................................................................................. 42 3.2.4 Wireless Access Control ................................................................................. 45 3.2.5 WDS Settings .................................................................................................... 46 3.2.6 WPS ................................................................................................................... 51 3.3 NAT .............................................................................................................................55 3.3.1 Visual Server..................................................................................................... 55 3 3.3.2 Visual DMZ ........................................................................................................ 57 3.4 Firewall .......................................................................................................................58 3.4.1 Port Filtering ..................................................................................................... 59 3.4.2 IP Filtering ......................................................................................................... 61 3.4.3 MAC Filtering .................................................................................................... 62 3.4.4 URL Filtering ..................................................................................................... 63 3.5 System Management ................................................................................................ 64 3.5.1 Change Password ............................................................................................ 65 3.5.2 Upgrade Firmware ............................................................................................ 65 3.5.3 Save / Reload Settings..................................................................................... 66 3.5.4 Time Zone Setting ............................................................................................ 70 3.5.5 UPnP Setting..................................................................................................... 72 3.5.6 Language Setting .............................................…

Text truncated - open the document above for the full version.

E-TOP Network Technology Inc. No . 82, Gongye 2 nd Rd. , Tainan City 70955 , Taiwan , R.O.C. Date: Feb. 15, 2011 Subject: Ad Hoc Mode Function Declaration FCC ID: U6A-BR182N To Whom it may concern, This device is acting as master and operating on 2.4GHz band. Ad Hoc function is available on client mode and not able to work on non-US frequencies. Please contact the one signed below or the authorized agent for this filing. Thank you. Regards, Name: Ren Chen Title: Director Tel: 06-3840077-3601 E-mail: [email protected] Date: 2011 / 2 / 15

U6A-BR182N E-TOP Network Technology Inc. No . 82, Gongye 2nd Rd. , Tainan City 70955 , Taiwan , R.O.C. Date: January 17, 2011 Subject: DoC declaration To Whom it may concern, We, as the grantee of this project FCC ID: composite portion categorized as computer peripheral has been authorized under the Declaration of Conformity procedures. Regards, ( Signature Here) Name: Title: Tel: E-mail: Date: , would like to declare that the

E-TOP Network Technology Inc. Date: 2011/02/15 To whom it may concern: According to the internal photos, some modifications are made and we, E-TOP declared that it will be implemented to the production. Component Location ManufactureModel Size (L x W x H) Quantity Core POWER cable 鈞寶 M2 16*28*9 1pcs. 銅片 POWERBOARD 葳達 WI-0101-AL80 50.4*25.2 mm 1pcs. 導電泡棉 Main board 隆揚 Flat type 30.4*13.4*3.98mm 2pcs. Sincerely Yours, Name: Ren Chen Title: Director Tel: 06-3840077-3601 E-mail: [email protected]

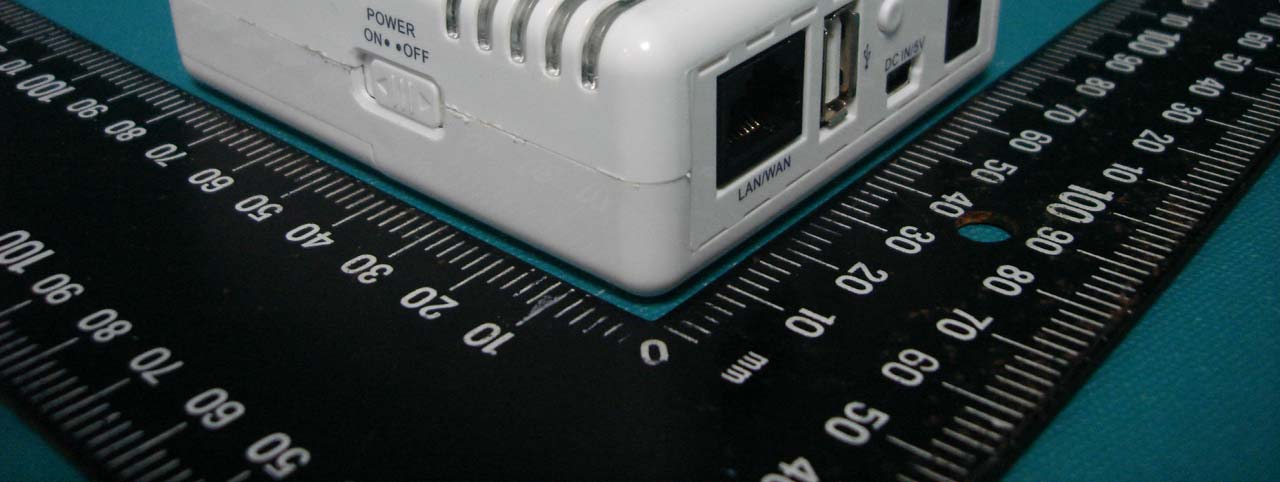

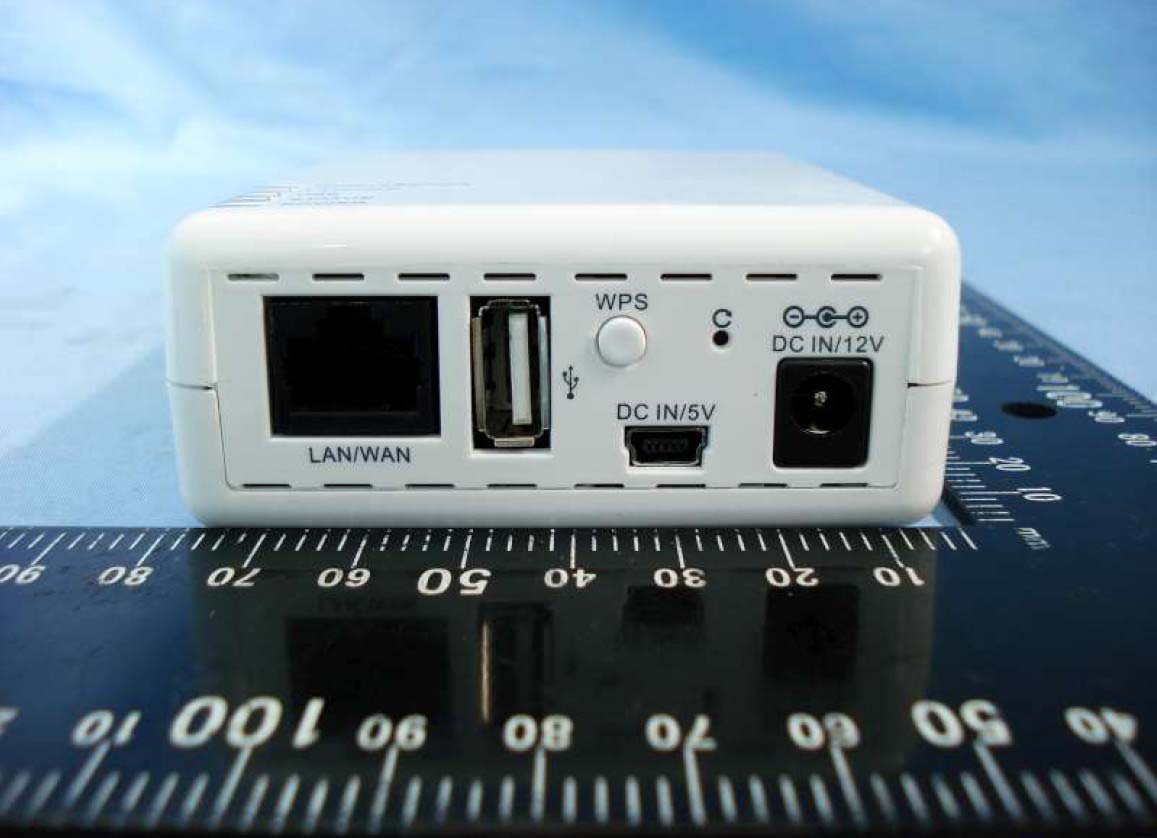

Compliance Certification Services Inc. Report No.:T100901402 Date of Issue: January 7, 2011 Page 1 Total Page: 10 Rev. 00 EXTERNAL PHOTOGRAPHS OF EUT core Compliance Certification Services Inc. Report No.:T100901402 Date of Issue: January 7, 2011 Page 2 Rev. 00 Compliance Certification Services Inc. Report No.:T100901402 Date of Issue: January 7, 2011 Page 3 Rev. 00 Compliance Certification Services Inc. Report No.:T100901402 Date of Issue: January 7, 2011 Page 4 Rev. 00

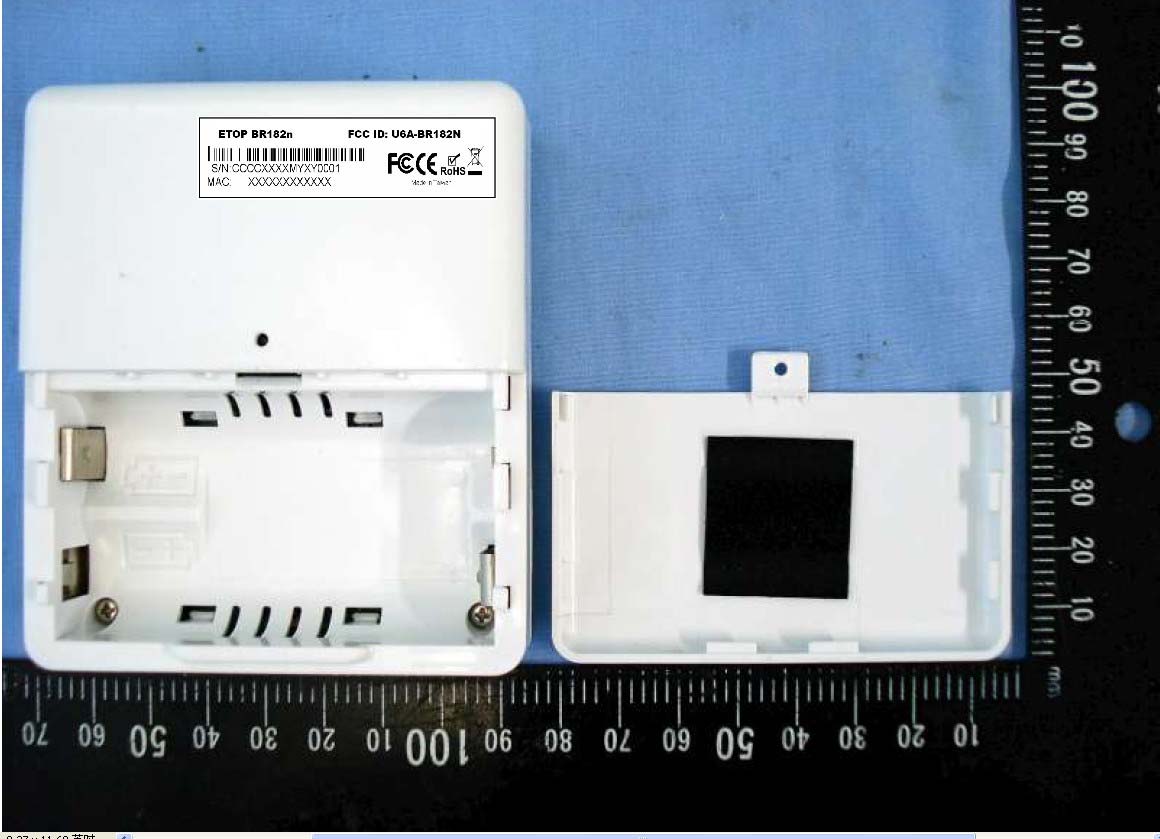

Diagram ETOP BR182n FCC ID: U6A-BR182N FCC Caution: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Marked in the user manual Label location

Compliance Certification Services Inc. Report No.:T100901402 Date of Issue: January 7, 2011 Page 4 Rev. 00 INTERNAL PHOTOGRAPHS OF EUT a.:50.4 X 25.2 mm 1pcs b.:60.8 X 13.4 mm 1 pcs Antenna Gain: 0 dBi Antenna Gain: 2 dBi Compliance Certification Services Inc. Report No.:T100901402 Date of Issue: January 7, 2011 Page 5 Rev. 00 Compliance Certification Services Inc. Report No.:T100901402 Date of Issue: January 7, 2011 Page 6 Rev. 00 Compliance Certification Services Inc. Report No.:T100901402 Date of Issue: January 7, 2011 Page 7 Rev. 00 Compliance Certification Services Inc. Report No.:T100901402 Date of Issue: January 7, 2011 Page 8 Rev. 00 Compliance Certification Services Inc. Report No.:T100901402 Date of Issue: January 7, 2011 Page 9 Rev. 00 Antenna Gain: 0dBi (Manufacture: XinXie Technology) Antenna Gain: 2dBi (Manufacture: BRITO TECHNOLOGY)

EM-15 PIFA Antenna 測試日期：99/06/23 專案編號：PJ-25 客戶：易通達 機種：白色 微AP Efficiency (%)：34.4772 專案名稱：WIFI 2400 MHz Gain (dBi)：0.1284 EM-15 測試日期：99/06/23 專案編號：PJ-25 客戶：易通達 機種：白色 微AP Efficiency (%)：36.5509 專案名稱：WIFI 2450 MHz Gain (dBi)：0.6024 EM-15 測試日期：99/06/23 專案編號：PJ-25 客戶：易通達 機種：白色 微AP Efficiency (%)：37.0411 專案名稱：WIFI 2500 MHz sdfddd Gain (dBi)：2

易 通 達 科 技 股 份 有 限 公 司 ANTENNA TEST REPORT PCB PIFA Antenna 1-1. GENERAL DESCRIPTION OF EUT & SPEC MANUFACTURER: 欣協科技有限公司 MODEL ON: L22-XY30507 FREQUENCY RANGE: 2.4G~2.5GHz, IMPEDANCE: 50Ω ANTENNA GAIN: 0 dBi ANTENNA TYPE: PCB Antenna 1-2. MEASURE RESULT: 2.45GHz pattern 0 90 180 270 -10 -10 -20 -20 -30 -30 -40

Reference No.: T100914404-RP1 Report No.：T100901402-RP1 FCC ID：U6A-BR182N Date of Issue: January 7, 2011 Page 45 8.3 MAXIMUM PERMISSIBLE EXPOSURE According to FCC 1.1310 : The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b)LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (A) Limits for Occupational / Control Exposures 300-1,500 -- -- F/300 6 1,500-100,000 -- -- 5 6 (B) Limits for General Population / Uncontrol Exposures 300-1,500 -- -- F/1500 6 1,500-100,000 -- -- 1 30 CALCULATIONS Given d GP E ×× = 30 & 3770 2 E S= Where E = Field strength in Volts / meter P = Power in Watts G = Numeric antenna gain d = Distance in meters S = Power density in milliwatts / square centimeter Combining equations and re-arranging the terms to express the distance as a function of the remaining variables yields: 2 3770 30 d GP S ×× = Changing to units of mW and cm, using: P (mW) = P (W) / 1000 and d (cm) = d(m) / 100 Yields () () 2 2 0796.0 100/3770 1000/30 d GP d GP S × ×= × ×× = Where d = Distance in cm P = Power in mW G = Numeric antenna gain S = Power density in mW / cm 2 Reference No.: T100914404-RP1 Report No.：T100901402-RP1 FCC ID：U6A-BR182N Date of Issue: January 7, 2011 Page 46 LIMIT Power Density Limit, S=1.0mW/cm 2 TEST RESULTS No non-compliance noted. () () 22 0796.0 100/3770 1000/30 d GP d GP S × ×= × ×× = G=2.0dBi=1.5848932mW IEEE 802.11b =0.0796*40.9261*1.58489319/400=0.012908 IEEE 802.11g =0.0796*211.836*1.58489319/400=0.066812 IEEE 802.11n HT20 =0.0796*228.859*1.58489319/400=0.072181 IEEE 802.11n HT40 =0.0796*168.616*1.58489319/400=0.053180 Mode Minimum separation distance (cm) Output Power (dBm) Output Power (mw) Antenn a Gain (dBi) Power Density Limit (mW/cm 2 ) Power Density at 20cm (mW/cm 2 ) IEEE 802.11b 20.0 16.12 40.93 2.00 1.00 0.012908 IEEE 802.11g 20.0 23.26 211.84 2.00 1.00 0.066812 IEEE 802.11n HT2020.0 23.60 228.86 2.00 1.00 0.072181 IEEE 802.11n HT4020.0 22.27 168.62 2.00 1.00 0.053180 REMARK: For mobile or fixed location transmitters, the maximum power density is 1.0 mW/cm 2 even if the calculation indicates that the power density would be larger.

Reference No.: T100914404-RP1 Report No.：T100901402-RP1 FCC ID：U6A-BR182N Date of Issue: February 25, 2011 Page 1 FCC 47 CFR PART 15 SUBPART C: 2009 AND ANSI C63.4: 2003 TEST REPORT For N+ Mobile Router Model Number: BR182n Brand Name: ETOP Issued for E-Top Network Technology Inc. No. 82 ,Gongye 2nd Rd.,Tainan City 70955,Taiwan,R.O.C. Issued by Compliance Certification Services Inc. Tainan Lab. No. 8, Jiu Cheng Ling, Jiaokeng Village,Sinhua Township, Tainan Hsien 712, Taiwan R.O.C. TEL: 886-6-580-2201 FAX: 886-6-580-2202 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. Ltd. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document Total Page: 143 Reference No.: T100914404-RP1 Report No.：T100901402-RP1 FCC ID：U6A-BR182N Date of Issue: February 25, 2011 Page 2 REVISION HISTORY Rev. Issue Date Revisions Effect Page Revised By 00 February 25,2011 Initial Issue ALL Leah Peng Reference No.: T100914404-RP1 Report No.：T100901402-RP1 FCC ID：U6A-BR182N Date of Issue: February 25, 2011 Page 3 TABLE OF CONTENTS 1. TEST REPORT CERTIFICATION ...................................................................................4 2. EUT DESCRIPTION ........................................................................................................5 2.1 DESCRIPTION OF EUT & POWER ........................................................................................ 5 3. DESCRIPTION OF TEST MODES ..................................................................................7 4. TEST METHODOLOGY ..................................................................................................8 5. FACILITIES AND ACCREDITATIONS............................................................................8 5.1 FACILITIES .............................................................................................................................. 8 5.2 EQUIPMENT............................................................................................................................ 8 5.3 LABORATORY ACCREDITATIONS LISTINGS ...................................................................... 8 5.4 TABLE OF ACCREDITATIONS AND LISTINGS ..................................................................... 9 6. CALIBRATION AND UNCERTAINTY.............................................................................10 6.1 MEASURING INSTRUMENT CALIBRATION.......................................................................... 10 6.2 MEASUREMENT UNCERTAINTY .......................................................................................... 10 7. SETUP OF EQUIPMENT UNDER TEST.........................................................................11 7.1 SETUP CONFIGURATION OF EUT........................................................................................ 11 7.2 SUPPORT EQUIPMENT ......................................................................................................... 12 7.3 EUT OPERATING CONDITION .............................................................................................. 13 8. APPLICABLE LIMITS AND TEST RESULTS.................................................................14 8.1 6DB BANDWIDTH ................................................................................................................... 14 8.2 MAXIMUM PEAK OUTPUT POWER....................................................................................... 29 8.3 MAXIMUM PERMISSIBLE EXPOSURE.................................................................................. 45 8.4 POWER SPECTRAL DENSITY ............................................................................................... 47 8.5 CONDUCTED SPURIOUS EMISSION.................................................................................... 66 8.6 RADIATED EMISSIONS ..........................................................................................................88 8.7 POWERLINE CONDUCTED EMISSIONS .............................................................................. 135 9. ANTENNA REQUIREMENT ............................................................................................139 9.1 STANDARD APPLICABLE ...................................................................................................... 139 9.2 ANTENNA CONNECTED CONSTRUCTION .......................................................................... 139 APPENDIX I SETUP PHOTOS ...........................................................................................140 APPENDIX II PHOTOGRAPHS OF EUT...................................................................A1 !!!Reference No.: T100914404-RP1 Report No.ΚT100901402-RP1 FCC IDΚU6A-BR182N Date of Issue: February 25, 2011 ! Qbhf!5! 1. TEST REPORT CERTIFICATION Applicant Κ E-Top Network Technology Inc. Address Κ No. 82 ,Gongye 2nd Rd.,Tainan City 70955,Taiwan,R.O.C. Manufacture Κ E-Top Network Technology Inc. Address Κ No. 82 ,Gongye 2nd Rd.,Tainan City 70955,Taiwan,R.O.C. Equipment Under Test Κ N+ Mobile Router Model Number Κ BR182n Brand Name Κ ETOP Date of Test Κ November 18, 2010 ~ December 23, 2010, February 25, 2011 APPLICABLE STANDARD STANDARD TEST RESULT FCC Part 15 Subpart C : 2009 AND ANSI C63.4 : 2003 No non-compliance noted Approved by: Reviewed by: Jeter Wu Eric Huang Assistant Manager Assistant Section Manager Reference No.: T100914404-RP1 Report No.：T100901402-RP1 FCC ID：U6A-BR182N Date of Issue: February 25, 2011 Page 5 2. EUT DESCRIPTION 2.1 DESCRIPTION OF EUT & POWER Product Name N+ Mobile Router Model Number BR182n Brand Name ETOP Frequency Range IEEE 802.11b/g, 802.11n HT20 (DTS Band):2412MHz～2462MHz IEEE 802.11n HT40 (DTS Band):2422MHz～2452MHz Transmit Power (ERP) IEEE 802.11b Mode : 16.12dBm (DTS Band) (40.926 mW) IEEE 802.11g Mode : 23.26dBm (DTS Band) (211.84 mW) IEEE 802…

Text truncated - open the document above for the full version.

Reference No.: T100914404-RP1 Report No.：T100901402-RP1 FCC ID：U6A-BR182N Date of Issue: February 25, 2011 Page 71 OUT-OF-BAND SPURIOUS EMISSIONS-CONDUCTED MEASUREMENT (IEEE 802.11b MODE) CH Low (30MHz~26.5GHz) (802.11b MODE ) CH Mid (30MHz~26.5GHz) (802.11b MODE ) Reference No.: T100914404-RP1 Report No.：T100901402-RP1 FCC ID：U6A-BR182N Date of Issue: February 25, 2011 Page 72 CH High (30MHz~26.5GHz) (802.11b MODE ) (802.11b MODE ) Reference No.: T100914404-RP1 Report No.：T100901402-RP1 FCC ID：U6A-BR182N Date of Issue: February 25, 2011 Page 73 OUT-OF-BAND SPURIOUS EMISSIONS-CONDUCTED MEASUREMENT ( 802.11g MODE) CH Low (30MHz~26.5GHz) (802.11g MODE ) CH Mid (30MHz~26.5GHz) (802.11g MODE ) Reference No.: T100914404-RP1 Report No.：T100901402-RP1 FCC ID：U6A-BR182N Date of Issue: February 25, 2011 Page 74 CH High (30MHz~26.5GHz) (802.11g MODE ) (802.11g MODE ) Reference No.: T100914404-RP1 Report No.：T100901402-RP1 FCC ID：U6A-BR182N Date of Issue: February 25, 2011 Page 75 OUT-OF-BAND SPURIOUS EMISSIONS-CONDUCTED MEASUREMENT ( 802.11n HT20 MODE ) CH Low (30MHz~26.5GHz) (802.11n HT20 MODE-Chain A ) CH Mid (30MHz~26.5GHz) (802.11n HT20 MODE-Chain A ) Reference No.: T100914404-RP1 Report No.：T100901402-RP1 FCC ID：U6A-BR182N Date of Issue: February 25, 2011 Page 76 CH High (30MHz~26.5GHz) (802.11n HT20 MODE-Chain A ) (802.11n HT20 MODE-Chain A) Reference No.: T100914404-RP1 Report No.：T100901402-RP1 FCC ID：U6A-BR182N Date of Issue: February 25, 2011 Page 77 OUT-OF-BAND SPURIOUS EMISSIONS-CONDUCTED MEASUREMENT ( 802.11n HT20 MODE ) CH Low (30MHz~26.5GHz) (802.11n HT20 MODE-Chain B ) CH Mid (30MHz~26.5GHz) (802.11n HT20 MODE-Chain B ) Reference No.: T100914404-RP1 Report No.：T100901402-RP1 FCC ID：U6A-BR182N Date of Issue: February 25, 2011 Page 78 CH High (30MHz~26.5GHz) (802.11n HT20 MODE-Chain B) (802.11n HT20 MODE-Chain B) Reference No.: T100914404-RP1 Report No.：T100901402-RP1 FCC ID：U6A-BR182N Date of Issue: February 25, 2011 Page 79 OUT-OF-BAND SPURIOUS EMISSIONS-CONDUCTED MEASUREMENT ( 802.11n HT40 MODE ) CH Low (30MHz~26.5GHz) (802.11n HT40 MODE-Chain A ) CH Mid (30MHz~26.5GHz) (802.11n HT40 MODE-Chain A ) Reference No.: T100914404-RP1 Report No.：T100901402-RP1 FCC ID：U6A-BR182N Date of Issue: February 25, 2011 Page 80 CH High (30MHz~26.5GHz) (802.11n HT40 MODE-Chain A ) (802.11n HT40 MODE-Chain A) Reference No.: T100914404-RP1 Report No.：T100901402-RP1 FCC ID：U6A-BR182N Date of Issue: February 25, 2011 Page 81 OUT-OF-BAND SPURIOUS EMISSIONS-CONDUCTED MEASUREMENT ( 802.11n HT40 MODE ) CH Low (30MHz~26.5GHz) (802.11n HT40 MODE-Chain B ) CH Mid (30MHz~26.5GHz) (802.11n HT40 MODE-Chain B ) Reference No.: T100914404-RP1 Report No.：T100901402-RP1 FCC ID：U6A-BR182N Date of Issue: February 25, 2011 Page 82 CH High (30MHz~26.5GHz) (802.11n HT40 MODE-Chain B ) (802.11n HT40 MODE-Chain B) Reference No.: T100914404-RP1 Report No.：T100901402-RP1 FCC ID：U6A-BR182N Date of Issue: February 25, 2011 Page 83 OUT-OF-BAND SPURIOUS EMISSIONS-CONDUCTED MEASUREMENT ( 802.11n HT20 Combined Mode ) CH Low (30MHz~26.5GHz) (802.11n HT20 MODE ) CH Mid (30MHz~26.5GHz) (802.11n HT20 MODE ) Reference No.: T100914404-RP1 Report No.：T100901402-RP1 FCC ID：U6A-BR182N Date of Issue: February 25, 2011 Page 84 CH High (30MHz~26.5GHz) (802.11n HT20 MODE ) Reference No.: T100914404-RP1 Report No.：T100901402-RP1 FCC ID：U6A-BR182N Date of Issue: February 25, 2011 Page 85 OUT-OF-BAND SPURIOUS EMISSIONS-CONDUCTED MEASUREMENT ( 802.11n HT40 Combined Mode ) CH Low (30MHz~26.5GHz) (802.11n HT40 MODE ) CH Mid (30MHz~26.5GHz) (802.11n HT40 MODE ) Reference No.: T100914404-RP1 Report No.：T100901402-RP1 FCC ID：U6A-BR182N Date of Issue: February 25, 2011 Page 86 CH High (30MHz~26.5GHz) (802.11n HT40 MODE ) Reference No.: T100914404-RP1 Report No.：T100901402-RP1 FCC ID：U6A-BR182N Date of Issue: February 25, 2011 Page 87 8.6 RADIATED EMISSIONS 8.6.1 TRANSMITTER RADIATED SUPURIOUS EMSSIONS LIMITS § 15.205 (a) Except as shown in paragraph (d) of this section, only spurious emissions are permitted in any of the frequency bands listed below: MHz MHz MHz GHz 0.090 - 0.110 16.42 - 16.423 399.9 - 410 4.5 - 5.15 1 0.495 - 0.505 16.69475 - 16.69525608 - 614 5.35 - 5.46 2.1735 - 2.1905 16.80425 - 16.80475960 - 1240 7.25 - 7.75 4.125 - 4.128 25.5 - 25.67 1300 - 1427 8.025 - 8.5 4.17725 - 4.17775 37.5 - 38.25 1435 - 1626.5 9.0 - 9.2 4.20725 - 4.20775 73 - 74.6 1645.5 - 1646.5 9.3 - 9.5 6.215 - 6.218 74.8 - 75.2 1660 -1710 10.6 -12.7 6.26775 - 6.26825 108 -121.94 1718.8 - 1722.2 13.25 -13.4 6.31175 - 6.31225 123 - 138 2200 - 2300 14.47 – 14.5 8.291 - 8.294 149.9 - 150.05 2310 - 2390 15.35 -16.2 8.362 - 8.366 156.52475 - 156.52525 2483.5 - 2500 17.7 - 21.4 8.37625 - 8.38675 156.7 - 156.9 2655 - 2900 22.01 - 23.12 8.41425 - 8.41475 162.0125 - 167.17 3260 - 3267 23.6 - 24.0 12.29 - 12.293 167.72 - 173.2 3332 - 3339 31.2 - 31.8 12.51975 - 12.52025 240 - 285 3345.8 - 3338 36.43 - 36.5 12.57675 - 12.57725 322 -335.4 3600 - 4400 ( 2 ) 13.36 - 13.41 1 Until February 1, 1999, this restricted band shall be 0.490-0.510 MHz. 2 Above 38.6 Reference No.: T100914404-RP1 Report No.：T100901402-RP1 FCC ID：U6A-BR182N Date of Issue: February 25, 2011 Page 88 § 15.205 (b) Except as provided in paragraphs (d) and (e), the field strength of emissions appearing within these frequency bands shall not exceed the limits shown is Section 15.209. At frequencies equal to or less than 1000 MHz, compliance with the limits in Section 15.209 shall be demonstrated using measurement instrumentation employing a CISPR quasi-peak detector. Above 1000 MHz, compliance with the emission limits in Section 15.209 shall be demonstrated based on the average value of the measured emissions. The provisions in Section 15.35 apply to these measurements. § 15.209 (a) Except as provided elsewhere in this Subpart, the emissions from an intentional radiator shall not exceed the field strength levels specified in the following table : Frequency (MHz) Field Strength (microvolts/meter) Measurement Distance (me…

Text truncated - open the document above for the full version.

Reference No.: T100914404-RP1 Report No.：T100901402-RP1 FCC ID：U6A-BR182N Date of Issue: February 25, 2011 Page 140 APPENDIX SETUP PHOTOS CONDUCTED EMISSION TEST SETUP Reference No.: T100914404-RP1 Report No.：T100901402-RP1 FCC ID：U6A-BR182N Date of Issue: February 25, 2011 Page 141 RADIATED EMISSION MEASUREMENT SETUP Reference No.: T100914404-RP1 Report No.：T100901402-RP1 FCC ID：U6A-BR182N Date of Issue: February 25, 2011 Page 142 RADIATED RF MEASUREMENT SETUP Reference No.: T100914404-RP1 Report No.：T100901402-RP1 FCC ID：U6A-BR182N Date of Issue: February 25, 2011 Page 143 POWERLINE CONDUCTED EMISSIONS MEASUREMENT SETUP End of report
