U6A-BR280NN+ High Power Broadband Router

1 E-TOP BR280n N+ High Power Broadband Router - All Broadbands User Manual 2 Table of Contents FCC Caution ........................................................................................................錯誤! 尚未定義書籤。 Notice ..................................................................................................................................................... 7 Chapter 1 Introduction ................................................................................................................. 8 1.1 Overview ...................................................................................................................... 8 1.2 Features .......................................................................................................................9 1.3 Specifications............................................................................................................ 10 1.3.1 Product Appearance ........................................................................................ 12 1.3.2 LED Indicator Status Description ................................................................... 12 1.4 System Requirements .............................................................................................. 13 1.5 Get Your IP Automatically & Manually .................................................................... 14 1.5.1 Network Testing................................................................................................ 17 1.5.2 Testing with Internet Browser ......................................................................... 17 1.5.2.1 Testing with DOS (Windows XP Platform)......................................................... 17 Chapter 2 Hardware Installation................................................................................................ 20 2.1 Diagram of Connecting Hardware to 11N Broadband Router .............................. 20 2.1.1 Hardware Connection and Application for Router Mode ............................. 20 Chapter 3 One Button Setup...................................................................................................... 21 3.1 One Button Setup configuration for Router Mode ................................................ 21 Chapter 4 Basic Setup................................................................................................................ 25 4.1 Router Mode .............................................................................................................. 25 4.1.1 Administrator Setup Instruction ..................................................................... 25 4.2 Basic Setup................................................................................................................ 26 4.2.1 Time Zone Setup............................................................................................... 26 4.2.2 LAN Interface Setup ......................................................................................... 27 4.2.3 WAN Setup ........................................................................................................ 28 4.2.3.1 WAN Interface– Ethernet Port............................................................................. 28 4.2.3.2 WAN Interface– Wireless.................................................................................... 28 4.2.3.3 WAN Access Type – Static IP.............................................................................. 28 4.2.3.4 WAN Access Type – Dynamic IP........................................................................ 28 4.2.3.5 WAN Access Type – PPPoE................................................................................ 29 4.2.3.6 WAN Access Type – PPTP.................................................................................. 29 4.2.3.7 Wireless Setup..................................................................................................... 29 4.2.3.8 Wireless Security Setup...................................................................................... 30 4.2.4 Basic Setup Complete ..................................................................................... 31 Chapter 5 Advanced Configuration .......................................................................................... 33 5.1 IP Configuration ........................................................................................................ 33 3 5.1.1 WAN ................................................................................................................... 33 5.1.1.1 WAN Interface– Ethernet Port............................................................................. 33 5.1.1.2 WAN Interface– Wireless.................................................................................... 34 5.1.1.3 WAN Access Type – Static IP.............................................................................. 34 5.1.1.4 WAN Access Type –Dynamic IP......................................................................... 35 5.1.1.5 WAN Access Type –PPPoE................................................................................. 36 5.1.1.6 WAN Access Type – PPTP.................................................................................. 38 5.1.2 LAN Interface Setup ......................................................................................... 39 5.1.3 Dynamic DNS Setting....................................................................................... 41 5.2 Wireless Setup .......................................................................................................... 42 5.2.1 Wireless Basic Settings................................................................................... 43 5.2.2 Wireless Advanced Settings ........................................................................... 47 5.2.3 Wireless Security Setup .................................................................................. 48 5.2.4…

Text truncated - open the document above for the full version.

E-TOP Network Technology Inc. No . 82, Gongye 2nd Rd. , Tainan City 70955 , Taiwan , R.O.C. Attestation FCC ID: U6A-BR280N Product: N+ High Power Broadband Router - All Broadbands Model: BR280n Statements: We, the undersigned, hereby certify that only 11 channels from 2412-2462MHz will be used in USA, other channels will be disabled by software. Sincerely yours, _________________________ Name/ Title Company name

E-TOP Network Technology Inc. No . 82, Gongye 2nd Rd. , Tainan City 70955 , Taiwan , R.O.C. Confidentiality Request FCC ID: U6A-BR280N Product: N+ High Power Broadband Router - All Broadbands Model: BR280n Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: Schematics Block Diagram The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely yours, ___________________________ name/ title tel: fax: email:

E-TOP Network Technology Inc. No . 82, Gongye 2nd Rd. , Tainan City 70955 , Taiwan , R.O.C. Date: 2011/3/17 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 c.c. Compliance Certification Services Certification Division 47173 Benicia Street Fremont, CA 94538, USA To whom it may concern: I, the undersigned, hereby authorize Mr. Alex Chiu / Director of Compliance Certification Services Inc. and hereafter referred to as CCS, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by Mr. Alex Chiu / Director of Compliance Certification Services Inc. on our behalf shall have the same effect as acts of our own. In authorizing CCS as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, (Please type Name and Title of Person to Receive Grant/Certificate) (Please type Company Name) REMARK: 1. This authorization letter will be sent along with your application when filing with the Certification Division. 2. Please follow the format and type it on company letterhead and send original to us. 3. Authorized signature must be in agreement with grantee code contact in FCC database.

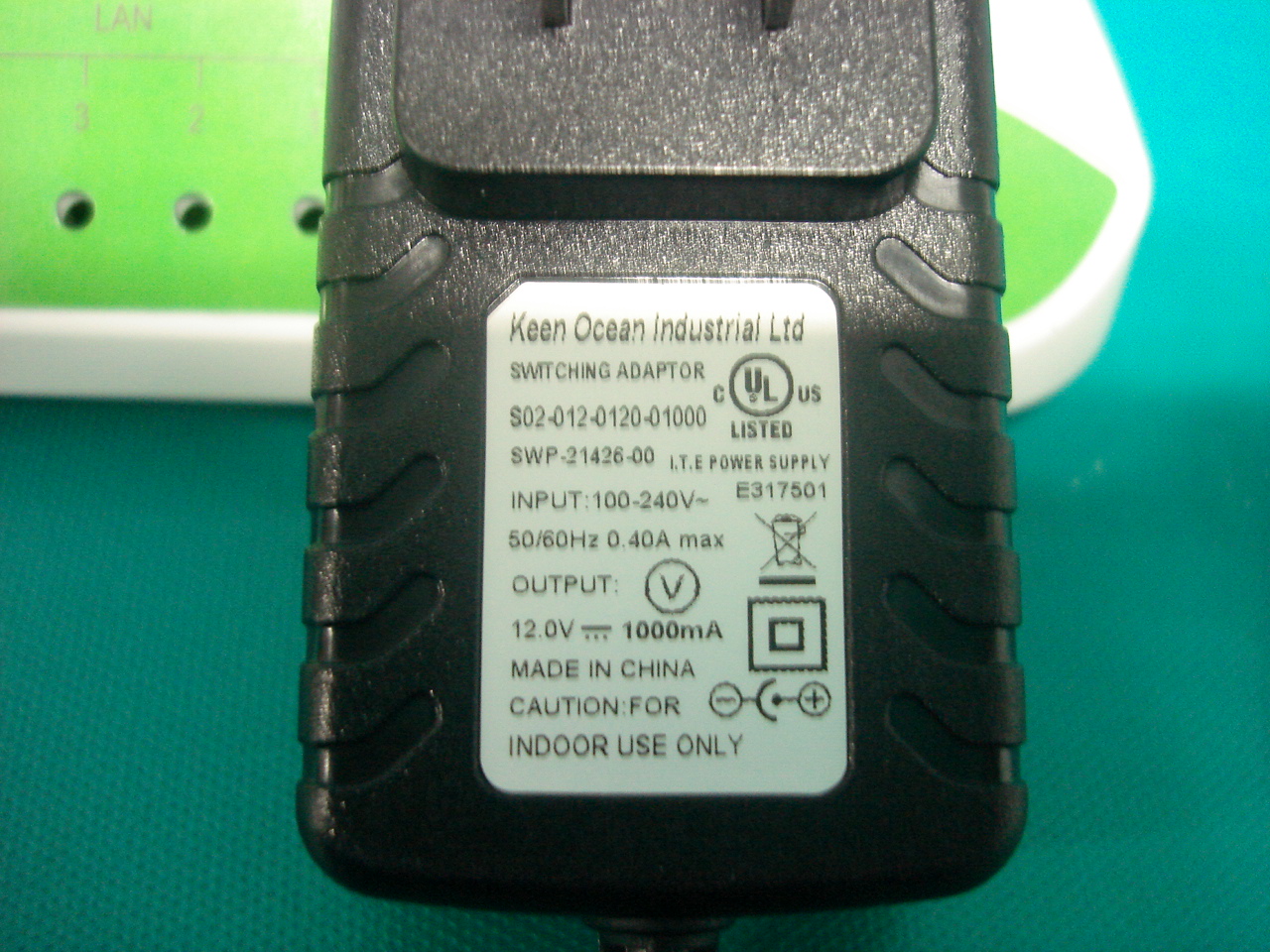

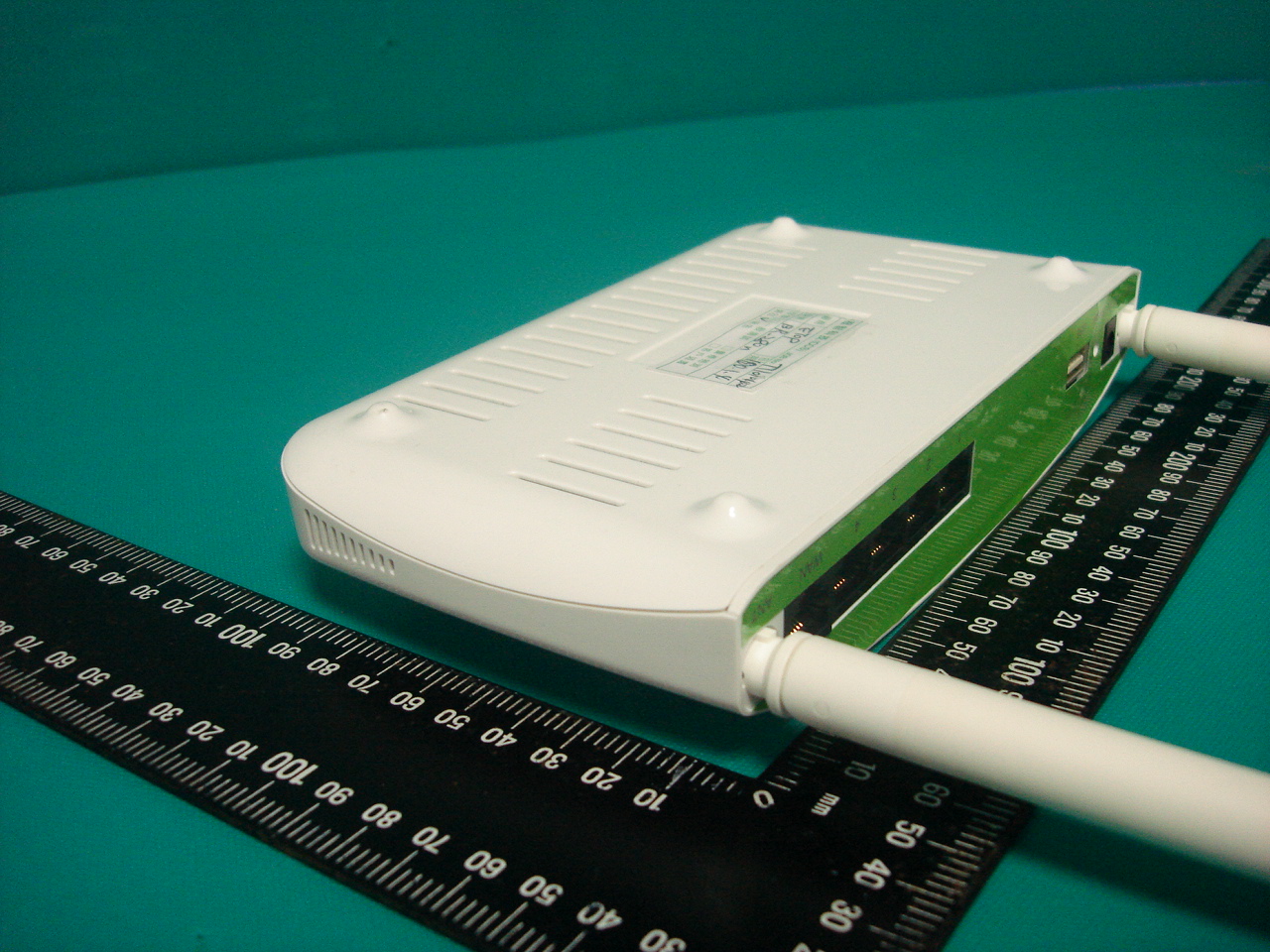

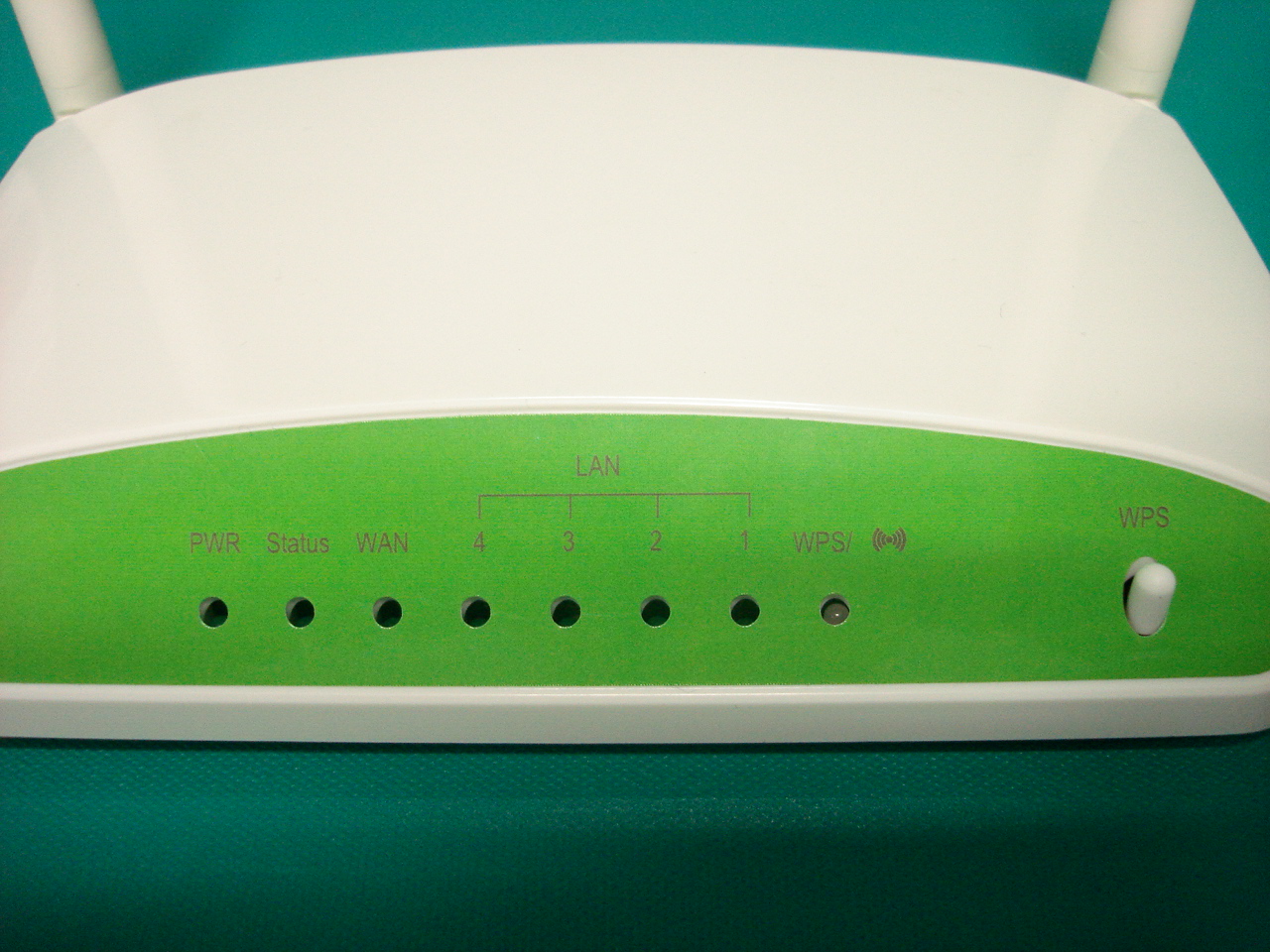

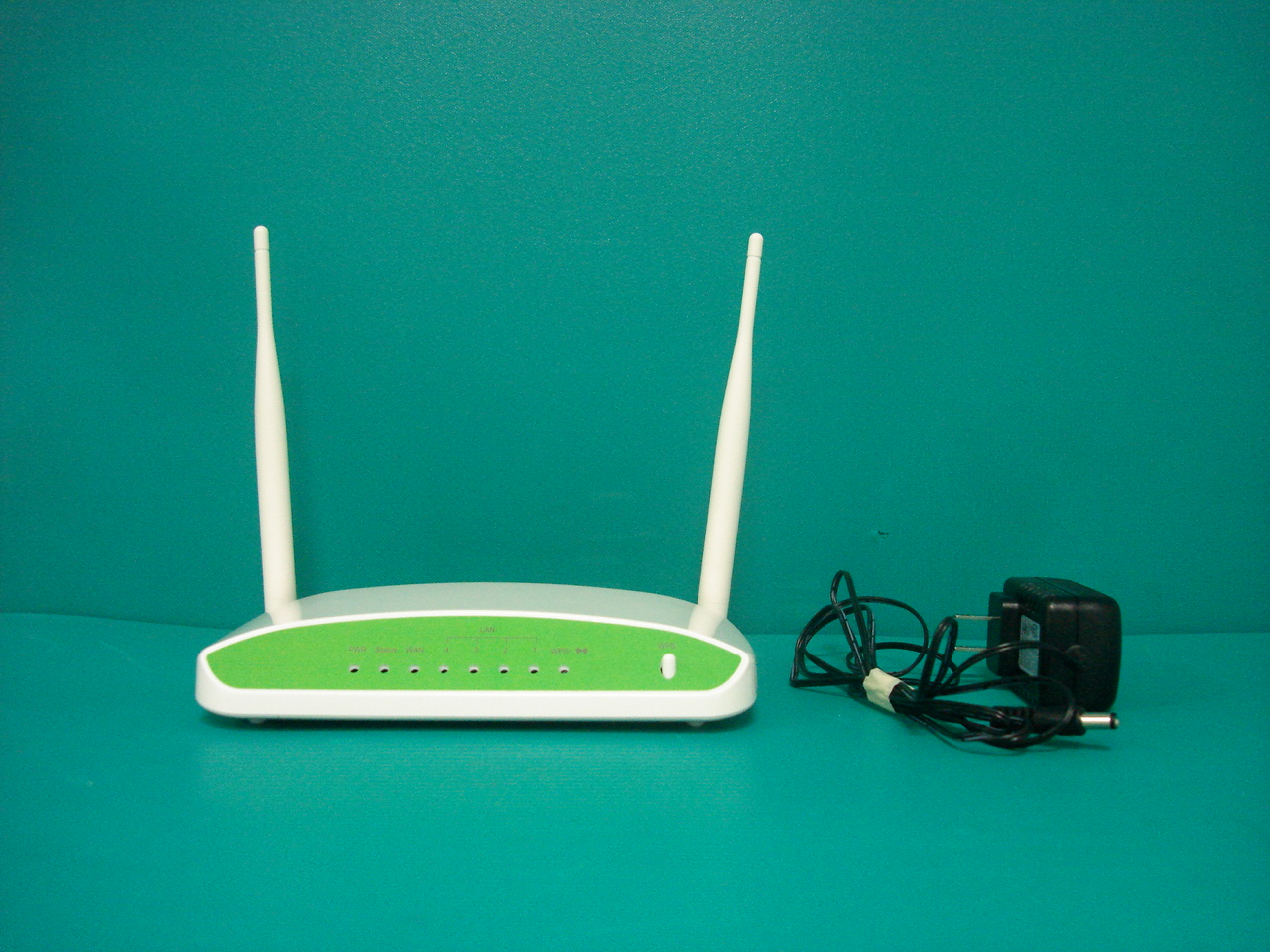

Compliance Certification Services Inc. Report No.:T110104402 Date of Issue: February 14, 2011 Page A1 Total Page: 5 Rev. 00 PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No.:T110104402 Date of Issue: February 14, 2011 Page A2 Rev. 00 Compliance Certification Services Inc. Report No.:T110104402 Date of Issue: February 14, 2011 Page A3 Rev. 00

Diagram Label location

Compliance Certification Services Inc. Report No.:T110104402 Date of Issue: February 14, 2011 Page A4 Rev. 00 Antenna Location Compliance Certification Services Inc. Report No.:T110104402 Date of Issue: February 14, 2011 Page A5 Rev. 00

ᡓ䁡(라)ゴ˖ કᄣ䚼ⷨⱐ䚼Ḍޚ QΗC DEP 5¥''(3 SANCTION ߎᒴ(라)ゴ˖ ⷨⱐ䚼ὁࢭ䚼Ḍޚ 5¥''(3 SALES DEPT.SANCTION ᑰݳᎌ്ᣛଆޗ∌ⱐ SPECIFICATION FOR APPROVAL ᅶ᠊ৡ々˄CUSTOMER˅˖㿞ᒋ里ᡔ㙵ӑ᳝䰤݀ৌ ⃷न里ᡔ˄⏅ഇ˅᳝䰤݀ৌ XINXIE TECHNOLOGY˄SHENZHEN˅CO.ˈLTD. ᡓ䁡᳌ કৡ/㽣Ḑ˄DESCRIPTION˅: 2.4GHz -Antenna-5dbiߎ㒓160mm ᔤ໻໻ ᅶ᠊᭭㰳˄ PART1O˅˖ 䗕ῷ᮹ᳳ˄ DATE˅˖ 2010.11.08 ᡓ䁡㰳⺐˄APPROVED NO˅˖ ⃷न᭭㰳˄ PART1O˅˖ S22-XY30924 QˊC DEP ᪕ⶀ里ᡔ᳝䰤݀ৌ ᥵䋐䚼 PURCHASER DEP કᄣ䚼 ⃷न里ᡔ˄⏅ഇ˅᳝䰤݀ৌ ,QGH[ ,WHP 'UDZLQJ 7HVWUHSRW (OHFWULFDOWHVW 6SHFLILFDWLRQ &DEOH 3DFNLQJ 3(%DJ &DUWRQ 0RGLILFDWLR Q+LVWRU\ 5HY'DWH&RQWHQW  ⃷न里ᡔ᳝䰤݀ৌ ;,1;,(7(&+12/2*< ˅ˁˣ˻̌̆˼˶˴˿ʳˣ̅̂̃˸̅̇˼˸̆ ˖˴˵˿˸˥ ̇˄ˁˆˊ ˧˸̀˸̅˴̇̈̅˸ʳʳ˥˴́˺˸ ˖̂̅̅̂̆˼̂́ ˠ ̃˟ˀ˦˧˗ˀ˅˃˅ʿ̀˸̇˻̂˷˅˄ˆ ˠ ̃˟ˀ˦˧˗ˀ˅˃˅ʿ̀˸̇˻̂˷˄˃˄ ˀ˅˃к̑ʾˉˈк ˠ ̃˟ˀ˦˧˗ˀ˅˃˅ʿ̀ ˸̇˻̂˷˄˃ˉ˥˸˿˴̇˼̉˸ʳ ̨̈̀˼˷˼̇̌ ˩˼˵̅˴̇˼̂́ ˧ ̆˖ ̨ˡ ̃˖˔˟ʳʳʳʳʳʳʳ˗˔˧˔ ˄ˁ ̆˿˸˶̇̅˼˶˴˿ʳˣ̅̂̃˸̅̇˼˸̆ ˗̈̅˴˵˼˿˼̇̌ˈ˃˃˖̌˶˿˸̆ʳʳˠ ̃ˡ ˆˁˠ˸˶˻˴́˼˶˴˿ʳϟ ̆́̉˼̅̂́̀˸́̇˴˿ ˈ˷˕˼ ̇̅˸̄̈˸́˶̌ʳʳ˥˴́˺˸˅ˁˇ ̊ ̨̍ˀ˅ˁˈ ̊ ̨̍ ˈ˃Ө Љ˅ˁ˃ ˢ̀́˼ ˩ˁ˦ˁ˪ˁ˥ ̊˴˼́ ˥˸˷˼˴̇˼̂́ ˣ̂˿˴̅˼̍˴̇˼̂́˩˸̅̇˼˶˴˿ ̃̀̃˸˷̂́˶˸ ᴤ᭭ 䬔䫊䪰ρ ᇐԧ ᡸ༫ 㒧ᵘ 7/0.10 㒱㓬ᴤ᭭ 㘮ܼ⇳Эϭ⛃ (FEP) 㒱㓬໪ᕘ 0.88±0.05mm ৠᖗᑺ ̊ ሯ㬑 ሣ㬑ᴤ᭭ 䬔䫊䪰ρ 㒧ᵘ 16*5/0.05 ሣ㬑໪ᕘ 1.13mm 㒱㓬 ሣ㬑ሖ ᴤ᭭ 㘮ܼ⇳Эϭ⛃ (FEP) ८ᑺ 0.08±0.05 ໪ᕘ 1.37±0.10mm 买㡆 : ᣝᅶ᠋㽕∖ খ✻ᷛޚ˖ݯᷛ M17 1. ⡍ᗻ䰏ᡫ˄¡˅˖ǂ 50 ¡ 1. ᪡԰乥⥛˖ǂǂ *+ = 2. ᅲ偠⬉य़˖ NY 2. ⬉ᆍ䞣˖ ǂǂǂǂS)P 乱ᅮ⏽ᑺ ˉć̚ć 3. ֵোӴ䕧䗳ᑺ˖ǂ 69% 3. ☿㢅⬉य़˖ ǂ 2kv 4. ᓊ䖳˖ǂǂǂǂǂ 4.86ns/m 㒱㓬䰏ᡫ˖ǂǂǂıh  0¡P 6. ሣ㬑⥛˖ǂǂǂǂ ̊ 40Db(1GHz) 7. ᪡԰⬉य़˖ǂǂǂ 0.85KVms ࠊ㒬 ᕤ৥ढ ᮹ᳳ 2008/8/3 ZX09080302 㓪ো ׁ૤ि ᅵḌ ໛ ⊼ ⬉ 㒓 ৡ 鹵 RF1.37 ៾ 䴶 ೒ 乍 Ⳃ 㾘 Ḑ 㒱㓬 ᇐԧ 㢣 Ꮂ Ꮦ Ⳍ ජ ג ᯁ ⬉ 㒓 ⬉ 㓚 ᳝ 䰤 ݀ ৌ ⬉ ⇨ ᗻ 㛑 ޚḌ ⥟㡇 ᅶ᠋ৡ鹵 ⃷ण ѻ  ક  㾘  Ḑ  к 1 2.4GHz 5dBi Antenna Test Report (with cable length 160mm) 2 Impedance Characteristics 3 2D Radiation Patterns 2400 MHz 4 2D Radiation Patterns 2450 MHz 5 2D Radiation Patterns 2500 MHz

Description of Operation The EUT is a N+ High Power Broadband Router - All Broadbands with IEEE 802.11b/g/n (2T2R) . And this device provided of transm itting s peed: IEEE 802.11b : 11, 5.5, 2, 1 Mbps IEEE 802.11g : 54, 48 ,36, 24, 18, 12, 9, 6 Mbps IEEE 802.11n HT20 : 65, 58.5, 52, 39, 26, 19.5, 13, 6.5 Mbps IEEE 802.11n HT40 : 135, 121.5, 108, 81, 54, 40.5, 27, 13.5 Mbps the device of RF carrier is CCK, DQPSK, DBPSK, 64QAM, 16QAM, QPSK and BPSK. The device adapts DSSS and OFDM m odulation. And the antennas were two dipole antennas and provided diversity function to im prove the receiving function. It allows your computer to connect to a wireless network and to s hare res ources , such as files or printers without being bound to the network wires . And this EUT Operation in 2.4GHz Direct Sequence Spread Spectrum (D.S.S.S) and Orthogonal Frequency division Multiplex (O.F.D.M) radio transmiss ion. In addition, its s tandard compliance ens ures that it can comm unicate with any 802.11b/g/n network. Frequency Range IEEE 802.11b/g, 802.11n HT20 (DTS Band):2412MHz～2462MHz IEEE 802.11n HT40 (DTS Band):2422MHz～2452MHz Channel Spacing IEEE 802.11b/g, 802.11n HT20/HT40: 5MHz Channel Number IEEE 802.11b/g, 802.11n HT20:11 Channels IEEE 802.11n HT40 :7 Channels

Reference No.: T100914404-RP1 Report No.：T110104402-RP1 FCC ID：U6A-BR280N Date of Issue: February 14, 2011 Page 1 FCC 47 CFR PART 15 SUBPART C: 2009 AND ANSI C63.4: 2003 TEST REPORT For N+ High Power Broadband Router - All Broadbands Model Number: BR280n Brand Name: ETOP Issued for E-Top Network Technology Inc. No. 82 ,Gongye 2nd Rd.,Tainan City 70955,Taiwan,R.O.C. Issued by Compliance Certification Services Inc. Tainan Lab. No. 8, Jiu Cheng Ling, Jiaokeng Village,Sinhua Township, Tainan Hsien 712, Taiwan R.O.C. TEL: 886-6-580-2201 FAX: 886-6-580-2202 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. Ltd. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document Total Page: 139 Reference No.: T100914404-RP1 Report No.：T110104402-RP1 FCC ID：U6A-BR280N Date of Issue: February 14, 2011 Page 2 REVISION HISTORY Rev. Issue Date Revisions Effect Page Revised By 00 February 14, 2011 Initial Issue ALL Leah Peng Reference No.: T100914404-RP1 Report No.：T110104402-RP1 FCC ID：U6A-BR280N Date of Issue: February 14, 2011 Page 3 TABLE OF CONTENTS 1. TEST REPORT CERTIFICATION ...................................................................................4 2. EUT DESCRIPTION ........................................................................................................5 2.1 DESCRIPTION OF EUT & POWER ........................................................................................ 5 3. DESCRIPTION OF TEST MODES ..................................................................................7 4. TEST METHODOLOGY ..................................................................................................8 5. FACILITIES AND ACCREDITATIONS............................................................................8 5.1 FACILITIES .............................................................................................................................. 8 5.2 EQUIPMENT............................................................................................................................ 8 5.3 LABORATORY ACCREDITATIONS LISTINGS ...................................................................... 8 5.4 TABLE OF ACCREDITATIONS AND LISTINGS ..................................................................... 9 6. CALIBRATION AND UNCERTAINTY.............................................................................10 6.1 MEASURING INSTRUMENT CALIBRATION.......................................................................... 10 6.2 MEASUREMENT UNCERTAINTY .......................................................................................... 10 7. SETUP OF EQUIPMENT UNDER TEST.........................................................................11 7.1 SETUP CONFIGURATION OF EUT........................................................................................ 11 7.2 SUPPORT EQUIPMENT ......................................................................................................... 12 7.3 EUT OPERATING CONDITION .............................................................................................. 13 8. APPLICABLE LIMITS AND TEST RESULTS.................................................................14 8.1 6DB BANDWIDTH ................................................................................................................... 14 8.2 MAXIMUM PEAK OUTPUT POWER....................................................................................... 29 8.3 MAXIMUM PERMISSIBLE EXPOSURE.................................................................................. 33 8.4 POWER SPECTRAL DENSITY ............................................................................................... 35 8.5 CONDUCTED SPURIOUS EMISSION.................................................................................... 55 8.6 RADIATED EMISSIONS ..........................................................................................................84 8.7 POWERLINE CONDUCTED EMISSIONS .............................................................................. 131 9. ANTENNA REQUIREMENT ............................................................................................135 9.1 STANDARD APPLICABLE ...................................................................................................... 135 9.2 ANTENNA CONNECTED CONSTRUCTION .......................................................................... 135 APPENDIX I SETUP PHOTOS ...........................................................................................136 APPENDIX II PHOTOGRAPHS OF EUT...................................................................A1 Reference No.: T100914404-RP1 Report No.：T110104402-RP1 FCC ID：U6A-BR280N Date of Issue: February 14, 2011 Page 4 1. TEST REPORT CERTIFICATION Applicant ： E-Top Network Technology Inc. Address ： No. 82 ,Gongye 2nd Rd.,Tainan City 70955,Taiwan,R.O.C. Manufacture ： E-Top Network Technology Inc. Address ： No. 82 ,Gongye 2nd Rd.,Tainan City 70955,Taiwan,R.O.C. Equipment Under Test ： N+ High Power Broadband Router - All Broadbands Model Number ： BR280n Brand Name ： ETOP Date of Test ： January 7, 2011 – January 31, 2011 APPLICABLE STANDARD STANDARD TEST RESULT FCC Part 15 Subpart C : 2009 AND ANSI C63.4 : 2003 No non-compliance noted Approved by: Reviewed by: Jeter Wu Eric Huang Assistant Manager Assistant Section Manager Reference No.: T100914404-RP1 Report No.：T110104402-RP1 FCC ID：U6A-BR280N Date of Issue: February 14, 2011 Page 5 2. EUT DESCRIPTION 2.1 DESCRIPTION OF EUT & POWER Product Name N+ High Power Broadband Router - All Broadbands Model Number BR280n Brand Name ETOP Frequency Range IEEE 802.11b/g, 802.11n HT20 (DTS Band):2412MHz～2462MHz IEEE 802.11n HT40 (DTS Band):2422MHz～2452MHz Conducted Output Power IEEE 802.11b Mode : 19.01dBm (DTS Band) (79.…

Text truncated - open the document above for the full version.

Reference No.: T100914404-RP1 Report No.：T110104402-RP1 FCC ID：U6A-BR280N Date of Issue: February 14, 2011 Page 101 Product Name N+ High Power Broadband Router - All Broadbands Test Date 2011/1/17 Model BR280n Test By John Chen Test Mode IEEE 802.11g TX (CH High) TEMP& Humidity 19.8 , °C49% Vertical TX / IEEE 802.11g mode / CH HighMeasurement Distance at 3m Vertical polarity Freq. Reading AF Cable LossPre-ampFilterLevel Limit Margin Mark (MHz) (dBμV) (dB/m) (dB) (dB) (dB)(dBμV/m)(dBμV/m) (dB) (P/Q/A) 1249.93 53.14 25.55 2.10 41.76 0.7439.77 74.00 -34.23 P 1249.93 43.26 25.55 2.10 41.76 0.7429.89 54.00 -24.11 A * 4923.97 48.77 33.47 3.76 42.48 0.7344.25 74.00 -29.75 P * 4923.97 42.68 33.47 3.76 42.48 0.7338.16 54.00 -15.84 A N/A ------ ------------ ------ ------------ ------ ------ P N/A ------ ------------ ------ ------------ ------ ------ A REMARK: 1. AF: Antenna Factor, Cable: Cable Loss, Pre-Amp: Preamplifier gain, Filter: High Pass Filter Insertion Loss (3.5GHz) 2. Spectrum analyzer setting P(Peak): RBW=1MHz, VBW=1MHz, A(Average): RBW=1MHz, VBW=10Hz 3. The result basic equation calculation is as follow: Level = Reading + AF + Cable – Preamp + Filter – Dist, Margin = Level-Limit 4. The other emission levels were 20dB below the limit 5. The test limit distance is 3M limit. Reference No.: T100914404-RP1 Report No.：T110104402-RP1 FCC ID：U6A-BR280N Date of Issue: February 14, 2011 Page 102 Product Name N+ High Power Broadband Router - All Broadbands Test Date 2011/1/17 Model BR280n Test By John Chen Test Mode IEEE 802.11n HT20 TX (CH Low) TEMP& Humidity 19.8 , °C49% Horizontal TX / IEEE 802.11n HT20 mode / CH LowMeasurement Distance at 3m Horizontal polarity Freq. Reading AF Cable LossPre-ampFilterLevel Limit Margin Mark (MHz) (dBμV) (dB/m) (dB) (dB) (dB)(dBμV/m)(dBμV/m) (dB) (P/Q/A) * 4824.12 50.19 33.17 3.73 42.38 0.6945.40 74.00 -28.60 P * 4824.12 43.29 33.17 3.73 42.38 0.6938.50 54.00 -15.50 A 7234.92 49.87 38.60 4.67 41.84 1.4352.74 74.00 -21.26 P 7234.92 41.36 38.60 4.67 41.84 1.4344.23 54.00 -9.77 A N/A ------ ------ ------ ------ ------------ ------ ------ P N/A ------ ------ ------ ------ ------------ ------ ------ A REMARK: 1. AF: Antenna Factor, Cable: Cable Loss, Pre-Amp: Preamplifier gain, Filter: High Pass Filter Insertion Loss (3.5GHz) 2. Spectrum analyzer setting P(Peak): RBW=1MHz, VBW=1MHz, A(Average): RBW=1MHz, VBW=10Hz 3. The result basic equation calculation is as follow: Level = Reading + AF + Cable – Preamp + Filter – Dist, Margin = Level-Limit 4. The other emission levels were 20dB below the limit 5. The test limit distance is 3M limit. Reference No.: T100914404-RP1 Report No.：T110104402-RP1 FCC ID：U6A-BR280N Date of Issue: February 14, 2011 Page 103 Product Name N+ High Power Broadband Router - All Broadbands Test Date 2011/1/17 Model BR280n Test By John Chen Test Mode IEEE 802.11n HT20 TX (CH Low) TEMP& Humidity 19.8 , °C49% Vertical TX / IEEE 802.11n HT20 mode / CH LowMeasurement Distance at 3m Vertical polarity Freq. Reading AF Cable LossPre-ampFilterLevel Limit Margin Mark (MHz) (dBμV) (dB/m) (dB) (dB) (dB)(dBμV/m)(dBμV/m) (dB) (P/Q/A) 1249.83 47.02 25.55 2.10 41.76 0.7433.65 74.00 -40.35 P 1249.83 37.45 25.55 2.10 41.76 0.7424.08 54.00 -29.92 A * 4824.12 51.39 33.17 3.73 42.38 0.6946.60 74.00 -27.40 P * 4824.12 45.27 33.17 3.73 42.38 0.6940.48 54.00 -13.52 A N/A ------ ------ ------ ------ ------------ ------ ------ P N/A ------ ------ ------ ------ ------------ ------ ------ A REMARK: 1. AF: Antenna Factor, Cable: Cable Loss, Pre-Amp: Preamplifier gain, Filter: High Pass Filter Insertion Loss (3.5GHz) 2. Spectrum analyzer setting P(Peak): RBW=1MHz, VBW=1MHz, A(Average): RBW=1MHz, VBW=10Hz 3. The result basic equation calculation is as follow: Level = Reading + AF + Cable – Preamp + Filter – Dist, Margin = Level-Limit 4. The other emission levels were 20dB below the limit 5. The test limit distance is 3M limit. Reference No.: T100914404-RP1 Report No.：T110104402-RP1 FCC ID：U6A-BR280N Date of Issue: February 14, 2011 Page 104 Product Name N+ High Power Broadband Router - All Broadbands Test Date 2011/1/17 Model BR280n Test By John Chen Test Mode IEEE 802.11n HT20 TX (CH Middle) TEMP& Humidity 19.8 , °C49% Horizontal TX / IEEE 802.11n HT20 mode / CH MiddleMeasurement Distance at 3m Horizontal polarity Freq. Reading AF Cable LossPre-ampFilterLevel Limit Margin Mark (MHz) (dBμV) (dB/m) (dB) (dB) (dB)(dBμV/m)(dBμV/m) (dB) (P/Q/A) * 4873.87 51.37 33.32 3.74 42.43 0.7146.71 74.00 -27.29 P * 4873.87 42.11 33.32 3.74 42.43 0.7137.45 54.00 -16.55 A * 7311.93 50.48 38.84 4.71 41.72 1.6053.90 74.00 -20.10 P * 7311.93 41.35 38.84 4.71 41.72 1.6044.77 54.00 -9.23 A N/A ------ ------ ------ ------ ------------ ------ ------ P N/A ------ ------ ------ ------ ------------ ------ ------ A REMARK: 1. AF: Antenna Factor, Cable: Cable Loss, Pre-Amp: Preamplifier gain, Filter: High Pass Filter Insertion Loss (3.5GHz) 2. Spectrum analyzer setting P(Peak): RBW=1MHz, VBW=1MHz, A(Average): RBW=1MHz, VBW=10Hz 3. The result basic equation calculation is as follow: Level = Reading + AF + Cable – Preamp + Filter – Dist, Margin = Level-Limit 4. The other emission levels were 20dB below the limit 5. The test limit distance is 3M limit. Reference No.: T100914404-RP1 Report No.：T110104402-RP1 FCC ID：U6A-BR280N Date of Issue: February 14, 2011 Page 105 Product Name N+ High Power Broadband Router - All Broadbands Test Date 2011/1/17 Model BR280n Test By John Chen Test Mode IEEE 802.11n HT20 TX (CH Middle) TEMP& Humidity 19.8 , °C49% Vertical TX / IEEE 802.11n HT20 mode / CH MiddleMeasurement Distance at 3m Vertical polarity Freq. Reading AF Cable LossPre-ampFilterLevel Limit Margin Mark (MHz) (dBμV) (dB/m) (dB) (dB) (dB)(dBμV/m)(dBμV/m) (dB) (P/Q/A) 1250.07 47.26 25.55 2.10 41.75 0.7433.90 74.00 -40.10 P 1250.07 41.38 25.55 2.10 41.75 0.7428.02 54.00 -25.98 A * 4874.13 50.39 33.32 3.74 42.43 0.7145.74 74.00 -28.26 P * 4874.13 43.17 33.32 3.74 42.43 0.7138.52 54.00 -15.48 A N/A ------ ------ ----…

Text truncated - open the document above for the full version.

Reference No.: T100914404-RP1 Report No.：T110104402-RP1 FCC ID：U6A-BR280N Date of Issue: February 14, 2011 Page 136 APPENDIX SETUP PHOTOS CONDUCTED EMISSION TEST SETUP Reference No.: T100914404-RP1 Report No.：T110104402-RP1 FCC ID：U6A-BR280N Date of Issue: February 14, 2011 Page 137 RADIATED EMISSION MEASUREMENT SETUP Reference No.: T100914404-RP1 Report No.：T110104402-RP1 FCC ID：U6A-BR280N Date of Issue: February 14, 2011 Page 138 RADIATED RF MEASUREMENT SETUP Reference No.: T100914404-RP1 Report No.：T110104402-RP1 FCC ID：U6A-BR280N Date of Issue: February 14, 2011 Page 139 CONDUCTED EMISSIONS MEASUREMENT SETUP End of report
