U6A-WL307N11n USB Dongle

1 User Guide of WL307N Installing the software of USB Adapter................................................2 Configuring your wireless network (with Wireless Utility)......5 Configuring your wireless network (with Microsoft Zero Configuration Tool).......................................................................................... 11 Wi-Fi Protect Setup (WPS)..........................................................................13 Pin Input Config (PIN)...........................................................................14 Push Button (PBC)...................................................................................18 TX Power................................................................................................................20 Radio Off.................................................................................................................21 Disable Adapter..................................................................................................23 Mode Selection...................................................................................................24 Access Point Mode............................................................................................25 Uninstalling the software.............................................................................27 Wireless Zero Configuration Troubleshooting.................................29 Federal Communication Commission Interference Statement ....................................34 2 Installing the software of USB Adapter 1. Select the setup file to install. The setup program will detect user’s language automatically. 2. The setup program will install the driver and utility to computer. Please click the “Next” button to continue. 3. The setup program is ready to begin installation. Please click the “Install” button. 3 4. The software installation should begin. This may take a few minutes. 5. Once the installation success, click “Yes” to restart your system (recommended). Otherwise, click “No” to restart your system later. 4 6. Once the installation complete, you may now configure your wireless network. 5 Configuring your wireless network (with Wireless Utility) 1. Windows XP users, if you chose “Microsoft Zero Configuration Tool” during the software installation please skip to page 11. 2. Double click on the computer with wireless signal icon in your taskbar or the shortcut icon on the desktop. 3. It should pop up the Wireless Utility window. And then utility shows the connecting wireless network that connected automatically or was the default network in profile. 6 4. Click the “Available Network” tab to the wireless network surveying page. Click the “Refresh” button to scan the area for wireless network(s). Once the scan completed, select the desired wireless network from the list and double click it or click the “Add to Profile” button. 7 5. It should pop up the wireless Network Properties window. If you do not have any wireless security (WEP, WPA, WPA2, and etc.) set on your wireless network, simply click the “OK” button and skip to step7. If you do have wireless securities on your wireless network, configure the security setting in “Wireless network security” column. 8 6. Set your wireless securities settings, when it completed, click the “OK” button. Select the Network Authentication and Data encryption to set the encryption type. - If you have WEP, typically you select the format and enter your WEP key below the Data encryption. - If you have WPA-PSK or WPA2-PSK, typically you only enter your key in the “Network Key” and type again to confirm it. - If you have 802.1x configure, typically you only configure your setting in 802.1x configure column. 9 7. After connected to wireless network, utility will back to “General” page and show the wireless network status. Once the wireless network connected successfully, the Network Address will show the WL307n has gotten the IP address from DHCP. 10 8. Click the “Profile” tab to check the profile page. The wireless network configuration has added in Available Profile(s). It could remove, edit, duplicate and set default the profiles in this page. Notice: If you want to configure WLAN dongle as Ad-Hoc mode, please add a profile and check “This is a computer-to-computer (ad hoc) network; wireless access points are not used.” 11 Configuring your wireless network (with Microsoft Zero Configuration Tool) Warning: Due to security reasons, we strongly recommend updating Windows XP to service pack 2 and above, if you have not done so. If you do not wish to update, please follow the following steps to change the configuration tool between wireless utility and Microsoft Zero configuration tool. 1. Please open the wireless utility. And then enable the “Windows Zero Config” as configuration utility. After enabling the “Windows Zero Config” will pop out a message box, click the “ok” button to continue. 12 2. Once using Microsoft Zero Configuration Tool to configure wireless network, Wireless Utility will be can not configure. 13 Wi-Fi Protect Setup (WPS) WPS is an easy and secure setup solution for Wi-Fi network. Please click the Wi-Fi Protect Setup tab. WL307n has two methods, PIN (Pin Input Config) and PBC (Push Button Config), to setup the network. 14 Pin Input Config (PIN) 1. Click on the “Pin Input Config (PIN)” button, and then it should pop up a message box. If you want to connect to a specific AP, please click the “Yes” button. Or please click the “No” button to continue and skip to step3. Note: Every time you click the tab to change the page, the PIN code will be changed. 15 2. Select the specific AP which you want to connect. If you can not find the WPS AP in this page, please click the “Refresh” button. And then click the “Select” button. 16 3. WL307n is waiting for the AP to establish the connection. And then enter the PIN code into the AP that you want to connect. For example, the AP uses BR360n to be the connecting device. Enter …

Text truncated - open the document above for the full version.

E-TOP Network Technology Inc. No . 82, Gongye 2 nd Rd. , Tainan City 70955 , Taiwan , R.O.C. Date: Feb. 15, 2011 Subject: Ad Hoc Mode Function Declaration FCC ID: U6A-WL307N To Whom it may concern, This device is acting as master and operating on 2.4GHz band. Ad Hoc function is available on client mode and not able to work on non-US frequencies. Please contact the one signed below or the authorized agent for this filing. Thank you. Regards, Name: Ren Chen Title: Director Tel: 06-3840077-3601 E-mail: [email protected] Date: 2011 / 2 / 15

U6A-WL307N E-TOP Network Technology Inc. No . 82, Gongye 2nd Rd. , Tainan City 70955 , Taiwan , R.O.C. Date: January 17, 2011 Subject: DoC declaration To Whom it may concern, We, as the grantee of this project FCC ID: composite portion categorized as computer peripheral has been authorized under the Declaration of Conformity procedures. Regards, ( Signature Here) Name: Title: Tel: E-mail: Date: , would like to declare that the

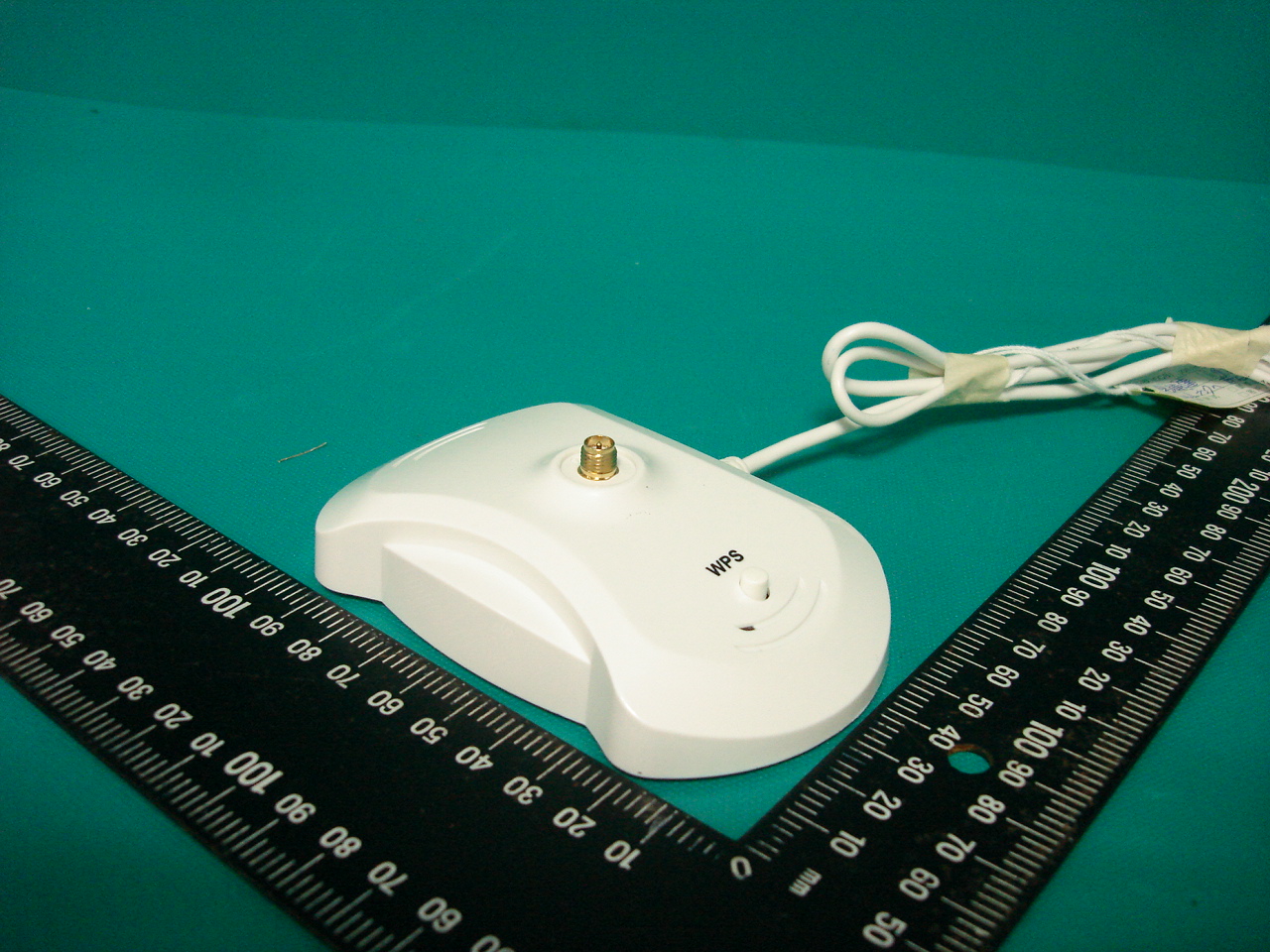

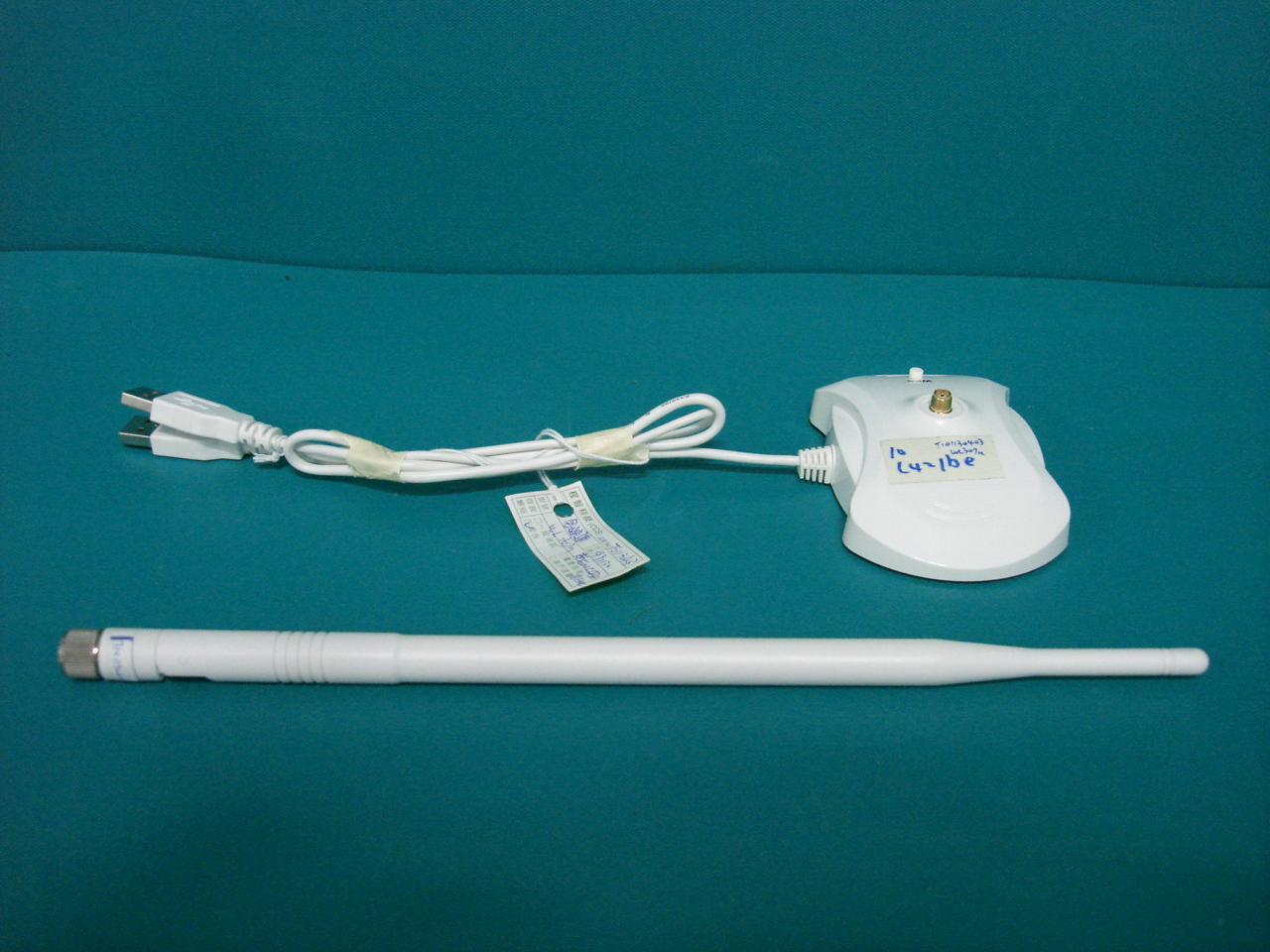

Compliance Certification Services Inc. Report No.：T110105402 Page 1 External Photo (MODEL: WL307n ) Compliance Certification Services Inc. Report No.：T110105402 Page 2

Diagram Label location SJ9-GW-USSUPER300

!Compliance Certification Services Inc.!Report No.ΚT110105402 ! ! ! ! Qbhf!4!!! Internal Photo (MODEL: WL307n) Compliance Certification Services Inc. Report No.：T110105402 Page 4

̃́˷˸̋ ˄ˁʳ˗̅˴̊˼́˺ ˅ˁʳ˧˸̆̇ʳ̅˸̃̂̅̇ ʳʳʳʳˁ ̆˿˸˶̇̅˼˶˴˿ʳ̇˸̆̇ ˆˁʳ˦̃˸˶˼˹˼˶˴̇˼̂́ ʳʳʳʳʳˁʳ˖˴˵˿˸ ˇˁʳˣ˴˶˾˼́˺ ʳʳʳʳʳˁʳˣ ̆ʳ˕˴˺ ʳ ʳʳʳʳˁʳ˖˴̅̇̂́ ˠ̂˷˼˹˼˶˴̇˼̂́ʳ ̨˼̆̇̂̅̌ ˥˸̉ˁ˗˴̇˸˖̂́̇˸́̇ ˃˅˃˄˃˂ˌ˂˅ ʳࣲ࠰ઝݾڶૻֆ׹ ˫ ̃ˡˀ˫ ̃ ̆ʳ˧ ̆˖ ̨ˡˢ˟ˢ ̊ˬ ̃̇˸̀ ⬉ 㓚 ৡ 鹵 RG178 ǂǂǂǂǂǂ៾ ៾ ǂ 䴶 ǂ ೒ 乍 Ⳃ 㾘 Ḑ ᴤ᭭ 䬔䫊䪰ρ 㒱㓬 ǂǂǂǂሣ㬑 ᇐԧ㾘Ḑ 7/0.10±0.003 ΀ খ㗗໪ᕘ 0.30mm ᴤ᭭ 㘮ಯ⇳Э⛃˄ PTFE ˅ 㒱㓬ᑇഛ᳔ᇣ८ᑺ 0.57mm  ᳔㭘⚍८ᑺ 0.52mm ᇐԧ ᡸ༫ 㒓ᕘ 0.87±0.06mm ᴤ᭭ 䬔䫊䪰ρ ǂ ǂǂǂǂǂǂ ǂ 买 ǂ 㡆 ᇐԧ㾘Ḑ 48/3/0.10 ᣝᅶ᠋㽕∖ খ㗗໪ᕘ 0.27±0.05mm ᴤ᭭ 㘮ܼ⇳Э⛃˄ FEP ˅ǂǂ 㒱㓬ᑇഛ᳔ᇣ८ᑺ 0.3mm ǂ ǂ ǂ ǂ ǂ ǂ ǂ ǂ ǂ ǂ ໛ ǂ ⊼ ᳔㭘⚍८ᑺ 0.25mm খ✻ᷛޚ : ᷛݯ೑ M17 㒓ᕘ 1.78±0.08mm ǂǂǂǂǂǂǂ ǂ ǂ ǂ ǂ ᴎ ǂ Ẅ ǂ ⠽ ǂ ⧚ ǂ ᗻ ǂ 㛑 1. ⡍ᗻ䰏ᡫ˄¡˅˖ǂ 50 ¡ 8. ᓊ䖳˖ 4.86ns/m 2. ᅲ偠⬉य़˖ NY ᇐԧ⬉䰏˖İ¡.0 乱ᅮ⏽ᑺ˖ ˉć̚ć 10. ሣ㬑⥛˖ǂǂ ̊ 40Db(1GHz) 4. ☿㢅⬉य़˖ ǂ 3kv 11. ᪡԰⬉य़˖ǂǂǂ 0.85KVms 5. ᪡԰乥⥛˖ 1GHz 12. ᪡԰⬉य़˖ǂǂ 1KV 6. ⬉ᆍ䞣˖ 95pF/m 乥⥛0+] 㹄ޣG%P ࡳ⥛ZDWWV 7. ֵোӴ䕧䗳ᑺ : 69%             ⃷ण 2009/8/3 ǂᅵǂḌ ׁ૤ᚴ ǂ㓪ǂࠊ 乒⨯⨯ ᭛ӊ㓪ো ZX09080303 㒱㓬 㓪㒛 ᇐǂԧ ᮹ǂᳳ 㢣 Ꮂ Ꮦ Ⳍ ජ ऎ ג ᯁ 㒓 㓚 ᳝ 䰤 ݀ ৌ ѻ ǂ ક ǂ 㾘 ǂ Ḑ ǂ к ᡸ༫ ǂᡍǂޚ Єᓎढ ᅶǂ᠋

Compliance Certification Services Inc. Reference No.: T110104401-RP1 Report No.：T110105402-RP1 FCC ID：U6A-WL307N Date of Issue: January 27, 2011 Page 37 8.3 MAXIMUM PERMISSIBLE EXPOSURE According to FCC 1.1310 : The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b)LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (A) Limits for Occupational / Control Exposures 300-1,500 -- -- F/300 6 1,500-100,000 -- -- 5 6 (B) Limits for General Population / Uncontrol Exposures 300-1,500 -- -- F/1500 6 1,500-100,000 -- -- 1 30 CALCULATIONS Given d GP E ×× = 30 & 3770 2 E S = Where E = Field strength in Volts / meter P = Power in Watts G = Numeric antenna gain d = Distance in meters S = Power density in milliwatts / square centimeter Combining equations and re-arranging the terms to express the distance as a function of the remaining variables yields: 2 3770 30 d GP S ×× = Changing to units of mW and cm, using: P (mW) = P (W) / 1000 and d (cm) = d(m) / 100 Yields () () 2 2 0796.0 100/3770 1000/30 d GP d GP S × ×= × ×× = Where d = Distance in cm P = Power in mW G = Numeric antenna gain S = Power density in mW / cm 2 Compliance Certification Services Inc. Reference No.: T110104401-RP1 Report No.：110105402-RP1 FCC ID : U6A-WL307N Date of Issue: January 27, 2011 Page 38 LIMIT Power Density Limit, S=1.0mW/cm 2 TEST RESULTS No non-compliance noted. () () 22 0796.0 100/3770 1000/30 d GP d GP S × ×= × ×× = G=7.0dBi=5.01187233627272 dB IEEE 802.11b =0.0796*22.1896*5.01187234/400=0.022123 IEEE 802.11g =0.0796*117.4897*5.01187234/400=0.117180 IEEE 802.11n HT20 =0.0796*108.3926*5.01187234/400=0.108107 IEEE 802.11n HT40 =0.0796*68.5488*5.01187234/400=0.068368 Mode Minimum separation distance (cm) Output Power (dBm) Output Power (mw) Antenna Gain (dBi) Power Density Limit (mW/cm 2 ) Power Density at 20cm (mW/cm 2 ) IEEE 802.11b 20 13.46 22.18 7.00 1.00 0.022123 IEEE 802.11g 20 20.70 117.49 7.00 1.00 0.117180 IEEE 802.11n HT2020 20.35 108.39 7.00 1.00 0.108107 IEEE 802.11n HT4020 18.36 68.55 7.00 1.00 0.068368 REMARK: For mobile or fixed location transmitters, the maximum power density is 1.0 mW/cm 2 even if the calculation indicates that the power density would be larger.

Compliance Certification Services Inc. Reference No.: T101130403-RP1 Report No.：T110105402-RP1 FCC ID：U6A-WL307N Date of Issue: January 27, 2011 Page 1 FCC 47 CFR PART 15 SUBPART C: 2009 AND ANSI C63.4: 2003 TEST REPORT For 11n USB Dongle Model Number: WL307n Brand: ETOP Issued for E-TOP NETWORK TECHNOLOGY INC. No. 82 ,Gongye 2nd Rd.,Tainan City 70955,Taiwan,R.O.C. Issued by Compliance Certification Services Inc. Tainan Lab. No. 8, Jiu Cheng Ling, Jiaokeng Village,Sinhua Township, Tainan Hsien 712, Taiwan R.O.C. TEL: 886-6-580-2201 FAX: 886-6-580-2202 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. Ltd. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document Total Page: 119 Compliance Certification Services Inc. Reference No.: T101130403-RP1 Report No.：T110105402-RP1 FCC ID：U6A-WL307N Date of Issue: January 27, 2011 Page 2 REVISION HISTORY Rev. Issue Date Revisions Effect Page Revised By 00 January 27, 2011 Initial Issue ALL Leah Peng Compliance Certification Services Inc. Reference No.: T101130403-RP1 Report No.：T110105402-RP1 FCC ID：U6A-WL307N Date of Issue: January 27, 2011 Page 3 TABLE OF CONTENTS 1. TEST REPORT CERTIFICATION ..........................................................................................................4 2. EUT DESCRIPTION...................................................................................................................................5 2.1 DESCRIPTION OF EUT & POWER ......................................................................................................5 3. DESCRIPTION OF TEST MODES...........................................................................................................7 4. TEST METHODOLOGY ...........................................................................................................................8 5. FACILITIES AND ACCREDITATIONS .................................................................................................8 5.1 FACILITIES.............................................................................................................................................8 5.2 EQUIPMENT ...........................................................................................................................................8 5.3 LABORATORY ACCREDITATIONS LISTINGS.................................................................................8 5.4 TABLE OF ACCREDITATIONS AND LISTINGS ...............................................................................9 6. CALIBRATION AND UNCERTAINTY...................................................................................................10 6.1 MEASURING INSTRUMENT CALIBRATION....................................................................................10 6.2 MEASUREMENT UNCERTAINTY ......................................................................................................10 7. SETUP OF EQUIPMENT UNDER TEST ................................................................................................11 7.1 SETUP CONFIGURATION OF EUT .....................................................................................................11 7.2 SUPPORT EQUIPMENT ........................................................................................................................12 7.3 EUT OPERATING CONDITION............................................................................................................13 8. APPLICABLE LIMITS AND TEST RESULTS.......................................................................................14 8.1 6DB BANDWIDTH .................................................................................................................................14 8.2 MAXIMUM PEAK OUTPUT POWER ..................................................................................................25 8.3 MAXIMUM PERMISSIBLE EXPOSURE .............................................................................................37 8.4 POWER SPECTRAL DENSITY .............................................................................................................39 8.5 CONDUCTED SPURIOUS EMISSION .................................................................................................49 8.6 RADIATED EMISSIONS........................................................................................................................62 8.6.1 TRANSMITTER RADIATED SUPURIOUS EMSSIONS ............................................................62 8.6.2 WORST-CASE RADIATED EMISSION BELOW 1 GHz ............................................................66 8.6.3 TRANSMITTER RADIATED EMISSION ABOVE 1 GHz ..........................................................68 8.6.4 RESTRICTED BAND EDGES .......................................................................................................92 8.7 POWERLINE CONDUCTED EMISSIONS ...........................................................................................110 9. ANTENNA REQUIREMENT ....................................................................................................................114 9.1 STANDARD APPLICABLE ...................................................................................................................114 9.2 ANTENNA CONNECTED CONSTRUCTION ......................................................................................114 APPENDIX SETUP PHOTOS........................................................................................................................115 Compliance Certification Services Inc. Reference No.: T101130403-RP1 Report No.：T110105402-RP1 FCC ID：U6A-WL307N Date of Issue: January 27, 2011 Page 4 1. TEST REPORT CERTIFICATION Applicant ： E-TOP NETWORK TECHNOLOGY INC. Address ： No. 82 ,Gongye 2nd Rd.,Tainan City 7…

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. Reference No.: T101130403-RP1 Report No.：T110105402-RP1 FCC ID：U6A-WL307N Date of Issue: January 27, 2011 Page 115 APPENDIX SETUP PHOTOS RADIATED EMISSION MEASUREMENT SETUP Compliance Certification Services Inc. Reference No.: T101130403-RP1 Report No.：T110105402-RP1 FCC ID：U6A-WL307N Date of Issue: January 27, 2011 Page 116 RADIATED RF MEASUREMENT SETUP Compliance Certification Services Inc. Reference No.: T101130403-RP1 Report No.：T110105402-RP1 FCC ID：U6A-WL307N Date of Issue: January 27, 2011 Page 117 Compliance Certification Services Inc. Reference No.: T101130403-RP1 Report No.：T110105402-RP1 FCC ID：U6A-WL307N Date of Issue: January 27, 2011 Page 118 RF CONDUCTED SETUP Compliance Certification Services Inc. Reference No.: T101130403-RP1 Report No.：T110105402-RP1 FCC ID：U6A-WL307N Date of Issue: January 27, 2011 Page 119 POWERLINE CONDUCTED EMISSIONS MEASUREMENT SETUP End of report
