U6A-WU606N11N USB Dongle

1 ETOP 11n USB Dongle User Guide of WU606n Installing the software of USB Adapter..............................................2 Configuring your wireless network (with Wireless Utility)......5 Configuring your wireless network (with Microsoft Zero Configuration Tool).......................................................................................11 Wi-Fi Protect Setup (WPS)......................................................................12 Pin Input Config (PIN).......................................................................13 Push Button (PBC)................................................................................17 Radio Off............................................................................................................20 Disable Adapter.............................................................................................21 Uninstalling the software.........................................................................22 Wireless Zero Configuration Troubleshooting...............................24 Federal Communication Commission Interference Statement..................................29 2 Installing the software of USB Adapter 1. Select the setup file to install. The setup program will detect user’s language automatically. 2. The setup program will install the driver and utility to computer. Please click the “Next” button to continue. 3. The setup program is ready to begin installation. Please click the “Install” button. 3 4. The software installation should begin. This may take a few minutes. 5. Once the installation success, click “Yes” to restart your system (recommended). Otherwise, click “No” to restart your system later. 4 6. Once the installation complete, you may now configure your wireless network. 5 Configuring your wireless network (with Wireless Utility) 1. Windows XP users, if you chose “Microsoft Zero Configuration Tool” during the software installation please skip to page 11. 2. Double click on the computer with wireless signal icon in your taskbar or the shortcut icon on the desktop. 3. It should pop up the Wireless Utility window. And then utility shows the connecting wireless network that connected automatically or was the default network in profile. 6 4. Click the “Available Network” tab to the wireless network surveying page. Click the “Refresh” button to scan the area for wireless network(s). Once the scan completed, select the desired wireless network from the list and double click it or click the “Add to Profile” button. 5. It should pop up the wireless Network Properties window. If you do not have any wireless security (WEP, WPA, WPA2, and etc.) set on your wireless network, simply click the “OK” button and skip to step7. If you do have wireless securities on your wireless network, configure the security setting in “Wireless network security” column. 7 6. Set your wireless securities settings, when it completed, click the “OK” button. Select the Network Authentication and Data encryption to set the encryption type. - If you have WEP, typically you select the format and enter your WEP key below the Data encryption. - If you have WPA-PSK or WPA2-PSK, typically you only enter your key in the “Network Key” and type again to confirm it. - If you have 802.1x configure, typically you only configure your setting in 802.1x configure column. 8 7. After connected to wireless network, utility will back to “General” page and show the wireless network status. Once the wireless network connected successfully, the Network Address will show the WU606n has gotten the IP address from DHCP. 9 8. Click the “Profile” tab to check the profile page. The wireless network configuration has added in Available Profile(s). It could remove, edit, duplicate and set default the profiles in this page. 10 11 Configuring your wireless network (with Microsoft Zero Configuration Tool) Warning: Due to security reasons, we strongly recommend updating Windows XP to service pack 2 and above, if you have not done so. If you do not wish to update, please follow the following steps to change the configuration tool between wireless utility and Microsoft Zero configuration tool. 1. Please open the wireless utility. And then enable the “Windows Zero Config” as configuration utility. After enabling the “Windows Zero Config” will pop out a message box, click the “ok” button to continue. 2. Once using Microsoft Zero Configuration Tool to configure wireless network, Wireless Utility will be can not configure. 12 Wi-Fi Protect Setup (WPS) WPS is an easy and secure setup solution for Wi-Fi network. Please click the Wi-Fi Protect Setup tab. WU606n has two methods, PIN (Pin Input Config) and PBC (Push Button Config), to setup the network. 13 Pin Input Config (PIN) 1. Click on the “Pin Input Config (PIN)” button, and then it should pop up a message box. If you want to connect to a specific AP, please click the “Yes” button. Or please click the “No” button to continue and skip to step3. Note: Every time you click the tab to change the page, the PIN code will be changed. 14 2. Select the specific AP which you want to connect. If you can not find the WPS AP in this page, please click the “Refresh” button. And then click the “Select” button. 15 3. WU606n is waiting for the AP to establish the connection. And then enter the PIN code into the AP that you want to connect. For example, the AP uses BR360n to be the connecting device. Enter the PIN code into client pin number and then clicks the “Start PIN” button. Note: The PIN function in AP should be started before the WPS setup in WU606n times out. 16 4. Once the WPS connected successfully, wireless utility will show the 17 connection status. Push Button (PBC) 1. Click on the “Push Button Config (PBC)” button. Note: The PBC button can click the visual button on the page or push the physical button on AP. 18 2. WU606n is waiting for the other AP to start the PBC function. The other AP starts the PBC function should be before WU…

Text truncated - open the document above for the full version.

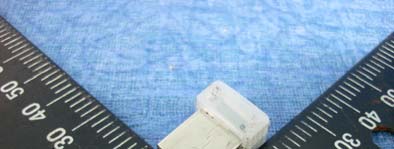

&RPSOLDQFH&HUWLILFDWLRQ6HUYLFHV,QF 5HSRUW1R7'DWHRI,VVXH$XJXVW  3DJHIJġŕŰŵŢŭġőŢŨŦĻġĴġ ġœŦŷįġıı  3+272*5$3+62)(87 (;7(51$/3+272

WU606n Diagram Label Location FCC ID: U6A-WU606N FCC Caution: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired o peration. Marked in the User Manual

Compliance Certification Services Inc. Report No.: T100723403 Date of Issue: August 27, 2010 Page 2 Rev. 00 INTERNAL PHOTO Compliance Certification Services Inc. Report No.: T100723403 Date of Issue: August 27, 2010 Page 3 Rev. 00 Compliance Certification Services Inc. Report No.: T100723403 Date of Issue: August 27, 2010 Page 4 Rev. 00

Description of Operation The EUT is a 11n USB Dongle(USB Wireless card) with IEEE 802.11b/g/n . And this device provided of transmitting speed: 802.11b:11, 5.5, 2, 1Mbps 802.11g : 54, 48 ,36, 24, 18, 12, 11, 9, 6Mbps 802.11n HT20:130,65,58.5,52,39,26,19.5,13,6.5 Mbps. 802.11n HT40:270,135121.5,108,81.54,40.5,27,13.5 Mbps. the device of RF carrier is CCK, DQPSK, DBPSK, 64QAM, 16QAM, QPSK and BPSK. The device adapts DSSS and OFDM modulation. And the antenna was a PIFA Antenna, and provided diversity function to improve the receiving function. It allows your computer to connect to a wireless network and to share resources, such as files or printers without being bound to the network wires. And this EUT Operation in 2.4GHz Direct Sequence Spread Spectrum (D.S.S.S) and Orthogonal Frequency division Multiplex (O.F.D.M) radio transmission. In addition, its standard compliance ensures that it can communicate with any 802.11b/g/n network. The other instruction, please have a look at the user’s manual.

Compliance Certification Services Inc. Reference No.: 91002401-RP1 Report No.：T100723403-RP1 FCC ID：U6A-WU606N Date of Issue: August 27, 2010 Page 1 FCC 47 CFR PART 15 SUBPART C: 2008 AND ANSI C63.4: 2003 TEST REPORT For 11n USB Dongle Model Number: WU606n Brand: ETOP Issued for E-Top Network Technology Inc. No. 82, Gongye 2nd Rd., Tainan City 70955, Taiwan, R.O.C. Issued by Compliance Certification Services Inc. Tainan Lab. No. 8, Jiu Cheng Ling, Jiaokeng Village,Sinhua Township, Tainan Hsien 712, Taiwan R.O.C. TEL: 886-6-580-2201 FAX: 886-6-580-2202 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. Ltd. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document Total Page: 116 Compliance Certification Services Inc. Reference No.: 91002401-RP1 Report No.：T100723403-RP1 FCC ID：U6A-WU606N Date of Issue: August 27, 2010 Page 2 REVISION HISTORY Rev. Issue Date Revisions Effect Page Revised By 00 August 27, 2010 Initial Issue ALL Leah Peng Compliance Certification Services Inc. Reference No.: 91002401-RP1 Report No.：T100723403-RP1 FCC ID：U6A-WU606N Date of Issue: August 27, 2010 Page 3 TABLE OF CONTENTS APPENDIX EUT PHOTOS A1-1 ................................................................................................... 3 1. TEST REPORT CERTIFICATION ........................................................................................... 4 2. EUT DESCRIPTION .................................................................................................................... 5 2.1 DESCRIPTION OF EUT & POWER ......................................................................................................5 3. DESCRIPTION OF TEST MODES............................................................................................ 7 4. TEST METHODOLOGY.............................................................................................................7 5. FACILITIES AND ACCREDITATIONS................................................................................... 8 5.1 FACILITIES.............................................................................................................................................8 5.2 EQUIPMENT ...........................................................................................................................................8 5.3 FACILITIES.............................................................................................................................................8 5.4 ACCREDITATIONS ...............................................................................................................................9 6. CALIBRATION AND UNCERTAINTY .................................................................................... 10 6.1 MEASURING INSTRUMENT CALIBRATION....................................................................................10 6.2 MEASUREMENT UNCERTAINTY ......................................................................................................10 7. SETUP OF EQUIPMENT UNDER TEST ................................................................................. 11 7.1 SETUP CONFIGURATION OF EUT .....................................................................................................11 7.2 SUPPORT EQUIPMENT ........................................................................................................................11 7.3 EUT OPERATING CONDITION............................................................................................................12 8. APPLICABLE LIMITS AND TEST RESULTS........................................................................ 13 8.1 6DB BANDWIDTH .................................................................................................................................13 8.2 MAXIMUM PEAK OUTPUT POWER & AVERAGE POWER ...........................................................24 8.3 MAXIMUM PERMISSIBLE EXPOSURE .............................................................................................36 8.4 POWER SPECTRAL DENSITY .............................................................................................................38 8.5 CONDUCTED SPURIOUS EMISSION .................................................................................................48 8.6 RADIATED EMISSIONS........................................................................................................................61 8.7 POWERLINE CONDUCTED EMISSIONS ...........................................................................................108 9. ANTENNA REQUIREMENT...................................................................................................... 112 9.1 STANDARD APPLICABLE ...................................................................................................................112 9.2 ANTENNA CONNECTED CONSTRUCTION ......................................................................................112 APPENDIX SETUP PHOTOS......................................................................................................... 113 APPENDIX EUT PHOTOS ............................................................................................................A1-1 Compliance Certification Services Inc. Reference No.: 91002401-RP1 Report No.：T100723403-RP1 FCC ID：U6A-WU606N Date of Issue: August 27, 2010 Page 4 1. TEST REPORT CERTIFICATION Applicant ： E-Top Network Technology Inc. Address ： No. 82, Gongye 2nd Rd., Tainan City 70955, Taiwan, R.O.C. Manufacture ： E-Top Network Technology Inc. Address ： No. 82, Gongye 2nd Rd., Tainan City 70955, Taiwan, R.O.C. Equipment Under Test ： 11n USB Dongle Model Number ： WU606n Brand Name ： ETOP Date of Test ： August 16, 2010 – August 25, 2010 APPLICABLE STANDARD STANDARD TEST RESULT FCC Part 1…

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. Reference No.: 91002401-RP1 Report No.：T100723403-RP1 FCC ID：U6A-WU606N Date of Issue: August 27, 2010 Page 112 APPENDIX SETUP PHOTOS RADIATED EMISSION MEASUREMENT SETUP Compliance Certification Services Inc. Reference No.: 91002401-RP1 Report No.：T100723403-RP1 FCC ID：U6A-WU606N Date of Issue: August 27, 2010 Page 113 RADIATED RF MEASUREMENT SETUP Compliance Certification Services Inc. Reference No.: 91002401-RP1 Report No.：T100723403-RP1 FCC ID：U6A-WU606N Date of Issue: August 27, 2010 Page 114 Compliance Certification Services Inc. Reference No.: 91002401-RP1 Report No.：T100723403-RP1 FCC ID：U6A-WU606N Date of Issue: August 27, 2010 Page 115 POWERLINE CONDUCTED EMISSIONS MEASUREMENT SETUP End of report
