U6ABR130GBroadband Router

Router R130g Broadband Router Quick Setup Guide V1.0 Table of Contents TABLE OF CONTENTS................................................................................................................................ 2 CHAPTER 1 NAVI R130G’S ROUTER MODE QUICK SETUP...................................................5 1.1 ROUTER MODE’S QUICK SETUP INSTRUCTION....................................................................... 5 1.2 THE INTRODUCTION OF ROUTER MODE’S QUICK SETUP...................................................... 7 1.2.1 Time Zone Setting.......................................................................................................... 8 1.2.2 LAN Interface Setup..................................................................................................... 9 1.2.3 WAN Interface Setup................................................................................................. 10 1.2.3.1 WAN Interface Setup–Static IP...................................................................................... 11 1.2.3.2 WAN Interface Setup– DHCP Client.............................................................................. 12 1.2.3.3 WAN Interface Setup– PPPoE.......................................................................................... 13 1.2.3.4 WAN Interface Setup– PPTP............................................................................................. 14 1.2.4 Wireless Basic Settings............................................................................................ 16 1.2.5 Wireless Security Setup........................................................................................... 17 1.2.6 Quick Setup Finish....................................................................................................... 20 CHAPTER 2 AP MODE’S QUICK SETUP.......................................................................................... 21 2.1 AP MODE’S CONFIGURATION.................................................................................................... 21 2.2 THE INTRODUCTION OF AP MODE’S QUICK SETUP.............................................................. 22 2.2.1 Time Zone Setting........................................................................................................ 24 2.2.2 LAN Interface Setup................................................................................................... 25 2.2.4 Wireless Security Setup........................................................................................... 27 2.2.5 Quick Setup Finish....................................................................................................... 30 CHAPTER 3 CLIENT MODE’S QUICK SETUP................................................................................ 31 3.1 CLIENT MODE’S QUICK SETUP INSTRUCTION....................................................................... 31 3.2 THE INTRODUCTION OF CLIENT MODE’S QUICK SETUP...................................................... 33 3.2.1 Time Zone Setting........................................................................................................ 34 3.2.2 LAN Interface Setup................................................................................................... 35 3.2.3 WAN Interface Setup................................................................................................. 36 3.2.3.1 WAN Interface Setup–Static IP...................................................................................... 37 3.2.3.2 WAN Interface Setup– DHCP Client.............................................................................. 38 3.2.3.3 WAN Interface Setup– PPPoE.......................................................................................... 39 3.2.3.4 WAN Interface Setup– PPTP............................................................................................. 40 3.2.4 Wireless Basic Settings............................................................................................ 41 3.2.5 Wireless Security Setup........................................................................................... 42 3.2.6 Wireless Site Survey Setting................................................................................. 45 FCC Regulation and Rules This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. This equipment complies with FCC radiation exposure limits set forth for this an uncontrolled environment. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. End users must follow the specific operating instructions for satisfying RF exposure compliance. Part 15.19 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) th…

Text truncated - open the document above for the full version.

BR130g HW Block Diagram BR130g HW Block Diagram RTL8186 RTL8225 SE2527 HWS-408 40 MHz 25 MHz Flash 2M Byte SDRAM 16M Byte Power Board 3.3V / 2A WAN LAN PHY PHY

X-Ninja-PIM: Scanned by Ninja X-Ninja-Antispam: Policy 1 - Allowed - Final Score - 0,0,-8 (-8) X-Ninja-AttachmentFiltering: (no action) From: Gestek vivian <[email protected]> To: 'Timothy R. Johnson' <[email protected]> Cc: [email protected], [email protected], [email protected], [email protected], [email protected], [email protected], =?big5?Q?'GTK-Shine=B1=69=A5=76=BF=AB'?= <[email protected]> Subject: RE: www.AmericanTCB.com ATCB004906 | U6ABR130G | | | U6ABR130G_ATCB004906 Date: Tue, 29 May 2007 21:20:22 +0800 X-Mailer: Microsoft Office Outlook, Build 11.0.5510 Thread-Index: AcecOPLc8boP4Vd7TReHky30GfZC/wFuf4jw X-OriginalArrivalTime: 29 May 2007 13:20:22.0329 (UTC) FILETIME=[1C5CE290:01C7A1F4] Dear Johnson: We send the user manual again, if there is still anything incorrect, please kindly contact me, thanks. And our customer does not need confidentiality so we don't need to send appropriate cover letter. BR Vivian -----Original Message----- From: Timothy R. Johnson [mailto:[email protected] ] Sent: Tuesday, May 22, 2007 2:18 PM To: [email protected] Cc: [email protected]; [email protected]; [email protected]; [email protected]; [email protected] Subject: www.AmericanTCB.com ATCB004906 | U6ABR130G | | | U6ABR130G_ATCB004906 Please see attached comments... Regarding www.AmericanTCB.com application: ATCB ID: ATCB004906 FCC ID: U6ABR130G IC: TCF: Account name: Gestek Timothy R. Johnson, NARTE Certified EMC Engineer (No. EMC-002205-NE) Examining Engineer American TCB, Inc. 6731 Whittier Ave. McLean, VA 22101 email: [email protected] alternate email: [email protected] USA direct number: 404-414-8071 USA corporate phone: 703-847-4700 USA corporate fax: 703-847-6888

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 May 30, 2007 RE: E-TOP Network Technology Inc. FCC ID: U6ABR130G After a review of the submitted information, I have a few comments on the above referenced Application. 1) FYI...The information required by 2.1077 should be placed into the manual instead of the text copied from 2.1077 for proper DoC information. If necessary, please discuss with Major in our Taipei office to properly understand. Timothy R. Johnson Examining Engineer mailto: [email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender.

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 May 22, 2007 RE: E-TOP Network Technology Inc. FCC ID: U6ABR130G After a review of the submitted information, I have a few comments on the above referenced Application. 1) Please confirm if confidentiality is required on this application. If so, then please include an appropriate cover letter. 2) Users Manual appears to be missing: a) FCC 2 Part statement (since it is not on the label) b) RF exposure information c) 15.21 information d) 15.105 information e) FYI...Also missing 2.1077 info for DoC. Timothy R. Johnson Examining Engineer mailto: [email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender.

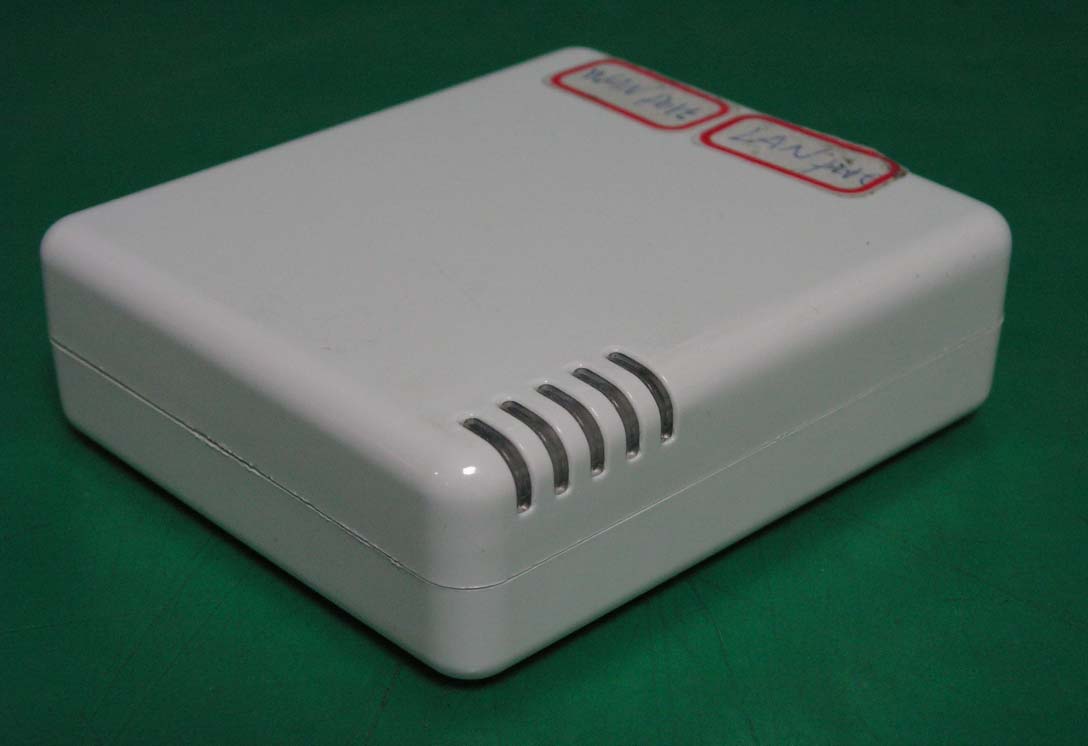

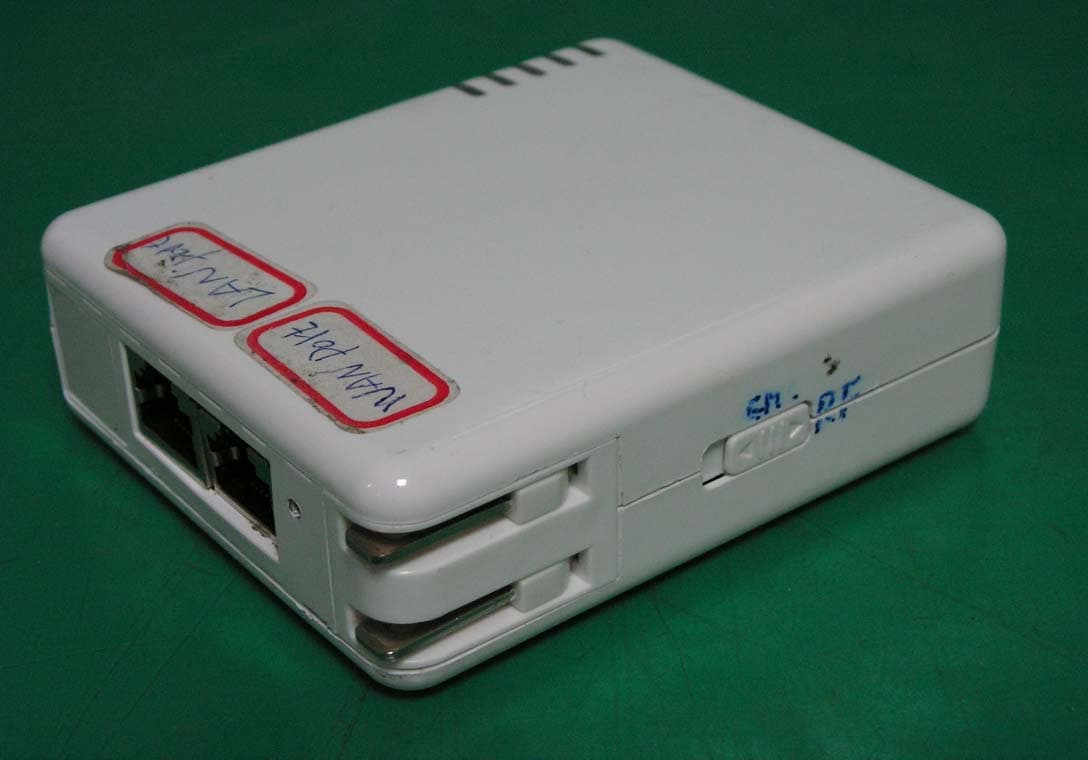

GESTEK Lab Report #: 0703103 ID Rev . 1 N0 3, Pau-Tou-Tsuo Valley, Chia-Pau Tsuen, Lin Kou Hsiang, Taipei County, Taiwan, R.O.C. Tel:886-2-2603-5321 Fax:886-2-2603-5325 Accredited Lab. Of BSMI, NEMKO, NVLAP. Page 69 of 87 Listed Lab. of Commerce, FCC, VCCI. NVLAP Lab Code:200085-0 10. PHOTOGRAPHS FOR PRODUCT 1. 2.

GESTEK Lab Report #: 0703103 ID Rev . 1 N0 3, Pau-Tou-Tsuo Valley, Chia-Pau Tsuen, Lin Kou Hsiang, Taipei County, Taiwan, R.O.C. Tel:886-2-2603-5321 Fax:886-2-2603-5325 Accredited Lab. Of BSMI, NEMKO, NVLAP. Page 84 of 87 Listed Lab. of Commerce, FCC, VCCI. NVLAP Lab Code:200085-0 31. Label Here

GESTEK Lab Report #: 0703103 ID Rev . 1 N0 3, Pau-Tou-Tsuo Valley, Chia-Pau Tsuen, Lin Kou Hsiang, Taipei County, Taiwan, R.O.C. Tel:886-2-2603-5321 Fax:886-2-2603-5325 Accredited Lab. Of BSMI, NEMKO, NVLAP. Page 70 of 87 Listed Lab. of Commerce, FCC, VCCI. NVLAP Lab Code:200085-0 3. 4. Main Board GESTEK Lab Report #: 0703103 ID Rev . 1 N0 3, Pau-Tou-Tsuo Valley, Chia-Pau Tsuen, Lin Kou Hsiang, Taipei County, Taiwan, R.O.C. Tel:886-2-2603-5321 Fax:886-2-2603-5325 Accredited Lab. Of BSMI, NEMKO, NVLAP. Page 71 of 87 Listed Lab. of Commerce, FCC, VCCI. NVLAP Lab Code:200085-0 5. 6. GESTEK Lab Report #: 0703103 ID Rev . 1 N0 3, Pau-Tou-Tsuo Valley, Chia-Pau Tsuen, Lin Kou Hsiang, Taipei County, Taiwan, R.O.C. Tel:886-2-2603-5321 Fax:886-2-2603-5325 Accredited Lab. Of BSMI, NEMKO, NVLAP. Page 72 of 87 Listed Lab. of Commerce, FCC, VCCI. NVLAP Lab Code:200085-0 7. Cover and ANT 8. GESTEK Lab Report #: 0703103 ID Rev . 1 N0 3, Pau-Tou-Tsuo Valley, Chia-Pau Tsuen, Lin Kou Hsiang, Taipei County, Taiwan, R.O.C. Tel:886-2-2603-5321 Fax:886-2-2603-5325 Accredited Lab. Of BSMI, NEMKO, NVLAP. Page 73 of 87 Listed Lab. of Commerce, FCC, VCCI. NVLAP Lab Code:200085-0 9. ANT 10. GESTEK Lab Report #: 0703103 ID Rev . 1 N0 3, Pau-Tou-Tsuo Valley, Chia-Pau Tsuen, Lin Kou Hsiang, Taipei County, Taiwan, R.O.C. Tel:886-2-2603-5321 Fax:886-2-2603-5325 Accredited Lab. Of BSMI, NEMKO, NVLAP. Page 74 of 87 Listed Lab. of Commerce, FCC, VCCI. NVLAP Lab Code:200085-0 11. Main Board Front Side Inner 12. GESTEK Lab Report #: 0703103 ID Rev . 1 N0 3, Pau-Tou-Tsuo Valley, Chia-Pau Tsuen, Lin Kou Hsiang, Taipei County, Taiwan, R.O.C. Tel:886-2-2603-5321 Fax:886-2-2603-5325 Accredited Lab. Of BSMI, NEMKO, NVLAP. Page 75 of 87 Listed Lab. of Commerce, FCC, VCCI. NVLAP Lab Code:200085-0 13. 14. Main Chip GESTEK Lab Report #: 0703103 ID Rev . 1 N0 3, Pau-Tou-Tsuo Valley, Chia-Pau Tsuen, Lin Kou Hsiang, Taipei County, Taiwan, R.O.C. Tel:886-2-2603-5321 Fax:886-2-2603-5325 Accredited Lab. Of BSMI, NEMKO, NVLAP. Page 76 of 87 Listed Lab. of Commerce, FCC, VCCI. NVLAP Lab Code:200085-0 15. RF Chip 16. GESTEK Lab Report #: 0703103 ID Rev . 1 N0 3, Pau-Tou-Tsuo Valley, Chia-Pau Tsuen, Lin Kou Hsiang, Taipei County, Taiwan, R.O.C. Tel:886-2-2603-5321 Fax:886-2-2603-5325 Accredited Lab. Of BSMI, NEMKO, NVLAP. Page 77 of 87 Listed Lab. of Commerce, FCC, VCCI. NVLAP Lab Code:200085-0 17. Solution 1 18. Solution 2 GESTEK Lab Report #: 0703103 ID Rev . 1 N0 3, Pau-Tou-Tsuo Valley, Chia-Pau Tsuen, Lin Kou Hsiang, Taipei County, Taiwan, R.O.C. Tel:886-2-2603-5321 Fax:886-2-2603-5325 Accredited Lab. Of BSMI, NEMKO, NVLAP. Page 78 of 87 Listed Lab. of Commerce, FCC, VCCI. NVLAP Lab Code:200085-0 19. Solution 3 20. Solution 4 GESTEK Lab Report #: 0703103 ID Rev . 1 N0 3, Pau-Tou-Tsuo Valley, Chia-Pau Tsuen, Lin Kou Hsiang, Taipei County, Taiwan, R.O.C. Tel:886-2-2603-5321 Fax:886-2-2603-5325 Accredited Lab. Of BSMI, NEMKO, NVLAP. Page 79 of 87 Listed Lab. of Commerce, FCC, VCCI. NVLAP Lab Code:200085-0 21. Main Board Rear Side 22. Solution 5 GESTEK Lab Report #: 0703103 ID Rev . 1 N0 3, Pau-Tou-Tsuo Valley, Chia-Pau Tsuen, Lin Kou Hsiang, Taipei County, Taiwan, R.O.C. Tel:886-2-2603-5321 Fax:886-2-2603-5325 Accredited Lab. Of BSMI, NEMKO, NVLAP. Page 80 of 87 Listed Lab. of Commerce, FCC, VCCI. NVLAP Lab Code:200085-0 23. Solution 6 24. Power Board GESTEK Lab Report #: 0703103 ID Rev . 1 N0 3, Pau-Tou-Tsuo Valley, Chia-Pau Tsuen, Lin Kou Hsiang, Taipei County, Taiwan, R.O.C. Tel:886-2-2603-5321 Fax:886-2-2603-5325 Accredited Lab. Of BSMI, NEMKO, NVLAP. Page 81 of 87 Listed Lab. of Commerce, FCC, VCCI. NVLAP Lab Code:200085-0 25. 26. GESTEK Lab Report #: 0703103 ID Rev . 1 N0 3, Pau-Tou-Tsuo Valley, Chia-Pau Tsuen, Lin Kou Hsiang, Taipei County, Taiwan, R.O.C. Tel:886-2-2603-5321 Fax:886-2-2603-5325 Accredited Lab. Of BSMI, NEMKO, NVLAP. Page 82 of 87 Listed Lab. of Commerce, FCC, VCCI. NVLAP Lab Code:200085-0 27. Power Board Front Side Inner 28. Power Board Rear Side Inner GESTEK Lab Report #: 0703103 ID Rev . 1 N0 3, Pau-Tou-Tsuo Valley, Chia-Pau Tsuen, Lin Kou Hsiang, Taipei County, Taiwan, R.O.C. Tel:886-2-2603-5321 Fax:886-2-2603-5325 Accredited Lab. Of BSMI, NEMKO, NVLAP. Page 83 of 87 Listed Lab. of Commerce, FCC, VCCI. NVLAP Lab Code:200085-0 29. Power Board Connector 30. Power Board Connector

GESTEK Lab Report #: 0703103 ID Rev . 1 N0 3, Pau-Tou-Tsuo Valley, Chia-Pau Tsuen, Lin Kou Hsiang, Taipei County, Taiwan, R.O.C. Tel:886-2-2603-5321 Fax:886-2-2603-5325 Accredited Lab. Of BSMI, NEMKO, NVLAP. Page 5 of 87 Listed Lab. of Commerce, FCC, VCCI. NVLAP Lab Code:200085-0 2.2 OPERATIONAL DESCRIPTION The Transmitter of EUT is a Broadband Router. This device have one antenna. The other instruction, please look at user manual. This is Digital transmission System(DTS) and have four type of modulation DSSS, DBPSK, DQPSK,OFDM, CCK. The data rate are 1,2,5.5,11,6,9,12,18,24,36,48.54 Mbps. The equipment enables high-speed access without wires to network assets. This adapter uses the IEEE 802.11b & 802.11g protocol to enable wireless communications between the host computer and other computers, in the same way that the computer would use an Ethernet adapter. 2.3 TEST MODES & EUT COMPONENTS DESCRIPTION 2.4 SUMMARY OF TEST PROCEDURE AND TEST RESULTS Test Item Applied Standard Section Test Resut Conduction Emission 15.207, ANSI C63.4 Section 7 Pass (refer to section 3.7) Radistion Emission 15.209, ANSI C63.4 Section 8 Pass (refer to section 4.7) Peak Power Output 15.247(b), ANSI C63.4 Section 13 & Annex IPass (refer to section 5.4) Band Edge 15.247(c) , ANSI C63.4 Section 13 & Annex IPass (refer to section 6.6) Occupied Bandwidth 15.247(a) , ANSI C63.4 Section 13 & Annex IPass (refer to section 7.4) Power Density 15.247(d) , ANSI C63.4 Section 13 & Annex IPass (refer to section 8.4) EUT: Broadband Router, M/N: BR130g The EUT tested with Notebook PC. Mode 1 Mode 2 Test Mode 802.11b 802.11g

GESTEK Lab Report #: 0703103 Rev. 1 N0 3, Pau-Tou-Tsuo Valley, Chia-Pau Tsuen, Lin Kou Hsiang, Taipei County, Taiwan, R.O.C. Tel:886-2-2603-5321 Fax:886-2-2603-5325 Accredited Lab. Of BSMI, NEMKO, NVLAP. Page 1 of 4 Listed Lab. of Commerce, FCC, VCCI. NVLAP Lab Code:200085-0 RF Exposure Evaluation declaration E-TOP Network Technology Inc. EUT: Broadband Router Model Number: BR130g FCC ID: U6ABR130g Prepared for: E-TOP Network Technology Inc. No. 82, Gongye 2 nd Rd., Tainan City 70955, Taiwan, R.O.C. Report By : Global EMC Standard Tech. Corp. No.3 Pau-Tou-Tsuo Valley, Chia-Pau Tsuen, Lin Kou Hsiang, Taipei County, Taiwan, R.O.C. Tel : 886-2-2603-5321 Fax : 886-2-2603-5325 1.Test results given in this report only relate to the specimen(s) tested, measured. 2.This report is the property of GesTek, and shall not be reproduced, other than in full, without the written consent of GesTek. 3.The report must not be used by the client to claim product certification, approval, or endorsement by any agency of the federal government. 4.All data in this report are traceable to national standard or international standard. GESTEK Lab Report #: 0703103 Rev. 1 N0 3, Pau-Tou-Tsuo Valley, Chia-Pau Tsuen, Lin Kou Hsiang, Taipei County, Taiwan, R.O.C. Tel:886-2-2603-5321 Fax:886-2-2603-5325 Accredited Lab. Of BSMI, NEMKO, NVLAP. Page 2 of 4 Listed Lab. of Commerce, FCC, VCCI. NVLAP Lab Code:200085-0 1. RF Exposure Evaluation 1.1. Limits According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (Minutes) (A) Limits for Occupational/ Control Exposures 300-1500 -- -- F/300 6 1500-100,000 -- -- 5 6 (B) Limits for General Population/ Uncontrolled Exposures 300-1500 -- -- F/1500 6 1500-100,000 -- -- 1 30 F= Frequency in MHz Friis Formula Friis transmission formula: Pd = (Pout*G)/(4*pi*r 2 ) Where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd id the limit of MPE, 1 mW/cm 2 . If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. 1.2. Test Procedure Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. GESTEK Lab Report #: 0703103 Rev. 1 N0 3, Pau-Tou-Tsuo Valley, Chia-Pau Tsuen, Lin Kou Hsiang, Taipei County, Taiwan, R.O.C. Tel:886-2-2603-5321 Fax:886-2-2603-5325 Accredited Lab. Of BSMI, NEMKO, NVLAP. Page 3 of 4 Listed Lab. of Commerce, FCC, VCCI. NVLAP Lab Code:200085-0 1.3. Test Result of RF Exposure Evaluation Date of Test March 29, 2007 Temperature 23.7 deg/C EUT Broadband Router Humidity 60 %RH Working Cond. Mode 1 Antenna Gain Antenna Gain: The maximum Gain measured in fully anechoic chamber is 0dBi or 1.0 in linear scale. Output Power Into Antenna & RF Exposure Evaluation Distance: Channel No. Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm 2 ) 1 2412.00 56.4937 0.0112 6 2437.00 57.0164 0.0113 11 2462.00 54.3250 0.0108 The power density Pd (4th column) at a distance of 20 cm calculated from the Friis transmission formula is far below the limit of 1 mW/cm 2 . GESTEK Lab Report #: 0703103 Rev. 1 N0 3, Pau-Tou-Tsuo Valley, Chia-Pau Tsuen, Lin Kou Hsiang, Taipei County, Taiwan, R.O.C. Tel:886-2-2603-5321 Fax:886-2-2603-5325 Accredited Lab. Of BSMI, NEMKO, NVLAP. Page 4 of 4 Listed Lab. of Commerce, FCC, VCCI. NVLAP Lab Code:200085-0 Date of Test March 29, 2007 Temperature 23.7 deg/C EUT Broadband Router Humidity 60 %RH Working Cond. Mode 2 Antenna Gain Antenna Gain: The maximum Gain measured in fully anechoic chamber is 0dBi or 1.0 in linear scale. Output Power Into Antenna & RF Exposure Evaluation Distance: Channel No. Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm 2 ) 1 2412.00 47.4242 0.0094 6 2437.00 47.7529 0.0095 11 2462.00 45.2898 0.0090 The power density Pd (4th column) at a distance of 20 cm calculated from the Friis transmission formula is far below the limit of 1 mW/cm 2 .

55 44 33 22 11 D D C C B B A A TitleSize Document Number Rev Date: Sheet of BR130g BOARD SYSTEM DIAGRAM B 16 10 TitleSize Document Number Rev Date: Sheet of BR130g BOARD SYSTEM DIAGRAM B 16 10 TitleSize Document Number Rev Date: Sheet of BR130g BOARD SYSTEM DIAGRAM B 16 10 POWER BOARD FLASH SDRAM RTL8186 E-TOP Network Technology Inc. RF MODULE BR130g_V30 PHY1 20060623 PHY2 55 44 33 22 11 D D C C B B A A GND+3.3VUCTSUSINUSOUTURTS AVDD1AVDD USIN USOUT GND +3.3V GND AVDD33 +1.8V AGND MODE_0MODE_1MODE_2 URTSUSINUCTSUSOUT +1.8V AVDDAVDD1+3.3VAVDD33 AGND +5V +3.3V +3.3V +3.3V +3.3V +3.3V TitleSize Document Number Rev Date: Sheet of BR130g BOARD BLOCK DIAGRAM A4 26 10 TitleSize Document Number Rev Date: Sheet of BR130g BOARD BLOCK DIAGRAM A4 26 10 TitleSize Document Number Rev Date: Sheet of BR130g BOARD BLOCK DIAGRAM A4 26 10 E-TOP Network Technology Inc. RESERVE TO DEBUG 20060707 TEXT+3.3V R145330R145330 J6 HEADER 2.54mm J6 HEADER 2.54mm 1234 SW4 SWITCHX3 SW4 SWITCHX3 ROU1 1 COM1 2 AP1 3 CLI1 4 ROU2 5 COM2 6 AP2 7 CLI2 8 L141 BEAD/1206 L141 BEAD/1206 R324 0 R324 0 C1460.1UC1460.1U D200G_LEDD200G_LED 1 2 L143 BEAD/1206 L143 BEAD/1206 U15AMS1117_ADJU15AMS1117_ADJ INPUT 3 OUTPUT 2 ADJGND 1 PWJP1 HEADER 1x5_PW PWJP1 HEADER 1x5_PW 12345 L114 BEAD(1206) L114 BEAD(1206) C147100UF(DIP)C147100UF(DIP) R323 0 R323 0 R319 10K R319 10K L144 BEAD/1206 L144 BEAD/1206 L142 BEAD/1206 L142 BEAD/1206 R32010KR32010K R318 10K R318 10K R321 0 R321 0 R322 0 R322 0 J1J1 123456 55 44 33 22 11 D D C C B B A A GPIO6 GPIO9 GPIO7 AGND R15KAGND VRNAGND VREFO VRP GPIO10 GPIO8 AGND RFLE GPIO0 MA8 MA6 MA[0..21] MA12 MA11 MA9 MA7 MA17 MA1 MA19 MA18 MA0 MA5 MA10 MA[0..21] MA4 MA13 MA21MA20 MA14 MA15 MA2 MA3 MA16 GND +1.8VCALEN AGND VREFO LRXD2 WRXD0 WRXD3 +1.8V +1.8VGNDGNDA_PAPE AGND WTXD0 LMDC GPIO1TXI+ VRP MR0_CS GND +3.3V WTXD3 UCTS RXI- GPIO8 GPIO6 LCOL LRXD0 +1.8V GPIO10 +3.3V TRSW-AGND MR_CAS LTXCLK WCOL LTXD3 LED1_JCLK USOUT USIN GND +3.3V GNDGPIO10 RIFSCKGNDR15K GPIO9 LRXD3 WTXD2 LTXEN VCOPDN GNDVCOPDNGPIO0AGND AGND GND MR_RAS GND LTXD0 LTXD2 GND GPIO5 RFLE RXQ- WTXEN LRXCLK GPIO7 ANTSEL+ GPIO4 ANTSEL+ WRXD2 LTXD1 AVDD +1.8V +3.3VTXI- RXI+ WRXD1 LMDIO +1.8V GND LRXD1 GND AVDD VRN +3.3V +3.3V +3.3V GND +1.8V WTXD1 GND URTSTSSI0RSSI GPIO4 MF0_CS +3.3V WRXDV ANTSEL- CALEN +3.3V +1.8VTXQ-XICNL M_WE WMDC GPIO5 GPIO9 TRSW+RIFSDTXQ+AVDD1AVDDAVDD ANTSEL- WTXCLK GND NF_BUSY GND +1.8V WMDIO WRXCLK LRXDV RXQ+ GND+3.3V GND GPIO6 AVDD33 TRSW- AGND TRSW+ CALMODE CALMODEUSOUT USOUT UCTS URTS USIN WLGPIO6XIGPIO2GPIO1 LED0_RST WTXD1 LTXD0 LTXD3 LTXD2 WTXD3 WTXD0 LTXD1 WTXD2 LED1_JCLK GND LED1_JCLK MD[0..15] MD15MD5MD4MD7MD3MD1MD12MD6MD14MD9MD10MD2MD11MD0MD13MD8 LED_Status LED_Status LED0_RST +3.3V GND +1.8V A_PAPE M_CLK MD[0..15] MR_RAS MR_CAS ANTSEL- M_WE RXI- RXQ- TXQ-TXI-TXQ+TXI+RFLERIFSDTSSI0RSSIVCOPDN LMDC LRXCLK LMDIO LCOL LTXEN WRXD2 WTXEN WMDIO WCOL WRXDV WRXCLK TRSW-AVDDAGND MA[0..21] UCTSUSIN MF0_CS RXQ+ MR0_CS LRXD1 ANTSEL+ WRXD3 CALEN WTXCLK LRXD0 LTXCLK URTS GPIO4 AVDD1TRSW+ WMDC WRXD1 LRXD3 RIFSCK LRXD2 LRXDV RXI+ WRXD0 40MHzOSCGPIO2 WTXD0 LTXD1 WTXD2 WTXD1 LTXD0 WTXD3LTXD3 LTXD2 MODE_0MODE_1 MODE_2 +3.3V URTSUSINUCTSUSOUT +3.3V +3.3V+3.3V +3.3V AVDD AVDD1 AVDD AVDD33 AVDD33 AVDD33 AVDD33 AVDD33 AVDD33 +3.3V AVDD33 +3.3V+3.3V+3.3V +3.3V +3.3V +3.3V+3.3V +3.3V +3.3V+3.3V +3.3V +3.3V +1.8V+3.3V+1.8V +3.3V +3.3V +3.3V +3.3VAVDD+1.8VAVDD1AVDD33GNDAGND TitleSize Document Number Rev Date: Sheet of BR130g BOARD RTL8186 Custom 36 10 TitleSize Document Number Rev Date: Sheet of BR130g BOARD RTL8186 Custom 36 10 TitleSize Document Number Rev Date: Sheet of BR130g BOARD RTL8186 Custom 36 10 Debug only openall of parts GPIO8_TRSTNGPIO6_TDIGPIO9_TDOGPIO7_TMS Just select pull Hi or pull Lo place close to RTL8185 as possible CLK SETTING TEXTRESET/RELOAD DEFAULT E-TOP Network Technology Inc. CAN NOT FLOATING 20060623 RFON/OFF TEXTEASYCONFIGURE CAN NOT FLOATING Wireless LEDSystem LED C2790.1uFC2790.1uF R193 10K R193 10K C2810.1uFC2810.1uF R186 NC R186 NC R15310KR15310K R208 10K R208 10K MA1722MA1722 R181 330 R181 330 R166 NC R166 NC C2730.1uFC2730.1uF R192 10K R192 10K R338 0 R338 0 C160 0.1U C160 0.1U R159 10K R159 10K MA20 22 MA20 22 R329 0 R329 0 R168 10K R168 10K MA1522MA1522 R162 10K R162 10K C10 10pF C10 10pF R179 10K R179 10K R197 NC R197 NC C2820.1uFC2820.1uF R171 10K R171 10K MA222MA222 R158 10K R158 10K C2740.1uFC2740.1uF R172 10K R172 10K R148 15K R148 15K R1561KR1561K C161 0.1U C161 0.1U R205 10K R205 10K C15210UF(DIP)C15210UF(DIP) MA922MA922 MA1622MA1622 R206 10K R206 10K 10K R309 10K R309 C2770.1uFC2770.1uF C297NCC297NC MA122MA122 R182 100 R182 100 C1480.1UC1480.1U MA322MA322 R184 330 R184 330 MA522MA522 R15110KR15110K R185 NC R185 NC SW2 SW2 R160 NC R160 NC R173 1K R173 1K R190 10K R190 10K MA1822MA1822 C2830.1uFC2830.1uF C2800.1uFC2800.1uF C1501UC1501U R176 NC R176 NC R198 NC R198 NC R170 NC R170 NC R200 NC R200 NC C2870.1uFC2870.1uF R334NCR334NC MA422MA422 C296NCC296NC J2JTAGJ2JTAG 1 2 3 4 5 6 7 8 9 10 11 12 R196 NC R196 NC C164 0.1U C164 0.1U R157 NC R157 NC MA022MA022 C2750.1uFC2750.1uF R161 NC R161 NC R177 100 R177 100 RTL8186 U16 RTL8186_QFP208PIN RTL8186 U16 RTL8186_QFP208PIN VDD 1 NAFBUSYB 2 LRXD0 3 LRXD1 4 GND 5 NAFWEB 6 NAFREB 7 GPIOA7 8 VDD 9 LRXDV 10 LTXE 11 LMDC 12 LRXC 13 LCOL 14 LMDIO 15 GND 16 WTXD0 17 VDD33 18 LTXD1 19 LTXD2 20 LTXD3 21 GND 22 WRXD1 23 WRXD2 24 WRXDV 25 WRXC 26 WCOL 27 VDD 28 GPIOA5 29 WMDC 30 LTXD0 31 GND 32 GPIOA6 33 LTXC 34 GND 35 VDD33 36 MCS0 37 MCS1 38 MCS5 39 WTXE 40 WTXC 41 WMDIO 42 WRXD3 43 WTXD1 44 WTXD2 45 WTXD3 46 WRXD0 47 GPIOA4 48 LRXD2 49 LRXD3 50 VDD33 51 WLGPIO0 52 MA18 156 VDD33 155 GND 154 MA17 153 ANTSELB 152 MWEB 151 RASB 150 CASB 149 WLGPIO5 148 ANTSEL 147 GPIOA8 146 WLLED1 145 MCS3 143 MA16 142 MA15 141 MA14 140 MA13 139 MA12 138 VDD33 137 GND 136 MA11 135 MA10 134 MA9 133 MA8 132 MA7 131 MA6 130 RFTXEN 129 MA5 128 MA4 127 MA3 126 MA2 125 MA1 124 MA0 123 VDD33 122 GND 121 MCS2 120 WLGPIO4 119 VDD 118 LNAHL 117 GPIOA9 116 GND 115 VDD 114 VREFO 113 VRP 112 VRN 111 RXIP …

Text truncated - open the document above for the full version.

Certificate Gestek GESTEK Gestek Gestek GESTEK Gestek estek GESTEK Gestek GES T stek GESTEK Gestek GESTE tek GESTEK Gestek GESTEK ek GESTEK Gestek GESTEK k GESTEK Gestek GESTEK GESTEK Gestek GESTEK May 2007 GesTek EMC Lab N0. 3, Pau-Tou-Tsuo Valley, Chia-Pau Tsuen, Lin Kou Hsiang, Taipei County, Taiwan, R.O.C. TEL:886-2-2603-5321 FAX:886-2-2603-5325 E-TOP Network Technology Inc. Product Type : Broadband Router Model Number : BR130g Test Report Number : 0703103 Rev. 1 Date of Test : March 26, 2007- April 26, 2007 This Product was tested to the following standards at the laboratory of Global EMC Standard Tech. Corp., and found Compliance. Standards: FCC Part 15 Subpart C Paragraph 15.247 ANSI C63.4: 2003 Sharon Chang, President Date: May 07, 2007 http : //www.gestek.com.tw 200085-0 GESTEK Lab Report #: 0703103 ID Rev . 1 N0 3, Pau-Tou-Tsuo Valley, Chia-Pau Tsuen, Lin Kou Hsiang, Taipei County, Taiwan, R.O.C. Tel:886-2-2603-5321 Fax:886-2-2603-5325 Accredited Lab. Of BSMI, NEMKO, NVLAP. Page 1 of 87 Listed Lab. of Commerce, FCC, VCCI. NVLAP Lab Code:200085-0 Test Report Application for Certification On Behalf Of E-TOP Network Technology Inc. EUT: Broadband Router Model Number: BR130g FCC ID: U6ABR130g Prepared for: E-TOP Network Technology Inc. No. 82, Gongye 2 nd Rd., Tainan City 70955, Taiwan, R.O.C. Report By :Global EMC Standard Tech. Corp. No.3 Pau-Tou-Tsuo Valley, Chia-Pau Tsuen, Lin Kou Hsiang, Taipei County, Taiwan, R.O.C. Tel : 886-2-2603-5321 Fax : 886-2-2603-5325 1.Test results given in this report only relate to the specimen(s) tested, measured. 2.This report is the property of GesTek, and shall not be reproduced, other than in full, without the written consent of GesTek. 3.The report must not be used by the client to claim product certification, approval, or endorsement by any agency of the federal government. 4.All data in this report are traceable to national standard or international standard. GESTEK Lab Report #: 0703103 ID Rev . 1 N0 3, Pau-Tou-Tsuo Valley, Chia-Pau Tsuen, Lin Kou Hsiang, Taipei County, Taiwan, R.O.C. Tel:886-2-2603-5321 Fax:886-2-2603-5325 Accredited Lab. Of BSMI, NEMKO, NVLAP. Page 2 of 87 Listed Lab. of Commerce, FCC, VCCI. NVLAP Lab Code:200085-0 TABLE OF CONTENTS DESCRIPTION PAGE 1. CERTIFICATION ..................................................................................................................................3 2. GENERAL INFORMATION ................................................…
