U6ABR330GBroadband Router

1 Quick Setup Guide V1.0 Router R330g Quick Setup Guide V1.0 2 Quick Setup Guide V1.0 Part 15.19 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation Part 15.21 Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. In cases where the manual is provided only in a form other than paper, such as on a computer disk or over the Internet, the information required by this section may be included in the manual in that alternative form, provided the user can reasonably be expected to have the capability to access information in that form. This equipment complies with FCC radiation exposure limits set forth for this an uncontrolled environment. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. End users must follow the specific operating instructions for satisfying RF exposure compliance. Table of Contents TABLE OF CONTENTS ............................................................錯誤! 尚未定義書籤。 CHAPTER 1 NAVI R330G’S QUICK SETUP....................................................... 3 1.1 ROUTER MODE’S QUICK SETUP INSTRUCTION............................................. 3 1.2 THE INTRODUCTION OF ROUTER MODE’S QUICK SETUP................................. 6 1.2.1 Time Zone Setting...................................................................... 7 1.2.2 LAN Interface Setup .................................................................. 8 1.2.3 WAN Interface Setup................................................................. 9 1.2.3.1 WAN Interface Setup–Static IP.....................錯誤! 尚未定義書籤。 1.2.3.2 WAN Interface Setup– DHCP Client...............錯誤! 尚未定義書籤。 1.2.3.3 WAN Interface Setup– PPPoE........................錯誤! 尚未定義書籤。 1.2.3.4 WAN Interface Setup– PPTP..........................錯誤! 尚未定義書籤。 1.2.4 Wireless Basic Settings.....................................錯誤! 尚未定義書籤。 1.2.5 Wireless Security Setup....................................錯誤! 尚未定義書籤。 1.2.6 Quick Setup Finish................................................................... 18 3 Quick Setup Guide V1.0 Chapter 1 Navi R330g’s Quick Setup 1.1 Router Mode’s Quick Setup Instruction Please open a Microsoft Internet Explorer, and enter http://192.168.100.1 (Default Gateway) into browser’s blank, then you will see the configuration page below: Please input in the blanks, the factory default values for User Name and Password are “admin” and “admin” (all in lowercase letters); after inputting, please click on “OK” to enter the homepage as below: 4 Quick Setup Guide V1.0 Please select the “Router”, and then click on “Apply Change”, so you will go to the page of “System Rebooting”. 5 Quick Setup Guide V1.0 After 60 seconds, you will go back to the main page of “Operation Mode”, and see the “Router Home” appearing on the left sub-menu, then please click on “Quick Setup”, and you will see the main page of “Router Quick Setup” shown below, which means you have already enabled the operation mode of “Router Quick Setup”. 6 Quick Setup Guide V1.0 1.2 The Introduction of Router mode’s Quick Setup After you go to the main page of “Router Quick Setup”, please click on “Next” right side below, and go to the next page to do each setting step by step: 7 Quick Setup Guide V1.0 1.2.1 Time Zone Setting The section provides to change the Time. However, change the router’s date and time does not affect the date and time on your PCs. Please click on “Next” button to connect to next step. Please select your time Zone 8 Quick Setup Guide V1.0 1.2.2 LAN Interface Setup If you are using the Mini Router with multiple PCs on your LAN, please set up this function for multiple users to connect it. The default LAN IP for R330g is 192.168.100.1. Please click on “Next” button to connect to next step. 9 Quick Setup Guide V1.0 1.2.3 WAN Interface Setup R330g supports 4 connection types to WAN, select one of the WAN connection modes required by your ISP in below “WAN Access Type” page, the WAN setting pages will differ depending on what kind of WAN Type you select. Please click on “Next” button to connect to next step. 10 Quick Setup Guide V1.0 1.2.3.1 WAN Interface Setup–Static IP Choose Static IP Address if all WAN IP information is provided to you by your ISP. R330g will not accept the IP address if it is not in this format, and the blanks of “IP Address”, “Subnet Mask” and “Default Gateway” must be input. Please click on “Next” button to connect to next step. Input the data provided by ISP Input the data provided by ISP Input the data provided by ISP 11 Quick Setup Guide V1.0 1.2.3.2 WAN Interface Setup– DHCP Client Choose DHCP Client to obtain IP address information automatically from your ISP. Select this option if your ISP does not give you any IP numbers to use. Please click on “Next” button to connect to next step. 12 Quick Setup Guide V1.0 1.2.3.3 WAN Interface Setup– PPPoE If your ISP uses PPPoE connection, your ISP will provide you with a username and password. Please click on “Next” button to connect to next step. Input it by your ISP provided. Input it by your ISP provided. 13 Quick Setup Guide V1.0 1.2.3.4 WAN Interface Setup– PPTP Some DSL service providers supply a special DSL modem in Europe or Big Pond Cable in Australia. This kind of modem only supports the PPTP tunnel to access the Internet; Please enter the account’s information of Account and Password which provided by your ISP. Please click on “Next” button to connect to next step. IP Address, Server IP Address and Subnet Mask are all input as necessary. 14 Quick Setup Guide V1.0 1.2.4 Wireless Basic Settings The fir…

Text truncated - open the document above for the full version.

                                            Gavin Chiu / Eddie Huang Gavin Chiu / Eddie Huang                                         RTL8186 RTL8225 RTL2527 HWS-408 40 MHz RTL8305 25 MHz Flash 2M Byte SDRAM 16M Byte Adapter 5V / 2.5A WAN 4 LAN                                                 Australia Australia Japan Japan UL 60950 UL 60950

CE / EN 60950 CE / EN 60950 - - 1 1

CE / EN 301489 CE / EN 301489 - - 17 17

CE / EN 300328 CE / EN 300328

FCC Part 15C FCC Part 15C

FCC Part 15B FCC Part 15B

 ( (     ) )

 Lab Lab R330g R330g

HW Test Item, as attached file HW Test Item, as attached file

Production Test Concern, as attached Production Test Concern, as attached file file

Other Concern, as attached file Other Concern, as attached file

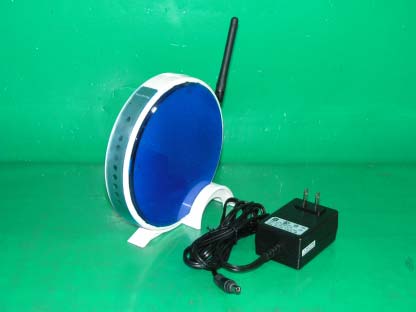

GESTEK Lab Report #: 0611087ID Rev.1 N0 3, Pau-Tou-Tsuo Valley, Chia-Pau Tsuen, Lin Kou Hsiang, Taipei County, Taiwan, R.O.C. Tel:886-2-2603-5321 Fax:886-2-2603-5325 Accredited Lab. Of BSMI, NEMKO, NVLAP. Page 74 of 85 Listed Lab. of Commerce, FCC, VCCI. NVLAP Lab Code:200085-0 10. PHOTOGRAPHS FOR PRODUCT 1. 2.

Label

GESTEK Lab Report #: 0611087ID Rev.1 N0 3, Pau-Tou-Tsuo Valley, Chia-Pau Tsuen, Lin Kou Hsiang, Taipei County, Taiwan, R.O.C. Tel:886-2-2603-5321 Fax:886-2-2603-5325 Accredited Lab. Of BSMI, NEMKO, NVLAP. Page 82 of 85 Listed Lab. of Commerce, FCC, VCCI. NVLAP Lab Code:200085-0 17. LABEL HERE

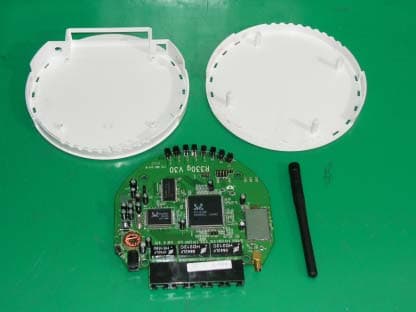

GESTEK Lab Report #: 0611087ID Rev.1 N0 3, Pau-Tou-Tsuo Valley, Chia-Pau Tsuen, Lin Kou Hsiang, Taipei County, Taiwan, R.O.C. Tel:886-2-2603-5321 Fax:886-2-2603-5325 Accredited Lab. Of BSMI, NEMKO, NVLAP. Page 74 of 85 Listed Lab. of Commerce, FCC, VCCI. NVLAP Lab Code:200085-0 10. PHOTOGRAPHS FOR PRODUCT 1. 2. GESTEK Lab Report #: 0611087ID Rev.1 N0 3, Pau-Tou-Tsuo Valley, Chia-Pau Tsuen, Lin Kou Hsiang, Taipei County, Taiwan, R.O.C. Tel:886-2-2603-5321 Fax:886-2-2603-5325 Accredited Lab. Of BSMI, NEMKO, NVLAP. Page 75 of 85 Listed Lab. of Commerce, FCC, VCCI. NVLAP Lab Code:200085-0 3. 4. GESTEK Lab Report #: 0611087ID Rev.1 N0 3, Pau-Tou-Tsuo Valley, Chia-Pau Tsuen, Lin Kou Hsiang, Taipei County, Taiwan, R.O.C. Tel:886-2-2603-5321 Fax:886-2-2603-5325 Accredited Lab. Of BSMI, NEMKO, NVLAP. Page 76 of 85 Listed Lab. of Commerce, FCC, VCCI. NVLAP Lab Code:200085-0 5. 6. GESTEK Lab Report #: 0611087ID Rev.1 N0 3, Pau-Tou-Tsuo Valley, Chia-Pau Tsuen, Lin Kou Hsiang, Taipei County, Taiwan, R.O.C. Tel:886-2-2603-5321 Fax:886-2-2603-5325 Accredited Lab. Of BSMI, NEMKO, NVLAP. Page 77 of 85 Listed Lab. of Commerce, FCC, VCCI. NVLAP Lab Code:200085-0 7. RF Modular 8. GESTEK Lab Report #: 0611087ID Rev.1 N0 3, Pau-Tou-Tsuo Valley, Chia-Pau Tsuen, Lin Kou Hsiang, Taipei County, Taiwan, R.O.C. Tel:886-2-2603-5321 Fax:886-2-2603-5325 Accredited Lab. Of BSMI, NEMKO, NVLAP. Page 78 of 85 Listed Lab. of Commerce, FCC, VCCI. NVLAP Lab Code:200085-0 9. 10. GESTEK Lab Report #: 0611087ID Rev.1 N0 3, Pau-Tou-Tsuo Valley, Chia-Pau Tsuen, Lin Kou Hsiang, Taipei County, Taiwan, R.O.C. Tel:886-2-2603-5321 Fax:886-2-2603-5325 Accredited Lab. Of BSMI, NEMKO, NVLAP. Page 79 of 85 Listed Lab. of Commerce, FCC, VCCI. NVLAP Lab Code:200085-0 11. 12. GESTEK Lab Report #: 0611087ID Rev.1 N0 3, Pau-Tou-Tsuo Valley, Chia-Pau Tsuen, Lin Kou Hsiang, Taipei County, Taiwan, R.O.C. Tel:886-2-2603-5321 Fax:886-2-2603-5325 Accredited Lab. Of BSMI, NEMKO, NVLAP. Page 80 of 85 Listed Lab. of Commerce, FCC, VCCI. NVLAP Lab Code:200085-0 13. 14.

GESTEK Lab Report #: 0611087ID Rev.1 N0 3, Pau-Tou-Tsuo Valley, Chia-Pau Tsuen, Lin Kou Hsiang, Taipei County, Taiwan, R.O.C. Tel:886-2-2603-5321 Fax:886-2-2603-5325 Accredited Lab. Of BSMI, NEMKO, NVLAP. Page 6 of 85 Listed Lab. of Commerce, FCC, VCCI. NVLAP Lab Code:200085-0 2.2 OPERATIONAL DESCRIPTION The Transmitter of EUT is a Broadband Router and powered by AC adapter. This device have one antenna. The other instruction, please look at user manual. This is Digital transmission System(DTS) and have four type of modulation DSSS, DBPSK, DQPSK,OFDM, CCK. The data rate are 1,2,5.5,11,6,9,12,18,24,36,48.54 Mbps. The equipment enables high-speed access without wires to network assets. This adapter uses the IEEE 802.11b & 802.11g protocol to enable wireless communications between the host computer and other computers, in the same way that the computer would use an Ethernet adapter. 2.3 TEST MODES & EUT COMPONENTS DESCRIPTION 2.4 SUMMARY OF TEST PROCEDURE AND TEST RESULTS Test Item Applied Standard Section Test Resut Conduction Emission 15.207, ANSI C63.4 Section 7 Pass (refer to section 3.7) Radistion Emission 15.209, ANSI C63.4 Section 8 Pass (refer to section 4.7) Peak Power Output 15.247(b), ANSI C63.4 Section 13 & Annex I Pass (refer to section 5.4) Band Edge 15.247(c) , ANSI C63.4 Section 13 & Annex I Pass (refer to section 6.6) Occupied Bandwidth 15.247(a) , ANSI C63.4 Section 13 & Annex I Pass (refer to section 7.4) Power Density 15.247(d) , ANSI C63.4 Section 13 & Annex I Pass (refer to section 8.4) EUT: Broadband Router, M/N: BR330g The EUT tested with Notebook PC. Continue Transmit Mode 1 Mode 2 Test Mode 802.11b 802.11g

GESTEK Lab Report #: 0611087 Rev.1 N0 3, Pau-Tou-Tsuo Valley, Chia-Pau Tsuen, Lin Kou Hsiang, Taipei County, Taiwan, R.O.C. Tel:886-2-2603-5321 Fax:886-2-2603-5325 Accredited Lab. Of BSMI, NEMKO, NVLAP. Page 1 of 4 Listed Lab. of Commerce, FCC, VCCI. NVLAP Lab Code:200085-0 RF Exposure Evaluation declaration E-TOP Network Technology Inc. EUT: Broadband Router Model Number: BR330g FCC ID: U6ABR330g Prepared for: E-TOP Network Technology Inc. No.82, Gongye 2 nd Rd., Tainan City 70955, Taiwan, R.O.C. Report By : Global EMC Standard Tech. Corp. No.3 Pau-Tou-Tsuo Valley, Chia-Pau Tsuen, Lin Kou Hsiang, Taipei County, Taiwan, R.O.C. Tel : 886-2-2603-5321 Fax : 886-2-2603-5325 1.Test results given in this report only relate to the specimen(s) tested, measured. 2.This report is the property of GesTek, and shall not be reproduced, other than in full, without the written consent of GesTek. 3.The report must not be used by the client to claim product certification, approval, or endorsement by any agency of the federal government. 4.All data in this report are traceable to national standard or international standard. GESTEK Lab Report #: 0611087 Rev.1 N0 3, Pau-Tou-Tsuo Valley, Chia-Pau Tsuen, Lin Kou Hsiang, Taipei County, Taiwan, R.O.C. Tel:886-2-2603-5321 Fax:886-2-2603-5325 Accredited Lab. Of BSMI, NEMKO, NVLAP. Page 2 of 4 Listed Lab. of Commerce, FCC, VCCI. NVLAP Lab Code:200085-0 1. RF Exposure Evaluation 1.1. Limits According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (Minutes) (A) Limits for Occupational/ Control Exposures 300-1500 -- -- F/300 6 1500-100,000 -- -- 5 6 (B) Limits for General Population/ Uncontrolled Exposures 300-1500 -- -- F/1500 6 1500-100,000 -- -- 1 30 F= Frequency in MHz Friis Formula Friis transmission formula: Pd = (Pout*G)/(4*pi*r 2 ) Where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd id the limit of MPE, 1 mW/cm 2 . If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. 1.2. Test Procedure Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. GESTEK Lab Report #: 0611087 Rev.1 N0 3, Pau-Tou-Tsuo Valley, Chia-Pau Tsuen, Lin Kou Hsiang, Taipei County, Taiwan, R.O.C. Tel:886-2-2603-5321 Fax:886-2-2603-5325 Accredited Lab. Of BSMI, NEMKO, NVLAP. Page 3 of 4 Listed Lab. of Commerce, FCC, VCCI. NVLAP Lab Code:200085-0 1.3. Test Result of RF Exposure Evaluation Date of Test February 16, 2007 Temperature 25 deg/C EUT Broadband Router Humidity 52 %RH Working Cond. 802.11b Antenna Gain Antenna Gain: The maximum Gain measured in fully anechoic chamber is 0dBi or 1.00 in linear scale. Output Power Into Antenna & RF Exposure Evaluation Distance: Channel No. Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm 2 ) 1 2412.00 179.0606 0.0356 6 2437.00 180.7174 0.0360 11 2462.00 177.4189 0.0353 The power density Pd (4th column) at a distance of 20 cm calculated from the Friis transmission formula is far below the limit of 1 mW/cm 2 . GESTEK Lab Report #: 0611087 Rev.1 N0 3, Pau-Tou-Tsuo Valley, Chia-Pau Tsuen, Lin Kou Hsiang, Taipei County, Taiwan, R.O.C. Tel:886-2-2603-5321 Fax:886-2-2603-5325 Accredited Lab. Of BSMI, NEMKO, NVLAP. Page 4 of 4 Listed Lab. of Commerce, FCC, VCCI. NVLAP Lab Code:200085-0 Date of Test February 16, 2007 Temperature 25 deg/C EUT Broadband Router Humidity 52 %RH Working Cond. 802.11g Antenna Gain Antenna Gain: The maximum Gain measured in fully anechoic chamber is 0dBi or 1.00 in linear scale. Output Power Into Antenna & RF Exposure Evaluation Distance: Channel No. Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm 2 ) 1 2412.00 47.4242 0.0094 6 2437.00 48.8652 0.0097 11 2462.00 48.8652 0.0097 The power density Pd (4th column) at a distance of 20 cm calculated from the Friis transmission formula is far below the limit of 1 mW/cm 2 .

55 44 33 22 11 D D C C B B A A TitleSize Document Number Rev Date: Sheet of R330g BOARD SYSTEM DIAGRAM B 17 10 Friday, January 05, 2007 TitleSize Document Number Rev Date: Sheet of R330g BOARD SYSTEM DIAGRAM B 17 10 Friday, January 05, 2007 TitleSize Document Number Rev Date: Sheet of R330g BOARD SYSTEM DIAGRAM B 17 10 Friday, January 05, 2007 POWER SUPPLY FLASH SDRAM RTL8186 E-TOP Network Technology Inc. RF+PA R330g_V30_20070103 5 PORT SWITCH 55 44 33 22 11 D D C C B B A A +1.8V USOUTUCTSURTS GND+3.3VUCTSUSINUSOUT USIN URTS +3.3V +3.3V +5V AVDD33AVDD GND USIN USOUT AVDD1 +5V GND +3.3V +3.3V +3.3V VIN +5V +5V +3.3V +1.8V USOUTURTSUSINUCTS +3.3VGNDAVDD33AVDDAVDD1 TitleSize Document Number Rev Date: Sheet of R330g BOARD POWER & RS232 A4 27 10 Friday, January 05, 2007 TitleSize Document Number Rev Date: Sheet of R330g BOARD POWER & RS232 A4 27 10 Friday, January 05, 2007 TitleSize Document Number Rev Date: Sheet of R330g BOARD POWER & RS232 A4 27 10 Friday, January 05, 2007 E-TOP Network Technology Inc. RESERVE TO DEBUG TEXT+3.3V +5V DC2.4A L140 33uH/2A DIP L140 33uH/2A DIP L114 BEAD_1206 L114 BEAD_1206 L144 BEAD_1206 L144 BEAD_1206 D200G_LEDD200G_LED 1 2 L143 BEAD_1206 L143 BEAD_1206 L141BEAD_1206L141BEAD_1206 R3231.5KR3231.5KR3224.7KR3224.7K + C260 220uF/25V/DIP 6*11 + C260 220uF/25V/DIP 6*11 C1460.1UC1460.1U R145330R145330 C2610.1uFC2610.1uF U15AMS1117_ADJU15AMS1117_ADJ INPUT 3 OUTPUT 2 ADJGND 1 R321100KR321100K J6 HEADER 2.54mm J6 HEADER 2.54mm 1234 SD2 SCD32/SMD SD2 SCD32/SMD C147100UF_DIPC147100UF_DIP R3203.9KR3203.9K C263 0.1uF/0402 C263 0.1uF/0402 U25 AP1513/SOP-8 U25 AP1513/SOP-8 Output 5 OSCET 3 Vss 7 Vss 8 FB 1 EN 2 Output 6 Vcc 4 L142BEAD_1206L142BEAD_1206 C2620.1uFC2620.1uF J1J1 123456 + C264 470uF/16V/DIP 6*11 + C264 470uF/16V/DIP 6*11 F1 FUSE_1206 F1 FUSE_1206 POWER1 PowerJack (DIP) POWER1 PowerJack (DIP) 12 3 55 44 33 22 11 D D C C B B A A GPIO6 GPIO9 GPIO7 AGND R15KAGND VRNAGND VREFO VRP GPIO10 GPIO8 AGND RFLE GPIO0 MA8 MA6 MA[0..21] MA12 MA11 MA9 MA7 MA17 MA1 MA19 MA18 MA0 MA5 MA10 MA[0..21] MA4 MA13 MA21MA20 MA14 MA15 MA2 MA3 MA16 GNDMD1 +1.8VCALEN AGND VREFO LRXD2 WRXD0 WRXD3 +1.8V +1.8VGNDGNDMD2A_PAPE AGND WTXD0 LMDC MD8 GPIO1TXI+ VRP MR0_CS GND +3.3V WTXD3 MD15MD13MD9MD7 UCTS RXI- GPIO8 GPIO6 LCOL LRXD0 +1.8V GPIO10 +3.3VMD3 TRSW-AGND MR_CAS LTXCLK WCOL LTXD3 LED1_JCLK USOUT MD14 USIN GND +3.3V GNDGPIO10 RIFSCKGNDR15K GPIO9 LRXD3 WTXD2 LTXEN VCOPDN GNDVCOPDNGPIO0AGND AGND GND MR_RAS GND LTXD0 LTXD2 GND GPIO5 RFLE RXQ- WTXEN LRXCLK GPIO7 ANTSEL+ GPIO4 MD0 ANTSEL+ WRXD2 LTXD1 AVDD +1.8V +3.3VTXI- RXI+ WRXD1 LMDIO +1.8V GND LRXD1 GNDMD6 AVDD VRN +3.3V +3.3V +3.3V GND +1.8V WTXD1 GND MD11 URTSTSSI0RSSI GPIO4 MF0_CS +3.3V WRXDV ANTSEL- CALEN +3.3V +1.8VTXQ-XICNL M_WE WMDC GPIO5 GPIO9 MD12MD5MD4 TRSW+RIFSDTXQ+AVDD1AVDDAVDD ANTSEL- GND NF_BUSY MD10 GND +1.8V WMDIO WRXCLK LRXDV RXQ+ GND+3.3V GND GPIO6 AVDD33 TRSW- AGND TRSW+ CALMODE CALMODEUSOUT USOUT UCTS URTS USIN WLGPIO6XIGPIO2 LED0_RSTGPIO2 GPIO1 LED0_RST WTXD1 LTXD0 LTXD3 LTXD2 WTXD3 WTXD0 LTXD1 WTXD2 LED1_JCLK GND WTXCLK LED_Status LED_Status LED1_JCLK MD[0..15] GND +1.8V A_PAPE M_CLK MD[0..15] MR_RAS MR_CAS ANTSEL- M_WE RXI- RXQ- TXQ-TXI-TXQ+TXI+RFLERIFSDTSSI0RSSIVCOPDN LMDC LRXCLK LMDIO LCOL LTXEN WRXD2 WTXEN WMDIO WCOL WRXDV WRXCLK TRSW-AVDDAGND MA[0..21] UCTSUSIN MF0_CS RXQ+ MR0_CS LRXD1 ANTSEL+ WRXD3 CALEN WTXCLK LRXD0 LTXCLK URTS GPIO4 AVDD1TRSW+ WMDC WRXD1 LRXD3 RIFSCK LRXD2 LRXDV RXI+ WRXD0 40MHzOSCGPIO2 WTXD0 LTXD1 WTXD2 WTXD1 LTXD0 WTXD3LTXD3 LTXD2 +3.3V +3.3V+3.3V +3.3V AVDD AVDD1 AVDD +3.3V AVDD33 AVDD33 AVDD33 AVDD33 AVDD33 AVDD33 +3.3V AVDD33 +3.3V +3.3V +3.3V+3.3V +3.3V +3.3V +3.3V+3.3V +3.3V +3.3V+3.3V +3.3V +3.3V +1.8V+3.3V+1.8V +3.3V +3.3VAVDD+1.8VAVDD1AVDD33GNDAGND USOUTUSINUCTSURTS TitleSize Document Number Rev Date: Sheet of R330g BOARD RTL8186 Custom 37 Friday, January 05, 2007 10 TitleSize Document Number Rev Date: Sheet of R330g BOARD RTL8186 Custom 37 Friday, January 05, 2007 10 TitleSize Document Number Rev Date: Sheet of R330g BOARD RTL8186 Custom 37 Friday, January 05, 2007 10 Debug only openall of parts GPIO8_TRSTNGPIO6_TDIGPIO9_TDOGPIO7_TMS Just select pull Hi or pull Lo place close to RTL8185 as possible CLK SETTING TEXTRESET/RELOAD DEFAULT E-TOP Network Technology Inc. CAN NOT FLOATING RFON/OFF TEXTEASYCONFIGURE CAN NOT FLOATING System LED WireLess LED For EMI Sollution MA1722MA1722 R208 10K R208 10K R15310KR15310K C29122pFC29122pF R186 NC R186 NC C2810.1uFC2810.1uF R351 0R351 0 R193 10K R193 10K C2790.1uFC2790.1uF R159 10K R159 10K C160 0.1U C160 0.1U R192 10K R192 10K C2730.1uFC2730.1uF R166 NC R166 NC R179 10K R179 10K C10 10pF C10 10pF R162 10K R162 10K MA1522MA1522 R168 10K R168 10K MA20 22 MA20 22 R172 10K R172 10K C2740.1uFC2740.1uF R158 10K R158 10K R34568R34568 MA222MA222 R171 10K R171 10K C2820.1uFC2820.1uF R197 NC R197 NC R34868R34868 MA1622MA1622 MA922MA922 C15210UF_DIPC15210UF_DIP R205 10K R205 10K C161 0.1U C161 0.1U R1561KR1561K C154 0.1U C154 0.1U C29622pFC29622pF R148 15K R148 15K C1480.1UC1480.1U R182 100 R182 100 MA122MA122 C2770.1uFC2770.1uF 10K R309 10K R309 R181 330 R181 330 R206 10K R206 10K R173 1K R173 1K R160 NC R160 NC C29522pFC29522pF SW2 SW2 R185 NC R185 NC R15110KR15110K MA522MA522 MA322MA322 R198 NC R198 NC R176 NC R176 NC C1501UC1501U C2800.1uFC2800.1uF C2830.1uFC2830.1uF MA1822MA1822 R190 10K R190 10K C164 0.1U C164 0.1U R196 NC R196 NC J2JTAGJ2JTAG 1 2 3 4 5 6 7 8 9 10 11 12 MA422MA422 C2870.1uFC2870.1uF R200 NC R200 NC R170 NC R170 NC C158 0.1U C158 0.1U RTL8186 U16 RTL8186_QFP208PIN RTL8186 U16 RTL8186_QFP208PIN VDD 1 NAFBUSYB 2 LRXD0 3 LRXD1 4 GND 5 NAFWEB 6 NAFREB 7 GPIOA7 8 VDD 9 LRXDV 10 LTXE 11 LMDC 12 LRXC 13 LCOL 14 LMDIO 15 GND 16 WTXD0 17 VDD33 18 LTXD1 19 LTXD2 20 LTXD3 21 GND 22 WRXD1 23 WRXD2 24 WRXDV 25 WRXC 26 WCOL 27 VDD 28 GPIOA5 29 WMDC 30 LTXD0 31 GND 32 GPIOA6 33 LTXC 34 GND 35 VDD33 36 MCS0 37 MCS1 38 MCS5 39 WTXE 40 WTXC 41 WMDIO 42 WRXD3 43 WTXD1 44 WTXD2 45 WTXD3 46 WRXD0 47 GPIOA4 48 LRXD2 49 LRXD3 50 VDD33 51 WLGPIO0 52 MA18 156 …

Text truncated - open the document above for the full version.

Certificate Gestek GESTEK Gestek Gestek GESTEK Gestek estek GESTEK Gestek GES T stek GESTEK Gestek GESTE tek GESTEK Gestek GESTEK ek GESTEK Gestek GESTEK k GESTEK Gestek GESTEK GESTEK Gestek GESTEK March 2007 GesTek EMC Lab N0. 3, Pau-Tou-Tsuo Valley, Chia-Pau Tsuen, Lin Kou Hsiang, Taipei County, Taiwan, R.O.C. TEL:886-2-2603-5321 FAX:886-2-2603-5325 E-TOP Network Technology Inc. Product Type : Broadband Router Model Number : BR330g Brand Name : E-Top Test Report Number : 0611087 Rev. 1 Date of Test : February 12, 2007 – March 22, 2007 This Product was tested to the following standards at the laboratory of Global EMC Standard Tech. Corp., and found Compliance. Standards: FCC Part 15 Subpart C Paragraph 15.247 ANSI C63.4: 2003 Sharon Chang, President Date: March 29, 2007 http : //www.gestek.com.tw 200085-0 GESTEK Lab Report #: 0611087ID Rev.1 N0 3, Pau-Tou-Tsuo Valley, Chia-Pau Tsuen, Lin Kou Hsiang, Taipei County, Taiwan, R.O.C. Tel:886-2-2603-5321 Fax:886-2-2603-5325 Accredited Lab. Of BSMI, NEMKO, NVLAP. Page 1 of 85 Listed Lab. of Commerce, FCC, VCCI. NVLAP Lab Code:200085-0 Test Report Application for Certification On Behalf Of E-TOP Network Technology Inc. EUT: Broadband Router Model Number: BR330g FCC ID: U6ABR330g Prepared for: E-TOP Network Technology Inc. No.82, Gongye 2 nd Rd., Tainan City 70955, Taiwan, R.O.C. Report By :Global EMC Standard Tech. Corp. No.3 Pau-Tou-Tsuo Valley, Chia-Pau Tsuen, Lin Kou Hsiang, Taipei County, Taiwan, R.O.C. Tel : 886-2-2603-5321 Fax : 886-2-2603-5325 1.Test results given in this report only relate to the specimen(s) tested, measured. 2.This report is the property of GesTek, and shall not be reproduced, other than in full, without the written consent of GesTek. 3.The report must not be used by the client to claim product certification, approval, or endorsement by any agency of the federal government. 4.All data in this report are traceable to national standard or international standard. GESTEK Lab Report #: 0611087ID Rev.1 N0 3, Pau-Tou-Tsuo Valley, Chia-Pau Tsuen, Lin Kou Hsiang, Taipei County, Taiwan, R.O.C. Tel:886-2-2603-5321 Fax:886-2-2603-5325 Accredited Lab. Of BSMI, NEMKO, NVLAP. Page 2 of 85 Listed Lab. of Commerce, FCC, VCCI. NVLAP Lab Code:200085-0 TABLE OF CONTENTS DESCRIPTION PAGE 1. CERTIFICATION ...................................................................................................................4 2. GENERAL INFORMATION ...................................................................................................5 2.1 PRODUCTION DESCRIPTION ............................................................................................................5 2.2 OPERATIONAL DESCRIPTION...........................................................................................................6 2.3 TEST MODES & EUT COMPONENTS DESCRIPTION.......................................................................6 2.4 SUMMARY OF TEST PROCEDURE AND TEST RESULTS ...............................................................6 2.5 CONFIGURATION OF THE TESTED SYSTEM ..................................................................................7 2.6 TEST FACILITY..................................................................................................................................11 2.7 TEST SETUP .....................................................................................................................................12 2.8 EUT OPERATING CONDITIONS.......................................................................................................12 3. CONDUCTION EMISSION DATA .......................................................................................13 3.1 TEST EQUIPMENTS..........................................................................................................................13 3.2 BLOCK DIAGRAM OF TEST SETUP.................................................................................................13 3.3 CONDUCTED EMISSION LIMIT ........................................................................................................14 3.4 OPERATING CONDITION OF EUT ...................................................................................................14 3.5 EUT CONFIGURATION ON MEASUREMENT..................................................................................14 3.6 CONDUCTED EMISSION DATA........................................................................................................14 3.7 CONDUCTED EMISSIONS MEASUREMENT RESULTS.................................................................15 4. RADIATION EMISSION DATA ...........................................................................................17 4.1 TEST EQUIPMENT ............................................................................................................................17 4.2 OPEN TEST SITE SETUP DIAGRAM................................................................................................17 4.3 RADIATED EMISSION LIMIT.............................................................................................................18 4.4 EUT CONFIGURATION .....................................................................................................................18 4.5 OPERATING CONDITION OF EUT ...................................................................................................18 4.6 RADIATED EMISSION DATA ............................................................................................................18 4.7 RADIATED EMISSIONS MEASUREMENT RESULTS......................................................................19 5. PEAK POWER OUTPUT.....................................................................................................37 5.1 TEST EQUIPMENT ............................................................................................................................37 5.2 BLOCK DIAGRAM OF TEST SETUP.............…

Text truncated - open the document above for the full version.

GESTEK Lab Report #: 0611087ID Rev.1 N0 3, Pau-Tou-Tsuo Valley, Chia-Pau Tsuen, Lin Kou Hsiang, Taipei County, Taiwan, R.O.C. Tel:886-2-2603-5321 Fax:886-2-2603-5325 Accredited Lab. Of BSMI, NEMKO, NVLAP. Page 71 of 85 Listed Lab. of Commerce, FCC, VCCI. NVLAP Lab Code:200085-0 9. PHOTOGRAPHS FOR TEST 9.1 TEST PHOTOGRAPHS FOR CONDUCTION GESTEK Lab Report #: 0611087ID Rev.1 N0 3, Pau-Tou-Tsuo Valley, Chia-Pau Tsuen, Lin Kou Hsiang, Taipei County, Taiwan, R.O.C. Tel:886-2-2603-5321 Fax:886-2-2603-5325 Accredited Lab. Of BSMI, NEMKO, NVLAP. Page 72 of 85 Listed Lab. of Commerce, FCC, VCCI. NVLAP Lab Code:200085-0 9.2 TEST PHOTOGRAPHS FOR RADIATION 30-1000MHz GESTEK Lab Report #: 0611087ID Rev.1 N0 3, Pau-Tou-Tsuo Valley, Chia-Pau Tsuen, Lin Kou Hsiang, Taipei County, Taiwan, R.O.C. Tel:886-2-2603-5321 Fax:886-2-2603-5325 Accredited Lab. Of BSMI, NEMKO, NVLAP. Page 73 of 85 Listed Lab. of Commerce, FCC, VCCI. NVLAP Lab Code:200085-0 Above 1GHz
