U6ANR620M3.5G MIMO - NES Storage Server with BT

1 Quick Setup Guide V1.0 NR620M Router Quick Setup Guide 2 Quick Setup Guide V1.0 Table of Contents TABLE OF CONTENTS........................................................................................................................... 2 FCC CAUTION........................................................................................................................................... 4 CHAPTER 1 NAVI N620RG’S ROUTER MODE QUICK SETUP.......................................... 5 1.1 ROUTER MODE’S QUICK SETUP INSTRUCTION.................................................................. 5 1.2 THE INTRODUCTION OF ROUTER MODE’S QUICK SETUP................................................. 9 1.2.1 WAN Setup.................................................................................................................. 10 1.2.1.1 WAN Setup–Static IP....................................................................................................... 11 1.2.1.2 WAN Setup–Dynamic IP................................................................................................ 12 1.2.1.3 WAN Setup–PPPoE............................................................................................................ 12 1.2.1.4 WAN Setup–PPTP.............................................................................................................. 13 1.2.2 LAN Setup.................................................................................................................... 14 1.2.3 Wireless Setup.......................................................................................................... 16 1.2.4 Time Server Setup.................................................................................................. 17 1.2.5 Change Password.................................................................................................... 17 1.2.6 Router Basic Setup Finish.................................................................................. 18 1.3 ROUTER MODE’S APPLICATION SETUP OF QUICK SETUP.............................................. 19 1.3.1 Folder Management Setup................................................................................. 20 1.3.2 User Account Management Setup................................................................. 22 1.3.3 Firewall Setup........................................................................................................... 23 1.3.4 QoS Configuration Setup.................................................................................... 24 1.3.5 FTP Server Setup..................................................................................................... 25 1.3.6 Printer Server Setup............................................................................................. 26 1.3.7 Web Camera Server Setup................................................................................. 27 1.3.8 Download Server Setup....................................................................................... 28 1.3.9 Samba Server Setup.............................................................................................. 29 1.3.10 Application Setup Finish..................................................................................... 30 CHAPTER 2 NAVI N620RG’S AP MODE QUICK SETUP..................................................... 31 2.1 AP MODE’S QUICK SETUP INSTRUCTION......................................................................... 31 2.2 THE INTRODUCTION OF AP MODE’S QUICK SETUP........................................................ 34 2.2.1 LAN Setup.................................................................................................................... 35 2.2.2 Wireless Setup.......................................................................................................... 37 2.2.3 Time Server Setup.................................................................................................. 38 2.2.4 Change Password.................................................................................................... 38 2.2.5 AP Basic Setup Finish........................................................................................... 39 2.3 AP MODE’S APPLICATION SETUP OF QUICK SETUP....................................................... 40 3 Quick Setup Guide V1.0 2.3.1 Folder Management Setup................................................................................. 41 2.3.2 User Account Management Setup................................................................. 43 2.3.3 FTP Server Setup..................................................................................................... 44 2.3.4 Printer Server Setup............................................................................................. 45 2.3.5 Web Camera Server Setup................................................................................. 46 2.3.6 Download Server Setup....................................................................................... 47 2.3.7 Samba Server Setup.............................................................................................. 48 2.3.8 Application Setup Finish..................................................................................... 49 4 Quick Setup Guide V1.0 Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or te…

Text truncated - open the document above for the full version.

E-Top Network Technology Inc. No.82,Gongye 2nd Rd., Tainan City 70095, Taiwan,R.O.C. Date: October 22, 2007 Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 To whom it may concern: We, the undersigned, hereby authorize ETS Product Service (Taiwan) CO., LTD. to act on our behalf in all matters relating to applications for” 3.5G MIMO - NES Storage Server with BT” (Model No.: NR620M, FCC ID:U6ANR620M)＂ authorization, including the signing of all documents relating to these matters. Any and all acts carried out by ETS Product Service (Taiwan) CO., LTD. on our behalf shall have the same effect as acts of our own. We also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Sincerely,

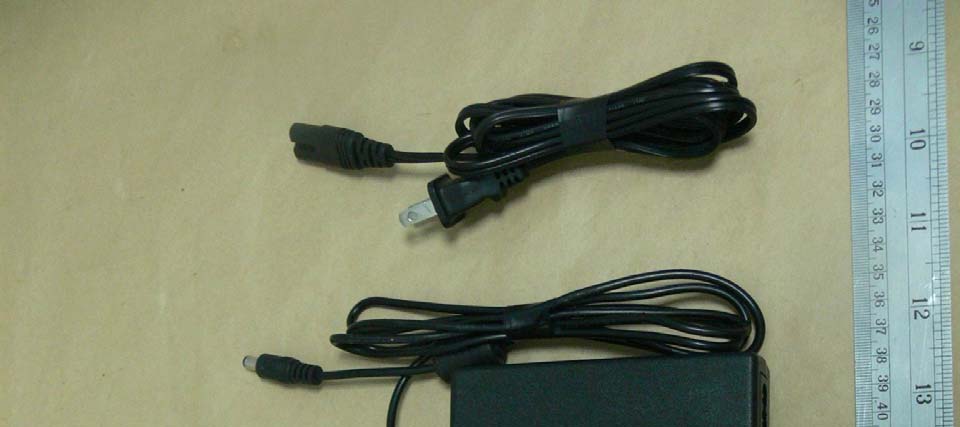

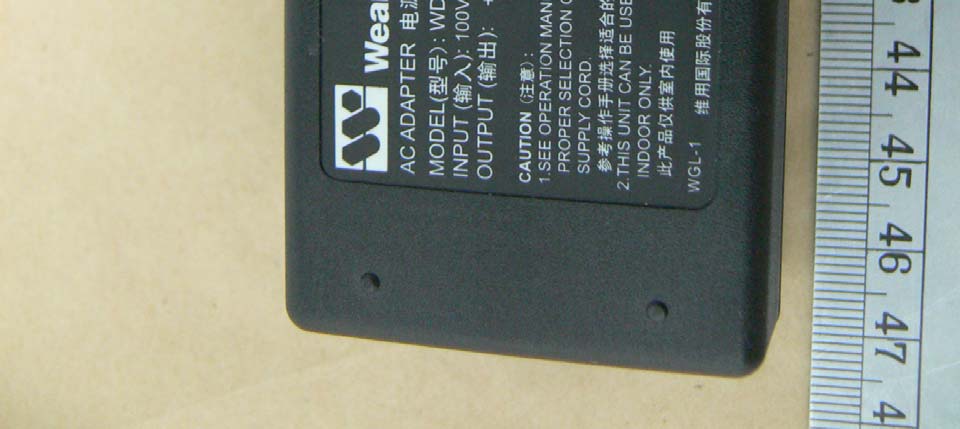

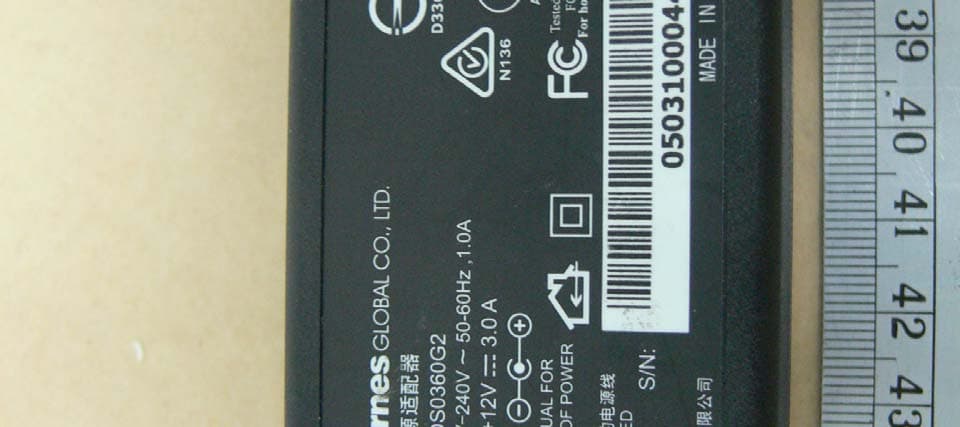

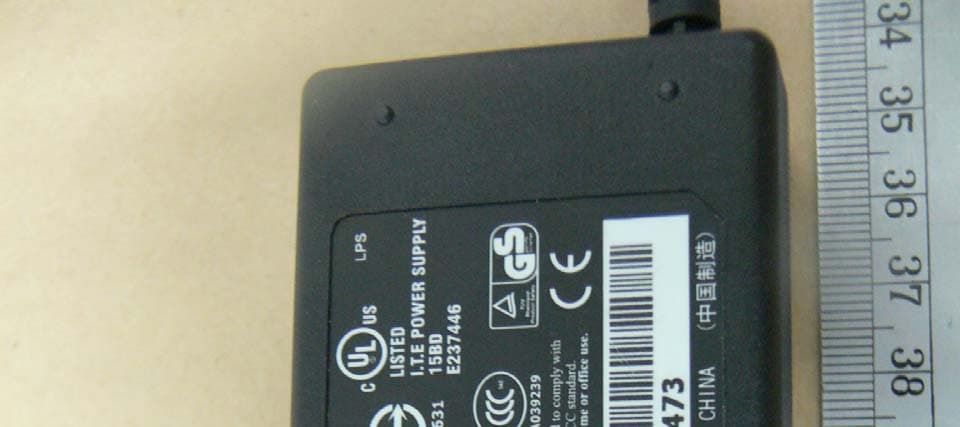

Registration number: W6M20709-8524 FCC ID: U6ANR620M ETS Product Service (Taiwan) Co., Ltd. Appendix Page 1 of 14 Photos 1. External Photos 2. Internal Photos 3. Set Up Photo of Radiated Emission 4. Set Up Photo of Conducted Emission Registration number: W6M20709-8524 FCC ID: U6ANR620M ETS Product Service (Taiwan) Co., Ltd. Appendix Page 2 of 14 External Photos Registration number: W6M20709-8524 FCC ID: U6ANR620M ETS Product Service (Taiwan) Co., Ltd. Appendix Page 3 of 14 Registration number: W6M20709-8524 FCC ID: U6ANR620M ETS Product Service (Taiwan) Co., Ltd. Appendix Page 4 of 14 Registration number: W6M20709-8524 FCC ID: U6ANR620M ETS Product Service (Taiwan) Co., Ltd. Appendix Page 5 of 14

Registration number: W6M20709-8524 FCC ID: U6ANR620M ETS Product Service (Taiwan) Co., Ltd. Appendix Page 6 of 14 Internal Photos Registration number: W6M20709-8524 FCC ID: U6ANR620M ETS Product Service (Taiwan) Co., Ltd. Appendix Page 7 of 14 Registration number: W6M20709-8524 FCC ID: U6ANR620M ETS Product Service (Taiwan) Co., Ltd. Appendix Page 8 of 14 Registration number: W6M20709-8524 FCC ID: U6ANR620M ETS Product Service (Taiwan) Co., Ltd. Appendix Page 9 of 14 Registration number: W6M20709-8524 FCC ID: U6ANR620M ETS Product Service (Taiwan) Co., Ltd. Appendix Page 10 of 14 Registration number: W6M20709-8524 FCC ID: U6ANR620M ETS Product Service (Taiwan) Co., Ltd. Appendix Page 11 of 14

MPE Prediction FCC Rule: 15.247(b)(5) Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission’s guidelines. See §1.1307(b)(1) of this Chapter. LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm2) Average time (minutes) (A)Limits For Occupational / Control Exposures 30-300 61.4 0.613 1.0 6 300-1500 ... ... F/300 6 1500-100,000 ... ... 5 6 (B)Limits For General Population / Uncontrolled Exposure 30-300 27.5 0.073 0.2 30 300-1500 ... ... F/1500 30 1500-100,000 ... ... 1.0 30 F = Frequency in MHz Prediction of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 PG S = -------------- 4πR² where: S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna Maximum peak output power at antenna input terminal: 18.16 (dBm) Maximum peak output power at antenna input terminal: 65.4636 (mW) Antenna gain(maximal): 2 (dBi) Prediction distance: 20 (cm) Prediction frequency: 2412 (MHz) MPE limit for uncontrolled exposure at prediction frequency: 1.0 (mW/cm²) Power density at prediction frequency: 0.0 2083 (mW/cm²) The manual instruct the user to install and operate the device in a minimum distance of 20 cm between antenna and the users body.

of Applicant: E-Top Network Technology Inc. Address: No.82, Gongye 2nd Rd., Tainan City 70095, Taiwan, R.O.C. Tested and Prepared by ETS Product Service (Taiwan) Co., Ltd. FCC Registration No.: 930600 Industry Canada filed test laboratory Reg. No. IC 5679 A2LA Accredited No.: 1983.02 PTCRB Accredited Type Certification Test House FCC ID: U6ANR620M Report No.: W6M20709-8524-C-1 6F, NO. 58, LANE 188, RUEY-KUANG RD., NEIHU TAIPEI 114, TAIWAN, R.O.C. TEL: 886-2-66068877 FAX: 886-2-66068879 E-mail: [email protected] FCC TEST REPORT for 3.5G MIMO - NES Storage Server with BT Model No.: NR620M Registration number: W6M20709-8524-C-1 FCC ID: U6ANR620M ETS Product Service (Taiwan) Co., Ltd. Page 1 of 28 TABLE OF CONTENTS 1 GENERAL INFORMATION ................................................................................................... 2 1.1 NOTES................................................................................................................................... 2 1.2 T ESTING LABORATORY......................................................................................................... 3 1.2.1 Location .......................................................................................................................3 1.2.2 Details of accreditation status ..................................................................................... 3 1.3 DETAILS OF APPROVAL HOLDER............................................................................................ 3 1.4 APPLICATION DETAILS.......................................................................................................... 4 1.5 GENERAL INFORMATION OF TEST ITEM................................................................................. 4 1.6 T EST STANDARDS.................................................................................................................. 5 2 TECHNICAL TEST ..................................................................................................................6 2.1 SUMMARY OF TEST RESULTS................................................................................................. 6 2.2 TEST ENVIRONMENT.............................................................................................................. 6 2.3 TEST EQUIPMENT LIST.......................................................................................................... 7 2.4 GENERAL TEST PROCEDURE................................................................................................. 9 3 TEST RESULTS (ENCLOSURE).......................................................................................... 11 3.1 P EAK OUTPUT POWER (TRANSMITTER) ............................................................................... 12 3.2 EQUIVALENT ISOTROPIC RADIATED POWER......................................................................... 14 3.3 RF EXPOSURE COMPLIANCE REQUIREMENTS..................................................................... 14 3.4 TRANSMITTER RADIATED EMISSIONS IN RESTRICTED BANDS............................................. 15 3.5 S PURIOUS EMISSIONS (TX) .................................................................................................. 16 3.6 RADIATED EMISSION ON THE BAND EDGE........................................................................... 22 3.7 MINIMUM 6 DB BANDWIDTH.............................................................................................. 23 3.8 P EAK POWER SPECTRAL DENSITY....................................................................................... 24 3.9 R ADIATED EMISSION FROM DIGITAL PART......................................................................... 25 3.10 P OWER LINE CONDUCTED EMISSION.................................................................................. 26 A PPENDIX....................................................................................................................................... 28 Registration number: W6M20709-8524-C-1 FCC ID: U6ANR620M ETS Product Service (Taiwan) Co., Ltd. Page 2 of 28 1 General Information 1.1 Notes The purpose of conformity testing is to increase the probability of adherence to the essential requirements or conformity specifications, as appropriate. The complexity of the technical specifications, however, means that full and thorough testing is impractical for both technical and economic reasons. Furthermore, there is no guarantee that a test sample which has Passed all the relevant tests conforms to a specification. Neither is there any guarantee that such a test sample will interwork with other genuinely open systems. The existence of the tests nevertheless provides the confidence that the test sample possesses the qualities as maintained and that is performance generally conforms to representative cases of communications equipment. The test results of this test report relate exclusively to the item tested as specified in 1.5. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of the ETS Product Service (Taiwan) Co., Ltd. Specific Conditions: Usage of the hereunder tested device in combination with other integrated or external antennas requires at least additional output power measurements, spurious emission measurements, conducted emission measurements (AC supply lines) and radio frequency exposure evaluations for each individual configuration performed, for certification by FCC. The test sample is able to work according IEEE 802.11 b/g. This report is related to FCC Part 15 C (DSSS and OFDM device). Tester: October 25, 2007 Jay Chaing Date ETS-Lab. Name Signature Technical responsibility for area of testing: October 25, 2007 Steven Chuang Date ETS Name Signature Registration number: W6M20709-8524-C-1 FCC ID: U6ANR620M ETS Product Service (Taiwan) Co., Ltd. Page 3 of 28 1.2 Testing laboratory 1.2.1 Location OATS No.5-1, …

Text truncated - open the document above for the full version.

Registration number: W6M20709-8524-C-1 FCC ID: U6ANR620M ETS Product Service (Taiwan) Co., Ltd. Appendix page 1 of 73 Peak Output Power Ref 20 dBmAtt 20 dB A Offset 11 dB LVL * MAXH Center 2.412 GHzSpan 66.53384837 MHz6.653384837 MHz/ * * RBW 100 kHz VBW 100 kHz SWT 300 ms 1 PK * -70 -60 -50 -40 -30 -20 -10 0 10 Tx Channel WLAN 802.11B Bandwidth 22 MHz Power 18.16 dBm Adjacent Channel Bandwidth 11 MHz Lower -38.98 dB Spacing 16.5 MHz Upper -39.14 dB Alternate Channel Bandwidth 11 MHz Lower -47.03 dB Spacing 27.5 MHz Upper -47.19 dB MAX OUTPUT POWER 802.11b CH1 Date: 22.OCT.2007 13:12:49 Registration number: W6M20709-8524-C-1 FCC ID: U6ANR620M ETS Product Service (Taiwan) Co., Ltd. Appendix page 2 of 73 Ref 20 dBmAtt 20 dB A Offset 11 dB LVL * MAXH 1 PK Center 2.437 GHzSpan 66.53384837 MHz6.653384837 MHz/ * * RBW 100 kHz VBW 100 kHz SWT 300 ms * -70 -60 -50 -40 -30 -20 -10 0 10 Tx Channel WLAN 802.11B Bandwidth 22 MHz Power 17.95 dBm Adjacent Channel Bandwidth 11 MHz Lower -39.39 dB Spacing 16.5 MHz Upper -39.26 dB Alternate Channel Bandwidth 11 MHz Lower -47.23 dB Spacing 27.5 MHz Upper -47.04 dB MAX OUTPUT POWER 802.11b CH6 Date: 22.OCT.2007 13:13:16 Registration number: W6M20709-8524-C-1 FCC ID: U6ANR620M ETS Product Service (Taiwan) Co., Ltd. Appendix page 3 of 73 Ref 20 dBmAtt 20 dB A Offset 11 dB LVL * MAXH 1 PK Center 2.462 GHzSpan 66.53384837 MHz6.653384837 MHz/ * * RBW 100 kHz VBW 100 kHz SWT 300 ms * -70 -60 -50 -40 -30 -20 -10 0 10 Tx Channel WLAN 802.11B Bandwidth 22 MHz Power 18.15 dBm Adjacent Channel Bandwidth 11 MHz Lower -39.30 dB Spacing 16.5 MHz Upper -39.11 dB Alternate Channel Bandwidth 11 MHz Lower -47.05 dB Spacing 27.5 MHz Upper -46.11 dB MAX OUTPUT POWER 802.11b CH11 Date: 22.OCT.2007 13:14:19 Registration number: W6M20709-8524-C-1 FCC ID: U6ANR620M ETS Product Service (Taiwan) Co., Ltd. Appendix page 4 of 73 Ref 20 dBmAtt 20 dB A Offset 11 dB LVL * MAXH Center 2.412 GHzSpan 100.8088612 MHz10.08088612 MHz/ * RBW 100 kHz SWT 300 ms * 1 PK VBW 1 MHz * -70 -60 -50 -40 -30 -20 -10 0 10 Tx Channel WLAN 802.11A Bandwidth 20 MHz Power 14.36 dBm Adjacent Channel Bandwidth 20 MHz Lower -35.72 dB Spacing 20 MHz Upper -36.00 dB Alternate Channel Bandwidth 20 MHz Lower -40.49 dB Spacing 40 MHz Upper -41.02 dB MAX OUTPUT POWER 802.11g CH1 Date: 22.OCT.2007 13:09:27 Registration number: W6M20709-8524-C-1 FCC ID: U6ANR620M ETS Product Service (Taiwan) Co., Ltd. Appendix page 5 of 73 Ref 20 dBmAtt 20 dB A Offset 11 dB LVL * MAXH 1 PK Center 2.437 GHzSpan 100.8088612 MHz10.08088612 MHz/ * * RBW 100 kHz VBW 1 MHz SWT 300 ms * -70 -60 -50 -40 -30 -20 -10 0 10 Tx Channel WLAN 802.11A Bandwidth 20 MHz Power 14.21 dBm Adjacent Channel Bandwidth 20 MHz Lower -35.80 dB Spacing 20 MHz Upper -35.77 dB Alternate Channel Bandwidth 20 MHz Lower -40.43 dB Spacing 40 MHz Upper -40.41 dB MAX OUTPUT POWER 802.11g CH6 Date: 22.OCT.2007 13:10:12 Registration number: W6M20709-8524-C-1 FCC ID: U6ANR620M ETS Product Service (Taiwan) Co., Ltd. Appendix page 6 of 73 Ref 20 dBmAtt 20 dB A Offset 11 dB LVL * Center 2.462 GHzSpan 100.8088612 MHz10.08088612 MHz/ * * RBW 100 kHz VBW 1 MHz SWT 300 ms 1 PK MAXH * -70 -60 -50 -40 -30 -20 -10 0 10 Tx Channel WLAN 802.11A Bandwidth 20 MHz Power 14.38 dBm Adjacent Channel Bandwidth 20 MHz Lower -36.24 dB Spacing 20 MHz Upper -36.11 dB Alternate Channel Bandwidth 20 MHz Lower -41.33 dB Spacing 40 MHz Upper -40.65 dB MAX OUTPUT POWER 802.11g CH11 Date: 22.OCT.2007 13:10:46 Registration number: W6M20709-8524-C-1 FCC ID: U6ANR620M ETS Product Service (Taiwan) Co., Ltd. Appendix page 7 of 73 Spurious Emissions radiated 11B_Ch1 Antenna Polarization H Registration number: W6M20709-8524-C-1 FCC ID: U6ANR620M ETS Product Service (Taiwan) Co., Ltd. Appendix page 8 of 73 Registration number: W6M20709-8524-C-1 FCC ID: U6ANR620M ETS Product Service (Taiwan) Co., Ltd. Appendix page 9 of 73 Registration number: W6M20709-8524-C-1 FCC ID: U6ANR620M ETS Product Service (Taiwan) Co., Ltd. Appendix page 10 of 73 Registration number: W6M20709-8524-C-1 FCC ID: U6ANR620M ETS Product Service (Taiwan) Co., Ltd. Appendix page 11 of 73 Antenna Polarization V Registration number: W6M20709-8524-C-1 FCC ID: U6ANR620M ETS Product Service (Taiwan) Co., Ltd. Appendix page 12 of 73 Registration number: W6M20709-8524-C-1 FCC ID: U6ANR620M ETS Product Service (Taiwan) Co., Ltd. Appendix page 13 of 73 Registration number: W6M20709-8524-C-1 FCC ID: U6ANR620M ETS Product Service (Taiwan) Co., Ltd. Appendix page 14 of 73 Registration number: W6M20709-8524-C-1 FCC ID: U6ANR620M ETS Product Service (Taiwan) Co., Ltd. Appendix page 15 of 73 11B_Ch6 Antenna Polarization H Registration number: W6M20709-8524-C-1 FCC ID: U6ANR620M ETS Product Service (Taiwan) Co., Ltd. Appendix page 16 of 73 Registration number: W6M20709-8524-C-1 FCC ID: U6ANR620M ETS Product Service (Taiwan) Co., Ltd. Appendix page 17 of 73 Registration number: W6M20709-8524-C-1 FCC ID: U6ANR620M ETS Product Service (Taiwan) Co., Ltd. Appendix page 18 of 73 Registration number: W6M20709-8524-C-1 FCC ID: U6ANR620M ETS Product Service (Taiwan) Co., Ltd. Appendix page 19 of 73 Antenna Polarization V Registration number: W6M20709-8524-C-1 FCC ID: U6ANR620M ETS Product Service (Taiwan) Co., Ltd. Appendix page 20 of 73 Registration number: W6M20709-8524-C-1 FCC ID: U6ANR620M ETS Product Service (Taiwan) Co., Ltd. Appendix page 21 of 73 Registration number: W6M20709-8524-C-1 FCC ID: U6ANR620M ETS Product Service (Taiwan) Co., Ltd. Appendix page 22 of 73 Registration number: W6M20709-8524-C-1 FCC ID: U6ANR620M ETS Product Service (Taiwan) Co., Ltd. Appendix page 23 of 73 11B_Ch11 Antenna Polarization H Registration number: W6M20709-8524-C-1 FCC ID: U6ANR620M ETS Product Service (Taiwan) Co., Ltd. Appendix page 24 of 73 Registration number: W6M20709-8524-C-1 FCC ID: U6ANR620M ETS Product Service (Taiwan) Co., Ltd. Appendix page 25 of 73 Registration number: W6M20709-8524-C-1 FCC ID: U6ANR620M ETS Product Service (Taiwan) Co., Ltd. Appendix page 26 of …

Text truncated - open the document above for the full version.

Registration number: W6M20709-8524 FCC ID: U6ANR620M ETS Product Service (Taiwan) Co., Ltd. Appendix Page 12 of 14 Set Up Photo of Radiated Emission Registration number: W6M20709-8524 FCC ID: U6ANR620M ETS Product Service (Taiwan) Co., Ltd. Appendix Page 13 of 14 Registration number: W6M20709-8524 FCC ID: U6ANR620M ETS Product Service (Taiwan) Co., Ltd. Appendix Page 14 of 14 Set Up Photo of Conducted Emission
