U6APR136G85M HomePlug Wireless Ethernet Broadband Router

1 Quick Setup Guide V1.0 PR136g Power Line Router User Guide 2 Quick Setup Guide V1.0 Table of Contents TABLE OF CONTENTS........................................................................................................................... 2 FCC CAUTION........................................................................................................................................... 3 CHAPTER 1 INTRODUCTION............................................................................................................ 4 1.1 THE MAIN INSTRUCTION OF PR136G................................................................................ 4 1.2 MAIN FEATURES........................................................................................................................ 4 1.3 THE INTRODUCTION OF FUNCTION OF THREE MODES QUICK SETUP............................ 5 1.3.1 The introduction of Quick Setup of Router mode................................... 5 BASIC SETUP.............................................................................................................................. 5 SERVER SETUP........................................................................................................................... 5 1.3.2 The introduction of Quick Setup of AP mode............................................ 6 BASIC SETUP.............................................................................................................................. 6 APPLICATION SETUP................................................................................................................ 6 1.3.3 The introduction of Quick Setup of Client mode..................................... 7 BASIC SETUP.............................................................................................................................. 7 APPLICATION SETUP................................................................................................................ 7 1.3.4 The main introduction of PC Utility................................................................ 7 1.4 HARDWARE SPECIFICATION................................................................................................... 8 1.4.1 Hardware Features.................................................................................................. 8 1.4.2 Hardware Block Diagram...................................................................................... 9 1.4.3 LED Feature SPEC................................................................................................... 10 1.5 SOFTWARE SPECIFICATION...................................................................................................11 1.5.1 Router Mode................................................................................................................11 1.5.2 AP Mode........................................................................................................................ 12 1.5.3 Wi-Fi ISP Mode......................................................................................................... 13 1.6 NECESSARY APPROVALS........................................................................................................ 14 1.7 APPENDIX................................................................................................................................. 15 1.7.1 MFP.................................................................................................................................. 15 1.7.2 Web Camera............................................................................................................... 16 1.7.3 USB HDD....................................................................................................................... 19 1.8 OPERATION SYSTEM............................................................................................................... 20 1.9 BROWSER.................................................................................................................................. 20 1.10 UTILITY................................................................................................................................20 CHAPTER 2 TECHNOLOGY OVERVIEW..................................................................................... 21 2.1 INTRODUCTION OF INT5500 CHIP SET (HOME PLUG1.0 WITH TURBO).............. 21 CHAPTER 3 THE MAIN FRAME OF FAMILY APPLICATIONS......................................... 23 3.1 FAMILY APPLICATIONS.......................................................................................................... 23 3.2 TARGET APPLICATIONS......................................................................................................... 24 3 Quick Setup Guide V1.0 Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: . Reorient or relocate the receiving antenna. . Increase the separation between the equipment and receiver. . Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. . Consult the dealer or an experienced radio/TV technician for help. FCC Caution: To assure continued compliance, any changes or modifications not express…

Text truncated - open the document above for the full version.

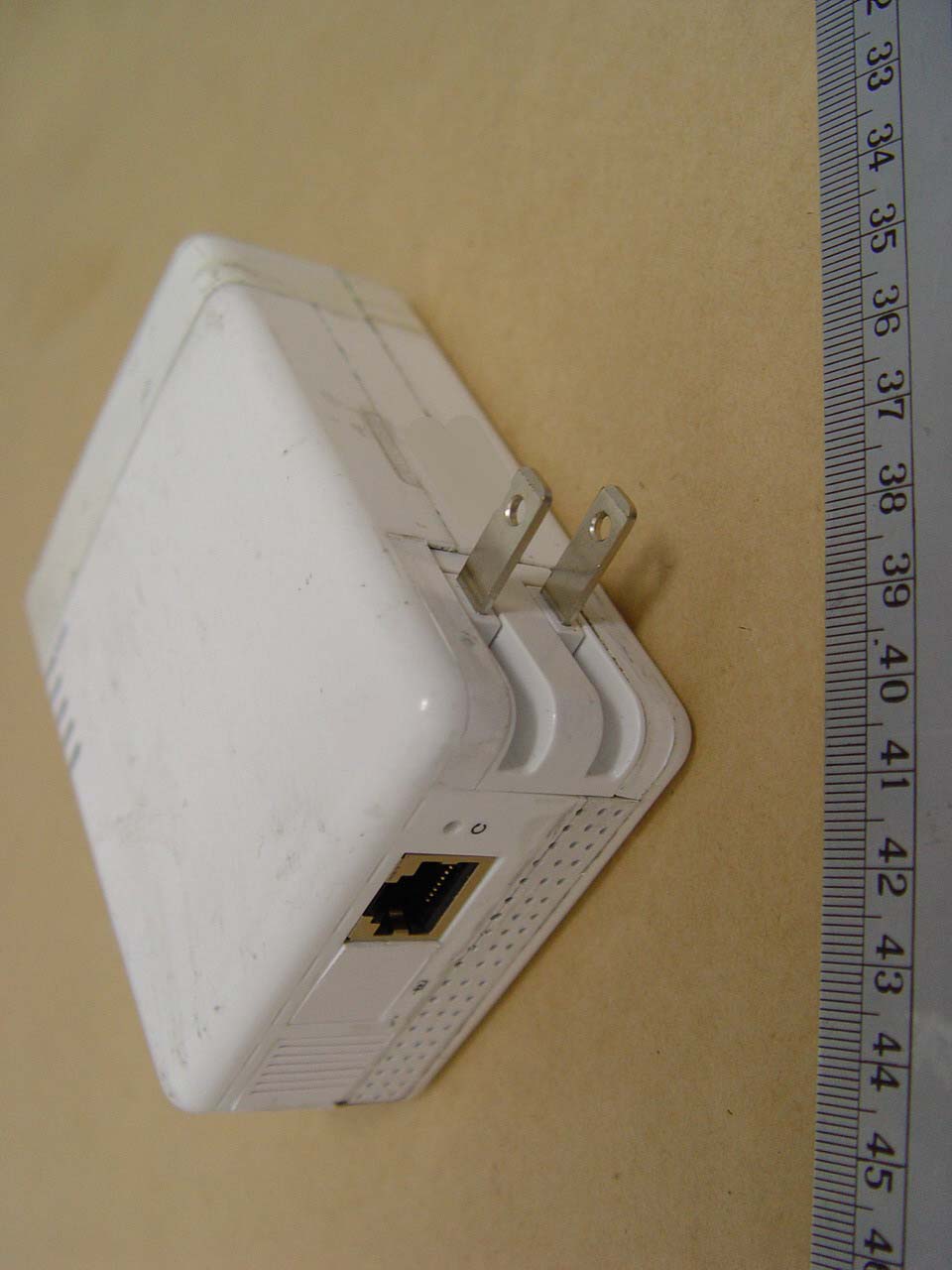

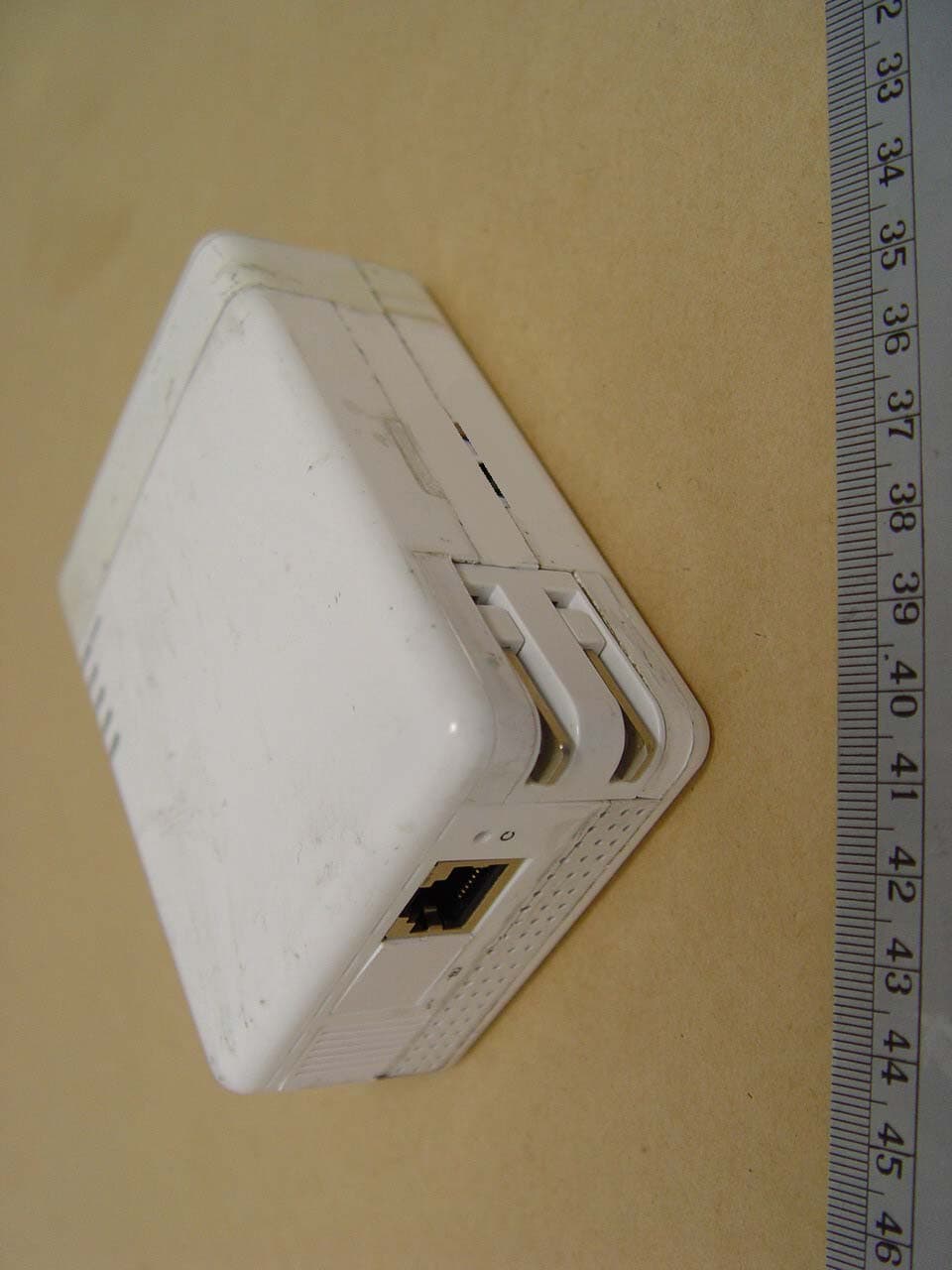

Registration number: W6M20709-8526 ETS Product Service (Taiwan) Co., Ltd. Appendix Page 2 of 16 Pictures External Photos Registration number: W6M20709-8526 ETS Product Service (Taiwan) Co., Ltd. Appendix Page 3 of 16 Registration number: W6M20709-8526 ETS Product Service (Taiwan) Co., Ltd. Appendix Page 4 of 16

3 cm 2 cm

Registration number: W6M20709-8526 ETS Product Service (Taiwan) Co., Ltd. Appendix Page 5 of 16 Internal Photos Registration number: W6M20709-8526 ETS Product Service (Taiwan) Co., Ltd. Appendix Page 6 of 16 Registration number: W6M20709-8526 ETS Product Service (Taiwan) Co., Ltd. Appendix Page 7 of 16 Registration number: W6M20709-8526 ETS Product Service (Taiwan) Co., Ltd. Appendix Page 8 of 16 Registration number: W6M20709-8526 ETS Product Service (Taiwan) Co., Ltd. Appendix Page 9 of 16 Registration number: W6M20709-8526 ETS Product Service (Taiwan) Co., Ltd. Appendix Page 10 of 16 Registration number: W6M20709-8526 ETS Product Service (Taiwan) Co., Ltd. Appendix Page 11 of 16 Registration number: W6M20709-8526 ETS Product Service (Taiwan) Co., Ltd. Appendix Page 12 of 16 Registration number: W6M20709-8526 ETS Product Service (Taiwan) Co., Ltd. Appendix Page 13 of 16 Registration number: W6M20709-8526 ETS Product Service (Taiwan) Co., Ltd. Appendix Page 14 of 16

MPE Prediction FCC Rule: 15.247(b)(5) Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission’s guidelines. See §1.1307(b)(1) of this Chapter. LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm2) Average time (minutes) (A)Limits For Occupational / Control Exposures 30-300 61.4 0.613 1.0 6 300-1500 ... ... F/300 6 1500-100,000 ... ... 5 6 (B)Limits For General Population / Uncontrolled Exposure 30-300 27.5 0.073 0.2 30 300-1500 ... ... F/1500 30 1500-100,000 ... ... 1.0 30 F = Frequency in MHz Prediction of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 PG S = -------------- 4πR² where: S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna Maximum peak output power at antenna input terminal: 21.95 (dBm) Maximum peak output power at antenna input terminal: 156.67511 (mW) Antenna gain(maximal): 2 (dBi) Prediction distance: 20 (cm) Prediction frequency: 2462 (MHz) MPE limit for uncontrolled exposure at prediction frequency: 1.0 (mW/cm²) Power density at prediction frequency: 0.0499 (mW/cm²) The manual instruct the user to install and operate the device in a minimum distance of 20 cm between antenna and the user’s body.

of Applicant: E-Top Network Technology Inc. Address: No.82, Gongye 2nd Rd., Tainan City 70095, Taiwan, R.O.C. Tested and Prepared by ETS Product Service (Taiwan) Co., Ltd. FCC Registration No.: 930600 Industry Canada filed test laboratory Reg. No. IC 5679 A2LA Accredited No.: 2300.01 PTCRB Accredited Type Certification Test House FCC ID: U6APR136G Report No.: W6M20709-8526-C-1 6F, NO. 58, LANE 188, RUEY-KUANG RD., NEIHU TAIPEI 114, TAIWAN, R.O.C. TEL: 886-2-66068877 FAX: 886-2-66068879 E-mail: [email protected] FCC TEST REPORT for 85M HomePlug Wireless Ethernet Broadband Router Model No.: PR136g Registration number: W6M20709-8526-C-1 FCC ID: U6APR136G ETS Product Service (Taiwan) Co., Ltd. Page 1 of 27 TABLE OF CONTENTS 1 GENERAL INFORMATION ................................................................................................... 2 1.1 NOTES................................................................................................................................... 2 1.2 T ESTING LABORATORY......................................................................................................... 3 1.2.1 Location .......................................................................................................................3 1.2.2 Details of accreditation status ..................................................................................... 3 1.3 DETAILS OF APPROVAL HOLDER............................................................................................ 3 1.4 APPLICATION DETAILS.......................................................................................................... 4 1.5 GENERAL INFORMATION OF TEST ITEM................................................................................. 4 1.6 T EST STANDARDS.................................................................................................................. 5 2 TECHNICAL TEST ..................................................................................................................6 2.1 SUMMARY OF TEST RESULTS................................................................................................. 6 2.2 TEST ENVIRONMENT.............................................................................................................. 6 2.3 TEST EQUIPMENT LIST.......................................................................................................... 7 2.4 GENERAL TEST PROCEDURE................................................................................................. 9 3 TEST RESULTS (ENCLOSURE).......................................................................................... 11 3.1 P EAK OUTPUT POWER (TRANSMITTER) ............................................................................... 12 3.2 EQUIVALENT ISOTROPIC RADIATED POWER......................................................................... 13 3.3 RF EXPOSURE COMPLIANCE REQUIREMENTS..................................................................... 13 3.4 TRANSMITTER RADIATED EMISSIONS IN RESTRICTED BANDS............................................. 14 3.5 S PURIOUS EMISSIONS (TX) .................................................................................................. 15 3.6 RADIATED EMISSION ON THE BAND EDGE........................................................................... 21 3.7 MINIMUM 6 dB BANDWIDTH............................................................................................... 22 3.8 P EAK POWER SPECTRAL DENSITY....................................................................................... 23 3.9 R ADIATED EMISSION FROM DIGITAL PART. ........................................................................ 24 3.10 P OWER LINE CONDUCTED EMISSION.................................................................................. 25 A PPENDIX....................................................................................................................................... 27 Registration number: W6M20709-8526-C-1 FCC ID: U6APR136G ETS Product Service (Taiwan) Co., Ltd. Page 2 of 27 1 General Information 1.1 Notes The purpose of conformity testing is to increase the probability of adherence to the essential requirements or conformity specifications, as appropriate. The complexity of the technical specifications, however, means that full and thorough testing is impractical for both technical and economic reasons. Furthermore, there is no guarantee that a test sample which has Passed all the relevant tests conforms to a specification. Neither is there any guarantee that such a test sample will interwork with other genuinely open systems. The existence of the tests nevertheless provides the confidence that the test sample possesses the qualities as maintained and that is performance generally conforms to representative cases of communications equipment. The test results of this test report relate exclusively to the item tested as specified in 1.5. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of the ETS Product Service (Taiwan) Co., Ltd. Specific Conditions: Usage of the hereunder tested device in combination with other integrated or external antennas requires at least additional output power measurements, spurious emission measurements, conducted emission measurements (AC supply lines) and radio frequency exposure evaluations for each individual configuration performed, for certification by FCC. The test sample is able to work according IEEE 802.11 b/g. This report is related to FCC Part 15 C (DSSS and OFDM device). Tester: October 17, 2007 Jay Chaing Date ETS-Lab. Name Signature Technical responsibility for area of testing: October 17, 2007 Steven Chuang Date ETS Name Signature Registration number: W6M20709-8526-C-1 FCC ID: U6APR136G ETS Product Service (Taiwan) Co., Ltd. Page 3 of 27 1.2 Testing laboratory 1.2.1 Location OA…
