U724901DRYVIEW CHROMA Imaging System incorporating RFID

DRYVIEW CHROMA Imaging System Safety Manual H210_0843AC SHORT TERM CONFIDENTIAL Pub No. 9G4259_en Rev. C Carestream Health, Inc. 150 Verona Street Rochester, New York 14608 United States © Carestream Health, Inc., 2012 Printed in China. CARESTREAM, CHROMA, and DRYVIEW are trademarks of Carestream Health, Inc. SHORT TERM CONFIDENTIAL i Table of Contents Safety, Warnings, and Cautions - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 1 Safety Labels - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 4 Safety and Health Compliance - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 7 Safety - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 7 EMC - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 7 EU Directives - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 14 CE Marking - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 14 Please Note - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 15 Imager Specifications - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 15 Publication History - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 15 SHORT TERM CONFIDENTIAL SHORT TERM CONFIDENTIAL 2012-02-249G4259_en1 Safety and Related Information Safety, Warnings, and Cautions Please read and understand all instructions before using the DRYVIEW CHROMA Imaging System. RISK OF ELECTRIC SHOCK: This equipment is operated with hazardous voltage which can shock, burn, or cause death. •Remove wall plug before servicing equipment. Never pull on cord to remove from outlet. Grasp plug and pull to disconnect. Do not attempt to service or repair the imager yourself to avoid exposure to dangerous voltage or other danger. Always call a qualified service provider for any service or repair. •Do not operate equipment with a damaged power cord. •Do not use an extension cord to power this equipment. •Do not operate equipment with any of the safety interlocks overridden. •Position the power cord so it will not be tripped over or pulled. •Connect this equipment to a grounded wall outlet. •One power cord set is provided with this equipment. You must use an Agency-approved power cord with a plug type suitable for the country of use. DANGER:This equipment contains moving parts that may be accessible to the user. Loose clothing, jewelry, or long hair may cause personal injury or damage to the equipment. •Do not operate equipment with the covers open. DANGER:This equipment is not contained in a sealed cabinet. Do not use this equipment in locations where it can come in contact with liquids, including body fluids. SHORT TERM CONFIDENTIAL 29G4259_en2012-02-24 Safety and Related Information CAUTION: Double pole/neutral fusing. CAUTION: Do not use a cell phone within 2 m of this device. This proximity includes any imager behind a wall adjacent to your location. CAUTION: Do not use a microwave oven within 4 m of this device. Electromagnetic radiation from a microwave oven is only an issue if after the oven door is closed and latched, the seal does not maintain an electromagnetic tight fit between the oven door and oven main housing. Determining if the seal has an electromagnetic tight fit requires special detection equipment. CAUTION: Do not use in the presence of flammable anesthetics, oxygen, or nitrous oxide. This equipment does not have a gas-sealed electronics enclosure and could ignite any flammable or explosive gases present in its environment. CAUTION: This equipment uses a DICOM network port, and is intended to connect to other medical devices. It is not intended to be connected directly outside the building. Only qualified personnel may perform installation and service. CAUTION: This device is NOT to be located within the patient environment. Therefore, the equipment must not be located closer than 1.83 m from a patient bed or chair. CAUTION: This device can affect implantable pacemaker or implantable cardioverter defibrillators at distances of less than 30.48 cm (1.00 ft). 1.83 m SHORT TERM CONFIDENTIAL Safety and Related Information 2012-02-249G4259_en3 CAUTION: This device should not be used in close contact with MRI devices, due to possible very high magnetic fields near an MRI unit. The magnetic field in the area where this equipment is installed must be less than 50 G. CAUTION: Do not substitute or modify any part of this equipment without prior written approval of Carestream Health, Inc. CAUTION: Federal law prohibits dispensing without a prescription. CAUTION: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the User Guide and other User Documentation, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense. CAUTION: Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. CAUTION: Do not use isopropyl alcohol to clean the exterior surfaces of the device. C…

Text truncated - open the document above for the full version.

DRYVIEW CHROMA Imaging System User’s Guide For Trade Trial Use Only H210_0843AC SHORT TERM CONFIDENTIAL Carestream Health, Inc. 150 Verona Street Rochester, New York 14608 United States © Carestream Health, Inc., 2012 Printed in China. CARESTREAM, CHROMA, and DRYVIEW are trademarks of Carestream Health, Inc. Pub No. 9G4260_en Rev. C SHORT TERM CONFIDENTIAL i Table of Contents Overview DRYVIEW CHROMA Imager at your Site............................................................................................................ 1-1 Intended Use .................................................................................................................................................... 1-1 Imager Features ............................................................................................................................................... 1-2 CHROMA Media ......................................................................................................................................... 1-2 Network Interfaces ..................................................................................................................................... 1-2 Power Management Features...................................................................................................................... 1-3 Configuring and Monitoring the System (using the Web Portal) ................................................................. 1-3 Enhancing Serviceability with Remote Monitoring ...................................................................................... 1-3 How the Imaging System Works ....................................................................................................................... 1-4 System Components ......................................................................................................................................... 1-4 DICOM Interface ........................................................................................................................................ 1-4 Imager ....................................................................................................................................................... 1-5 Back View .................................................................................................................................................. 1-7 Control Panel ............................................................................................................................................. 1-8 Display Screen ......................................................................................................................................... 1-10 Using the Web Portal to Access Additional Functionality ................................................................................. 1-12 Accessing the Web Portal ......................................................................................................................... 1-12 Agency Compliance ........................................................................................................................................ 1-13 Reference Information ................................................................................................................................... 1-13 User Guide Conventions ................................................................................................................................. 1-13 Working with the Media and Ink Handling the CHROMA Media (Film or Paper) ................................................................................................. 2-1 Working with the Loaded Media ................................................................................................................. 2-2 Understanding How Media is Selected for Print Requests ................. ................................................................ 2-3 Loading the Media Cassette (Cut Sheets) .......................................................................................................... 2-4 Loading the Roll Paper ..................................................................................................................................... 2-9 Placing the Roll Paper on the Spindle......................................................................................................... 2-9 Loading the Roll Paper into the Imager ...................................................................................................... 2-9 Readying the Imager to Print to Roll Paper............................................................................................... 2-10 Cutting the Roll Paper .............................................................................................................................. 2-11 Changing the Media in the Imager .................................................................................................................. 2-12 Handling a Print Request with a Different Requested Media ..................................................................... 2-12 Handling a Media Change when the New Print Request is Urgent.............................................................. 2-13 SHORT TERM CONFIDENTIAL ii Replacing the Cut Sheet Media ................................................................................................................. 2-14 Replacing the Roll Paper.......................................................................................................................... 2-16 Working with Ink ........................................................................................................................................... 2-19 Extending the Life of Ink Cartridges During Periods of Inactivity or Low Use............................................ 2-19 Checking Ink Levels .......................................................................................................…

Text truncated - open the document above for the full version.

TÜV SÜD America Inc. Phone: (651) 638-0297 19333 Wild Mountain Road Fax: (651) 638-0298 Taylor Falls, MN 55084 E-mail: [email protected] www.TUVamerica.com Management Service • Product Service • Industry Service TÜV SÜD AMERICA INC 19333 WILD MOUNTAIN ROAD TAYLORS FALLS, MINNESOTA 55084-1786 ENGINEERING STATEMENT For Certification of CARESTREAM HEALTH INC DRYVIEW CHROMA Imaging System Model No: DRYVIEW CHROMA Imaging System FCC ID: U724901 FRN: 0016195265 IC: 7027-4900 I am an Electromagnetic Compatibility Engineer for TÜV SÜD AMERICA INC, Taylors Falls, Minnesota. My education and experience are a matter of record with the Federal Communications Commission. TÜV SÜD AMERICA INC has been authorized by Ronald Cain, of CARESTREAM HEALTH INC, to make Certification measurements of the above mentioned equipment. I attest that all testing done under my supervision was done in accordance with, and that the EUT fulfills the requirements of, the Federal Communications Commission's CFR 47 Part 15.207, 15.209 and Industry Canada's RSS-210 Issue 8. Joel T. Schneider Senior Engineer Minnesota Wild River Lab TÜV SÜD America Product Service Tel: 651 604 4582 Fax: 651 638 0298 [email protected] Dated: 15 February 2012

a Date 10/02/1012 BABTFCB ForsythHouse, ChurchfieldRoad, Walton-on-Thames, Surrey, KT122TD Dear Sir or Madam, We, CarestreamHealthInc. 150 VeronaSt, Rochester,NY 14608,hereby authorizeTUV-SUDAmericaInc., 19333Wild MountainRoad,TaylorsFalls,MN USA 55084-1786,to act as our agentin all mattersrelatingto applicationsfor equipmentauthorization,includingthe signingof all documentsrelatingto these matters. This authorizationexpireson December31, 2012. Sincerely, CompanyOfficer: TelephoneNumber: Email: RonaldCain 585.627.8321 [email protected]

Date 15/02/2012 BABTTCB ForsythHouse, ChurchfieldRoad, Walton-on-Thames, Surrey, KT122TD ConfidentialityRequest FCC 10: U72 Pursuantto Sections0.457(d)(1)(ii) and 0.459of the Commission'sRules,CarestreamHealthInc. herebyrequestspermanentconfidentialtreatmentof informationaccompanyingthis applicationas outlinedbelow: Schematics Bill of Materials/PartsList Block Diagrams RF-Tag Theoryof Operation CarestreamHealthInc. also herebyrequestsshort-termconfidentialtreatmentof information accompanyingthis applicationas outlinedbelowfor a periodof 180 days: InternalPhotos ExternalPhotos User Manual Test Set-upPhotographs The abovematerialscontaintrade secretsand proprietaryinformationnot customarilyreleasedto the public.The publicdisclosureof thesemattersmight be harmfulto the Applicantand provide unjustifiedbenefitsto its competitors. The Applicantunderstandsthat pursuantto Rule 0.457(d)(1)(ii), disclosureof this Applicationand all accompanyingmaterialswill not be madebeforethe date of the Grant for this Application. Yourssincerely, CompanyOfficer: TelephoneNumber: Email: RonaldCain 585.627.8321 [email protected]

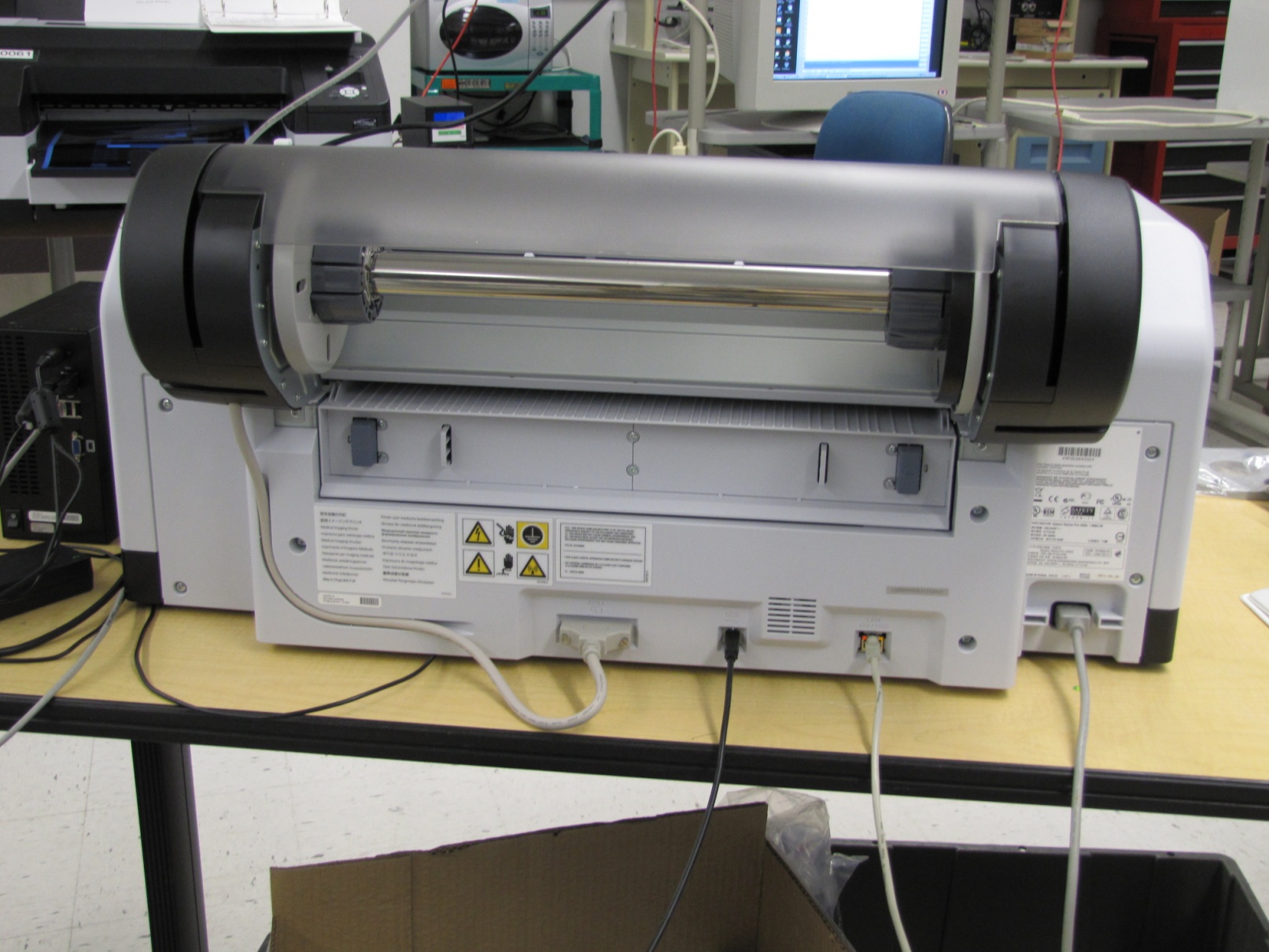

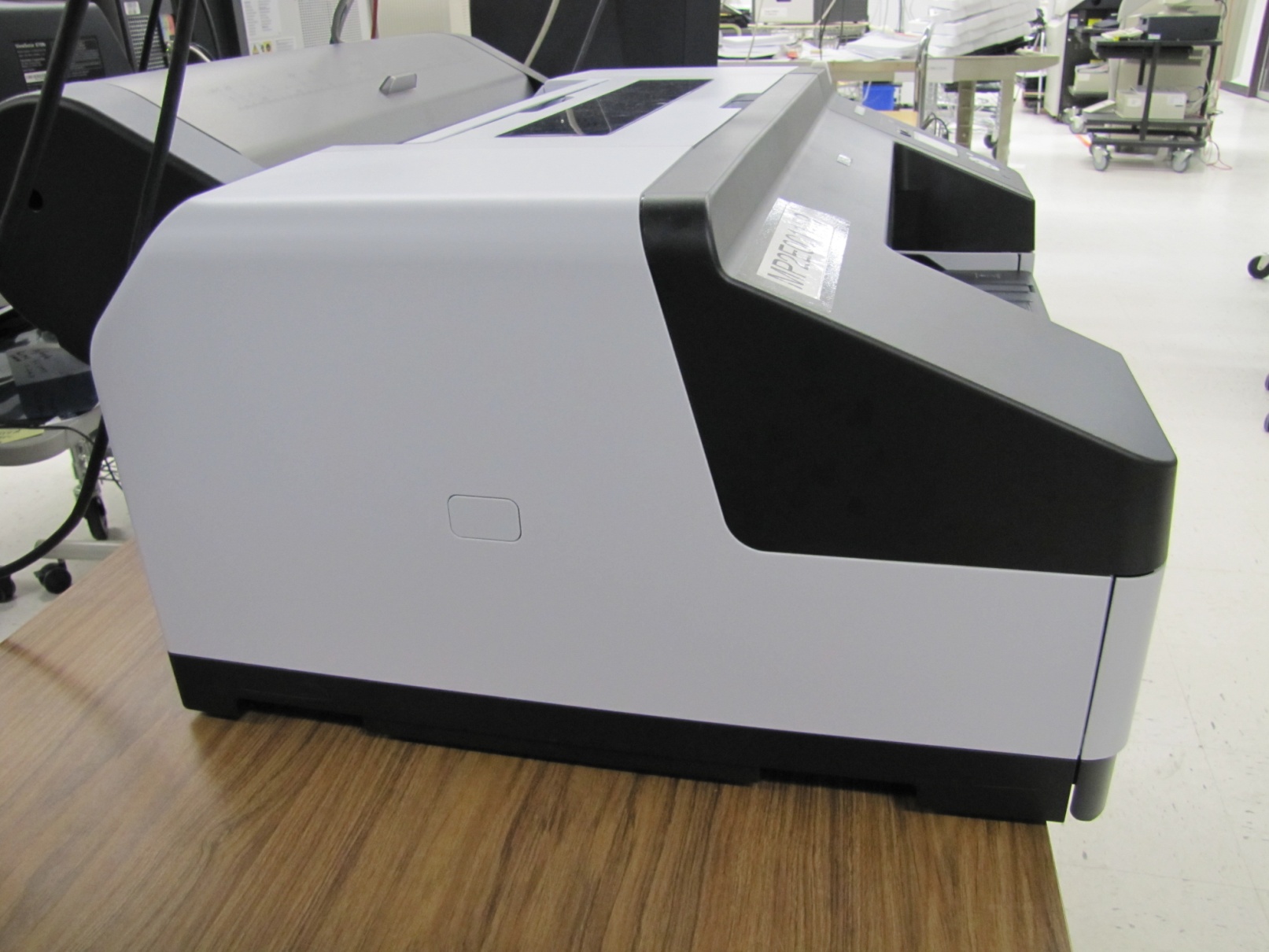

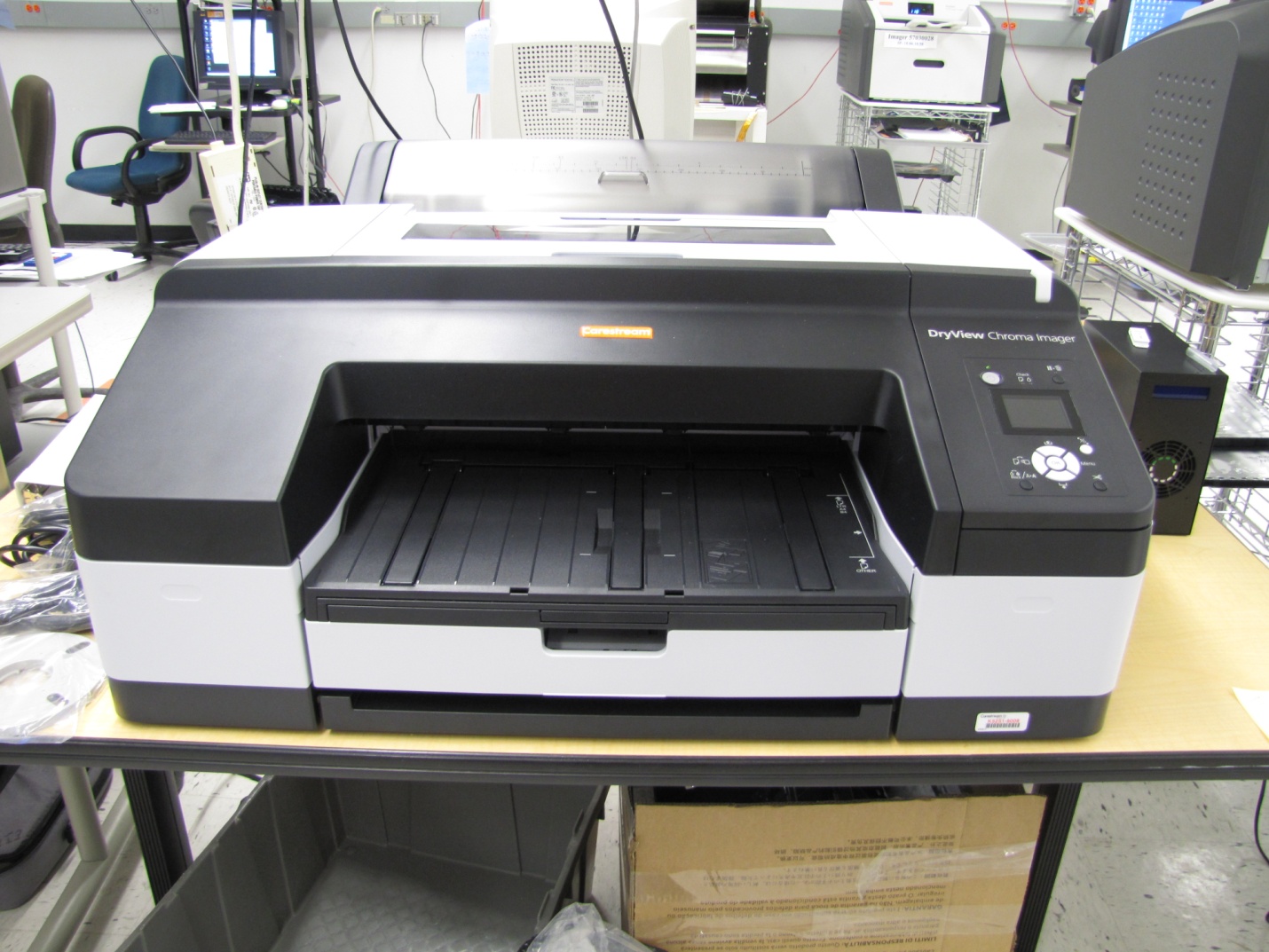

Front View SHORT TERM CONFIDENTIAL Top View SHORT TERM CONFIDENTIAL Top, Front, Left Side View SHORT TERM CONFIDENTIAL Top, Front, Right Side View SHORT TERM CONFIDENTIAL Rear View SHORT TERM CONFIDENTIAL Bottom View SHORT TERM CONFIDENTIAL

1 0.5 0.26 CHROMA MICHAEL MAROU 2011-02-24 2011-02-24 AA0386 A B C D 1234 D C B A 4321 MM (INCH) 25.4 MM = 1 INCH TOLERANCES EXCEPT AS NOTED MM 0 ± .0 ± .00 ± ANGLES ± MATERIAL FINISH INCHES .0 ± .00 ± .000± DATE DATE DRFT ENG INTERPRET PER ASME Y14.5M-1994 THIRD ANGLE PROJECTION TITLE MODEL FSCM NO. SIZE DRAWING NO. DO NOT SCALE DRAWING REV SHT 11 OF DRAWING NO. CARESTREAM HEALTH, INC. 0.5 SEE NOTES SEE NOTES AA0386 ERIC VRAA A LABEL- FCC STATEMENT DIELINE FOR AA0386 REV. A 100% SCALE MATERIALS: 1. MATERIAL: GENERAL ELECTRIC LEXAN 8010, 0.254mm HIGH GLOSS, POLYCARBONATE WITH 3M 468MP ADHESIVE OR 3M #9505 ADHESIVE. 2. LABEL TO BE MADE PER ELECTRONIC ARTWORK SUPPLIED BY CARESTREAM HEALTH INC. 3. OVERLAY MATERIAL MUST MEET THE REQUIREMENTS OF UL STANDARD 969 (MARKING AND LABELING SYSTEMS [PGDQ2]). 4. SUPPLIER ARTWORK TO BE APPROVED BY CUSTOMER PRIOR TO PRINTING. 5. INSPECTION REQUIREMENTS, IF SHOWN ON DRAWING: A. INDICATES PRIMARY INSPECTION DIMENSION. B. GEOMETRIC TOLERANCES ARE PRIMARY INSPECTION ATTRIBUTES. C. REFERENCE DIMENSIONS ARE ENCLOSED IN PARENTHESES ( ). DO NOT INSPECT REFERENCE DIMENSIONS. SUPPLIER REQUIREMENTS: 1. SUPPLIER MUST USE UL RECOGNIZED PRINTING PROCESS PER UL STANDARD 969 (MARKING AND LABELING SYSTEMS [PGDQ2]). 2. UL RECOGNIZED SUPPLIERS MUST INDICATE COMPLIANCE TO UL STANDARD 969 BY MARKING THE SMALLEST LOT SIZE WITH THE FOLLOWING: A. UL FILE NUMBER B. SUPPLIER’S NAME AND/OR TRADEMARK C. CARESTREAM HEALTH INC. PART NUMBER AND REVISION D. DATE OF PRODUCTION. PMS White PMS Black DIE LINE ECN000182 2012-02-10 MICHAEL MAROU A ARTWORK FOR AA0386 REV. A 200 % SCALE RELEASE TO PRODUCTION. THIS IS AN UNPUBLISHED WORK THAT IS CARESTREAM HEALTH, INCORPORATED. RESTRICTED INFORMATION. DISCLOSURE, USE OR REPRODUCTION WITHOUT THE WRITTEN AUTHORIZATION OF CARESTREAM HEALTH, INCORPORATED IS PROHIBITED. IF PUBLICATION OCCURS, THE FOLLOWING NOTICE APPLIES: COPYRIGHT (c) 2012, CARESTREAM HEALTH, INCORPORATED. ALL RIGHTS RESERVED. U724901 7027A-4900 French Can. AA0386.A 73 50.6 1.5 radius 4 places

FCC & IC ID Label Statements Label showing model number Label location

RF-Tag Circular Antenna - Components RF-Tag Circular Antenna – Front SHORT TERM CONFIDENTIAL RF-Tag Circular Antenna – Back RF-Tag Circular Antenna - cover SHORT TERM CONFIDENTIAL RF-Tag Round Antenna Cover under Paper Cover RF-Tag Round Antenna Cover SHORT TERM CONFIDENTIAL RF-Tag Dual Antenna Board - Component Side RF-Tag Dual Antenna Board - Rear Side SHORT TERM CONFIDENTIAL RF-Tag Dual Board inside Cover SHORT TERM CONFIDENTIAL RF-Tag Rectangular Board Enclosure SHORT TERM CONFIDENTIAL RF-Tag Dual Antenna Board Enclosure - Inside Imager – Side View SHORT TERM CONFIDENTIAL RF-Tag Dual Antenna Enclosure Inside Imager – Front View SHORT TERM CONFIDENTIAL SHORT TERM CONFIDENTIAL

TÜV SÜD AMERICA INC 19333 Wild Mountain Road Taylors Falls MN 55084 Tel: (651) 638-0297 Fax: (651) 638-0298 Rev. 113006 TEST REPORT FCC Part 15 Subpart C Section 15.207 FCC Part 15 Subpart C Section 15.209 IC RSS-210 Issue 8 IC RSS-Gen Issue 3 MANUFACTURER'S NAME Carestream Health Incorporated 150 Verona Street Rochester NY 14608 PRODUCT NAME DRYVIEW Chroma Laser Imaging System with Roll Feed RF-Tag MODEL NUMBER(S) TESTED Dryview Chroma Laser Imaging System SERIAL NUMBER(S) TESTED 10021 PRODUCT DESCRIPTION DRYVIEW CHROMA Imaging System TEST REPORT NUMBER WC1111229 TEST DATE(S) 11 January 2012 TÜV SÜD America Inc, as an independent testing laboratory, declares that the equipment tested as specified above conforms to the applicable EMC requirements of FCC Part 15 Subpart C Sections 15.207 “Conducted Limits” and 15.209 “Radiated emission limits; general requirements” and IC RSS-210 “Low-power Licence-exempt Radiocommunication Devices (All Frequency Bands): Category I Equipment” and IC RSS-Gen “General Requirements and Information for the Certification of Radiocommunication Equipment”. It is the manufacturer's responsibility to assure that additional production units of this model are manufactured with identical electrical and mechanical characteristics. Any modifications necessary for compliance made during testing on the above mentioned date(s) must be implemented in all production units for compliance to be maintained. Date: 07 February 2012 Location: Taylors Falls MN Greg Jakubowski Joel T Schneider USA Senior EMC Technician Senior EMC Engineer Not Transferable FCC ID: U724901 IC ID: 7027A-4900 TÜV SÜD AMERICA INC 19333 Wild Mountain Road Taylors Falls MN 55084 Tel: (651) 638-0297 Fax: (651) 638-0298 Rev. 113006 EMC TEST REPORT Test Report No. WC1111229 Date of issue: 07 February 2012 Product Name DRYVIEW Chroma Laser Imaging System with Roll Feed RF-Tag Model(s) Tested Dryview Chroma Laser Imaging System Serial No(s) Tested 10021 Product Description DRYVIEW CHROMA Imaging System Manufacturer Carestream Health Incorporated 150 Verona Street Rochester NY 14608 Test Result  Positive  Negative TÜV SÜD America Inc reports apply only to the specific samples tested under stated test conditions. It is the manufacturer's responsibility to assure that additional production units of this model are manufactured with identical electrical and mechanical components. TÜV SÜD America Inc shall have no liability for any deductions, inferences or generalizations drawn by the client or others from TÜV SÜD America Inc issued reports. This report is the confidential property of the client. As a mutual protection to our clients, the public and ourselves, extracts from the test report shall not be reproduced except in full without our written approval. This report shall not be used by the client to claim product endorsement by NVLAP, NIST, or any agency of the US government. TÜV SÜD America Inc and its professional staff hold government and professional organization certifications and are members of AAMI, ACIL, AEA, ANSI, IEEE, NARTE, and VCCI. Test Report WC1111229.11 of 30 FCC ID: U724901 IC ID: 7027A-4900 TÜV SÜD AMERICA INC 19333 Wild Mountain Road Taylors Falls MN 55084 Tel: (651) 638-0297 Fax: (651) 638-0298 Rev. 113006 REVISION RECORD REVISION TOTAL NUMBER OF PAGES DATE DESCRIPTION 07 February 2012 Initial Release Test Report WC1111229.12 of 30 FCC ID: U724901 IC ID: 7027A-4900 TÜV SÜD AMERICA INC 19333 Wild Mountain Road Taylors Falls MN 55084 Tel: (651) 638-0297 Fax: (651) 638-0298 Rev. 113006 D I R E C T O R Y Contents Revision Record 2 Directory 3 Test Regulations 4 Environmental Conditions 4 Power Supply 4 Test Equipment Traceability 4 Test Information General Field Strength Limits 0.009 – 30 MHz FCC 15.209(a), (c), IC RSS-210 2.5, RSS- GEN 7.2.5 5 Radiated Emissions 30 - 8000 MHz 15.209(c) & (f) , IC RSS-210 2.5 6 - 8 Occupied Bandwidth RSS-Gen 4.6.1 9 - 11 Conducted limits - AC Power Lines 15.207(a), IC RSS-Gen 7.2.4 12 - 13 Test area diagram 14 Test-setup Photos 15 - 18 Equipment Under Test Information 19 General Remarks, Deviations, Summary 20 Appendix A Constructional Data Form 21 - 27 Test Report WC1111229.13 of 30 FCC ID: U724901 IC ID: 7027A-4900 TÜV SÜD AMERICA INC 19333 Wild Mountain Road Taylors Falls MN 55084 Tel: (651) 638-0297 Fax: (651) 638-0298 Rev. 113006 EMC TEST REGULATIONS: The tests were performed according to the following regulations: FCC Part 15 Subpart C Section 15.207 Paragraph (a) FCC Part 15 Subpart C Section 15.209 Paragraphs (a), (c), (f) IC RSS-210 Issue 8 Section 2.5 IC RSS-Gen Issue 3 Sections 4.6.1, 7.2.5 ENVIRONMENTAL CONDITIONS IN THE LAB Actual Temperature: : 20°C Atmospheric pressure : 98kPa Relative Humidity : 24% POWER SUPPLY UTILIZED Power supply system : 110/230 V / 60/50 Hz TEST EQUIPMENT All measurement instrumentation is traceable to the National Institute of Standards and Technology and is calibrated according to internal procedure. MEASUREMENT UNCERTAINTY The test system for conducted emissions is defined as the LISN, tuned receiver or spectrum analyzer, and coaxial cable. The test system has a measurement uncertainty of ±1.8 dB. The test system for radiated emissions is defined as the antenna, the pre-amplifier, the spectrum analyzer and the coaxial cable. The test system has a measurement uncertainty of ±4.8 dB. All measurement instrumentation is traceable to the National Institute of Standards and Technology and is calibrated according to internal procedure. SIGN EXPLANATIONS  - not applicable  - applicable Test Report WC1111229.14 of 30 FCC ID: U724901 IC ID: 7027A-4900 TÜV SÜD AMERICA INC 19333 Wild Mountain Road Taylors Falls MN 55084 Tel: (651) 638-0297 Fax: (651) 638-0298 Rev. 113006 General field strength limits 0.009 – 30 MHz FCC 15.209(a), FCC 15.209(c), IC RSS-210 2.5, RSS-Gen 7.2.5 Test summary The requirements are:  - MET  - NOT MET Testing was performed in accordance with the test procedure of ANSI C63.4 2003, clause 8.2.2. Maximum…

Text truncated - open the document above for the full version.

TÜV SÜD AMERICA INC 19333 Wild Mountain Road Taylors Falls MN 55084 Tel: (651) 638-0297 Fax: (651) 638-0298 Rev. 113006 TEST SETUP FOR EMISSIONS TESTING WILD RIVER LAB Large Test Site Notes: 1. Items shown in dotted lines are located on the floor below the test area. It is 5 meters vertically from the ground floor to the test area. 2. 50 Hz, 60 Hz, and 400 Hz are power panels for alternating current. 3. The antenna may be positioned horizontally 3, 10 or 30 meters from the center of the turntable. 4. The circle is a 6.7 meter diameter turntable. 5. A ground plane is in the plane of this sheet. 6. The test sample is shown in the azimuthal position representing zero degrees. EUT 0 90270 180 60 Hz 50 Hz 400 Hz Shielded Enclosure ANTENNA Test Report WC1111229.114 of 30 SHORT TERM CONFIDENTIAL TÜV SÜD AMERICA INC 19333 Wild Mountain Road Taylors Falls MN 55084 Tel: (651) 638-0297 Fax: (651) 638-0298 Rev. 113006 Test-setup photo(s): General Field Strength Limits 0.009 – 30 MHz Test Report WC1111229.115 of 30 SHORT TERM CONFIDENTIAL TÜV SÜD AMERICA INC 19333 Wild Mountain Road Taylors Falls MN 55084 Tel: (651) 638-0297 Fax: (651) 638-0298 Rev. 113006 Test-setup photo(s): Radiated Emissions 30 - 1000 MHz Test Report WC1111229.116 of 30 SHORT TERM CONFIDENTIAL TÜV SÜD AMERICA INC 19333 Wild Mountain Road Taylors Falls MN 55084 Tel: (651) 638-0297 Fax: (651) 638-0298 Rev. 113006 Test-setup photo(s): Radiated Emissions 30 - 1000 MHz Test Report WC1111229.117 of 30 SHORT TERM CONFIDENTIAL TÜV SÜD AMERICA INC 19333 Wild Mountain Road Taylors Falls MN 55084 Tel: (651) 638-0297 Fax: (651) 638-0298 Rev. 113006 Test-setup photo(s): Conducted Emissions, AC lines, 150 kHz - 30 MHz Test Report WC1111229.118 of 30 SHORT TERM CONFIDENTIAL TÜV SÜD AMERICA INC 19333 Wild Mountain Road Taylors Falls MN 55084 Tel: (651) 638-0297 Fax: (651) 638-0298 Rev. 113006 Test-setup photo(s): Conducted Emissions, AC lines, 150 kHz - 30 MHz Test Report WC1111229.119 of 30 SHORT TERM CONFIDENTIAL
