U72DRXPSLWiFi transmitter

Carestream CarestreamHealthInc. 150 VeronaStreet Rochester,NY 14608 Date May 14, 2015 FederalCommunicationsCommission 7435 OaklandMills Road Columbia,MD 21046 Re: FCC ID: U72DRXPSL To WhomIt May Concern: CarestreamHealthInc. certifiesthat neitherthe applicantnor any party to this application,as definedin 47 CFR Ch. 1.2002(b),is subjectto a denialto Federalbenefits, that includeFCC benefits,pursuantto section5301 of the Anti-DrugAbuseAct of 1998, 21 U.S.C.835(a). This authorizationis valid until furtherwrittennoticefrom CarestreamHealthInc. (The letter of Agencyand letter of Attestationmay be combinedas one) Sincerely, ,10dle- I~C~ RonaldCain CarestreamHealthInc. 150 VeronaSt. Rochester,NY 14608

40MHz XTAL AR9462 Qualcomm ATHEROS CONFIDENTIAL -- PRELIMINARY PCIe EDGE FINGER CONNECTOR 3.3V SPDT 2G BT In/Out P (NC) SwitchingRegulator3.3V to 1.2V BT In/Out N (NC)TX2 Chain0/BT PTX2 Chain0/BT N Matching Matching RX2 Chain0/BT PRX2 Chain0/BT N Matching Matching RX5 Chain0 PRX5 Chain0 N Matching Matching TX5 Chain0 PTX5 Chain0 N Matching Matching RX2 Chain1 PRX2 Chain1 N Matching Matching RX5 Chain1 PRX5 Chain1 N Matching Matching TX2 Chain1 PTX2 Chain1 N Matching Matching TX5 Chain1 PTX5 Chain1 N Matching Matching SPDT 5G DIPLEXER DIPLEXER SP3T ANT0 ANT1 xLNA(Reserve) OptionalSwitchingRegulator3.3V to 1.2V OptionalWLANEEprom 3.3V 1.2V OptionalBTEEprom xLNA(Reserve) OptionalBTFlash SIZE DWG NO REV SHEET OF TITLE DATE QUALCOMM ATHEROS1700 TECHNOLOGY DRIVESAN JOSE, CA 95110 Block_Diagram 2 6 072 Friday, November 25, 2011 C WB222-245-02062-072 <Variant Name> SIZE DWG NO REV SHEET OF TITLE DATE QUALCOMM ATHEROS1700 TECHNOLOGY DRIVESAN JOSE, CA 95110 Block_Diagram 2 6 072 Friday, November 25, 2011 C WB222-245-02062-072 <Variant Name> SIZE DWG NO REV SHEET OF TITLE DATE QUALCOMM ATHEROS1700 TECHNOLOGY DRIVESAN JOSE, CA 95110 Block_Diagram 2 6 072 Friday, November 25, 2011 C WB222-245-02062-072 <Variant Name>

"'"'!'t<~' "', StandardForm Requestfor ConfidentialityLetter Date:5/14/2015 Subject:ConfidentialityRequestfor FCC ill: U72DRXPSL Pursuantto FCC 47 CRF 0.457(d)and 0.459 and IC RSP-lOO,Section10, the applicantrequeststhat a part of the subjectFCC/ICapplicationbe held confidential. Type of ConfidentialityRequested Exhibit D Short Term [8J PermanentBlockDiagrams , [8J Short TermInternalPhotos D Short Term [8J PermanentOperationDescription/Theoryof Operation D Short TermDPermanent Tune-UpProcedure D Short Term[8J PermanentSchematics [8J Short TermUser'sManual CarestreamHealth,Inc. has spent substantialeffort in developingthis productand it is one of the first of its kind in industry.Havingthe subjectinformationeasily availableto "competition"wouldnegatethe advantagethey have achievedby developingthis product.Not protectingthe detailsof the designwill result in financial hardship. PermanentConfidentiality: The applicantrequeststhe exhibitslisted aboveas permanentlyconfidentialbe permanentlywithheldfrom publicreviewdue to materialsthat containtrade secretsand proprietaryinformationnot customarilyreleasedto the public. Sincerely, By: QF094230 EMC and WirelessComplianceEng. Page1 of 1 RonaldCain (Print name) Revision0

To: Whom it may concern, The Carestream Certification for WiFi under the FCC ID: U72DRXPSL and IC: 7027A- DRXPSL has been originally certified under the FCC ID: FCC IDENTIFIER: PPD-AR5B22 Name of Grantee: Qualcomm Atheros, Inc. Equipment Class: Part 15 Class B Computing Device Peripheral Notes: PCIE 802.11a/b/g/n 2.4GHz/5GHz + USB BT 4.0 card Some Technical information was not provided for the Carestream certification, however the information can be found under its original certification. Randy Masline Senior EMC/Wireless Engineer TCB/FCB TUV Rheinland of North America Building 199 710 Resende Road Webster, NY 14580 Phone: 585-645-0125 x 1735 Email: [email protected]

Search|RSS |Updates |E-Filing |Initiatives |Consumers |Find People Office of Engineering and Technology FCC > FCC E-filing > Inquiry System Home Page > Inquiry Confirmation FCC Site Map Inquiry Tracking Number: 225100 Date of Original Submission: 07/31/2014 Date of Submission: 07/31/2014 Inquiry Details on 07/31/2014: Inquiry: Our Client Carestream Health Inc. has a certified transmitter under FCC ID: U72DRX1 and FCC ID: U72DRX1-4 They voluntarily performed SAR testing on their UNII band transmitter with an output power of 15.9 dBm and an antenna gain of 0 dBi. The worst case SAR measurement was 0.791 W/kg at 5300 MHz. The wish to change the transmitter to an 802.11 a,b,g,n and the antenna they have chosen have antenna gains of -5.5 dBi at 2.4 GHz and -0.8 at 5 GHz. The device in which they use this transmitter is an X-Ray detector, this detector is placed directly on the patient where the antenna could be within 20 cm of the body. Source Based time averaging: The operator initiates an X-ray image, the radio turns on for approx 5 seconds to transfer image to AP. The maximum amount of time between images would be 20 seconds and is normally 60 seconds depending on the repositioning of the plate. Typically a maximum of 3 exposures are taken per session. Therefore; a person would be subjected to a maximum of 15 seconds of transmission time over a period of 75 seconds at the most extreme rate, a normal rate would be 15 seconds over a period of 180 seconds. The questions are... Will this new transmitter require SAR testing? Is there a maximum power output of the transmitter where SAR testing would not be required? Please use the Submit Inquiry link at www.fcc.gov/labhelp to send any comments or suggestions for this site Page 1 of 2Inquiry Submission Confirmation 7/31/2014https://apps.fcc.gov/oetcf/kdb/forms/InquiryConfirmation.cfm Federal Communications Commission 445 12th Street, SW Washington, DC 20554 More FCC Contact Information... Phone: 888-CALL-FCC (225-5322) TTY: 888-TELL-FCC (835-5322) Fax: 202-418-0232 E-mail: [email protected] - Privacy Policy - Web Policies & Notices - Customer Service Standards - Freedom of Information Act Page 2 of 2Inquiry Submission Confirmation 7/31/2014https://apps.fcc.gov/oetcf/kdb/forms/InquiryConfirmation.cfm

GENERAL: This document is a summary of the Dual Band antenna. The document contains a short discussion on the antenna’s general characteristics and later discusses the different test results. INTRODUCTION: The Dual Band antenna (see figures 1a and 1b) is a hybrid of the 5 Ghz antenna (9G7286) and an Inverted F antenna for the 2.4 Ghz, combined through a diplexer into a single connector. Since the antenna is physically constrained, the antenna solution had to be quite innovative. The highlights of the design are: - The antenna outline is small, and the original 9G7286 antenna had to be optimized for smaller size. - The 2.4 Ghz antenna required an increase in the cavity depth right underneath it. That fact helped to improve the antenna’s bandwidth. That required a unique fabrication technique. - The diplexer had to be mounted on the bottom side of the antenna PCB. That required a unique transition of the antennas feed networks. ANTENNA ELECTRICAL PERFORMANCE: The antenna was evaluated when mounted on a test fixture shown in figure 2. The antenna was tested for two sets of measurements - Return Loss: Antenna’s return loss was performed when the antenna was measured on the test fixture shown in figure 2. The test equipment used was the HP720D Vector Network Analyzer. The test data is shown in Appendix I. - Radiation patterns: The antenna was tested at Allwave Corp. Near- Field facility. The test data is shown in Appendix II and Appendix III. The data in each frequency includes the following information: • Azimuth pattern (left) which was measured along the X- Z plane (Appendix II). • Elevation pattern (middle) which was measured Y-Z plane (Appendix II). • Elevation pattern (right) which was measured along the Y-X plane (Appendix II) • Radiation pattern in 3D with the same coordinates shown in Appendix III. The summary of the antenna’s electrical performance is shown in Table I. The antenna has broad coverage in both the X and Y plane with gains that are similar to previous Carestream Health antennas. ANTENNA MECHANICAL DESIGN: The antenna drawing with its physical details can be seen in Appendix IV. Table I- Electrical performance summary Frequency [Ghz] 2.4 2.44 2.48 5.15 5.25 5.35 5.5 5.725 5.825 Gain [dbi] -7.2 -5.5 -8.4 -1.2 -0.8 -1.8 -2.3 -3.3 -3.5 Polarization V V V V V S45 S45 S45 S45 3db beamwidth Elev 1 [deg.] 140 150 150 120 120 110 110 110 110 3db beamwidth Elev 2 [deg.] 120 120 150 60 60 150 180 180 180 Impedance [ohms] 50 VSWR 2.6:1 max Figure 1- Antenna configuration

WPEA-251N(BT) www.sparklan.com / [email protected] / +886-2-2659-1880 - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - ■ Reference Design: AR5B22 ■ Chipset: Atheros AR9462 ■ Interface: Half Mini Card (PCIe: WLAN; USB: Bluetooth) ■ Wireless connection up to 300Mbps ■ Antenna: 2 x U.FL connectors, 2T2R ■ Concurrent Wi-Fi (802.11n) and BT (4.0 LE/ 3.0 HS/ 2.1 EDR) antenna co-existence ■ Enhanced wireless security: 64/128-bits WEP, WPA, WPA2 ■ Driver Support: Windows XP/ Vista/Win 7, Linux, Android by request Superior Performance with Longer Range and Faster Speed SparkLAN wireless Half Mini Card, WPEA-251N(BT), is based on Atheros AR9462 chipset. It is compliant with 802.11a/b/g/n standard that supports 2x2 MIMO technology and runs up to 300Mbps data rates. Bluetooth Transmission WPEA-251N(BT) also integrates the Bluetooth transmission technology for voice and data transfers between devices in a short distance. WPEA-251N(BT) is designed properly for any wireless enabled devices with Half Mini Card slot. Secure Wireless Connection This Half Mini Card WPEA-251N(BT) with advanced security encryption, such as 64/128-bits WEP, WPA, and WPA2, helps prevent from malicious attacks. Feature Mechanical Dimension 802.11a/b/g/n Bluetooth Half Mini Card Superior Performance with Atheros AR9462 (AR5B22), 2T2R 2-Stream MIMO Solution Application ■ Industrial PC ■ Networking Equipment ■ Automation ■ Medical Device ■ POS (Point-of -Sale) System ■ Gaming Machine WPEA-251N(BT) www.sparklan.com / [email protected] / +886-2-2659-1880 Specifications Ordering Info - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - ■ WPEA-251N(BT) 802.11a/b/g/n Bluetooth Half Mini Card Standard 802.11a/b/g/n, Bluetooth 4.0 LE/ 3.0 HS/ 2.1 EDR standard Chipset Mac/BB /RF Atheros AR9462 Host Interface Half Mini Card (PCIe: WLAN; USB: Bluetooth) Radio Antenna 2 x U.FL connectors (2T/2R) Support WLAN / BT co-existence Operating Frequency Wi-Fi: b/g/n ISM Band: 2.414GHz ~ 2.4835GHz; a: 5.15GHz ~ 5.85GHz Bluetooth: 2402GHz ~ 2480GHz Modulation Wi-Fi: 802.11a/g/n: OFDM (BPSK, QPSK, 16-QAM, 64-QAM) 802.11b: DSSS (DBPSK, DQPSK, CCK) Bluetooth: Header: GFSK / Payload 2M: 4-DQPSK / Payload 3M: 8-DPSK Output Power Wi-Fi: 802.11a: 11dBm ± 2dBm@54Mbps, 802.11b: 17dBm ± 2dBm@11Mbps 802.11g: 15dBm ± 2dBm@54Mbps 802.11gn HT20: 14dBm ± 2dBm@MCS7 802.11gn HT40: 14dBm ± 2dBm@MCS7 802.11an HT20: 10dBm ± 2dBm@MCS7 802.11an HT40: 10dBm ± 2dBm@MCS7 Bluetooth: -6 ≦ Output Power Avg. ≦ +4dBm (Class 2 Device) Receive Sensitivity Wi-Fi: 802.11a: ≤ -73dBm@54Mbps 802.11b: ≤ -85dBm@11Mbps 802.11g: ≤ -74dBm@54Mbps 802.11gn HT20: ≤ -72dBm@MCS7 802.11gn HT40: ≤ -69dBm@MCS7 802.11an HT20: ≤ -69dBm@MCS7 802.11an HT40: ≤ -68dBm@MCS7 Bluetooth: BER < 0.1% at -70dBm Power consumption Continue TX Max 523mA Continue RX Max 202mA Idle 16mA Operating Voltage DC 3.3V ± 9% I/O supply voltage Environmental Temperature Range 0 ~ 75°C (Operating) -40 ~ 85°C (Storing) Humidity (Non-Condensing) 5 ~ 90% (Operating) 5 ~ 95% (Storing) Physical Specification Dimensions 30mm x 26.8mm (± 0.15mm) Weight 7g Software Driver Windows XP/Vista/Win 7, Linux, Android by request Security 64/128-bits WEP, WPA, WPA2 Related Product ■ WUBT-132GN(BT) 802.11b/g/n Bluetooth Combo USB Module

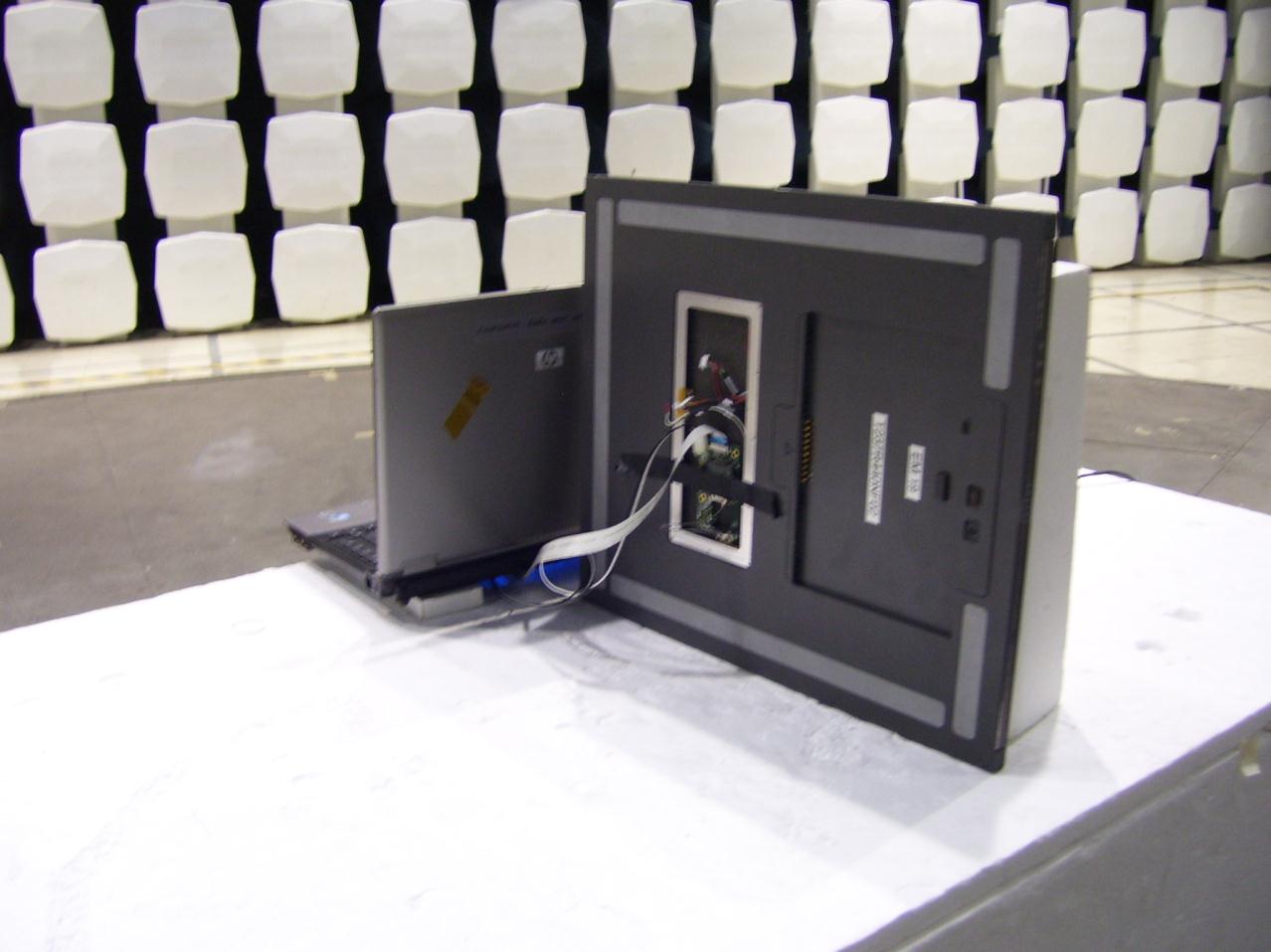

TUV Rheinland 710 Resende Road, Webster, NY 14580 FCC ID: U72DRXPSL Tel: (585) 426-0125 IC ID: 7027A-DRXPSL Report Number: 31462562.002 DRX Plus and 31550613.001 DRX Plus 15.407 Page 1 of 3 EUT: DRX Plus Detetor Radio Model: DRX Plus 33_EME/I 01/29/2001 External Photos EUT Name: DRX Plus Detetor Radio EUT Model: DRX Plus FCC ID: U72DRXPSL , IC ID: 7027A-DRXPSL FCC Title 47, Part 15, SubpartC, RSS-210 Issue 8 Prepared for: Ronald Cain Carstream Health Inc. 1049 W. Ridge Road Rochester, NY 14615 Tel: 585-627-8321 Fax: 585-627-8802 Prepared by: TUV Rheinland of North America 710 Resende Road Webster, NY 14580 Tel: (585) 645-0125 http://www.tuv.com/ Report/Issue Date: 15 May 2015 Report Number: 31462562.002 DRX Plus and 31550613.001 DRX Plus 15.407 TUV Rheinland 710 Resende Road, Webster, NY 14580 FCC ID: U72DRXPSL Tel: (585) 426-0125 IC ID: 7027A-DRXPSL Report Number: 31462562.002 DRX Plus and 31550613.001 DRX Plus 15.407 Page 2 of 3 EUT: DRX Plus Detetor Radio Model: DRX Plus 33_EME/I 01/29/2001 External Photos: Figure 1: External View with Radio cover off TUV Rheinland 710 Resende Road, Webster, NY 14580 FCC ID: U72DRXPSL Tel: (585) 426-0125 IC ID: 7027A-DRXPSL Report Number: 31462562.002 DRX Plus and 31550613.001 DRX Plus 15.407 Page 3 of 3 EUT: DRX Plus Detetor Radio Model: DRX Plus 33_EME/I 01/29/2001 Figure 2: External View – Back side- The two dual band Antennae are located behind a epoxied panel at two different locations.

802 N. Twin Oaks Valley Road, Suite 105 • San Marcos, CA 92069 • U.S.A. TEL (760) 471-2100 • FAX (760) 471-2121 http://www.rfexposurelab.com CERTIFICATE OF COMPLIANCE SAR EVALUATION Carestream Health Dates of Test: December 8-10, 2014 150 Verona St. Test Report Number: SAR.20141201 Rochester, NY 14608 This wireless mobile and/or portable device has been shown to be compliant for localized specific absorption rate (SAR) for uncontrolled environment/general exposure limits specified in ANSI/IEEE Std. C95.1-1992 and had been tested in accordance with the measurement procedures specified in IEEE 1528-2013 and IEC 62209-2:2010 (See test report). I attest to the accuracy of the data. All measurements were performed by myself or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. RF Exposure Lab, LLC certifies that no party to this application is subject to a denial of Federal benefits that includes FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). Jay M. Moulton Vice President Testing Cert. # 2387.01 FCC ID: U72DRXPSL IC Certificate: 7027A-DRXPSL Model(s): DRXPSL Contains WLAN Model(s): SparkLan Model WPEA-251N(BT) Test Sample: Engineering Unit Same as Production Serial Number: Eng 1 Equipment Type: Wireless Module Installed in X-Ray Panel Classification: Portable Transmitter Next to Body TX Frequency Range: 2412 – 2462 MHz; 5180 – 5320 MHz; 5500 – 5700 MHz; 5745 – 5825 MHz Frequency Tolerance: ± 2.5 ppm Maximum RF Output: 2450 MHz (b) – 17.50 dB, 2450 MHz (g) – 15.87 dB, 2450 MHz (n20) – 14.92 dB, 2450 MHz (n40) – 14.48 dB, 5250 MHz (a) – 11.00 dB, 5250 MHz (n20) – 10.98 dB, 5250 MHz (n40) – 10.94 dB, 5600 MHz (a) – 11.00 dB, 5600 MHz (n20) – 10.97 dB, 5600 MHz (n40) – 10.91 dB, 5800 MHz (a) – 11.00 dB, 5800 MHz (n20) – 10.97 dB, 5800 MHz (n40) – 10.48 dB Conducted Signal Modulation: DSSS, OFDM Antenna Type: PIFA Antenna Application Type: Certification FCC Rule Parts: Part 2, 15C, 15E KDB Test Methodology: KDB 447498 D01 v05r02, KDB 248227 v01r02, KDB 616217 D04 v01 Industry Canada: RSS-102, Safety Code 6 Maximum SAR Value: 0.14 W/kg Reported Max. Simultaneous SAR: 0.15 W/kg Reported Separation Distance: 0 mm © 2014 RF Exposure Lab, LLC This report shall not be reproduced except in full without the written approval of RF Exposure Lab, LLC. Report Number: SAR.20141201 Table of Contents 1. Introduction ........................................................................................................................ 3 SAR Definition [5] ................................................................................................................... 4 2. SAR Measurement Setup ................................................................................................... 5 Robotic System ...................................................................................................................... 5 System Hardware ................................................................................................................... 5 System Electronics ................................................................................................................. 6 Probe Measurement System .................................................................................................. 6 3. Probe and Dipole Calibration .............................................................................................14 4. Phantom & Simulating Tissue Specifications .....................................................................15 Head & Body Simulating Mixture Characterization ................................................................15 5. ANSI/IEEE C95.1 – 1992 RF Exposure Limits [2] ..............................................................16 Uncontrolled Environment .....................................................................................................16 Controlled Environment .........................................................................................................16 6. Measurement Uncertainty .................................................................................................17 7. System Validation..............................................................................................................18 Tissue Verification .................................................................................................................18 Test System Verification ........................................................................................................18 8. SAR Test Data Summary ..................................................................................................19 Procedures Used To Establish Test Signal ...........................................................................19 Device Test Condition ...........................................................................................................19 SAR Data Summary – 2450 MHz Body 802.11b & BT ..........................................................35 SAR Data Summary – 5250 MHz Body 802.11a ...................................................................36 SAR Data Summary – 5600 MHz Body 802.11a ...................................................................37 SAR Data Summary – 5800 MHz Body 802.11a ...................................................................38 SAR Data Summary – Simultaneous Evaluation ...................................................................39 9. Test Equipment List ...........................................................................................................40 10. Conclusion ....................................................................................................................41 11. References ............................................................…

Text truncated - open the document above for the full version.

Qualcomm ATHEROS CONFIDENTIAL -- PRELIMINARY HT 250-02062-010 DATE8/1/2010 WB222 REVISION NUMBER INITIALS DESCRIPTION Initial release; based on 8675_245-02010-010-sch.ds n AR9462 basedWLAN 2 x 2 802.11 a/b/g/n +BT Combo Reference DesignPCIe Half-Mini Form Factor HT 11/24/2010 250-02062-011 BOM Changes:1) R31=NL. R43=0ohm. (Rework6 - configure to use in ternal switcher). 2) C61=C66=8.2pF; C64=1.5pF;C62=C63=C67=C68=1.0pF;L 25=L27=2.7nH. (Rework10 - 2G TX Chain1 matching improvements) . 3) C17=C22=8.2pF; C20=0.5pF;C18=C19=2.2pF; C23=C24= 2.7pF;L4=2.7nH;L6=3.3nH. (Rework11 - 2G TX Chain0 matching improvements) . 4) L30=L28=10nH. (Rework12 - 5G TX Chain1 matching improvements) . 5) C27=0.4pF;C38=0.6pF. (Rework13 - Chain0 Diplexer improvements). 01/06/2011 HT 250-02062-012 BOM Changes:1) R19=2.7pF. (Rework14 - Chain0 Diplexer tuning).2) C52=C53=L19=NL;L18=4.7nH;C48=2.2pF;C49=2.7pF;L17 =2.0nH (Rework17 - Chain1 RX tuning).3) L12=4.7nH;C39=2.0pF. (Rework21 - Chain0 Diplexer tuning). 02/07/2011 250-02062-013 HT BOM Changes: 1) C17=C22=2.2pF. (Rework22 - Chain0 2G TX). 05/19/2011 250-02062-021 FM BOM Changes:1) C20=1.5pF, C17=C22=10pF, C23=C24=3pF, L4=3.3nH. (Chain0 2G TX). 2) C67=C68=2pF (Chain1 2G TX).3) C41=C45=C42=C46=0.3pF, L14=L15=2.1nH (Chain0 5G TX). 05/24/2011 250-02062-022 FM BOM Changes:1) C67=C68=1.8pF, C116=0ohm, L37=C119=1.8pF, R50=2. 7nH (Chain1 2G TX). 05/27/2011 250-02062-040 FM,TH 1) Add R56 and R57 for Jupiter 1.0 or Juipter 2.0 s election. 2) Add L42 and L43 for ESD protection.3) Add R55, C65 for isolation. Add R59/R60 (EEPROM SCL pull up Res backup). 4) Del C345) Chain#0 xLNA refer from Chain#1 and HB112/116. 06/21/2011 250-02062-041 TH 1) Manually add the C45, C 46, C133, C134 and cut U1 pin5, 8 to solve 2G Tx Chain#0 oscillation. Its matching also changed.1) Del C58. Change 2G Rx chain#0,1 structure.2) Add R61, R62 to bypass xLNA. TH 250-02062-050 06/24/201107/15/2011 250-02062-051.betaA TH 1) L20=22nH, L23=1.6 nH for better Rx performance. 2) C130=NL, L44=2nH, C119=1pF for Chain#1 2G Tx EVM . 08/04/2011 250-02062-052 RL 1. Page 5, Fix Chain1, 2.4G, TX EVM and 2-nd Harmo nic: L44=2.2nH, C130=1.0pF, C119=1.0pF,L27=1.8nH2. Page 6, Fix PCIe Interface: C104=C105=100nF3. Page 3, Fix BT bring up: R44=10K ohm 08/14/2011 250-02062-053 RL 1. Page 5, Fix 2.4G TX: L27=2.2nH 09/01/2011 250-02062-060 RL 1. Page 3, fix chain1 2.4G Tx: Remove C13,C149. Page 5, Fix chain1 2.4G Tx: Add L52=L53=10nH, M odify L27=2.7nH,C67=C68=1pF,L44=2.4nH,C130=C119=1. 5pF 2. Page 4, 5G Rx: Non-deposit LNA and relative com ponents 3. Page 4, 5G Rx without LNA: Modify L10=L11=1nH4. Page 4, Fix 5G Tx: Modify L14=L15=2.4nH,C41=C46 =0.5pF,C42=0.2pF 6. Page 5, Non-deposit LNA and relative components7. Page 5, 2.4G Rx without LNA: Modify L9=L47=3.0n H,C135=1pF, C53=1.5pF,L17=2.4nH,C51=1.2pF8. Page 5, 5G Rx without LNA: Modify L21=L23=1nH,C 59=0.3pF 10. Page 3, WOW function: Reserve R28 for WOW func tion 5. Page 4, Fix 2.4G Tx: Modify L4=L6=3nH, C18=C19= C23=C24=1.2pF 09/13/2011 250-02062-061 RL 1. Page 3, Modify R11=10K ohm, R13=0 ohm and R12=N A RL 250-02062-070 09/14/2011 4. Page 3, Reserve R50 for WOW function3. Page 3, Reserve one serial Flash2. Page 3, Reserve R71, R72 for case of without WL AN EEPROM 1. Page 3, Reserve R51, R53 for case of without BT EEPROM 1. Page 3, Remove: U2,U3,R37,R46; Put R51=R53=R71= R72=10K ohm for Non-EEPROM RL 250-02062-071 11/02/2011 3. Page 6, Remove: C65,C882. Page 5, Modify: L22=1.8nH,C135=1.3pF,C52=1.5pF, C51=1.8pF,L27=3.3nH 11/25/2011 250-02062-072 RL 1. Page 4: Modify C42=0.3pF to fix Tx mask2. Page 5: Modify C71=0.5pF to fix Tx mask SIZE SCALE CAGE Code DWG NO REV SHEET of RELEASE DATE CONTRACT NO.DRAWN BYENGINEERPROJECT ENGINEERQUALITY ASSURANCECONFIGURATIONDESIGN ACTIVITY APPROVALDESIGN APPROVAL DATE TITLE NONE QUALCOMM ATHEROS1700 TECHNOLOGY DRIVE SAN JOSE, CA 95110, USA Title_and_Rev 1 6 C 072 WB222-245-02062-072 <Cage Code> Friday, November 25, 2011 SIZE SCALE CAGE Code DWG NO REV SHEET of RELEASE DATE CONTRACT NO.DRAWN BYENGINEERPROJECT ENGINEERQUALITY ASSURANCECONFIGURATIONDESIGN ACTIVITY APPROVALDESIGN APPROVAL DATE TITLE NONE QUALCOMM ATHEROS1700 TECHNOLOGY DRIVE SAN JOSE, CA 95110, USA Title_and_Rev 1 6 C 072 WB222-245-02062-072 <Cage Code> Friday, November 25, 2011 SIZE SCALE CAGE Code DWG NO REV SHEET of RELEASE DATE CONTRACT NO.DRAWN BYENGINEERPROJECT ENGINEERQUALITY ASSURANCECONFIGURATIONDESIGN ACTIVITY APPROVALDESIGN APPROVAL DATE TITLE NONE QUALCOMM ATHEROS1700 TECHNOLOGY DRIVE SAN JOSE, CA 95110, USA Title_and_Rev 1 6 C 072 WB222-245-02062-072 <Cage Code> Friday, November 25, 2011 40MHz XTAL AR9462 Qualcomm ATHEROS CONFIDENTIAL -- PRELIMINARY PCIe EDGE FINGER CONNECTOR 3.3V SPDT 2G BT In/Out P (NC) SwitchingRegulator3.3V to 1.2V BT In/Out N (NC)TX2 Chain0/BT PTX2 Chain0/BT N Matching Matching RX2 Chain0/BT PRX2 Chain0/BT N Matching Matching RX5 Chain0 PRX5 Chain0 N Matching Matching TX5 Chain0 PTX5 Chain0 N Matching Matching RX2 Chain1 PRX2 Chain1 N Matching Matching RX5 Chain1 PRX5 Chain1 N Matching Matching TX2 Chain1 PTX2 Chain1 N Matching Matching TX5 Chain1 PTX5 Chain1 N Matching Matching SPDT 5G DIPLEXER DIPLEXER SP3T ANT0 ANT1 xLNA(Reserve) OptionalSwitchingRegulator3.3V to 1.2V OptionalWLANEEprom 3.3V 1.2V OptionalBTEEprom xLNA(Reserve) OptionalBTFlash SIZE DWG NO REV SHEET OF TITLE DATE QUALCOMM ATHEROS1700 TECHNOLOGY DRIVESAN JOSE, CA 95110 Block_Diagram 2 6 072 Friday, November 25, 2011 C WB222-245-02062-072 <Variant Name> SIZE DWG NO REV SHEET OF TITLE DATE QUALCOMM ATHEROS1700 TECHNOLOGY DRIVESAN JOSE, CA 95110 Block_Diagram 2 6 072 Friday, November 25, 2011 C WB222-245-02062-072 <Variant Name> SIZE DWG NO REV SHEET OF TITLE DATE QUALCOMM ATHEROS1700 TECHNOLOGY DRIVESAN JOSE, CA 95110 Block_Diagram 2 6 072 Friday, November 25, 2011 C WB222-245-02062-072 <Variant Name> (50 ohm single ended,100 ohm differential) Qualcomm ATHEROS CONFIDENTIAL -- PRELIMINARY (BT_DISABLE)(WLAN_DISABLE) (BT_DISABLE)(BT_DISABLE)(BT_DISABLE)(BT_DISABLE) Optional WLAN EE…

Text truncated - open the document above for the full version.

FCC ID: U72DRXPSL IC ID: 7027A-DRXPSL Report No.: 31462562.002 DRX Plus.doc Page 1 of 97 The test results contained in this report refer exclusively to the product(s) presented for testing. No liability may be assumed for models or products not referred to herein. This test report may not be published or duplicated in part without permission of the testing body. This test report by itself does not constitute authorization for the use of any TUV Rheinland test mark. The report must not be used by the client to claim product certification, approval, or endorsement by A2LA. TUV Rheinland of North America, Inc., 710 Resende Road, Webster, NY 14580, Tel: 585-645-0125 MS-0005232 Revision 3.0 Electromagnetic Compatibility Test Report Prepared in accordance with CFR 47 Part 15C and RSS-210, Issue 8 Tested using the procedures of ANSI C63.10-2013 and C63.10:2009 On WiFi Transmitter DRX PLUS DETECTOR RADIO Carestream Health Inc. 1049 W. Ridge Road Rochester, NY 14615 Prepared by: TUV Rheinland of North America, Inc. FCC ID: U72DRXPSL IC ID: 7027A-DRXPSL Report No.: 31462562.002 DRX Plus.doc Page 3 of 97 The test results contained in this report refer exclusively to the product(s) presented for testing. No liability may be assumed for models or products not referred to herein. This test report may not be published or duplicated in part without permission of the testing body. This test report by itself does not constitute authorization for the use of any TUV Rheinland test mark. The report must not be used by the client to claim product certification, approval, or endorsement by A2LA. TUV Rheinland of North America, Inc., 710 Resende Road, Webster, NY 14580, Tel: 585-645-0125 MS-0005232 Revision 3.0 Client: Carestream Health Inc. 1049 W. Ridge Road Rochester, NY 14615 Contact: Tel: Fax: e-mail Ronald Cain 585-627-8321 585-627-8802 [email protected] Identification: WiFi Transmitter Serial No.: 13A32S1011361 Test item: DRX PLUS DETECTOR RADIO Date tested: 4 March 2015 Testing location: TUV Rheinland of North America 710 Resende Road Webster, NY 14580 U.S.A. Tel: (585) 645-0125 Test specification: Emissions: FCC Part 15, Subpart C, RSS-210 Issue 8: FCC Part 15.207(a) and RSS-GEN 7.2 FCC Parts 15.247(d), 15.205, 15.209, 15.215(c) and RSS-210 A8.5 and RSS-GEN 7.2 FCC Part 15.247(a)(2) and RSS-210 A1.1.3, FCC Part 15.247 and RSS-210 Annex 8, FCC Part 15.247(b)(3) and RSS-210 A8.4(4), FCC Part 15.247(d) and RSS-210 2.2, FCC Parts 15.109(a), RSS-210 2.2, 2.5, and RSS-GEN 6.1 and Test Result The above product was found to be Compliant to the above test standard(s) tested by: Randall E Masline reviewed by: Cecil Gittens 30 March 2015 Date Name Signature 30 March 2015 Date Name Signature Other Aspects: None Abbreviations: OK, Pass, Compliant, Complies = passed Fail, Not Compliant, Does Not Comply = failed N/A = not applicable Industry Canada VCCI BSMI US5253 Testing Cert.# 3331.08 482B-1 A-0203 SL2-IN-E-050R FCC ID: U72DRXPSL IC ID: 7027A-DRXPSL Report No.: 31462562.002 DRX Plus.doc Page 4 of 97 The test results contained in this report refer exclusively to the product(s) presented for testing. No liability may be assumed for models or products not referred to herein. This test report may not be published or duplicated in part without permission of the testing body. This test report by itself does not constitute authorization for the use of any TUV Rheinland test mark. The report must not be used by the client to claim product certification, approval, or endorsement by A2LA. TUV Rheinland of North America, Inc., 710 Resende Road, Webster, NY 14580, Tel: 585-645-0125 MS-0005232 Revision 3.0 TABLE OF CONTENTS 1 GENERAL INFORMATION ......................................................................................................................... 5 1.1 SCOPE ......................................................................................................................................................... 5 1.2 PURPOSE ..................................................................................................................................................... 5 1.3 REVISION HISTORY..................................................................................................................................... 5 1.4 SUMMARY OF TEST RESULTS ............................................................................................…
