U7I-BP3KF1-3BDigital Blood Pressure Monitor

ADC@homeconnect™App Directionsforuse AdvantageConnect AutomaticHomeBloodPressureMonitor WithBluetoothconnectivityfordatamanagement DirectionsforUse Thisbookletcoversmodels6024Nand6025N ADC ©2021ADC.Allrightsreserved.Tosupporttheintendeduseoftheproductdescribedinthis publication.Thepurchaseroftheproductispermittedtocopythispublication,forinternal distributiononly,fromthemediaprovidedbyADC.Nootheruse,reproduction,ordistributionof thispublication,oranypartofit,ispermittedwithoutwrittenpermissionfromADC.ADC assumesnoresponsibilityforanyinjurytoanyone,orforanyillegalorimproperuseofthe product,thatmayresultfromfailuretousethisproductinaccordancewiththeinstructions, cautions,warnings,orstatementofintendedusepublishedinthismanual. ADC®andADC@homeconnect™aretrademarksofADC,Inc. Apple®,iPhone®,andAppStore® aretrademarksofAppleInc.Google®,Android™,andGooglePlay™aretrademarksofGoogleInc. Othertrademarksandtradenamesarethoseoftheirrespectiveowners. Softwareinthisproductis©2021ADCand/orisacompilationofsoftwarewithcopyright protectionheldbyADCanditspartners.Allrightsarereserved.Thesoftwareisprotectedby UnitedStatesofAmericacopyrightlawsandinternationaltreatyprovisionsapplicableworldwide. Undersuchlaws,thelicenseeisentitledtousethecopyofthesoftwareincorporatedwiththis instrumentasintendedintheoperationoftheproductinwhichitisembedded.Thesoftware maynotbecopied,decompiled,reverseengineered,disassembled,orotherwisereducedto human-perceivableform.Thisisnotasaleofthesoftwareoranycopyofthesoftware;allright, title,andownershipofthesoftwareremainwithADCoritsvendors. Thisproductmaycontainsoftwareknownas“free”or“opensource”software(FOSS).ADC usesandsupportstheuseofFOSS.WebelievethatFOSSmakesourproductsmorerobustandsecure, andgivesusandourcustomersgreaterflexibility.TolearnmoreaboutFOSSthatmaybeusedinthis product,pleasevisitourFOSSwebsiteatwww.ADCTODAY/XXXXXX.Whererequired,acopyofFOSS sourcecodeisavailableonourFOSSwebsite. Forpatentinformation,visithttp://www.ADCTODAY/XXXXXXXXXXXX ForinformationaboutanyADCproduct,contactyourADCrepresentative: AutomaticBloodPressureMonitor TableofContents ASpecialThank Introduction IndicationsforUse Contraindications Remember Symbols WarningsandPrecautions What’sinthebox. Componentsofyourinstrument AboutBloodPressure Settinguptheinstrument Pairingasmartphoneortablet MeasuringBloodpressure AverageMode MemoryFunction IrregularHeartBeatDetection CareandMaintenance ErrorMessages/Troubleshooting Specifications Warranty ApprovedAccessories ASPECIALTHANKYOU CongratulationsonyourpurchaseofanADC®AdvantageConnectAutomaticHomeBlood Pressuremonitor. Inhospitalsandphysician'sofficesthroughouttheworld,whereaccuracyanddependabilityare critical,ADCprofessionaldiagnosticproductsaretheinstrumentsofchoice. Nowyou,too,canenjoythebenefitsofADCengineeringandqualityinthehome.Thisfeature- richinstrumentwasdesignedtosimplifythemeasurementofbloodpressureandpulserateat homeanddeliverconsistent,dependableresultsthatcanbestoredandmanagedonyoursmart phoneortablet. ReadthisbookletthoroughlybeforeattemptingtouseyournewADCAdvantageConnect AutomaticBloodPressureMonitor. INTRODUCTION ThismanualisfortheAdvantage™Connect(6024N)andAdvantageConnectPlus(6025N) AutomaticConnectedBloodpressuremonitors.Tofindthemodelnumberofyourdevice,look ontheratinglabellocatedontheundersideoftheunit. Bothmodelsaccommodate2users,eachwith99readingmemory,fastBP,AM/PMreadings, Averagemode,IrregularHeartbeatDetection,andaBluetoothradiotoallowdatatobestored onasmartphoneortabletequippedwithADC@homeconnect™software.FastBPisADC’s advancedbloodpressuremeasurementtechnologythatobtainsabloodpressurereading duringtheinflationcycle(asthecuffpumpsup).Thistechnologyallowsforaslightlyfaster muchmorecomfortablemeasurementprocess.Usingtheoscillometricmethodthemonitors bothprovidesystolicanddiastolicpressureandpulserate.Thedevicesofferclinicallyproven accuracyandhasbeendesignedtobeuserfriendly. Beforeusing,pleasereadthisinstructionmanualcarefullyandthenkeepitinasafeplace. Pleasecontactyourdoctorforfurtherquestionsonthesubjectofbloodpressureandits measurement. INTENDEDUSE TheADCAdvantageConnectHomeBloodpressuremonitorisintendedtomeasurethesystolic anddiastolicbloodpressure,andpulserateofadultpatientsbyusinganon-invasive oscillometictechniqueinwhichaninflatablecuffiswrappedaroundthesingleupperarm. Thismonitordetectstheappearanceofirregularheartbeatduringmeasurementandgivesa warningsignalwiththereadingoncetheirregularheartbeatisdetected. ThemonitorcanbeusedinconnectionwithasmartphonerunningtheAPP.Thememorydata canbetransferredtothesmartphoneviaBluetooth. TheADC@homeconnect™softwareisdesignedtocollect,track,trend,and retrospectivelytransmithealthinformation(e.g.bloodpressureandweight)from commerciallyavailablewireless,FDA-clearedmedicalin-homedevices,aswellashealth andwellnessdevices. TheADC@homeconnectsoftwareisnotintendedforuseinthediagnosis,cure,treatment orpreventionofdisease.Itisnotintendedasasubstituteformedicalcarebya healthcareprovider.Itisnotintendedforemergencyuseorreal-timemonitoring. Contraindications Thisdeviceiscontraindicatedforanypersonwhoisconnectedtoawearableorimplantable electronicdeviceorinstrument,suchasapacemakerordefibrillator. ThisbloodpressuremonitorisNOTintendedtobeadiagnosticdevice.Contactyourphysician ifhypertensivevaluesareindicated. Remember... •Onlyahealthcareprofessionalisqualifiedtointerpretbloodpressuremeasurements.This deviceisNOTintendedtoreplaceregularmedicalcheckups. •Itisrecommendedthatyourphysicianreviewyourprocedureforusingthisdevice. •Bloodpressurereadingsobtainedbythisdeviceshouldbeverifiedbeforeprescribingor makingadjustmentstoanymedicationsusedtocontrolhypertension.Undernocircumstances shouldYOUalterthedosagesofanydrugsprescribedbyyourdoctor. •Thismonitorisintendedforusebyadultsonly.Consultwithaphysicianbeforeusingthis instrumentonachild. •Incasesofirregularheartbeat(arrhythmia),measurementsmadewiththisinstrumentshould onlybeevaluatedafterconsultationwithyourdoctor. •Familiarizeyourselfwiththesectiontitled"AboutBloo…

Text truncated - open the document above for the full version.

Rev 11/20/07 Microlife Corporation Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: U7I-BP3KF1-3B Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Exhibit Type File Name (Block Diagram, Schematics, Operational Description) (Block Diagram.pdf, Schematics.pdf, Operational Description.pdf) The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Pursuant to DA04-1705 June 15, 2004 of the Commission’s public notice, we also request temporary confidential treatment of information accompanying this application as outlined below: Exhibit Type File Name / / Sincerely, Signature: printed name: Jimmy Deng

Microlife Corporation Model Confirmation Letter We, Microlife Corporation (Company name)certify the product: Digital Blood Pressure Monitor. And models: BP3KF1-3B, BP3KT1-4B, the main test model: BP3KF1-3B. Their electrical circuit design, layout, components used and internal wiring are identical, Only the color of the appearance, shape is different. Signature: Printed name: Jimmy Deng Company Name: Microlife Corporation Date: 2022/1/17

E:\新增磁碟區 (F)\EMC&Safety测试资料\BP3KF1-3B EMC,Safety,FCC\FCC 签字文件\FCC 签字文件\POA Letter.docx Microlife Corporation Federal Communications Commission Authorization and Evaluation Division 1435 Oakland Mills Road Columbia, MD 21046 Date: January 19, 2022 SUBJECT: FCC Application for (FCC ID: U7I-BP3KF1-3B) To Whom It May Concern: We, the undersigned, hereby authorize Mina Xu at Centre Testing International Group Co., Ltd / Building C, Hongwei Industrial Park Block 70, Bao'an District, Shenzhen, China on our behalf, to apply to the Federal Communications Commission on our equipment. Any and all acts carried out by Mina Xu at Centre Testing International Group Co., Ltd / Building C, Hongwei Industrial Park Block 70, Bao'an District, Shenzhen, China on our behalf shall have the same effect as acts of our own. This is to advise that we are in full compliance with the Anti- Drug Abuse Act. We, the applicant, are not subject to a denial of federal benefits pursuant to Section 5301 of the Anti-Drug Act of 1988, 21 USC853a, and no party to the application is subject to a denial of federal benefits pursuant to that section. Regards, Signature: printed name: Jimmy Deng

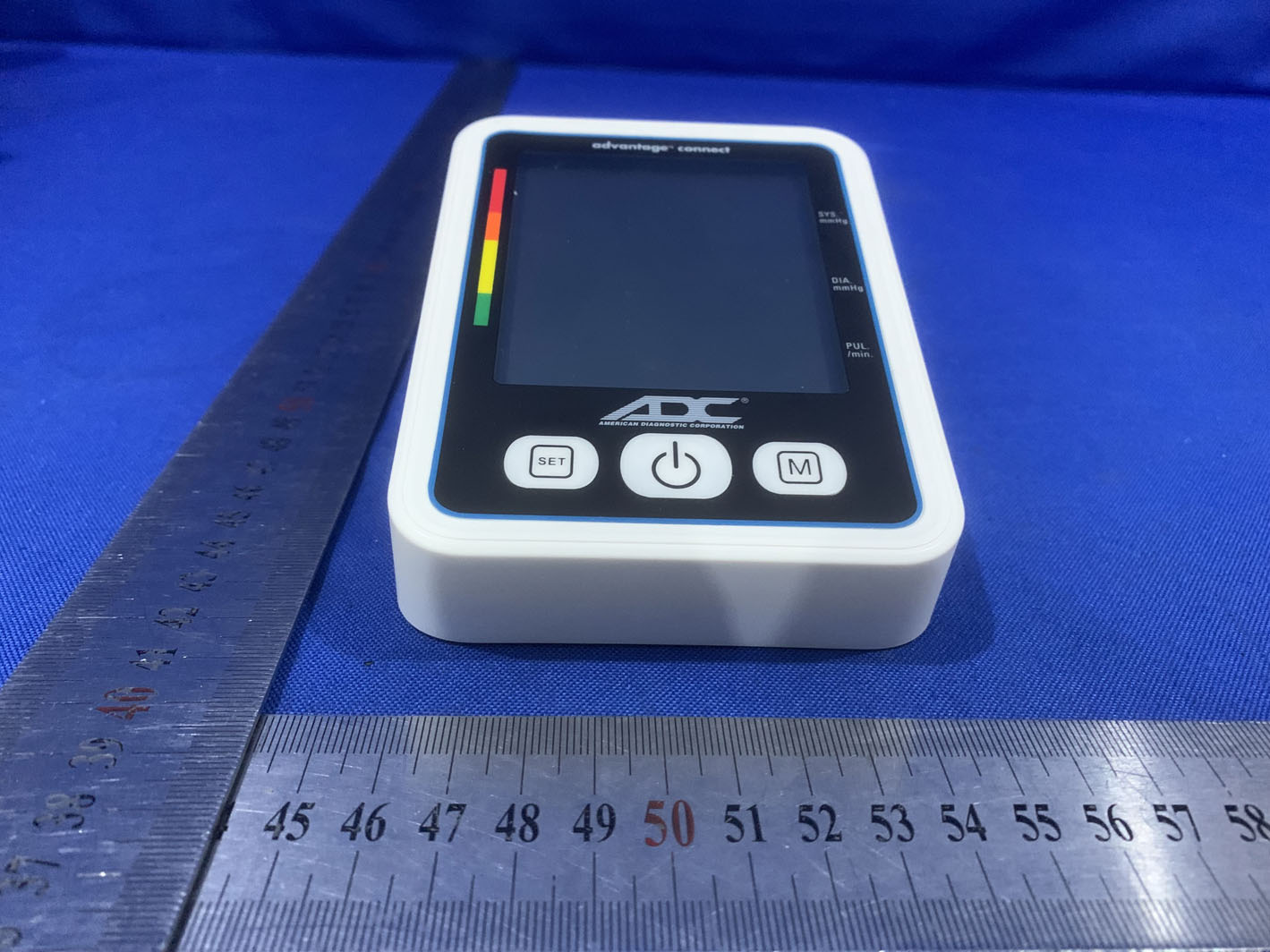

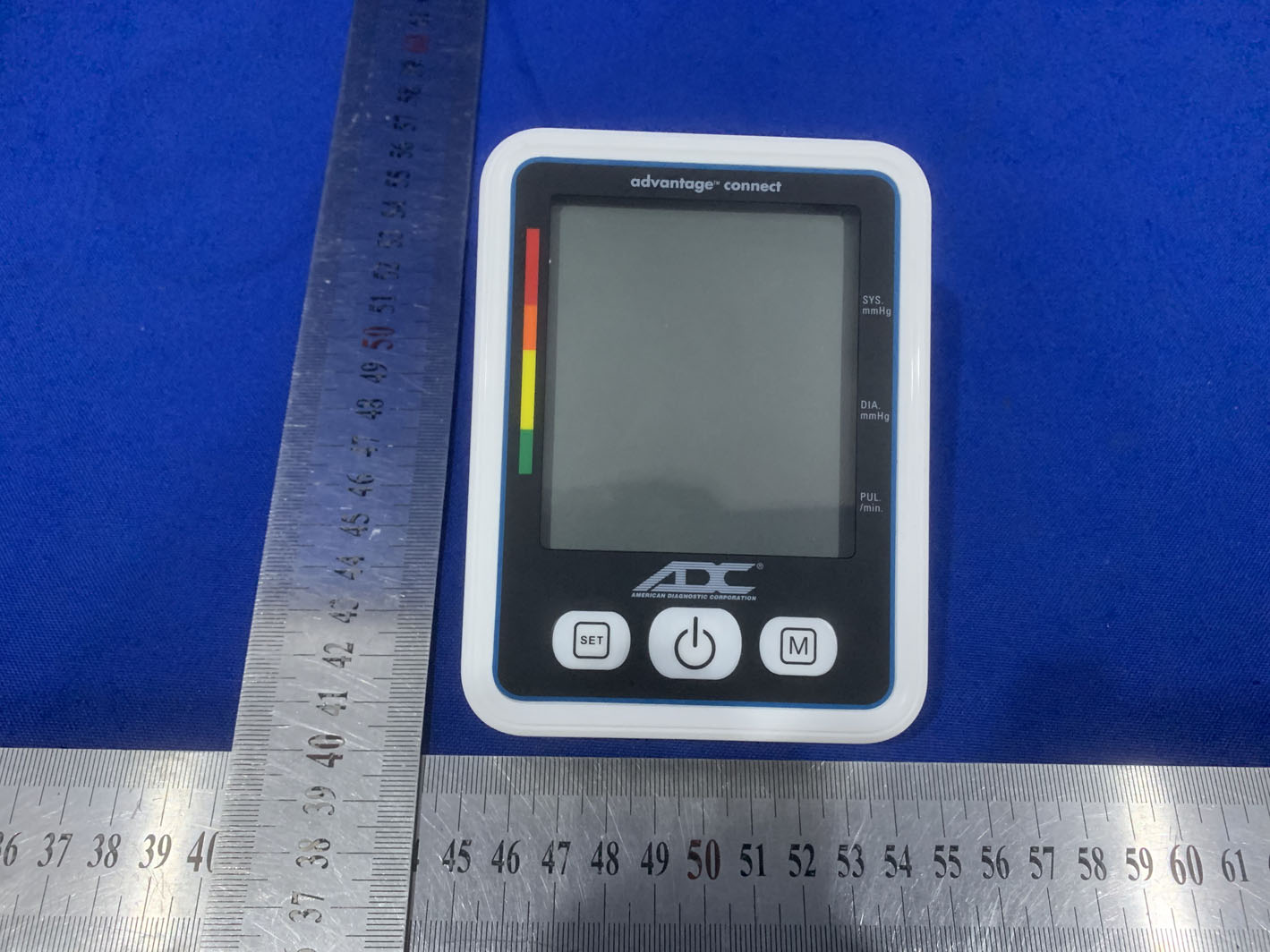

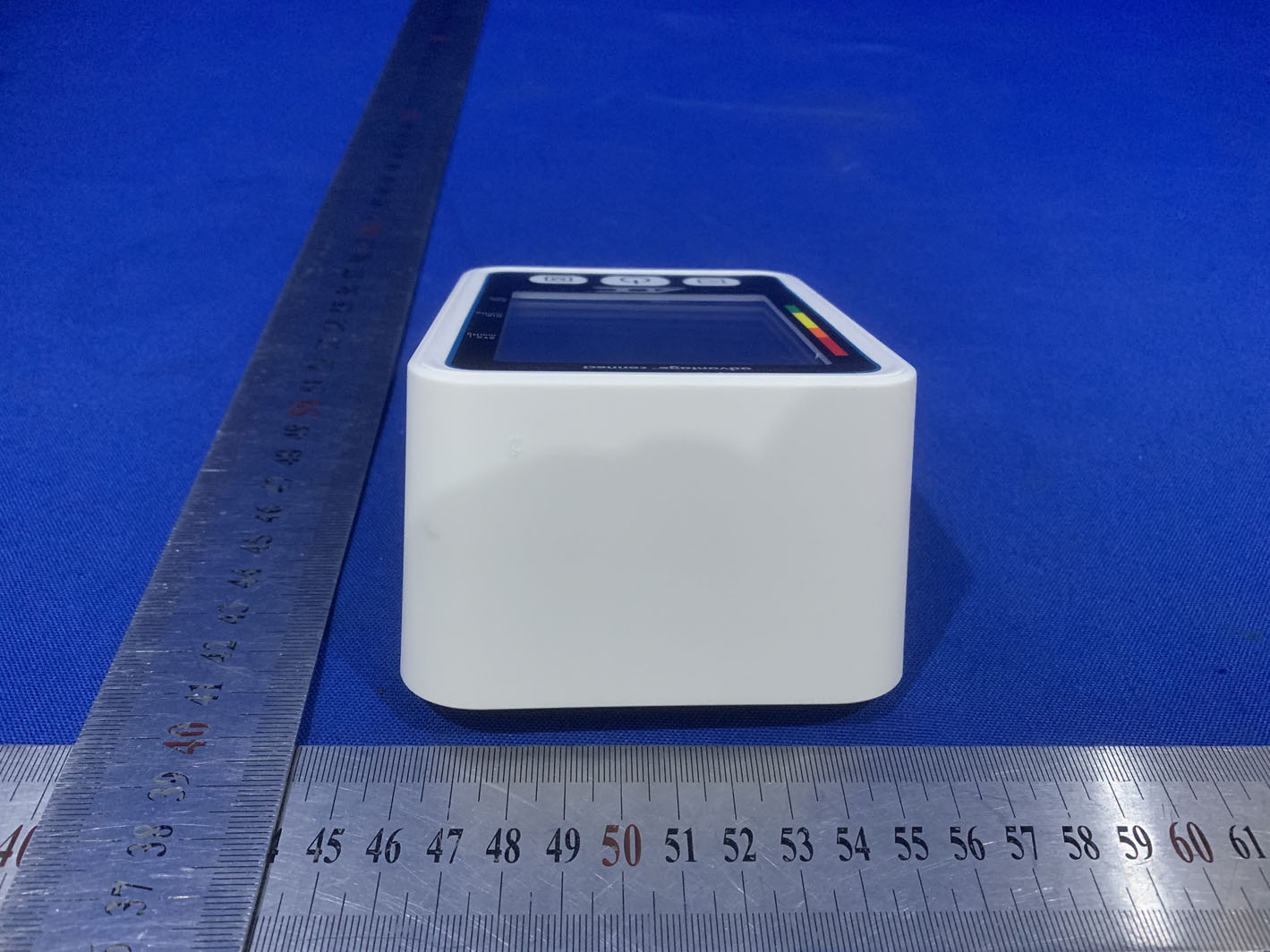

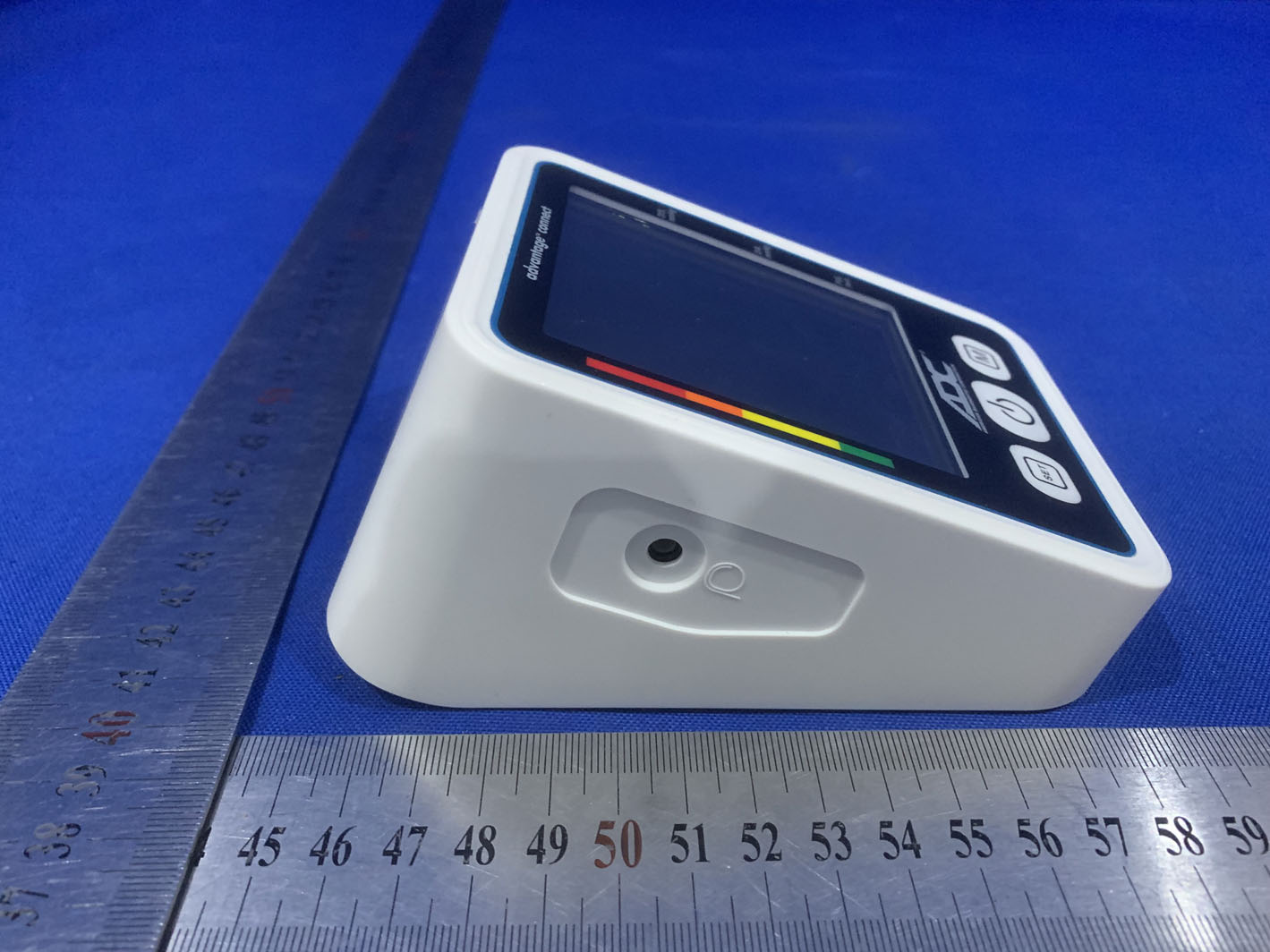

Report No.: EED32N81315701Page 33 of 41 PHOTOGRAPHS OF EUT Constructional Details Test Model No.: BP3KF1-3B View of Product-1 View of Product-2 Report No.: EED32N81315701Page 34 of 41 View of Product-3 View of Product-4 Report No.: EED32N81315701Page 35 of 41 View of Product-5 View of Product-6 Report No.: EED32N81315701Page 36 of 41 View of Product-7 View of Product-8

Report No.: EED32N81315701Page 37 of 41 View of Product-9 View of Product-10 Report No.: EED32N81315701Page 38 of 41 View of Product-11 View of Product-12 Report No.: EED32N81315701Page 39 of 41 View of Product-13 View of Product-14

Report No.: EED32N81315701Page 40 of 41 View of Product-15 View of Product-16 Report No.: EED32N81315701Page 41 of 41 View of Product-17 The test report is effective only with both signature and specialized stamp, The result(s) shown in this report refer only to the sample(s) tested. Without written approval of CTI, this report can’t be reproduced except in full. *** End of Report ***

ReportNo.:EED32N81315702Page1of8 COVERPAGE RFExposureEvaluationReport Product:DigitalBloodPressureMonitor Trademark : Model/Typereference : BP3KF1-3B,BP3KT1-4B SerialNumber : N/A ReportNumber : EED32N81315702 FCCID : U7I-BP3KF1-3B DateofIssue : Jan.19,2022 TestStandards :47CFRPart1.1307 47CFRPart2.1093 KDB447498D01GeneralRF ExposureGuidancev06 Testresult : PASS Preparedfor: MicrolifeCorporation 9F,431,RuiGuangRoad,NeiHuTaipei11492,Taiwan Preparedby : CentreTestingInternationalGroupCo.,Ltd. HongweiIndustrialZone,Bao’an70District, Shenzhen,Guangdong,China TEL:+86-755-33683668 FAX:+86-755-33683385 Compiledby: Reviewedby: MarkChenAaronMa Approvedby:Date:Jan.19,2022 DavidWang CheckNo.:2547061221 ReportNo.:EED32N81315702Page2of8 1Version VersionNo.DateDescription 00Jan.19,2022Original ReportNo.:EED32N81315702Page3of8 2Contents Page 1VERSION..............................................................................................................................................................................2 2CONTENTS..........................................................................................................................................................................3 3GENERALINFORMATION...............................................................................................................................................4 3.1C LIENT I NFORMATION .....................................................................................................................................................4 3.2G ENERAL D ESCRIPTIONOF EUT.....................................................................................................................................4 3.3G ENERAL D ESCRIPTIONOF BLE.....................................................................................................................................4 3.4T EST L OCATION ...............................................................................................................................................................5 3.5D EVIATIONFROM S TANDARDS ........................................................................................................................................5 3.6A BNORMALITIESFROM S TANDARD C ONDITIONS ............................................................................................................5 3.7O THER I NFORMATION R EQUESTEDBYTHE C USTOMER ..................................................................................................5 4SAREVALUATION.............................................................................................................................................................6 4.1RFE XPOSURE C OMPLIANCE R EQUIREMENT ...................................................................................................................6 4.1.1StandardRequirement........................................................................................................................................6 4.1.2EUTRFExposure................................................................................................................................................7 PHOTOGRAPHSOFEUTCONSTRUCTIONALDETAILS............................................................................................8 ReportNo.:EED32N81315702Page4of8 3GeneralInformation 3.1ClientInformation Applicant: MicrolifeCorporation AddressofApplicant: 9F,431,RuiGuangRoad,NeiHuTaipei11492,Taiwan Manufacturer: ONBOElectronic(Shenzhen)Co.,Ltd. AddressofManufacturer: No.138,HuashengRoad,LangkouCommunity,DalangStreet,Longhua District,Shenzhen,China Factory: ONBOElectronic(Shenzhen)Co.,Ltd. AddressofFactory:No.138,HuashengRoad,LangkouCommunity,DalangStreet,Longhua District,Shenzhen,China 3.2GeneralDescriptionofEUT ProductName: DigitalBloodPressureMonitor TestModelNo.: BP3KF1-3B Trademark: ProductType:MobilePortableFixLocation PowerSupply: ACAdapter:100～240V-50/60Hz0.3A OUTPUT:6V  0.6A Battery:4xAAA1.5V TestVoltage:AC120V SampleReceivedDate:Dec.07,2021 SampletestedDate:Dec.07,2021toDec.15,2021 Remark: CompanyNameandAddressshownonReport,thesample(s)andsampleInformationwereprovidedbythe applicantwhoshouldberesponsiblefortheauthenticitywhichCTIhasn’tverified. Model/Typereference:BP3KF1-3B,BP3KT1-4B. OnlythemodelBP3KF1-3Bwastested,confirmthatanyofourproductionunitsbearingthefollowingmodel numbersareidenticalincircuitryandelectrical,mechanicalandPCBlayouts;theonlydifferencesarethe modelname,dimensionandtheconstructionofappearancefortradingpurpose. 3.3GeneralDescriptionofBLE OperationFrequency: 2402MHz~2480MHz ModulationTechnique: DSSS ModulationType: GFSK NumberofChannel: 40 TestPowerGrade: Default SoftwareVersion: nRFgoStudio AntennaTypeandGain:Type:Ceramicantenna Gain:0dBi ReportNo.:EED32N81315702Page5of8 3.4TestLocation Alltestswereperformedat: CentreTestingInternationalGroupCo.,Ltd BuildingC,HongweiIndustrialParkBlock70,Bao'anDistrict,Shenzhen,China Telephone:+86(0)75533683668Fax:+86(0)75533683385 Notestsweresub-contracted. FCCDesignationNo.:CN1164 3.5DeviationfromStandards None. 3.6AbnormalitiesfromStandardConditions None. 3.7OtherInformationRequestedbytheCustomer None. ReportNo.:EED32N81315702Page6of8 4SAREvaluation 4.1RFExposureComplianceRequirement 4.1.1StandardRequirement AccordingtoKDB447498D01GeneralRFExposureGuidancev06 StandaloneSARtestexclusionconsiderations UnlessspecificallyrequiredbythepublishedRFexposureKDBprocedures,standalone1-gheadorbody and10-gextremitySARevaluationforgeneralpopulationexposureconditions,bymeasurementor numericalsimulation,isnotrequiredwhenthecorrespondingSARExclusionThresholdcondition,listed below,issatisfied. Limits The1-gand10-gSARtestexclusionthresholdsfor100MHzto6GHzattestseparationdistances ≤50mmaredeterminedby: [(max.powerofchannel,includingtune-uptolerance,mW)/(min.testseparationdistance,mm)]· [√f(GHz)]≤3.0for1-gSARand≤7.5for10-gextremitySAR,where f(GHz)istheRFchanneltransmitfrequencyinGHz Poweranddistanceareroundedtothenearestm…

Text truncated - open the document above for the full version.

ReportNo.:EED32N81315701Page1of25 Appendix:BluetoothLE ReportNo.:EED32N81315701Page2of25 Contents AppendixA:DTSBandwidth ....................................................................................................... 3 TestResult ................................................................................................................................................ 3 TestGraphs .............................................................................................................................................. 4 AppendixB:OccupiedChannelBandwidth ................................................................................ 6 TestResult ................................................................................................................................................ 6 TestGraphs .............................................................................................................................................. 7 AppendixC:Maximumconductedoutputpower ...................................................................... 9 TestResult ................................................................................................................................................ 9 TestGraphs ............................................................................................................................................ 10 AppendixD:Maximumpowerspectraldensity ....................................................................... 12 TestResult .............................................................................................................................................. 12 TestGraphs ............................................................................................................................................ 13 AppendixE:Bandedgemeasurements .................................................................................... 15 TestResult .............................................................................................................................................. 15 TestGraphs ............................................................................................................................................ 16 AppendixF:ConductedSpuriousEmission .............................................................................. 17 TestResult .............................................................................................................................................. 17 TestGraphs ............................................................................................................................................ 18 AppendixG:DutyCycle ............................................................................................................. 23 TestResult .............................................................................................................................................. 23 TestGraphs ............................................................................................................................................ 24 ReportNo.:EED32N81315701Page3of25 AppendixA:DTSBandwidth TestResult TestModeAntennaChannel DTSBW [MHz] FL[MHz]FH[MHz]Limit[MHz]Verdict BLE_1MAnt1 24020.6802401.6482402.3280.5PASS 24400.7002439.6562440.3560.5PASS 24800.6922479.6482480.3400.5PASS ReportNo.:EED32N81315701Page4of25 TestGraphs BLE_1M_Ant1_2402 BLE_1M_Ant1_2440 BLE_1M_Ant1_2480 ReportNo.:EED32N81315701Page5of25 ReportNo.:EED32N81315701Page6of25 AppendixB:OccupiedChannelBandwidth TestResult TestModeAntennaChannel OCB [MHz] FL[MHz]FH[MHz]Limit[MHz]Verdict BLE_1MAnt1 24021.05852401.4672402.525---PASS 24401.05802439.4682440.526---PASS 24801.04442479.4802480.524---PASS ReportNo.:EED32N81315701Page7of25 TestGraphs BLE_1M_Ant1_2402 BLE_1M_Ant1_2440 BLE_1M_Ant1_2480 ReportNo.:EED32N81315701Page8of25 ReportNo.:EED32N81315701Page9of25 AppendixC:Maximumconductedoutputpower TestResult TestModeAntennaChannelResult[dBm]Limit[dBm]Verdict BLE_1MAnt1 2402-1.15<=30PASS 2440-0.84<=30PASS 2480-1.08<=30PASS ReportNo.:EED32N81315701Page10of25 TestGraphs BLE_1M_Ant1_2402 BLE_1M_Ant1_2440 BLE_1M_Ant1_2480 ReportNo.:EED32N81315701Page11of25 ReportNo.:EED32N81315701Page12of25 AppendixD:Maximumpowerspectraldensity TestResult TestModeAntennaChannelResult[dBm/3-100kHz]Limit[dBm/3kHz]Verdict BLE_1MAnt1 2402-15.19<=8PASS 2440-13.9<=8PASS 2480-14.15<=8PASS ReportNo.:EED32N81315701Page13of25 TestGraphs BLE_1M_Ant1_2402 BLE_1M_Ant1_2440 BLE_1M_Ant1_2480 ReportNo.:EED32N81315701Page14of25 ReportNo.:EED32N81315701Page15of25 AppendixE:Bandedgemeasurements TestResult TestModeAntennaChNameChannelRefLevel[dBm]Result[dBm]Limit[dBm]Verdict BLE_1MAnt1 Low2402-1.76-40.85<=-21.76PASS High2480-1.63-40.27<=-21.63PASS ReportNo.:EED32N81315701Page16of25 TestGraphs BLE_1M_Ant1_Low_2402 BLE_1M_Ant1_High_2480 ReportNo.:EED32N81315701Page17of25 AppendixF:ConductedSpuriousEmission TestResult TestModeAntennaChannel FreqRange [MHz] RefLevel [dBm] Result[dBm]Limit[dBm]Verdict BLE_1MAnt1 2402 Reference-1.88-1.88---PASS 30~100030~1000-58.04<=-21.875PASS 1000~265001000~26500-49.585<=-21.875PASS 2440 Reference-1.49-1.49---PASS 30~100030~1000-57.072<=-21.488PASS 1000~265001000~26500-49.313<=-21.488PASS 2480 Reference-1.87-1.87---PASS 30~100030~1000-57.196<=-21.868PASS 1000~265001000~26500-49.56<=-21.868PASS ReportNo.:EED32N81315701Page18of25 TestGraphs BLE_1M_Ant1_2402_0~Reference BLE_1M_Ant1_2402_30~1000 BLE_1M_Ant1_2402_1000~26500 ReportNo.:EED32N81315701Page19of25 BLE_1M_Ant1_2440_0~Reference BLE_1M_Ant1_2440_30~1000 ReportNo.:EED32N81315701Page20of25 BLE_1M_Ant1_2440_1000~26500 BLE_1M_Ant1_2480_0~Reference ReportNo.:EED32N81315701Page21of25 BLE_1M_Ant1_2480_30~1000 BLE_1M_Ant1_2480_1000~26500 ReportNo.:EED32N81315701Page22of25 ReportNo.:EED32N81315701Page23of25 AppendixG:DutyCycle TestResult TestModeAntennaChannel Transmission Duration[ms] Transmission Period[ms] Duty Cycle [%] LimitVerdict BLE_1MAnt1 24020.430.6369.…

Text truncated - open the document above for the full version.

Report No.: EED32N81315701Page 1 of 41 TEST REPORT Product:Digital Blood Pressure Monitor Trade mark : Model/Type reference :BP3KF1-3B,BP3KT1-4B Serial Number : N/A Report Number : EED32N81315701 FCC ID : U7I-BP3KF1-3B Date of Issue : Jan. 19, 2022 Test Standards : 47 CFR Part 15 Subpart C Test result : PASS Prepared for: Microlife Corporation 9F, 431, RuiGuang Road, NeiHu Taipei 11492, Taiwan Prepared by: Centre Testing International Group Co., Ltd. Hongwei Industrial Zone, Bao’an 70 District, Shenzhen, Guangdong, China TEL: +86-755-3368 3668 FAX: +86-755-3368 3385 Compiled by: Reviewed by: Mark ChenAaron Ma Approved by:Date:Jan. 19, 2022 David Wang Check No.:2547061221 Report No.: EED32N81315701Page 2 of 41 1 Content 1CONTENT.............................................................................................................................................................................2 2 VERSION..............................................................................................................................................................................3 3 TEST SUMMARY................................................................................................................................................................4 4 GENERAL INFORMATION...............................................................................................................................................5 4.1 C LIENTINFORMATION.................................................................................................................................................... 5 4.2 G ENERALDESCRIPTION OFEUT..................................................................................................................................5 4.3 P RODUCTSPECIFICATION SUBJECTIVE TO THIS STANDARD........................................................................................5 4.4 T ESTCONFIGURATION...................................................................................................................................................7 4.5 T ESTENVIRONMENT......................................................................................................................................................7 4.6 D ESCRIPTION OFSUPPORTUNITS...............................................................................................................................8 4.7 T ESTLOCATION............................................................................................................................................................. 8 4.8 M EASUREMENTUNCERTAINTY(95%CONFIDENCE LEVELS,K=2)..............................................................................8 5EQUIPMENTLIST.............................................................................................................................................................. 9 6 TEST RESULTS AND MEASUREMENT DATA..........................................................................................................11 6.1 A NTENNAREQUIREMENT.............................................................................................................................................11 6.2 AC P OWERLINECONDUCTEDEMISSION.................................................................................................................. 12 6.3 M AXIMUMCONDUCTEDOUTPUTPOWER...................................................................................................................15 6.4 DTS B ANDWIDTH.........................................................................................................................................................16 6.5 M AXIMUMPOWERSPECTRALDENSITY......................................................................................................................17 6.6 B ANDEDGE MEASUREMENTS ANDCONDUCTEDSPURIOUSEMISSION....................................................................18 6.7 R ADIATEDSPURIOUSEMISSION&RESTRICTED BANDS........................................................................................... 19 7 APPENDIX A......................................................................................................................................................................30 PHOTOGRAPHS OF TEST SETUP..................................................................................................................................31 PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS......................................................................................... 33 Report No.: EED32N81315701Page 3 of 41 2Version Version No.DateDescription 00Jan. 19, 2022Original Report No.: EED32N81315701Page 4 of 41 3TestSummary Test ItemTest RequirementResult Antenna Requirement 47 CFR Part 15 Subpart C Section 15.203/15.247 (c) PASS AC Power Line Conducted Emission 47 CFR Part 15 Subpart C Section 15.207 PASS DTS Bandwidth 47 CFR Part 15 Subpart C Section 15.247 (a)(2) PASS Maximum Conducted Output Power 47 CFR Part 15 Subpart C Section 15.247 (b)(3) PASS Maximum Power Spectral Density 47 CFR Part 15 Subpart C Section 15.247 (e)PASS Band Edge Measurements 47 CFR Part 15 Subpart C Section 15.247(d) PASS Conducted Spurious Emissions 47 CFR Part 15 Subpart C Section 15.247(d) PASS Radiated Spurious Emission & Restricted bands 47 CFR Part 15 Subpart C Section 15.205/15.209 PASS Remark: Company Name and Address shown on Report, the sample(s) and sample Information were provided by the applicant who should be responsible for the authenticity which CTI hasn’t verified. Model/Type reference:BP3KF1-3B,BP3KT1-4B. Only the model BP3KF1-3B was tested,confirm that any of our production units bearing the following model numbers are identical in circuitry and electrical, mechanical and PCB layouts; the only differences are the model name,dimension and the construction of appearance for trading purpose. Report No.: EED32N81315701Page 5 of 41 4 General Information 4.1 Client Informati…

Text truncated - open the document above for the full version.

Report No.: EED32N81315701Page 20 of 41 Test Setup: Figure 1. Below 30MHz Figure 2. 30MHz to 1GHzFigure 3. Above 1 GHz Test Procedure:a. 1) Below 1G: The EUT was placed on the top of a rotating table 0.8 meters above the ground at a 3 meter semi-anechoic camber. The table was rotated 360 degrees to determine the position of the highest radiation. 2)Above1G:TheEUTwasplacedonthetopofarotatingtable1.5 meters above the ground at a 3 meter semi-anechoic camber. The table was rotated 360 degrees to determine the position of the highest radiation. Note: For the radiated emission test above 1GHz: Place the measurement antenna away from each area of the EUT determined to be a source of emissions at the specified measurement distance, while keeping the measurement antenna aimed at the source of emissions at each frequency of significant emissions, with polarization oriented for maximum response. The measurement antenna may have to be higher or lower than the EUT, depending on the radiation pattern of the emission and staying aimed at the emission source for receiving the maximum signal. The final measurement antenna elevation shall be that which maximizes the emissions. The measurement antenna elevation for maximum emissions shall be restricted to a range of heights of from 1 m to 4 m above the ground or reference ground plane. b. The EUT was set 3 meters away from the interference-receiving antenna, which was mounted on the top of a variable-height antenna tower. c. The antenna height is varied from one meter to four meters above the ground to determine the maximum value of the field strength. Both horizontal and vertical polarizations of the antenna are set to make the 150cm Report No.: EED32N81315701Page 21 of 41 measurement. d. For each suspected emission, the EUT was arran ged to its worst case and then the antenna was tuned to heights from 1 meter to 4 meters (for the test frequency of below 30MHz, the antenna was tuned to heights 1 meter) and the rotatable table was turned from 0 degrees to 360 degrees to find the maximum reading. e. The test-receiver system was set to Peak Detect Function and Specified Bandwidth with Maximum Hold Mode. f. If the emission level …

Text truncated - open the document above for the full version.
