home BT Accurate home blood pressure measurements with the WatchBP Home BT. Instruction Manual home BT 2 Federal Communications Commission (FCC) Statement changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy, and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: – This device complies with FCC radiation exposure limits set forth for an uncontrolled environment. End users must follow the specific operating instructions for satisfying RF exposure compliance.) – Reorient or relocate the receiving antenna. – Increase the separation between the equipment and receiver. – Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. – Consult the dealer or an experienced radio/TV technician for help. EN 3 home BT Microlife WatchBP Home BT is the world’s first digital blood pressure measurement device that strictly follows European Society of Hypertension (ESH) and American Heart Association (AHA) recommendations for home blood pressure measurement. Using the WatchBP Home BT device helps you collect accurate home blood pressure measurement your doctor can trust. This WatchBP Home BT device has been clinically validated according to the ESH protocol. Indications For Use The Microlife Upper Arm Automatic Digital Blood Pressure Monitor, Model WatchBP Home BT (BP3MX1-1C) is a device intended to measure the systolic and diastolic blood pressure and pulse rate of an adult individual with arm cuff circumference sizes ranging from 22 -42 cm by using a non-invasive oscillometric technique in one inflatable cuff being wrapped around the upper arm. The memory data can be transferred to the PC (personal computer) running the WatchBP Analyzer Home software by connecting the monitor via cable. The device can also be used in connection with smart mobile devices running the APP and via Bluetooth. The device is intended for use by patient at home or by health care givers in primary care settings. Before using WatchBP Home BT for the first time Product description .....................................................5–6 Activating the device ......................................................7 Selecting the correct cuff ................................................8 Taking measurements using WatchBP Home BT «DIAG.» Mode ............................................................9–10 «USUAL» Mode .............................................................12 Eight steps for measure blood pressure properly Blood pressure measurement procedures .............13–16 Viewing, deleting, and transferring measurements Viewing measurements .........................................17–18 Deleting measurements .........................................19–20 Installation of the software program ............................21 Bluetooth connectivity ............................................23–24 Batteries and power adaptor .................................25–26 Safety, care, accuracy test and disposal .................27–28 Error messages .......................................................29–30 Important facts .......................................................31–32 Technical specifications.................................................33 Appendix .................................................................34-43 Table of Contents EN 5 home BT SYS mmHg mmHg /min USUAL DIAG. NOCTURNAL DIA PUL M Button (Memory) Display Start/ Stop Button Cuff Socket Power Socket Serial Port Battery Compartment Mode Switch Bluetooth symbol 6 EN Mode Indication Doctor Symbol Outside Measurement Time Relax Battery Display Delete Memory Data Stored Value Morning Data Evening Data Date/Time Systolic Value Diastolic Value Pulse Indicator Pulse Rate Number of Stored Data EN 7 home BT 2) Set the month – Press the M Button to set the Month. Press the Start/ Stop Button to confirm. Before using WatchBP Home BT for the first time Activating the Device Open the battery compartment on the rear of the device and insert 4x AA alkaline batteries according to the battery polarities (+ / - ) and close the compartment. Press M Button to make selection Press Start/ Stop Button to confirm 3) Set the day – Press the M Button to set the Day. Press the Start/ Stop Button to confirm. SYS mmHg mmHg /min USUAL DIAG. NOCTURNAL DIA PUL 1) Set the year – Upon removing the protective strip or installing new batteries, the Year number flashes in the display. Use the M Button to select the Year. Press the Start/ Stop Button to confirm your selection. 8 4) Set the time – Once you have set the Hour and Minutes and pressed the Start/ Stop Button, the date and time are set, and the current time is displayed. 5) If you want to change the date and time, take out one battery from the battery compartment briefly and put it back. The Year number will flash. Complete the process as described above. M (Medium size) 22 - 32 cm (8.7 - 12.6 …

Text truncated - open the document above for the full version.

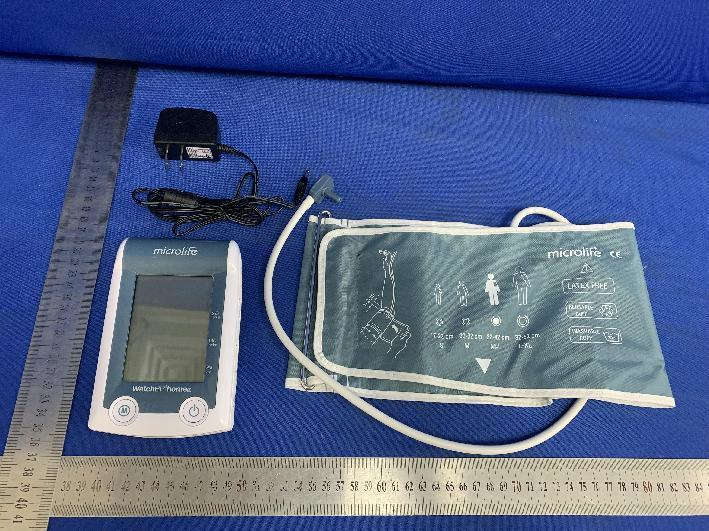

ReportNo.:EED32P81107301Page 34 of 43 10PHOTOGRAPHSOFEUTConstructionalDetails ViewofProduct-1 ViewofProduct-2 ReportNo.:EED32P81107301Page 35 of 43 ViewofProduct-3 ViewofProduct-4 ReportNo.:EED32P81107301Page 36 of 43 ViewofProduct-5 ViewofProduct-6 ReportNo.:EED32P81107301Page 37 of 43 ViewofProduct-7 ViewofProduct-8

Thelabelislocatedintheredboxonthebackoftheproduct

Report No. : EED32P81107301Page 38 of 43 View of Product-9 View of Product-10

Report No. : EED32P81107301Page 39 of 43 View of Prodct-11 View of Product-12

Report No. : EED32P81107301Page 40 of 43 View of Product-13 View of Product-14 Report No. : EED32P81107301Page 41 of 43 View of Product-15 View of Product-16

Report No. : EED32P81107301Page 42 of 43 View of Product-17 View of Product-18 Report No. : EED32P81107301Page 43 of 43 View of Product-19 The test report is effective only with both signature and specialized stamp, The result(s) shown in this report refer only to the sample(s) tested. Without written approval of CTI, this report can’t be reproduced except in full. *** End of Report ***

ReportNo.:EED32P81107302Page1of7 1COVERPAGE RFExposureEvaluationReport Product:DigitalBloodPressureMonitor Trademark:Mircrolife Model/Typereference:BP3MX1-1C SerialNumber:N/A ReportNumber:EED32P81107302 FCCID: U7I-BP3MX1-1C DateofIssue:Jul.27,2023 TestStandards: 47CFRPart1.1307 47CFRPart1.1310 47CFRPart2.1093 447498D04InterimGeneralRF ExposureGuidancev01 Testresult:PASS Preparedfor: MicrolifeCorporation 9F,431,RuiGuangRoad,NeiHuTaipei11492,Taiwan,China Preparedby : CentreTestingInternationalGroupCo.,Ltd. HongweiIndustrialZone,Bao’an70District, Shenzhen,Guangdong,China TEL:+86-755-33683668 FAX:+86-755-33683385 Compiledby:Reviewedby: MarkChenTomChen Approvedby:Date:Jul.27,2023 AaronMa CheckNo.:5855190723 ReportNo.:EED32P81107302Page2of7 2Version VersionNo.DateDescription 00Jul.27,2023Original ReportNo.:EED32P81107302Page3of7 3Contents Page 1COVERPAGE....................................................................................................................................................................1 2VERSION............................................................................................................................................................................2 3CONTENTS........................................................................................................................................................................3 4GENERALINFORMATION..............................................................................................................................................4 4.1C LIENT I NFORMATION ...................................................................................................................................................4 4.2G ENERAL D ESCRIPTIONOF EUT...................................................................................................................................4 4.3P RODUCT S PECIFICATIONSUBJECTIVETOTHISSTANDARD ...........................................................................................4 4.4T EST L OCATION .............................................................................................................................................................5 4.5D EVIATIONFROM S TANDARDS ......................................................................................................................................5 4.6A BNORMALITIESFROM S TANDARD C ONDITIONS ..........................................................................................................5 4.7O THER I NFORMATION R EQUESTEDBYTHE C USTOMER ................................................................................................5 5SAREVALUATION...........................................................................................................................................................6 5.1RFE XPOSURE C OMPLIANCE R EQUIREMENT .................................................................................................................6 5.1.1Limits....................................................................................................................................................................6 5.1.2TestProcedure....................................................................................................................................................6 5.1.3EUTRFExposureEvaluation..........................................................................................................................7 ReportNo.:EED32P81107302Page4of7 4GeneralInformation 4.1ClientInformation Applicant: MicrolifeCorporation AddressofApplicant: 9F,431,RuiGuangRoad,NeiHuTaipei11492,Taiwan,China Manufacturer: ONBOElectronic(Shenzhen)Co.,Ltd. AddressofManufacturer: No.138,HuashengRoad,LangkouCommunity,DalangStreet,LonghuaDistrict, Shenzhen,China Factory: ONBOElectronic(Shenzhen)Co.,Ltd. AddressofFactory: No.138,HuashengRoad,LangkouCommunity,DalangStreet,LonghuaDistrict, Shenzhen,China 4.2GeneralDescriptionofEUT ProductName:DigitalBloodPressureMonitor ModelNo.(EUT): BP3MX1-1C TradeMark: Mircrolife Devicetype: Portable 4.3 ProductSpecificationsubjectivetothisstandard FrequencyRange:2402MHz~2480MHz ModulationType:GFSK TestPowerGrade:Default TestSoftwareofEUT:nRF_DTM AntennaType: Chipantenna AntennaGain: 3dBi PowerSupply: Adapter Model:DSA-6E-05US060060 Input:AC100-240V,50/60Hz,0.3A Output:6.0V  0.6A Battery6.0V SampleReceivedDate: Jul.19,2023 SampletestedDate: Jul.19,2023toJul.24,2023 Remark: CompanyNameandAddressshownonReport,thesample(s)andsampleInformationwas/wereprovided bytheapplicantwhoshouldberesponsiblefortheauthenticitywhichCTIhasn’tverified. ReportNo.:EED32P81107302Page5of7 4.4TestLocation Alltestswereperformedat: CentreTestingInternationalGroupCo.,Ltd BuildingC,HongweiIndustrialParkBlock70,Bao'anDistrict,Shenzhen,China Telephone:+86(0)75533683668Fax:+86(0)75533683385 Notestsweresub-contracted. FCCDesignationNo.:CN1164 4.5DeviationfromStandards None. 4.6AbnormalitiesfromStandardConditions None. 4.7OtherInformationRequestedbytheCustomer None. ReportNo.:EED32P81107302Page6of7 5SAREvaluation 5.1RFExposureComplianceRequirement 5.1.1Limits TheSAR-basedexemptionformulaof§1.1307(b)(3)(i)(B),repeatedhereasFormula(B.2),appliesfor singlefixed,mobile,andportableRFsourceswithavailablemaximumtime-averagedpoweroreffective radiatedpower(ERP),whicheverisgreater,oflessthanorequaltothethresholdPth(mW). Thismethodshallonlybeusedatseparationdistancesfrom0.5cmto40cmandatfrequenciesfrom 0.3GHzto6GHz(inclusive).PthisgivenbyFormula andfisinGHz,distheseparationdistance(cm),andERP20cmisperFormula(B.1). The1mWBlanketExemptionof§1.1307(b)(3)(i)(A)appliesforsinglefixed,mobile,andportableRF sourceswithavailablemaximumtime-averagedpowerofnomorethan1mW,regardlessofseparation distance. 5.1.2TestProcedure SoftwareprovidedbyclientenabledtheEUTtotransmitandreceivedataatlowest,middleandhighest channelindividually. ReportNo.:EED32P81107302Page7of7 5.1.3EUTRFExposureEvaluation ForStandalone: ForBLE Frequency …

Text truncated - open the document above for the full version.

ReportNo.:EED32P81107301Page1of24 Appendix:BluetoothLE ReportNo.:EED32P81107301Page2of24 Contents Contents.....................................................................................................................................................................................................2 DutyCycle..................................................................................................................................................................................................3 MaximumPeakConductedOutputPower..................................................................................................................................................6 -6dBBandwidth..........................................................................................................................................................................................9 OccupiedChannelBandwidth..................................................................................................................................................................12 MaximumPowerSpectralDensityLevel..................................................................................................................................................15 BandEdge................................................................................................................................................................................................18 ConductedRFSpuriousEmission............................................................................................................................................................21 ReportNo.:EED32P81107301Page3of24 DutyCycle ConditionModeFrequency(MHz)AntennaDutyCycle(%)CorrectionFactor(dB)1/T(kHz) NVNTBLE1M2402Ant168.251.662.33 NVNTBLE1M2440Ant169.351.592.33 NVNTBLE1M2480Ant168.251.662.33 ReportNo.:EED32P81107301Page4of24 TestGraphs DutyCycleNVNTBLE1M2402MHzAnt1 DutyCycleNVNTBLE1M2440MHzAnt1 ReportNo.:EED32P81107301Page5of24 DutyCycleNVNTBLE1M2480MHzAnt1 ReportNo.:EED32P81107301Page6of24 MaximumPeakConductedOutputPower ConditionModeFrequency (MHz) AntennaConductedPower (dBm) Limit (dBm) Verdict NVNTBLE1M2402Ant10.2630Pass NVNTBLE1M2440Ant1-1.1430Pass NVNTBLE1M2480Ant1-2.5130Pass ReportNo.:EED32P81107301Page7of24 TestGraphs PeakPowerNVNTBLE1M2402MHzAnt1 PeakPowerNVNTBLE1M2440MHzAnt1 ReportNo.:EED32P81107301Page8of24 PeakPowerNVNTBLE1M2480MHzAnt1 ReportNo.:EED32P81107301Page9of24 -6dBBandwidth ConditionModeFrequency(MHz)Antenna-6dBBandwidth(MHz)Limit-6dBBandwidth(MHz)Verdict NVNTBLE1M2402Ant10.7510.5Pass NVNTBLE1M2440Ant10.7840.5Pass NVNTBLE1M2480Ant10.7750.5Pass ReportNo.:EED32P81107301Page10of24 TestGraphs -6dBBandwidthNVNTBLE1M2402MHzAnt1 -6dBBandwidthNVNTBLE1M2440MHzAnt1 ReportNo.:EED32P81107301Page11of24 -6dBBandwidthNVNTBLE1M2480MHzAnt1 ReportNo.:EED32P81107301Page12of24 OccupiedChannelBandwidth ConditionModeFrequency(MHz)Antenna99%OBW(MHz) NVNTBLE1M2402Ant11.056 NVNTBLE1M2440Ant11.068 NVNTBLE1M2480Ant11.062 ReportNo.:EED32P81107301Page13of24 TestGraphs OBWNVNTBLE1M2402MHzAnt1 OBWNVNTBLE1M2440MHzAnt1 ReportNo.:EED32P81107301Page14of24 OBWNVNTBLE1M2480MHzAnt1 ReportNo.:EED32P81107301Page15of24 MaximumPowerSpectralDensityLevel ConditionModeFrequency (MHz) AntennaConductedPSD (dBm/3kHz) Limit (dBm/3kHz) Verdict NVNTBLE1M2402Ant1-12.158Pass NVNTBLE1M2440Ant1-13.018Pass NVNTBLE1M2480Ant1-14.558Pass ReportNo.:EED32P81107301Page16of24 TestGraphs PSDNVNTBLE1M2402MHzAnt1 PSDNVNTBLE1M2440MHzAnt1 ReportNo.:EED32P81107301Page17of24 PSDNVNTBLE1M2480MHzAnt1 ReportNo.:EED32P81107301Page18of24 BandEdge ConditionModeFrequency(MHz)AntennaMaxValue(dBc)Limit(dBc)Verdict NVNTBLE1M2402Ant1-40.67-20Pass NVNTBLE1M2480Ant1-39.35-20Pass ReportNo.:EED32P81107301Page19of24 TestGraphs BandEdgeNVNTBLE1M2402MHzAnt1Ref BandEdgeNVNTBLE1M2402MHzAnt1Emission ReportNo.:EED32P81107301Page20of24 BandEdgeNVNTBLE1M2480MHzAnt1Ref BandEdgeNVNTBLE1M2480MHzAnt1Emission ReportNo.:EED32P81107301Page21of24 ConductedRFSpuriousEmission ConditionModeFrequency(MHz)AntennaMaxValue(dBc)Limit(dBc)Verdict NVNTBLE1M2402Ant1-41.79-20Pass NVNTBLE1M2440Ant1-33.51-20Pass NVNTBLE1M2480Ant1-45.68-20Pass ReportNo.:EED32P81107301Page22of24 TestGraphs Tx.SpuriousNVNTBLE1M2402MHzAnt1Ref Tx.SpuriousNVNTBLE1M2402MHzAnt1Emission ReportNo.:EED32P81107301Page23of24 Tx.SpuriousNVNTBLE1M2440MHzAnt1Ref Tx.SpuriousNVNTBLE1M2440MHzAnt1Emission ReportNo.:EED32P81107301Page24of24 Tx.SpuriousNVNTBLE1M2480MHzAnt1Ref Tx.SpuriousNVNTBLE1M2480MHzAnt1Emission ***EndofReport***

ReportNo.:EED32P81107301Page1of43 1 COVERPAGE TESTREPORT Product:DigitalBloodPressureMonitor Trademark:Mircrolife Model/Typereference:BP3MX1-1C SerialNumber:N/A ReportNumber:EED32P81107301 FCCID: U7I-BP3MX1-1C DateofIssue:Jul.27,2023 TestStandards: 47CFRPart15SubpartC Testresult:PASS Preparedfor: MicrolifeCorporation 9F,431,RuiGuangRoad,NeiHuTaipei11492,Taiwan,China Preparedby : CentreTestingInternationalGroupCo.,Ltd. HongweiIndustrialZone,Bao’an70District, Shenzhen,Guangdong,China TEL:+86-755-33683668 FAX:+86-755-33683385 Compiledby:Reviewedby: MarkChenTomChen Approvedby:Date:Jul.27,2023 AaronMa CheckNo.:5855190723 ReportNo.:EED32P81107301Page 2 of 43 2Content 1COVERPAGE.....................................................................................................................................................................1 2CONTENT............................................................................................................................................................................2 3VERSION.............................................................................................................................................................................3 4TESTSUMMARY...............................................................................................................................................................4 5GENERALINFORMATION...............................................................................................................................................5 5.1C LIENT I NFORMATION ....................................................................................................................................................5 5.2G ENERAL D ESCRIPTIONOF EUT.................................................................................................................................5 5.3T EST C ONFIGURATION ..................................................................................................................................................6 5.4T EST E NVIRONMENT .....................................................................................................................................................7 5.5D ESCRIPTIONOF S UPPORT U NITS ...............................................................................................................................7 5.6T EST L OCATION .............................................................................................................................................................7 5.7M EASUREMENT U NCERTAINTY (95% CONFIDENCELEVELS , K =2).............................................................................8 6EQUIPMENTLIST..............................................................................................................................................................9 7TESTRESULTSANDMEASUREMENTDATA.........................................................................................................12 7.1A NTENNA R EQUIREMENT ............................................................................................................................................12 7.2ACP OWER L INE C ONDUCTED E MISSIONS ................................................................................................................13 7.3M AXIMUM C ONDUCTED O UTPUT P OWER ..................................................................................................................16 7.4DTSB ANDWIDTH ........................................................................................................................................................17 7.5M AXIMUM P OWER S PECTRAL D ENSITY .....................................................................................................................18 7.6B AND E DGEMEASUREMENTSAND C ONDUCTED S PURIOUS E MISSION ...................................................................19 7.7R ADIATED S PURIOUS E MISSION &R ESTRICTEDBANDS ...........................................................................................20 8APPENDIXBLE................................................................................................................................................................31 9PHOTOGRAPHSOFTESTSETUP..............................................................................................................................32 10PHOTOGRAPHSOFEUTCONSTRUCTIONALDETAILS...................................................................................34 ReportNo.:EED32P81107301Page 3 of 43 3Version VersionNo.DateDescription 00Jul.27,2023Original ReportNo.:EED32P81107301Page 4 of 43 4TestSummary TestItemTestRequirementResult AntennaRequirement 47CFRPart15SubpartCSection 15.203/15.247(c) PASS ACPowerLineConducted Emission 47CFRPart15SubpartCSection 15.207 PASS DTSBandwidth 47CFRPart15SubpartCSection 15.247(a)(2) PASS MaximumConductedOutput Power 47CFRPart15SubpartCSection 15.247(b)(3) PASS MaximumPowerSpectral Density 47CFRPart15SubpartCSection15.247(e)PASS BandEdgeMeasurements 47CFRPart15SubpartCSection 15.247(d) PASS ConductedSpurious Emissions 47CFRPart15SubpartCSection 15.247(d) PASS RadiatedSpuriousEmission& Restrictedbands 47CFRPart15SubpartCSection 15.205/15.209 PASS Remark: CompanyNameandAddressshownonReport,thesample(s)andsampleInformationwereprovidedbythe applicantwhoshouldberesponsiblefortheauthenticitywhichCTIhasn’tverified. ReportNo.:EED32P81107301Page 5 of 43 5GeneralInformation 5.1ClientInformation Applicant:MicrolifeCorporation AddressofApplicant:9F,431,RuiGuangRoad,NeiHuTaipei11492,Taiwan,China Manufacturer:ONBOElectronic(Shenzhen)Co.,Ltd. AddressofManufacturer:No.138,HuashengRoad,LangkouCommunity,DalangStreet,Longhua District,Shenzhen,China Factory:ONBOElectronic(Shenzhen)Co.,Ltd. AddressofFactory:No.138,HuashengRoad,LangkouCommunity,DalangStreet,Longhua District,Shenzhen,China 5.2GeneralDescriptionofEUT ProductName: DigitalBloodPressureMonitor ModelNo.: …

Text truncated - open the document above for the full version.

ReportNo.:EED32P81107301Page 32 of 43 9PHOTOGRAPHSOFTESTSETUP RadiatedspuriousemissionTestSetup-1 (Below1GHz) RadiatedspuriousemissionTestSetup-2( Above1GHz) ReportNo.:EED32P81107301Page 33 of 43 RadiatedspuriousemissionTestSetup-3( Above1GHz) Thereareabsorbingmaterialsundertheground. ConductedEmissionsTestSetup
