U88-HOME7500Cell Phone Signal Booster

HOME Cellular Signal Booster www.americanbst.com Technical Support : 913 469 6699 HOME 7500 User Guide This publication provides instructions for installing Cellular Signal Booster Home 7500. Copyright© 2019, American Booster Inc. All Rights Reserved. Certication This equipment complies with the FCC / IC directives. Revision History VersionChanges 2019, JanuaryVersion 1.0Original Technical Support : 913 469 6699 www.americanbst.com Date 130 E Covey Run, Union, WA 98592 Technical Support : 913 469 6699 www.americanbst.com SDoC statement Supplier's Declaration of Conformity 47 CFR § 2.1077 Compliance Information Unique Identier: HOME 7500 Responsible Party – U.S. Contact Information FCC Compliance Statement (e.g., products subject to Part 15) This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. 23 HOME 7500 User Guide Product Introduction Package Contents Application Example HOME 7500 Optional Kit Installation Guide STEP 1. Find the Strongest Signal STEP 2. Install the Outside Antenna STEP 3. Run the Outside Antenna Cable STEP 4. Install the Inside Antenna STEP 5. Install the Signal Booster STEP 6. Power up the Booster LED Indicators Troubleshooting Specications Safety Guidelines FCC Warning Statements IC Warning Statements Warranty SDoC statement 4 5 6 7 8 8 10 12 13 14 15 INDEX WARRANTY Opening or tampering with the Signal Booster will void all warranties. American Booster provides a 2-year warranty with all of its equipment. Every product of American Booster is guaranteed to be free of material defects or component malfunctions. This warranty does not cover any Signal Boosters that have been exposed to any misuse, abuse, physical damage or inadequate maintenance. Products returned by customers must be in their original, unmodied condition, shipped in the original packaging with proof of purchase documentation enclosed, and a Return Merchandise Authorization (RMA) number printed on the outside of the shipping box. To repair or replace damaged Signal Boosters we may include refurbished American Booster’s products. 16 17 18 19 20 21 22 23 22 HOME 7500 User Guide How it works HOME 7500 The signal booster’s outside antenna receives voice and data signals from a nearby cell tower. Receives Signal The boosted signals are distributed inside your house/oce. Distributes Signal The signal booster receives the signal from the outside antenna and amplies the voice and data signals. Boosts Signal American Booster Home 7500 has been designed to provide an advanced solution for boosting your signal and increasing the cellular data speeds in your house or oce. ® IC Warning Statements RSS-GEN, Sec. 7.1.2 – (transmitters) Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a type and maximum (or lesser) gain approved for the transmitter by Industry Canada. To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that necessary for successful communication. Conformément à la réglementation d’Industrie Canada, le présent émetteur radio peut fonctionneravec une antenne d’un type et d’un gain maximal (ou inférieur) approuvé pour l’émetteur par Industrie Canada. Dans le but de réduire les risques de brouillage radioélectrique à l’intention desautres utilisateurs, il faut choisir le type d’antenne et son gain de sorte que la puissance isotroperayonnée quivalente (p.i.r.e.) ne dépassepas l’intensité nécessaire à l’établissement d’une communication satisfaisante. RSS-GEN, Sec. 7.1.2 – (detachable antennas) This radio transmitter (identify the device by certication number, or model number if Category II)has been approved by Industry Canada to operate with the antenna types listed below with the maximum permissible gain and required antenna impedance for each antenna type indicated. Antenna types not included in this list, having a gain greater than the maximum gain indicated for that type, are strictly prohibited for use with this device. Le présent émetteur radio (identier le dispositif par son numéro de certication ou son numéro de modèle s’il fait partie du matériel de catégorie I) a été approuvé par Industrie Canada pour fonctionner avec les types d’antenne énumérés ci-dessous et ayant un gain admissible maximal et l’impédance requise pour chaque type d’antenne. Les types d’antenne non inclus dans cette liste,ou dont le gain est supérieur au gain maximal indiqué, sont strictement interdits pour l’exploitation de l’émetteur. RF Radiation Exposure This equipment complies with RF radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of UL : 50cm, DL : 20cm between the radiator and your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. RF exposure will be addressed at time of installation and the use of higher gain antennas require larger separation distances. RSS-102 RF Exposure L’antenne (ou les antennes) doit être installée de façon à maintenir à tout instant une distance minimum de au moins UL : 50cm, DL : 20cm entre la source de radiation (l’antenne) et toute personne physique. Cet appareil ne doit pas être installé ou utilisé en conjonction avec une autre antenne ou émetteur. 21 HOME 7500 User Guide 4 HOME 7500 User Guide Signal Booster Code No. : 83689 Outside Antenna Kit Code No. : 83615 Inside Antenna Kit Code No. : 83616 AC/DC Adaptor Code No. : 835U3 Outside Coaxial Cable Code No. : 8368H Inside Coaxial Cable Code No. : 8368L Package Contents HOME 7500 User Guide HOME Cellular Signal Booster User Guide HF-400 Cable, 75 ft. (N-SMA) HF-400 Cable, 60 ft. (N-SMA) FCC…

Text truncated - open the document above for the full version.

GS Instech Co., Ltd. 1385 -14, Juan-Dong, Nam-Ku, Incheon 402-200, South Korea DATE: Oct. 27, 2019 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 RE: Attes tation for FCC ID: U88-HOME7500 To Whom It May Concern: This letter serves to confirm the device certified under the above ID meets the following requirements: 1. Licensee consent for provider-specific booster has been obtained (consent be made available upon FCC/TCB request) 2. Network Protection Standard (NPS) and other compliance/safeguard feature have been implemented; 3. NPS and other compliance/safeguard features are defaulted to “ON” configuration (in operation); 4. NPS and other compliance/safeguard features cannot be field reconfigured, disabled or removed; 5. Consumer booster is not user programmable, does not need fine tuning or adjustment, does not require professional installation; 6. Future software upgrade will not cause non -compliance. Sincerely,

GS Instech Co., Ltd. 1385-14, Juan-Dong, Nam-Ku, Incheon 402-200 South Korea ___________________________________________________________________________ Date: Oct. 27, 2019 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 RE: Request of Confidentiality for FCC ID: U88-HOME7500 To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, GS Instech Co., Ltd. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give GS Instech Co., Ltd. temporary confidentiality of commercially sensitive information prior to product release. The requested Confidential and Temporary Confidential exhibits are listed as follows: CONFIDENTIAL AND SHORT-TERM CONFIDENTIAL LIST Exhibit Description CONFIDENTIAL 1 Block Diagram 2 Operational Descriptions 3 Parts Lists and Tune-Up Procedure 4 Schematics SHORT-TERM CONFIDENTIAL 5 External Photos 6 Internal Photos 7 Test-Setup Photos 8 User’s Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely, Guanyong Jung, Manager GS Instech C o., Ltd.

GS Instech Co., Ltd. 1385-14, Juan-Dong, Nam-Ku, Incheon 402-200 South Korea HACS-F004 FCC Agent Authorization Letter Rev : 2.0 Date: Oct.27, 2019 To : Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD To whom it may concern: Subject: FCC Agenct Authorization Letter for FCC ID: U88-HOME7500 We, the undersigned, hereby authorize HCT CO., LTD to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by HCT CO., LTD on our behalf shall have the same effect as acts of our own. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). Sincerely, Best Regards, Guanyong Jung, Manager GS Instech Co., Ltd.

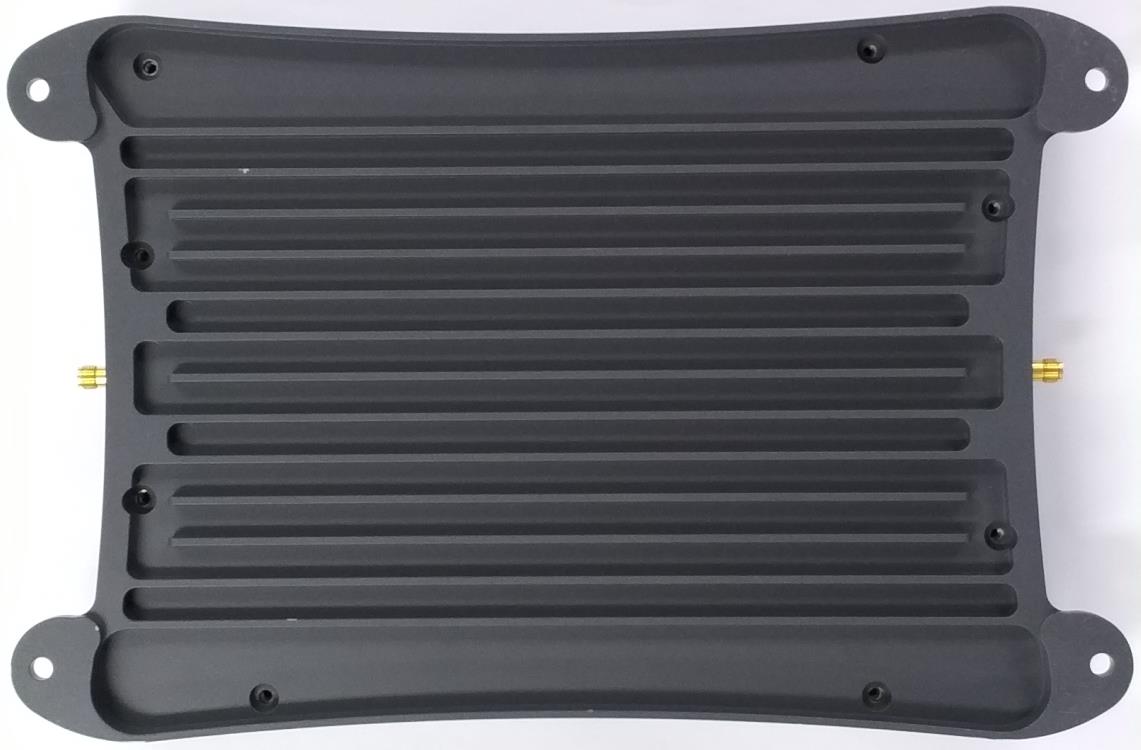

FCC ID / IC: U88-HOME7500 / 8137A-HOME7500 HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page １ of 7 EXTERNAL PHOTOGRAPHS FCC ID / IC: U88-HOME7500 / 8137A-HOME7500 HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ２ of 7 ■ EXTERNAL PHOTO ( Front ) FCC ID / IC: U88-HOME7500 / 8137A-HOME7500 HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ３ of 7 ■ EXTERNAL PHOTO ( Rear ) FCC ID / IC: U88-HOME7500 / 8137A-HOME7500 HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ４ of 7 ■ EXTERNAL PHOTO ( Top ) FCC ID / IC: U88-HOME7500 / 8137A-HOME7500 HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ５ of 7 ■ EXTERNAL PHOTO ( Bottom ) FCC ID / IC: U88-HOME7500 / 8137A-HOME7500 HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ６ of 7 ■ EXTERNAL PHOTO ( Left ) FCC ID / IC: U88-HOME7500 / 8137A-HOME7500 HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ７ of 7 ■ EXTERNAL PHOTO ( Right )

1. FCC & IC label 2. FCC & IC label location

FCC ID / IC: U88-HOME7500 / 8137A-HOME7500 HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page １ of 6 INTERNAL PHOTOGRAPHS FCC ID / IC: U88-HOME7500 / 8137A-HOME7500 HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ２ of 6 [with Cover] FCC ID / IC: U88-HOME7500 / 8137A-HOME7500 HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ３ of 6 [without Cover] FCC ID / IC: U88-HOME7500 / 8137A-HOME7500 HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ４ of 6 [PCB Top_with Cover] FCC ID / IC: U88-HOME7500 / 8137A-HOME7500 HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ５ of 6 [PCB Top_without Cover] FCC ID / IC: U88-HOME7500 / 8137A-HOME7500 HCT CO., LTD 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA TEL : + 82 31 645 6300 FAX : + 82 31 645 6401 www.hct.co.kr Page ６ of 6 [PCB Bottom]

HCT Co., Ltd. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383 KOREA Tel. +82 31 634 6300 F ax. +82 31 645 6401 On your side FCC MPE Test for HOME 7500 Certification APPLICANT GS Instech Co., Ltd. REPORT NO. HCT-RF-1911-FC007 DATE OF ISSUE November 07, 2019 Report No. HCT-RF-1911-FC007 F-TP22-03 (Rev. 01) Page 3 of 15 REVISION HISTORY The revision history for this test report is shown in table. Revision No. Date of Issue Description 0 November 07, 2019 Initial Release The result shown in this test report refer only to the sample(s) tested unless otherwise stated. The measurements shown in this report were made in accordance with the procedures indicated, and the emissions from this equipment were found to be within the limits applicable. I assume full responsibility for the accuracy and completeness of these measurements, and for the qualifications of all persons taking them. It is further stated that upon the basis of the measurements made, the equipment tested is capable of operation in accordance with the requirements of the FCC Rules under normal use and maintenance. Report No. HCT-RF-1911-FC007 F-TP22-03 (Rev. 01) Page 4 of 15 RF Exposure Statement 1. LIMITS According to §1.1310 and §2.1091 RF exposure is calculated. (B) Limits for General Population/Uncontrolled Exposures Frequency range (MHz) Electric field Strength (V/m) Magnetic field Strength (A/m) Power density (mW/cm²) Averaging time (minutes) 0.3 - 1.34 1.34 - 30 30 - 300 300 - 1500 1500 - 100.000 614 824/f 27.5   1.63 2.19/f 0.073   *(100) *(180/ f²) 0.2 f/1500 1.0 30 30 30 30 30 F = frequency in MHz * = Plane-wave equivalent power density 2. MAXIMUM PERMISSIBLE EXPOSURE Prediction Prediction of MPE limit at a given distance S = PG/4πR² S = Power density P = power input to antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna Report No. HCT-RF-1911-FC007 F-TP22-03 (Rev. 01) Page 5 of 15 3. Results 3.1 MPE calculation for standalone operations - Lower 700 MHz ˊ Uplink Max peak output power at antenna input terminal (dBm) 25.000 dBm Max peak output power at antenna input terminal (mW) 316.228 mW Prediction distance 50.00 cm Prediction frequency 706.500 MHz Coupled gain (typical) 6.300 dB Coupled gain (numeric) 4.266 - Power density at prediction frequency 0.0429 mW/cm 2 MPE limit for uncontrolled exposure at prediction frequency 0.4710 mW/cm 2 - Lower 700 MHz ˊ Downlink Max peak output power at antenna input terminal (dBm) 7.000 dBm Max peak output power at antenna input terminal (mW) 5.012 mW Prediction distance 20.00 cm Prediction frequency 736.500 MHz Coupled gain (typical) 2.340 dB Coupled gain (numeric) 1.714 - Power density at prediction frequency 0.0017 mW/cm 2 MPE limit for uncontrolled exposure at prediction frequency 0.4910 mW/cm 2 Report No. HCT-RF-1911-FC007 F-TP22-03 (Rev. 01) Page 6 of 15 - Upper 700 MHz ˊ Uplink Max peak output power at antenna input terminal (dBm) 25.000 dBm Max peak output power at antenna input terminal (mW) 316.228 mW Prediction distance 50.00 cm Prediction frequency 778.500 MHz Coupled gain (typical) 6.218 dB Coupled gain (numeric) 4.186 - Power density at prediction frequency 0.0421 mW/cm 2 MPE limit for uncontrolled exposure at prediction frequency 0.5190 mW/cm 2 - Upper 700 MHz ˊ Downlink Max peak output power at antenna input terminal (dBm) 7.000 dBm Max peak output power at antenna input terminal (mW) 5.012 mW Prediction distance 20.00 cm Prediction frequency 748.500 MHz Coupled gain (typical) 2.475 dB Coupled gain (numeric) 1.768 - Power density at prediction frequency 0.0018 mW/cm 2 MPE limit for uncontrolled exposure at prediction frequency 0.4990 mW/cm 2 Report No. HCT-RF-1911-FC007 F-TP22-03 (Rev. 01) Page 7 of 15 - Cellular ˊ Uplink Max peak output power at antenna input terminal (dBm) 25.000 dBm Max peak output power at antenna input terminal (mW) 316.228 mW Prediction distance 50.00 cm Prediction frequency 826.500 MHz Coupled gain (typical) 6.218 dB Coupled gain (numeric) 4.186 - Power density at prediction frequency 0.0421 mW/cm 2 MPE limit for uncontrolled exposure at prediction frequency 0.5510 mW/cm 2 - Cellular ˊ Downlink Max peak output power at antenna input terminal (dBm) 7.000 dBm Max peak output power at antenna input terminal (mW) 5.012 mW Prediction distance 20.00 cm Prediction frequency 871.500 MHz Coupled gain (typical) 3.369 dB Coupled gain (numeric) 2.172 - Power density at prediction frequency 0.0022 mW/cm 2 MPE limit for uncontrolled exposure at prediction frequency 0.5810 mW/cm 2 Report No. HCT-RF-1911-FC007 F-TP22-03 (Rev. 01) Page 8 of 15 - AWS-1 ˊ Uplink Max peak output power at antenna input terminal (dBm) 25.000 dBm Max peak output power at antenna input terminal (mW) 316.228 mW Prediction distance 50.00 cm Prediction frequency 1712.500 MHz Coupled gain (typical) 7.482 dB Coupled gain (numeric) 5.600 - Power density at prediction frequency 0.0564 mW/cm 2 MPE limit for uncontrolled exposure at prediction frequency 1.0000 mW/cm 2 - AWS-1 ˊ Downlink Max peak output power at antenna input terminal (dBm) 7.000 dBm Max peak output power at antenna input terminal (mW) 5.012 mW Prediction distance 20.00 cm Prediction frequency 2112.500 MHz Coupled gain (typical) 4.010 dB Coupled gain (numeric) 2.518 - Power density at prediction frequency 0.0025 mW/cm 2 MPE limit for uncontrolled exposure at prediction frequency 1.0000 mW/cm 2 Report No. HCT-RF-1911-FC007 F-TP22-03 (Rev. 01) Page 9 of 15 - Broadband PCS ˊ Uplink Max peak output power at antenna input terminal (dBm) 25.000 dBm Max peak output power at antenna input terminal (mW) 316.228 mW Prediction distance 50.00 cm Prediction frequency 1852.500 MHz Coupled gain (typical) 7.175 dB Coupled gain (numeric) 5.218 - Power density at prediction frequency 0.0525 mW/cm 2 MPE limit for uncontrolled exposure at prediction frequency 1.0000 m…

Text truncated - open the document above for the full version.

HCT Co., Ltd. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383 KOREA Tel. +82 31 634 6300 F ax. +82 31 645 6401 On your side FCC Test for HOME 7500 Certification APPLICANT GS Instech Co., Ltd. REPORT NO. HCT-RF-1911-FC006 DATE OF ISSUE November 07, 2019 Report No. HCT-RF-1911-FC006 Page 3 of 255 REVISION HISTORY The revision history for this test report is shown in table. Revision No. Date of Issue Description 0 November 07, 2019 Initial Release The result shown in this test report refer only to the sample(s) tested unless otherwise stated. The measurements shown in this report were made in accordance with the procedures indicated, and the emissions from this equipment were found to be within the limits applicable. I assume full responsibility for the accuracy and completeness of these measurements, and for the qualifications of all persons taking them. It is further stated that upon the basis of the measurements made, the equipment tested is capable of operation in accordance with the requirements of the FCC Rules under normal use and maintenance. Report No. HCT-RF-1911-FC006 Page 4 of 255 CONTENTS 1. GENERAL INFORMATION 5 1.1. APPLICANT INFORMATION 5 1.2. PRODUCT INFORMATION 5 1.3. TEST INFORMATION 6 2. FACILITIES AND ACCREDITATIONS 7 2.1. FACILITIES 7 2.2. EQUIPMENT 7 3. TEST SPECIFICATIONS 8 3.1. STANDARDS 8 3.2. ADDITIONAL DESCRIPTIONS ABOUT TEST 9 3.3. MEASUREMENTUNCERTAINTY 11 3.4. STANDARDS ENVIRONMENTAL TEST CONDITIONS 11 3.5. TEST DIAGRAMS 12 4. TEST EQUIPMENTS 13 5. TEST RESULT 14 5.1. AUTHORIZED FREQUENCY BAND VERIFICATION 14 5.2. MAXIMUM POWER MEASUREMENT 21 5.3. MAXIMUM BOOSTER GAIN COMPUTATION 32 5.4. INTERMODULATION-PRODUCT 35 5.5. OUT-OF-BAND EMISSIONS 47 5.6. CONDUCTED SPURIOUS EMISSIONS 115 5.7. NOISE LIMITS 162 5.8. UPLINK INACTIVITY 176 5.9. VARIABLE BOOSTER GAIN 184 5.10. OCCUPIED BANDWIDTH 192 5.11. OSCILLATION 225 5.12. RADIATED SPURIOUS EMISSIONS 253 6. Annex A_EUT AND TEST SETUP PHOTO 255 Report No. HCT-RF-1911-FC006 Page 5 of 255 1. GENERAL INFORMATION 1.1. APPLICANT INFORMATION Company Name GS Instech Co., Ltd. Company Address 70, Gilpa-ro 71beon-gil, Nam-gu, Inchen, Korea 1.2. PRODUCT INFORMATION EUT Type Cell Phone Signal Booster Power Supply AC ADAPTER (INPUT: AC 100-240 V, 50/60 Hz, 1.0 A, OUTPUT: DC 12 V, 3.0 A) Frequency Range Band Name Uplink (MHz) Downlink (MHz) Lower 700 MHz 704 ~ 716 734 ~ 746 Upper 700 MHz 776 ~ 787 746 ~ 757 Cellular 824 ~ 849 869 ~ 894 AWS-1 1 710 ~ 1 755 2 110 ~ 2 155 Broadband PCS 1 850 ~ 1 915 1 930 ~ 1 995 Utilized Emission Type Band Name Modulation Designator Lower 700 MHz LTE G7W Upper 700 MHz LTE G7W Cellular CDMA, 1xEV-DO, LTE F9W, G7W AWS-1 LTE G7W Broadband PCS CDMA, 1xEV-DO, LTE F9W, G7W Tx Output Power 23 dBm (UL) / 5 dBm (DL) Antenna Peak Gain Donor (AC-D0727P11): LPDA Antenna Server (AC-D7027W08): Wall Mount Antenna Report No. HCT-RF-1911-FC006 Page 6 of 255 1.3. TEST INFORMATION FCC Rule Parts CFR 47 Part 2, Part 20, Part 22, Part 24, Part 27 Measurement Standards KDB 935210 D05 v01r03, ANSI C63.26-2015 Test Location HCT CO., LTD. 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA Report No. HCT-RF-1911-FC006 Page 7 of 255 2. FACILITIES AND ACCREDITATIONS 2.1. FACILITIES The SAC(Semi-Anechoic Chamber) and conducted measurement facility used to collect the radiated data are located at the 74, Seoicheon-ro 578beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do, 17383, Rep. of KOREA. The site is constructed in conformance with the requirements of ANSI C63.4 (Version: 2014) and CISPR Publication 22. Detailed description of test facility was submitted to the Commission and accepted dated April 02, 2018 (Registration Number: KR0032). 2.2. EQUIPMENT Radiated emissions are measured with one or more of the following types of linearly polarized antennas: tuned dipole, bi-conical, log periodic, bi-log, and/or ridged waveguide, horn. Spectrum analyzers with pre-selectors and quasi-peak detectors are used to perform radiated measurements. Calibrated wideband preamplifiers, coaxial cables, and coaxial attenuators are also used for making measurements. All receiving equipment conforms to CISPR Publication 16-1, ˑRadio Interference Measuring Apparatus and Measurement Methods.˒ Report No. HCT-RF-1911-FC006 Page 8 of 255 3. TEST SPECIFICATIONS 3.1. STANDARDS The following tests were conducted on a sample of the equipment for the purpose of demonstrating compliance with FCC Part 2, Part 20, Part 22, Part 24 and Part 27. Description Reference Results Authorized frequency band verification §20.21(e)(3) Compliant Maximum power measurement §20.21(e)(8)(i)(B), §20.21(e)(8)(i)(D), §20.21(e)(8)(ii)(B), §2.1046, §22.913, §24.232, §27.50(b),(c),(d) Compliant Maximum booster gain computation §20.21(e)(8)(i)(B), §20.21(e)(8)(i)(C)(2) Compliant Intermodulation product §20.21(e)(8)(i)(F) Compliant Out-of-band emissions §20.21(e)(8)(i)(E) Compliant Conducted spurious emissions §2.1051, §22.917, §24.238, §27.53(c),(f),(g),(h) Compliant Noise limits §20.21(e)(8)(i)(A), §20.21(e)(8)(i)(H) Compliant Uplink inactivity §20.21(e)(8)(i)(I) Compliant Variable booster gain §20.21(e)(8)(i)(C)(1), §20.21(e)(8)(i)(H) Compliant Occupied bandwidth §2.1049 Compliant Oscillation detection §20.21(e)(5), §20.21(e)(8)(ii)(A) Compliant Radiated spurious emissions §2.1053 Compliant Report No. HCT-RF-1911-FC006 Page 9 of 255 3.2. ADDITIONAL DESCRIPTIONS ABOUT TEST Except for the following cases, EUT was tested under normal operating conditions. : Out-of-band rejection test requires maximum gain condition without AGC This EUT is supported power supply both of AC and DC. Test results are only attached worst cases. The test was generally based on the method of KDB 935210 D05 v01r03 and only followed ANSI C63.26-2015 if there was no test method in KDB standard. The frequency stability measurement has been omitted in accordance with section 3.7 of KDB 935210 D05 v01r03. : It can be confirmed through input-versus-output…

Text truncated - open the document above for the full version.

Report No. HCT-RF-1911-FC006 Page 59 of 255 Out-of-Band Emissions / Lower 700 MHz / Uplink / CDMA / Upper Edge / AGC threshold Out-of-Band Emissions / Lower 700 MHz / Uplink / CDMA / Upper Edge / AGC threshold +10 dB Report No. HCT-RF-1911-FC006 Page 60 of 255 Out-of-Band Emissions / Lower 700 MHz / Uplink / CDMA / Lower Edge / AGC threshold Out-of-Band Emissions / Lower 700 MHz / Uplink / CDMA / Lower Edge / AGC threshold +10 dB Report No. HCT-RF-1911-FC006 Page 61 of 255 Out-of-Band Emissions / Upper 700 MHz / Uplink / GSM / Upper Edge / AGC threshold Out-of-Band Emissions / Upper 700 MHz / Uplink / GSM / Upper Edge / AGC threshold +10 dB Report No. HCT-RF-1911-FC006 Page 62 of 255 Out-of-Band Emissions / Upper 700 MHz / Uplink / GSM / Lower Edge / AGC threshold Out-of-Band Emissions / Upper 700 MHz / Uplink / GSM / Lower Edge / AGC threshold +10 dB Report No. HCT-RF-1911-FC006 Page 63 of 255 Out-of-Band Emissions / Upper 700 MHz / Uplink / LTE 5 MHz / Upper Edge / AGC threshold Out-of-Band Emissions / Upper 700 MHz / Uplink / LTE 5 MHz / Upper Edge / AGC threshold +10 dB Report No. HCT-RF-1911-FC006 Page 64 of 255 Out-of-Band Emissions / Upper 700 MHz / Uplink / LTE 5 MHz / Lower Edge / AGC threshold Out-of-Band Emissions / Upper 700 MHz / Uplink / LTE 5 MHz / Lower Edge / AGC threshold +10 dB Report No. HCT-RF-1911-FC006 Page 65 of 255 Out-of-Band Emissions / Upper 700 MHz / Uplink / CDMA / Upper Edge / AGC threshold Out-of-Band Emissions / Upper 700 MHz / Uplink / CDMA / Upper Edge / AGC threshold +10 dB Report No. HCT-RF-1911-FC006 Page 66 of 255 Out-of-Band Emissions / Upper 700 MHz / Uplink / CDMA / Lower Edge / AGC threshold Out-of-Band Emissions / Upper 700 MHz / Uplink / CDMA / Lower Edge / AGC threshold +10 dB Report No. HCT-RF-1911-FC006 Page 67 of 255 Out-of-Band Emissions / Cellular / Uplink / GSM / Upper Edge / AGC threshold Out-of-Band Emissions / Cellular / Uplink / GSM / Upper Edge / AGC threshold +10 dB Report No. HCT-RF-1911-FC006 Page 68 of 255 Out-of-Band Emissions / Cellular / Uplink / GSM / Lower Edge / AGC threshold Out-of-Band Emissions / Cellular / Uplink / GSM / Lower Edge / AGC threshold +10 dB Report No. HCT-RF-1911-FC006 Page 69 of 255 Out-of-Band Emissions / Cellular / Uplink / LTE 5 MHz / Upper Edge / AGC threshold Out-of-Band Emissions / Cellular / Uplink / LTE 5 MHz / Upper Edge / AGC threshold +10 dB Report No. HCT-RF-1911-FC006 Page 70 of 255 Out-of-Band Emissions / Cellular / Uplink / LTE 5 MHz / Lower Edge / AGC threshold Out-of-Band Emissions / Cellular / Uplink / LTE 5 MHz / Lower Edge / AGC threshold +10 dB Report No. HCT-RF-1911-FC006 Page 71 of 255 Out-of-Band Emissions / Cellular / Uplink / CDMA / Upper Edge / AGC threshold Out-of-Band Emissions / Cellular / Uplink / CDMA / Upper Edge / AGC threshold +10 dB Report No. HCT-RF-1911-FC006 Page 72 of 255 Out-of-Band Emissions / Cellular / Uplink / CDMA / Lower Edge / AGC threshold Out-of-Band Emissions / Cellular / Uplink / CDMA / Lower Edge / AGC threshold +10 dB Report No. HCT-RF-1911-FC006 Page 73 of 255 Out-of-Band Emissions / AWS-1 / Uplink / GSM / Upper Edge / AGC threshold Out-of-Band Emissions / AWS-1 / Uplink / GSM / Upper Edge / AGC threshold +10 dB Report No. HCT-RF-1911-FC006 Page 74 of 255 Out-of-Band Emissions / AWS-1 / Uplink / GSM / Lower Edge / AGC threshold Out-of-Band Emissions / AWS-1 / Uplink / GSM / Lower Edge / AGC threshold +10 dB Report No. HCT-RF-1911-FC006 Page 75 of 255 Out-of-Band Emissions / AWS-1 / Uplink / LTE 5 MHz / Upper Edge / AGC threshold Out-of-Band Emissions / AWS-1 / Uplink / LTE 5 MHz / Upper Edge / AGC threshold +10 dB Report No. HCT-RF-1911-FC006 Page 76 of 255 Out-of-Band Emissions / AWS-1 / Uplink / LTE 5 MHz / Lower Edge / AGC threshold Out-of-Band Emissions / AWS-1 / Uplink / LTE 5 MHz / Lower Edge / AGC threshold +10 dB Report No. HCT-RF-1911-FC006 Page 77 of 255 Out-of-Band Emissions / AWS-1 / Uplink / CDMA / Upper Edge / AGC threshold Out-of-Band Emissions / AWS-1 / Uplink / CDMA / Upper Edge / AGC threshold +10 dB Report No. HCT-RF-1911-FC006 Page 78 of 255 Out-of-Band Emissions / AWS-1 / Uplink / CDMA / Lower Edge / AGC threshold Out-of-Band Emissions / AWS-1 / Uplink / CDMA / Lower Edge / AGC threshold +10 dB Report No. HCT-RF-1911-FC006 Page 79 of 255 Out-of-Band Emissions / Broadband PCS / Uplink / GSM / Upper Edge / AGC threshold Out-of-Band Emissions / Broadband PCS / Uplink / GSM / Upper Edge / AGC threshold +10 dB Report No. HCT-RF-1911-FC006 Page 80 of 255 Out-of-Band Emissions / Broadband PCS / Uplink / GSM / Lower Edge / AGC threshold Out-of-Band Emissions / Broadband PCS / Uplink / GSM / Lower Edge / AGC threshold +10 dB

Report No. HCT-RF-1911-FC006 Page 81 of 255 Out-of-Band Emissions / Broadband PCS / Uplink / LTE 5 MHz / Upper Edge / AGC threshold Out-of-Band Emissions / Broadband PCS / Uplink / LTE 5 MHz / Upper Edge / AGC threshold +10 dB Report No. HCT-RF-1911-FC006 Page 82 of 255 Out-of-Band Emissions / Broadband PCS / Uplink / LTE 5 MHz / Lower Edge / AGC threshold Out-of-Band Emissions / Broadband PCS / Uplink / LTE 5 MHz / Lower Edge / AGC threshold +10 dB Report No. HCT-RF-1911-FC006 Page 83 of 255 Out-of-Band Emissions / Broadband PCS / Uplink / CDMA / Upper…
