U9R-W2SW0011WiFi 802.11bgn Module

Wi2Wi, Inc. Doc No. CAS-PDT-DOC Rev.1.32 Datasheet, WLAN Module– W2SW0011 Dated: May 14, 2012 The content of this document is to be treated as strictly confidential and is not to be disclosed, Reproduced or used, except as authorized in writing by Wi2Wi, Inc. Copyright © 2011 Wi2Wi, Inc. Page 1 of 18 Product Datasheet CAS-PDT-DOC Revision 1.32 May 14, 2012 Wi2Wi, Inc. Doc No. CAS-PDT-DOC Rev.1.32 Datasheet, WLAN Module– W2SW0011 Dated: May 14, 2012 The content of this document is to be treated as strictly confidential and is not to be disclosed, Reproduced or used, except as authorized in writing by Wi2Wi, Inc. Copyright © 2011 Wi2Wi, Inc. Page 2 of 18 Table of Contents Table of Contents ........................................................................................................................ 2 1 General Description ........................................................................................................... 4 2 Features .............................................................................................................................. 5 3 System Description ............................................................................................................ 6 3.1 Block Diagram .......................................................................................................................... 6 3.2 Pin Description ......................................................................................................................... 6 4 Electrical Characteristics .................................................................................................. 8 5 Voltage Domains .............................................................................................................. 10 6 WLAN External Host Interface ..................................................................................... 11 6.1 SDIO Timing Diagrams .......................................................................................................... 11 7 WLAN Power-Save Modes ............................................................................................. 12 7.1 Full Power-Down Mode .......................................................................................................... 12 7.2 IEEE Power Save ................................................................................................................... 12 7.3 Deep Sleep............................................................................................................................. 13 8 Antenna and Clock .......................................................................................................... 13 9 Software Specifications ................................................................................................... 13 9.1 Host Processor ....................................................................................................................... 14 10 Normal Operation Mode ................................................................................................. 14 11 Manufacturing Notes ....................................................................................................... 15 11.1 Physical Dimensions and Pad Locations ............................................................................... 15 11.2 Shield Note ............................................................................................................................. 15 11.3 Storage and Baking Instructions ............................................................................................ 15 11.4 Recommended Reflow Profile ................................................................................................ 16 12 Disclaimers ....................................................................................................................... 17 12.1 Data Sheet Status .................................................................................................................. 17 13 Ordering Information ..................................................................................................... 17 14 Certifications .................................................................................................................... 17 15 References ......................................................................................................................... 18 15.1 Specifications ......................................................................................................................... 18 15.2 Trademarks, Patents and Licenses ....................................................................................... 18 15.3 Other ...................................................................................................................................... 18 Wi2Wi, Inc. Doc No. CAS-PDT-DOC Rev.1.32 Datasheet, WLAN Module– W2SW0011 Dated: May 14, 2012 The content of this document is to be treated as strictly confidential and is not to be disclosed, Reproduced or used, except as authorized in writing by Wi2Wi, Inc. Copyright © 2011 Wi2Wi, Inc. Page 3 of 18 List of Figures: Figure 1: Block Diagram ............................................................................................................ 6 Figure 2 SDIO FS Timing......................................................................................................... 11 Figure 3 SDIO HS Timing ........................................................................................................ 11 Figure 4: Normal Operation Mode ........................................................................................... 14 Figure 5: Physical Dimensions and Pad Locations ................................................................... 15 Figure 6: Reflow Profile ........................................................................................................... 16 List of Tables: Table 1: Pin Des…

Text truncated - open the document above for the full version.

55 44 33 22 11 D D C C B B A A SizeScale CAGE Code DWG NO Rev Sheet of Modified: SAN JOSE, CA 95131 1.0 Wi2Wi INC 15 Custom2107 1ST. STREETSUITE 540 W2SW0011 COVER PAGE Friday, June 11, 2010 SizeScale CAGE Code DWG NO Rev Sheet of Modified: SAN JOSE, CA 95131 1.0 Wi2Wi INC 15 Custom2107 1ST. STREETSUITE 540 W2SW0011 COVER PAGE Friday, June 11, 2010 SizeScale CAGE Code DWG NO Rev Sheet of Modified: SAN JOSE, CA 95131 1.0 Wi2Wi INC 15 Custom2107 1ST. STREETSUITE 540 W2SW0011 COVER PAGE Friday, June 11, 2010 Wi2Wi CONFIDENTIAL 3.3VHost Pwr. XTAL/OSC38.4Mhz Host Interface JTAG EEPROM Block Diagram 88W8786 8X8 WLAN TXWLAN RX 802.11b Wirelessat 1, 2, 5.5, 11 Mbps POR and SoftwareConfiguration 802.11g Wirelessat 6, 9, 12, 18, 24,36, 48 and 54 Mbps 802.11B/G/N 1x1 Table of Contents1. Title Page2. SOC Interface - 88W87863. Host Interface4. RF Front End5. Power SupplyRevision History1. 1.0 First Design, July 2009 Antenna Pad SPDT

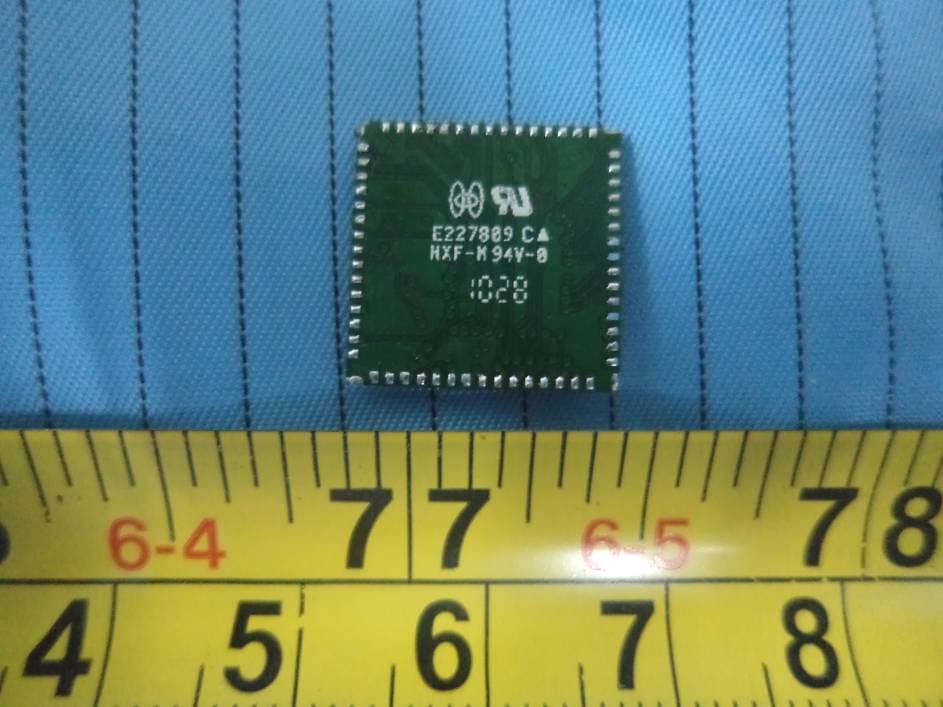

EXHIBIT B - EUT PHOTOGRAPHS EUT – Top View EUT – Bottom View EUT on the Test BoardView EUT – Antenna View EUT

EXHIBIT A - FCC ID LABELING AND LOCATION FCC ID Label FCC ID Label Location Label here FCC ID: U9R-W2SW0011U Model: W2SW0011U Wi2Wi, Inc

1 General Description This specification provides general information regarding performance and integration of W2SW0011, a complete wireless subsystem featuring 802.11 b/g/n WLAN capabilities in a small form factor module. The W2SW0011 device is designed to simplify the process of adding wireless capability without lengthy design cycles or complex RF design. It is completely tested for functionality and performance along with coexistence with other wireless standards. A full menu of certifications will also be provided, simplifying the certification process for your end product while further reducing valuable time-to- market. Based on world-class silicon from Marvell, the W2SW0011 has been fully optimized for throughput and receive sensitivity using careful design practices. Software development resources are available to create drivers for unique processors and operating systems if needed, and to optimize the wireless subsystem for your application. 2 Features  Compact design for easy integration: 15mm x 15mm  LGA with 60 pins  WLAN technology based on Marvell’s 88W8786  Certified radio  Optimized RF and electrical design for better performance in co-existence with other wireless standards  Operates in 2.4GHz ISM band  ROHS Compliant  Single supply of 3.3V  SDIO HS up to 50 MHz, 4 bit  50-Ohm antenna launch  Support for various operating systems  1, 2, 5.5 and 11 Mbps data rates for 802.11b (DSSS/CCK modulation)  6, 9, 12, 18, 24, 36, 48 and 54 Mbps data rates for 802.11g (OFDM modulation)  50 Mps for 802.11n, planned support for 150 Mbs in a later revision

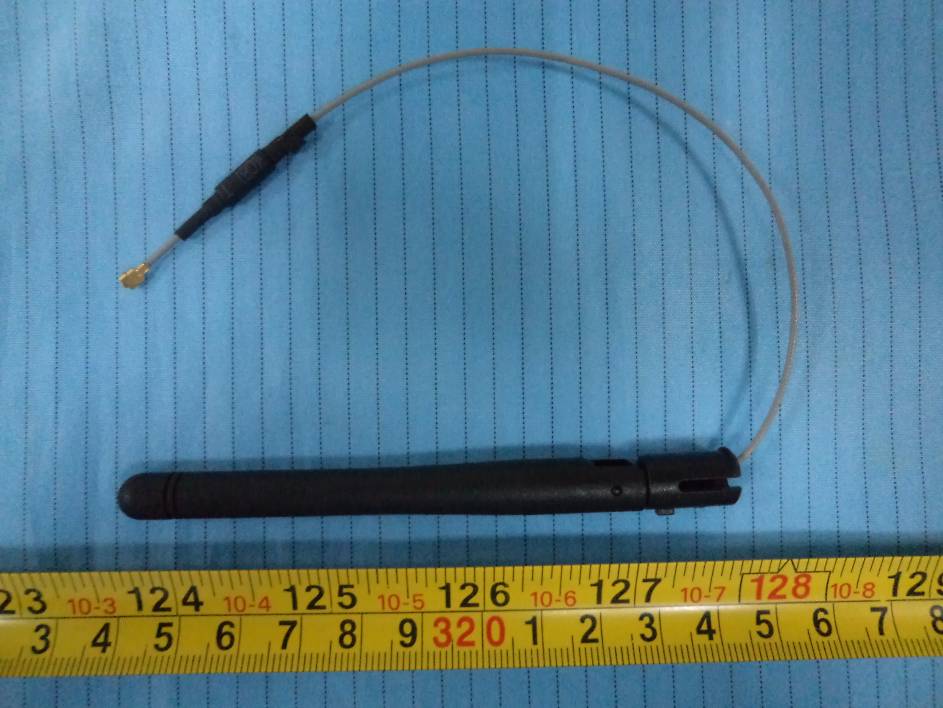

Specifications subject to change without notice. 3425 N.44 th Street, LINCOLN, NE 68504 USA SALES PHONE: 800.228.4563 PHONE: 402.467.4491 • FAX: 402.467.4528 www.centurion.com • [email protected] Copyright © 2005 Centurion Wireless Technologies, Inc. All Rights Reserved Specifications: ƒ ½ wave coaxial dipole ƒ Clutch allows 360º rotation ƒ Flexible element ƒ FCC Part 15 compliant polarized connector Frequency 2.4 – 2.5 GHz Polarization Vertical MMCX 1.0 dBi SMA 2.0 dBi Gain SMRP 1.0 dBi Nominal Impedance 50 ohms VSWR 1.5:1 max at resonance RF Power Handling 50 watts Size (Length) 8cm Temperature Range -40° to +80°C Drop Test 1M Connectors: Model # Part # Connector WCR2400-MMCX WCR2400MMCX MMCX Straight WCR2400-SMA WCR2400SMA SMA-Male WCR2400-SMRP WCR2400SMRP RP-SMA-Male (gold) WCRb – 12/30/05 WCR Model Number: WCR2400 External Antenna – Connector Mount 10 cm 8 cm Azimuth WCR2400MMCX Elevation WCR2400MMCX

§ 15.247(i) Maximum Permissible Exposure RF Exposure Requirements: §1.1307(b)(1) and §1.1307(b)(2): Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission’s guidelines. RF Radiation Exposure Limit: §1.1310: As specified in this section, the Maximum Permissible Exposure (MPE) Limit shall be used to evaluate the environmental impact of human exposure to radiofrequency (RF) radiation as specified in Sec. 1.1307(b), except in the case of portable devices which shall be evaluated according to the provisions of Sec. 2.1093 of this chapter. MPE Limit Calculation: EUT’s operating frequencies @ 2400-2483.5 MHz; highest conducted power = 18.74dBm (peak) therefore, Limit for Uncontrolled exposure: 1 mW/cm 2 or 10 W/m 2 EUT maximum antenna gain = 1.0 dBi. Equation from page 18 of OET 65, Edition 97-01 S = PG / 4R 2 or R = √PG / 4S Where, S=Power Density (mW/cm 2 ) P=Power Input to Antenna (74.82 mW) G=Numeric Antenna Gain (1.26) R =Separation Distance (20 cm) S = (74.82 * 1.26)/(4 * 3.14 * (20) 2 ) = 0.019 mW/cm 2

55 44 33 22 11 D D C C B B A A SizeScale CAGE Code DWG NO Rev Sheet of Modified: 1.0 Wi2Wi INC Friday, May 07, 2010 12 Custom 2107 1ST. STREETSUITE 540SAN JOSE, CA 95131 W2SW0011 Test Board <Cage Code> SizeScale CAGE Code DWG NO Rev Sheet of Modified: 1.0 Wi2Wi INC Friday, May 07, 2010 12 Custom 2107 1ST. STREETSUITE 540SAN JOSE, CA 95131 W2SW0011 Test Board <Cage Code> SizeScale CAGE Code DWG NO Rev Sheet of Modified: 1.0 Wi2Wi INC Friday, May 07, 2010 12 Custom 2107 1ST. STREETSUITE 540SAN JOSE, CA 95131 W2SW0011 Test Board <Cage Code> TEST BOARD FOR W2SW0011 Wi2Wi CONFIDENTIAL 2. CONNECTORS1. COVER PAGE Table of Contents Revision History1. 1.0 First Release - Sep. 2009 W2CBW0011 SDIO WF_RESETn MCU_WAKEUPn GSPI LEDS USB UART COVER PAGE 55 44 33 22 11 D D C C B B A A TDITCK RESETn TMSTDO RESETnGPIO4PDn GPIO8GPIO6 TRSTn SD_CLK SDA GPIO0 TMS GPIO7 TDO GPIO3 ECSn TR_N TCK RESETn SD_D0 SRWB GPIO4 SLEEP_CLK SD_CMD PDn SD_D2 GPIO5 SD_D1 TDI TMS2 SDASCLKSRWBECSnSLEEP_CLKGPIO0 TMS2TR_N GPIO1 RS232_DSRRS232_DCD USB_DM RS232_TXD UART_DSRn_3V UART_DTRn_3V UART_SIN_COM_3V RS232_RXDRS232_DTRRS232_RTS UART_SOUT_3VUART_RTSn_3V RS232_CTSRS232_RI SD_D2SD_CMDSD_D1SD_D3SD_D0SD_CLK SLEEP_CLK GPIO5SCLKECSn SCLK GPIO1 GPIO2SD_D3 JTAG_PWR BT_PRIORITY BT_FREQBT_STATE BT_PRIORITYBT_FREQBT_STATE SD_D1SD_D0 SD_D2SD_D3SD_CMD SD_CLK USB_DP TR3_N TR3_N TRSTnTRSTn TRSTn WL_ACTIVE USB_DMUSB_DP UART_SOUT_3VUART_SIN_COM_3V UART_RTSn_3VUART_DSRn_3VUART_DTRn_3V GPIO7GPIO6 GPIO2GPIO3GPIO5 UART_CTS_COM_3V TR_P TR_P GPIO1GPIO2GPIO3GPIO4GPIO5GPIO6GPIO7GPIO8 UART_CTS_COM_3V WL_ACTIVE VIO_X2 VIO_X1 HOST_PWR HOST_PWR VIO_3A VIO_3A USB_PWR VIO_3A HOST_PWR VIO_X1 SD_PWR HOST_PWR V18_D HOST_PWR VIO_X1 V18_D HOST_PWR VIO_X2 VIO_3A HOST_PWR VIO_X2 HOST_PWR SD_PWR USB_3.3V USB_PWR USB_3.3V HOST_PWR SizeScale CAGE Code DWG NO Rev Sheet of Modified: 1.0 Wi2Wi INC Tuesday, November 02, 2010 22 Custom 2107 1ST. STREETSUITE 540SAN JOSE, CA 95131 W2SW0011 Test Board <Cage Code> SizeScale CAGE Code DWG NO Rev Sheet of Modified: 1.0 Wi2Wi INC Tuesday, November 02, 2010 22 Custom 2107 1ST. STREETSUITE 540SAN JOSE, CA 95131 W2SW0011 Test Board <Cage Code> SizeScale CAGE Code DWG NO Rev Sheet of Modified: 1.0 Wi2Wi INC Tuesday, November 02, 2010 22 Custom 2107 1ST. STREETSUITE 540SAN JOSE, CA 95131 W2SW0011 Test Board <Cage Code> JTAG INTERFACE MCUWAKEUPn (IRQ) WiFi LED Wi2Wi CONFIDENTIAL USB INTERFACE UART / RS-232 INTERFACE R: Notations: NL: Load R=100k resistorNo Load. Do not stuff component. Host Interface R 9 NL 88W8786 Sleep CLK External Internal BOOT OPTION SELECT: 65 R R RNLNL R NL NL UARTSPI EEPROM Memory Test 88W8786 5 - BOOT SEL6 - BOOT SEL9 - SLEEP CLK INITIALIZATIONCONFIGURATION SDIO INTERFACE CONNECTORS SD/USB-3.3V Select USB-5V to 3.3V LDO USB/SDIO selection USB (U, default) R17 SDIO 51k NL 88W8786(U) JP7JP7 1 2 C49 10uF 0603 C49 10uF 0603 R20 10k R20 10k R16 1K R16 1K R28 0 R28 0 JP2JP2 SW1SW1 1 1 2 2 J1 HDR9X1_100MIL J1 HDR9X1_100MIL 135792468 (LINE SIDE) (CHIP SIDE) U2 SSOP28MAX3237CAI (LINE SIDE) (CHIP SIDE) U2 SSOP28MAX3237CAI C1+ 28 C1- 25 C2+ 1 C2- 3 T1IN 24 T1OUT 5 T4IN 19 MBAUD 15 V+ 27 V- 4 VCC 26 GND 2 EN 13 T2IN 23 T3IN 22 T2OUT 6 T3OUT 7 T5OUT 12 R1OUT 21 R2OUT 20 T5IN 17 R1IN 8 R2IN 9 R3OUT 18 R3IN 11 R1OUTB 16 T4OUT 10 SHDN 14 J3 WF_ANT J3 WF_ANT R14 10k R14 10k R13 10k R13 10k R55 33 0603 R55 33 0603 C6 100nF C6 100nF R27 0 R27 0 C16 100nF C16 100nF U7XC6210B332MR SOT23P5 U7XC6210B332MR SOT23P5 VIN 1 GND 2 CE 3 NC 4 VOUT 5 C55 10nF C55 10nF C12 10nF C12 10nF C53 10pF C53 10pF SW3SW3 1 1 2 2 C14 NL C14 NL XJ1 SD CONNECTOR XJ1 SD CONNECTOR 1 1 2 2 3 3 4 4 5 5 6 6 7 7 8 8 9 9 R12 10k R12 10k R63 NL R63 NL C11 100nF C11 100nF J4 HDR10X2_100MIL J4 HDR10X2_100MIL 1 1 2 2 3 3 4 4 5 5 6 6 7 7 8 8 9 9 10 10 11 11 12 12 13 13 14 14 15 15 16 16 17 17 18 18 19 19 20 20 D2LEDD2LED R23 NL R23 NL U5 SG-3030JF U5 SG-3030JF VIO 1 GND 2 OUT 3 VDD 4 R26 0 R26 0 R15 10k R15 10k J2 60 PADS J2 60 PADS GPIO3 47 GPIO4 50 GPIO1 49 GPIO0 36 GND28 28 TDI 18 VIO_X21 52 TMS 21 TR3_N 7 SD_D3 39 TMS2 27 TRSTn/SCAN_EN 19 GND10 10 SCLK 53 SD_D2 38 ECSn 24 SD_CLK 40 VIO_X12 56 GND54 54 VIO_X22 55 TR_N 15 TDO 57 SLEEP_CLK 33 SRWB 23 TCK 26 BT_STATE 14 SD_CMD 41 SD_D0 43 VIO_X11 48 GND29 29 GPIO2 34 RESETn 25 WL_ACTIVE 9 HSPWR16 16 HSPWR17 17 WLAN_RF1 59 NC 6 USB_VA33 42 USB_DP 44 GND58 58 NC 5 GND37 37 GND20 20 GND12 12 SD_D1 46 GPIO8 32 GPIO6 35 GPIO5 51 GND60 60 GND3 3 GND1 1 SDA 22 GPIO7 31 PDn 30 BT_PRIORITY 13 BT_FREQ 11 USB_DM 45 TR_P 2 HSPWR4 4 HSPWR8 8 JP4JP4 J5 HDR10X2_100MIL J5 HDR10X2_100MIL 1 1 2 2 3 3 4 4 5 5 6 6 7 7 8 8 9 9 10 10 11 11 12 12 13 13 14 14 15 15 16 16 17 17 18 18 19 19 20 20 JP6JP6 C8 100nF C8 100nF R1833R1833 TP1TP1 R54 3.3 R54 3.3 R24 NL R24 NL C50 1nF 0603 C50 1nF 0603 C10 100nF C10 100nF R3 0 R3 0 C4 100nF C4 100nF J8 USB_TYPE_B J8 USB_TYPE_B D_P 3 D_N 2 PWR 1 GND 4 SHL1 5 SHL2 6 R19 0 R19 0 R17 NL R17 NL U6XC6204B182MR SOT23P5 U6XC6204B182MR SOT23P5 VIN 1 GND 2 CE 3 NC 4 VOUT 5 JP1JP1 1 2 C54 10nF C54 10nF J7 CON_DB9F_RA_PCB J7 CON_DB9F_RA_PCB 594837261 10 11 C9 100nF C9 100nF R5 0 R5 0 J6 HEADER 10x2 J6 HEADER 10x2 1 1 2 2 3 3 4 4 5 5 6 6 7 7 8 8 9 9 10 10 11 11 12 12 13 13 14 14 15 15 16 16 17 17 18 18 19 19 20 20 C52 4.7uF C52 4.7uF JP11JP11 1 2 C13 NL C13 NL C5 10uF C5 10uF R7300R7300 R4 0 R4 0 C7 1nF C7 1nF C15 10uF C15 10uF R6 0 R6 0 R22 10k R22 10k C51 4.7uF C51 4.7uF C1 10uF 0603 C1 10uF 0603 SW2SW2 1 1 2 2 R62 NL R62 NL JP5JP5 1 2 JP3JP3 1 2 R2 0 R2 0 C18 10uF C18 10uF R21 NL R21 NL TP2TP2

MET Laboratories, Inc. Safety Certification - EMI - Telecom Environmental Simulation 914 WEST PATAPSCO AVENUE ! BALTIMORE, MARYLAND 21230-3432 ! PHONE (410) 354-3300 ! FAX (410) 354-3313 33439 WESTERN AVENUE ● UNION CITY, CALIFORNIA 94587 ● PHONE (510) 489-6300 ● FAX (510) 489-6372 3162 BELICK STREET ● SANTA CLARA, CALIFORNIA 95054 ● PHONE (408 748-3585 ● FAX (510) 489-6372 13301 MCCALLEN PASS AUSTIN, TX 78753 - PHONE (512) 287-2500 - FAX (512) 287-2513 The Nation’s First Licensed Nationally Recognized Testing Laboratory May 2, 2012 Wi2Wi, Inc. 629 Gene Autry Lane Murphy, TX 75094 Dear William Lumpkins, Enclosed is the EMC Wireless test report for compliance testing of the Wi2Wi, Inc., W2SW0011i as tested to the requirements of Title 47 of the CFR, Ch. 1 (10-1-06 ed.), Part 15, Subpart B and FCC Part 15 Subpart C for Intentional Radiators. Thank you for using the services of MET Laboratories, Inc. If you have any questions regarding these results or if MET can be of further service to you, please feel free to contact me. Sincerely yours, MET LABORATORIES, INC. Jennifer Warnell Documentation Department Reference: (\Wi2Wi, Inc.\EMCA33356-FCC247 Rev. 1) Certificates and reports shall not be reproduced except in full, without the written permission of MET Laboratories, Inc. Electromagnetic Compatibility Wi2Wi, Inc. Cover Page W2SW0011i CFR Title 47, Part 15B, 15.247 MET Report: EMCA33356-FCC247 Rev. 1 © 2012, MET Laboratories, Inc. Page ii of xi DOC-EMC702 6/18/2009 Electromagnetic Compatibility Criteria Test Report for the Wi2Wi, Inc. W2SW0011i Tested under the FCC Certification Rules contained in Title 47 of the CFR, Parts 15 Subpart B for Class B Digital Devices & 15.247 Subpart C for Intentional Radiators MET Report: EMCA33356-FCC247 Rev. 1 May 2, 2012 Prepared For: Wi2Wi, Inc. 629 Gene Autry Lane Murphy, TX 75094 Prepared By: MET Laboratories, Inc. 914 W. Patapsco Ave. Baltimore, MD 21230 Electromagnetic Compatibility Wi2Wi, Inc. Cover Page W2SW0011i CFR Title 47, Part 15B, 15.247 MET Report: EMCA33356-FCC247 Rev. 1 © 2012, MET Laboratories, Inc. Page iii of xi DOC-EMC702 6/18/2009 Electromagnetic Compatibility Criteria Test Report for the Wi2Wi, Inc. W2SW0011i Tested under the FCC Certification Rules contained in Title 47 of the CFR, Parts 15 Subpart B for Class B Digital Devices & 15.247 Subpart C for Intentional Radiators Dusmantha Tennakoon, Project Engineer Jennifer Warnell Electromagnetic Compatibility Lab Documentation Department Engineering Statement: The measurements shown in this report were made in accordance with the procedures indicated, and the emissions from this equipment were found to be within the limits applicable. I assume full responsibility for the accuracy and completeness of these measurements, and for the qualifications of all persons taking them. It is further stated that upon the basis of the measurements made, the equipment tested is capable of operation in accordance with the requirements of the FCC Rules Part 15B and 15.247 under normal use and maintenance. Shawn McMillen, Wireless Manager, Electromagnetic Compatibility Lab Electromagnetic Compatibility Wi2Wi, Inc. Report Status W2SW0011i CFR Title 47, Part 15B, 15.247 MET Report: EMCA33356-FCC247 Rev. 1 © 2012, MET Laboratories, Inc. Page iv of xi DOC-EMC702 6/18/2009 Report Status Sheet Revision Report Date Reason for Revision  March 7, 2012 Initial Issue. 1 May 2, 2012 Revised to reflect engineer corrections. Electromagnetic Compatibility Wi2Wi, Inc. Table of Contents W2SW0011i CFR Title 47, Part 15B, 15.247 MET Report: EMCA33356-FCC247 Rev. 1 © 2012, MET Laboratories, Inc. Page v of xi DOC-EMC702 6/18/2009 Table of Contents I. Executive Summary .................................................................................................................................................1 A. Purpose of Test ...................................................................................................................................................2 B. Executive Summary ............................................................................................................................................2 II. Equipment Configuration .......................................................................................................................................3 A. Overview .............................................................................................................................................................4 B. References ...........................................................................................................................................................5 C. Test Site ..............................................................................................................................................................5 D. Description of Test Sample .................................................................................................................................6 E. Equipment Configuration ....................................................................................................................................7 F. Support Equipment .............................................................................................................................................8 G. Ports and Cabling Information ............................................................................................................................8 H. Mode of Operation ..............................................................................................................................................8 I. Method of Monitoring EUT Operation ...............................................................................................................8 J. Modifications ......................................................................................................................................................8 a) Modificatio…

Text truncated - open the document above for the full version.

Photograph 1. Conducted Emissions, Test Setup Photograph 2. Radiated Emission, Test Setup Photograph 3. Conducted Emissions, 15.207(a), Test Setup Photograph 4. Radiated Spurious Emissions, Test Setup
