U9S-FX850PGSM850/PCS1900 Dual Band Terminal Equipment(WLL)

User Manual FX-850P Contents ANATOMY ............................................................................................... 1 I NSTALLATION ........................................................................................ 2 1. SIM Card ............................................................................................2 2. Battery ................................................................................................3 3. Installation ..........................................................................................4 C ALLS ..................................................................................................... 5 4. Turn it on/off .......................................................................................5 5. Make a call .........................................................................................6 6. Answer a call ......................................................................................6 B ASICS .................................................................................................... 6 7. Display ................................................................................................6 8. Menu ...................................................................................................8 9. Text input ............................................................................................8 10. Phonebook ..........................................................................................9 11. Phone lock ..........................................................................................9 C USTOMIZE .......................................................................................... 10 12. Date & Time ..................................................................................... 10 13. Ringtone ........................................................................................... 10 14. Answer mode .................................................................................... 11 15. Language .......................................................................................... 11 16. Greeting text ..................................................................................... 11 O THER FEATURES .................................................................................. 11 17. Alarm ................................................................................................ 11 18. Calendar ............................................................................................ 12 19. Calculator ......................................................................................... 12 M ENU MAP ............................................................................................ 14 S AFETY AND GENERAL INFORMATION ................................................. 17 1 Anatomy Left soft key Right soft keyNavigation key Call key End key Power on/off Calculator key Speaker key 2 Installation 1. SIM Card ①. Pull the hook of the battery door on the back of phone. ②. Open the battery door. ③. Insert SIM card into the SIM slot in the right direction. Caution: Don’t bend or scratch your SIM card. Keep it away from static electricity, water and dirt. 3 2. Battery ④. Connect the battery plug with the slot of phone . Tip: The plug and slot have the direction and it will be connected only in the right direction. ⑤. Lay the battery and close the door Tip: New batteries are not fully charged and phone will not turn on when the battery is connected. Battery will work as the back-up 4 3. Installation ⑥. Open the box and prepare the poison to put the phone. ⑦. Connect the receiver with Phone ⑧. Connect the antenna with Phone 5 ⑨. Connect the DC adapter with Phone and plug the DC adapter into your power outlet. Calls 4. Turn it on/off To turn on your phone, press and hold “End key” for a few seconds or until the display turns on. If prompted, enter your 4-digit PIN code. Caution: If you enter an incorrect PIN code 3 times in a row, your SIM card is disabled and your display shows SIM Blocked. Contact your service provider. To turn off your phone, press and hold “End key” for a few seconds 6 5. Make a call 1) Raise your receiver and enter phone number which you want to call. 2) Enter phone number and press “Call key” to make a call. Tip: In some menus like Phonebook, Message, Call log, etc. which have individual phone number, Press “Call key” directly to make a call. 6. Answer a call When your phone rings, just raise your receiver to answer, or press “Call key” or “Speaker key” to answer in speaker phone mode. Basics 7. Display The display shows when you turn on the phone. [Status indicator] Status indicators Time & Date Soft keys PLMN Greeting text 7 1) Signal strength indicator - Vertical bars show the strength of the network connection. 2) Network indicator - Shows network status. : Cannot make or receive calls : Network forwarding 3) Phone lock indicator - Shows when your phone is locked. : Phone lock 4) Message indicator - Shows when you receive a new message. : Text message : Voice message 5) Alarm indicator - Shows when the alarm is active. 6) Mute indicator - Shows when the ringtone is silent. 7) Battery level indicator - Vertical bars show the battery charge level. 8 8. Menu From the idle screen, press “Left soft key” to enter the main menu. Scroll up or down to highlight the menu by “Navigation key” and press “Left soft key” to enter the menu you want. 9. Text input Text input is used for creating message, editing phonebook entry, changing idle banner, etc. z To change the input mode, press “Pound key” to toggle in numeric mode, upper letter mode and lower letter mode. z To input Symbol, press “Star key” to change the input mode. z To input common symbol, press “1 key” to input several common symbols. Tip: If you want to input the different language with the current language setting, You have to change “language” set…

Text truncated - open the document above for the full version.

2th FL, Sam Young B/D, 106-2, Banpo-Dong, Seocho-Gu, Seoul, 137-040, Korea February 22, 2007 MET Laboratories Inc. 914 W. Patapsco Ave. Baltimore, MD 21230 LETTER OF AUTHORIZATION To whom it may concern: We, the undersigned, hereby authorize DIGITAL EMC Co., Ltd., to act on our behalf in all manners relating to application for equipment authorization for FCC ID: U9S-FX850P including signing of all documents relating to these matters. Any and all acts carried out by DIGITAL EMC Co., Ltd., on our behalf shall have the same affect as acts of our own. This authorization is valid until further written notice from i-Sirius co., Ltd. Sincerely, Steve Bae / Manager

2th FL, Sam Young B/D, 106-2, Banpo-Dong, Seocho-Gu, Seoul, 137-040, Korea February 22, 2007 MET Laboratories Inc. 914 W. Patapsco Ave. Baltimore, MD 21230 In re: i-Sirius co., Ltd. FCC ID: U9S-FX850P Request for Confidentiality Gentlemen: In accordance with 0.457 and 0.459 of CFR 47, i-Sirius co., Ltd. hereby requests confidentiality of the Block diagram(Block Diagram_ U9S-FX850P.pdf), Schematics(Schematic_ U9S-FX850P.pdf), Parts list(Part List_ U9S- FX850P.pdf) and Operational description(Operational Description_ U9S-FX850P.pdf). These documents contain detailed system and equipment description and related information about the product which from i-Sirius co., Ltd. considers to be proprietary, confidential, and a custom design and, otherwise, would not release to the general public. Since this design is a basis from which future technological products will evolve, from i-Sirius co., Ltd. considers that this information would be of benefit to its competitors, and that the disclosure of the information in these documents would give competitors an unfair advantage in the market. Sincerely, Steve Bae / Manager

2th FL, Sam Young B/D, 106-2, Banpo-Dong, Seocho-Gu, Seoul, 137-040, Korea February 22, 2007 MET Laboratories Inc. 914 W. Patapsco Ave. Baltimore, MD 21230 In re: i-Sirius co., Ltd. FCC ID: U9S-FX850P Request for Short-Term Confidentiality To Whom It May Concern: In accordance with 0.457 and 0.459 of CFR 47, i-Sirius co., Ltd. requests short-term confidentiality of following sections of this application for a period of 45 days after grant is issued. Test setup photos(Test Photo_ U9S-FX850P.pdf) External photos(Ext Photo_ U9S-FX850P.pdf) Internal photos(Int Photo_ U9S-FX850P.pdf) User’s manual(User Manual_ U9S-FX850P.pdf) These documents contain detailed system and equipment descriptions and related information about the product, which i-Sirius co., Ltd. considers to be proprietary, confidential, and a custom design and otherwise, would not release to the general public. Since this design is a basis from which future technological products will evolve, i-Sirius co., Ltd. feels that this information would be of benefit to its competitors, and that the disclosure of the information in these documents would give our competitors an unfair advantage in the market. Sincerely, Steve Bae / Manager

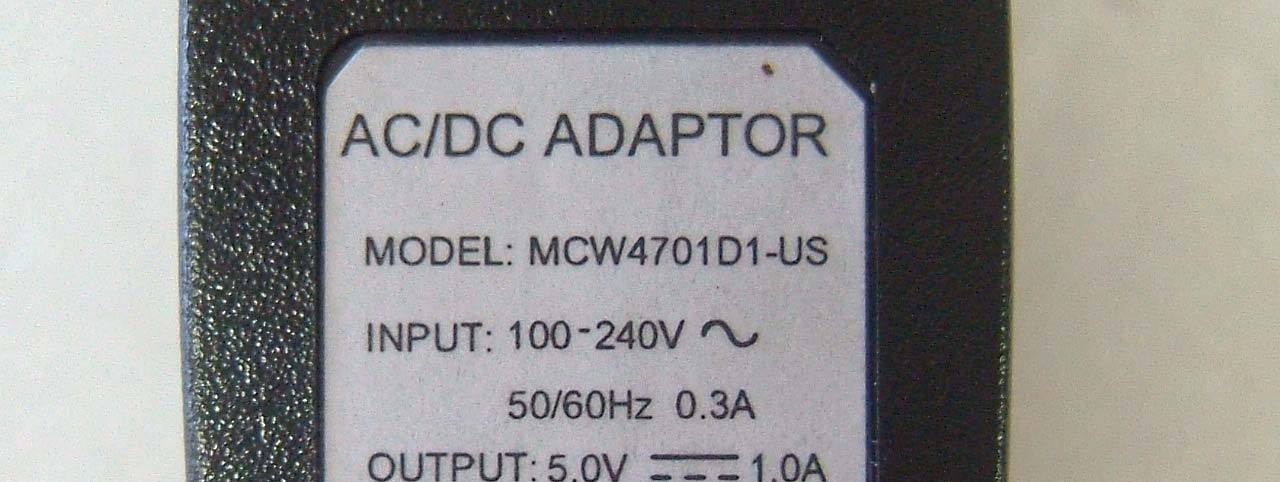

FCCID: U9S-FX850P Copyright Ⓒ 2007, DIGITAL EMC Co., Ltd. View 1 FCCID: U9S-FX850P Copyright Ⓒ 2007, DIGITAL EMC Co., Ltd. View 2 FCCID: U9S-FX850P Copyright Ⓒ 2007, DIGITAL EMC Co., Ltd. View 3 FCCID: U9S-FX850P Copyright Ⓒ 2007, DIGITAL EMC Co., Ltd. View 4 FCCID: U9S-FX850P Copyright Ⓒ 2007, DIGITAL EMC Co., Ltd. View 5

FCC ID: U9S-FX850P FCC ID SAMPLE LABEL & LOCATION LABELLING REQUIREMENTS PER §2.925 The Label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase

FCC ID: U9S-FX850P Copyright Ⓒ 2007, DIGITAL EMC Co., Ltd. View 1 FCC ID: U9S-FX850P Copyright Ⓒ 2007, DIGITAL EMC Co., Ltd. View 2 FCC ID: U9S-FX850P Copyright Ⓒ 2007, DIGITAL EMC Co., Ltd. View 3 FCC ID: U9S-FX850P Copyright Ⓒ 2007, DIGITAL EMC Co., Ltd. View 4 FCC ID: U9S-FX850P Copyright Ⓒ 2007, DIGITAL EMC Co., Ltd. View 5 FCC ID: U9S-FX850P Copyright Ⓒ 2007, DIGITAL EMC Co., Ltd. View 6 FCC ID: U9S-FX850P Copyright Ⓒ 2007, DIGITAL EMC Co., Ltd. View 7 FCC ID: U9S-FX850P Copyright Ⓒ 2007, DIGITAL EMC Co., Ltd. View 8

Applicant: i-Sirius Co., Ltd. FCC ID : U9S-FX850P TUNE-UP PROCEDURE There are no user accessible adjustments or tuning in this GSM phone. All necessary adjustments and tuning are performed during manufacture of the product. Any adjustments or tuning after service or repair are done as part of that process as special equipment is required to perform such adjustments.

Copyright ○ c 2007, DIGITAL EMC Co., Ltd. PROBE CALIBRATION

Copyright ○ c 2007, DIGITAL EMC Co., Ltd. DIPOLE CALIBRATION Copyright ○ c 2007, DIGITAL EMC Co., Ltd. 1. 835 Dipole Calibration Copyright ○ c 2007, DIGITAL EMC Co., Ltd. 2. 1900 Dipole Calibration

DIGITAL EMC CO., LTD DUT: Dipole 835 MHz; Type: D835V2; Serial: D835V2 - SN:464 Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium parameters used: f = 835 MHz; σ = 0.897 mho/m; ε r = 41.5; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: Probe: ET3DV6 - SN1703; ConvF(6.52, 6.52, 6.52); Calibrated: 2006-09-20; Electronics: DAE3 Sn520 Phantom: SAM with 835MHz; Type: SAM; Serial: TP-1223 Measurement SW: DASY4, V4.6 Build 23; Postprocessing SW: SEMCAD, V1.8 Build 161 Test Date: 2007-03-07; Ambient Temp: 20.5; Tissue Temp: 20.0 Dipole Validation Area Scan (51x101x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Power Drift = -0.003 dB Peak SAR (extrapolated) = 3.80 W/kg SAR(1 g) = 2.53 mW/g; SAR(10 g) = 1.65 mW/g 0 dB = 2.74mW/g DIGITAL EMC CO., LTD DUT: Dipole 1900 MHz; Type: D1900V2; Serial: D1900V2 - SN:5d029 Communication System: CW; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium parameters used: f = 1900 MHz; σ = 1.4 mho/m; ε r = 38.9; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: Probe: ET3DV6 - SN1703; ConvF(5.38, 5.38, 5.38); Calibrated: 2006-09-20; Electronics: DAE3 Sn520 Phantom: SAM 1800/1900 MHz; Type: SAM; Serial: TP-1224 Measurement SW: DASY4, V4.6 Build 23; Postprocessing SW: SEMCAD, V1.8 Build 161 Test Date: 2007-03-08; Ambient Temp: 20.5; Tissue Temp: 20.0 Dipole Validation Area Scan (51x81x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Power Drift = 0.025 dB Peak SAR (extrapolated) = 17.4 W/kg SAR(1 g) = 9.93 mW/g; SAR(10 g) = 5.17 mW/g 0 dB = 11.1mW/g DIGITAL EMC CO., LTD DUT: FX850P; Type: WLL Communication System: GSM 850; Frequency: 824.2 MHz;Duty Cycle: 1:8.3 Medium parameters used: f = 824.2 MHz; σ = 0.994 mho/m; ε r = 54.3; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: Probe: ET3DV6 - SN1703; ConvF(6.29, 6.29, 6.29); Calibrated: 2006-09-20; Electronics: DAE3 Sn520 Phantom: SAM with 835MHz; Type: SAM; Serial: TP-1223 Measurement SW: DASY4, V4.6 Build 23; Postprocessing SW: SEMCAD, V1.8 Build 161 Test Date: 2007-03-07; Ambient Temp: 20.5; Tissue Temp: 20.0 2.5cm from Body, GSM Ch.128, Ant Fixed, Charger Mode Area Scan (51x141x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Power Drift = -0.034 dB Peak SAR (extrapolated) = 0.752 W/kg SAR(1 g) = 0.574 mW/g; SAR(10 g) = 0.409 mW/g 0 dB = 0.607mW/g DIGITAL EMC CO., LTD DUT: FX850P; Type: WLL Communication System: GSM 850; Frequency: 836.6 MHz;Duty Cycle: 1:8.3 Medium parameters used: f = 836.6 MHz; σ = 1 mho/m; ε r = 54.2; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: Probe: ET3DV6 - SN1703; ConvF(6.29, 6.29, 6.29); Calibrated: 2006-09-20; Electronics: DAE3 Sn520 Phantom: SAM with 835MHz; Type: SAM; Serial: TP-1223 Measurement SW: DASY4, V4.6 Build 23; Postprocessing SW: SEMCAD, V1.8 Build 161 Test Date: 2007-03-07; Ambient Temp: 20.5; Tissue Temp: 20.0 2.5cm from Body, GSM Ch.190, Ant Fixed, Charger Mode Area Scan (51x131x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Power Drift = -0.047 dB Peak SAR (extrapolated) = 0.809 W/kg SAR(1 g) = 0.605 mW/g; SAR(10 g) = 0.428 mW/g 0 dB = 0.644mW/g DIGITAL EMC CO., LTD DUT: FX850P; Type: WLL Communication System: GSM 850; Frequency: 848.8 MHz;Duty Cycle: 1:8.3 Medium parameters used: f = 848.8 MHz; σ = 1.02 mho/m; ε r = 54.1; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: Probe: ET3DV6 - SN1703; ConvF(6.29, 6.29, 6.29); Calibrated: 2006-09-20; Electronics: DAE3 Sn520 Phantom: SAM with 835MHz; Type: SAM; Serial: TP-1223 Measurement SW: DASY4, V4.6 Build 23; Postprocessing SW: SEMCAD, V1.8 Build 161 Test Date: 2007-03-07; Ambient Temp: 20.5; Tissue Temp: 20.0 2.5cm from Body, GSM Ch.251, Ant Fixed, Charger Mode Area Scan (51x131x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Power Drift = -0.016 dB Peak SAR (extrapolated) = 0.862 W/kg SAR(1 g) = 0.641 mW/g; SAR(10 g) = 0.454 mW/g 0 dB = 0.683mW/g DIGITAL EMC CO., LTD DUT: FX850P; Type: WLL Communication System: PCS 1900; Frequency: 1850.2 MHz;Duty Cycle: 1:8.3 Medium parameters used: f = 1850.2 MHz; σ = 1.51 mho/m; ε r = 51.6; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: Probe: ET3DV6 - SN1703; ConvF(4.72, 4.72, 4.72); Calibrated: 2006-09-20; Electronics: DAE3 Sn520 Phantom: SAM 1800/1900 MHz; Type: SAM; Serial: TP-1224 Measurement SW: DASY4, V4.6 Build 23; Postprocessing SW: SEMCAD, V1.8 Build 161 Test Date: 2007-03-08; Ambient Temp: 20.5; Tissue Temp: 20.0 2.5cm from Body, PCS Ch.512, Ant Fixed, Charger Mode Area Scan (51x131x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Power Drift = -0.024 dB Peak SAR (extrapolated) = 0.190 W/kg SAR(1 g) = 0.127 mW/g; SAR(10 g) = 0.085 mW/g 0 dB = 0.136mW/g DIGITAL EMC CO., LTD DUT: FX850P; Type: WLL Communication System: PCS 1900; Frequency: 1880 MHz;Duty Cycle: 1:8.3 Medium parameters used: f = 1880 MHz; σ = 1.54 mho/m; ε r = 51.4; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: Probe: ET3DV6 - SN1703; ConvF(4.72, 4.72, 4.72); Calibrated: 2006-09-20; Electronics: DAE3 Sn520 Phantom: SAM 1800/1900 MHz; Type: SAM; Serial: TP-1224 Measurement SW: DASY4, V4.6 Build 23; Postprocessing SW: SEMCAD, V1.8 Build 161 Test Date: 2007-03-08; Ambient Temp: 20.5; Tissue Temp: 20.0 2.5cm from Body, PCS Ch.661, Ant Fixed, Charger Mode Area Scan (51x131x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Power Drift = 0.022 dB Peak SAR (extrapolated) = 0.176 W/kg SAR(1 g) = 0.118 mW/g; SAR(10 g) = 0.079 mW/g 0 dB = 0.129mW/g DIGITAL EMC CO., LTD DUT: FX850P; Type: WLL Communication System: PCS 1900; Frequency: 1909.8 MHz;Duty Cycle: 1:8.3 Medium parameters used…

Text truncated - open the document above for the full version.

DEMC#DR50110704K Copyright ○ c 2007, DIGITAL EMC Co., Ltd. Page 1 of 48 683-3, Yubang-Dong, Yongin-Si, Kyunggi-Do, Korea. 449-080 Tel: +82-31-321-2664 Fax: +82-31-321-1664 http://www.digitalemc.com CERTIFICATE OF COMPLIANCE FCC Part 22 & 24 Certification Dates of Tests: March 23~30, 2007 Test Report S/N:DR50110704K Test Site : DIGITAL EMC CO., LTD. FCC ID. APPLICANT Classification : Licensed Non-Broadcast Station Transmitter (TNB) FCC Rule Part(s) : §22(H), §24(E), §2 EUT Type : GSM850/PCS1900 Dual Band Terminal Equipment(WLL) Model name : FX-850P Brand name : MOTOROLA Serial number : Identical prototype TX Frequency Range : 824.2 ~ 848.8 MHz (GSM850) / 1850.2 ~ 1909.8 MHz (PCS1900) RX Frequency Range : 869.2 ~ 893.8 MHz (GSM850) / 1930.2 ~ 1989.8 MHz (PCS1900) Max. RF Output Power : 1.035 W ERP GSM850 : 0.909 W EIRP PCS1900 Max. SAR Measurement : 0.641 mW/g GSM850 GPRS Body SAR : 0.127 mW/g PCS1900 GPRS Body SAR Date of Issue : April 24, 2007 U9S-FX850P i-Sirius Co., Ltd. DEMC#DR50110704K Copyright ○ c 2007, DIGITAL EMC Co., Ltd. Page 2 of 48 TABLE OF CONTENTS ATTACHMENT CONFIDENTIALITY LETTER ATTACHMENT AUTHOLIZATION LETTER ATTACHMENT TEST REPORT 1 SCOPE 3 2 INTRODUCTION 4 3 TEST REPORT 5 3.1 SUMMARY OF TEST 5 3.2 POWER OUTPUT 6 3.3 OCUPIED BANDWIDTH 13 3.4 OCCUPIED BANDWIDTH EMISSION LIMIT 17 3.5 SPURIOUS EMISSION AT ANT. TERMINAL 23 3.6 FIELD STRENGTH OF SPURIOUS RADIATION 33 3.7 FREQUENCY STABILITY 40 4 TEST EQUIPMENT 45 5 EMISSION DESIGNATOR 47 6 CONCLUSION 48 ATTACHMENT : PART LOCATION ATTACHMENT : FCC ID LABEL & LOCATION ATTACHMENT : TEST SETUP PHOTOGRAPHS ATTACHMENT : EXTERNAL PHOTOGRAPHS ATTACHMENT : INTERNAL PHOTOGRAPHS ATTACHMENT : BLOCK DIAGRAM(S) ATTACHMENT : SCHEMATIC DIAGRAM(S) ATTACHMENT : OPERATIONAL DESCRIPTION ATTACHMENT : PARTS LI S T ATTACHMENT : USER’S MANUAL ATTACHMENT : SAR TEST REPORT ATTACHMENT : SAR VALIDATION PLOTS ATTACHMENT : SAR TEST PLOTS ATTACHMENT : SAR TEST SETUP PHOTOGRAPHS ATTACHMENT : PROBE CALIBRATION ATTACHMENT : DIPOLE CALIBRATION DEMC#DR50110704K Copyright ○ c 2007, DIGITAL EMC Co., Ltd. Page 3 of 48 MEASUREMENT REPORT 1. Scope Measurement and determination of electromagnetic emissions (EME) of radio frequency devices including intentional and/or unintentional radiators for compliance with the technical rules and regulations of the Federal Communications Commission. §2.1033 General Information z FCC ID: z Quantity: z Tx Freq. Range: z Rx Freq. Range: z Max. Power Rating: z FCC Classification(s): z Equipment (EUT) Type: z Modulation(s): z Frequency Tolerance: z FCC Rule Part(s): z Dates of Tests: z Place of Tests: z Test Report S/N: U9S-FX850P The mass product 824.2 ~ 848.8 MHz (GSM850) / 1850.2 ~ 1909.8 MHz (PCS1900) 869.2 ~ 893.8 MHz (GSM850) / 1930.2 ~ 1989.8 MHz (PCS1900) 1.035W ERP GSM850 0.909W EIRP PCS1900 Licensed Portable Transmitter Held to Ear (PCE) GSM850 / PCS1900 Dual Band Terminal Equipment GMSK ± 0.00025 % (2.5ppm) §22(H), §24(E), §2 March 23~30, 2007 DIGITAL EMC DR50110704K Applicant: i-Sirius Co., Ltd. Address: 2th FL, Sam Young B/D, 106-2, Bandpo-Dong, Seocho-Gu, Seoul, 137-040, Korea Attention: Steve Bae (Manager) DEMC#DR50110704K Copyright ○ c 2007, DIGITAL EMC Co., Ltd. Page 4 of 48 2. General Information This report contains the result of tests performed by: DIGITAL EMC CO., LTD. Address : 683-3, Yubang-Dong, Yongin-Si, Kyunggi-Do, Korea. 449-080 http://www.digitalemc.com E-mail : [email protected] Tel: +82-31-321-2664 Fax: +82-31-321-1664 Quality control in the testing laboratory is implemented as per ISO/IEC 17025 which is the “General requirements for the competents of calibration and testing laboratory”. This laboratory is accredited by NVLAP for NVLAP Lab. Code : 200559-0. Test operator: engineer April 24, 2007 Won-Jung LEE Data Name Signature Report Reviewed By: manager April 24, 2007 Harvey Sung Data Name Signature Ordering party: Company name : i-Sirius Co., Ltd Address : 2th FL, Sam Young B/D, 106-2, Bandpo-Dong, Seocho-Gu Zipcode : 137-040 City/town : Seoul Country : Korea Date of order : February 16, 2007 DEMC#DR50110704K Copyright ○ c 2007, DIGITAL EMC Co., Ltd. Page 5 of 48 3. Test Report 3.1 Summary of test FCC Part Section(s) Parameter Status (note 1) 22.913(a) / 24.232(b), 2.1046 Power Output C 22.917 / 24.238, 2.1049(h)(i) Occupied Bandwidth C 22.917(b) / 24.238(b) Emission Bandwidth C 22.917 / 24.238 2.1051 Emission Limits Transmitter C 2.1053 (a) Field Strength of Spurious Radiation C 2.1055 Frequency Stability C Note 1: C= Complies NC=Not Complies NT=Not Tested NA=Not Applicable The sample was tested according to the following specification: FCC Parts §22(H), §24(E), §2; ANSI C-63.4-2003 DEMC#DR50110704K Copyright ○ c 2007, DIGITAL EMC Co., Ltd. Page 6 of 48 3.2 Power Output FCC ID : U9S-FX850P Specification : 47 CFR 2.1046 (a) Tested Frequency : 824.2MHz, 836.6MHz and 848.8MHz for GSM850 1850.2MHz, 1880.0MHz and 1909.8MHz for PCS1900 Measurement Procedure: - During the process of testing, the EUT was controlled via Radio Communication tester to ensure max Power transmission and proper modulation. - Power output was measured at the RF output terminals when the transmitter is adjusted in accordance with Communication tester (or the tune-up procedure). Measurement Data: GSM850 Channel Frequency (MHz) TEST CONDITIONS Power Step: 5 (dBm) 128 824.2 30.62 190 836.6 30.72 251 848.8 30.85 PCS1900 Channel Frequency (MHz) TEST CONDITIONS Power Step: 0 (dBm) 512 1850.2 29.05 661 1880.0 29.43 810 1909.8 29.71 DEMC#DR50110704K Copyright ○ c 2007, DIGITAL EMC Co., Ltd. Page 7 of 48 POWER OUT. GSM850 Ch.128 POWER OUT. GSM850 Ch.190 DEMC#DR50110704K Copyright ○ c 2007, DIGITAL EMC Co., Ltd. Page 8 of 48 POWER OUT. GSM850 Ch.251 DEMC#DR50110704K Copyright ○ c 2007, DIGITAL EMC Co., Ltd. Page 9 of 48 POWER OUT. PCS1900 Ch.512 POWER OUT. PCS1900 Ch.661 DEMC#DR50110704K Copyright ○ c 2007, DIGITAL EMC Co., Ltd. Page 10 of 48 POWER OUT. PCS1900 Ch.810 DEMC#DR50110704K Copyright ○ c 2007, DIGITAL EMC Co., Ltd. Page 11 of 48 E…
