KCodes 502g 2 USB 2.0 Hi-Speed-Port Wireless Multifunction Router User’s Manual Version 1.0 Table of Contents CHAPTER 1 INTRODUCTION..................................................................................................... 3 1.1 HARDWARE SPECIFICATION.......................................................................................................... 3 1.2 FEATURES..................................................................................................................................... 3 CHAPTER 2 PRODUCT OVERVIEW......................................................................................... 4 2.1 PACKAGE CONTENTS.................................................................................................................... 4 2.2 HARDWARE DESCRIPTION............................................................................................................ 4 2.2.1 Rear Panel..........................................................................................................................4 2.2.2 Front Panel.........................................................................................................................4 2.2.3 LED Indicators..................................................................................................................4 2.3 TYPICAL USAGE............................................................................................................................ 5 CHAPTER 3 INSTALLATION....................................................................................................... 6 3.1 HARDWARE CONNECTIONS.......................................................................................................... 6 3.2 IP SETTING ON WINDOWS............................................................................................................ 6 CHAPTER 4 SETTINGS............................................................................................................. 15 4.1 QUICK SETUP.............................................................................................................................. 15 4.1.1 ADSL Dialup (PPPoE)....................................................................................................15 4.1.2 Static IP.............................................................................................................................16 4.1.3 Automatic IP....................................................................................................................17 4.1.4 Cable Modem (DHCP)....................................................................................................18 4.2 IP CONFIGURATION..................................................................................................................... 19 4.2.1 IP Setup.............................................................................................................................19 4.2.2 DHCP Server....................................................................................................................23 4.2.3 Routing Table..................................................................................................................24 4.3 NAT SETUP................................................................................................................................. 26 4.3.1 Port Trigger......................................................................................................................27 4.3.2 Virtual Server...................................................................................................................28 4.3.3 Virtual DMZ......................................................................................................................30 4.4 FIREWALL SETUP........................................................................................................................ 30 4.4.1 IP Filter..............................................................................................................................31 4.4.2 MAC Filter.........................................................................................................................32 4.5 USB APPLICATION...................................................................................................................... 34 4.5.1 FTP Server........................................................................................................................34 4.5.2 Print Server......................................................................................................................37 4.6 SYSTEM SETUP........................................................................................................................... 46 4.6.1 User Setting.....................................................................................................................46 4.6.2 Time Setup.......................................................................................................................47 4.6.3 Firmware Upgrade..........................................................................................................48 4.6.4 Setting Backup...............................................................................................................49 4.6.5 Restore Default...............................................................................................................50 4.6.6 Wake on LAN...................................................................................................................50 4.7 STATUS & LOG............................................................................................................................ 51 4.7.1 Status................................................................................................................................51 4.7.2 DHCP Leases......................................................................................................…

Text truncated - open the document above for the full version.

Miscellaneous includes web server port setting, access control from WAN and DDNS setting. You can enable or disable some services when clients access from WAN. Enable the DDNS Client: Select Ye s to enable or No to disable the DDNS client. DDNS Server: Select a DDNS server from the drop-down list or click Free Trial to link up a free trial address. User Name or E-mail Address: User name or e-mail address is used as an identity to login to some DDNS services. Password or DDNS Key: Password or DDNS key is used to login to some DDNS services. Host Name: Input the host name you have registered to Dynamic-DNS website. Apply/Cancel: Click Apply to save the settings or click Cancel to aboard. 4.3 NAT Setup 26 NAT Setup contains three functional items including Port Trigger, Virtual Server and Virtual DMZ. 4.3.1 Port Trigger Application-triggered port forwarding opens a port only when a program needs to use it. You can set a trigger port to open an incoming port. When trigger ports are used, the system opens the specified incoming ports. To setup port trigger, follow the instructions below. Enable Port Trigger: Select Ye s to enable or No to disable port trigger. Popular Applications: The drop-down list has listed some popular applications, you can get the port number of an application by selecting from the drop-down list. Or you can also select User Defined from the list 27 and input the port number by yourself. Trigger Ports: Input the port number that will trigger the action. If this port was active by a program, the system will open the corresponding incoming port. Incoming Ports: Input the port number that will be open if the trigger port is active. Protocol: Select from the list whether this rule should be applied to TCP or UDP or both. Description: You can input some description of this rule. Add/Del: After fill up all your requirement of a rule, click Add to add the rule to the rule table. If you want to delete a rule from the table, select the rule and click Del. Then the high-lighted rule will be removed from the list. Apply/Cancel: Click Apply to save the settings or click Cancel to aboard. 4.3.2 Virtual Server The hosts behind a firewall will be invisible from the outside. If you would like to setup a server such as web server or mail server behind the firewall, you will need to setup a virtual server. You can follow the instructions to setup a virtual server. 28 Enable Virtual Server: Select Ye s to enable or No to disable virtual server. Well-Know Applications: The drop-down list has listed some well-know applications, you can get the port number of an application by selecting from the drop-down list. Or you can also select User Defined from the list and input the local port number and server port number by yourself. Local IP: Input the local server IP. For example, the IP address of your web server on you network. Local Port: Input the port number. For example, port 80 for your web server. Server Port: Input the port number that WAN IP takes for this rule. It means all the connections from the Internet to your WAN IP on this port will be redirected to the local IP on the local port you have set. Protocol: Select from the list whether this rule should be applied to TCP or UDP or both. Description: You can input some description of this service. Add/Del: After fill up all your requirement of a rule, click Add to add the rule to 29 the rule table. If you want to delete a rule from the table, select the rule and click Del. Then the high-lighted rule will be removed from the list. Apply/Cancel: Click Apply to save the settings or click Cancel to aboard. 4.3.3 Virtual DMZ You can redirect every connection from the Internet to a computer on your network by setting up a virtual DMZ. Every connection your WAN IP form the Internet will be redirected to the specified IP address on your network. However, this could also increase the security risk of your network. Follow the instructions to setup a virtual DMZ. IP Address of the DMZ host: Input the host IP address where you want all the connections to your WAN IP to be redirected to. Apply/Cancel: Click Apply to save the settings or click Cancel to aboard. 4.4 Firewall Setup There are three ways to block connections. Connections can be blocked by their IP address, MAC address or URL. 30 4.4.1 IP Filter IP Filter blocks connections according to their IP addresses and ports. You can also set start time and end time if you only want to apply the filter rules during a specific period in a day. Enable Firewall: Select Ye s to enable or No to disable firewall. Enable Firewall Log: Select Ye s to enable or No to disable firewall log. Source IP and Port Range: Input the source IP address and port range for the filtering rule. Destination IP and Port Range: Input the destination IP address and port range for the filtering rule. Protocol: Select from the drop-down list whether certain filter rule should 31 apply to TCP or UDP or both. Start Time/End Time: Set a period of time to drop or accept the connection. Type: Select from the drop-down list for dropping or accepting the connection. Add/Del: After fill up all your requirement of a rule, click Add to add the rule to the rule table. If you want to delete a rule from the table, select the rule and click Del. Then the high-lighted rule will be removed from the list. Priority: A connection is to be accepted or to be dropped is according to the first matching rule from the top of the rule table. You can change the priority of a rule by select the rule and click Higher or Lower. Apply/Cancel: Click Apply to save the settings or click Cancel to aboard. 4.4.2 MAC Filter MAC filter drops or accepts a connection according to its MAC address. 32 Enable MAC Filter: Select Ye s to enable or No to disable MAC filter. MAC Address specified will be: Select DROP or ACCEPT from the list to mean all the connections to the MAC addresses on the list should be dropped or accepted. MAC Address: Input the MAC address that y…

Text truncated - open the document above for the full version.

5 5 4 4 3 3 2 2 1 1 DD CC BB AA MINIPCI BUS MINI PCI 1.8V3.3V Antenna B Antenna A TX PA RX 3.3V1.8V 3V3 to 1V8 EEPOM 40MHz X'tal Transceiver 2412-2462 MHz MAC/BB 3.3V 0B MS6833B 27 B Block Diagram Wednesday, January 11, 2006 SizeDocument NumberRev Sheetof Micro-Star International Co., LTD. Date:

KCodes Corporation F2, Number 501 , Section 2, Tiding Blvd.,Neihu District, Taipei 114, I Phone (886) 2.2656.2386 Fax (886\ 2.2797.6047 Taiwan lEmail: [email protected] Request for non-disclosure RF_501_02 KCodes Corporation 2F, No 501, Sec 2, Tiding Blvd. Neihu District, Taipei 114 Taiwan, R.O.C. To: Telefication B.V. Attn: Dept. FCC TCB Edisonstraatl2A 6902 PK ZEVENAAR The Netherlands Subject Request for non-disclosure (FCC lD: U9XKCODES-SO2G) Reference number: KC 5029 Date: 2007-05-17 Dear FCC TCB, Persuant to 47 CFR Section 0.a59(a) & (b), KCodes Corporation hereby requests non-disclosure and confidentialtreatment of the following materials submitted in support of FCC certification application for FCc lD: (U9XKCODES-502G) a. Schematic diagrams b. Operationaldescription Above materials contain secrets, proprietary and technical information, which would customarily be quarded from competitors under 47 CFR, section 0.457(dX2). Disclosure or publication or any portion of this company confidential materialto other parties could cause substantial competitive harm and provide unj ustified benefits for competitors. KCodes Corporation understands that pursuant to 47 CFR section 0.457(dX1)(ii) disclosure of the applicant and all accompanying documentation will not be made before the date of the grant. 1* h-

KCodes Corporation F2, Number50l, Section2, TidingBlvd.,NeihuDisEict, Taipei l14, Taiwan I Hrone (886) 2.265f.23ffi Fax (886) 2.n97.ffil Email:illlc@lcgd-eS,_c_gn RF 160, Issue 01 Declaration of Auth orization We Name: KCodes Corporation Address: 2F, No 501 , Sec 2, Tading Blvd. City: Neihu District, Taipei 114 Country: Taiwan, R.O.C. Declare that Name: Exclusive Certification Corporation Address: 4F-2, No.28 Lang 78, Xing-Ai Rd. City: Neihu District, Taipei 114 Country: Taiwan, R.O.C. is authorized to apply for Certification of the following product(s): Product description: MultiFunction Router Type designation: KC 5029 Trademark: Kcodes on our behalf. Date: 20071451 17 City: Taipei

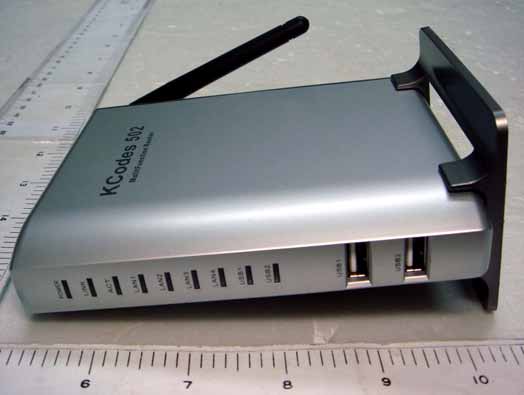

Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Apr. 23, 2007 1 of 8 FCC Test Report: FI07032401-A Appendix A. Photographs of EUT 07032401-A 07032401-A

Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Apr. 23, 2007 2 of 8 FCC Test Report: FI07032401-A 07032401-A 07032401-A Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Apr. 23, 2007 3 of 8 FCC Test Report: FI07032401-A 07032401-A 07032401-A Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Apr. 23, 2007 4 of 8 FCC Test Report: FI07032401-A 07032401-A 07032401-A Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Apr. 23, 2007 5 of 8 FCC Test Report: FI07032401-A 07032401-A 07032401-A Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Apr. 23, 2007 6 of 8 FCC Test Report: FI07032401-A 07032401-A 07032401-A Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Apr. 23, 2007 7 of 8 FCC Test Report: FI07032401-A 07032401-A Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Apr. 23, 2007 8 of 8 FCC Test Report: FI07032401-A 07032401-A 07032401-A

1.1. Test Result of RF Exposure Evaluation . Product: MultiFunction Router . Test Item: RF Exposure Evaluation Data . Test site: OATSI-SD . Test Mode: Normal Operation 1.1.1. Antenna Gain The maximum Gain is 2.0 dBi. 1.1.2. EUT Operation condition Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 1.1.3. Output Power into Antenna & RF Exposure Evaluation Distance of 20 cm Modulation Standard: IEEE 802.11b Test Date: March. 29, 2007 Temperature: 25 Humidity: 65 Channel Channel Frequency (MHz) Output Power to Antenna (dBm) Power Density (S) (mW/cm 2 ) 01 2412 24.46 0.088 06 2437 24.72 0.093 11 2462 25.13 0.103 Modulation Standard: IEEE 802.11g Test Date: March. 29, 2007 Temperature: 25 Humidity: 65 Channel Channel Frequency (MHz) Output Power to Antenna (dBm) Power Density (S) (mW/cm 2 ) 01 2412 20.55 0.036 06 2437 21.20 0.042 11 2462 21.78 0.048 The MPE is calculated as 0.103 mW / cm 2 < limit 1 mW / cm 2 . So, RF exposure limit warning or SAR test are not required. For 2412-2462 MHz, the EUT will only be used with a separation of 20cm or greater between the antenna and nearby persons and can therefore be considered a mobile transmitter per 47CFR2.1091 (b). The RF Exposure Information page from the manual is included here for reference.

Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Apr. 10, 2007 1 of 54 FCC Test Report: FI07032401-A FCC TEST REPORT according to FCC Rules and Regulations Part 15 Subpart C Laboratory Accreditation 1332 ‚ The test result refers exclusively to the test presented test model / sample., ‚ Without written approval of Exclusive Certification Corp. the test report shall not be reproduced except in full. ‚ The EUT is also considered as a kind of computer peripheral, because the connection to computer is necessary for typical use. It has been verified to comply with the requirements of FCC Part 15, Subpart B, Class B (DoC). The test report has been issued separately. Applicant KCodes Corporation Address 2F, No.501, Sec.2, Tiding Blvd., Neihu District, Taipei 114, Taiwan Equipment MultiFunction Router Model No. KC 502g Series No. KC 502 FCC ID U9XKCODES-502G Trade Name KCodes Exclusive Certification Corp. Tel:886-2-2792-3366 Fax:886-2-2792-1100 Issued date: Apr. 10, 2007 2 of 54 FCC Test Report: FI07032401-A Contents 1. Report of Measurements and Examinations .................................................................................... 5 1.1 List of Measurements and Examinations ................................................................................... 5 2. Test Configuration of Equipment under Test ................................................................................... 6 2.1 Feature of Equipment under Test............................................................................................... 6 2.2 RF Specifications ....................................................................................................................... 6 2.3 Test Mode and Test Software.....................................................................................................7 2.4 Description of Test System......................................................................................................... 7 2.5 Connection Diagram of Test System.......................................................................................... 8 2.6 General Information of Test........................................................................................................ 9 2.7 Description of Series model ....................................................................................................... 9 2.8 Measurement Uncertainty .......................................................................................................... 9 3. Antenna Requirements.....................................................................................................................10 3.1 Standard Applicable .................................................................................................................10 3.2 Antenna Construction and Directional Gain............................................................................. 10 4. Test of Conducted Emission............................................................................................................ 11 4.1 Test Limit.................................................................................................................................. 11 4.2 Test Procedures....................................................................................................................... 11 4.3 Typical Test Setup ...................................................................................................................12 4.4 Measurement equipment ......................................................................................................... 12 4.5 Test Result and Data................................................................................................................13 4.6 Test Photographs .....................................................................................................................15 5. Test of Radiated Emission ...............................................................................................................16 5.1 Test Limit.................................................................................................................................. 16 5.2 Test Procedures.......................................................................................................................17 5.3 Typical Test Setup ....................................................................................................................18 5.4 Measurement equipment ......................................................................................................... 18 5.5 Test Result and Data................................................................................................................19 5.6 Test Photographs .....................................................................................................................35 6. 6dB Bandwidth Measurement Data .................................................................................................36 6.1 Test Limit .................................................................................................................................. 36 6.2 Test Procedures .......................................................................................................................36 6.3 Test Setup Layout ....................................................................................................................36 6.4 Measurement equipment ......................................................................................................... 36 6.5 Test Result and Data................................................................................................................36 7. Maximum Peak Output Power .........................................................................................................40 7.1 Test Limit ...................................................................................…
