U9XKCODES-901KCodes 9 Series USB AirPrint Server

© 2014 KCodes Corporation. All rights reserved. 6 Series v2 User’s Manual V1.0 KCodes 9 Series Print Server User’s Manual Chapter 1 Introduction Thank you for purchasing 901n/901i Print Server (in the following referred to as “Server”). This Server is designed to connect your Printer, Multifunction Printer, iPhone, iPod to your network, allowing all network users’ access to these shared USB devices. 1.1 About 2 Models Described in this Manual This manual provides introductory information as well as detailed instructions on how to set up and manage 9 Series in various network environments. The following table shows the differences among the 2 models. All 2 models have one USB port, a 10/100 Mbit/sec Lan port and an additional wireless module (802.11b/g/n). However, 901n is external antenna while 901i is internal antenna. Except for the antenna type, most configuration and operati ons are the same for 901n and 901i. Unless explicitly specified, all instructions in the manual apply to 9 Series. Model Name LAN Wireless Antenna USB Port(s) 901n Yes Yesexternal1 901i Yes Yesinternal1 To fully benefit from this document, you should be familiar with basic networking principles. The instructions described in this manual are based on the settings in a new Server. To reload the Factory Parameters, you can reset this Server back to Factory Default, which will restore most of the settings. For details, please re fer to the chapter “Restore Factory Defaults”. 1.2 Customer Support Should you require any technical assistance, please contact your product reseller. Or you can visit our website for latest product information. This document is subject to changes without prior notice. © 2014 KCodes Corporation. All rights reserved. 6 Series v2 User’s Manual V1.0 Chapter 2 Product Overview 2.1 Package Contents Verify that nothing is missing from the package by using the checking list below. Please contact your dealer if anything is missing or damaged. All packing materials are recyclable. Please confirm the items in the package below:  This Server (901n/901i)  CD (Control Center and User’s Manual and Quick Installation Gui de)  Power Adaptor(5V1A) 2.2 Product CD This CD provides easy‐to‐use Control Center software, and the User’s Manual and Quick Installation Guide. 2.2.1. Start-up Procedures If your computer is configured to auto start CDs, this CD will start automatically when inserted. You can also navigate to the CD and start the autorun.exe file from within the Windows file manager. 2.3 Physical Description 1. Power Adaptor Connector : 5V/1A 2. Init Button : for restoring the configurable parameters to the default values 3. Wireless Station : IEEE 802.11 b/g/n wireless station with external antenna for 901n or internal antenna for 901i 4. Ethernet Connector : connected to a twisted pair category 5 cable 5. USB Ho st Ports: USB 1.1/2.0 low, full, and Hi‐Speed compliant 6. Indicators  Power Indicator is lit while power is applied. If it is not lit, or if it blinks, there is a problem with the Print server or Power Adapter.  WLAN Indicator blinks whether user connects wireless or not.  LAN Indicator blinks to indicate wired network activity. If it is lit, it indicate s the wired network is applied. If it is not lit, it indicates that the server does not connect to the wired network.  USB Indicator is lit while a USB device connects to a USB Port of the USB device server. If it is not lit, or if it blin ks, there is a problem with the USB device or the USB device server. © 2014 KCodes Corporation. All rights reserved. 6 Series v2 User’s Manual V1.0 2.4 Supported USB Devices The USB device server supports the following types of USB devices.  USB Printer  USB multifunction printer (MFP/AIO)  iPad  iPhone  © 2014 KCodes Corporation. All rights reserved. 6 Series v2 User’s Manual V1.0 Chapter 3 Basic Installation 3.1. Connecting the Hardware 1. Make sure that your USB devices are switched off and that the Server’s Power Adapter is disconnected. 2. Connect the USB devices to the USB ports with the USB cables. 3. Connect the Server to the network with a twisted‐pair category 5 cable, 10baseT or 100baseTX. 4. Turn on th e USB devices and make sure it is ready for use. 5. Connect the Power Adapter to the Server. The POWER indicator, WLAN indicator, LAN indicator, USB indicator will light up. When the LAN indicator lights up, the Server is correctly connected to the network. When WLAN and USB indicators stop li tting, the Server starts to work normally. 3.2. Preliminary  Before you can access wireless network, wireless parameters should be set correctly. You have to setup the first wireless parameter set through LAN (wired) connection or connect to server directly.  Wireless access can be set as infrastructure (station) mode, which need an access point to route network messages with the same SS ID.  Wireless access can be secured by WEP (64/128), WPA‐PSA (TKIP/AES), and WPA2‐PSK (AES).  In infrastructure mode, the maximal transfer rate is 150 MBits depending on access point’s capability. 3.2.1. Set Wireless Configuration Using Control Center 1. Install USB Device Server Control Center. It is available in the 901n/901i Print Server Product CD. 2. Start USB Device Server Control Center and Auto‐searching USB Device server window will appear. © 2014 KCodes Corporation. All rights reserved. 6 Series v2 User’s Manual V1.0 3. If the tool finds servers in your local area network, then you have to select a server from the server list. 4. Double click the highlighted server (or click the “Configure Server” button) to get the server’s web pages. Then login with administrator ID (default: admin) and its password (default: ad min). 5. Click Connect to Another AP and choose one of existing wireless networks. © 2014 KCodes Corporation. All rights reserved. 6 Series v2 User’s Manual V1.0 6. Click select to choose your AP and enter the AP’s password. Please wait 60 seconds to allow device reboot. 7. You have now fini…

Text truncated - open the document above for the full version.

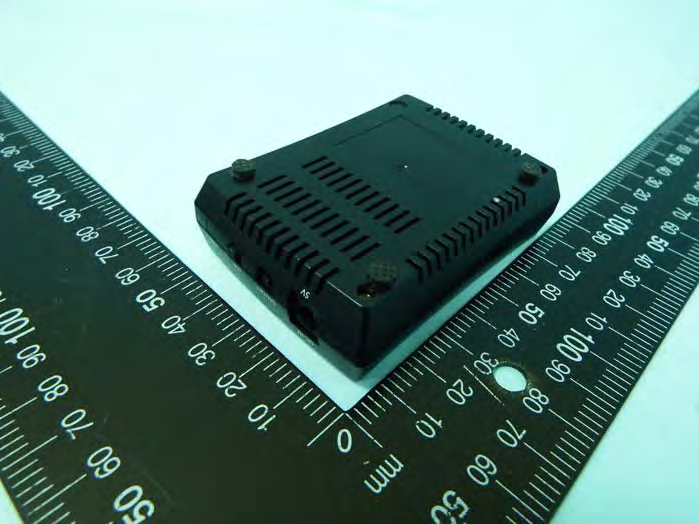

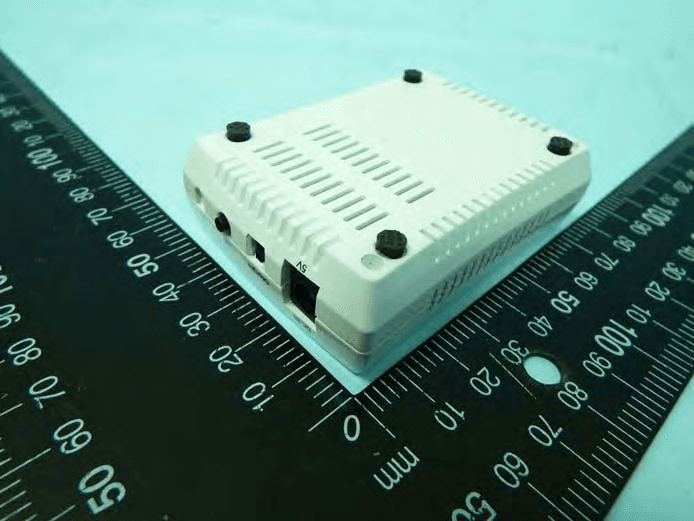

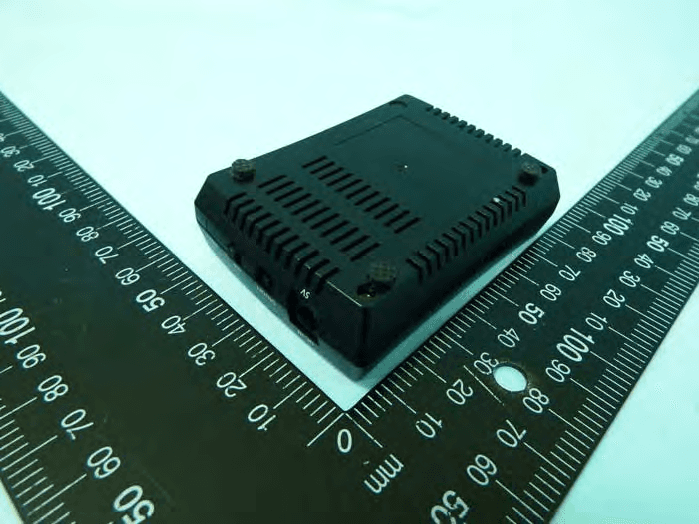

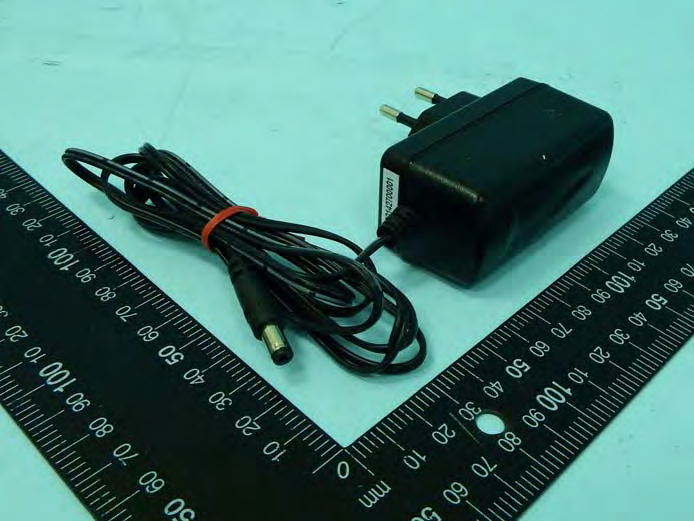

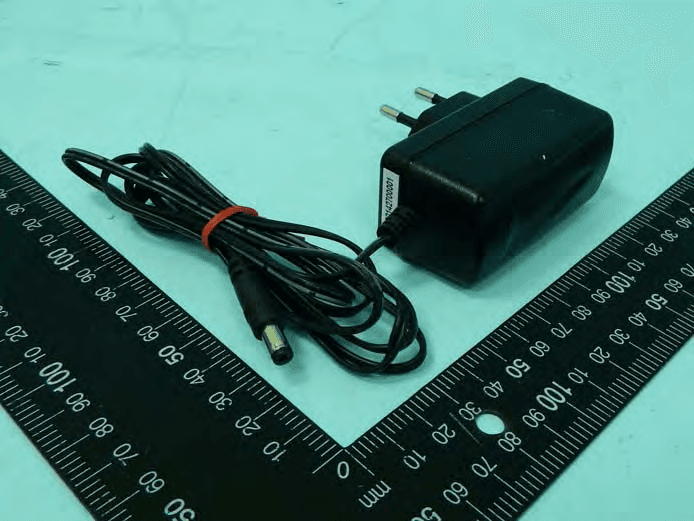

FCC Test Report Report No. : EP471515 SPORTON International Inc. PAGE NUMBER : B1 OF B11 TEL : 886-3-327-3456 ISSUED DATE : Oct. 07, 2014 FAX : 886-3-327-0973 APPENDIX B. Photographs of EUT Model Name 901i White FCC Test Report Report No. : EP471515 SPORTON International Inc. PAGE NUMBER : B2 OF B11 TEL : 886-3-327-3456 ISSUED DATE : Oct. 07, 2014 FAX : 886-3-327-0973 FCC Test Report Report No. : EP471515 SPORTON International Inc. PAGE NUMBER : B3 OF B11 TEL : 886-3-327-3456 ISSUED DATE : Oct. 07, 2014 FAX : 886-3-327-0973 Model Name 901i Black FCC Test Report Report No. : EP471515 SPORTON International Inc. PAGE NUMBER : B4 OF B11 TEL : 886-3-327-3456 ISSUED DATE : Oct. 07, 2014 FAX : 886-3-327-0973 FCC Test Report Report No. : EP471515 SPORTON International Inc. PAGE NUMBER : B5 OF B11 TEL : 886-3-327-3456 ISSUED DATE : Oct. 07, 2014 FAX : 886-3-327-0973 Model Name 901n Black FCC Test Report Report No. : EP471515 SPORTON International Inc. PAGE NUMBER : B6 OF B11 TEL : 886-3-327-3456 ISSUED DATE : Oct. 07, 2014 FAX : 886-3-327-0973 Model Name 901n White FCC Test Report Report No. : EP471515 SPORTON International Inc. PAGE NUMBER : B7 OF B11 TEL : 886-3-327-3456 ISSUED DATE : Oct. 07, 2014 FAX : 886-3-327-0973 FCC Test Report Report No. : EP471515 SPORTON International Inc. PAGE NUMBER : B8 OF B11 TEL : 886-3-327-3456 ISSUED DATE : Oct. 07, 2014 FAX : 886-3-327-0973 Adapter 1 FCC Test Report Report No. : EP471515 SPORTON International Inc. PAGE NUMBER : B9 OF B11 TEL : 886-3-327-3456 ISSUED DATE : Oct. 07, 2014 FAX : 886-3-327-0973 Adapter 1 Adapter 1 FCC Test Report Report No. : EP471515 SPORTON International Inc. PAGE NUMBER : B10 OF B11 TEL : 886-3-327-3456 ISSUED DATE : Oct. 07, 2014 FAX : 886-3-327-0973 Adapter 2 Adapter 2 FCC Test Report Report No. : EP471515 SPORTON International Inc. PAGE NUMBER : B11 OF B11 TEL : 886-3-327-3456 ISSUED DATE : Oct. 07, 2014 FAX : 886-3-327-0973 Adapter 2

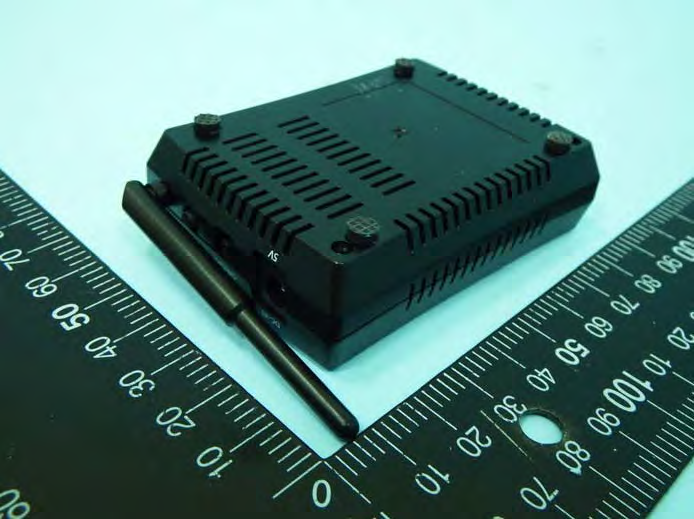

FCC Test Report Report No. : EP471515 SPORTON International Inc. PAGE NUMBER : B1 OF B9 TEL : 886-3-327-3456 ISSUED DATE : Oct. 07, 2014 FAX : 886-3-327-0973 FCC Test Report Report No. : EP471515 SPORTON International Inc. PAGE NUMBER : B2 OF B9 TEL : 886-3-327-3456 ISSUED DATE : Oct. 07, 2014 FAX : 886-3-327-0973 FCC Test Report Report No. : EP471515 SPORTON International Inc. PAGE NUMBER : B3 OF B9 TEL : 886-3-327-3456 ISSUED DATE : Oct. 07, 2014 FAX : 886-3-327-0973 FCC Test Report Report No. : EP471515 SPORTON International Inc. PAGE NUMBER : B4 OF B9 TEL : 886-3-327-3456 ISSUED DATE : Oct. 07, 2014 FAX : 886-3-327-0973 WiFi IC FCC Test Report Report No. : EP471515 SPORTON International Inc. PAGE NUMBER : B5 OF B9 TEL : 886-3-327-3456 ISSUED DATE : Oct. 07, 2014 FAX : 886-3-327-0973 FCC Test Report Report No. : EP471515 SPORTON International Inc. PAGE NUMBER : B6 OF B9 TEL : 886-3-327-3456 ISSUED DATE : Oct. 07, 2014 FAX : 886-3-327-0973 Model Name 901n FCC Test Report Report No. : EP471515 SPORTON International Inc. PAGE NUMBER : B7 OF B9 TEL : 886-3-327-3456 ISSUED DATE : Oct. 07, 2014 FAX : 886-3-327-0973 FCC Test Report Report No. : EP471515 SPORTON International Inc. PAGE NUMBER : B8 OF B9 TEL : 886-3-327-3456 ISSUED DATE : Oct. 07, 2014 FAX : 886-3-327-0973 FCC Test Report Report No. : EP471515 SPORTON International Inc. PAGE NUMBER : B9 OF B9 TEL : 886-3-327-3456 ISSUED DATE : Oct. 07, 2014 FAX : 886-3-327-0973 WiFi IC

RF Exposure Report Report No. : FR471515 SPORTON INTERNATIONAL INC. Page No. : 1 of 2 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 1 Maximum Permissible Exposure 1.1 Maximum Permissible Exposure 1.1.1 Limit of Maximum Permissible Exposure Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1,842 / f 4.89 / f (900 2 / f 2 )* 6 30-300 61.4 0.163 1.0 6 300-1,500 - - F/300 6 1,500-100,000 - - 5 6 Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180 2 /f 2 )* 30 30-300 27.5 0.073 0.2 30 300-1,500 - - F/1500 30 1,500-100,000 - - 1.0 30 Note 1: f = frequency in MHz ; *Plane-wave equivalent power density Note 2: For the applicable limit, see FCC 1.1310 1.1.2 MPE Calculation Method E (V/m) = d GP30 Power Density: Pd (W/m 2 ) = 377 E 2 E = Electric field (V/m) P = RF output power (W) G = EUT Antenna numeric gain (numeric) d = Separation distance between radiator and human body (m) The formula can be changed to Pd = 2 d377 GP30   RF Exposure Report Report No. : FR471515 SPORTON INTERNATIONAL INC. Page No. : 2 of 2 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 1.1.3 Result of Maximum Permissible Exposure RF General Information Frequency Range (MHz) IEEE Std. 802.11 Protocol Ch. Frequency (MHz) Channel Number Number of Transmit Chains (N TX ) RF Output Power (dBm) 2400-2483.5 b 2412-2462 1-11 [11] 1 21.23 2400-2483.5 g 2412-2462 1-11 [11] 1 17.46 2400-2483.5 n (HT20) 2412-2462 1-11 [11] 1 17.50 2400-2483.5 n (HT40) 2422-2452 3-9 [7] 1 15.74 Note 1: RF output power specifies that Maximum Conducted (Average) Output Power. Worst Maximum RF Output Power Result Exposure Environment General Population / Uncontrolled Exposure Separation Distance (cm) 20 Condition RF Output Power (dBm) Modulation Mode RF Output Power (dBm) DG (dBi) EIRP Power (dBm) PD (S) (mW/cm²) 11b 21.23 2.00 23.23 0.04185 Maximum Permissible Exposure Limit (mW/cm²) 1

FCC Test Report Report No. : FR471515 SPORTON INTERNATIONAL INC. Page No. : 2 of 87 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Table of Contents 1 GENERAL DESCRIPTION .................................................................................................................... 5 1.1 Information.............................................................................................................................................. 5 1.2 Accessories and Support Equipment ..................................................................................................... 7 1.3 Testing Applied Standards ..................................................................................................................... 7 1.4 Testing Location Information .................................................................................................................. 7 1.5 Measurement Uncertainty ...................................................................................................................... 8 2 TEST CONFIGURATION OF EUT ........................................................................................................ 9 2.1 The Worst Case Modulation Configuration ............................................................................................ 9 2.2 The Worst Case Power Setting Parameter ............................................................................................ 9 2.3 The Worst Case Measurement Configuration ...................................................................................... 10 2.4 Test Setup Diagram ............................................................................................................................. 12 3 TRANSMITTER TEST RESULT .......................................................................................................... 14 3.1 AC Power-line Conducted Emissions .................................................................................................. 14 3.2 6dB Bandwidth ..................................................................................................................................... 19 3.3 RF Output Power .................................................................................................................................. 21 3.4 Power Spectral Density ........................................................................................................................ 25 3.5 Transmitter Bandedge Emissions ........................................................................................................ 27 3.6 Transmitter Unwanted Emissions......................................................................................................... 31 4 TEST EQUIPMENT AND CALIBRATION DATA ................................................................................ 86 APPENDIX A. TEST PHOTOS APPENDIX B. PHOTOGRAPHS OF EUT FCC Test Report Report No. : FR471515 SPORTON INTERNATIONAL INC. Page No. : 3 of 87 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Summary of Test Result Conformance Test Specifications Report Clause Ref. Std. Clause Description Measured Limit Result 0 15.203 Antenna Requirement Antenna connector mechanism complied FCC 15.203 Complied 3.1 15.207 AC Power-line Conducted Emissions [dBuV]: 0.339195MHz 45.55 (Margin 3.67dB) - AV 49.50 (Margin 9.72dB) - QP FCC 15.207 Complied 3.2 15.247(a) 6dB Bandwidth 6dB Bandwidth Unit [MHz] 20M: 9.00 / 40M: 36.32 ≥500kHz Complied 3.3 15.247(b) RF Output Power (Maximum Peak Conducted Output Power) Power [dBm]: 24.19 Power [dBm]:30 Complied 3.4 15.247(d) Power Spectral Density PSD [dBm/100kHz]: -5.10 PSD [dBm/3kHz]:8 Complied 3.5 15.247(c) Transmitter Radiated Bandedge Emissions Non-Restricted Bands: 2543.72MHz: 21.36dB Restricted Bands [dBuV/m at 3m]: 2483.50MHz 69.57 (Margin 4.43dB) - PK 52.95 (Margin 1.05dB) - AV Non-Restricted Bands: > 20 dBc Restricted Bands: FCC 15.209 Complied 3.6 15.247(c) Transmitter Radiated Unwanted Emissions [dBuV/m at 3m]: 4824.00MHz 55.97 (Margin 18.03dB) – PK 52.99 (Margin 1.01dB) –AV Non-Restricted Bands: > 20 dBc Restricted Bands: FCC 15.209 Complied FCC Test Report Report No. : FR471515 SPORTON INTERNATIONAL INC. Page No. : 4 of 87 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Revision History Report No. Version Description Issued Date FR471515 Rev. 01 Initial issue of report Oct. 07, 2014 2500-2690 FCC Test Report Report No. : FR471515 SPORTON INTERNATIONAL INC. Page No. : 5 of 87 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 1 General Description 1.1 Information 1.1.1 RF General Information RF General Information Frequency Range (MHz) IEEE Std. 802.11 Ch. Freq. (MHz) Channel Number Transmit Chains (N TX ) RF Output Power (dBm) 2400-2483.5 b 2412-2462 1-11 [11] 1 24.19 2400-2483.5 g 2412-2462 1-11 [11] 1 22.35 2400-2483.5 n (HT20) 2412-2462 1-11 [11] 1 22.66 2400-2483.5 n (HT40) 2422-2452 3-9 [7] 1 20.60 Note 1: RF output power specifies that Maximum Peak Conducted Output Power. Note 2: 802.11b uses a combination of DSSS-DBPSK, DQPSK, CCK modulation. Note 3: 802.11g/n uses a combination of OFDM-BPSK, QPSK, 16QAM, 64QAM modulation. 1.1.2 Antenna Information Antenna Category Integral antenna (antenna permanently attached) Temporary RF connector provided No temporary RF connector provided Transmit chains bypass antenna and soldered temporary RF connector provided for connected measurement. In case of conducted measurements the transmitter shall be connected to the measuring equipment via a suitable attenuator and correct for all losses in the RF path. External antenna (dedicated antennas) Antenna General Information No. Ant. Cat. Ant. Type Part No. Gain (dBi) Model Name 1 External Diple EDA-6413-2G4C1-A52.00 KC901n 2 Integral PIFA IBF-D001MPAX-307 2.00 KC901i FCC Test Report Report No. : FR471515 SPORTON INTERNATIONAL INC. Page No. : 6 of 87 TEL : 886-3-327-3456 …

Text truncated - open the document above for the full version.

FCC Test Report Report No. : FR471515 SPORTON INTERNATIONAL INC. Page No. : A1 of A10 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Appendix A. Test Photos FCC Test Report Report No. : FR471515 SPORTON INTERNATIONAL INC. Page No. : A2 of A10 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 1 Photographs of Conducted Emissions Test Configuration Mode 1 FRONT VIEW REAR VIEW FCC Test Report Report No. : FR471515 SPORTON INTERNATIONAL INC. Page No. : A3 of A10 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 SIDE VIEW FCC Test Report Report No. : FR471515 SPORTON INTERNATIONAL INC. Page No. : A4 of A10 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Mode 3 FRONT VIEW REAR VIEW FCC Test Report Report No. : FR471515 SPORTON INTERNATIONAL INC. Page No. : A5 of A10 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 FCC Test Report Report No. : FR471515 SPORTON INTERNATIONAL INC. Page No. : A6 of A10 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 2 Photographs of Radiated Emissions Test Configuration For radiated emissions 9kHz~30MHz FRONT VIEW REAR VIEW FCC Test Report Report No. : FR471515 SPORTON INTERNATIONAL INC. Page No. : A7 of A10 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 For radiated emissions 30MHz~1GHz Mode 1 FRONT VIEW REAR VIEW FCC Test Report Report No. : FR471515 SPORTON INTERNATIONAL INC. Page No. : A8 of A10 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Mode 4 FRONT VIEW REAR VIEW FCC Test Report Report No. : FR471515 SPORTON INTERNATIONAL INC. Page No. : A9 of A10 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 For radiated emissions above 1GHz Mode 1 FRONT VIEW REAR VIEW FCC Test Report Report No. : FR471515 SPORTON INTERNATIONAL INC. Page No. : A10 of A10 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 Mode 4 FRONT VIEW REAR VIEW
