© 2019 KCodes Corporation. All rights reserved. 6 Series User’s Manual V1.0 KCodes 6 Series USB 2.0 / 3.0 Device Server User’s Manual Chapter 1 Introduction Thank you for purchasing 601/601n/611/612/612ac/604n USB Device Server (in the following referred to as “Server”). This Server is designed to connect your Multifunction Printer, Scanner, Fax, Multifunction Printer, Hard Drive, iPhone, iPod, USB Digital TV Tuner, Digital Camera, USB Webcam, USB Speaker, USB CD, USB DVD to your network, allowing all network users’ access to these shared USB devices. 1.1 About 6 Models Described in this Manual This manual provides introductory information as well as detailed instructions on how to set up and manage 6 Series in various network environments. The following table shows the differences among the 3 models. All 3 models have a 10/100 Mbit/sec LAN port. However, 601 and 601n has only one USB port, while 604n v2 have four USB ports. Compared with 3 models have an additional wireless module (802.11b/g/n). Except for the wireless configuration, most configuration and operations are the same for 601 and 601n/ 604n. Similarly, almost all of the configuration and operations are the same for these models except that only one USB device can be connected to 601/601n while at most four USB devices can be connected to 604n. Unless explicitly specified, all instructions in the manual apply to 6 Series. Model Name LAN Wireless USB Port 2.0(s) 601 Yes No 1 601n Yes Yes 1 604n Yes Yes 4 And USB 3.0 models have a 10-BaseT /100BASE-TX /1000Base-T RJ-45, USB 3.0 Hi-Speed Type-A. However, 611 has only one USB port, while both 612 and 612ac have two USB ports. Model Name LAN Wireless USB Port 3.0(s) 611 Yes No 1 612 Yes No 2 612ac Yes Yes 2 To fully benefit from this document, you should be familiar with basic networking principles. The instructions described in this manual are based on the settings in a new Server. To reload the Factory © 2019 KCodes Corporation. All rights reserved. 6 Series User’s Manual V1.0 Parameters, you can reset this Server back to Factory Default, which will restore most of the settings. For details, please refer to the chapter “Restore Factory Defaults”. 1.2 Customer Support Should you require any technical assistance, please contact your product reseller. Or you can visit our website for latest product information. This document is subject to changes without prior notice. Chapter 2 Product Overview 2.1 Package Contents Verify that nothing is missing from the package by using the checking list below. Please contact your dealer if anything is missing or damaged. All packing materials are recyclable. Please confirm the items in the package below:  This Server (601/601n/604n/611/612/612ac)  CD (Control Center and User’s Manual and Quick Installation Guide)  Power Adaptor 2.2 Product CD This CD provides easy-to-use Control Center software, and the User’s Manual and Quick Installation Guide. 2.2.1. Start-up Procedures If your computer is configured to auto start CDs, this CD will start automatically when inserted. You can also navigate to the CD and start the autorun.exe file from within the Windows file manager. 2.3 Physical Description 1. Power Adaptor Connector : 5V/1A (for 601 /601n ) or 12V/2A (for 604n) or 5V/3A (for 611/612/612ac) 2. Init Button : for restoring the configurable parameters to the default values 3. Wireless Station for 601n/604n : IEEE 802.11 b/g/n wireless station with antenna for 612ac : IEEE 802.11n wireless station with antenna 4. Ethernet Connector : connected to a twisted pair category 5 cable © 2019 KCodes Corporation. All rights reserved. 6 Series User’s Manual V1.0 5. USB Host Ports: For 601/601n/604n: USB 1.1/2.0 low, full, and Hi-Speed compliant For 611/612/612ac: USB 1.1/2.0/3.0 low, full, and Hi-Speed compliant 6. Indicators  For 6 Series  Power Indicator is lit while power is applied. If it is not lit, or if it blinks, there is a problem with the USB device server or Power Adapter.  USB Indicator (one for 601/601n/611, two for 612/612ac, four for 604n v2) is lit while a USB device connects to a USB Port of the USB device server. If it is not lit, there is a problem with the USB device or the USB device server.  For 601 v2/611/612  Link Status is lit while network is applied. If it is not lit, it indicates that this server does not connect to the network.  Status Indicator blinks to indicate network activity.  For 601n v2/604n v2/612ac  LAN Indicator blinks to indicate wired network activity. If it is lit, it indicates the wired network is applied. If it is not lit, it indicates that the server does not connect to the wired network.  WLAN Indicator blinks to indicate wireless network activity. If it is lit, it indicates the wireless network is applied. If it is not lit, it indicates that the server does not connect to the wireless network. 2.4 Supported USB Devices The USB device server supports the following types of USB devices.  USB Printer  USB multifunction printer (MFP/AIO)  USB scanner  USB storage (like USB external HD, flash disk, and digital camera)  USB speaker  USB camera  USB digital TV tuner  USB webcam  USB CD  USB DVD  iPad  iPhone © 2019 KCodes Corporation. All rights reserved. 6 Series User’s Manual V1.0 Chapter 3 Basic Installation 3.1. Connecting the Hardware 1. Make sure that your USB devices are switched off and that the Server’s Power Adapter is disconnected. 2. Connect the USB devices to the USB ports with the USB cables. 3. Connect the Server to the network with a twisted-pair category 5 cable, 10baseT, 100baseTX and /1000Base-T RJ-45. 4. Turn on the USB devices and make sure it is ready for use. 5. Connect the Power Adapter to the Server. The power indicator will light up and USB1 and USB2 indicators will flash in turn. (For 601/601n, only USB1 indicator will flash.) When the Link indicator lights up, the Server is correctly connected to the network. When USB1 and USB2 indicators stop flashing, the Server st…

Text truncated - open the document above for the full version.

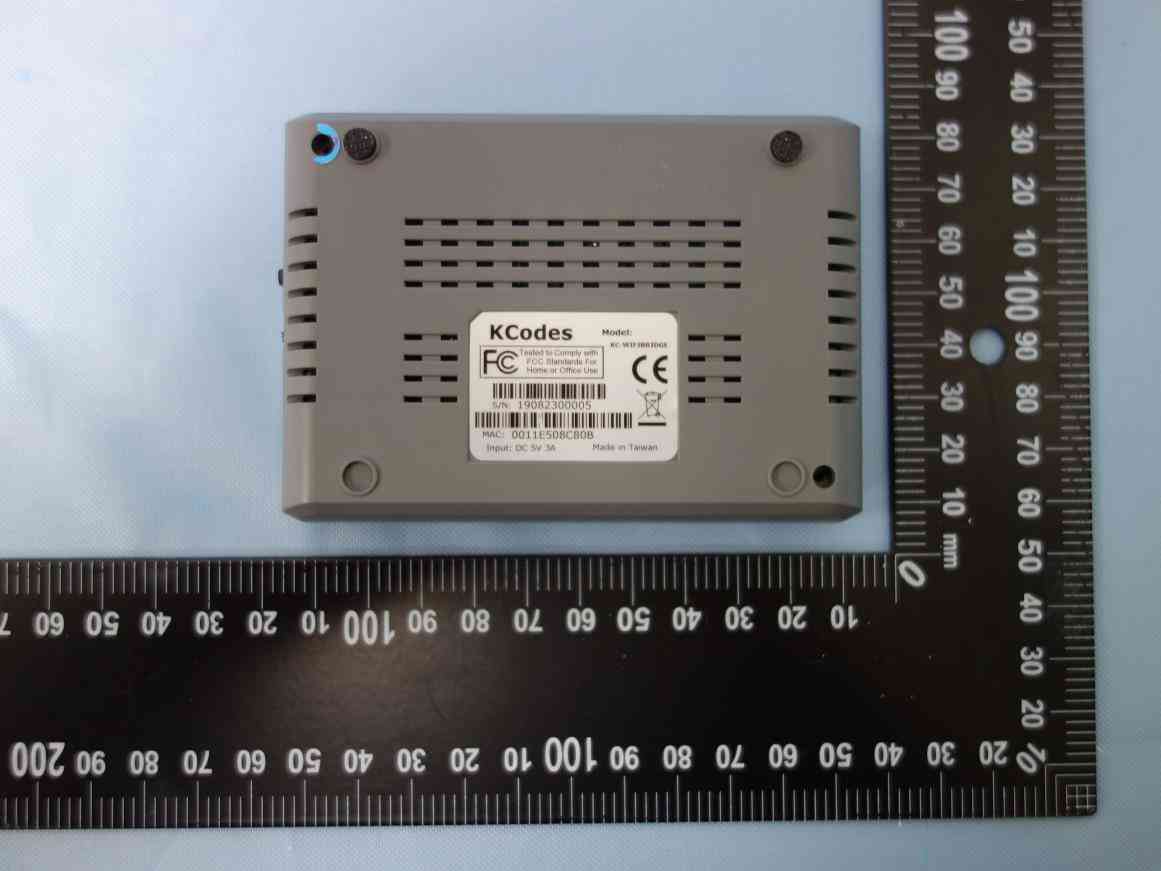

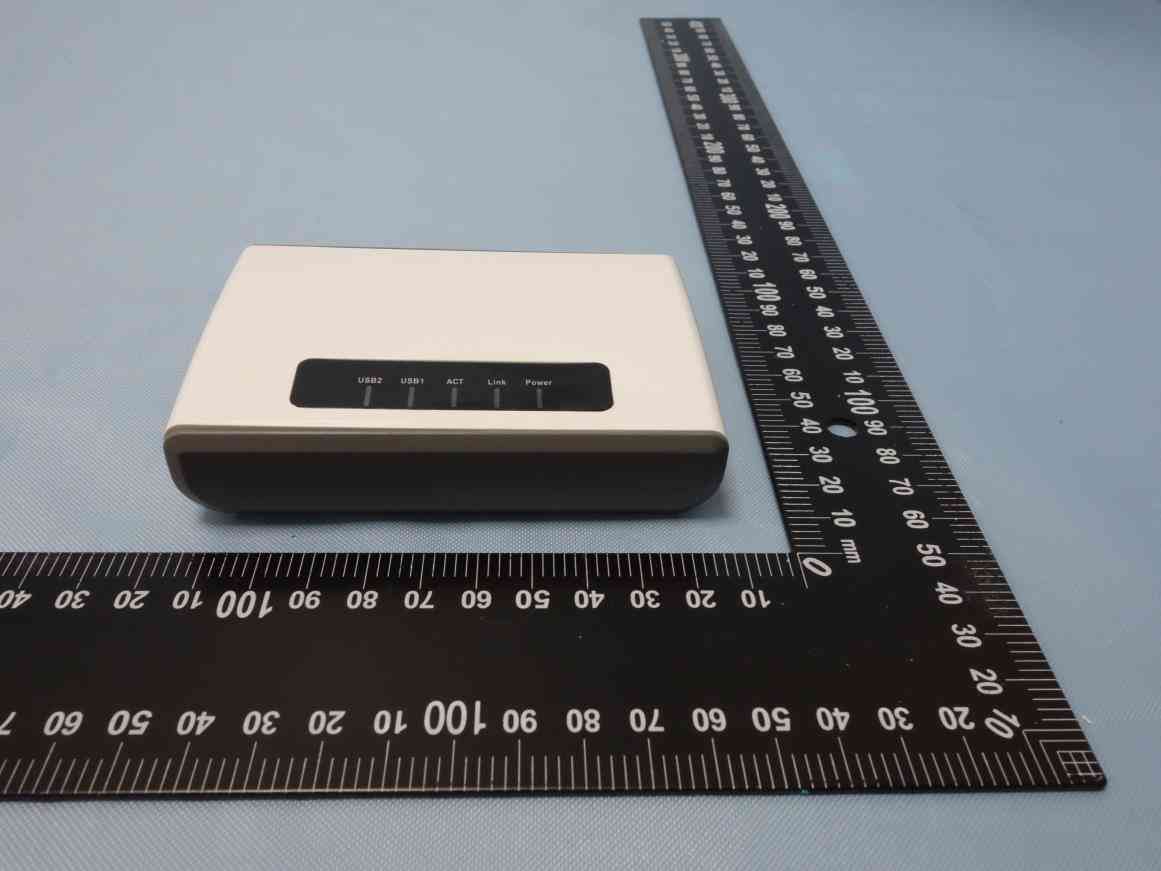

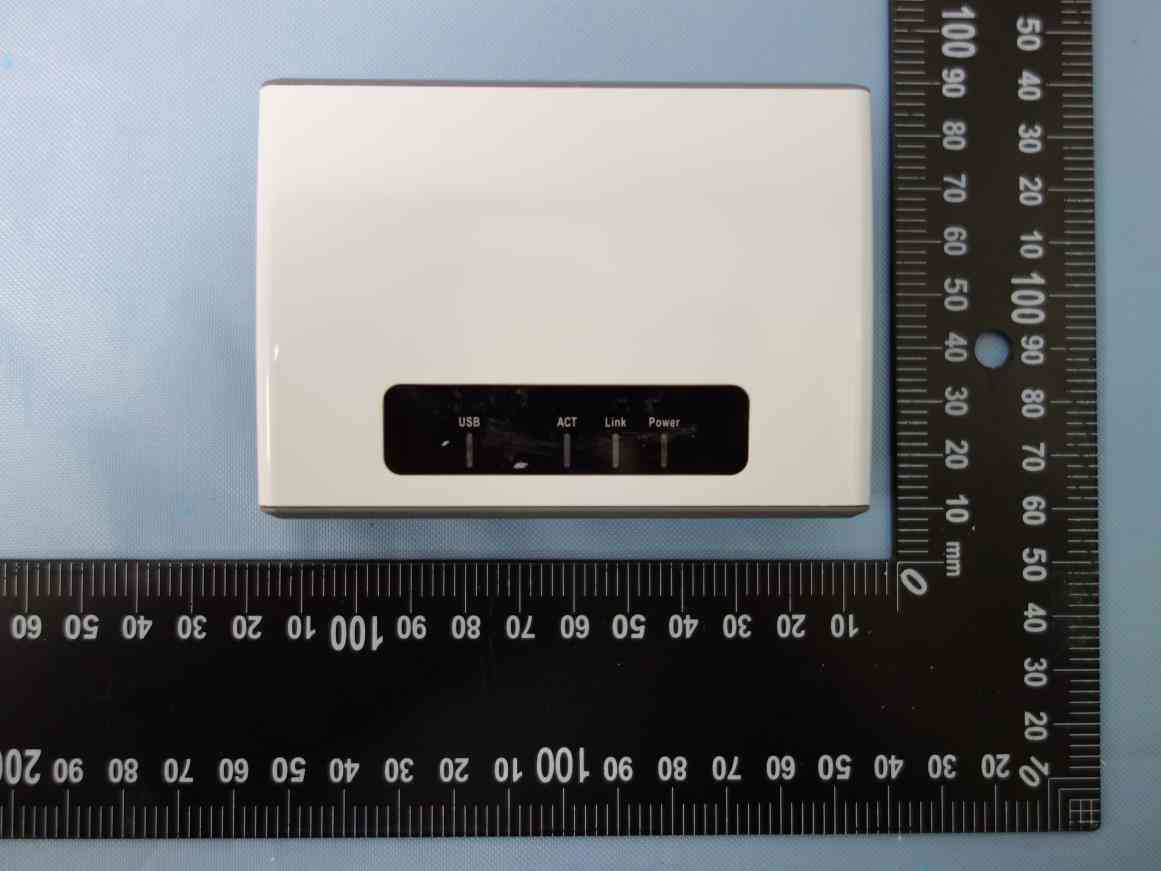

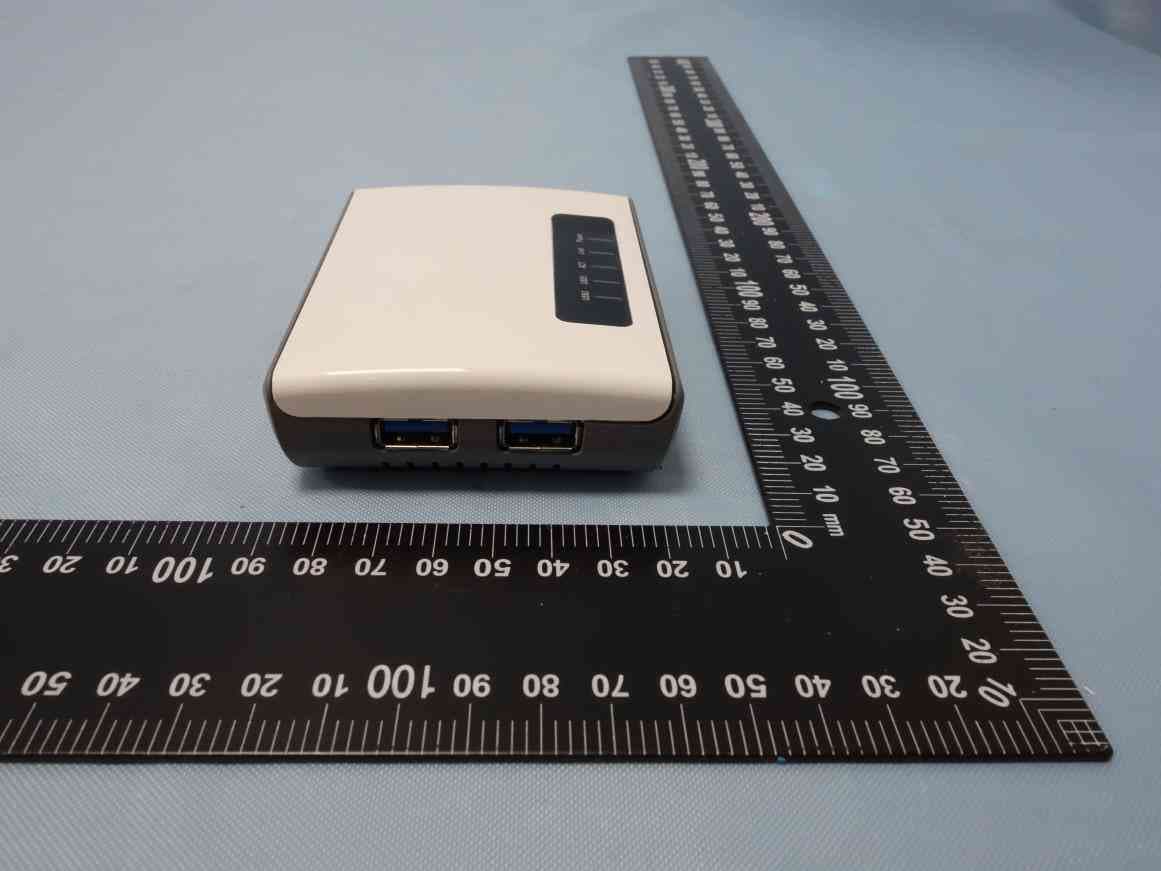

Appendix P Photo Documentation Page 1 of 6 Product: Wireless USB Device Type Identification: KC612ac, WB112ac KC612ac Appendix P Photo Documentation Page 2 of 6 Product: Wireless USB Device Type Identification: KC612ac, WB112ac Appendix P Photo Documentation Page 3 of 6 Product: Wireless USB Device Type Identification: KC612ac, WB112ac Appendix P Photo Documentation Page 4 of 6 Product: Wireless USB Device Type Identification: KC612ac, WB112ac WB112ac Appendix P Photo Documentation Page 5 of 6 Product: Wireless USB Device Type Identification: KC612ac, WB112ac Appendix P Photo Documentation Page 6 of 6 Product: Wireless USB Device Type Identification: KC612ac, WB112ac

Appendix P Photo Documentation Page 1 of 14 50310406 001, 50310407 001 Product: Wireless USB Device Type Identification: KC612ac, WB112ac KC612ac Appendix P Photo Documentation Page 2 of 14 50310406 001, 50310407 001 Product: Wireless USB Device Type Identification: KC612ac, WB112ac Appendix P Photo Documentation Page 3 of 14 50310406 001, 50310407 001 Product: Wireless USB Device Type Identification: KC612ac, WB112ac Appendix P Photo Documentation Page 4 of 14 50310406 001, 50310407 001 Product: Wireless USB Device Type Identification: KC612ac, WB112ac Appendix P Photo Documentation Page 5 of 14 50310406 001, 50310407 001 Product: Wireless USB Device Type Identification: KC612ac, WB112ac Antenna Appendix P Photo Documentation Page 6 of 14 50310406 001, 50310407 001 Product: Wireless USB Device Type Identification: KC612ac, WB112ac Appendix P Photo Documentation Page 7 of 14 50310406 001, 50310407 001 Product: Wireless USB Device Type Identification: KC612ac, WB112ac Appendix P Photo Documentation Page 8 of 14 50310406 001, 50310407 001 Product: Wireless USB Device Type Identification: KC612ac, WB112ac WB112ac Appendix P Photo Documentation Page 9 of 14 50310406 001, 50310407 001 Product: Wireless USB Device Type Identification: KC612ac, WB112ac Appendix P Photo Documentation Page 10 of 14 50310406 001, 50310407 001 Product: Wireless USB Device Type Identification: KC612ac, WB112ac Antenna Appendix P Photo Documentation Page 11 of 14 50310406 001, 50310407 001 Product: Wireless USB Device Type Identification: KC612ac, WB112ac Appendix P Photo Documentation Page 12 of 14 50310406 001, 50310407 001 Product: Wireless USB Device Type Identification: KC612ac, WB112ac Appendix P Photo Documentation Page 13 of 14 50310406 001, 50310407 001 Product: Wireless USB Device Type Identification: KC612ac, WB112ac Appendix P Photo Documentation Page 14 of 14 50310406 001, 50310407 001 Product: Wireless USB Device Type Identification: KC612ac, WB112ac

Produkte Products Prü fbericht - Nr.: Test Report No. 50310406 001 Seite 78 von 84 Page 78 of 84 6. Radio Frequency Exposure Compliance 6.1.1 Electromagnetic Fields RESULT: Passed Test standard : FCC CFR 47 Part 2 Subpart J Section 2.1091 RSS-102 Issue 5, 2.5.2 Separation distance is more than 20 cm, thus mobile device exposure limits can be applied. FCC Maximum Exposure: Mode Frequenc y (MHz) Antenna Gain (dBi) Antenna Gain (numeric) Maximum Output Power (dBm) Output Power (mW) Power Density (S)(mW/cm 2 ) Test Result 802.11g 2437 2.00 1.5849 27.2817 534.7728 0.168702 Pass Limit FCC: 1500-100,000 MHz 1.0 mW/cm 2 ISED: Exemption Limits for Routine Evaluation – RF Exposure Evaluation At or above 300MHz and below 6 GHz and the source-based, time-averaged maximum e.i.r.p. of the device is equal to or less than 1.31 × 10 -2 f 0.6834 W, where f is in MHz; f= 2437MHz 1.31 × 10 -2 × 2437 0.6834 = 2.7W After evaluation the 2437MHz e.i.r.p 29.28dBm calculated result is closer to its limit. 29.28dBm = 0.847W, it is well below the limit of Exemption Limits for Routine Evaluation, so RF exposure assessment meets its standards.

Test Report No.50310406 001 Appendix D: Radiated and Mains Spurious Emission Data (File: 50310406 001Appendix D) Contents Spurious Emiss ions , Bandedge................................................................................................................ 2 Spurious Emiss ions , TX Mode, 9kH z-30MH z ........................................................................................50 Spurious Emiss ions , TX Mode, 30MHz-1GH z .......................................................................................52 Spurious Emiss ions , TX Mode, 1GHz-26.5GH z .....................................................................................54 Spurious Emiss ions , AC Mains ..............................................................................................................76 2 Spurious Emissions, Bandedge 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 Spurious Emissions, TX Mode, 9kHz-30MHz

Prü fbericht - Produkte Test Report - Products Prü fbericht-Nr.: Test report no.: 50310406 001 Auftrags-Nr.: Order no.: 2381 09482 Seite 1 von 84 Page 1 of 84 Kunden-Referenz-Nr.: Client reference no.: N/A Auftragsdatum: Order date: 2019.10.07 Auftraggeber: Client: KCodes Corporation 7F.,No.252 Sec.1, Neihu Rd. Neihu Dist.,Taipei, Taiwan Prü fgegenstand: Test item: Wireless USB Device Bezeichnung / Typ-Nr.: Identification / Type no.: KC612ac, WB112ac Auftrags-Inhalt: Order content: FCC Part 15C/ ISED RSS-247 Test report (Wifi 2.4G) Prü fgrundlage: Test specification: FCC 47CFR Part 15: Subpart C Section 15.247(DTS) ISED RSS-247 Issue 2 Feb 2017 Wareneingangsdatum: Date of sample receipt: 2019.10.14 Prü fmuster-Nr.: Test sample no: A001002320-006 Prü fzeitraum: Testing period: 2019.10.14 - 2020.03.13 Ort der Prü fung: Place of testing: EMC/RF Laboratory Taipei Prü flaboratorium: Testing laboratory: TUV Rheinland Taiwan Ltd. Prü fergebnis*: Test result*: Pass rü ft von: reviewed by: Mars Y. J . L in genehmigt von: authorized by: Ryan W. T . C h en Datum: 2020.03.17 Date: Datum: 2020.03.17 Date: Stellung / Position: Project Engineer Stellung / Position: Project Manager Sonstiges / Other: KC612ac and WB112ac use the same RF Chip. Zustand des Prü fgegenstandes bei Anlieferung: Condition of the test item at delivery: Prüfmuster vollständig und unbeschädigt Test item complete and undamaged * Legende: 1 = sehr gut 2 = gut 3 = bef riedigend 4 = ausreichend 5 = mangelhaf t P(ass) = entspricht o.g. Prüfgrundlage(n) F(ail) = entspricht nicht o.g. Prüfgrundlage(n) N/A = nicht anwendbar N/T = nicht getestet * Legend: 1 = very good 2 = good 3 = satisfactory 4 = sufficient 5 = poor P(ass) = passed a.m. test specification(s) F(ail) = failed a.m. test specification(s) N/A = not applicable N/T = not tested Dieser Prü fbericht bezieht sich nur auf das o.g. Prü fm uster und darf ohne Genehm igung der Prü fstelle nicht auszugsw eise vervielfältigt w erden. Dieser Bericht berechtigt nicht zur Verwendung eines Prü fzeichens. This test report only relates to the a. m. test sample. Without permission of the test center this test report is not permitted to be duplicated in extracts. This test report does not entitle to carry any test mark. TUV Rheinland Taiw an Ltd. 11F., No. 758, Sec. 4, Bade Rd., Taipei 105, Taiw an, R.O.C. Produkte Products Prü fbericht - Nr.: Test Report No.: 50169072 001 Seite 2 von 84 Page 2 of 84 TEST SUMMARY 5.1.1 ANTENNA REQUIREMENT RESULT: Passed 5.1.2 PEAK OUTPUT POWER RESULT: Passed 5.1.3 6DB BANDWIDTH AND 99% BANDWIDTH RESULT: Passed 5.1.4 POWER DENSITY RESULT: Passed 5.1.5 CONDUCTED SPURIOUS EMISSIONS AND FREQUENCY BAND EDGE MEASURED IN 100KHZ BANDWIDTH RESULT: Passed 5.1.6 SPURIOUS EMISSION RESULT: Passed 5.2.1 MAINS CONDUCTED EMISSIONS RESULT: Passed 6.1.1 ELECTROMAGNETIC FIELDS RESULT: Passed Produkte Products Prü fbericht - Nr.: Test Report No. 50310406 001 Seite 3 von 84 Page 3 of 84 Contents 1. GENERAL REMARKS .....................................................................................................5 1.1 COMPLEMENTARY MATERIALS ......................................................................................5 1.2 DECISION RULE OF CONFORMITY...................................................................................5 2. TEST SITES...................................................................................................................6 2.1 TEST LABORATORY ......................................................................................................6 2.2 TEST FACILITY ..............................................................................................................6 2.3 LIST OF TEST AND MEASUREMENT INSTRUMENTS .........................................................7 2.4 TRACEABILITY ..............................................................................................................8 2.5 CALIBRATION................................................................................................................8 2.6 MEASUREMENT UNCERTAINTY ......................................................................................8 3. GENERAL PRODUCT INFORMATION ...............................................................................9 3.1 PRODUCT FUNCTION AND INTENDED USE ......................................................................9 3.2 SYSTEM DETAILS AND RATINGS ....................................................................................9 3.3 INDEPENDENT OPERATION MODES..............................................................................10 3.4 NOISE GENERATING AND NOISE SUPPRESSING PARTS................................................10 3.5 SUBMITTED DOCUMENTS ............................................................................................10 4. TEST SET-UP AND OPERATION MODES .......................................................................11 4.1 PRINCIPLE OF CONFIGURATION SELECTION.................................................................11 4.2 TEST OPERATION AND TEST SOFTWARE .....................................................................11 4.3 SPECIAL ACCESSORIES AND AUXILIARY EQUIPMENT...................................................12 4.4 COUNTERMEASURES TO ACHIEVE EMC COMPLIANCE .................................................12 4.5 TEST SETUP DIAGRAM................................................................................................12 5. TEST RESULTS ...........................................................................................................14 5.1 TRANSMITTER REQUIREMENT & TEST SUITES .............................................................14 5.1.1 Antenna Requirement ................................................................................................ 14 5.1.2 Peak Output Power .................................................................................................... 15 5.1.3 6dB Bandwidth and 99% …

Text truncated - open the document above for the full version.

Produkte Products Prü fbericht - Nr.: Test Report No. 50310407 001 Seite 263 von 268 Page 263 of 268 7. Photographs of the Test Set-Up Photograph 1: Set-up for Spurious Emissions (Front View 1) Photograph 2: Set-up for Spurious Emissions (Front View 2) Produkte Products Prü fbericht - Nr.: Test Report No. 50310407 001 Seite 264 von 268 Page 264 of 268 Photograph 3: Set-up for Spurious Emissions (Back View 1) Photograph 4: Set-up for Spurious Emissions (Back View 2) Produkte Products Prü fbericht - Nr.: Test Report No. 50310407 001 Seite 265 von 268 Page 265 of 268 Photograph 5: Set-up for Spurious Emissions (Back View 3) Photograph 6: Set-up for Spurious Emissions (Back View 4) Produkte Products Prü fbericht - Nr.: Test Report No. 50310407 001 Seite 266 von 268 Page 266 of 268 Photograph 7: Set-up for Conducted testing(View 1) Photograph 8: Set-up for Conducted testing(View 2) Produkte Products Prü fbericht - Nr.: Test Report No. 50310407 001 Seite 267 von 268 Page 267 of 268 Photograph 9: Set-up for AC Mains (Front View) Photograph 10: Set-up for AC Mains (Back View)
