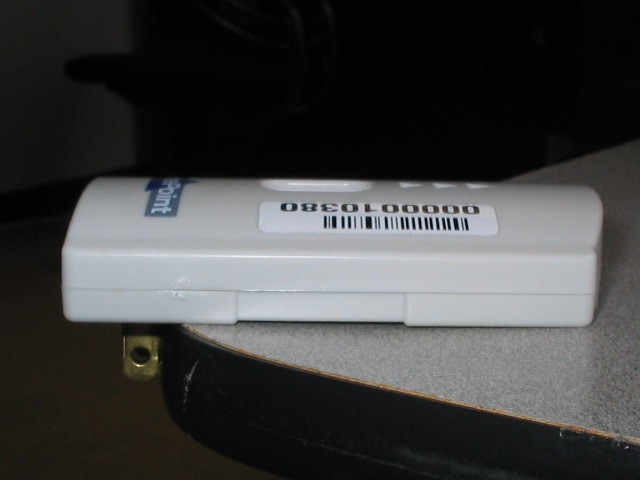

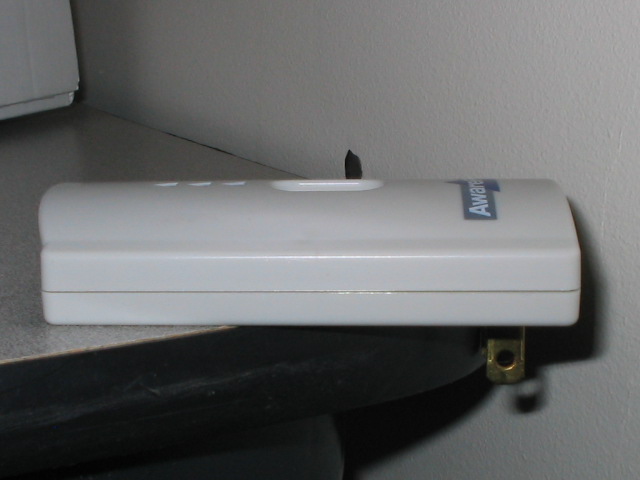

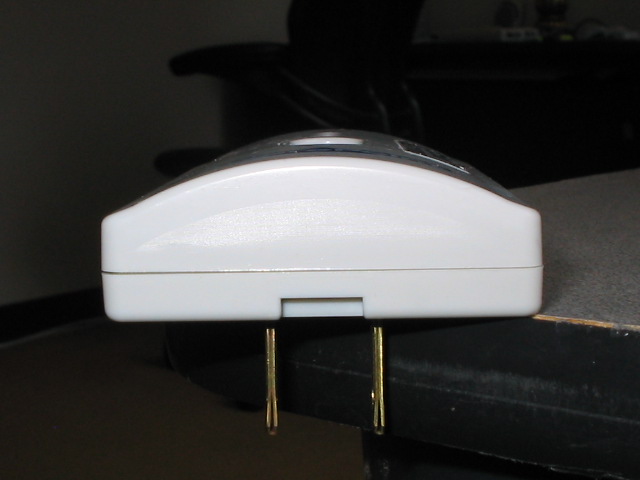

UAG-00000000R100Plug-In Wireless Mesh Network Transceiver

Report No. SC602695-08 Page 1 of 18 Rev.No 1.0 TÜV AMERICA INC 10040 Mesa Rim Road San Diego, CA 92121-2912 Phone 858 678 1400 FAX 858 546 0364 MEASUREMENT AND TECHNICAL REPORT AWAREPOINT CORPORATION 4275 Executive Square La Jolla, CA 92037 DATE: 08 June 2006 This Report Concerns: Original Grant: X Class II Change: Equipment Type: Awarepoint Receiver, Model R1 Deferred grant requested per 47 CFR 0.457(d)(1)(ii)? Yes: Defer until: No: X Company Name agrees to notify the Commission by: N/A of the intended date of announcement of the product so that the grant can be issued on that date. Transition Rules Request per 15.37? Yes: No: X* (*) FCC Part 15, Paragraph(s) 15.109(a), 15.209(a), 15.247(a), 15.247(b), 15.247(c), and 15.247(d) (*) Canadian Specification(s) RSS-210 A8.1(1), RSS-210 A8.4(2), and RSS-210 A8.5 Report Prepared by: TÜV AMERICA, INC 10040 Mesa Rim Road San Diego, CA 92121-2912 Phone: 858 678 1400 Fax: 858 546 0364 Report No. SC602695-08 Page 2 of 18 Rev.No 1.0 TÜV AMERICA INC 10040 Mesa Rim Road San Diego, CA 92121-2912 Phone 858 678 1400 FAX 858 546 0364 TABLE OF CONTENTS Pages 1.0 GENERAL INFORMATION 3 - 7 1.1 Product Description 3 - 4 1.2 Related Submittal Grant 5 1.3 Tested System Details 5 1.4 Test Methodology 6 1.5 Test Facility 7 2.0 SYSTEM TEST CONFIGURATION 8 2.1 Justification 8 2.2 EUT Exercise Software 8 2.3 Special Accessories 8 2.4 Equipment Modifications 8 2.5 Configuration of Test System 8 3.0 BANDWIDTH EQUIPMENT/DATA BAND EDGE EQUIPMENT/DATA RF OUTPUT POWER EQUIPMENT/DATA RADIATED SPURIOUS EMISSIONS EQUIPMENT/DATA PEAK POWER SPECTRAL DENSITY EQUIPMENT/DATA RADIATED EMISSIONS EQUIPMENT/DATA RECEIVER SPURIOUS EMISSIONS EQUIPMENT/DATA 9 - 17 4.0 ATTESTATION STATEMENT 18 Report No. SC602695-08 Page 3 of 18 Rev.No 1.0 TÜV AMERICA INC 10040 Mesa Rim Road San Diego, CA 92121-2912 Phone 858 678 1400 FAX 858 546 0364 1.0 GENERAL INFORMATION 1.1 Product Description General Equipment Description: EUT Description: Plug-In wireless networking transceiver. EUT Name: “Awarepoint Receiver” Model No.: R1 Serial No.: (varies) Product Options: -- Configurations and modes to be tested: Normal Operation EUT Specifications Length: 3.5 Width: 2 Height: .5 Weight: 2 oz. Power Requirements ( Regulations require testing to be performed at typical power ratings in the countries of intended use. (i.e., European power is typically 230 VAC 50 Hz or 400 VAC 50 Hz, single and three phase, respectively)) Voltage: 120 (If battery powered, make sure battery life is sufficient to complete testing.) # of Phases: 1 Current (Amps/phase(max)): 0.375 Current (Amps/phase(nominal)): 0.125 EUT Power Cable Permanent OR Removable Shielded OR Unshielded X Not Applicable Length (in meters): EUT Operating Modes to be Tested -- list the operating modes to be used during test. It is recommended the equipment be tested while operating in a typical operation mode. FCC testing of personal computers and/or peripherals requires that a simple program generate a complete line of upper case H’s. Provide a general description of all software, firmware, and PLD algorithms used in the equipment. List all code modules as described above, with the revision level used during testing. Normal Operation (default when unit is plugged into an outlet) EUT System Components -- List and describe all EUT components . For FCC testing a minimum configuration is required. (i.e. Mouse, Printer, Monitor, External Disk Drive, Motherboard, etc.) Description Model # Serial # FCC ID # Receiver is self-contained -- -- -- Report No. SC602695-08 Page 4 of 18 Rev.No 1.0 TÜV AMERICA INC 10040 Mesa Rim Road San Diego, CA 92121-2912 Phone 858 678 1400 FAX 858 546 0364 Oscillator Frequencies Frequency Derived Frequency Component # / Location Description of Use 8Mhz -- Y1 / front, above center slot Atmel Microcontroller xtal 16MHz 2.4GHz Y2 / front, Right of center slot Chipcon xtal Power Supply Manufacturer Model # Serial # Type (self-contained) Supertex SR036 & GN2470 IC’s -- Switched-mode: (Frequency) -- Linear: Other: X (see attached) Critical EMI Components (Capacitors, ferrites, etc.) Description Manufacturer Part # or Value Qty Component # / Location Ferrite Inductor Steward LI0805H151R 1 L1 / rear, near U1 EMC Critical Detail -- Describe other EMC Design details used to reduce high frequency noise. The gate of the IGBT has a low pass filter to 'curve' the IGBT's response, reducing harmonics. Report No. SC602695-08 Page 5 of 18 Rev.No 1.0 TÜV AMERICA INC 10040 Mesa Rim Road San Diego, CA 92121-2912 Phone 858 678 1400 FAX 858 546 0364 1.2 Related Submittal Grant None 1.3 Tested System Details The FCC ID’s for all equipment, plus descriptions of all cables used in the tested system are: None Report No. SC602695-08 Page 6 of 18 Rev.No 1.0 TÜV AMERICA INC 10040 Mesa Rim Road San Diego, CA 92121-2912 Phone 858 678 1400 FAX 858 546 0364 1.4 Test Methodology Purpose of Test: To demonstrate compliance with the following tests. Test Summary Frequency ragne tested: 30 MHz to 25 GHz. Summary of Results Test Description Paragraph Number Low Channel Mid Channel High Channel Pass/Fail Bandwidth 15.247(a)(2) RSS-210 A8.1(1) -- 1440 kHz -- Pass Band Edge 15.247(a)(1)(i) RSS-210 A8.1(1) Meets requirements N/A Meets requirements Pass RF Output Power 15.247(b) RSS-210 A8.4 (2) N/A N/A 0.001 W Pass Radiated Spurious Emissions – Restricted Bands (1GHz to 25GHz) 15.247(c)/ 15.209(a) RSS-210 A8.5 N/A 60.7 dBuV/m (pk) @ 4960 MHz N/A Pass Peak Power Spectral Density 15.247(d) -- >20 dB below -- Pass Radiated Emissions (30 to 1000 MHz) 15.209(a) RSS-210 A8.5 N/A No Detectable Emissions N/A Pass Receiver Spurious Emissions 15.109(a) N/A 18.6 dBuV/m (pk) @ 112 MHz N/A Pass Testing was performed according to the procedures in FCC/ANSI C63.4 and CSA 108.8-M1983. Report No. SC602695-08 Page 7 of 18 Rev.No 1.0 TÜV AMERICA INC 10040 Mesa Rim Road San Diego, CA 92121-2912 Phone 858 678 1400 FAX 858 546 0364 1.5 Test Facility The open area test site and conducted measurement dat…
