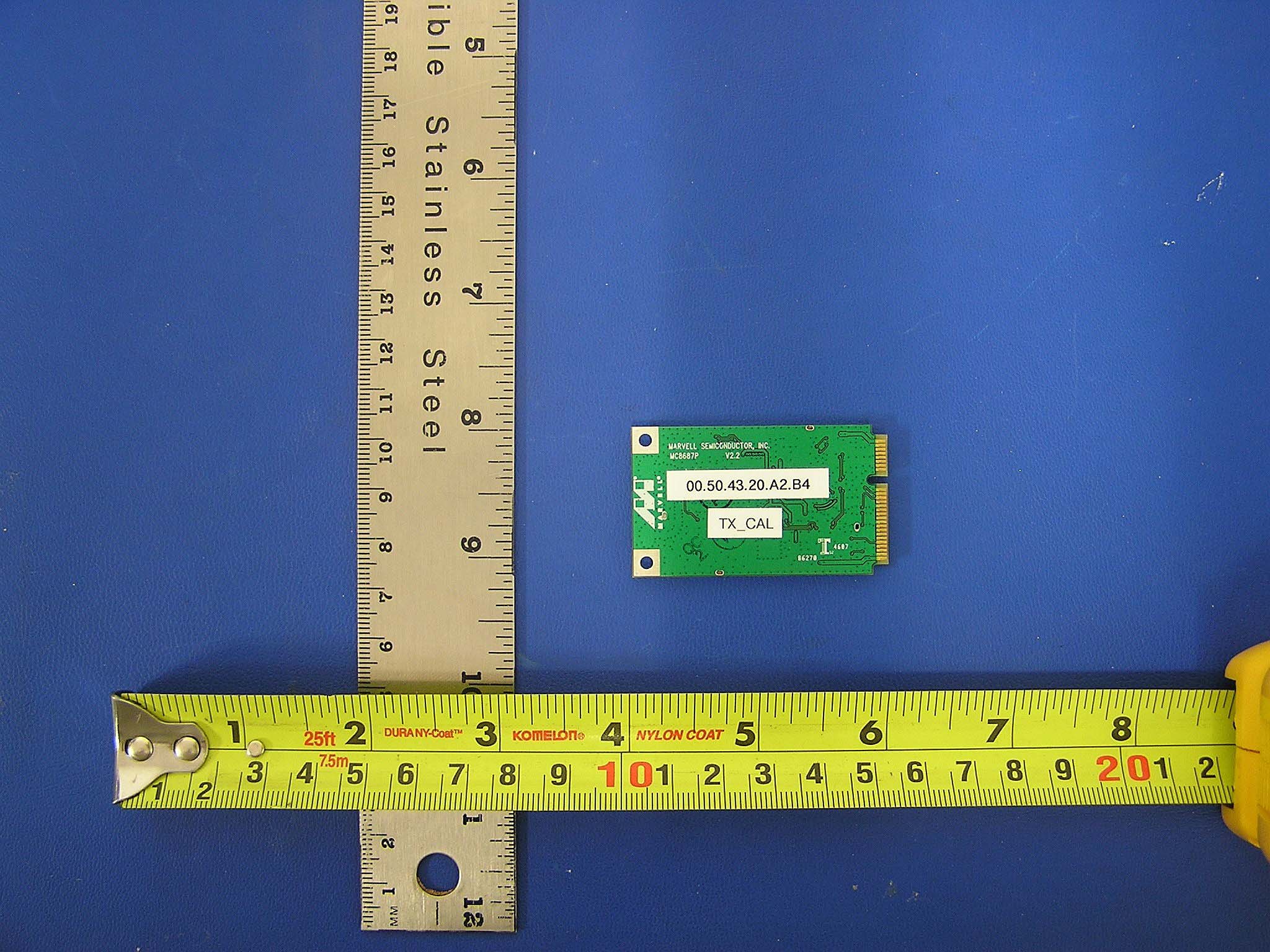

UAY-MC8687PMC8687P Mini Card 802.11 b/g Radio Card

MC8687P Mini PCIe WLAN Client Card User’s Guide Documentation No. ____ Marvell Semiconductor Inc. Marvell ® Semiconductor Corporation 5488 Marvell Lane Santa Clara, CA 95054 Copyright © 2007 Marvell ® Semiconductor Corporation. All rights reserved. MC8687P Mini PCIe WLAN Client Card User’s Guide ________________________________________________________________________ ________________________________________________________________________ Doc. No________ Rev.V1.0 Confidential Copyright © 2007 Marvell Page 2 Document Classification: Proprietary Information December 28, 2007 Table of Contents 1 Introduction............................................................................................................... 4 1.1 Overview............................................................................................................. 4 1.2 Wireless Networks .............................................................................................. 4 1.2.1 Ad Hoc Mode.............................................................................................. 4 1.2.2 Infrastructure Mode .................................................................................... 4 2 Marvell Wireless Configuration Utility Overview................................................. 5 2.1 Overview............................................................................................................. 5 2.2 Marvell Configuration Utility ............................................................................. 5 2.2.1 Windows XP and Windows Server 2003 Users ......................................... 5 2.2.2 Tray Status Icons......................................................................................... 6 2.3 Security ............................................................................................................... 7 3 Marvell Wireless Configuration Utility User Interface......................................... 9 3.1 Network Status Tab........................................................................................... 10 3.1.1 Select Profile ............................................................................................. 10 3.1.2 Link Information ....................................................................................... 10 3.1.3 Signal Strength / Wireless Mode Indicator ............................................... 12 3.1.5 Actual Throughput Performance............................................................... 13 3.1.6 Radio On/Off Check Box.......................................................................... 14 3.2 Profile Manager Tab ......................................................................................... 15 3.2.1 Profile Setting – Network Info Tab .......................................................... 16 3.2.2 Profile Setting – Security Tab................................................................... 18 3.2.3 Legacy Authentication Modes .................................................................. 19 3.2.4 802.1X Authentication Modes .................................................................. 22 3.2.5 Profile Setting – Protocol Tab................................................................... 39 3.3 Site Survey Tab................................................................................................. 40 3.3.1 Site Survey – Network Filter .................................................................... 40 3.3.2 Site Survey – List of Detected Stations .................................................... 41 3.3.3 Site Survey – Filter Button ....................................................................... 42 3.3.4 Site Survey – Refresh Button.................................................................... 43 3.3.5 Site Survey – Associate Button ................................................................ 43 3.4 Statistics Tab ..................................................................................................... 43 3.4.1 Signal Strength.......................................................................................... 44 3.4.2 Transmit Section ....................................................................................... 44 3.4.3 Receiver Section ....................................................................................... 45 3.4.4 Protocol Section ........................................................................................ 46 3.5 Advanced Tab ................................................................................................... 47 3.5.1 Advanced Tab – Marvell Wireless Card................................................... 47 3.5.1 Advanced Tab – Miscellaneous ................................................................ 47 3.6 AutoLink Tab.................................................................................................... 48 3.7 Admin Tab ........................................................................................................ 49 3.7.1 Admin Tab – Import Profiles .................................................................... 49 3.7.2 Admin Tab – Export Profiles .................................................................... 49 3.7.3 Admin Tab – Autostart Marvell Wireless Configuration Utility.............. 50 MC8687P Mini PCIe WLAN Client Card User’s Guide ________________________________________________________________________ ________________________________________________________________________ Doc. No________ Rev.V1.0 Confidential Copyright © 2007 Marvell Page 3 Document Classification: Proprietary Information December 28, 2007 3.7.4 Admin Tab – Stop Windows Wireless Zero Configuration Service......... 50 3.8 About Tab ......................................................................................................... 50 3.9 Wi-Fi Testing Tab............................................................................................…

Text truncated - open the document above for the full version.

Date: December 10, 2007 Compliance Certification Services Certification Division 47173 Benicia Street, Fremont, CA 94538 To whom it may concern: We, the undersigned, hereby authorize the Testing Division of Compliance Engineering Services, Inc., d.b.a. Compliance Certification Services and hereafter referred to as CCS, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by CCS on our behalf shall have the same effect as acts of our own. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing CCS Testing Division as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, _____ Steven Chow Senior Applications Engineer Marvell Semiconductor, Inc. Date: ___Dec. 13, 2007___

1 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 Subject: Request for Confidentiality FCC ID: UAY-MC8687P To Whom It May Concern: Pursuant to the provisions of Sections 0.457 and 0.459 of the Commission’s rules (47 CFR §§ 0.457, 0.459), we are requesting the Commission to withhold the following attachments as confidential document from public disclosure indefinitely. Schematic Diagram Block Diagram Theory of Operation Antenna Specifications Antenna Cable Specification Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. In additional to above mentioned documents, pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices. We are requesting the commission to grant short-term confidentiality request on the following attachments. External Photos Internal Photos Test Setup Photos User Manual It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. 2 Best Regards, Steven Chow Senior Applications Engineer Marvell Semiconductor, Inc.

Marvell Semiconductor, Inc., FCC ID: UAY-MC8687P, Assessment NO.: AN08T7480, Notice#1 Inbox X from [email protected] to [email protected], [email protected], cc [email protected], date Jan 9, 2008 3:11 PM subject Marvell Semiconductor, Inc., FCC ID: UAY- MC8687P, Assessment NO.: AN08T7480, Notice#1 hide details Jan 9 (6 days ago) Reply Hello Claire, Thu, I have completed the review of this application. Please reply to the following issue. I was not aware before last night that there was a TCB application for this product, or I would have included this item together with the IC notice. If you have questions, please email or call. Q1: Although the modular request form indicates use of a unique ufl connector, the application includes information about a cable with the ufl connector at one end and a standard SMA connector at the other. The description of the MegaChip antenna also shows a standard SMA connector. Use of standard SMA connectors does not meet the requirement of 15.203. The connector should preferably be changed to a unique type (e.g. RSMA). If it is not possible to use a unique connector, it must be demonstrated that final installation will be the responsibility and under control of the applicant so that only the designated antenna will be installed as a permanent and non-removable integral part of host products and the end user will have no access to the antenna connector. In this latter case, an attestation statement signed by Marvell is required with a detailed description of the antenna will be installed to meet these requirements. Signature by agent is not acceptable for this atte! station statement. This grant will be issued as a limited modular approval. The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information within 30 days of the original e-mail date may result in application dismissal and forfeiture of the filing fee. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the e-mail address listed below the name of the sender. Best regards, Tim Dwyer Technical Reviewer FCC report and setup photos: Marvell AN08T7480 Inbox X from Claire Hoque <claire. [email protected]> to Tim Dwyer - TCB <Timothy_Dwyer@ieee. org>, date Jan 15, 2008 6:24 PM subject FCC report and setup photos: Marvell AN08T7480 hide details 6:24 PM (48 minutes ago) Reply Hi Tim, Here are the revised FCC report(without Mega Chip antenna) and FCC setup photos. Pls use the manual(page 52 is updated)I sent you yesterday. Thanks, Claire Hoque Compliance Certification Services 47173 Benicia Street Fremont, CA 94538, USA Tel: (510) 771-1123 Fax: (510) 661-0888 -----Original Message----- From: [email protected] [mailto:[email protected]]On Behalf Of Tim Dwyer Sent: Tuesday, January 15, 2008 2:25 PM To: Claire Hoque Subject: Re: pls issue IC grant ASAP: Marvell AN08I2280 Hi Claire, I will send this to Mike in a little while and issue the grant today. Tomorrow I will be travelling, but should be back on line later in the day. Best regards, Tim On Jan 15, 2008 4:54 PM, Claire Hoque < [email protected]> wrote: Hi Tim, Pls issue IC grant ASAP, if you could do today, that will be great. Pls use the manual(page 52 is updated) I sent you yesterday, so that client can use this manual for both FCC and IC. Thanks, Claire Hoque Compliance Certification Services 47173 Benicia Street Fremont, CA 94538, USA Tel: (510) 771-1123 Fax: (510) 661-0888 -----Original Message----- From: [email protected] [mailto: rfspectrum@gmail. com]On Behalf Of Tim Dwyer Sent: Monday, January 14, 2008 5:11 PM To: Claire Hoque Subject: Re: page 52 of revised manual: Marvell AN08T7480/AN08I2280 Hi Claire, The wording in the manual is acceptable. Best regards, TIm On Jan 14, 2008 7:40 PM, Claire Hoque < claire.hoque@ccsemc. com> wrote: Hi Tim, Client wants to use the same manual for both US market and Canada market, even they have to drop one antenna for US market. So client added a note in page 52, it indicates FCC application will only use PIFA antenna. Pls advise if the attached manual is ok or not for both FCC and IC. We are still waiting for client's decision to issue IC grant or not, pls wait for my final confirmation for IC grant. Thanks, Claire Hoque Compliance Certification Services 47173 Benicia Street Fremont, CA 94538, USA Tel: (510) 771-1123 Fax: (510) 661-0888 -----Original Message----- From: [email protected] [mailto: [email protected]]On Behalf Of Tim Dwyer Sent: Friday, January 11, 2008 11:25 AM To: Claire Hoque Subject: Marvell AN08T7480 Hi Claire, Marvel Changes FCC application AN08T7480 to remove Mega Chip Antenna -Revise test report -Revise test setup photos -Delete Mega Chip Dipole Specification exhibit -Delete UPF Antenna Cable Spec exhibit -Revise Antenna List -Revise user manual to remove reference to Mega Chip Dipole antenna. Manual submitted with original application is OK. - Full modular approval is ok if above are done. NOTE: IC application with revised manual is ok with Mega Chip antenna. But if Mega Chip antenna is left in IC application, then FCC and IC manuals will be different. FCC and IC rules with regard to detachable antennas are different. Have they considered the possibility to change to RSMA connector or to permanently attach the cable to the antenna with glue or solder or crimp? 2 attachments — Download all attachments 07U11510-1A1 Setup Photos.pdf 280K View as HTML Download 07U11510-1A1 FCC DTS WLAN Report.pdf 1506K View as HTML Download

Marvell Semiconductor Inc. FCC ID: UAY-MC8687P Request for transmitter modular approval Transmitter Module Characteristics Item Requirements EUT 1 Have its own RF shielding Device equipped with its own shield covering entire module. Refer to external photos. 2 Have buffered modulation/data inputs (if such inputs are provided), All inputs to the modules are buffered through logic or microprocessor inputs. 3 Have it own power supply regulation Internal 1.8V power regulator. Refer to Schematic diagram 4 Meet the antenna requirements of Section 15.203 Device is equipped with unique antenna (u.FL-LP- 040) connector. Refer to external photos 5 Be tested in a stand-alone configuration, i.e., the antenna, AC or DC power and data input/output lines must be connected to the module but, the module must not be inside another case during testing Device was tested outside the laptop. Refer to setup photos. 6 Be labeled with its own FCC ID number, and if the FCC ID is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. One proposed FCC ID label format is included in the filing. One of label is to be placed on the module and the other label is to be placed on the outside of host system. Refer to FCC ID label format and location file. 7 The modular transmitter is manufactured so that the user cannot influence the operation of the transmitter that will operate outside of the scope of the regulations. Transmitter is contained under the RF shield. Refer to external photo. 8 Address compliance with the Commission's RF exposure limits in Sections 1.1310 and 2.1093. In addition, spread spectrum transmitters operating under Section 15.247 are required to address RF exposure compliance in accordance with Section 15.247(b)(4). Compliance with the Commission's RF exposure limits in Sections 1.1310 and 2.1093.

1 EUT Model: MC8687P FCC ID Number: UAY-MC8687P IC ID Number: 6549A-MC8687P Mexico ID Number: TBD MC8687P Mini PCIe 802.11 b/g WLAN Client Card ID Label and location Note: ID label be placed on top of the RF shield. Drawing not to scale FCC ID: UAY-MC8687P IC: 6549A-MC8687P Mexico ID: TBD Marvell MC8687P Input: 3.3Vdc, 400 mA (typ.)

FCC CFR47 PART 15 SUBPART C CERTIFICATION TEST REPORT FOR MC8687P MINI CARD 802.11 b/g RADIO CARD MODEL NUMBER: MC8687P FCC ID: UAY-MC8687P REPORT NUMBER: 07U11510-1, REVISION A1 ISSUE DATE: JANUARY 15, 2007 Prepared for MARVELL SEMICONDUCTOR, INC. 5488 MARVELL LANE, I-301 SANTA CLARA, CA 95054, U.S.A. Prepared by COMPLIANCE CERTIFICATION SERVICES 47173 BENICIA STREET FREMONT, CA 94538, U.S.A. TEL: (510) 771-1000 FAX: (510) 661-0888 REPORT NO: 07U11510-1A1 DATE: JANUARY 15, 2007 FCC ID: UAY-MC8687P Page 2 of 94 COMPLIANCE CERTIFICATION SERVICES FORM NO: CCSUP4031B 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. Revision History Rev. Issue Date Revisions Revised By -- 12/21/07 Initial Issue F. Ibrahim A 01/14/08 Removed data and set up photos related to Mega Chip antenna F. Ibrahim 1 01/15/08 Removed IC information from report. S. Radecki REPORT NO: 07U11510-1A1 DATE: JANUARY 15, 2007 FCC ID: UAY-MC8687P Page 3 of 94 COMPLIANCE CERTIFICATION SERVICES FORM NO: CCSUP4031B 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. TABLE OF CONTENTS 1. ATTESTATION OF TEST RESULTS.................................................................................... 5 2. TEST METHODOLOGY ........................................................................................................ 6 3. FACILITIES AND ACCREDITATION.................................................................................... 6 4. CALIBRATION AND UNCERTAINTY .................................................................................. 6 4.1. MEASURING INSTRUMENT CALIBRATION ............................................................... 6 4.2. MEASUREMENT UNCERTAINTY................................................................................ 6 5. EQUIPMENT UNDER TEST ................................................................................................. 7 5.1. DESCRIPTION OF EUT................................................................................................ 7 5.2. MAXIMUM OUTPUT POWER....................................................................................... 7 5.3. DESCRIPTION OF AVAILABLE ANTENNAS............................................................... 7 5.4. SOFTWARE AND FIRMWARE..................................................................................... 7 5.5. WORST-CASE CONFIGURATION AND MODE .......................................................... 8 5.6. DESCRIPTION OF TEST SETUP................................................................................. 9 6. TEST AND MEASUREMENT EQUIPMENT ....................................................................... 11 7. ANTENNA PORT TEST RESULTS .................................................................................... 12 7.1. 802.11b MODE IN THE 2.4 GHz BAND...................................................................... 12 7.1.1. 6 dB BANDWIDTH .............................................................................................. 12 7.1.2. 99% BANDWIDTH .............................................................................................. 16 7.1.3. OUTPUT POWER ............................................................................................... 20 7.1.4. AVERAGE POWER ............................................................................................ 24 7.1.5. POWER SPECTRAL DENSITY .......................................................................... 25 7.1.6. CONDUCTED SPURIOUS EMISSIONS............................................................. 29 7.2. 802.11g MODE IN THE 2.4 GHz BAND...................................................................... 36 7.2.1. 6 dB BANDWIDTH .............................................................................................. 36 7.2.2. 99% BANDWIDTH .............................................................................................. 40 7.2.3. OUTPUT POWER ............................................................................................... 44 7.2.4. AVERAGE POWER ............................................................................................ 48 7.2.5. POWER SPECTRAL DENSITY .......................................................................... 49 7.2.6. CONDUCTED SPURIOUS EMISSIONS............................................................. 53 8. RADIATED TEST RESULTS .............................................................................................. 60 REPORT NO: 07U11510-1A1 DATE: JANUARY 15, 2007 FCC ID: UAY-MC8687P Page 4 of 94 COMPLIANCE CERTIFICATION SERVICES FORM NO: CCSUP4031B 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. 8.1. LIMITS AND PROCEDURE ........................................................................................ 60 8.2. TRANSMITTER ABOVE 1 GHz (PIFA 3.64dBi ANTENNA) ....................................... 62 8.2.1. TRANSMITTER ABOVE 1 GHz FOR 802.11b MODE ........................................ 62 8.2.2. TRANSMITTER ABOVE 1 GHz FOR 802.11g MODE ........................................ 71 8.3. WORST-CASE BELOW 1 GHz................................................................................... 80 9. AC POWER LINE CONDUCTED EMISSIONS ................................................................... 82 10. MAXIMUM PERMISSIBLE EXPOSURE ........................................................................ 86 11. SETUP PHOTOS ............................................................................................................ 89 REPORT NO: 07U11510-1A1 DATE: JANUARY 15, 2007 FCC ID: UAY-MC8687P Page 5 of 94 COMPLIANCE CERTIFICATION SERVI…

Text truncated - open the document above for the full version.

REPORT NO: 07U11510-1A1 DATE: JANUARY 15, 2007 FCC ID: UAY-MC8687P Page 89 of 94 COMPLIANCE CERTIFICATION SERVICES FORM NO: CCSUP4031B 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. 11. SETUP PHOTOS ANTENNA PORT CONDUCTED RF MEASUREMENT SETUP ANTENNA PORT CONDUCTED PHOTO REPORT NO: 07U11510-1A1 DATE: JANUARY 15, 2007 FCC ID: UAY-MC8687P Page 90 of 94 COMPLIANCE CERTIFICATION SERVICES FORM NO: CCSUP4031B 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. RADIATED RF MEASUREMENT SETUP PIFA 3.64dBi ANTENNA RADIATED FRONT PHOTO REPORT NO: 07U11510-1A1 DATE: JANUARY 15, 2007 FCC ID: UAY-MC8687P Page 91 of 94 COMPLIANCE CERTIFICATION SERVICES FORM NO: CCSUP4031B 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. RADIATED BACK PHOTO REPORT NO: 07U11510-1A1 DATE: JANUARY 15, 2007 FCC ID: UAY-MC8687P Page 92 of 94 COMPLIANCE CERTIFICATION SERVICES FORM NO: CCSUP4031B 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. RADIATED SIDE PHOTO REPORT NO: 07U11510-1A1 DATE: JANUARY 15, 2007 FCC ID: UAY-MC8687P Page 93 of 94 COMPLIANCE CERTIFICATION SERVICES FORM NO: CCSUP4031B 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. POWERLINE CONDUCTED EMISSIONS MEASUREMENT SETUP LINE CONDUCTED FRONT PHOTO REPORT NO: 07U11510-1A1 DATE: JANUARY 15, 2007 FCC ID: UAY-MC8687P Page 94 of 94 COMPLIANCE CERTIFICATION SERVICES FORM NO: CCSUP4031B 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of CCS. END OF REPORT LINE CONDUCTED BACK PHOTO
