CB-85/MB-85/EC-85/MC-85 WLAN Client Cards IEEE 802.11a/g/b and draft-802.11n/EWC compliant User Guide Doc. No. MV-S800477-00, Rev. B July 18, 2006 Document Classification: Proprietary Information Not approved by Document Control. For review only. Cover DRAFT Use Only Document Conventions Note Provides related information or information of special importance. Caution Indicates potential damage to hardware or software, or loss of data. Warning Indicates a risk of personal injury. Document Status Doc Status: 0.00 Technical Publication: 0.x For more information, visit our website at: www.marvell.com Disclaimer This document provides preliminary information about the products described, and such information should not be used for purpose of final design. Visit the Marvell® web site at www.marvell.com for the latest information on Marvell products. No part of this document may be reproduced or transmitted in any form or by any means, electronic or mechanical, including photocopying and recording, for any purpose, without the express written permission of Marvell. Marvell retains the right to make changes to this document at any time, without notice. Marvell makes no warranty of any kind, expressed or implied, with regard to any information contained in this document, including, but not limited to, the implied warranties of merchantability or fitness for any particular purpose. Further, Marvell does not warrant the accuracy or completeness of the information, text, graphics, or other items contained within this document. Marvell products are not designed for use in life-support equipment or applications that would cause a life-threatening situation if any such products failed. Do not use Marvell products in these types of equipment or applications. With respect to the products described herein, the user or recipient, in the absence of appropriate U.S. government authorization, agrees: 1) Not to re-export or release any such information consisting of technology, software or source code controlled for national security reasons by the U.S. Export Control Regulations ("EAR"), to a national of EAR Country Groups D:1 or E:2; 2) Not to export the direct product of such technology or such software, to EAR Country Groups D:1 or E:2, if such technology or software and direct products thereof are controlled for national security reasons by the EAR; and, 3) In the case of technology controlled for national security reasons under the EAR where the direct product of the technology is a complete plant or component of a plant, not to export to EAR Country Groups D:1 or E:2 the direct product of the plant or major component thereof, if such direct product is controlled for national security reasons by the EAR, or is subject to controls under the U.S. Munitions List ("USML"). At all times hereunder, the recipient of any such information agrees that they shall be deemed to have manually signed this document in connection with their receipt of any such information. Copyright © 2006. Marvell International Ltd. All rights reserved. Marvell, the Marvell logo, Moving Forward Faster, Alaska, Fastwriter, Datacom Systems on Silicon, Libertas, Link Street, NetGX, PHYAdvantage, Prestera, Raising The Technology Bar, The Technology Within, Virtual Cable Tester, and Yukon are registered trademarks of Marvell. Ants, AnyVoltage, Discovery, DSP Switcher, Feroceon, GalNet, GalTis, Horizon, Marvell Makes It All Possible, RADLAN, UniMAC, and VCT are trademarks of Marvell. All other trademarks are the property of their respective owners. CB-85/MB-85/EC-85/MC-85 User Guide Doc. No. MV-S800477-00 Rev. B CONFIDENTIAL Copyright © 2006 Marvell Page 2 Document Classification: Proprietary InformationJuly 18, 2006, 0.00 Not approved by Document Control. For review only. Table of Contents Copyright © 2006 Marvell CONFIDENTIAL Doc. No. MV-S800477-00 Rev. B July 18, 2006, 0.00Document Classification: Proprietary Information Page 3 Not approved by Document Control. For review only. Table of Contents Table of Contents.................................................................................................................. 3 List of Figures ....................................................................................................................... 5 List of Tables ......................................................................................................................... 7 Section 1. Introduction ........................................................................................................ 9 1.1Overview...................................................................................................................................... 9 1.2Wireless Networks ....................................................................................................................... 9 1.2.1 Ad-Hoc Mode ....................................................................................................................................9 1.2.2 Infrastructure Mode .........................................................................................................................10 Section 2. Marvell Configuration Utility Overview .......................................................... 11 2.1Overview.................................................................................................................................... 11 2.2Windows XP and Windows Server 2003 Users......................................................................... 11 2.2.1 Disabling Windows Zero Configuration Utility .................................................................................11 2.2.2 Marvell Configuration Utility.............................................................................................................15 2.3Security...................................................................................................................................... 16 Section 3. Marvell Configuration Utili…

Text truncated - open the document above for the full version.

1 Mike Kuo From: Mike Kuo Sent: Friday, July 14, 2006 1:36 PM To: Claire Hoque; Alvin Ilarina Cc: Christine Vu; Michael Heckrotte Subject: FW: Marvell Semiconductor, Inc., FCC ID: UAY-MMC85M, Assessment NO.: AN06T5957, Notice#1 -----Original Message----- From: Mike Kuo Sent: Friday, July 14, 2006 1:35 PM To: Mike Kuo Subject: Marvell Semiconductor, Inc., FCC ID: UAY-MMC85M, Assessment NO.: AN06T5957, Notice#1 Question #1: Based upon EWC-PHY-V127 specification, there are many rate-dependent parameter in the specification. As documented in the test report, there is no information to address the mode of investigation has been performed to determine the worse case as indicated in section 5.5. please provide a clear description on various mode of operations have been investigated during the preliminary tests. Question #2: Please provide antenna specification. Question #3: Provide foxconn antenna gain information for 5.8GHz band in section 5.3 of test report. Question #4: Page 77 of test report : please provide the formula used to calculate legacy antenna gain. Question #5: Page 77 of test report : please explain why the fixed power limit is 17 dBm. Question #6 : Please provide the manufacturer name and model no of combiner. Question #7: Section 7.2.2 99% Bandwidth : the emission spectrum plots do not agree with the channel bandwidth per the specification. Please redo the 99% bandwidth measurement. Question #8: Due to 99% bandwidth measurement in question, please redo the output power measurement. Question #9 : Section 7.3.1 radiated spurious emission: Page 419: it mentioned co-located radiated spurious emission procedures. Please explain why co-located tests are applicable to this application. Question #10 : Restricted band investigation/ page 434, 802.11g / 20MHz / legacy mode: the margin to achieve compliance is -0.06 dB which is questionable. CCS-TCB will request production sample to verify the product compliance. Best Regards Mike Kuo The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information within 30 days of the original e-mail date may result in application dismissal and forfeiture of the filing fee. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the e-mail address listed below the name of the sender. 2 TrackingTracking: RecipientDeliveryRead Claire HoqueDelivered: 7/14/2006 1:36 PMRead: 7/14/2006 2:13 PM Alvin IlarinaDelivered: 7/14/2006 1:36 PMRead: 7/14/2006 2:21 PM Christine VuDelivered: 7/14/2006 1:36 PMRead: 7/14/2006 2:13 PM Michael HeckrotteDelivered: 7/14/2006 1:36 PMRead: 7/14/2006 2:20 PM

1 Mike Kuo From: Mike Kuo Sent: Monday, July 17, 2006 11:11 AM To: Alvin Ilarina; Claire Hoque Cc: Christine Vu; Chi Tsou; Michael Heckrotte Subject: FW: Marvell Semiconductor, Inc., FCC ID: UAY-MMC85M, Assessment NO.: AN06T5957, Notice#2 ( DTS portion) -----Original Message----- From: Mike Kuo Sent: Monday, July 17, 2006 11:09 AM To: Mike Kuo Subject: Marvell Semiconductor, Inc., FCC ID: UAY-MMC85M, Assessment NO.: AN06T5957, Notice#2 The following questions are resulted from reviewing the revised test report: Question #11 : Page 304-307 of DTS report, 802.11a 40 MHz Mode, the channel bandwidth integrated during channel power measurement is 72 MHz which is about twice of 99% bandwidth ( max. 37.8 MHz). Please redo the channel power measurement at this mode of operation with integrated BW not over 40 MHz. Question #12 : Page 314-317 of DTS report, 802.11a H40 Mode, the channel bandwidth integrated during channel power measurement is 72 MHz which is about twice of 99% bandwidth ( max. 37.8 MHz). Please redo the channel power measurement at this mode of operation with integrated BW not over 40 MHz. Question #13 : Appendix B of User manual: Based upon recent FCC review policy, for transmitter modular seeking modular approval, in the user manual, the module manufacturer must be clearly stated what are the required approval conditions and what are the required regulatory compliance to be included in the final host. Please consider to include the following statements in the Appendix B of user manual and provide revised user manual: Transmitter Module approval conditions: 1. Antennas must be installed to provide 20 cm separation distance from the transmitting antenna to the body of user during normal operating condition. This device must not be co-located or operating in conjunction with any other antenna or transmitter. 2. Only those antennas filed under FCC ID:UAY-MMC85M can be used with this device. 3. When the Module installed in the final system where the antenna location is less than 20 cm separation distance to the body of user, additional equipment authorization applied. 4. FCC ID label on the final system must be labeled with " Contains FCC ID:UAY-MMC85M " or " Contains transmitter module FCC ID:UAY-MMC85M". 5. In the user manual, final system integrator must be ensure that there is no instruction provided in the user manual to install or remove the transmitter module. 6. Transmitter module must be installed and used in strict accordance with the manufacturer¡¦s instructions as described in the user documentation that comes with the product. This device complies with the following radio frequency and safety standards. The following information are required in user manual of the final host system: USA-Federal Communications Commission (FCC) This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy. If not installed and used in accordance with the instructions, it may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. 2 If this equipment does cause harmful interference to radio or television reception, which can be determined by tuning the equipment off and on, the user is encouraged to try and correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna -Increase the distance between the equipment and the receiver. -Connect the equipment to outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. Any changes or modifications not expressly approved by the party responsible for compliance could void the user¡¦s authority to operate the equipment. CAUTION This device is restricted to indoor use due to its operation in the 5.15 to 5.25 GHz frequency range. FCC requires this product to be used indoors for frequency range 5.15 to 5.25 GHz to reduce the potential for harmful interference to co-channel Mobile Satellite systems. High power radars are allocated as primary users of the 5.25 to 5.35 GHz and 5.65 to 5.85 GHz bands. These radar stations can cause interference with and/or damage this device. Caution: Exposure to Radio Frequency Radiation. To comply with FCC RF exposure compliance requirements, a separation distance of at least 20 cm must be maintained between the antenna of this device and all persons. This device must not be co-located or operating in conjunction with any other antenna or transmitter. Best Regards Mike Kuo The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information within 30 days of the original e-mail date may result in application dismissal and forfeiture of the filing fee. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the e-mail address listed below the name of the sender. TrackingTracking: RecipientRead Alvin Ilarina Claire HoqueRead: 7/17/2006 11:13 AM Christine Vu Chi TsouRead: 7/17/2006 11:11 AM Michael HeckrotteRead: 7/17/2006 11:14 AM

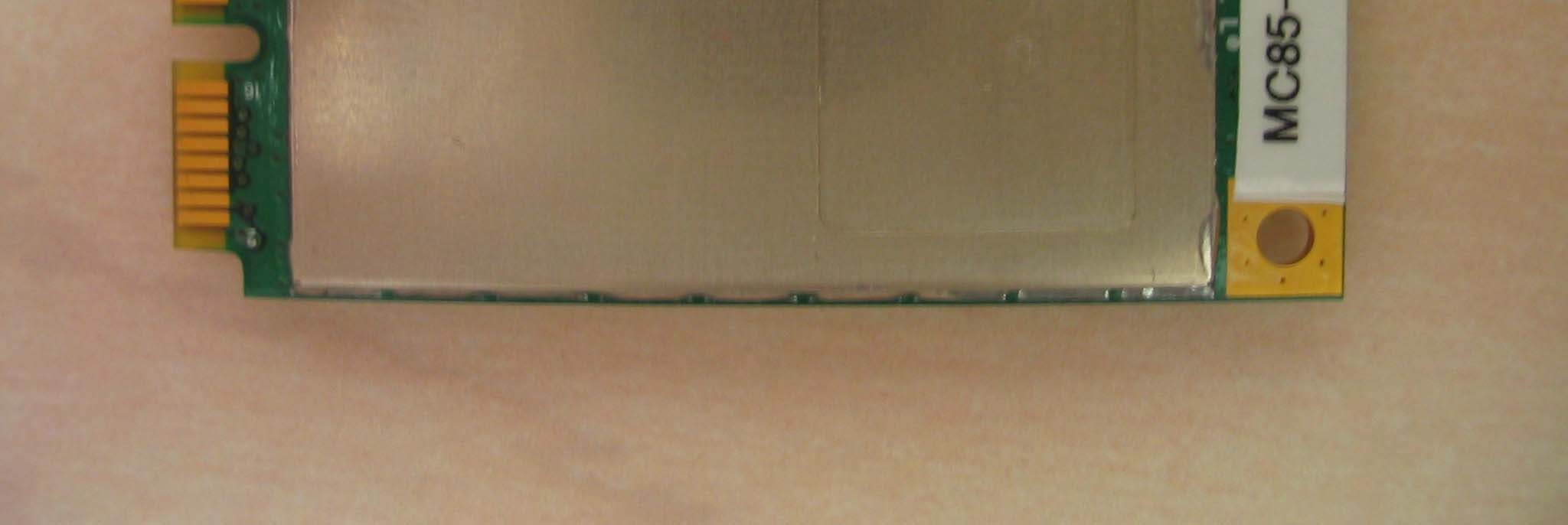

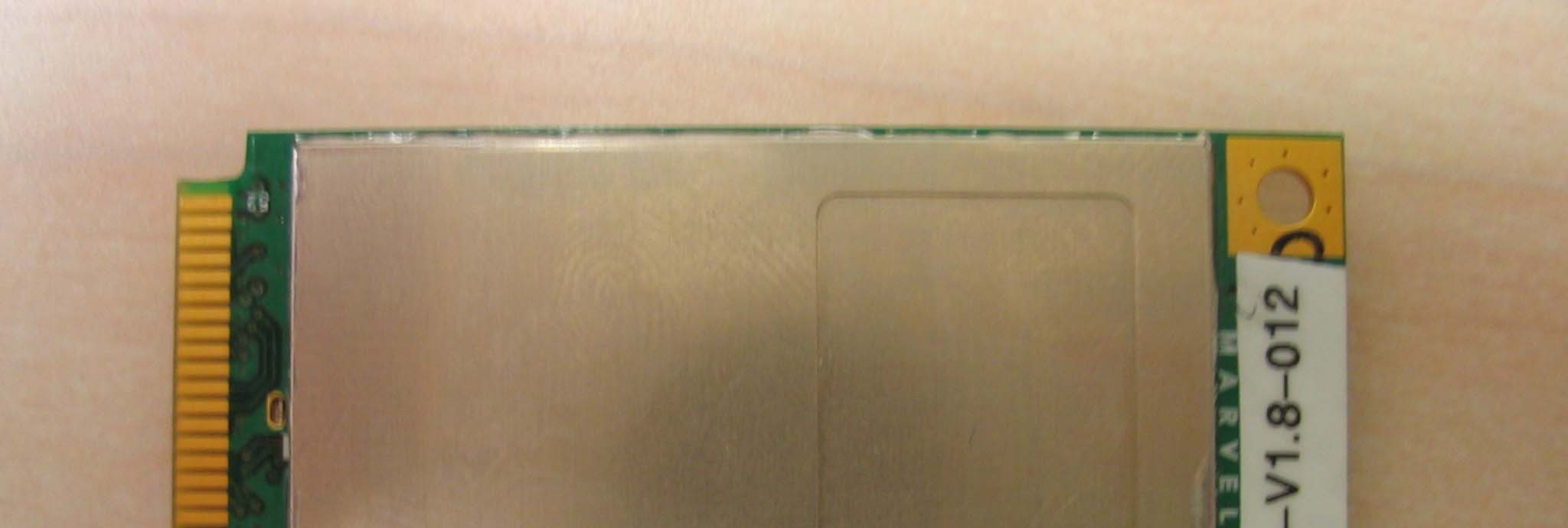

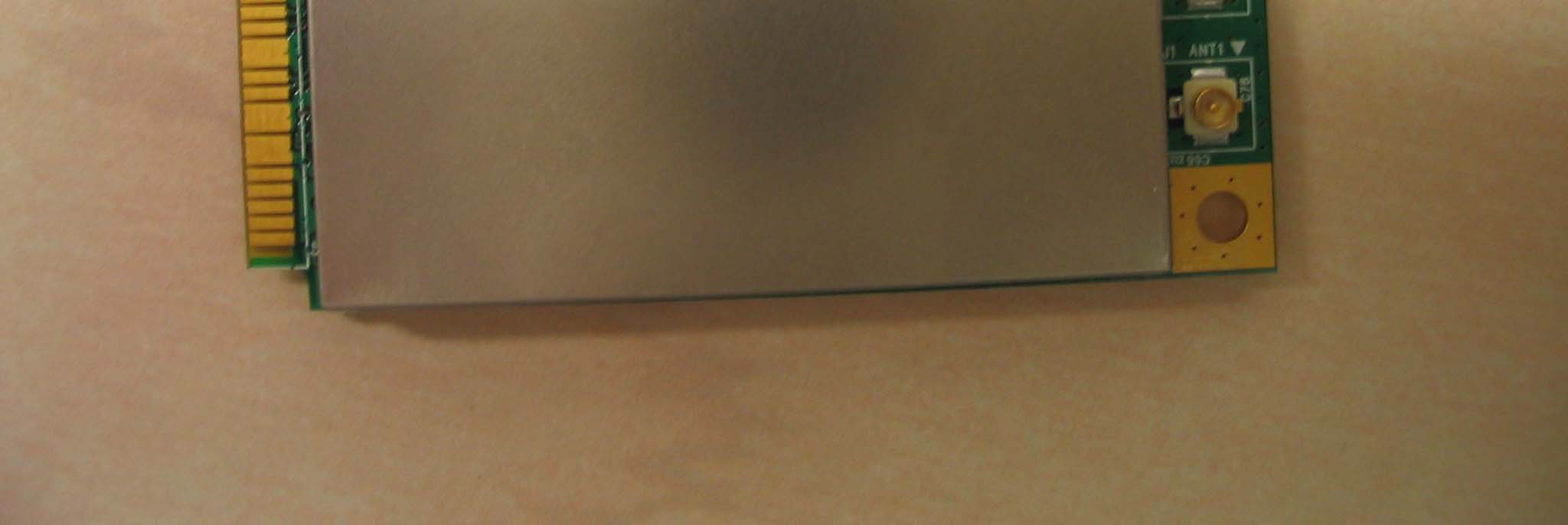

FCC ID: UAY-MMC85M Request for transmitter modular approval Transmitter Module Characteristics Item Requirements EUT 1 Have its own RF shielding Device is equipped with Metal shielding to cover RF section. Refer to external photos 2 Have buffered modulation/data inputs (if such inputs are provided), All inputs to the modules are buffered through logic or microprocessor inputs. 3 Have it own power supply regulation Internal 1.8V power regulator. Refer to Block diagram 4 Meet the antenna requirements of Section 15.203 Device is equipped with unique antenna ( u.FL(v)-LP-040) connector. Refer to external photos 5 Be tested in a stand-alone configuration, i.e., the antenna, AC or DC power and data input/output lines must be connected to the module but, the module must not be inside another case during testing Device was tested inside the laptop for limited modular approval. Refer to setup photos. 6 Be labeled with its own FCC ID number, and if the FCC ID is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. Two proposed FCC ID label format are included in the filing. One of label is to be placed on the module and the other label is to be placed on the outside of system. Refer to FCC ID label format and location file. 7 The modular transmitter is manufactured so that the user cannot influence the operation of the transmitter that will operate outside of the scope of the regulations. Refer to “User’s Guide” Exhibit 8 Address compliance with the Commission's RF exposure limits in Sections 1.1310 and 2.1093. In addition, spread spectrum transmitters operating under Section 15.247 are required to address RF exposure compliance in accordance with Section 15.247(b)(4). SAR test was performed on the portable laptop, mode CRVSA-02T1-75. N/A This is Mobile Module Approval

FCC CFR47 PART 15 SUBPART C CERTIFICATION TEST REPORT FOR MC85 MINI CARD 11b/g/a/n RADIO CARD MODEL NUMBER: MC85 FCC ID: UAY-MMC85M REPORT NUMBER: 06U10359-1D ISSUE DATE: JULY 18, 2006 Prepared for MARVELL SEMICONDUCTOR, INC. 5488 MARVELL LANE SANTA CLARA CALIFORNIA, 95054, USA Prepared by COMPLIANCE CERTIFICATION SERVICES 561F MONTEREY ROAD MORGAN HILL, CA 95037, USA TEL: (408) 463-0885 FAX: (408) 463-0888 REPORT NO: 06U10359-1D DATE: JULY 18, 2006 EUT: MC85 MINI CARD 11b/g/a/n RADIO CARD FCC ID:UAY-MMC85M Page 2 of 530 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. Revision History Rev. Issue Date Revisions Revised By -- 7/12/2006 - Initial Release A. Ilarina B 7/15/2006 - Updated table section 5.2 - Clarify Foxconn antenna gain for 5.8GHz in section 5.3. - Clarify description of baseline testing for worst case in Section 5.5. - Include Combiner information in section 6. - Include formula for Effective Legacy Gain in section 7.1.3 and 7.2.3. - Remove “Fixed Limit” in sections 7.1.3 and 7.2.3. - Updated Plots Section 7.2.2 - Updated Plots Section 7.2.3 - Updated table section 7.2.4 - Remove co-located radiated test description in section 7.3.1. A. Ilarina C 7/17/2006 - Updated table & plots section 7.2.2 - Updated table 5.2 A. Ilarina D 7/18/2006 - Change Mode description in Harmonic and Spurious Tables in Section 7.3.2 A. Ilarina REPORT NO: 06U10359-1D DATE: JULY 18, 2006 EUT: MC85 MINI CARD 11b/g/a/n RADIO CARD FCC ID:UAY-MMC85M Page 3 of 530 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. TABLE OF CONTENTS 1. ATTESTATION OF TEST RESULTS.....................................................................................5 2. TEST METHODOLOGY.........................................................................................................6 3. FACILITIES AND ACCREDITATION...................................................................................6 4. CALIBRATION AND UNCERTAINTY..................................................................................6 4.1. MEASURING INSTRUMENT CALIBRATION......................................................................6 4.2. MEASUREMENT UNCERTAINTY.......................................................................................6 5. EQUIPMENT UNDER TEST..................................................................................................7 5.1. DESCRIPTION OF EUT.....................................................................................................7 5.2. MAXIMUM OUTPUT POWER............................................................................................7 5.3. DESCRIPTION OF AVAILABLE ANTENNAS......................................................................8 5.4. SOFTWARE AND FIRMWARE............................................................................................8 5.5. WORST-CASE CONFIGURATION AND MODE..................................................................8 5.6. MODIFICATIONS..............................................................................................................8 5.7. DESCRIPTION OF TEST SETUP........................................................................................9 6. TEST AND MEASUREMENT EQUIPMENT.......................................................................11 7. LIMITS AND RESULTS........................................................................................................12 7.1. CHANNEL TESTS FOR THE 2400 TO 2483.5 MHz BAND.................................................12 7.1.1. 6 dB BANDWIDTH...................................................................................................12 7.1.2. 99% BANDWIDTH...................................................................................................44 7.1.3. PEAK OUTPUT POWER...........................................................................................76 7.1.4. AVERAGE POWER................................................................................................108 7.1.5. PEAK POWER SPECTRAL DENSITY....................................................................110 7.1.6. CONDUCTED SPURIOUS EMISSIONS..................................................................158 7.1.7. MAXIMUM PERMISSIBLE EXPOSURE................................................................249 7.2. CHANNEL TESTS FOR THE 5725 TO 5850 MHz BAND..................................................252 7.2.1. 6 dB BANDWIDTH.................................................................................................252 7.2.2. 99% BANDWIDTH.................................................................................................274 7.2.3. PEAK OUTPUT POWER.........................................................................................296 7.2.4. AVERAGE POWER................................................................................................318 7.2.5. PEAK POWER SPECTRAL DENSITY....................................................................320 7.2.6. CONDUCTED SPURIOUS EMISSIONS..................................................................353 7.2.7. MAXIMUM PERMISSIBLE EXPOSURE................................................................414 7.3. RADIATED EMISSIONS.................................................................................................417 7.3.1. TRANSMITTER RADIATED SPURIOUS EMISSIONS...........................................417 7.3.2. TRANSMITTER ABOVE 1 GHz FOR 2400 TO 2483.5 MHz BAND.........................420 7.3.3. TRANSMITTER ABOVE 1 GHz FOR 2400 TO 2483.5 MHz BAND.........................465 7.3.4. TRANSMITTER …

Text truncated - open the document above for the full version.

REPORT NO: 06U10359-1D DATE: JULY 18, 2006 EUT: MC85 MINI CARD 11b/g/a/n RADIO CARD FCC ID:UAY-MMC85M Page 301 of 530 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. (802.11a 20M MODE CHAIN B) LOW CH (802.11a 20M mode chain B) REPORT NO: 06U10359-1D DATE: JULY 18, 2006 EUT: MC85 MINI CARD 11b/g/a/n RADIO CARD FCC ID:UAY-MMC85M Page 302 of 530 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. MID CH (802.11a 20M mode chain B) REPORT NO: 06U10359-1D DATE: JULY 18, 2006 EUT: MC85 MINI CARD 11b/g/a/n RADIO CARD FCC ID:UAY-MMC85M Page 303 of 530 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. HIGH CH (802.11a 20M mode chain B) REPORT NO: 06U10359-1D DATE: JULY 18, 2006 EUT: MC85 MINI CARD 11b/g/a/n RADIO CARD FCC ID:UAY-MMC85M Page 304 of 530 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. (802.11a 40M MODE CHAIN A) LOW CH (802.11a mode 40M chain A) REPORT NO: 06U10359-1D DATE: JULY 18, 2006 EUT: MC85 MINI CARD 11b/g/a/n RADIO CARD FCC ID:UAY-MMC85M Page 305 of 530 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. HIGH CH (802.11a 40M mode chain A) REPORT NO: 06U10359-1D DATE: JULY 18, 2006 EUT: MC85 MINI CARD 11b/g/a/n RADIO CARD FCC ID:UAY-MMC85M Page 306 of 530 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. (802.11a 40M MODE CHAIN B) LOW CH (802.11a 40M mode chain B) REPORT NO: 06U10359-1D DATE: JULY 18, 2006 EUT: MC85 MINI CARD 11b/g/a/n RADIO CARD FCC ID:UAY-MMC85M Page 307 of 530 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. HIGH CH (802.11a 40M mode chain B) REPORT NO: 06U10359-1D DATE: JULY 18, 2006 EUT: MC85 MINI CARD 11b/g/a/n RADIO CARD FCC ID:UAY-MMC85M Page 308 of 530 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. (802.11n HT20 MODE CHAIN A) LOW CH (802.11n HT20 mode chain A) REPORT NO: 06U10359-1D DATE: JULY 18, 2006 EUT: MC85 MINI CARD 11b/g/a/n RADIO CARD FCC ID:UAY-MMC85M Page 309 of 530 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. MID CH (802.11n HT20 mode chain A) REPORT NO: 06U10359-1D DATE: JULY 18, 2006 EUT: MC85 MINI CARD 11b/g/a/n RADIO CARD FCC ID:UAY-MMC85M Page 310 of 530 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. HIGH CH (802.11n HT20 mode chain A) REPORT NO: 06U10359-1D DATE: JULY 18, 2006 EUT: MC85 MINI CARD 11b/g/a/n RADIO CARD FCC ID:UAY-MMC85M Page 311 of 530 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. (802.11 HT20 MODE CHAIN B) LOW CH (802.11n HT20 mode chain B) REPORT NO: 06U10359-1D DATE: JULY 18, 2006 EUT: MC85 MINI CARD 11b/g/a/n RADIO CARD FCC ID:UAY-MMC85M Page 312 of 530 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. MID CH (802.11n HT20 mode chain B) REPORT NO: 06U10359-1D DATE: JULY 18, 2006 EUT: MC85 MINI CARD 11b/g/a/n RADIO CARD FCC ID:UAY-MMC85M Page 313 of 530 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. HIGH CH (802.11n HT20 mode chain B) REPORT NO: 06U10359-1D DATE: JULY 18, 2006 EUT: MC85 MINI CARD 11b/g/a/n RADIO CARD FCC ID:UAY-MMC85M Page 314 of 530 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. (802.11 HT40 MODE CHAIN A) LOW CH (802.11n HT40 mode chain A) REPORT NO: 06U10359-1D DATE: JULY 18, 2006 EUT: MC85 MINI CARD 11b/g/a/n RADIO CARD FCC ID:UAY-MMC85M Page 315 of 530 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. HIGH CH (802.11n HT40 mode chain A) REPORT NO: 06U10359-1D DATE: JULY 18, 2006 EUT: …

Text truncated - open the document above for the full version.

REPORT NO: 06U10359-1D DATE: JULY 18, 2006 EUT: MC85 MINI CARD 11b/g/a/n RADIO CARD FCC ID:UAY-MMC85M Page 524 of 530 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. 8. SETUP PHOTOS ANTENNA PORT CONDUCTED RF MEASUREMENT SETUP ANTENNA PORT CONDUCTED PHOTO REPORT NO: 06U10359-1D DATE: JULY 18, 2006 EUT: MC85 MINI CARD 11b/g/a/n RADIO CARD FCC ID:UAY-MMC85M Page 525 of 530 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. RADIATED RF MEASUREMENT SETUP RADIATED FRONT PHOTO REPORT NO: 06U10359-1D DATE: JULY 18, 2006 EUT: MC85 MINI CARD 11b/g/a/n RADIO CARD FCC ID:UAY-MMC85M Page 526 of 530 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. RADIATED BACK PHOTO REPORT NO: 06U10359-1D DATE: JULY 18, 2006 EUT: MC85 MINI CARD 11b/g/a/n RADIO CARD FCC ID:UAY-MMC85M Page 527 of 530 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. RADIATED RF MEASUREMENT SETUP RADIATED FRONT PHOTO REPORT NO: 06U10359-1D DATE: JULY 18, 2006 EUT: MC85 MINI CARD 11b/g/a/n RADIO CARD FCC ID:UAY-MMC85M Page 528 of 530 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 US…
