UG9UBHS-LC1BLUETOTH HEADSET

UBHS-LC1 User Manual Table of Contents Caution Package Content Features Wearing the Headset Charging the Headset Storing the Headset Pairing Using the Headset to Make Calls Using the Headset to Listen to Music 3D Sound LCD Screen Messages Troubleshooting Headset Specification Caution 1. Do not put the headset near a fire. There is danger of explosio n. 2. Do not drop or apply excessive f orce to the headset. It might c ause damage. 3. In case of malfunction, do not try to repair yourself. Please c ontact nearest service center immediately. 4. If the headset gets wet, avoid any heat or electrical current, and contact our A/S center or the place of purchase immediately. 5. Keep out of children ’ s reach. 6. Do not use chemical products (ex: Bleach) to clean the product. 7. Do not use any unauthori zed charging device. 8. When storing the product for an extended period of time, store in a dry place and avoid extreme temperatures. 9. In order to avoid any danger caused by radio interference, do n ot use the headset where its use is forbidden. 10. If you use any medical device (pacemaker, hearing aids etc ... ), please consult the manufacturer of your device to make sure that the correct f unctioning of your medical device is not affected by RF energy emitted by the Bluetooth Headset. Your doctor may be able to assist you in obtaining thi s information. Headquarter Customer Service Center Ubixon Co., Ltd. 1344-29 Jungdong B/D 2F, Seocho-dong Seocho-gu Seoul, Korea TEL: +82-2-582-1115 FAX: +82-2-582-0115 e-mail: [email protected] http://www.ubixon.net 11. Our product satisfies Bluetooth Core Specification Version 2.0. Some Bluetooth devices may not be compatible with your headset. For further in formation about compatibility, please contact the concerned manufacturer, or ou r customer service center. Company ’ s Indemnification Manufacturers, Retailers, Agencie s are not responsible for any bodily harm, intentional damages and damages ca used by lack of care. This User ’ s Manual was written based on p resent product specification. All specification may be modifi ed without prior notification. Package Content Headset USB Cable (for recharging) Manual Features (1) Right Earphone : Outputs right side sound. (2) Left Earphone : Outputs left side sound. (3) Microphone : Intakes the sound. (4) LCD Screen : Information about headset ’ s status will be displayed (5) 2 Colors LED : Indicates headset ’ s status. (6) Power Switch : Use to turn the device on/off. (7) USB Port : Allows connecting provided USB cable for recharging. (8) Receivers : Outputs the sound. (9) Volume Up : While talking/listening to music, push the button as indica ted to increase volume. (10) Volume Down : While talking/listening to music, pull the button as indica ted to lower volume. (11) Talk/3D Sound : Press down the button to start a call, or to choose a 3D sound effect. (12) Backward : While listening to music, pull the button as indicated to pla y the past track. Press and hold the button to rewind (13) Forward/End call : While listening to music, push the button as indicated to pla y the next track. Pr ess and hold the button to forward. While talking on the phone, push the button as indicated to end a call. (14) Play/Pause : While listening to music, press down the button to Play/Pause. Press and hold the b utton to terminate playback. Wearing the Headset You can experience innovative portability thanks to Ubixon ’ s patent technology. When carrying the headset when talking/listening to mu sic Charging the Headset This product uses a rechargeable Li-Polymer battery. Please fully recharge the battery before first use. Charging Method: 1. Turn off the headset. 2. Use the provided USB Cable to recharge the headset. ※ The average charging time is 2 hours. 3. Red LED light flashes when charging and blue light flashes when charging is complete. 4. Disconnect the headset from the USB cable once the charging is complete. 5. When the battery level is low, ‘ LOW BATT ’ message will appear on LCD screen, accompanied by a warning sound ※Continuous Talk/Music/Standby t ime: 10Hours/9Hours/150Hours (This data was measured based on manufacturer ’ s standard. Actual use time may vary depending on the condition of use) Caution: 1. Do not use unauthoriz ed charging device. 2. Disconnect the headset from the USB cable once the charging is complete. 3. Battery must be stored between 0°C ~ 40°C. 4. You may not use the headset while it is charging. 5. The battery included in the heads et is an expandable product. T herefore, the life time of the battery will diminish in time. Storing the Headset 1. Please turn off your headset and store in a safe place. 2. Please avoid extreme low/high temperatures and direct sun light when storing the headset. It could diminish the battery life and cause damag e to your headset. 3. Please store your headset and other in-box items in a dry place , far from any watery devices. Pairing You MUST pair the headset with any new Bluetooth device before the first use. This step creates a unique link between two Bluetooth devices w hich allows the use of the headset without repeating the pairing process for the fu ture use. The pairing process may vary dep ending on the Bluetooth devices . Please consult - Additional Page - GCautionModifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. FCC Compliance Information This device complies with Part 15 of FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received , Including interference that may cause undesired operation. Information to User This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential ins…

Text truncated - open the document above for the full version.

2F Jung-dong Bldg. 1344-29, Seocho-dong, Seocho-gu, Seoul, 137-070, Korea TEL No : +82-2-582-1115 FAX No : +82-2-582-0115 August 1, 2006 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 In re : Ubixon Co., Ltd. FCC ID : UG9UBHS-LC1 Request for Short-Term Confidentiality Gentlemen: In accordance with 0.459 of CFR 47, Ubixon Co., Ltd. requests short-term Confidentiality of following sections of this application for a period of 45 days after grant is issued. Test setup photos External photos Internal photos, and User’s manual These documents contain detailed system and equipment descriptions and related information about the product, which Ubixon Co., Ltd. considers to be proprietary, confidential, and a custom design and otherwise, would not release to the general public. Since this design is a basis from which future technological products will evolve, Ubixon Co., Ltd. feels that this information would be of benefit to its competitors, and that the disclosure of the information in these documents would give our competitors an unfair advantage in the market. Sincerely, Hyoung-ho Kim General Manager

2F Jung-dong Bldg. 1344-29, Seocho-dong, Seocho-gu, Seoul, 137-070, Korea TEL No : +82-2-582-1115 FAX No : +82-2-582-0115 August 1, 2006 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 In re : Ubixon Co., Ltd. FCC ID : UG9UBHS-LC1 Request for Confidentiality Gentlemen: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Schematics, Parts list, Block diagram and Operational description. The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Hyoung-ho Kim General Manager

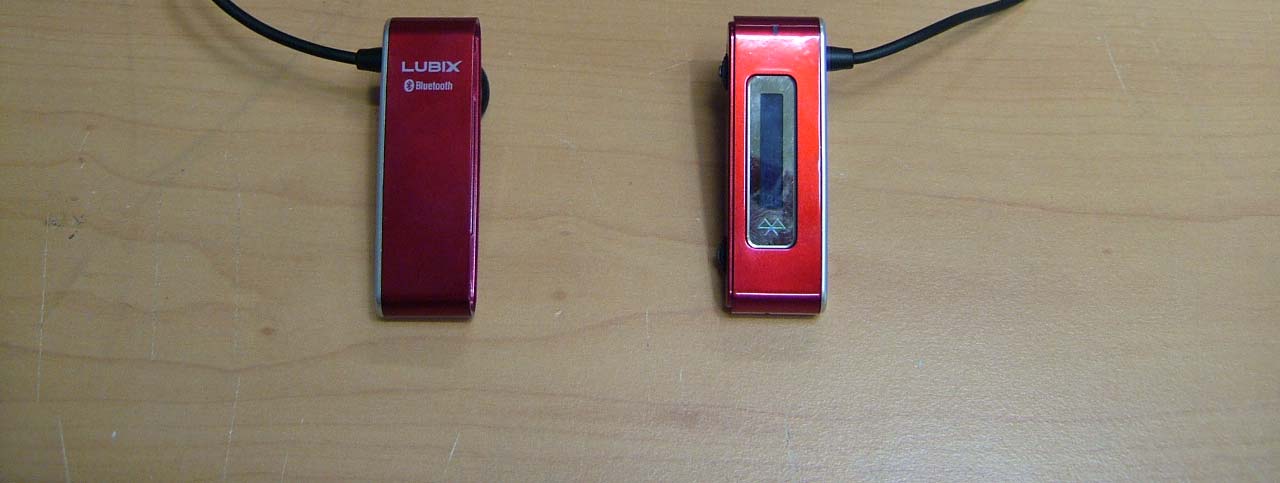

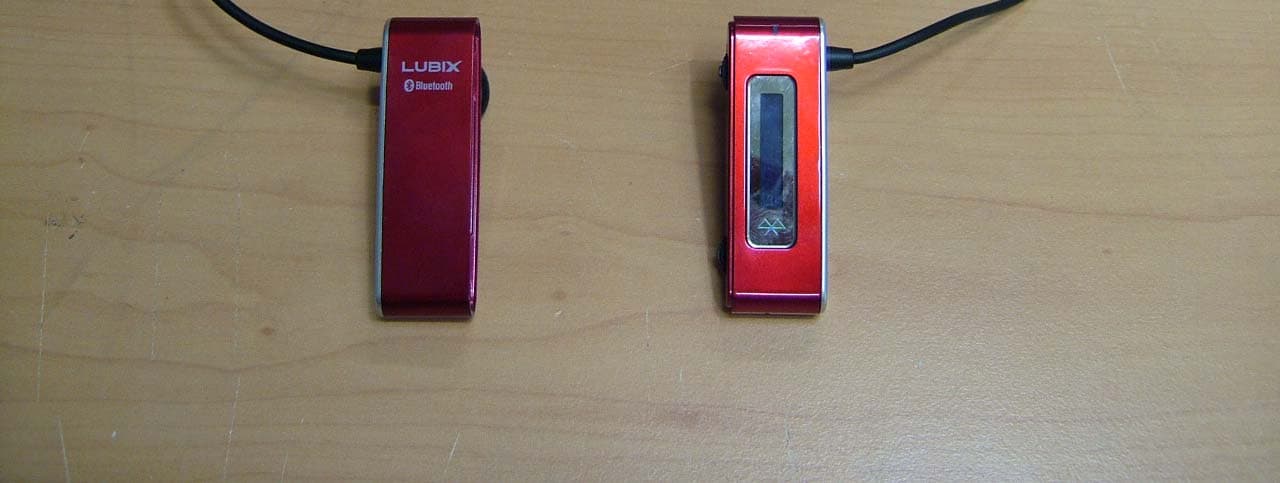

Model No.: UBHS-LC1 FCC ID: UG9UBHS-LC1 Copyright ○ c 2006, LTA Co., Ltd. Page 1 of 5 Model No.: UBHS-LC1 FCC ID: UG9UBHS-LC1 Copyright ○ c 2006, LTA Co., Ltd. Page 2 of 5 Model No.: UBHS-LC1 FCC ID: UG9UBHS-LC1 Copyright ○ c 2006, LTA Co., Ltd. Page 3 of 5 Model No.: UBHS-LC1 FCC ID: UG9UBHS-LC1 Copyright ○ c 2006, LTA Co., Ltd. Page 4 of 5 Model No.: UBHS-LC1 FCC ID: UG9UBHS-LC1 Copyright ○ c 2006, LTA Co., Ltd. Page 5 of 5

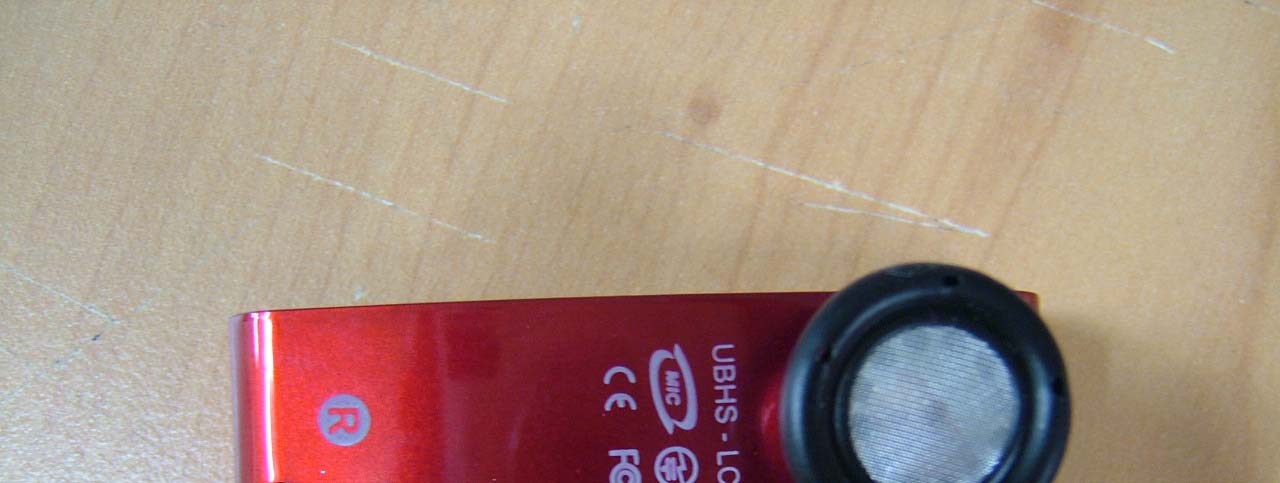

Model No.: UBHS-LC1 FCC ID: UG9UBHS-LC1 Copyright Ⓒ 2006, LTA Co., Ltd. SAMPLE LABEL & LOCATION Note: 1. Because The device is so small that it is not practicable to place the statement specified under 15.19 statement request, the information required by this paragraph shall be placed in a prominent location in the user's manual. FCC ID: UG9UBHS-LC1

Model No.: UBHS-LC1 FCC ID: UG9UBHS-LC1 Copyright ○ c 2006, LTA Co., Ltd. Page 1 of 4 Model No.: UBHS-LC1 FCC ID: UG9UBHS-LC1 Copyright ○ c 2006, LTA Co., Ltd. Page 2 of 4 Model No.: UBHS-LC1 FCC ID: UG9UBHS-LC1 Copyright ○ c 2006, LTA Co., Ltd. Page 3 of 4 Model No.: UBHS-LC1 FCC ID: UG9UBHS-LC1 Copyright ○ c 2006, LTA Co., Ltd. Page 4 of 4

2F Jung-dong Bldg. 1344-29, Seocho-dong, Seocho-gu, Seoul, 137-070, Korea TEL No : +82-2-582-1115 FAX No : +82-2-582-0115 RE : RF exposure information FCC ID : UG9UBHS-LC1 Model Name: UBHS-LC1 Bluetooth Headset To whom it may concern: This device is categorically excluded from routine environmental because it operate at very low power level. The equipment is deemed to comply with the SAR or MPE limits without testing due to this very low power level (EIRP < 2.5 mW) Sincerely, Hyoung-ho Kim General Manager

Ref. No.: LR500110608C Copyright ○ c 2006, LTA Co., Ltd. Page 1 of 31 243 Jubug-Ri,Yangji-Myeon, Yongin-Si, Gyeonggi-Do, Korea 449-822 Tel: +82-31-323-6008 Fax: +82-31-323-6010 http://www.ltalab.com Dates of Tests: July 12 ~ 20, 2006 Test Report S/N: LR500110608C Test Site : LTA C O . , LT D . CERTIFICATIO OF COMPLIANCE FCC ID. APPLICANT FCC Classification : FHSS Sequence Spread Spectrum (FHSS) Manufacturing Description : Bluetooth Headset Manufacturer : Ubixon Co., Ltd. Model name : UBHS-LC1 Test Device Serial No.: : Identification Rule Part(s) : FCC Part 15.247 Subpart C; ANSI C-63.4-2003 Frequency Range : 2402 ~ 2480MHz RF power : 2.794dBm - Conducted Data of issue : July 24, 2006 This test report is issued under the authority of: The test was supervised by: Dong –Min JUNG, Technical Manager Kyung-Taek LEE, Test Engineer This test result only responds to the tested sample. It is not allowed to copy this report even partly without the allowance of the test laboratory. This report must not be used by the applicant to claim product endorsement by any agency. NVLAP LAB Code.: 200723-0 UG9UBHS-LC1 Ubixon Co., Ltd. Ref. No.: LR500110608C Copyright ○ c 2006, LTA Co., Ltd. Page 2 of 31 TABLE OF CONTENTS 1. GENERAL INFORMATION’S -------------------------------------------------------------------------- 2. INFORMATION’S ABOUT TEST ITEM ------------------------------------------------------------- 3. TEST REPORT --------------------------------------------------------------------------------------------- 3.1 SUMMARY OF TESTS ------------------------------------------------------------------------------ 3.2 TECHNICAL CHARACTERISTICS TEST ------------------------------------------------------- 3.2.1 CARRIER FREQUENCY SEPARATION ---------------------------------------------------- 3.2.2 NUMBER OF HOPPING FREQUENCIES -------------------------------------------------- 3.2.3 20 dB BANDWIDTH ---------------------------------------------------------------------------- 3.2.4 TIME OF OCCUPANCY (Dwell Time) ------------------------------------------------------- 3.2.5 TTANSMITTER OUTPUT POWER ---------------------------------------------------------- 3.2.6 BAND - EDGE ----------------------------------------------------------------------------------- 3.2.7 FIELD STRENGTH OF HARMONICS ------------------------------------------------------ 3.2.9 AC CONDUCTED EMISSIONS -------------------------------------------------------------- APPENDIX APPENDIX TEST EQUIPMENT USED FOR TESTS -------------------------------------------- 3 4 5 5 6 6 8 11 13 15 17 26 27 31 Ref. No.: LR500110608C Copyright ○ c 2006, LTA Co., Ltd. Page 3 of 31 1. General information’s 1-1 Test Performed Company name : LTA Co., Ltd. Address : 243, Jubug-ri,Yangji-Myeon,Youngin-Si, Kyunggi-Do, Korea. 449-822 Web site : http://www.ltalab.com E-mail : [email protected] Telephone : +82-31-323-6008 Facsimile +82-31-323-6010 Quality control in the testing laboratory is implemented as per ISO/IEC 17025 which is the “General requirements for the competents of calibration and testing laboratory”. 1-2 Accredited agencies LTA Co., Ltd. is approved to perform EMC testing by the following agencies: Agency Country Accreditation No. Validity Reference NVLAP U.S.A 200723-0 2006-09-30 ECT accredited Lab. RRL KOREA KR0049 2007-07-13 EMC accredited Lab. FCC U.S.A 610755 2008-03-28 FCC filing VCCI JAPAN R2133, C2307 2008-06-22 VCCI registration IC CANADA IC5799 2008-04-23 IC filing Ref. No.: LR500110608C Copyright ○ c 2006, LTA Co., Ltd. Page 4 of 31 2. Information’s about test item 2-1 Client & Manufacturer Company name : Ubixon Co., Ltd. Address : 2F Jung-dong Bldg. 1344-29, Seocho-dong, Seocho-gu, Seoul, 137-070, Korea TEL / FAX : +82-2-582-1115/ +82-2-582-0115 2-2 Equipment Under Test (EUT) Trade name : Bluetooth Headset FCC ID : UG9UBHS-LC1 Model name : UBHS-LC1 Serial number : Identification Date of receipt : July 05, 2006 EUT condition : Pre-production, not damaged Antenna type : PIFA antenna Gain 0.6dBi Frequency Range : 2402 ~ 2480MHz RF output power Range : -6dBm~+4dBm (Class 2) Number of channels : 79 Channel spacing : 1MHz Channel Access Protocol : Frequency Hopping Type of Modulation : GFSK Power Source : 3.7V (Li-ion Rechargeable) 2-3 Tested frequency LOW MID HIGH Frequency (MHz) 2402 2441 2480 2-5 Ancillary Equipment – Bluetooth mode Equipment Model No. Serial No. Manufacturer - - - - 2-6 Ancillary Equipment – Charging mode Equipment Model No. Serial No. Manufacturer Mouse MO56UO 510022473 DELL Notebook Latitude D505 8N29F1S DELL - - - - Ref. No.: LR500110608C Copyright ○ c 2006, LTA Co., Ltd. Page 5 of 31 3. Test Report 3.1 Summary of tests FCC Part Section(s) Parameter Limit Te s t Condition Status (note 1) 15.247(a) Carrier Frequency Separation > 25 kHz C 15.247(a) Number of Hopping Frequencies > 75 hops C 15.247(a) 20 dB Bandwidth < 1 MHz C 15.247 Dwell Time < 0.4 seconds C 15.247(b) Transmitter Output Power < 1Watt C 15.247(d) Conducted Spurious emission > 20 dBc C 15.247(d) Band Edge > 20 dBc Conducted C 15.249 / 15.209 Field Strength of Harmonics < 54 dBuV (at 3m) Radiated C 15.207 /15.107 AC Conducted Emissions EN 55022 Line Conducted C Note 1: C=Complies NC=Not Complies NT=Not Tested NA=Not Applicable Note 2: The data in this test report are traceable to the national or international standards. The sample was tested according to the following specification: FCC Parts 15.247; ANSI C-63.4-2003 Ref. No.: LR500110608C Copyright ○ c 2006, LTA Co., Ltd. Page 6 of 31 3.2 Transmitter requirements 3.2.1 Carrier Frequency Separation Procedure: The carrier frequency separation was measured with a spectrum analyzer connected to the antenna terminal, while EUT had its hopping function enabled. After the trace being stable, the reading value between the peaks of the adjacent channels using the marker-delta function was recorded as the measurement results. The spectrum analyzer is set to: Span = 3 MHz (wide enough to capture the peaks of two adjacent channe…
