UG9UBHS-NE3BLUETOOTH STEREO HEADSET

UBHS-NE3 Quick Start Guide Pairing While the headset is off, press and hold ‘Talk’ for 6 seconds to start pairing mode. Once the headset is in pairing mode, select ‘UBHS-NE3’ among discovered Bluetooth devices on the phone and enter the password ‘0000’ to pair the headset. When being connected , voice prompt is “Connected”. Connecting the Headset Connecting from the phone: Among registered Bluetooth devices on the phone, select ‘UBHS-NE3’ Connecting from the headset: Through auto-connect function, the headset automatically connects to the last device it was connected to when powered on. Easy Pairing UBHS-NE3 supports easy pairing . When pairing , there is no need to enter the ‘0000’. ※ The other Bluetooth device (host device) also has to support easy pairing. Power On/Off Press and hold ‘Power/Talk’ button for 3 seconds to switch the headset on or off. Power On/OFF voice prompt is “Hello” / “Bye”. Multi Pairing Multi Pairing Method 1. All Bluetooth devices to be used in multi pairing must be first paired individually using appropriate profiles. (HSP or HFP for phone conversation, and A2DP for high quality audio) ※Each profile cannot be used to connect more than one device simultaneously. See ‘Notice’ below for more details. ※The auto connect function of the headset will connect each profile to the last connected device. 2. Once the host devices are paired, connections can be made by: a. Turning the headset off and on (Auto connect function will take effect). b. Or connecting from host devices. Notice 1. In multi pairing, one profile cannot be used to connect more than one device. For example, it is NOT possible to use the phone’s MP3 player and the computer’s MP3 player at the same time, because both devices try to connect through the A2DP profile. On the other hand, it is possible to connect the phone using HSP, while the computer is connected using A2DP. This way, you can listen to the music from the computer and answer phone calls at the same time. 2. In multi pairing mode, the use of some functions maybe restricted depending on host devices and the environment in which it is used. 3. Ubixon does not guarantee the compatibility of all combination of devices and functions for multi pairing. Listening to Music Play/Pause 1. Press ‘▶II’ button to launch the phone’s MP3 player and to start listening to music. 2. While MP3 player is in use, press ‘▶II’ button to pause or to resume play. 3. Press and hold ‘▶II’ button to end music playback. Song Selection While MP3 player is in use, press ‘◀◀’or ‘▶▶’ buttons to select songs. Rewind/Forward While music is playing, press and hold ‘◀◀’or ‘▶▶’ buttons to rewind or forward the song * Some phones may not support this function Answering Call While Listening to Music 1. When receiving a call, press ‘Talk’ button to answer the call. 2. Press ‘Talk’ button while on the phone to end the call 3. When receiving a call, press ▶II button to reject the call. - Music will resume playing when the call is rejected. Volume Control Use ‘+’ / ’-’ buttons to adjust the volume level. Making Phone Calls Voice dial: Press the ‘Talk’ button once to activate voice dial. ※ Some phones might not support this function. Last Number Redial: Double click ‘Talk’ button to redial last number. Answer a call: When receiving a call, press ‘Talk’ button to answer the call. Ending a call: While talking on the phone, press ‘Talk’ button to end the call. Call Refuse: While receiving a call, press ‘Play/Pause’ button to refuse the call. Volume Control: Use ‘+’ / ’-’ buttons to adjust the volume level . Call transfer: During a phone conversation, press ‘Talk’ button twice to switch the call between the headset and the phone. Resetting the Headset In case the headset needs to be reset, press ‘Power’, ‘Play’,’Fast Forward’ and ‘Rewind’ buttons together simultaneously. Using 3D Sound 5 types of 3D sound effect are programmed in the order below. While in Play/Pause mode, double click the ‘▶II’ button to select the 3D sound effect of your choice. Types of 3D Sound Effect 1. Normal: No 3D sound effect is applied. ※Two beeping sound will indicate that the headset is in Normal mode. 2. Provides comfortable and persistent listening environment by taking distractible sound away from ears and head when using earphones. 3. Delivers natural and soft 3D sound field effect simulating that of a live performance. 4. Widely spread main vocal and center-placed instruments by providing a panoramic 3D audio image. 5. Not only delivers wide stereo sound image, but also enhances low-frequency sound to provide rich and deep bass tones. 3D Sound LED Light Messages Headset Specification Bluetooth Version: Version 2.1 +EDR Supported Profiles: A2DP, AVRCP, HFP, HSP Frequency Spectrum: 2.4~2.4835GHz Working Distance: Maximum 33ft (10m) Operating Temperature: 14 ~ 140°F (-10 ~ +60°C) Operating Time: Talk 9 hours / Music 8 hours Standby Time: 340 hours Product Size: 5.5(L) x 5.4 (W) x 1.9(H) in 141(L) x 138(W) x 50(H) mm Product weight: 1.2 oz (34g) Average charging time: 2 hours ※Note: The headset specification is subject to change in the production version. Headset StatusLED Status Powering onBlue LED light is on Powering offRed LED light dims and disappears Low batteryRed LED light continues to blink RechargingRed LED light stays on Recharging completeBlue LED lights stays on Pairing ModeBlue and Red LED lights flash rapidly Connection completeBlue LED light blinks every two seconds Receiving a callBlue LED light flashes rapidly Talking on the phoneBlue LED light repeatedly brightens and dims Playing musicBlue LED light repeatedly brightens and dims FCC Information to User This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed…

Text truncated - open the document above for the full version.

Ubixon Co., Ltd. 8F Ssanglim Bldg, 151-11 Ssanglim-dong, Chung-gu, Seoul, Korea Tel. +82-2-6324-0209 Fax +82-2-6320-0198 February 17, 2012 Federal Communications Commission Authorization and Evaluation Division 1435 Oakland Mills Road Columbia, MD 21046 In re : Ubixon Co., Ltd. FCC Application for FCC ID: UG9UBHS-NE3 To Whom It May Concern: We, the undersigned, hereby attest to the fact that we will apply the Declaration of Conformity procedure to the class B computer peripheral portion of this composite filing. Regards, Gi-Young, KIM / General Manager Ubixon Co., Ltd.

Ubixon Co., Ltd. 8F Ssanglim Bldg, 151-11 Ssanglim-dong, Chung-gu, Seoul, Korea Tel. +82-2-6324-0209 Fax +82-2-6320-0198 February 17, 2012 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 LETTER OF AUTHORIZATION To whom it may concern: We, the undersigned, hereby authorize LTA Co., Ltd., to act on our behalf in all manners relating to application for equipment authorization for FCC ID: UG9UBHS-NE3 including signing of all documents relating to these matters. Any and all acts carried out by LTA Co., Ltd., on our behalf shall have the same affect as acts of our own. This authorization is valid until further written notice from Ubixon Co., Ltd. LTA Co.,LTD. (Contact Person) Contact name: You, HyunChae Position: Manager Phone:(82)31-323-6008 E-mail: [email protected] Gi-Young, KIM / General Manager Ubixon Co., Ltd.

Ubixon Co., Ltd. 8F Ssanglim Bldg, 151-11 Ssanglim-dong, Chung-gu, Seoul, Korea Tel. +82-2-6324-0209 Fax +82-2-6320-0198 February 17, 2012 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 In re : Ubixon Co., Ltd. FCC ID : UG9UBHS-NE3 Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, Ubixon Co., Ltd.. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give Ubixon Co., Ltd. temporary confidentiality of commercially sensitive information prior to product release. The requested Confidential and Temporary Confidential exhibits are listed as follows: Exhibit Type File Name CONFIDENTIAL Schematics CONF APPENDIX UG9UBHS-NE3 SCH DIA.pdf Parts list CONF APPENDIX UG9UBHS-NE3 PL.pdf Block diagram CONF APPENDIX UG9UBHS-NE3 BLK DIA.pdf Operational description CONF APPENDIX UG9UBHS-NE3 OpDes.pdf SHORT-TERM CONFIDENTIAL External Photos SHORT-TERM CONF UG9UBHS-NE3 EXT Photo.pdf Internal Photos SHORT-TERM CONF UG9UBHS-NE3 INT Photo.pdf Test-Setup Photos SHORT-TERM CONF UG9UBHS-NE3 Test Photo.pdf User’s Manual SHORT-TERM CONF UG9UBHS-NE3 Manual.pdf The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Gi-Young, KIM / General Manager Ubixon Co., Ltd.

Ubixon Co., Ltd. 8F Ssanglim Bldg, 151-11 Ssanglim-dong, Chung-gu, Seoul, Korea Tel. +82-2-6324-0209 Fax +82-2-6320-0198 ATTESTATION STATEMENT In re : Ubixon Co., Ltd. FCC ID: UG9UBHS-NE3 Date : February 17, 2012 15.247(a)(1) The hopping sequence must be pseudorandom all Channels are used equally on average the receiv er input bandwidth is approximately equal to the transmit bandwidth the receiver hops in sequence with the transmitted signal 15.247(g) The system is designed to comply with all of the regulations in Section 15.247 when the transmitter is presented with a continuous data (or information) 15.247(h) The system does not coordinate its channel selection/hopping sequence with other frequency hopping systems for the express purpose of avoiding the simultaneous occupancy of individual hopping frequ encies by multiple transmitters. Sincerely, Gi-Young, KIM / General Manager Ubixon Co., Ltd.

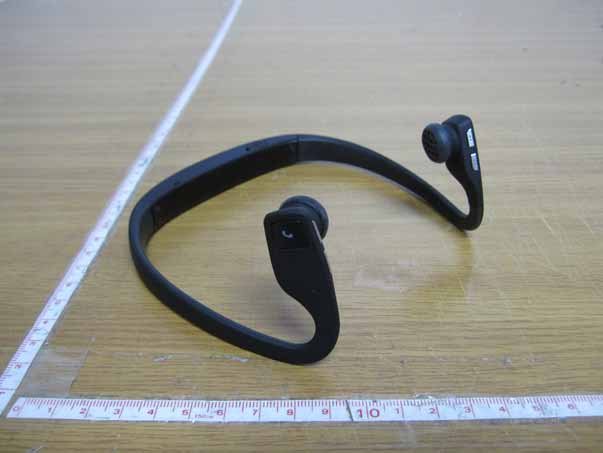

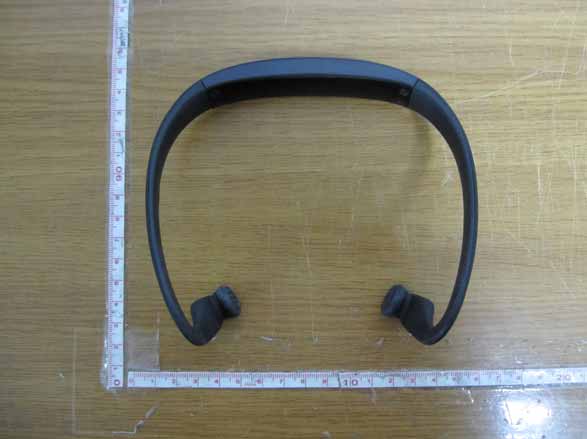

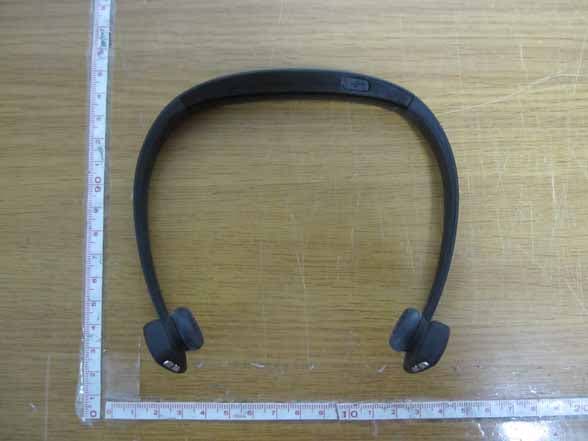

FCC ID: UG9UBHS-NE3 Copyright c 2012, LTA Co., Ltd. Page 1 of 3 M/N: UBHS-NE3 Upper FCC ID: UG9UBHS-NE3 Copyright c 2012, LTA Co., Ltd. Page 2 of 3 Front FCC ID: UG9UBHS-NE3 Copyright c 2012, LTA Co., Ltd. Page 3 of 3

FCC ID: UG9UBHS-NE3 Copyright 2012, LTA Co., Ltd. SAMPLE LABEL & LOCATION LUBIX NE3 FCC ID: UG9UBHS-NE3 M/N: UBHS-NE3 Made in Korea

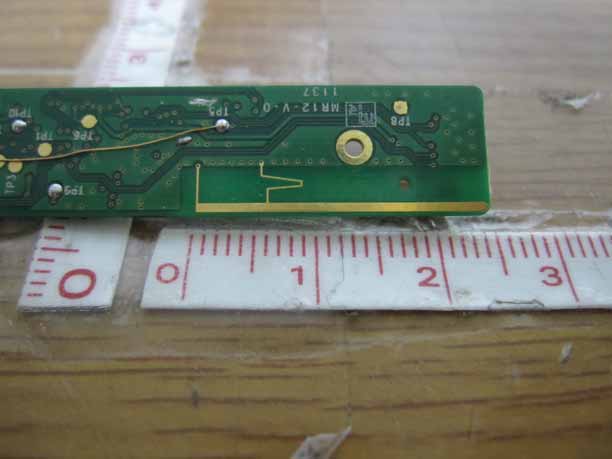

FCC ID: UG9UBHS-NE3 Copyright c 2012, LTA Co., Ltd. Page 1 of 1 MainBoard - Front MainBoard - Rear

Ref. No.: LR500111202C Copyright c 2012, LTA Co., Ltd. Page 1 of 40 243 Jubug-Ri,Yangji-Myeon, Yongin-Si, Gyeonggi-Do, Korea 449-822 Tel: +82-31-323-6008 Fax: +82-31-323-6010 http://www.ltalab.com Dates of Tests: February 13 ~22, 2012 Test Report S/N: LR500111202C Test Site : LTA CO., LTD. CERTIFICATION OF COMPLIANCE FCC ID APPLICANT Equipment Class : Part 15 Spread Spectrum Transmitter (DSS) Manufacturing Description : Bluetooth Stereo Headset Manufacturer : UBixon Co., Ltd. Model name : UBHS-NE3 Varient Model name BTH02 Test Device Serial No.: : Identical prototype Rule Part(s) : FCC Part 15.247 Subpart C; ANSI C-63.4-2003 Frequency Range : 2402 ~ 2480MHz RF power : Max 3.08 dBm - Conducted Data of issue : February 22 , 2012 This test report is issued under the authority of: The test was supervised by: Hyun-Chae You, Manager Ki-Hun Cho, Test Engineer This test result only responds to the tested sample. It is not allowed to copy this report even partly without the allowance of the test laboratory. The report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the Federal Government. UG9UBHS-NE3 Ubixon Co., Ltd. Ref. No.: LR500111202C Copyright c 2012, LTA Co., Ltd. Page 2 of 40 TABLE OF CONTENTS 1. GENERAL INFORMATION’S -------------------------------------------------------------------------- 2. INFORMATION’S ABOUT TEST ITEM ------------------------------------------------------------- 3. TEST REPORT --------------------------------------------------------------------------------------------- 3.1 SUMMARY OF TESTS ------------------------------------------------------------------------------ 3.2 TECHNICAL CHARACTERISTICS TEST ------------------------------------------------------- 3.2.1 CARRIER FREQUENCY SEPARATION ---------------------------------------------------- 3.2.2 NUMBER OF HOPPING FREQUENCIES -------------------------------------------------- 3.2.3 20 dB BANDWIDTH ---------------------------------------------------------------------------- 3.2.4 TIME OF OCCUPANCY (Dwell Time) ------------------------------------------------------- 3.2.5 TRANSMITTER OUTPUT POWER ---------------------------------------------------------- 3.2.6 BAND – EDGE & SPURIOUS ----------------------------------------------------------------- 3.2.7 FIELD STRENGTH OF HARMONICS-Transmitter ------------------------------------------- 3.2.8 FIELD STRENGTH OF HARMONICS-Receiver ---------------------------------------------- 3.2.9 AC CONDUCTED EMISSIONS -------------------------------------------------------------- APPENDIX APPENDIX TEST EQUIPMENT USED FOR TESTS -------------------------------------------- 3 4 5 5 6 6 8 10 17 22 26 32 36 41 44 Ref. No.: LR500111202C Copyright c 2012, LTA Co., Ltd. Page 3 of 40 1. General information’s 1-1 Test Performed Company name : LTA Co., Ltd. Address : 243, Jubug-ri,Yangji-Myeon,Youngin-Si, Kyunggi-Do, Korea. 449-822 Web site : http://www.ltalab.com E-mail : [email protected] Telephone : +82-31-323-6008 Facsimile +82-31-323-6010 Quality control in the testing laboratory is implemented as per ISO/IEC 17025 which is the “General requirements for the competents of calibration and testing laboratory”. 1-2 Accredited agencies LTA Co., Ltd. is approved to perform EMC testing by the following agencies: Agency Country Accreditation No. Validity Reference NVLAP U.S.A 200723-0 2012-09-30 ECT accredited Lab. RRL KOREA KR0049 2013-04-24 EMC accredited Lab. FCC U.S.A 610755 2014-04-27 FCC filing FCC U.S.A 649054 2013-04-13 FCC CAB VCCI JAPAN R2133(10m), C2307 2014-06-21 VCCI registration VCCI JAPAN T-2009 2013-12-23 VCCI registration IC CANADA IC5799 2012-05-14 IC filing Ref. No.: LR500111202C Copyright c 2012, LTA Co., Ltd. Page 4 of 40 2. Information’s about test item 2-1 Client & Manufacturer Company name : Ubixon Co., Ltd. Address : 8F Ssanglim Bldg, 151-11 Ssanglim-dong, Chung-gu, Seoul, Korea Telephone / Facsimile : +82-2-6324-0209/ +82-2-6320-0198 2-2 Equipment Under Test (EUT) Trade name : Bluetooth Stereo Headset Model name : UBHS-NE3 Serial number : Identical prototype Date of receipt : February 10, 2012 EUT condition : Pre-production, not damaged Antenna type : PCB Pattern antenna, Max Gain 0.61dBi Frequency Range : 2402 ~ 2480MHz RF output power : Max. 3.08 dBm - Conducted Number of channels : 79 Duty cycle : 80.78 % Channel spacing : 1MHz Channel Access Protocol : Frequency Hopping Spread Spectrum (FHSS) Type of Modulation : Basic Mode(GFSK), EDR Mode(Pi/4 DQPSK, 8DPSK) Power Source : 3.7 Vdc from Internal Battery (Li-Ion Polymer Battery) Power for Adaptor. : Input: 100-240Vac, 0.15A Output: 5Vdc, 0.5A Firmware Version : V1.0 2-4 Tested frequency LOW MID HIGH Frequency (MHz) 2402 2441 2480 2-5 Ancillary Equipment Equipment Model No. Serial No. Manufacturer - - - - Ref. No.: LR500111202C Copyright c 2012, LTA Co., Ltd. Page 5 of 40 3. Test Report 3.1 Summary of tests FCC Part Section(s) Parameter Limit Test Condition Status (note 1) 15.247(a) Carrier Frequency Separation > 25 kHz C 15.247(a) Number of Hopping Frequencies > 15 hops C 15.247(a) 20 dB Bandwidth 99% Bandwidth > 1.5 MHz C 15.247 Dwell Time < 0.4 seconds C 15.247(b) Transmitter Output Power < 250 mWatt C 15.247(d) Conducted Spurious emission > 20 dBc C 15.247(d) Band Edge > 20 dBc Conducted C 15.249 / 15.209 Field Strength of Harmonics < 54 dBuV (at 3m) C 15.109 Field Strength - Radiated C 15.207 /15.107 AC Conducted Emissions EN 55022 Line Conducted C 15.203 Antenna requirement - - C Note 1: C=Complies NC=Not Complies NT=Not Tested NA=Not Applicable Note 2: The data in this test report are traceable to the national or international standards. Note 1: Antenna Requirement  The Ubixon Co., Ltd. , FCC ID:UG9UBHS-NE3 unit complies with the requirement of §15.203. The antenna type is PCB Pattern antenna Note 2: The sample was tested according to the following specification: FCC Parts 15.247; ANSI C-63.4-2003 Ref. No.: LR500111202C Copyright c 2012, LT…

Text truncated - open the document above for the full version.

FCC ID: UG9UBHS-NE3 Copyright c 2012, LTA Co., Ltd. Page 1 of 3 Radiated Emission (30MHz – 1GHz) FCC ID: UG9UBHS-NE3 Copyright c 2012, LTA Co., Ltd. Page 2 of 3 Radiated Emission (Above 1GHz) FCC ID: UG9UBHS-NE3 Copyright c 2012, LTA Co., Ltd. Page 3 of 3 Conducted Emission
