UK4JTBT2200Vehicle driving logs tracker

von-STD(JTBT2200) Manual Instruction von-STD(JTBT2200) Information 1 •Certified Business Name: Jastec Co.,Ltd. •Device (model): Wireless data communication system wireless transmitter(JTBT2200) •Manufactured date: April, 2012 •Manufacturer/country : Jastec Co,Ltd./Korea •Certified code : JS0 •A radio interference of this wireless module is not providing a service related the safety of life. 2 We kindly recommend you to be fully aware of using a product accurately and for safety of user. All liabilities by uncomplying cautions are not supposed to be responsible to manufacturer. 1. This product into water or prolonged exposure to moisture can cause failure resulting in no charge for broken A/S. 2. Do not disassemble or repair this product if the label seal is broken or damaged, free A/S will not be received. 3. Do not separate or equip OBD II module while driving vehicle or ignition off. – This causes to car accident and defective of it. 4. Please note that on the surface of the product carefully to avoid strong detergent or chemicals. 5. This product works under the proper temperature -30~+80°C. 6. Do not impact the product. It’s the cause of product defective. 7. Using other products rated voltage is the cause of the crush. Rated voltage state must be sure to use the product. 8. After parking vehicle in a safe place, install OBD II module then drive. 9. When installing or removing product on the vehicle as the vehicle peripheral device could be due to injury, Please be careful. 10. Incorrect installation of the product by the vehicle’s shock and vibration and can cause data loss, after the installation, please check it properly. 11. Products by shock or vibration of the vehicle is released from the car because it can cause data loss if the installation status checks on a regular basis. This product is equipped with a breakdown of the car by the impact of accidents, damage, of driving record, we are not responsible for missing. 12. Jastec Co.,Ltd provides cable, please use the original cable. Cautions For Safety 1. von-STD(JTBT2200) Descriptions 3 1.1 Overview von-STD(JTBT2200) as vehicle driving logs tracker designed to collect a vehicle driving information from ECU(Electronic Control Unit) By OBD standard protocol communication and can be saved a driving logs by connecting to PC. 4 1.2 Specifications In-vehicle Protocol ISO 9141-2, ISO 14230-4(KWP-2000), ISO15765-4(CAN) J1850(PVM/VPW) protocol supported, physical communication standard followed and high credibility being with vehicle DB. 32 bit main processor Boasting fast and stable performance ARMv7 Cortex-M3 CPU has adopted. Stability real-time operating system System,hardware,applications,databases,data communications and other resources efficiently and reliably manages the real-time operating system is used based on Tiny. USB communication USB Full-Speed (12Mbps) high data transmitter function supported. Low power consumption and saving Standby power consumption in driving conditions with low start-off when the vehicle’s power- saving features built in to prevent battery discharge. Firmware update support Firmware and vehicle DB program to communicate with a PC via USB connection to upgrade is easy and fast.. Mass storage space Large amounts of information and operating data in real time on a high-capacity memory and high data reliability by applying non-volatile memory can be saved. Data communication High-speed communications, the processor transfer, processing speed and large memory capacity by combining features such as vehicle driving record data in real time and to minimize the error. Smart design Due to small and light for easy installation and occupies less space, it doesn’t interfere with the operation easier you can determine. 1. von-STD(JTBT2200) Descriptions 5 1.3 Functions Driving logs record Saving vehicle information. Collecting and saving driving logs information. Vehicle identification information / module certification / module serial number information / driving data starting time and ending time / ignition On and Off time / Accumulated driving distance / module connection and disconnection time / driving information transmitting time / acceleration pedal or throttle valve open angle Module operating check and alarm Display [indicator] : power display lamp[POWER –blue] / status display lamp[STATUS -red] Driving information security Encoded saving data to not modify a driving recorded information. Driving information upload USB transmitter preferred. Power saving function Automatically power will be off when ignition off. Self diagnostic Supporting self diagnostic function through OBD II module operating check (Indicator). Firmware upgrade support Supporting firmware upgrade 1. von-STD(JTBT2200) Descriptions 6 1.4 Specification Specification CPU 32 bit ARMv7 Cortex-M3 Memory 4 MB Internal Flash Memory LED Display LED Vehicle protocol CAN[Control Area Network]: ISO 11898 / ISO 9141-2 / ISO 14230 [KWP 2000] / SAE J1850 (PWM / VPW) Connector type SAE J1962 OBD-II 16Pin Standard Connector Power DC 12V vehicle, USB 5.0 V support Power consumption Max power consumption: ≤500mW low [stand-by] : ≤400mW [saving mode] : ≤30mW Case Color: Black, Material: ABS Size [W]48mm X [D]28mm X [H]25mm Weight 39 g Operating temperature -30 ~ 80°C External interface specification USB USB 1.1(2.0 Compatible) VCP(Virtual COM Port) Supported Bluetooth (JTBT2200) Bluetooth v3.0 Class 2 2.4GHz ISM band Frequency range: 2,402 ~ 2,480MHz Data Rates: 1 Mbps 1. von-STD(JTBT2200) Descriptions 7 1.5 Composition Name Function OBD II module (body) Connection to vehicle OBD II connector. USB cable Use for uploading the driving logs data by PC connection. Quick Start Manual Quick guide manual Program installation CD von-S PC Manager installation program, included in user’s manual. 1. von-STD(JTBT2200) Descriptions 8 1.6 Body description Front display LED Red/Blue/White display LED OBD connector Connect to vehicle OBD diagnostic port with SAE J1962 OBD…

Text truncated - open the document above for the full version.

Quick Start Manual A user should read notes correctly, the product information and quick start manual before using. We’re not responsible for all accidents that user doesn’t follow the precautions. 1. Components [Body] [Quick Start Manual] [USB cable] Components Descriptions Unit Body To plug in vehicle OBD II 16 pin port 1EA Quick Start Manual To provide easy guide manual 1EA USB cable To use data transmission 1EA 2. Notices before installation 1) This product is only available for application, von-STD(JTBT2200) supported or compatible with. 2) von-STD(JTBT2200) supported applications for purchasing and downloading are available at App Store, Android Market 3) If Bluetooth’s SSID information lost, contact to JASTEC homepage (http://vons.jastec.co.kr) and download the von- STD(JTBT2200) initial Manager for initialization. 4) When SSID initialization, the setting is as follows. SSID Password Bluetooth von-STD 0000 3. Cautions for Safety. - For appropriate use and user’s safety of the product, please read the cautions carefully then use it. We’re not responsible for all accidents that user doesn’t follow the precautions. 1) The product in water or prolonged exposure to moisture can cause damages so a free warranty service will not be able to receive. 2) This product is separate from your car unnecessarily or arbitrarily used for the other purposes, you can cause damage and we’re not responsible legally for the any damages caused by the negligence of the user. 3) In case of disassemble or repair the product intentionally, free warranty service will not be able to receive. 4) If you break the seal on the product label, free warranty service will not be able to receive. 5) Do not install or remove the product when either engine ON or OFF. It’s caused to vehicle’s failure. 6) A driving logs will periodically have to stored and make sure vehicle data also must be stored in advance before a warranty service (Please refer to the manual of an application) 7) Strong detergent or chemicals have to be placed far from the surface of product. 8) This product works is the proper temperature -30 ~ +80°C. 9) Do not impact the product. It will cause product malfunction. 10) A product and cable may break if excessive force. 11) The use of products other than rated voltage will cause damage. Rated voltage must be used for the product. 12) Parking a vehicle in a safety place, drive a vehicle after the product’s installation and operation. 13) When you disconnect the product installed in vehicle or vehicles may result in personal injury due to peripheral, please be careful. 14) An incorrect installation of the product may cause data loss due to shock and vibration of vehicle, make sure that they are mounted properly after installation. 15) The product, by shock or vibration of the vehicle, is detached from the vehicle can cause the loss of data. Please check the installation status on a regular basis. We’re not responsible for a car accident caused by vehicle malfunction, damage, driving record omission 4. von-STD(JTBT2200)’s connection to Vehicle 1) This product is configured so that anyone can easily install. Before installation of the device, you may have to familiarize yourself with the precautions to install. 2) OBD II 16 pin port of vehicle usually is located under the dashboard from a driver’s seat. A user should check the location of vehicle’s OBD II 16 port then install it or contact to manufacturer nearby. 3) Vehicle must be parked in a safe place and then plug the product to OBD II 16 pin port. *CAUTION: Lock the parking brake and place transmission gear into P position after parking. 4) Check whether an engine is ON or OFF, if an engine is ON, please turn is off. 5) Check the location of vehicle’s OBD II 16 pin port. 6) Check the body of device and the direction of vehicle’s OBD diagnostic connector then try to install it. 7) The body of the vehicle OBD diagnostic connector is installed properly, turn on the engine. 8) After start-up the engine, both the yellow light and red light are on then the yellow light is blinking and a buzzer is sounded. 5. von-STD(JTBT2200)’s disconnection from vehicle 1) Vehicle is parked in a safe place then turn off the engine. 2) Pull the vehicle’s OBD II device body from a vehicle’s OBD II port. 6. Pairing to Bluetooth 1) Drive an application. 2) If Bluetooth is not turned on, Bluetooth is on, written instructions to the message. 3) Search for Bluetooth devices around the window, and fill the password by tapping von-STD(JTBT2200). Enter a password “0000”. * SID and password of von-STD(JTBT2200) OBD II device can be changed on the application. (CAUTION: please refer to the user’s manual of application because each application is different.) 4) A connection is completed. Simply von-STD(JTBT2200) driven application can be used. 7. Lights display & description by device operating status Device’s operating status Light conditions Descriptions Yellow Red Boot On On Device booting Communication standby Blink (1Sec.) Off Communication standby Eco-Good On Off Eco index – Good Eco-Normal On On Eco index – Normal Eco-Bad Off On Eco index – Bad Sleep Off Off Sleeping mode

Date: October 4, 2011 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 c.c. Compliance Certification Services Certification Division 47173 Benicia Street Fremont, CA 94538, USA To whom it may concern: I, the undersigned, hereby authorize Lab Manager Charles. Kim (or Feel. Jeong) and of SGS Korea Co., Ltdand hereafter referred to as SGS Korea, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by Lab Manager Charles. Kim (or Feel. Jeong) of SGS Korea Co., Ltdon our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing SGS Korea as our agent, we still recognize that we are responsible to: a)comply with the relevant provisions of the certification program; b)make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c)make claims regarding certification only in respect of the scope for which certification has been granted; d)do not use our product certification in such a manner as to bring the Certification Division into disrepute andnot make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e)upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f)use certification only to indicate the products are certified as being in conformity with specified standards; g)endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h)ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i)keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j)take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k)document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, Manager Jastec Co., Ltd.

Jastec Co., Ltd. Jastec B/D, 92-7, Kumgok-Dong, Boondang-Gu, Seongnam-Si, Kyunggi-Do Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Gentlemen: This letter is to comply with Section 0.457(d)(2)(i) and 0.459 pertaining to confidential material. We, Jastec Co., Ltd. would like the following documents regarding this submission for FCC ID: We are also hereby request Short­Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04­1705. This provision will give Jastec Co., Ltd temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Temporary Confidential exhibits are listed as follows: UK4JTBT2200to be kept confidential. 1 Block Diagram 2 Operational Descriptions Permanent 3 Schematics 4 External Photos 5 Internal Photos 6 Test-Setup Photos Short-Term 7 User’s Manual The above material contains trade secrets or technical data, which would customarily be guarded from competitors. We do not want these documents to be accessible to the general public. Sincerely, Manager Jastec Co., Ltd.

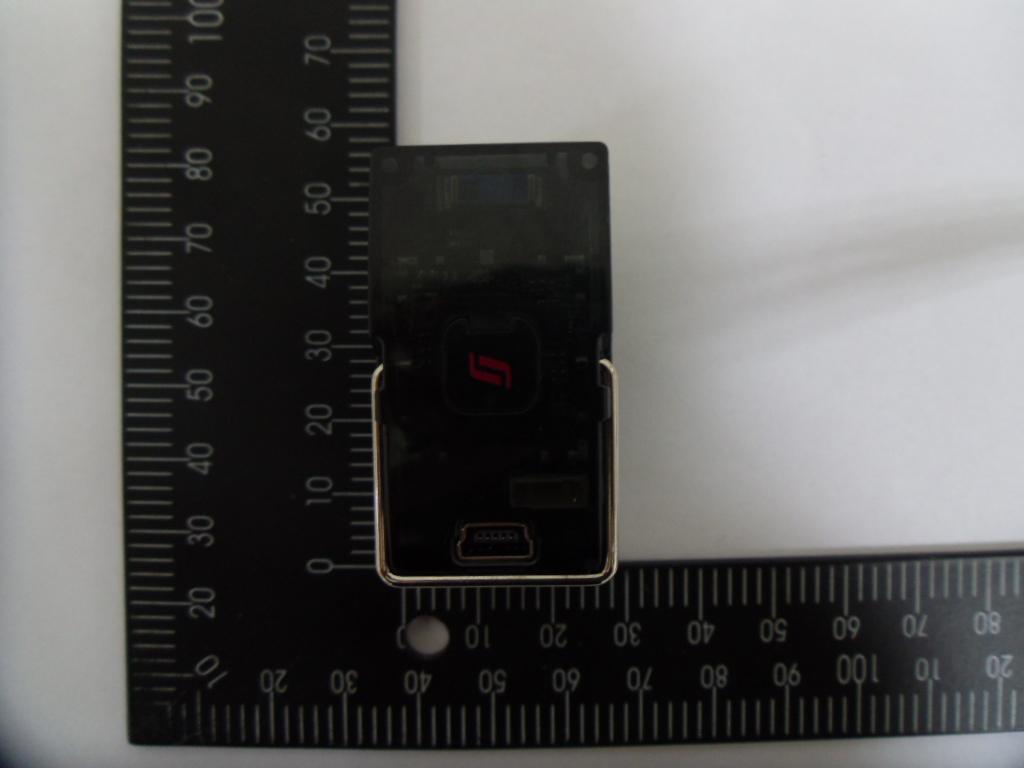

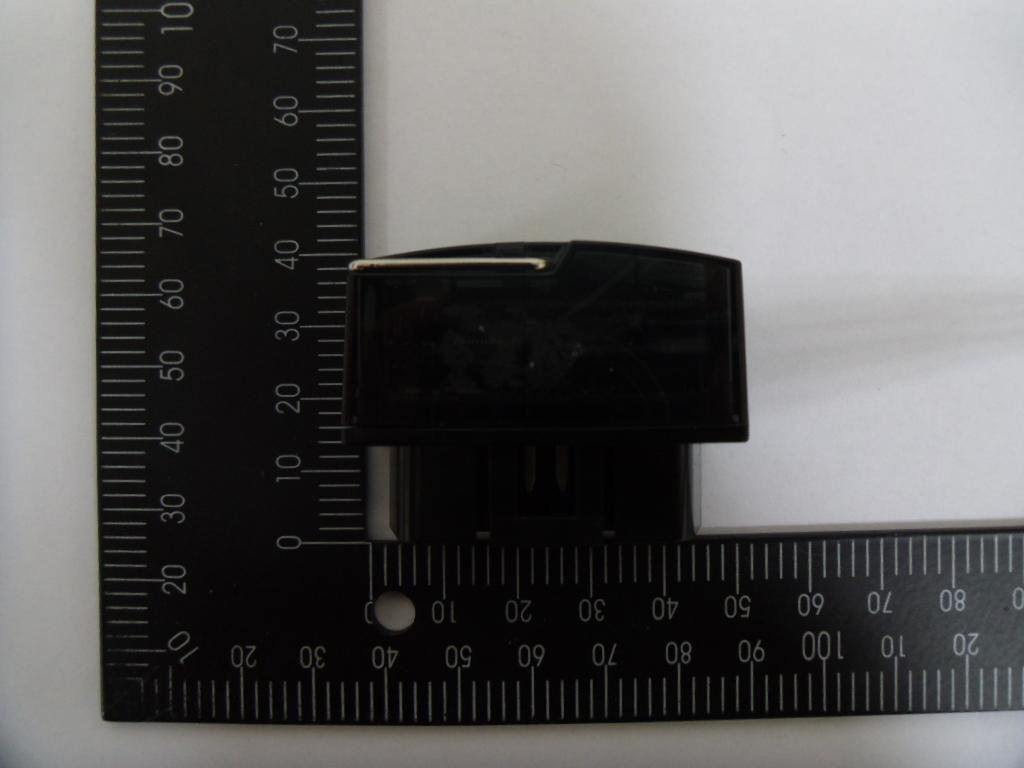

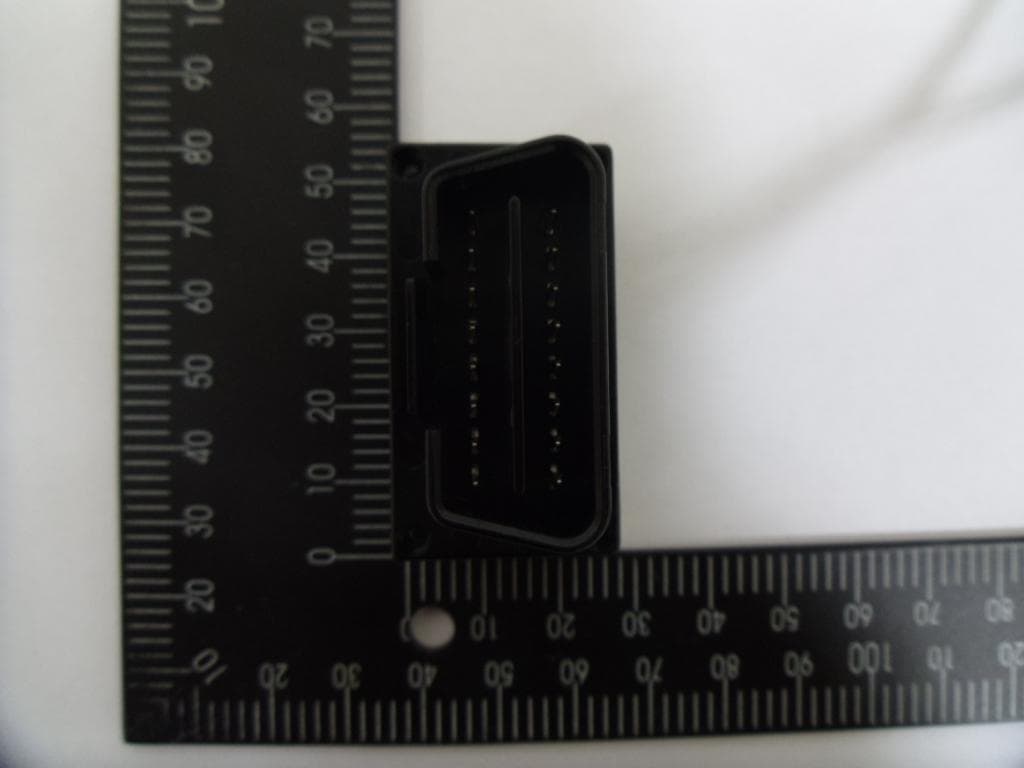

Model : JTBT2200 External photos of EUT Model : JTBT2200 Front view of EUT Rear view of EUT Model : JTBT2200 Top view of EUT Bottom view of EUT Model : JTBT2200 Side view of EUT

FCC Label 1. FCC Label Drawing 2. FCC Label Location Jastec Co., Ltd. Model : JTBT2200 FCC ID : UK4JTBT2200 This device complies with part 15 of the FCC Rules. Operation is subject to The following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Made in Korea

Model : JTBT2200 Internal photos of EUT Model : JTBT2200 Internal view of EUT Model : JTBT2200 Top view of PCB1 Bottom view of PCB1 Antenna Model : JTBT2200 Top view of PCB2 Bottom view of PCB2 Model : JTBT2200 Top view of PCB3 Bottom view of PCB3

Jastec Co., Ltd. Jastec B/D, 92-7, Kumgok-Dong, Boondang-Gu, Seongnam-Si, Kyunggi-Do Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 To whom it may concern, Per FCC KDB 447498, this device JTBT2200 is exemption from SAR by below calculation for 5mm separation distance .

Report Number: F690501/RF-RTL006020-2 Page: 2 of 58 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory) 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.ee.sgs.com/korea INDEX Table of Contents Page 1. General Information --------------------------------------------------------------------------------- 3 2. Transmitter Radiated Spurious Emissions and Conducted Spurious Emission------ 8 3. 20㏈ Bandwidth-------------------------------------------------------------------------------------- 31 4. Maximum Peak Output Power ------------------------------------------------------------------- 36 5. Hopping Channel Separation --------------------------------------------------------------------- 38 6. Number of Hopping Frequency ------------------------------------------------------------------ 41 7. Time of Occupancy(Dwell Time) ----------------------------------------------------------------- 45 8. Antenna Requirement ------------------------------------------------------------------------------ 58 Report Number: F690501/RF-RTL006020-2 Page: 3 of 58 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory) 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.ee.sgs.com/korea 1. General Information 1.1. Testing Laboratory SGS Korea Co., Ltd. (Gunpo Laboratory) - Wireless Div. 3FL, 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea 435-040 All SGS services are rendered in accordance with the applicable SGS conditions of service available on request and accessible at http://www.sgs.com/en/Terms-and-Conditions.aspx. Telephone : +82 31 428 5700 FAX : +82 31 427 2371 1.2. Details of Applicant Applicant : JASTEC CO., LTD. Address : 92-7, Kumgok-dong, Boondang-gu, Seongnam-si, Gyeonggi-do, Korea Contact Person : Park, Chul-Hong Phone No. : +82 70 7606 1694 1.3. Description of EUT Kind of Product Vehicle driving logs tracker Model Name JTBT2200 Serial Number N/A Power Supply DC 12 V(Vehicle Battery) Frequency Range 2 402 ㎒ ~ 2 480 ㎒ (BT) Modulation Technique GFSK, π/4DQPSK, 8DPSK Number of Channels 79 channels (BT) Antenna Type Chip Antenna Antenna Gain 2.1 ㏈i H/W version 1.4 S/W version 1.14 1.4. Declaration by the manufacturer - Adaptive Frequency Hopping is supported and use at least 20 channels. Report Number: F690501/RF-RTL006020-2 Page: 4 of 58 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory) 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.ee.sgs.com/korea 1.5. Information about the FHSS characteristics: 1.5.1. Pseudorandom Frequency Hopping Sequence The channel is represented by a pseudo-random hopping sequence hopping through the 79/20 RF channels. The hopping sequence is unique for the piconet and is determined by the Bluetooth device address of the master; the phase in the hopping sequence is determined by the Bluetooth clock of the master. The channel is divided into time slots where each slot corresponds to an RF hop frequency. Consecutive hops correspond to different RF hop frequencies. The nominal hop rate is 1 600 hops/s. 1.5.2. Equal Hopping Frequency Use All Bluetooth units participating in the piconet are time and hop-synchronized to the channel. 1.5.3. System Receiver Input Bandwidth Each channel bandwidth is 1㎒ 1.5.4. Equipment Description 15.247(a)(1) that the rx input bandwidths shift frequencies in synchronization with the transmitted 15.247(g): In accordance with the Bluetooth Industry Standard, the system is designed to comply with all of the regulations in Section 15.247 when the transmitter is presented with a continuous data (or information) system. 15.247(h): In accordance with the Bluetooth Industry Standard, the system does not coordinate it channels selection/ hopping sequence with other frequency hopping systems for the express purpose of avoiding the simultaneous occupancy of individual hopping frequencies by multiple transmitters. Report Number: F690501/RF-RTL006020-2 Page: 5 of 58 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory) 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.ee.sgs.com/korea 1.6. Test Equipment List Equipment Manufacturer Model S/N Cal Date Cal Interval Cal Due. Signal Generator R&S SMR40 100540 Jan. 05, 2012 Annual Jan, 08, 2014 Spectrum Analyzer R&S FSV30 101004 Jul. 05, 2012 Annual Jul. 05, 2013 Attenuator Mini-Circuits BW-N20W5+ 0950-4 Mar. 30, 2012 Annual Mar. 30, 2013 High Pass Filter Wainwright WHK3.0/18G-6SS 4 Aug. 01, 2012 Annual Aug. 01, 2013 Low Pass Filter Mini circuits NLP-1200+ V9500401023-1 Aug. 01, 2012 Annual Aug. 01, 2013 Power Sensor R&S NRP-Z81 101341 Jul. 31, 2012 Annual Jul. 31, 2013 DC Power Supply Agilent U8002A MY50020026 Mar. 29, 2012 Annual Mar. 29, 2013 Preamplifier R&S 8447D 1726A01265 Sep.17, 2012 Annual Sep.17, 2013 Preamplifier R&S SCU 18 10070 Jan. 02, 2012 Annual Aug. 06, 2013 Preamplifier MITEQ Inc. JS44-18004000-35-8P 1546891 Aug. 06, 2012 Annual Aug.06, 2013 Test Receiver R&S ESU40 100075 Feb. 13, 2012 Annual Feb. 13, 2013 Trilog Antenna SCHWARZBECK VULB9163 9163-390 Oct. 04, 2012 Biennial Oct. 04, 2014 Horn Antenna R&S HF907 100208 Aug. 13, 2012 Biennia…
