UK4JTGM-1100Vehicle Fleet Management Service System

von-S2(JTGM-1100) Manual Instruction von-S2(JTGM-1100) Information This confidential information is not supposed to disclosed and misused to the third party 1 •Certified Business Name: Jastec Co.,Ltd. •Device (model): Vehicle Fleet Management Service System •Manufacture date: Jan, 2013 •Manufacturer/country : Jastec Co,Ltd./Korea •Certified code : JS0 •A radio interference of this wireless module is not providing a service related the safety of life. This confidential information is not supposed to disclosed and misused to the third party 2 We kindly recommend you to be fully aware of using a product accurately and for safety of user. All liabilities by uncomplying cautions are not supposed to be responsible to manufacturer. 1. This product into water or prolonged exposure to moisture can cause failure resulting in no charge for broken A/S. 2. Do not disassemble or repair this product if the label seal is broken or damaged, free A/S will not be received. 3. Do not separate or equip von-F module while driving vehicle or ignition off. – This causes to car accident and defective of it. 4. Please note that on the surface of the product carefully to avoid strong detergent or chemicals. 5. This product works under the proper temperature -20~+60°C. 6. Do not impact the product. It’s the cause of product defective. 7. Using other products rated voltage is the cause of the crush. Rated voltage state must be sure to use the product. 8. After parking vehicle in a safe place, install von-F module then drive. 9. When installing or removing product on the vehicle as the vehicle peripheral device could be due to injury, Please be careful. 10. Incorrect installation of the product by the vehicle’s shock and vibration and can cause data loss, after the installation, please check it properly. 11. Products by shock or vibration of the vehicle is released from the car because it can cause data loss if the installation status checks on a regular basis. This product is equipped with a breakdown of the car by the impact of accidents, damage, of driving record, we are not responsible for missing. Cautions For Safety 1. von-S2(JTGM-1100) Descriptions This confidential information is not supposed to disclosed and misused to the third party 3 1.1 Overview von-S2(JTGM-1100) as vehicle Fleet Management Service System designed to collect a vehicle driving information from ECU(Electronic Control Unit) By OBD standard protocol communication and can be saved a driving logs by connecting to PC. Von-S2(JTGM-1100) GPS GSM This confidential information is not supposed to disclosed and misused to the third party 4 1.2 Specifications 1. von-S2(JTGM-1100) Descriptions Item Description CPU Processor External Memory In-Vehicle Protocol Status Supported Functions Vehicle Interface USB Port GSM/GPRS G-Sensor GPS MIC Function Internal Battery Operational Voltage Power Consumption Dimensions Weight Operating Temperature Storage Temperature 32-bit ARM Cortex-M3(256KB Flash, 64KB SRAM) 4MB Serial Flash Memory ISO 9141-2, ISO 14230-4(KWP-2000), ISO 15765-4(CAN), SAE J1850(PWM/VPWM) 4-LEDs (Power, Status, Modem, GPS) SAE J1979 Mode $01~$0A SAE J1962 Standard OBD-II 16 PIN Connector USB 2.0 Compatible, VCP(Vitural COM Port) Supported GSM/GPRS/EDGE 850/900/1800/1900MHz Bosch 3-Axis 10-Bit Resolution, BMA150 SGPS, AGPS, gpsOneXTRA-tm Microphone (Emergency Call) 360mAh DC 8V ~16V or USB 5V Support Save Mode Max. 60mW, Max Power Mode 5000mW Max. 46mm(W) x 25mm(D) x 66mm(H) 54g -20 ~ +60°C -40 ~ +85°C This confidential information is not supposed to disclosed and misused to the third party 5 1.3 Functions Driving logs record Saving vehicle information. Collecting and saving driving logs information. Vehicle identification information / module certification / module serial number information / driving data starting time and ending time / ignition On and Off time / Accumulated driving distance / module connection and disconnection time / driving information transmitting time / acceleration pedal or throttle valve open angle Driving information security Encoded saving data to not modify a driving recorded information. Driving information upload GSM transmitter preferred. Power saving function Automatically power will be off when ignition off. Self diagnostic Supporting self diagnostic function through von-F module operating check (Indicator). Firmware upgrade support Supporting firmware upgrade 1. von-S2(JTGM-1100) Descriptions This confidential information is not supposed to disclosed and misused to the third party 6 1.4 Composition Name Function von-S2(JTGM-1100) module Connection to vehicle OBD diagnostic port. USB cable Firmware Update Quick Start Manual Quick guide manual Program installation CD von-S2(JTGM-1100) PC Manager installation program 1. von-S2(JTGM-1100) Descriptions This confidential information is not supposed to disclosed and misused to the third party 7 1.5 Body description display LED 4-Indicator display LED DLC connector Connect to vehicle OBD diagnostic port. USB Connector F/W Update Connector 1. von-S2(JTGM-1100) Descriptions 8 2.1 von-S2(JTGM-1100) installation von-S2(JTBT-2200) installation is following below order. 1.von-STD(JTGM-1100) installation requires after vehicle parking in safety area. ** Caution : A side brake or foot brake should be locked and shift also checked on the parking position. 2.Please check vehicle engine should be off when if ignition on 3. von-S2(JTGM-1100) shall be installed in front of driver seat and must be located to ensure a separation distance of 20cm or more between the antenna and the driver/passenger to comply with FCC RF exposure requirements. 4. Check the position of vehicle OBD diagnostic connector. 2. Product Instructions Min 20cm [Vehicle OBD diagnostic Connector] This confidential information is not supposed to disclosed and misused to the third party 9 2.3 von-S2(JTGM-1100) module separation ** Caution : von-S2(JTGM-1100) module separation should be performed at safety area afte…

Text truncated - open the document above for the full version.

Date: April, 23, 2013 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 c.c. Compliance Certification Services Certification Division 47173 Benicia Street Fremont, CA 94538, USA To whom it may concern: I, the undersigned, hereby authorize Lab Manager Hyunchae. You (or Denny. Ham or Feel. Jeong ) and of SGS Korea Co., Ltd and hereafter referred to as SGS Korea, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents rel ating to these matters. Any and all acts carried out by Lab Manager Hyunchae. You (or Denny. Ham or Feel. Jeong) of SGS Korea Co., Ltd on our behalf shall have the same effect as acts of ou r own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing SGS Korea as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, Jastec Co., LTD. Park Cheol­Hong / Manager

Federal Communications Commission 7435 Oakland Mills Road Columbia, MD21046 Gentlemen: This letter is to comply with Section 0.457(d)(2)(i) and 0.459 pertaining to confidential material. We,Jastec Co., Ltd. would like the following documents regarding this submission for FCC ID: We are also hereby request Short­Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04­1705. This provision will give Jastec Co., Ltd temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Temporary Confidential exhibits are listed as follows: UK4JTGM-1100 to be kept confidential. 1 Block Diagram 2 Operational Descriptions Permanent 3 Schematics 7 External Photos 8 Internal Photos 9 Test-Setup Photos Short-Term 10 User’s Manual The above material contains trade secrets or technical data, which would customarily be guarded fromcompetitors.We do not want these documents to be accessible to the general public. Sincerely, 4 Antenna Information 5 Tune-up Procedure Confidential List Jastec Co., LTD. Park Cheol­Hong / Manager

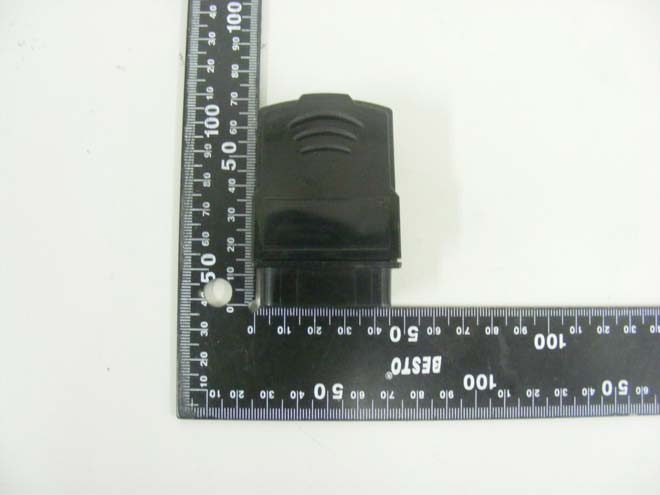

Model : JTGM-1100 External photos of EUT Model : JTGM-1100 Front view of EUT Rear view of EUT Model : JTGM-1100 Top view of EUT Bottom view of EUT Model : JTGM-1100 Side view of EUT

FCC Label 1.FCC Label Drawing 2.FCC Label Location of EUT

Model : JTGM-1100 Internal photos of EUT Model : JTGM-1100 Internal view of EUT Model : JTGM-1100 Top view of Sub PCB Bottom view of Sub PCB Model : JTGM-1100 Top view of Main PCB Bottom view of Main PCB Model : JTGM-1100 Top view of Main PCB1 Bottom view of Main PCB1 Model : JTGM-1100 Top view of Module Bottom view of Module Model : JTGM-1100 Top view of Antenna Antenna

Report Number:F690501/RF-RTL006488-1Page:2of38 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGSKoreaCo.,Ltd.(GunpoLaboratory)18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371www.ee.sgs.com/korea INDEX TABLE OF CONTENTSPage 1. General Information -----------------------------------------------------------------------------------------3 2. RF radiated output power & spurious radiated emission ------------------------------------------7 3. Conducted Output Power ----------------------------------------------------------------------------------14 4. Occupied Bandwidth 99 % --------------------------------------------------------------------------------16 5. Peak-Average Ratio ----------------------------------------------------------------------------------------22 6. Spurious Emissions At Antenna Terminal -------------------------------------------------------------25 7. Band Edge ----------------------------------------------------------------------------------------------------31 8. Frequency Stability -----------------------------------------------------------------------------------------36 Report Number:F690501/RF-RTL006488-1Page:3of38 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGSKoreaCo.,Ltd.(GunpoLaboratory)18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371www.ee.sgs.com/korea 1. General information 1.1. Testing laboratory SGS Korea Co., Ltd. (Gunpo Laboratory) - Wireless Div. 3FL, 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea 435-040 All SGS services are rendered in accordance with the applicable SGS conditions of service available on request and accessible athttp://www.sgs.com/en/Terms-and-Conditions.aspx. Telephone:+82 31 428 5700 FAX:+82 31 427 2371 1.2. Details of applicant Applicant: Jastec Co., Ltd. Address:92-7 Kumgok-Dong, Boondang-Gu, Seongnam-Si, Gyeonggi-Do, 463-804, KOREA Contact Person:Huh, Tae-Joon Phone No.:+82 31 719 0379 Fax No.+82 31 716 0379 1.3. Description of EUT Kind of Product Vehicle Fleet Management Service System Model Name JTGM-1100 Serial Number N/A Power Supply DC 12 V (power source used on vehicle) Rated Power GSM850: 32.5㏈m GSM1900: 29.5㏈m Frequency Range GSM850: 824.2㎒~ 848.8㎒ GSM1900: 1 850.2㎒~ 1 909.8㎒ Number of Channels GSM850 : 125 GSM1900 : 300 Class of GPRS Class 10, Class B Emission Designator 247KGXW (GSM850) 247KGXW (GSM1900) - The EUT does not use voice function under normal operating condition. Report Number:F690501/RF-RTL006488-1Page:4of38 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGSKoreaCo.,Ltd.(GunpoLaboratory)18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371www.ee.sgs.com/korea 1.4. Description of test mode Band Frequency (MHz) VoiceGPRS DataEGPRS Data GSM GPRSGPRSEGPRSEGPRS 1 TX Slot2 TX Slot1 TX Slot2 TX Slot (dBm)(dBm)(dBm)(dBm)(dBm) GSM850 824.232.0829.9326.5426.02 836.632.1630.0126.3325.84 848.832.1830.0426.3625.86 GSM1900 1 850.229.2727.2525.5024.98 1 880.029.3627.4025.6225.10 1 909.829.2527.2725.5225.01 GSM (850 / 1900) We found out the test mode with the highest power level after we analyze all the data rates. So we chose GPRS(worst case) as a representative. 1.5. Sample calculation for offset Where relevant, the following sample calculation is provided: 1.5.1. Conducted test Offset value (㏈) = Directional Coupler (㏈) + Attenuator (㏈) + Cable loss (㏈) 1.5.2. Radiation test E.R.P. & E.I.R.P. = [S.G. level + Amp.](㏈m) - Cable loss(㏈) + Ant. gain (㏈d/㏈i) Report Number:F690501/RF-RTL006488-1Page:5of38 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGSKoreaCo.,Ltd.(GunpoLaboratory)18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371www.ee.sgs.com/korea 1.6. Test equipment list EquipmentManufacturerModelS/NCal Date Cal Interval Cal Due. Signal GeneratorR&S SMR40100272 Aug, 23. 2012AnnualAug, 23. 2013 Spectrum AnalyzerAgilent N9030AUS51350132 Oct. 30, 2012AnnualOct. 30, 2013 Spectrum AnalyzerR&SFSV30100768Mar. 28, 2013AnnualMar. 28, 2014 Mobile Test UnitAgilent E5515CGB43345198 Mar. 29, 2013AnnualMar. 29, 2014 AttenuatorAEROFLEX / INMET26A-10dB1Apr. 05, 2013 Annual Apr. 05, 2014 Directional CouplerKRYTAR 152613122661 Apr. 04, 2013 Annual Apr. 04, 2014 Low Pass FilterMini-Circuits NLP-1200+ V8979400903-1Jul. 12, 2012 Annual Jul. 12, 2013 High Pass FilterWainwright WHKX1.5/15G6SS 4Mar. 30, 2013 Annual Mar. 30, 2014 High Pass FilterWainwrightWHK3.0/18G-10SS344 Jul. 12, 2012AnnualJul. 12, 2013 Temperature Chamber ESPEC CORP.PL-1J15000793 Aug. 17, 2012AnnualAug. 17, 2013 Band Rejection FilterWainwright WRCG824/849-814/859- 60/10SS 7 Mar. 30, 2013AnnualMar. 30, 2014 DC Power SupplyAgilentU8002AMY50070064Mar. 28, 2013 Annual Mar. 28, 2014 PreamplifierH.P.8447F2944A03909Jul. 03, 2012AnnualJul. 03, 2013 PreamplifierR&SSCU1810117Jan. 14, 2013 Annual Jan. 14, 2014 PreamplifierMITEQ Inc.JS44-18004000-35-8P1546891Jul. 12, 2012 Annual Jul. 12, 2013 Test ReceiverR&SESU26100109Feb. 28, 2013 Annual Feb. 28, 2014 Bilog Antenna SCHWARZBECK MESSELEKTRONIK VULB9163396May. 12, 2011BiennialMay. 12, 2013 Horn AntennaR&SHF906 100326Nov. 23, 2011BiennialNov. 23, 2013 Horn Antenna SCHWARZBECK MESSELEKTRONIK BBHA9170BBHA9170431Aug. 24, 2012BiennialAug. 24, 2014 Dipole Antenna SCHWARZBECK MESSELEKTRONIK VHA/UHA9103/9105 May 24, 2011Biennial…
