UK51005Wireless Optical Mouse

NOTE: THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS EQUIPMENT.SUCH MODIFICATIONS COULD VOID THE USER’S AUTHORITY TO OPERATE THE EQUIPMENT

123456 A B C D 6 54321 D C B A Title NumberRevisionSize B Date:6-Sep-2006 Sheet of File:H:\1005接收方框图.ddbDrawn By: ANTENNA spuelch tnigger with mixer OSCILLATOR demodulator limiter AMP 12345678 910111213141516 MC3361B CRYSTAL OSC 26.590MHz 455IF FILTER VCC VCC VCC QUAD COIL orthopedics PULSE OUT PULSE CONTROL PROME 2 OSC SYMCHRONOUS USB CON SCLK SDIO eclics circait hyteresis AMP manifestation PDF 文件使用 "pdfFactory" 试用版本创建 www.fineprint.cn

123456 A B C D 654321 D C B A Title NumberRevisionSize B Date:6-Sep-2006 Sheet of File:H:\1005 方框图.ddbDrawn By: E? ANTENNA RF OUT C RF OSC 27.042MHz OSC 76.8KHz KEY CODE PULSE OUT POWER AD JUST R3 R4 SWITCH PULSE LOW POWER POWER VOLTAGE RISE VCC R5 R6 VCC VCC POWER-SAVING PULSE SPARE PULSE SCLK IN SDIO IN PHOTOTUBE PHOTOTUBE OSC 6MHz PULSE CONTROL power REPORT SAMPLING CONTROL



FBRP6065 Appendix B: 1 of 3 PHOTO OF EUT Model : KM1005 Front View of EUT Rear View of EUT

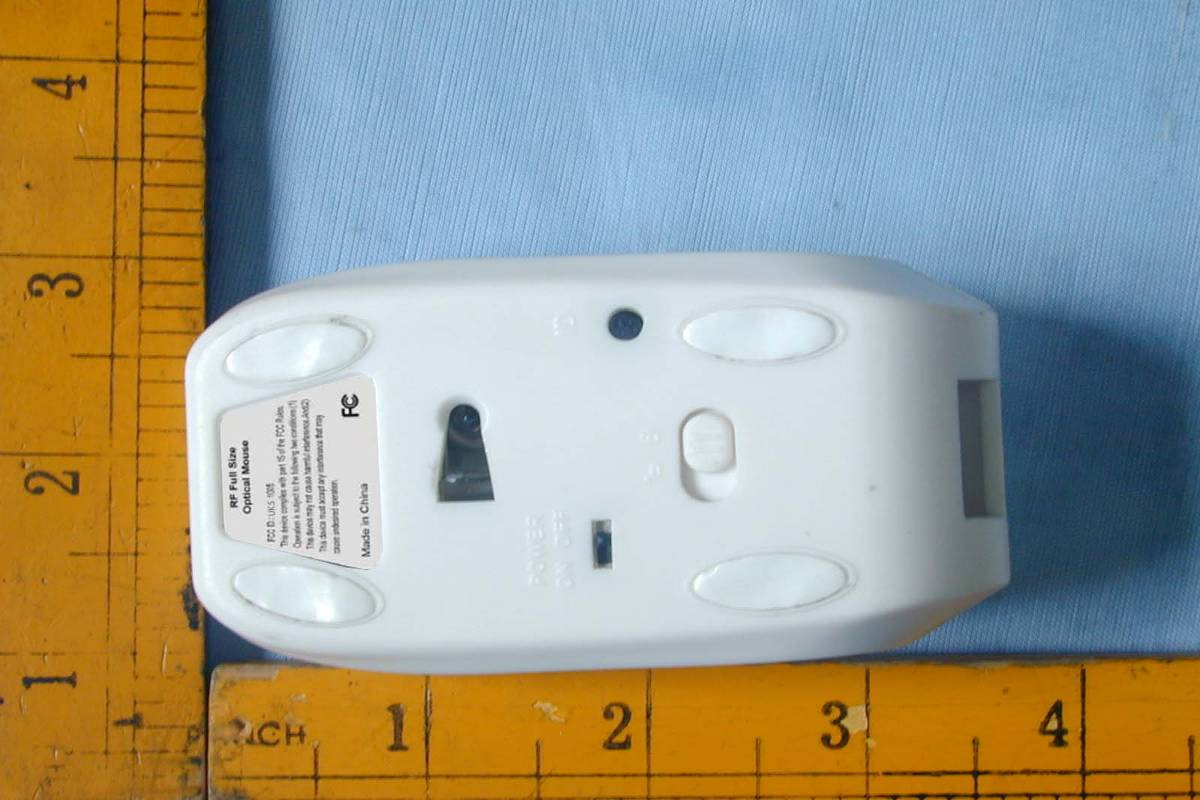

FBRP6065 Appendix A: 1 of 2 Label Photo Full View Label of EUT Label FCC ID: UK51005 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.



FBRP6065 Appendix B: 2 of 3 PHOTO OF EUT Model : KM1005 Inside View of EUT


FBRP6065 Appendix B: 3 of 3 PHOTO OF EUT Model : KM1005 Full View of Component Side Full View of Solder Side 76.8KHz 27.042MHz 12MHz

Operational description of KM1005 This Unit is a wireless optical mouse. the frequency is 27.045MHz. Operating process: 1. Insert 2 AAA batteries into the battery compartment on the bottom of the mouse. 2. Plug the receiver into computer’s USB port. 3. Press lightly on the code-matching button on the receiver. When the red light starts slowly flashing, the receiver is searching for a signal. 4. Press lightly on the code-button on the bottom of the mouse. When the red light starts quickly flashing, the device is in working status. 5. Let the mouse work continually. Power Requirement: This unit input is 2 AAA batteries. Operated is DC3.3V. Operating principle The wireless mouse reflects using the light to the work floor illumination to IC PAN3101 in carries on the transformation, Responds the mouse under active status X direction and the Y direction path. IC PAN3101 unceasingly will change the light signal will transform the electrical signal, IC outward outputs SCLK (clock signal) and SDIO (X direction and Y direction synthesis serial data signal) in the time base vibration foundation the signal. Two groups signals parallel deliver to the pulse control, launch IC MA6221_S7K. This IC by exterior time base vibrates (76.8KHz), RF vibrates (27.042MHz), the pressed key signal input, the hoop type coded signal input, the supply voltage examination and the low voltage demonstrated the pulse signal output and internal power source operate the oscillating circuit, the synchronized code electric circuit (to code signal), pulse electric circuits and so on processing electric circuit, signal modulation compose. When mouse works, after the arteries control the electric circuit the SKIO signal or the pressed key, the coded signal and the synchronization coded signal and the SCLK signal carry on serial processing. Carries on FSK in the tone circuit (frequency-shift keying modulation) modulate the center frequency is 27.045MHz RF signal from the antenna radiation to space. The receiver is composed by one kind of frequency-modulation reception electric circuit and the pulse control circuit and E 2 PROM. The external signal carries on the enlargement after the antenna receive, Delivers the frequency modulation to demodulate electric circuit MC3361 16 th foot RF input end, Carries on the mixing enlargement in the electric circuit, Outputs 455KHz from 3 th foot the intermediate frequency, the 455KHz intermediate frequency carries on the supersonic amplification after 5 th foot inputs in the electric circuit, Places after the intermediate frequency signal to output the demodulation signal after warning frequency electric circuit processing by 9 th feet, Q1 will demodulate the signal further to place inputs to the IC static dry electric circuit, The signal will enlarge which with the aid of the static dry electric circuit will carry on the reshaping to complete the entire signal the demodulation duty. Demodulates the signal is a comprehensive serial pulse signal, Embody SCLK signal, SKIO signal and synchronization coded signal. Delivers this to the pulse control circuit, The control circuit enters these signals separation processing; If the synchronization coded signal may lock the transmitter which transmits, And stores up this signal in E 2 PROM.

1 2 3 4 56 ABCD 6 5 4 3 2 1 D CBA Tit le Number Revision Size B Date: 18-Aug-2006 Sheet of File: C:\Documents and Settings\new\\KM1005-RX-Sch.ddb Drawn By : 123 4 5 67 89 10111213141516 MOC1 C1 1000P 24T OSCB C2 18P OSCE X1 26.590MHz C3 *22P F1 FILTER 455KHz C1 30.1uF MBCOVc c IFI F0 F1 C5 0.1uF C6 0.1uF XT2 CDBM455C28 R7 A 4.7K C1 2 22P DEC1DEC2BUA D C7 0.01uF C8 0.1uF Q1 MMBT3904 D1 1N4148 R3 A 27K AU TO SQ1 R2 100K 12345 678 MC3 361 1234 J1 USB 123456789 10111213141516 Vss R810 Ω R9560 Ω D2LE D-R SW1 ID CHANGE VDD VD 1 C90.1uF XD LED EECS DA TA EECK RXCB CH- CHG -LE D RFENL NRZI N TESTOSC0 OSC1 VD D DPLS- CLK DMNS- DAT X2 6MHz C1 1 100uF/10V R1 1M SCAN MUTE GN D C1 0 47uF/10V U1 U4 93LC46A CS SKD1D0 GND NC NC Vc c MA6 162 U2 L11.8uH C033P  KM1005 /1006RX Q2 3358 R656K C1 4 47uF R027K ANTENNA R53.3K R447K C0 2 CAP C0 1 CAP 4.7V4.4V4.7V5V3.9V3.9V3.9V 5V 2.5V 0.8V0.8V0.5V2.3V 1.7V

1 2 3 4 ABCD 4 3 2 1 D CBA Tit le Number Revision Size B Date: 18-Aug-2006 Sheet of File: C:\Documents and Settings\new\  \KM1005-8Sch.ddb Drawn By : KM -1005   OSCI X3 18.43MHZ (13.522 5MHz) OSCO SDI O SCLK LED_ CTL GN D VD D REFA C19 1uF /10 V C11103 P1 R2 560 Ω D1 LE D-R R3 240K R482K D2RB241 C12 100uF/10V C13 104 L282uH C14 100uF/10V SK2 SW-P B SK3 SW-P B SK4 SW-P B R5 1.2MR6 680K Q1 2N3906 R7 100K R810K R9 100K R116.8K R10 20 Ω D4 XY _ L E D C16 47uF/10V C17 104 X1 76.8KHZ R1 10M C522P C6 22P X2 27.042 C10 33P C8 16P C9 1.8P C4 33P C3 22P C1 100P C2 56P 23456789 10111213 1617181920212223242526272815 14 1 U1A MA622 1_S7K 8765 1234 U2 PAN3101 SCL KSDIO WAKE_A WAKE_B Z1 I NZ2 I NBA LTTXC BBB UTPBUTDCVR PDTXD ORFOORFIN1ORFIN0RFO UTLBUTMBU TRB UTVD DOSC2OSC1VD D SVD_IN VL VL _ N M TY P E 23 1 SK5 SWD2X4 SK1SW-P B Q22N3906 R1 2 4.7K R1 3 4.7K C1 5104 L1 1.8uH TZD  IN 3 OUT 2 GND 1 U3LS85 30-50 1 L382uF D3RB241 GNDVDD C7104 PAN3101  R010 Ω C1 8103 SK 5SW C 104 C19* 104

HomeTek Technology (Chang-An) Inc.













































 APPLICANT : Chuang Feng Electronics Co., Ltd. ADDRESS : HuaLi Industrial Zone, SongBoTang, ChangPing Town, DongGuan City, China. EUT : wireless optical mouse MODEL NO. : KM1005 FCC ID : UK51005 Under Part 15, SUBPART B AND SUBPART C. CLASS B Certification MEASUREMENT PROCEDURE USED FCC RULES AND FCC / ANSI C63.4-2003 PREPARED BY : HomeTek Technology (Chang-An) Inc. South of Shatou Industry District, Chang-An Town, DongGuan City, GuangDong, China Report # : FBRP6065
ADDRESS: South of Shatou Industry District, Chang-An Town, DongGuan City, GuangDong, China PHONE : 86-769-85303005 FAX : 86-769-85303006 E - mail : [email protected]



FBRP6065 Page : 1 of 15 TABLE OF CONTENTS.................................................................................................................................. 1 GENERAL INFORMATION ................................................................................................................................... 2 MODIFICATION LIST ............................................................................................................................................ 4 CONDUCTED POWER LINE TEST....................................................................................................................... 5 1 TEST PROCEDURE ..................................................................................................................................... 5 2 RESULT OF CONDUCTED EMISSION TEST ............................................................................................. 5 RADIATED EMISSION TEST ................................................................................................................................ 6 1 TEST INSTRUMENTS & FACILITIES......................................................................................................... 6 2 EUT OPERATING CONDITION .................................................................................................................. 7 3 TEST SETUP ................................................................................................................................................ 8 4 CONFIGURATION OF THE EUT ............................................................................................................... 10 5 TEST PROCEDURE ................................................................................................................................... 13 6 LIMIT OF RADIATED EMISSION CLASS B ............................................................................................. 14 7 RESULT OF RADIATED EMISSION TEST ............................................................................................... 14 PHOTO OF FCC ID LABEL ................................................................................................................................. 15 APPENDIX A PHOTOS OF TEST CONFIGURATION APPENDIX B PHOTOS OF EUT APPENDIX C PLOT OF OCCUPIED BANDWIDTH

  FBRP6065 Page : 2 of 15 GENERAL INFORMATION 1 APPLICANT : Chuang Feng Electronics Co., Ltd. 2 ADDRESS : HuaLi Industrial Zone, SongBoTang, ChangPing Town, DongGuan City, China. 3 MANUFACTURER : Chuang Feng Electronics Co., Ltd. 4 ADDRESS : HuaLi Industrial Zone, SongBoTang, ChangPing Town, DongGuan City, China. 5 DESCRIPTION OF EUT : EUT : wireless optical mouse FCC ID : UK51005 Model Number : KM1005 Serial # : N/A

  FBRP6065 Page : 3 of 15 6 FEATURES OF EUT :
USB receiver is housed inside mouse for ultimate portability---lock ensures secure fit
Perfect for travel use---eliminates cumbersome wires
Works up to 4 ft from user’s notebook or desktop computer
Two sleep modes automatically puts mouse to rest after 5 seconds or 10 minutes of inactivity
800dpi
Requires 2AAA 1.5V batteries System requirements:
Windows 98,2000,Me or XP or Mac OS
USB port
PC 486 or higher And the final test data were shown in this test report.

  FBRP6065 Page : 4 of 15 MODIFICATION LIST THE FOLLOWING ACCESSORIES WERE ADDED TO THE EUT DURING TESTING : NO MODIFICATION BY HOMETEK TECHNOLOGY(Chang-An) INC.

  FBRP6065 Page : 5 of 15 CONDUCTED POWER LINE TEST 1 TEST PROCEDURE According to ANSI C63.4 – 2003. 2 RESULT OF CONDUCTED EMISSION TEST N/A(Conducted Power Line Test is not applicable to this EUT (Model : KM1005).

  FBRP6065 Page : 6 of 15 RADIATED EMISSION TEST 1 TEST INSTRUMENTS & FACILITIES The following test Instruments was used during the radiated emission test : Item Instruments /facilities Specification Manufacturer Model # / S/N# Date of Cal. 1 OPEN AREA TEST SITE
OATS 1 SEP/2005 2 EMI TEST RECEIVER 20Hz ~ 26.5GHz ROHDE & SCHWARZ 845636/007 SEP/2005 3 PRE- AMPLIFIER 9KHz ~ 1300MHz HEWLETT PACKARD 8447D 1937A02095 SEP/2005 4 BICONICAL/LOG BROADBAND ANTENNA 25MHz ~ 2GHz ANTENNA RESEACH LPB2520/A 1095 OCT/2005 5 LOOP ANTENNA 10KHz~30MHz ZHINAN ZN30900A NOV/2005 6 Attenuation 50
/6dB JYE BAO FAT-N (M-F) 001 SEP/2005 7 Cable 10m SUHNER RG214/U OS3-003 SEP/2005 8 Cable 14m BELDEN 9913 OS3-001 SEP/2005 9 EMI 32 (software) N/A AUDIX 19991013-0923 N/A Note : Items 1 ~ 7 were calibrated within period of 1 year.

  FBRP6065 Page : 7 of 15 2 EUT OPERATING CONDITION 2.1 Configure the EUT according to the ANSI C63.4 - 2003. 2.2 The frequency of the EUT is 27.045 MHz. 2.3 The radiated emission in the frequency range from 30 MHz - 1000 MHz was test in a horizontal and vertical polarization at HomeTek(Chang-An) Lab’s open site I. 2.4 The crystal frequency of the EUT is 27.045 MHz. 2.5 Provided by 2AAA battery to Mouse. Connect receiver to USB port of Person computer. 2.6 Turn on all the…

Text truncated - open the document above for the full version.



FBRP6065 Appendix A: 2 of 2 PHOTOS OF RADIATED EMISSION TEST Model: KM1005 Front View Rear View


FBRP6065 27.045 MHz



FBRP6065 Appendix A: 2 of 2 PHOTOS OF RADIATED EMISSION TEST Model: KM1005 Front View Rear View


FBRP6065 27.045 MHz
