UK5KM1036WWireless Optical Mouse

U ser’s Manual 2 .4Ghz Mouse Resolution Adjustable DPI 800/1600 DPI Key 5 Key Rating V oltage 1.5 V Rating Current 28 mA Wireless operating channels Measurements 100X59X25mm Compatibility: Windows98/ME/2000/XP/Vista or higher Specifications Wireless Carrier Frequency 2405MHz—2476MHz 32 channel Rating V oltage Rating Current Wireless operating channels Measurements Specifications Wireless Carrier Frequency 2405MHz—2476MHz 32 channel PC 5V 16x12x5mm (Mouse) (Receiver) 100mA 1.Open the battery cover at the mouse bottom to fix one pc of AA alkaline battery ,pay attention to the polarities especially . Refer to Photo 2 2.Open the ON-OFF Switch at the mouse bottom 3.Insert the Micro receiver into USB port, waiting for a few seconds when PC automaticlly searching for play&plug device,Mouse will work when the tip Instructions for initial use appears in the downright of the screen saying the new device can be used. 4. If blue LED light under the scroll wheel flashes during the working, it indicates that the battery is short of power and the exchange for a new battery is required . Photo 1 Left key Right key Wheel key 2.4G Micro Receiver Photo 1 Low-voltage Indicator DPI Adjustable Indicator Battery Slot embed the micro Receiver into mouse bottom Photo 2Photo 3 ON-OFF Troubleshooting Difficulities Solutions Please check if the LED light under the scroll wheel is still flashing ,if flashing,it implies that the battery is poor and please try to change the battery . Please unplug the receiver and plug it again to USB port ,or take out the battery and refix it after 20 seconds. Mouse has no reaction at all Please unplug and then plug it again into USB port, if fail to react,please try another USB port or change the PC for the test. Mouse acts slow suddenly during the course of normal usage Mouse disconnects during the course of working Caution : Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Compliance statement: This device is verified to comply with Part 15 of the FCC Rules. Operation subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.

4.3 Electronic drawing 4.4 Block Diagram 2.4G Wireless Optical Mouse KM1025 Product Specification V1.0 P9/14 2405--2476MHz 16MHz

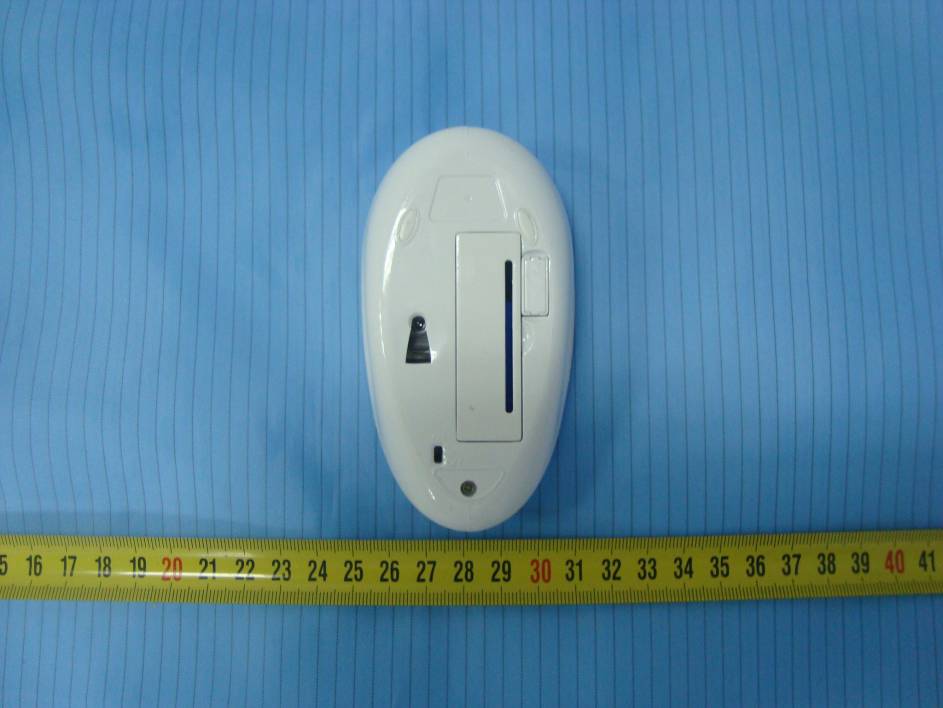

EXHIBIT B - EUT EXTERNAL PHOTOGRAPHS EUT – Top View EUT – Bottom View

EXHIBIT A - FCC ID LABELING AND LOCATION FCC ID Label FCC ID Label Location Label here

EXHIBIT C - EUT INTERNAL PHOTOGRAPHS EUT – Battery Remove View EUT – Cover off View EUT – Main Board Top View EUT – Main Board Bottom View Antenna

The power of the remote unit is provided by a 1.5V DC battery. The oscillation and emission circuit is controlled by the output of the transmitter chipset SPRF2411A. While the RFout pin of SPRF2411A is high the oscillation and emission circuit will be turned on and send out the radio frequency signal. While the RFout pin of SPRF2411A is low the oscillation and emission circuit will be turned off and send out nothing. This procedure generates a GFSK modulated radio frequency signal. In the condition without key pressed the transmitter chip SPRF2411A stays in the sleeping mode and its output is low and the oscillation and emission circuit to be turned off and without radio frequency signal output. When any key is pressed, the transmitter ship SPRF2411A will read the EEPROM for configuration progressing and then send out a coded signal and this signal to modulate a 2.4GHz oscillation circuit base on a 16MHz Crystal to generate a GFSK modulation radio frequency signal. This modulation signal is directly sent out by transmitter chip SPRF2411A through a antenna matching network.

1 2 34 ABCD 4 3 2 1 D CBA Title Number Revision Size A4 Date: 18-May-2010 Sheet of WH VCC KM1036TX SPRF2411A ZAZB VBAT 1 VDD_OUT 2 TEST 3 VLX 4 TC6 5 VSS 6 PA5 7 VDD 8 PA1 9 RF_VCCD 10 RF_GNDD 11 RF_VDDD 12 RF_XPIT 13 RF_XIN 14 RF_PSB 15 RF_VCOG 16 RF_VCOPG 17 RF_VCOVDD 18 RF_VDD 19 ANT1 20 ANT2 21 RF_GNDPG 22 RF_GND 23 RF_VCC 24 GND_IF 25 PB1 26 PC4 27 PD2 28 PD1 29 PD0 30 PC5 31 PA4 32 PA3 33 PB2 34 PB3 35 PA6 36 PA7 37 PB0 38 PB7 39 PB6 40 U1 L1 C4 C1 C5 VCC BAT RF_PSBRF_PWRVSS C3 RFVCC SVDD VCC C6 C13 C14 L4 RFVCC C8 X1 R4 C10 C11 C12 RF_PSB L2 L5 L3 C27C21 C16 C15 RF_PWRMISOS0R2R1R0 MOTION DIR BIND ZB ZA MOSI ESCLK R3 R4 S1 OSC-RES 1 MOTSWK 2 SDIO 3 SCLK 4 LED 5 VSS 6 VDD 7 VDDA 8 U2 R6 C17 C18 C19 SDIOMOTION MISOMOSI ESCLK R5 LD2 LD1 BIND S1S2S3 R0R2R1 S0 R9 BAT R3 SVDD RF_PWR Lx 3 Vout 2 Vss 1 U3 D1 C22 2.4G RF SoC TX VER:1.0 K1 B+ 2405--2476MHz SPRF2411A 16MHz H=9MM 5pin 22 160mcd 100uH 4.7uF SS12 SMA/DO-214AC QX2303L27E 8.7*3.7*4.8 100uF 10M 0.1uF(104) 0.1uF(104) 3.3nH 0.1uF(104) 4.7uF 22PF 52RC-6 130M 0.1uF(104) 4.7uF 1uF 34K 1uF 33PF 33PF 22uF 22uF 2200PF 6.8nH 5.6nH 3.9nH 2.7nH 0.5PF PAN3204DH 1 L20 22uF 22PF

Note: This test report is prepared for the customer shown above and for the device described herein. It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. (Shenzhen). This report must not be used by the customer to claim product certification, approval, or endorsement by NVLAP*, NIST, or any agency of the Federal Government. * This report may contain data that are not covered by the NVLAP accreditation and are marked with an asterisk “*” (Rev.2) FCC PART 15.249 MEASUREMENT AND TEST REPORT For Chuang feng Electronics Co., Ltd. HuaLi Industrial Zone, SongBoTang, ChangPing Town, DongGuan City, Guangdong, China FCC ID: UK5KM1036W Report Type: Original Report Product Type: Wireless Optical Mouse Test Engineer: Felix Li Report Number: RSZ10061081-A Report Date: 2010-07-02 Reviewed By: Merry Zhao EMC Engineer Prepared By: Bay Area Compliance Laboratories Corp. (Shenzhen) 6/F, the 3rd Phase of WanLi Industrial Building, ShiHua Road, FuTian Free Trade Zone Shenzhen, Guangdong, China Tel: +86-755-33320018 Fax: +86-755-33320008 Chuang feng Electronics Co., Ltd. FCC ID: UK5KM1036W Report No.: RSZ10061081-A Page 2 of 18 FCC Part15.249 Test Report TABLE OF CONTENTS GENERAL INFORMATION.......................................................................................................................................3 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) .....................................................................................3 OBJECTIVE...................................................................................................................................................................3 RELATED SUBMITTAL(S)/GRANT(S).............................................................................................................................3 TEST METHODOLOGY..................................................................................................................................................3 TEST FACILITY.............................................................................................................................................................3 SYSTEM TEST CONFIGURATION ..........................................................................................................................5 JUSTIFICATION.............................................................................................................................................................5 EQUIPMENT MODIFICATIONS.......................................................................................................................................5 BLOCK DIAGRAM OF TEST SETUP................................................................................................................................5 SUMMARY OF TEST RESULTS...............................................................................................................................6 FCC §15.203 - ANTENNA REQUIREMENT.............................................................................................................7 APPLICABLE STANDARD..............................................................................................................................................7 ANTENNA CONNECTOR CONSTRUCTION......................................................................................................................7 FCC §15.205, §15.209 & §15.249 - RADIATED EMISSIONS ..................................................................................8 APPLICABLE STANDARD..............................................................................................................................................8 MEASUREMENT UNCERTAINTY....................................................................................................................................8 TEST EQUIPMENT SETUP..............................................................................................................................................8 EUT SETUP..................................................................................................................................................................9 TEST EQUIPMENT LIST AND DETAILS...........................................................................................................................9 TEST PROCEDURE......................................................................................................................................................10 CORRECTED AMPLITUDE & MARGIN CALCULATION.................................................................................................10 TEST RESULTS SUMMARY..........................................................................................................................................10 TEST DATA................................................................................................................................................................11 FCC §15.249(D) – OUT OF BAND EMISSIONS .....................................................................................................13 APPLICABLE STANDARD............................................................................................................................................13 TEST PROCEDURE......................................................................................................................................................13 MEASUREMENT UNCERTAINTY..................................................................................................................................13 TEST EQUIPMENT SETUP............................................................................................................................................13 TEST EQUIPMENT LIST AND DETAILS.........................................................................................................................13 TEST DATA.................…
