UK5NANO2.4 GHz Micro Receiver

U ser’s Manual 2 .4Ghz Mouse Resolution Adjustable DPI 800/1600 DPI Key 5 Key Rating V oltage 1.5 V Rating Current 28 mA Wireless operating channels Measurements 100X59X25mm Compatibility: Windows98/ME/2000/XP/Vista or higher Specifications Wireless Carrier Frequency 2405MHz—2476MHz 32 channel Rating V oltage Rating Current Wireless operating channels Measurements Specifications Wireless Carrier Frequency 2405MHz—2476MHz 32 channel PC 5V 16x12x5mm (Mouse) (Receiver) 100mA 1.Open the battery cover at the mouse bottom to fix one pc of AA alkaline battery ,pay attention to the polarities especially . Refer to Photo 2 2.Open the ON-OFF Switch at the mouse bottom 3.Insert the Micro receiver into USB port, waiting for a few seconds when PC automaticlly searching for play&plug device,Mouse will work when the tip Instructions for initial use appears in the downright of the screen saying the new device can be used. 4. If blue LED light under the scroll wheel flashes during the working, it indicates that the battery is short of power and the exchange for a new battery is required . Photo 1 Left key Right key Wheel key 2.4G Micro Receiver Photo 1 Low-voltage Indicator DPI Adjustable Indicator Battery Slot embed the micro Receiver into mouse bottom Photo 2Photo 3 ON-OFF Troubleshooting Difficulities Solutions Please check if the LED light under the scroll wheel is still flashing ,if flashing,it implies that the battery is poor and please try to change the battery . Please unplug the receiver and plug it again to USB port ,or take out the battery and refix it after 20 seconds. Mouse has no reaction at all Please unplug and then plug it again into USB port, if fail to react,please try another USB port or change the PC for the test. Mouse acts slow suddenly during the course of normal usage Mouse disconnects during the course of working Caution : Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Compliance statement: This device is verified to comply with Part 15 of the FCC Rules. Operation subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.

6.3 Reciver Block Diagram 6.4 Reciver Schematic 2.4G Wireless Optical Mouse KM1025 Product Specification V1.0 P12/14 2405--2476MHz 16MHz

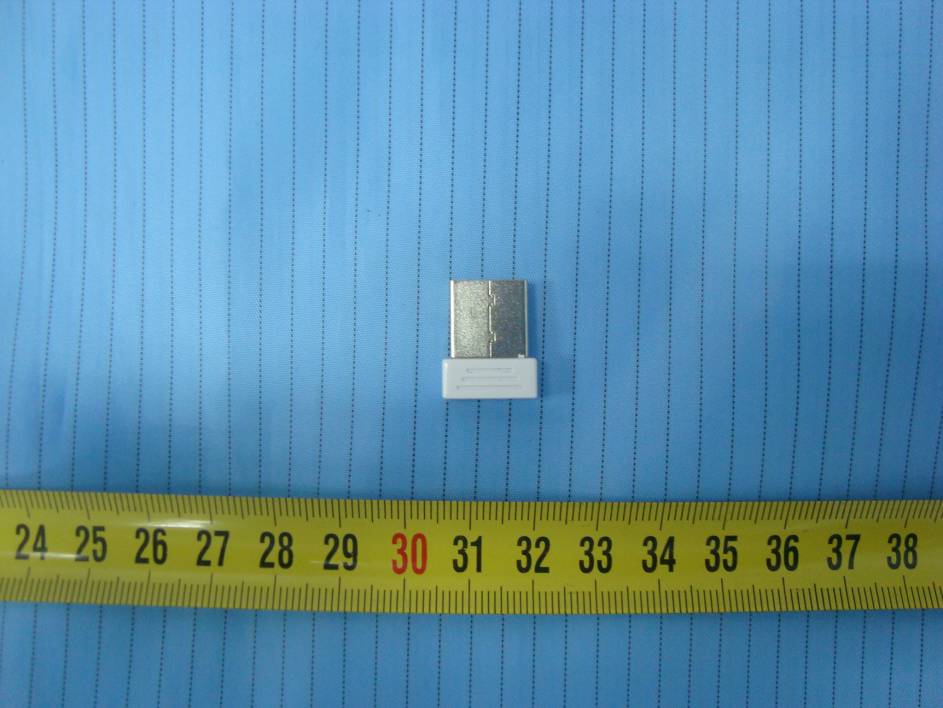

EXHIBIT B - EUT EXTERNAL PHOTOGRAPHS EUT – Top View EUT – Bottom View

EXHIBIT A - FCC ID LABELING AND LOCATION FCC ID Label FCC ID Label Location Label here

EXHIBIT C - EUT INTERNAL PHOTOGRAPHS EUT – Main Board Top View EUT – Main Board Bottom View Antenna

ABCD DCBA Title Number Revision Size A4 Date: 27-Nov-2009 Sheet of 2.4G SPRF2413A C24 X1 R14 L7 C29 C21 RF_PSBRF_SPIENRF_TRRDYRF_TRINT GND 1 PB0/SS 2 PB1/SDI 3 PB2/SCK 4 PB3/SDO 5 NC 6 PB4 7 PB5 8 RF_TRRDY 9 RF_TRCLK 10 RF_TRSDA 11 RF_SPIEN 12 RF_VCCD 13 RF_GNDD 14 RF_VDDD 15 RF_XOUT 16 RF_XIN 17 RF_PSB 18 RF_GDVCO 19 RF_PWVCO 20 RF_VDDR 21 RF_ANT1 22 RF_ANT2 23 RF_GND 24 RF_VCC 25 RF_GNDIF 26 RF_TRINT 27 RF_DRSSI 28 RF_TEST1 29 RF_TEST2 30 PA3 31 PA2 32 PA1 33 PA0 34 PC0 35 DM_DA 36 DP_CK 37 VC 38 VDD 39 XO 40 U1 C28 C33 C32 L5 L4 L6 C31 C30 C40 VCC 1 D- 2 D+ 3 GND 4 JP1 C37 C35 C36 VCC C34 VCC RF_MOSI RF_SCLK RF_MISO RF_SCLK RF_TRRDY RF_MOSIRF_MISORF_PWR RF_SPIEN C23 RF_PSB RF_PWR RF_PWR RF_TRINT +3V C16 C15 L3 R21 +3V RF_PWR 2.4G RF SoC RX Nano VER:1.0 SPRF2413A 16MHz 2405--2476MHz 22PF 1uF 1M 18PF 18PF 22PF 22PF 2200PF 6.2nH 5.6nH 22uF 1.2PF 3.9nH 22PF 2.2uF 3.3nH 0.1uF(104) 20 4.7uF 10uF 0.1uF(104) 22PF

Note: This test report is prepared for the customer shown above and for the device described herein. It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. (Shenzhen). This report must not be used by the customer to claim product certification, approval, or endorsement by NVLAP*, NIST, or any agency of the Federal Government. * This report may contain data that are not covered by the NVLAP accreditation and are marked with an asterisk “*” (Rev.2) FCC PART 15.249 MEASUREMENT AND TEST REPORT For Chuang feng Electronics Co., Ltd. HuaLi Industrial Zone, SongBoTang, ChangPing Town, DongGuan City, Guangdong, China FCC ID: UK5NANO Report Type: Original Report Product Type: 2.4GHz Micro Receiver Test Engineer: Felix Li Report Number: RSZ10061081-B Report Date: 2010-07-02 Reviewed By: Merry Zhao EMC Engineer Prepared By: Bay Area Compliance Laboratories Corp. (Shenzhen) 6/F, the 3rd Phase of WanLi Industrial Building, ShiHua Road, FuTian Free Trade Zone Shenzhen, Guangdong, China Tel: +86-755-33320018 Fax: +86-755-33320008 Chuang feng Electronics Co., Ltd. FCC ID: UK5NANO Report No.: RSZ10061081-B Page 2 of 22 FCC Part15.249 Test Report TABLE OF CONTENTS GENERAL INFORMATION.......................................................................................................................................3 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) .....................................................................................3 OBJECTIVE...................................................................................................................................................................3 RELATED SUBMITTAL(S)/GRANT(S).............................................................................................................................3 TEST METHODOLOGY..................................................................................................................................................3 TEST FACILITY.............................................................................................................................................................3 SYSTEM TEST CONFIGURATION ..........................................................................................................................5 JUSTIFICATION.............................................................................................................................................................5 EQUIPMENT MODIFICATIONS.......................................................................................................................................5 LOCAL SUPPORT EQUIPMENT LIST AND DETAILS........................................................................................................5 EXTERNAL I/O CABLE..................................................................................................................................................5 BLOCK DIAGRAM OF TEST SETUP................................................................................................................................5 SUMMARY OF TEST RESULTS...............................................................................................................................6 FCC §15.203 - ANTENNA REQUIREMENT.............................................................................................................7 APPLICABLE STANDARD..............................................................................................................................................7 ANTENNA CONNECTOR CONSTRUCTION......................................................................................................................7 FCC §15.207 (A) - CONDUCTED EMISSIONS........................................................................................................8 APPLICABLE STANDARD..............................................................................................................................................8 MEASUREMENT UNCERTAINTY....................................................................................................................................8 EUT SETUP..................................................................................................................................................................8 EMI TEST RECEIVER SETUP.........................................................................................................................................9 TEST EQUIPMENT LIST AND DETAILS...........................................................................................................................9 TEST PROCEDURE........................................................................................................................................................9 TEST RESULTS SUMMARY............................................................................................................................................9 TEST DATA..................................................................................................................................................................9 FCC §15.205, §15.209 & §15.249 - RADIATED EMISSIONS ................................................................................12 APPLICABLE STANDARD............................................................................................................................................12 MEASUREMENT UNCERTAINTY..................................................................................................................................12 TEST EQUIPMENT SETUP............................................................................................................................................12 EUT SETUP................................................................................................................................................................13 TEST EQUIPM…

Text truncated - open the document above for the full version.

EXHIBIT D - TEST SETUP PHOTOGRAPHS Conducted Emissions - Front View Conducted Emissions - Rear View Radiated Emissions - Front View (Below 1 GHz) Radiated Emissions - Rear View (Below 1 GHz) Radiated Emissions - Front View (Above 1 GHz) Radiated Emissions - Rear View (Above 1 GHz)
