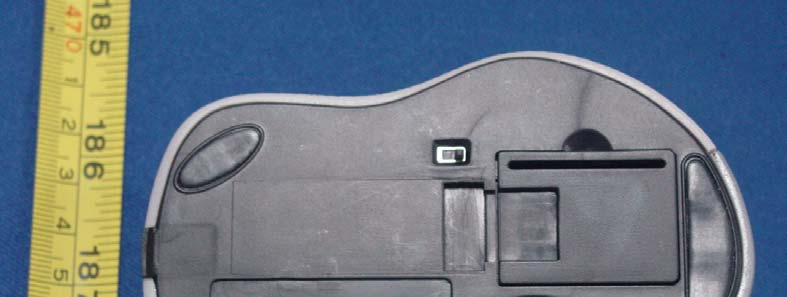

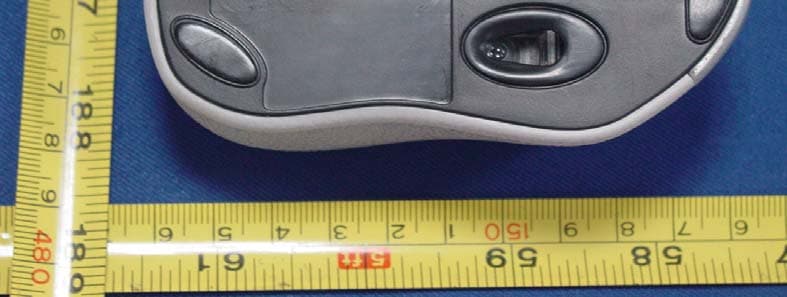

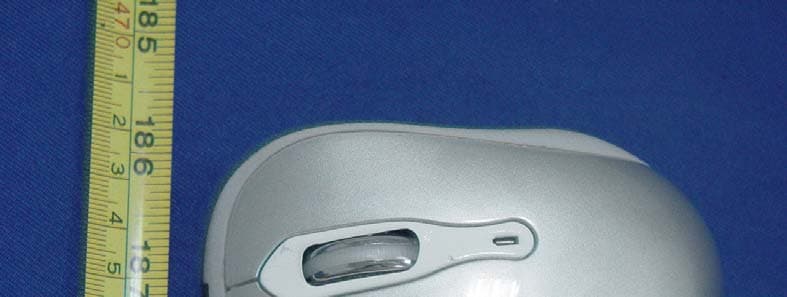

UK5KM1013Wireless Optical Mouse

User’s Manual 2.4Ghz Mouse Resolution Adjustable DPI 800/1600 DPI Key 3 Key Rating V oltage 3 V Rating Current 28 mA Wireless operating channels 64 channel Wireless Carrier Frequency 2405MHz—2476MHz Measurements 101X66X35mm 1.Open the battery cover at the mouse bottom to fix two pcs of AAA alkaline battery ,pay attention to the polarities especially . Refer to Photo 2 2.Open the ON-OFF Switch at the mouse bottom 3.Insert the Micro receiver into USB port, waiting for a few seconds when PC automaticlly searching for play&plug device,Mouse will work when the tip Compatibility: Windows98/ME/2000/XP/Vista or higher Specifications Instructions for initial use appears in the downright of the screen saying the new device can be used. 4. If blue LED light under the scroll wheel flashes during the working, it indicates that the battery is short of power and the exchange for a new battery is required . Photo 1 Left key Right key Low-voltage indicator indicator of dpi shift 2.4G Micro Receiver Photo 1 Battery Slot Photo 2 Troubleshooting Difficulities Solutions Please check if the LED light under the scroll wheel is still flashing ,if flashing,it implies that the battery is poor and please try to change the battery . Please unplug the receiver and plug it again to USB port ,or take out the battery and refix it after 20 seconds. Mouse has no reaction at all Please unplug and then plug it again into USB port, if fail to react,please try another USB port or change the PC for the test. Mouse acts slow suddenly during the course of normal usage Mouse disconnects during the course of working Caution : Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Compliance statement: 1: This device is verified to comply with Part 15 of the FCC Rules. Operation subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. 2: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However,there is no guarantee that interference will not occur in a particular installation.If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help.

Label location

Wireless Optical Mouse Made in China FCC ID:UK5KM1013 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:(1) This device may not cause harmful interference.And(2) This device must accept any interference received, including interference that may cause undesired operation. Wireless Optical Mouse Made in China FCC ID:UK5KM1013This device complies with part 15 of the FCC Rules.Operation is subject to the following two conditions:(1)This device may not cause harmful interference.And(2)This device must accept any interference received, includinginterference that may cause undesired operation. 29.5*4.5mm 10mm

Antenna location

FCC ID: UK5KM1013 NS Technology Co., Ltd. Report No. NSE-F09124206 Page 1 of 40 FCC COMPLIANCE REPORT for Chuangfeng Electronics Co.,Ltd Wireless Optical Mouse Model Number: KM-1013 Prepared for : Chuangfeng Electronics Co.,Ltd Address : Huali Industrial Zone, Songbotang, Changping Town, Dongguan City, Guangdong, China Prepared By : NS Technology Co., Ltd. Address : Chenwu Industrial Zone, Houjie Town, Dongguan City, Guangdong, China Tel: +86-769-85935656 Fax: +86-769-85991080 Report Number : NSE-F09124206 Date of Test : Nov. 7,~ Dec. 5, 2009 Date of Report : Dec. 7, 2009 FCC ID: UK5KM1013 NS Technology Co., Ltd. Report No. NSE-F09124206 Page 2 of 40 TABLE OF CONTENTS Test Report Declaration Page 1. GENERAL PRODUCT INFORMATION ................................................................................... 4 1.1. Product Function ................................................................................................................................... 4 1.2. Description of Device (EUT) ................................................................................................................ 4 1.3. Difference between Model Numbers .................................................................................................... 4 1.4. Independent Operation Modes .............................................................................................................. 4 2. TEST SITES.................................................................................................................................... 5 2.1. Test Facilities ........................................................................................................................................ 5 2.2. List of Test and Measurement Instruments ........................................................................................... 6 3. TEST SET-UP AND OPERATION MODES .............................................................................. 7 3.1. Principle of Configuration Selection..................................................................................................... 7 3.2. Block Diagram of Test Set-up............................................................................................................... 7 3.3. Test Operation Mode and Test Software............................................................................................... 7 3.4. Special Accessories and Auxiliary Equipment .....................................................................................7 3.5. Countermeasures to Achieve EMC Compliance................................................................................... 7 4. TEST SUMMARY.......................................................................................................................... 8 5. EMISSION TEST RESULTS........................................................................................................ 9 5.1. Radiated Emission................................................................................................................................. 9 5.2. 20dB Bandwidth ................................................................................................................................. 25 5.3. Band Edge ........................................................................................................................................... 32 FCC ID: UK5KM1013 NS Technology Co., Ltd. Report No. NSE-F09124206 Page 3 of 40 NS Technology Co., Ltd. Applicant: Address: Chuangfeng Electronics Co.,Ltd Huali Industrial Zone, Songbotang, Changping Town, Dongguan City, Guangdong, China Manufacturer: Address: Chuangfeng Electronics Co.,Ltd Huali Industrial Zone, Songbotang, Changping Town, Dongguan City, Guangdong, China E.U.T: Wireless Optical Mouse Model Number: KM-1013 Trade Name: ----- Operating Frequency: 2405MHz~2476MHz Date of Receipt: Nov. 6, 2009 Date of Test: Nov. 7,~ Dec. 5, 2009 Test Specification: FCC Part 15 Subpart C: July. 10, 2008 ANSI C63.4:2003 Test Result: The equipment under test was found to be compliance with the requirements of the standards applied. Issue Date: Dec. 7,2009 Tested by: Reviewed by: Approved by: Jade/ Engineer Iceman Hu / Supervisor Steven Lee / Manager Other Aspects: None. Abbreviations: OK/P=passed fail/F=failed n.a/N=not applicable E.U.T=equipment under tested This test report is based on a single evaluation of one sample of above mentioned products ,It is not permitted to be duplicated in extracts without written approval of NS Technology Co., Ltd. FCC ID: UK5KM1013 NS Technology Co., Ltd. Report No. NSE-F09124206 Page 4 of 40 1. GENERAL PRODUCT INFORMATION 1.1. Product Function Details please refer to Technical Construction Form and User Manual. 1.2. Description of Device (EUT) E.U.T. : Wireless Optical Mouse Model No. : KM-1013 Operating Frequency : 2405~2476MHz Number of Channels : 32 channels hopping with 2 group form 2.405GHz ~ 2.476GHz. Type of Modulation : GFSK Antenna Type : Integral System Input Voltage : Nominal Voltage: DC 3V Temperature Range(Operating) : 0 ~+ 40°C Channel frequency： Frequency Group1 Frequency Group2 Unit 2407 2442 2405 2443 2408 2447 2406 2444 2412 2451 2409 2446 2414 2452 2410 2448 2417 2457 2411 2449 2420 2458 2413 2453 2421 2459 2415 2455 2422 2460 2416 2456 2427 2461 2418 2462 2428 2465 2419 2463 2431 2468 2423 2464 2435 2469 2425 2466 2436 2472 2429 2467 2437 2473 2430 2470 2438 2475 2432 2471 2439 2476 2434 2474 (MHz) 1.3. Difference between Model Numbers 1.4. Independent Operation Modes The basic operation modes are: 1.4.1. Low Channel TX 2405MHz 1.4.2. Middle Channel TX 2442MHz 1.4.3.; High Channel TX 2476MHz FCC ID: UK5KM1013 NS Technology Co., Ltd. Report No. NSE-F09124206 Page 5 of 40 2. TEST SITES 2.1. Test Facilities EMC Lab : Certificated by TUV Rheinland, Germany. Date of registration: July 28, 2003 Certificated by FCC, USA Registration No.: 502831 Date of registration: February 09, 2009 Certificated by…

Text truncated - open the document above for the full version.

Set-up for radiated emission test(30MHz~1GHz) Set-up for radiated emission test(Above 1GHz)
