UL9NAP2KPE802.11n Wireless Access Point

- 1 - N-WAP 802.11n Wireless Access Point - 2 - Copyright Copyright (C) 2011 Legrand. All rights reserved. The products and programs described in this User’s Manual are licensed products of Legrand, This User’s Manual contains proprietary information protected by copyright, and this User’s Manual and all accompanying hardware, software, and documentation are copyrighted. No part of this User’s Manual may be copied, photocopied, reproduced, translated, or reduced to any electronic medium or machine-readable form by any means by electronic or mechanical. Including photocopying, recording, or information storage and retrieval systems, for any purpose other than the purchaser's personal use, and without the prior express written permission of Legrand. Disclaimer Legrand does not warrant that the hardware will work properly in all environments and applications, and makes no warranty and representation, either implied or expressed, with respect to the quality, performance, merchantability, or fitness for a particular purpose. Legrand has made every effort to ensure that this User’s Manual is accurate; Legrand disclaims liability for any inaccuracies or omissions that may have occurred. Information in this User’s Manual is subject to change without notice and does not represent a commitment on the part of Legrand. Legrand assumes no responsibility for any inaccuracies that may be contained in this User’s Manual. Legrand makes no commitment to update or keep current the information in this User’s Manual, and reserves the right to make improvements to this User’s Manual and/or to the products described in this User’s Manual, at any time without notice. If you find information in this manual that is incorrect, misleading, or incomplete, we would appreciate your comments and suggestions. Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to pro-vide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equip-ment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the inter-ference at his own expense. - 3 - FCC Caution To assure continued compliance, any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. (Example - use only shielded interface cables when connecting to computer or peripheral devices). FCC Radiation Exposure Statement This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20 centimeters between the radiator and your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. The antennas used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. CE mark Warning The is a class B device, In a domestic environment, this product may cause radio interference, in which case the user may be required to take adequate measures. WEEE Warning To avoid the potential effects on the environment and human health as a result of the presence of hazardous substances in electrical and electronic equipment, end users of electrical and electronic equipment should understand the meaning of the crossed-out wheeled bin symbol. Do not dispose of WEEE as unsorted municipal waste and have to collect such WEEE separately. Trademarks The Legrand logo is a trademark of Legrand Inc. This documentation may refer to numerous hardware and software products by their trade names. In most, if not all cases, their respective companies claim these designations as trademarks or registered trademarks. Revision User’s Manual for 802.11n Wireless Access Point: Model: N-WAP - 4 - Rev: 1.0 (2011, July) Part No. EM-N-WAP_v1 - 5 - TABLE OF CONTENTS Chapter 1 Introduction...........................................................................................................................7 Overview ......................................................................................................................................... 7 Package Content ............................................................................................................................ 7 Physical Details .............................................................................................................................. 7 Physical Interface & Button....................................................................................................... 8 Chapter 2 Preparations & Installation ..................................................................................................9 Physical Installation Requirement................................................................................................ 9 Chapter 3 Network Settings ................................................................................................................11 Configuring and monitoring your Access Point from web browser ........................................11 Overview on the web interface of Access Point..................................................…

Text truncated - open the document above for the full version.

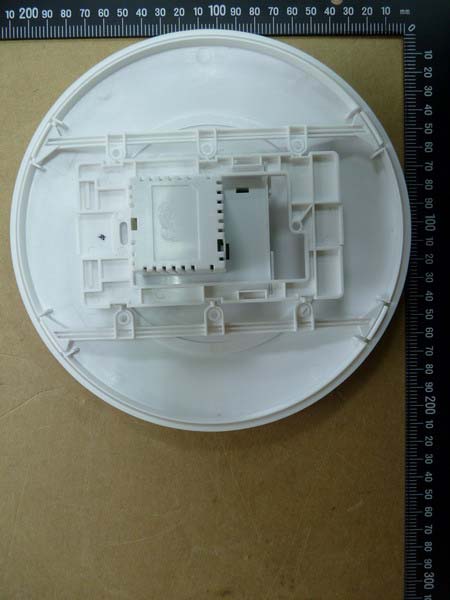

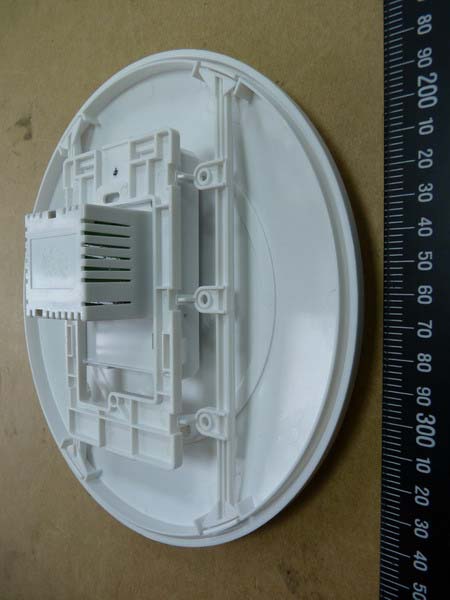

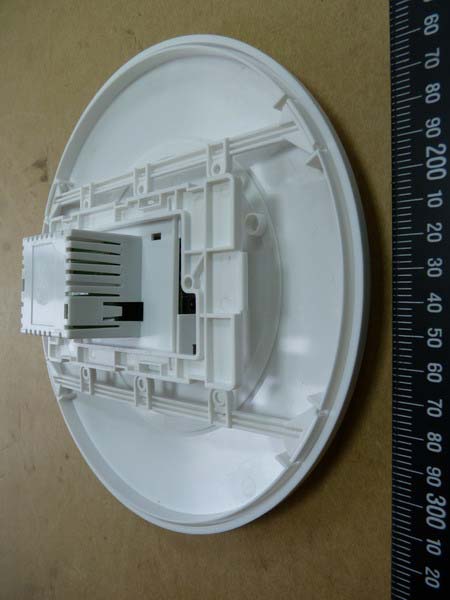

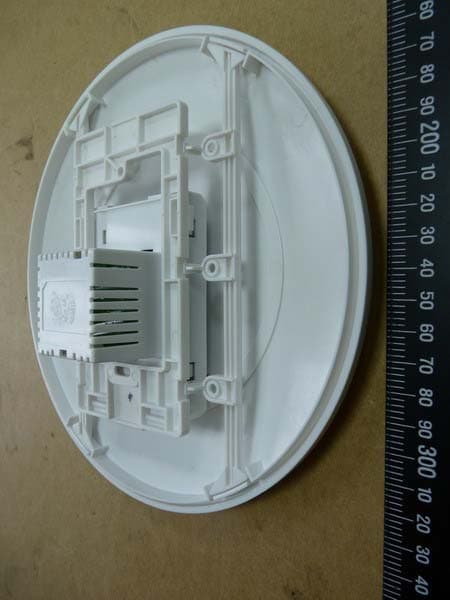

Registration number: W6M21109-11841-FCC FCC ID: UL9NAP2KPE Worldwide Testing Services(Taiwan) Co., Ltd. Page 2 of 31 External Photos Registration number: W6M21109-11841-FCC FCC ID: UL9NAP2KPE Worldwide Testing Services(Taiwan) Co., Ltd. Page 3 of 31 Registration number: W6M21109-11841-FCC FCC ID: UL9NAP2KPE Worldwide Testing Services(Taiwan) Co., Ltd. Page 4 of 31 Registration number: W6M21109-11841-FCC FCC ID: UL9NAP2KPE Worldwide Testing Services(Taiwan) Co., Ltd. Page 5 of 31 Registration number: W6M21109-11841-FCC FCC ID: UL9NAP2KPE Worldwide Testing Services(Taiwan) Co., Ltd. Page 6 of 31 Registration number: W6M21109-11841-FCC FCC ID: UL9NAP2KPE Worldwide Testing Services(Taiwan) Co., Ltd. Page 7 of 31 Registration number: W6M21109-11841-FCC FCC ID: UL9NAP2KPE Worldwide Testing Services(Taiwan) Co., Ltd. Page 8 of 31 Registration number: W6M21109-11841-FCC FCC ID: UL9NAP2KPE Worldwide Testing Services(Taiwan) Co., Ltd. Page 9 of 31 Registration number: W6M21109-11841-FCC FCC ID: UL9NAP2KPE Worldwide Testing Services(Taiwan) Co., Ltd. Page 10 of 31 Registration number: W6M21109-11841-FCC FCC ID: UL9NAP2KPE Worldwide Testing Services(Taiwan) Co., Ltd. Page 11 of 31

Registration number: W6M21109-11841-FCC FCC ID: UL9NAP2KPE Worldwide Testing Services(Taiwan) Co., Ltd. Page 12 of 31 Internal Photos Registration number: W6M21109-11841-FCC FCC ID: UL9NAP2KPE Worldwide Testing Services(Taiwan) Co., Ltd. Page 13 of 31 Registration number: W6M21109-11841-FCC FCC ID: UL9NAP2KPE Worldwide Testing Services(Taiwan) Co., Ltd. Page 14 of 31 Registration number: W6M21109-11841-FCC FCC ID: UL9NAP2KPE Worldwide Testing Services(Taiwan) Co., Ltd. Page 15 of 31 Registration number: W6M21109-11841-FCC FCC ID: UL9NAP2KPE Worldwide Testing Services(Taiwan) Co., Ltd. Page 16 of 31 Registration number: W6M21109-11841-FCC FCC ID: UL9NAP2KPE Worldwide Testing Services(Taiwan) Co., Ltd. Page 17 of 31 Registration number: W6M21109-11841-FCC FCC ID: UL9NAP2KPE Worldwide Testing Services(Taiwan) Co., Ltd. Page 18 of 31

MPE Prediction FCC Rule: 15.247(b)(5) Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission’s guidelines. See §1.1307(b)(1) of this Chapter. LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm2) Average time (minutes) (A)Limits For Occupational / Control Exposures 30-300 61.4 0.613 1.0 6 300-1500 ... ... F/300 6 1500-100,000 ... ... 5 6 (B)Limits For General Population / Uncontrolled Exposure 30-300 27.5 0.073 0.2 30 300-1500 ... ... F/1500 30 1500-100,000 ... ... 1.0 30 F = Frequency in MHz Prediction of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 PG S = -------------- 4πR² where: S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna Maximum peak output power at antenna input terminal: 16.63 (dBm) Maximum peak output power at antenna input terminal: 46.0257 (mW) Antenna gain(maximal): 2.85 (dBi) Prediction distance: 20 (cm) Prediction frequency: 2412 (MHz) MPE limit for uncontrolled exposure at prediction frequency: 1.0 (mW/cm²) Power density at prediction frequency: 0.01765 (mW/cm²)

of Applicant: Planet Technology Corporation Address: 10F., No.96, Minquan Rd., Xindian Dist. New Taipei City Taiwan Tested and Prepared by Worldwide Testing Services (Taiwan) Co., Ltd. FCC Registration No.: 930600 Industry Canada filed test laboratory Reg. No. IC 5679A-1 A2LA Accredited No.: 2732.01 Report No.: W6M21109-11841-C-1 6F, NO. 58, LANE 188, RUEY-KUANG RD., NEIHU TAIPEI 114, TAIWAN, R.O.C. TEL: 886-2-66068877 FAX: 886-2-66068879 E-mail: [email protected] FCC PART 15 SUBPART C TEST REPORT for 802.11 n Wireless Access Point Model No.: WNAP-2000PE FCC ID: UL9NAP2KPE Registration number: W6M21109-11841-C-1 FCC ID: UL9NAP2KPE Worldwide Testing Services(Taiwan) Co., Ltd. Page 1 of 65 TABLE OF CONTENTS 1 GENERAL INFORMATION ................................................................................................... 2 1.1 NOTES................................................................................................................................... 2 1.2 TESTING LABORATORY......................................................................................................... 3 1.2.1 Location ....................................................................................................................... 3 1.2.2 Details of accreditation status ..................................................................................... 3 1.3 DETAILS OF APPROVAL HOLDER............................................................................................ 3 1.4 APPLICATION DETAILS.......................................................................................................... 4 1.5 G ENERAL INFORMATION OF TEST ITEM................................................................................. 4 1.6 T EST STANDARDS.................................................................................................................. 5 2 TECHNICAL TEST ..................................................................................................................6 2.1 SUMMARY OF TEST RESULTS................................................................................................. 6 2.2 T EST ENVIRONMENT............................................................................................................. 6 2.3 TEST EQUIPMENT LIST.......................................................................................................... 7 2.4 GENERAL TEST PROCEDURE............................................................................................... 11 3 TEST RESULTS (ENCLOSURE) ......................................................................................... 13 3.1 P EAK OUTPUT POWER (TRANSMITTER) ............................................................................... 14 3.2 EQUIVALENT ISOTROPIC RADIATED POWER......................................................................... 21 3.3 RF EXPOSURE COMPLIANCE REQUIREMENTS..................................................................... 21 3.4 TRANSMITTER RADIATED EMISSIONS IN RESTRICTED BANDS............................................. 22 3.5 S PURIOUS EMISSIONS (TX) .................................................................................................. 23 3.6 R ADIATED EMISSION ON THE BAND EDGE........................................................................... 43 3.7 MINIMUM 6 dB BANDWIDTH............................................................................................... 48 3.8 PEAK POWER SPECTRAL DENSITY...................................................................................... 55 3.9 R ADIATED EMISSION FROM DIGITAL PART......................................................................... 62 3.10 POWER LINE CONDUCTED EMISSION.................................................................................. 63 APPENDIX.............................................................................................................................. 65 Registration number: W6M21109-11841-C-1 FCC ID: UL9NAP2KPE Worldwide Testing Services(Taiwan) Co., Ltd. Page 2 of 65 1 General Information 1.1 Notes The purpose of conformity testing is to increase the probability of adherence to the essential requirements or conformity specifications, as appropriate. The complexity of the technical specifications, however, means that full and thorough testing is impractical for both technical and economic reasons. Furthermore, there is no guarantee that a test sample which has passed all the relevant tests conforms to a specification. Neither is there any guarantee that such a test sample will interwork with other genuinely open systems. The existence of the tests nevertheless provides the confidence that the test sample possesses the qualities as maintained and that is performance generally conforms to representative cases of communications equipment. The test results of this test report relate exclusively to the item tested as specified in 1.5. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of the Worldwide Testing Services(Taiwan) Co., Ltd. Specific Conditions: Usage of the hereunder tested device in combination with other integrated or external antennas requires at least additional output power measurements, spurious emission measurements, conducted emission measurements (AC supply lines) and radio frequency exposure evaluations for each individual configuration performed, for certification by FCC. The test sample is able to work according IEEE 802.11 b/g/n. This report is related to FCC Part 15 C (DSSS and OFDM device). Tester: October 06, 2011 Kevin Wang Date WTS-Lab. Name Signature Technical responsibility for area of testing: October 06, 2011 Chang Tse-Ming Date WTS Name Signature Registration number: W6M21109-11841-C-1 FCC ID: UL9NAP2KPE Worldwide Testing Services(Taiwan) Co., Ltd. Page 3 of 65 1.2 Testing laboratory 1.2.1 Location OATS No.…

Text truncated - open the document above for the full version.

Registration number: W6M21109-11841-FCC FCC ID: UL9NAP2KPE Worldwide Testing Services(Taiwan) Co., Ltd. Page 28 of 31 Set Up Photo of Radiated Emission EMI Below 1GHz Registration number: W6M21109-11841-FCC FCC ID: UL9NAP2KPE Worldwide Testing Services(Taiwan) Co., Ltd. Page 29 of 31 Above 1GHz Registration number: W6M21109-11841-FCC FCC ID: UL9NAP2KPE Worldwide Testing Services(Taiwan) Co., Ltd. Page 30 of 31 RF Registration number: W6M21109-11841-FCC FCC ID: UL9NAP2KPE Worldwide Testing Services(Taiwan) Co., Ltd. Page 31 of 31 Set Up Photo of Conducted Emission
