UL9WNRT617V1150Mbps 802.11n Wireless Broadband Router

Planet Technology Corporation

Click to zoom

Application Details

Equipment Class: DTS - Digital Transmission System
Date of Grant: Jun 12, 2011
Application Purpose: Original Equipment
Date of Application: Jun 12, 2011
Equipment Note: 150Mbps 802.11n Wireless Broadband Router
Frequency Range: 2422.00000000 - 2452.00000000
Company: Planet Technology Corporation
Country: Taiwan

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

U U U s s s e e e r r r ’ ’ ’ s s s M M M a a a n n n u u u a a a l l l W W W N N N R R R T T T - - - 6 6 6 1 1 1 7 7 7 150Mbps 802.11n Wireless Broadband Router Copyright Copyright © 2011 by PLANET Technology Corp. All rights reserved. No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language or computer language, in any form or by any means, electronic, mechanical, magnetic, optical, chemical, manual or otherwise, without the prior written permission of PLANET. PLANET makes no representations or warranties, either expressed or implied, with respect to the contents hereof and specifically disclaims any warranties, merchantability or fitness for any particular purpose. Any software described in this manual is sold or licensed "as is". Should the programs prove defective following their purchase, the buyer (and not this company, its distributor, or its dealer) assumes the entire cost of all necessary servicing, repair, and any incidental or consequential damages resulting from any defect in the software. Further, this company reserves the right to revise this publication and to make changes from time to time in the contents hereof without obligation to notify any person of such revision or changes. All brand and product names mentioned in this manual are trademarks and/or registered trademarks of their respective holders. Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: 1. Reorient or relocate the receiving antenna. 2. Increase the separation between the equipment and receiver. 3. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. 4. Consult the dealer or an experienced radio technician for help. FCC Caution: To assure continued compliance, (example-use only shielded interface cables when connecting to computer or peripheral devices) any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the Following two conditions: (1) This device may not cause harmful interference (2) This Device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. I Federal Communication Commission (FCC) Radiation Exposure Statement This equipment complies with FCC radiation exposure set forth for an uncontrolled environment. In order to avoid the possibility of exceeding the FCC radio frequency exposure limits, human proximity to the antenna shall not be less than 20 cm (8 inches) during normal operation. R&TTE Compliance Statement This equipment complies with all the requirements of DIRECTIVE 1999/5/CE OF THE EUROPEAN PARLIAMENT AND THE COUNCIL OF 9 March 1999 on radio equipment and telecommunication terminal Equipment and the mutual recognition of their conformity (R&TTE). The R&TTE Directive repeals and replaces in the directive 98/13/EEC (Telecommunications Terminal Equipment and Satellite Earth Station Equipment) As of April 8, 2000. Safety This equipment is designed with the utmost care for the safety of those who install and use it. However, special attention must be paid to the dangers of electric shock and static electricity when working with electrical equipment. All guidelines of this and of the computer manufacture must therefore be allowed at all times to ensure the safe use of the equipment. National Restrictions This device is intended for home and office use in all EU countries (and other countries following the EU directive 1999/5/EC) without any limitation except for the countries mentioned below: Country Restriction Reason/remark Bulgaria None General authorization required for outdoor use and public service France Outdoor use limited to 10 mW e.i.r.p. within the band 2454-2483.5 MHz Military Radiolocation use. Refarming of the 2.4 GHz band has been ongoing in recent years to allow current relaxed regulation. Full implementation planned 2012 Italy None If used outside of own premises, general authorization is required Luxembourg None General authorization required for network and service supply(not for spectrum) Norway Implemented This subsection does not apply for the geographical area within a radius of 20 km from the centre of Ny-Ålesund Russian Federation None Only for indoor applications Note: Please don’t use the product outdoors in France WEEE regulation To avoid the potential effects on the environment and human health as a result of the presence of hazardous substances in electrical and electronic equipment, end users of electrical and electronic equipment should understand the meaning of the crossed-out wheeled bin symbol. Do not dispose of WEEE as unsorted municipal waste and have to collect such WEEE separately. II Revision User’s Manual for PLANET 802.11n Wireless Broadband Router Model: WNRT-617 Rev: 1.0 (FEBRUARY. 2011) III CONTENTS Chapter 1. Product Introduction.........................................................…

Text truncated - open the document above for the full version.

Cover Letter(s)

(用貴公司信簽紙)——— e-mail: [email protected] http://www.planet.com.tw 10F., No.96, Minquan Rd., Xindian Dist., New Taipei City, Taiwan, R.O.C. Tel:886-2-2219-9518 Fax:886-2-2219-9528 AGENCY AUTHORIZATION LETTER FCC ID: UL9WNRT617V1 Date: Jun 10, 2011 To whom it may concern: We, the undersigned, hereby authorize Audix Technology (Shenzhen) Co., Ltd （No. 6, Ke Feng Rd., 52 Block， Shenzhen Science & Industrial Park,Nantou,Shenzhen, Guangdong, China） to act on our behalf, as our agent, in the following matters related to the FCC approval of our products: report submittal, related correspondence, the signing of all documents relating to these matters, and any other lawful activity necessary to obtain such certification. Any act carried out by Audix within the scope of this authorization shall have the same effects as our own. This authorization shall expire 6 months form original date. If you have any Questions regarding the authorization, please don’t hesitate to contact us. Thank you. Sincerely, Name of authorized signer: Tom Shih Title of authorized signer: Product Dept. Manager Company Name: PLANET Technology Corp. Tel: 886-2-2219-9518 Fax: 886-2-2219-9528 Web site: WWW.PLANET.COM.TW E-mail: [email protected]

Cover Letter(s)

e-mail: [email protected] http://www.planet.com.tw 10F., No.96, Minquan Rd., Xindian Dist., New Taipei City, Taiwan, R.O.C. Tel:886-2-2219-9518 Fax:886-2-2219-9528 Attestation for FCC Declaration of Conformity FCC ID: UL9WNRT617V1 Date: Jun 10, 2011 Please be notified that we, the undersigned, PLANET Technology Corp. declare that the product bears the above FCC ID is also complying with the requirements of FCC DoC. The test report number for FCC DoC is EM-F1000428 , with is issued by an accredited lab, Audix Technology Corporation, EMC Department located at No. 53-11, Tin-Fu Tsun, Lin-Kou , Taipei Hsien , Taiwan. Which has been accredited in accordance to all of the requirements of 47CFR 2.948(d) and (e) of the FCC rules and KDB349827. Sincerely, Name of authorized signer: Tom Shih Title of authorized signer: Product Dept. Manager Company Name: PLANET Technology Corp. Tel: 886-2-2219-9518 Fax: 886-2-2219-9528 Web site: WWW.PLANET.COM.TW

Cover Letter(s)

e-mail: [email protected] http://www.planet.com.tw 10F., No.96, Minquan Rd., Xindian Dist., New Taipei City, Taiwan, R.O.C. Tel:886-2-2219-9518 Fax:886-2-2219-9528 DATE : Jun 10, 2011 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: UL9WNRT617V1 Product Name: WNRT-617 Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this application as outlined below: 1. Block diagram 2. Schematics 3. Operation Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might to harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentation will not be made before the date of the grant for this application. Sincerely, ___________________________ Name of authorized signer: Tom Shih Title of authorized signer: Product Dept. Manager Company Name: PLANET Technology Corp. Tel: 886-2-2219-9518 Fax: 886-2-2219-9528 Web site: WWW.PLANET.COM.TW E-mail: [email protected]

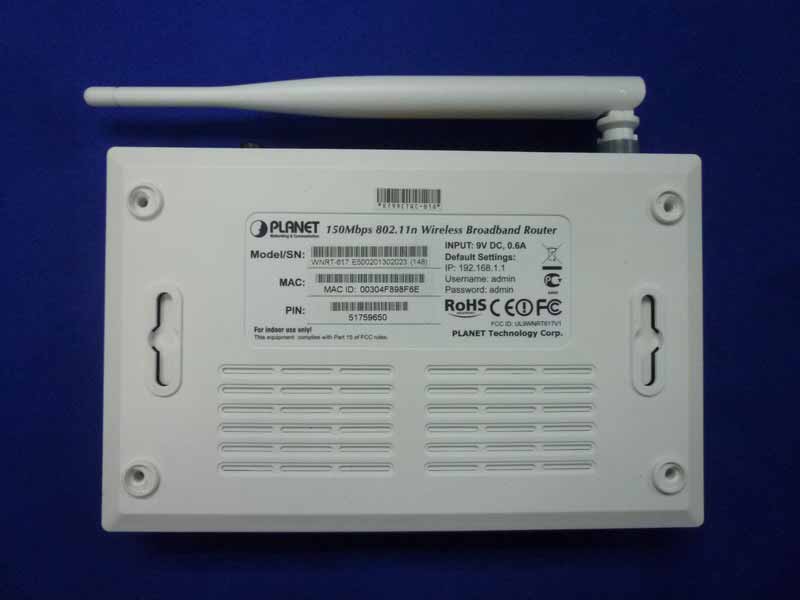

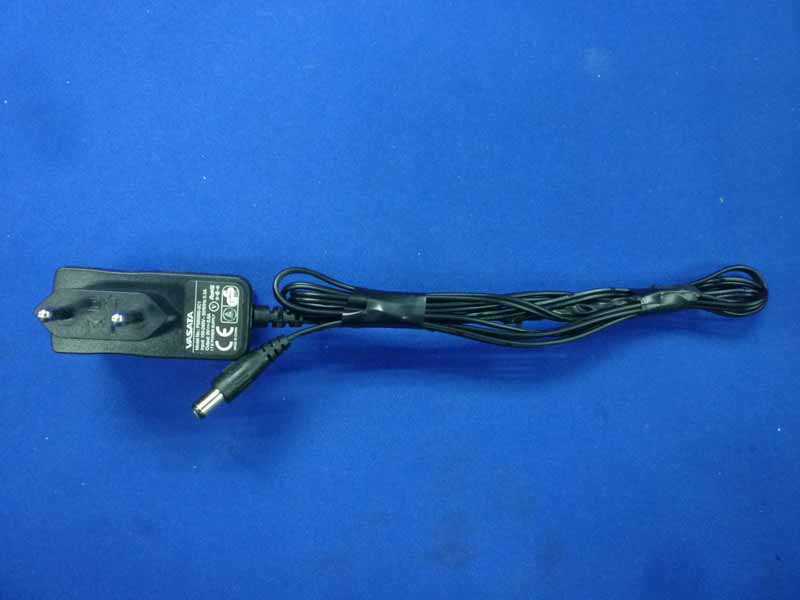

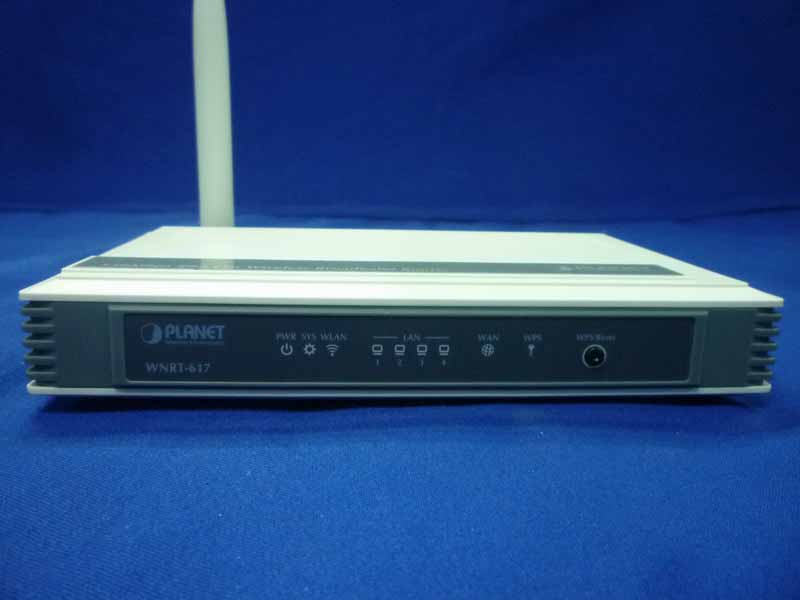

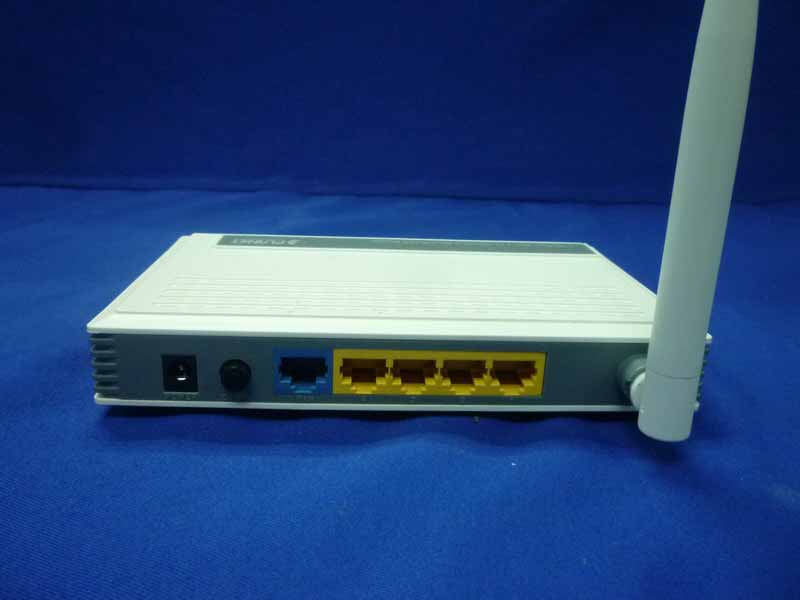

External Photos

R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:UL9WNRT617V1 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F11084 14-1 14. PHOTOS OF THE EUT Figure 1 General Appearance of the EUT Figure 2 General Appearance of the EUT R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:UL9WNRT617V1 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F11084 14-2 Figure 3 General Appearance of the EUT Figure 4 General Appearance of the EUT R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:UL9WNRT617V1 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F11084 14-3 Figure 5 General Appearance of the EUT Figure 6 General Appearance of the EUT R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:UL9WNRT617V1 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F11084 14-4 Figure 7 General Appearance of the EUT Figure 8 General Appearance of the EUT R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:UL9WNRT617V1 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F11084 14-5 Figure 9 General Appearance of the EUT Figure 10 Adapter

ID Label/Location Info

Label

Internal Photos

R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:UL9WNRT617V1 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F11084 14-6 Figure 11 Adapter Figure 12 Inside of the EUT R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:UL9WNRT617V1 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F11084 14-7 Figure 13 Inside of the EUT Figure 14 Inside of the EUT R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:UL9WNRT617V1 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F11084 14-8 Figure 15 Components Side of the PCB Figure 16 Components Side of the PCB R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:UL9WNRT617V1 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F11084 14-9 Figure 17 Components Side of the PCB

RF Exposure Info

R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:UL9WNRT617V1 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F11084 11-12 11. MPE ESTIMATION 11.1.Limit for General Population/ Uncontrolled Exposures Frequency Power density (mW/ cm 2 ) Averaging time(minutes) 300MHz----1.5GHz F/1500 30 1.5GHz---100GHz 1.0 30 Frequency(MHz) Power density (mW/ cm 2 ) Averaging time(minutes) 2412 1 30 2437 1 30 2462 1 30 Note: F= Frequency in MHz 11.2.2, Estimation Result Mode CH Frequency (MHz) PK Output power (dBm) Output power (mW) antenna Gain (dBi) antenna Gain(linear) MPE 1 2412 19.27 84.53 5 3.16 0.0532 6 2437 22.65 184.08 5 3.16 0.1159 11b 11 2462 20.60 114.82 5 3.16 0.0723 1 2412 21.52 141.91 5 3.16 0.0893 6 2437 20.81 120.50 5 3.16 0.0758 11g 11 2462 20.88 122.46 5 3.16 0.0771 1 2412 20.34 108.14 5 3.16 0.0681 6 2437 21.97 157.40 5 3.16 0.0991 11n HT20 11 2462 17.72 59.16 5 3.16 0.0372 1 2422 11.24 13.30 5 3.16 0.0084 4 2437 20.01 100.23 5 3.16 0.0631 11n HT40 7 2452 14.45 27.86 5 3.16 0.0175 Note: The estimation distance is 20cm

Test Report

R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:UL9WNRT617V1 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F11084 FCC PART 15C TEST REPORT FOR CERTIFICATION On Behalf of PLANET Technology Corporation 150Mbps 802.11n Wireless Broadband Router Model No.: WNRT-617 FCC ID: UL9WNRT617V1 Prepared for : PLANET Technology Corporation 10F., No.96, Minquan Rd., Xindian Dist., New Taipei City 231, Taiwan (R.O.C.) Prepared By : Audix Technology (Shenzhen) Co., Ltd. No. 6, Ke Feng Rd., 52 Block, Shenzhen Science & Industrial Park, Nantou, Shenzhen, Guangdong, China Tel: (0755) 26639496 Report Number ： ACS-F11084 Date of Test ： Apr.27, 2011 Date of Report ： Apr.28, 2011 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:UL9WNRT617V1 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F11084 TABLE OF CONTENTS Description Page 1. SUMMARY OF STANDARDS AND RESULTS.......................................................... 1-1 1.1. Description of Standards and Results .................................................................................. 1-1 2. GENERAL INFORMATION ......................................................................................... 2-1 2.1. Description of Device (EUT) ............................................................................................... 2-1 2.2. Test Information................................................................................................................... 2-2 2.3. Tested Supporting System Details ....................................................................................... 2-3 2.4. Block diagram of connection between the EUT and simulators .......................................... 2-3 2.5. Test Facility ......................................................................................................................... 2-4 2.6. Measurement Uncertainty (95% confidence levels, k=2) .................................................... 2-4 3. POWER LINE CONDUCTED EMISSION TEST ....................................................... 3-1 3.1. Test Equipments................................................................................................................... 3-1 3.2. Block Diagram of Test Setup ............................................................................................... 3-1 3.3. Power Line Conducted Emission Test Limits...................................................................... 3-1 3.4. Configuration of EUT on Test ............................................................................................. 3-2 3.5. Operating Condition of EUT................................................................................................ 3-2 3.6. Test Procedure...................................................................................................................... 3-2 3.7. Power Line Conducted Emission Test Results .................................................................... 3-2 4. RADIATED EMISSION TEST ...................................................................................... 4-5 4.1. Test Equipment .................................................................................................................... 4-5 4.2. Block Diagram of Test Setup ............................................................................................... 4-5 4.3. Radiated Emission Limit...................................................................................................... 4-6 4.4. EUT Configuration on Test.................................................................................................. 4-7 4.5. Operating Condition of EUT................................................................................................ 4-7 4.6. Test Procedure...................................................................................................................... 4-7 4.7. Radiated Emission Test Results ........................................................................................... 4-8 5. CONDUCTED SPURIOUS EMISSIONS.................................................................... 5-83 5.1. Test Equipment ..................................................................................................................5-83 5.2. Limit................................................................................................................................... 5-83 5.3. Test Procedure.................................................................................................................... 5-83 5.4. Test result ........................................................................................................................... 5-83 6. BAND EDGE COMPLIANCE TEST ........................................................................ 6-106 6.1. Test Equipment ................................................................................................................ 6-106 6.2. Limit................................................................................................................................. 6-106 6.3. Test Produce ..................................................................................................................... 6-106 6.4. Test Results ...................................................................................................................... 6-106 7. 6dB Bandwidth Test..................................................................................................... 7-139 7.1. Test Equipment ................................................................................................................ 7-139 7.2. Limit................................................................................................................................. 7-139 7.3. Test Procedure.................................................................................................................. 7-139 7.4. Test Results ...........................................…

Text truncated - open the document above for the full version.

Test Report

R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:UL9WNRT617V1 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F11084 4-82 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:UL9WNRT617V1 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F11084 5-83 5. CONDUCTED SPURIOUS EMISSIONS 5.1. Test Equipment Item Equipment ManufacturerModel No. Serial No. Last Cal. Cal. Interval 1. Spectrum Analyzer Agilent E4446A US44300459 May.08,10 1 Year 2. Attenuator Agilent 8491B MY39262165 May.08,10 1 Year 3. RF Cable Hubersuhner SUCOFLEX10228618/2 May.08,10 1Year 5.2. Limit In any 100kHz bandwidth outside the frequency bands in which the spread spectrum intentional radiator in operating, the radio frequency power that is produced by the intentional radiator shall be at least 20dB below that in the 100kHz bandwidth within the band that contains the highest level of the desired power. 5.3. Test Procedure The transmitter output was connected to a spectrum analyzer, The resolution bandwidth is set to 100 kHz, The video bandwidth is set to 300 kHz and measure all the emissions detected. 5.4. Test result PASS (The testing data was attached in the next pages.) R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:UL9WNRT617V1 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F11084 5-84 Test Mode: IEEE 802.11b TX CH1 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:UL9WNRT617V1 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F11084 5-85 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:UL9WNRT617V1 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F11084 5-86 CH6 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:UL9WNRT617V1 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F11084 5-87 CH11 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:UL9WNRT617V1 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F11084 5-88 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:UL9WNRT617V1 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F11084 5-89 Test Mode: IEEE 802.11g TX CH1 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:UL9WNRT617V1 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F11084 5-90 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:UL9WNRT617V1 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F11084 5-91 CH6 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:UL9WNRT617V1 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F11084 5-92 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:UL9WNRT617V1 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F11084 5-93 CH11 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:UL9WNRT617V1 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F11084 5-94 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:UL9WNRT617V1 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F11084 5-95 Test Mode: IEEE 802. 11n HT20 TX CH1 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:UL9WNRT617V1 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F11084 5-96 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:UL9WNRT617V1 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F11084 5-97 CH6 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:UL9WNRT617V1 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F11084 5-98 CH11 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:UL9WNRT617V1 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F11084 5-99 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:UL9WNRT617V1 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F11084 5-100 Test Mode: IEEE 802. 11n HT40TX CH3 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:UL9WNRT617V1 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F11084 5-101 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:UL9WNRT617V1 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F11084 5-102 CH6 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:UL9WNRT617V1 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F11084 5-103 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:UL9WNRT617V1 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F11084 5-104 CH9 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:UL9WNRT617V1 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F11084 5-105 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:UL9WNRT617V1 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F11084 6-106 6. BAND EDGE COMPLIANCE TEST 6.1. Test Equipment Item Equipment Manufacturer Model No. Serial No. Last Cal. Cal. Interval 1. Spectrum Analyzer Agilent E4446A US44300459 May.08,10 1 Year 2. Horn Antenna EMCO 3115 9607-4877 Nov.25, 09 1.5 Year 3. Amplifier Agilent 8449B 3008A02495 May.08, 10 1 Year 4. RF Cable Hubersuhner SUCOFLEX102 28620/2 May.08,10 1 Year 5. RF Cable Hubersuhner SUCOFLEX102 28618/2 May.08,10 1 Year 6. RF Cable Hubersuhner SUCOFLEX102 28610/2 May.08,10 1 Year 6.2. Limit All the lower and upper band-edges emissions appearing within 2310MHz to 2390MHz and 2483.5MHz to 2500MHz restricted frequency bands shall not exceed the limits shown in 15.209, all the other emissions outside operation frequency band 2400MHz to 2483.5MHz shall be at least 20dB below the fundamental emissions, or comply with 15.209 limits. 6.3. Test Produce 1. The EUT is placed on a turntable, which is 0.8m above the ground plane and worked at highest radiated power. 2. The turntable was rotated for 360 degrees to determine the position of maximum emission level. 3. EUT is set 3m away from the receiving antenna, which is varied from 1m to 4m to find out the highest emission. 4. Set the spectrum analyzer in the following setting in order to capture the lower and upper band-edges of the emission: (a) PEAK: RBW=1MHz; VBW=3MHz; Sweep=AUTO (b) AVERAGE: RBW=1MHz; VBW=10Hz; Sweep=AUTO 6.4. Test Results Pass (The testing data was attached in the next pages.) R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:UL9WNRT617V1 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F11084 6-107 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:UL9WNRT617V1 page Audix Technolog…

Text truncated - open the document above for the full version.

Test Setup Photos

R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:UL9WNRT617V1 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F11084 13-1 13. PHOTOGRAPH OF TEST 13.1.Photos of Power Line Conducted Emission Test R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:UL9WNRT617V1 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F11084 13-2 13.2.Photos of Radiated Emission Test R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:UL9WNRT617V1 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F11084 13-3 (Above 1000MHz)

Contact Information

Applicant

Tom Shih(Product Manager)

[email protected]+886-2-2219-9518Fax: +886-2-2219-9528

Technical Contact

AUDIX Technology (Shenzhen) Co., Ltd.Lu Sunny

[email protected]

52 Block Shenzhen Science&Industry · Shenzhen · China

Test Firm

Audix Technology (Shenzhen) Co.Smart Tsai

[email protected]86-755-663-9495Fax: 86-755-663-2877

Technical Specifications

#	Rule Parts	Frequency Range	Power Output
2	15C	2.42 GHz - 2.45 GHz	100.00 mW

Confidentiality

Long Term

Grant Notes

Power Output listed is conducted. The antenna used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and not be co-located with any other transmitters except in accordance with FCC multi-transmitter product procedures. End-users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance.
