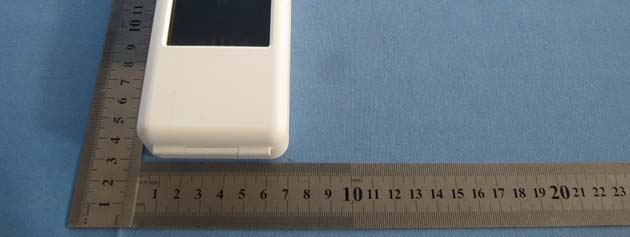

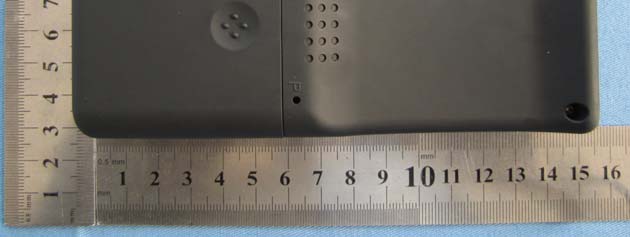

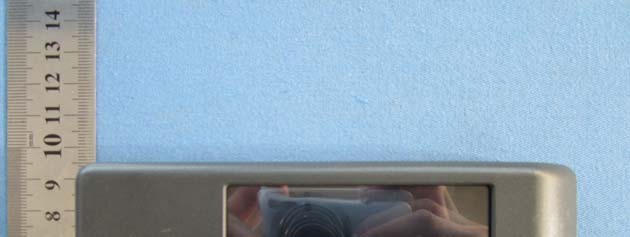

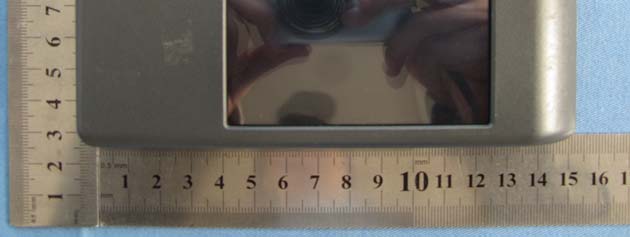

ULE2326-110Fireplace system controller (Remote)

1 Heat & Glo • 6000CMOD-IPI, 8000CMOD-IPI • 2241-900 Rev. i • 4/13 •DO NOT store or use gasoline or other fl am- mable vapors and liquids in the vicinity of this or any other appliance. • What to do if you smell gas - DO NOT try to light any appliance. - DO NOT touch any electrical switch. DO NOT use any phone in your building. - Immediately call your gas supplier from a neighbor’s phone. Follow the gas suppli- er’s instructions. - If you cannot reach your gas supplier, call the fi re department. • Installation and service must be performed by a qualifi ed installer, service agency, or the gas supplier. WARNING: If the information in these instructions is not followed exactly, a fi re or explosion may result causing property damage, personal injury, or death. Owner’s Manual Installation and Operation DO NOT DISCARD THIS MANUAL NOTICE This appliance may be installed as an OEM installation in manufactured home (USA only) or mobile home and must be installed in accordance with the manufacturer’s instructions and the manufactured home construction and safety standard, Title 24 CFR, Part 3280 or Standard for Installation in Mobile Homes, CAN/CSA Z240MH, in Canada. This appliance is only for use with the type(s) of gas indicated on the rating plate. Installation and service of this appliance should be performed by qualifi ed personnel. Hearth & Home Technologies suggests NFI certifi ed or factory trained professionals, or technicians supervised by an NFI certifi ed professional. • Leave this manual with party responsible for use and operation. DO NOT DISCARD WARNING • Important operating and maintenance instructions included. • Read, understand and follow these instructions for safe installation and operation. In the Commonwealth of Massachusetts installation must be performed by a licensed plumber or gas fi tter. See Table of Contents for location of additional Commonwealth of Massachusetts requirements. This appliance has been supplied with an integral barrier to prevent direct contact with the fi xed glass panel. DO NOT operate the appliance with the barrier removed. Contact your dealer or Hearth & Home Technologies if the barrier is not present or help is needed to properly install one. HOT SURFACES! Glass and other surfaces are hot during operation AND cool down. Hot glass will cause burns. •DO NOT touch glass until it is cooled • NEVER allow children to touch glass • Keep children away • CAREFULLY SUPERVISE children in same room as fi replace. • Alert children and adults to hazards of high temperatures. High temperatures may ignite clothing or other fl ammable materials. • Keep clothing, furniture, draperies and other fl ammable materials away. Heat & Glo • 6000CMOD-IPI, 8000CMOD-IPI • 2241-900 Rev. i • 4/132 Listing Label Information/Location Model Name: ___________________________________________ Date purchased/installed: __________________ Serial Number: __________________________________________ Location on fi replace: _____________________ Dealership purchased from: _______________________________ Dealer Phone: __________________________ Notes: _______________________________________________________________________________________ _____________________________________________________________________________________________ A. Congratulations Congratulations on selecting a Heat & Glo gas fi replace, an elegant and clean alternative to wood burning fi replaces. The Heat & Glo gas fi replace you have selected is designed to provide the utmost in safety, reliability, and effi ciency. As the owner of a new fi replace, you’ll want to read and carefully follow all of the instructions contained in this owner’s manual. Pay special attention to all cautions and warnings. This owner’s manual should be retained for future reference. We suggest that you keep it with your other important documents and product manuals. The information contained in this owner’s manual, unless noted otherwise, applies to all models and gas control systems. Your new Heat & Glo gas fi replace will give you years of durable use and trouble-free enjoyment. Welcome to the Heat & Glo family of fi replace products! We recommend that you record the following pertinent information about your fi replace. The model information regarding your specifi c fi replace can be found on the rating plate usually located in the control area of the fi replace. Homeowner Reference Information Read this manual before installing or operating this appliance. Please retain this owner’s manual for future reference. Gas and Electric Information Serial Number Type of Gas Model Number Not Not for for use use with with solid solid fuel.fuel. ((Ne Ne doit doit pas pas entre entre utilise utilise avec avec un un combustible combustible solide).solide). This This appliance appliance must must be be installed installed in in accordance accordance with with local local codes, codes, if if any; any; if if not, not, follow follow ANSI ANSI Z223.1Z223.1 in in the the USA USA or or CAN/CGA CAN/CGA B149 B149 installation installation codes. codes. (Installer (Installer l’appareil l’appareil selon selon les les codes codes ou ou reglementsreglements locaux locaux ou, ou, en en l’absence l’absence de de tels tels reglements, reglements, selon selon les les codes codes d’installation d’installation CAN/CGA-B149.)CAN/CGA-B149.) Type Type of of Gas Gas (Sorte (Sorte De De Gaz)Gaz):: NNAATURALTURAL GASGAS MADE MADE IN IN USAUSA Minimum Minimum Permissible Permissible Gas Gas Supply Supply for for Purposes Purposes of of Input Input Adjustment.Adjustment. Approved Approved Minimum Minimum (De (De Gaz) Gaz) AcceptableAcceptable 0.00.0 in in w.c. w.c.(Po. (Po. Col. Col. d’eau)d’eau) Maximum Maximum Pressure Pressure (Pression)(Pression) 0.00.0 in in w.c. w.c.(Po. (Po. Col. Col. d’eau)d’eau) Maximum Maximum Manifold Manifold Pressure Pressure (Pression)(Pression) 0.00.0 in in w.c. w.c.(Po. (Po. Col. Col. d’eau)d’eau) Minimum Minimum Manifold Manifold Pressure Pressure…

Text truncated - open the document above for the full version.

Hearth & Home Technologies 800 W. Jefferson Street Lake City, MN 55041 United States DATE :2013-12-09 Nemko Canada Inc 303 River Road Ottawa, Ontario, Canada K1V 1H2 Attn: Director of Certification Authority to Act as Agent On our behalf, I appoint Hans Hu of Global United Technology Services Co., Ltd. 2nd Floor, Block No.2, Laodong Industrial Zone, Xixiang Road Baoan District Shenzhen Guangdong to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in the Federal Communications Commission’s regulations will have affixed to it a label identical to that submitted for approval with this application. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for certification, as specified by Nemko Canada Inc, still resides with Hearth & Home Technologies and 800 W. Jefferson Street Lake City, MN 55041United States Dated this / Day of 12/09/2013 / Agency agreement expiration date: 12/09/2014 By: Mr Davd C Lyons Signature Printed Title: VP R & D HHT On behalf of : Hearth & Home Technologies Telephone: (651) 345-1623

Hearth & Home Technologies 800 W. Jefferson Street Lake City, MN 55041 United States 2013-12-09 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: ULE2326-110 Product Name: Fireplace system controller (Remote) Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential:  Schematics  Block diagram  Operational Description These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. Dated this 12/09/2013 By: Mr Davd C Lyons Signature Printed Title: VP R & D HHT On behalf of : Hearth & Home Technologies Telephone: (651) 345-1623

Model#: 2326-110 Frequency: 912.4~918MHz Made in China FCC ID:ULE2326-110 IC:6732A-2326110 Hearth & Home technologies Size:24X10mm Size:24X5mm S/N:XXXX XXXXXXXX

Label location

RF Exposure evaluation According to 447498 D01 General RF Exposure Guidance v05 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation The result is rounded to one decimal place for comparison eirp = pt x gt = (EXd) 2 /30 where: pt = transmitter output power in watts, gt = numeric gain of the transmitting antenna (unitless), E = electric field strength in V/m, --- 10 ((dBuV/m)/20) /10 6 d = measurement distance in meters (m)---3m So pt = (EXd) 2 /30 x gt Field strength = 90.60dBuV/m @3m Ant gain =0dBi ;so Ant numeric gain= 1 So pt={ [10 (90.6 /20) /10 6 x3] 2 /30x1 }x1000 mW = 0.34 mW So ( 0.34 mW/5mm)x √0.9152 = 0.07 <3 Then SAR evaluation is not required

Global United Technology Services Co., Ltd. Report No.: GTSE13100166501 Authorized Signature: Robinson Lo Laboratory Manager This report details the results of the testing carried out on one sample. The results contained in this test report do not relate to other samples of the same product and does not permit the use of the GTS product certification mark. The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. This report may only be reproduced and distributed in full. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. Any mention of GTS International Electrical Approvals or testing done by GTS International Electrical Approvals in connection with, distribution or use of the product described in this report must be approved by GTS International Electrical Approvals in writing. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only.” FCC REPORT Applicant: Hearth & Home Technologies Address of Applicant: 800 W. Jefferson Street Lake City, MN 55041 United States Equipment Under Test (EUT) Product Name: Fireplace system controller (Remote) Model No.: 2326-110 FCC ID: ULE2326-110 Applicable standards: FCC CFR Title 47 Part 15 Subpart C Section 15.249:2012 Date of sample receipt: October 29, 2013 Date of Test: October 29-November 29, 2013 Date of report issued: November 29, 2013 Test Result : PASS * * In the configuration tested, the EUT complied with the standards specified above. Report No.: GTSE13100166501 Global United Technology Services Co., Ltd. Project No.: GTSE131001665RF 2nd Floor, Block No.2, Laodong Industrial Zone, Xixiang Road Baoan District, Shenzhen, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 2 of 30 2 Version Version No. Date Description 00 November 29, 2013 Original Prepared By: Date: November 29, 2013 Project Engineer Check By: Date: November 29, 2013 Reviewer Report No.: GTSE13100166501 Global United Technology Services Co., Ltd. Project No.: GTSE131001665RF 2nd Floor, Block No.2, Laodong Industrial Zone, Xixiang Road Baoan District, Shenzhen, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 3 of 30 3 Contents Page 1 COVER PAGE ............................................................................................................................................ 1 2 VERSION .................................................................................................................................................. 2 3 CONTENTS .............................................................................................................................................. 3 4 TEST SUMMARY ..................................................................................................................................... 4 5 GENERAL INFORMATION ...................................................................................................................... 5 5.1 CLIENT INFORMATION ......................................................................................................................... 5 5.2 GENERAL DESCRIPTION OF EUT ......................................................................................................... 5 5.3 TEST MODE ........................................................................................................................................ 7 5.4 DESCRIPTION OF SUPPORT UNITS ....................................................................................................... 7 5.5 TEST FACILITY .................................................................................................................................... 7 5.6 TEST LOCATION ................................................................................................................................. 7 5.7 OTHER INFORMATION REQUESTED BY THE CUSTOMER ......................................................................... 7 6 TEST INSTRUMENTS LIST ..................................................................................................................... 8 7 TEST RESULTS AND MEASUREMENT DATA ...................................................................................... 9 7.1 ANTENNA REQUIREMENT: .................................................................................................................... 9 7.2 RADIATED EMISSION METHOD ........................................................................................................... 10 7.2.1 Field Strength of The Fundamental Signal ................................................................................ 12 7.2.2 Spurious emissions .................................................................................................................... 13 7.2.3 Bandedge emissions.................................................................................................................. 20 7.3 20DB OCCUPY BANDWIDTH .............................................................................................................. 21 8 TEST SETUP PHOTO ............................................................................................................................ 23 9 EUT CONSTRUCTIONAL DETAILS ..................................................................................................... 24 Report No.: GTSE13100166501 Global United Technology Services Co., Ltd. Project No.: GTSE131001665RF 2nd Floor, Block No.2, Laodon…

Text truncated - open the document above for the full version.

Radiated Emission
