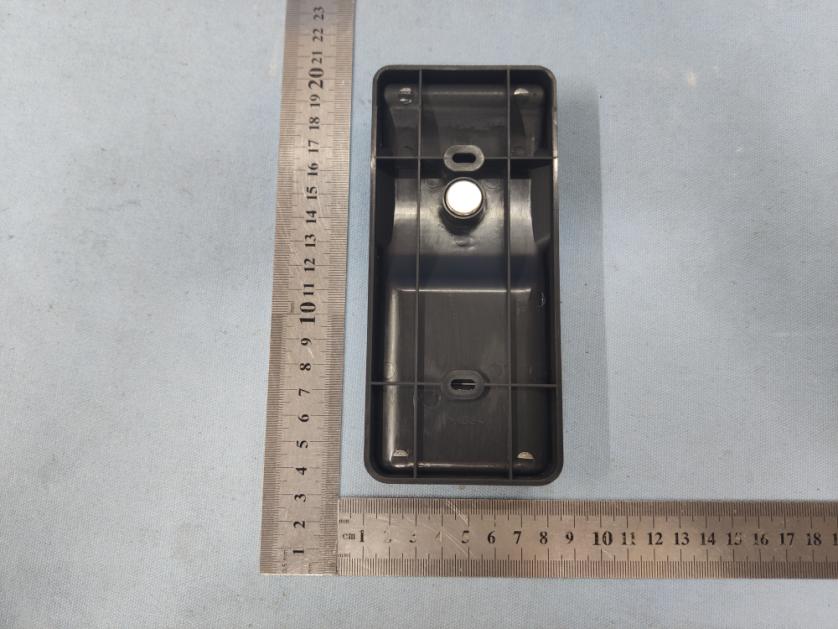

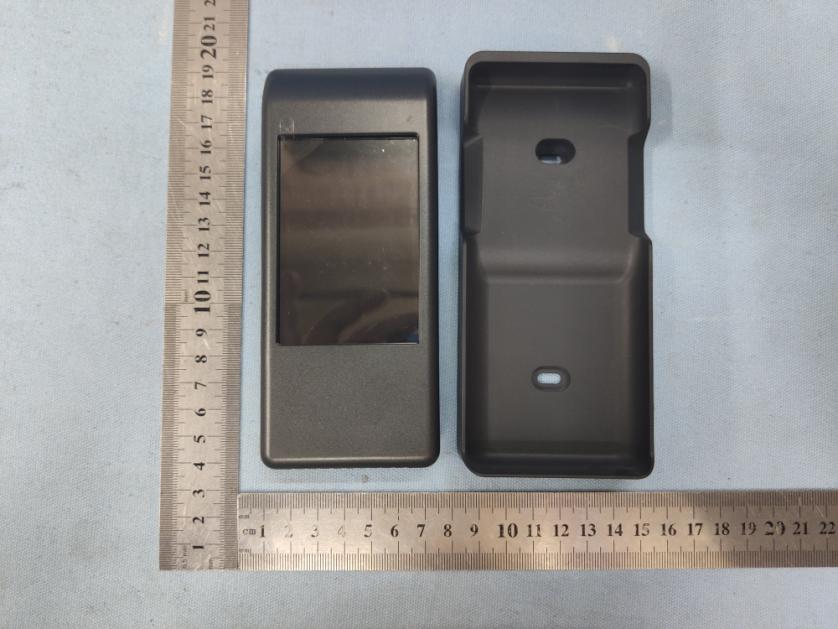

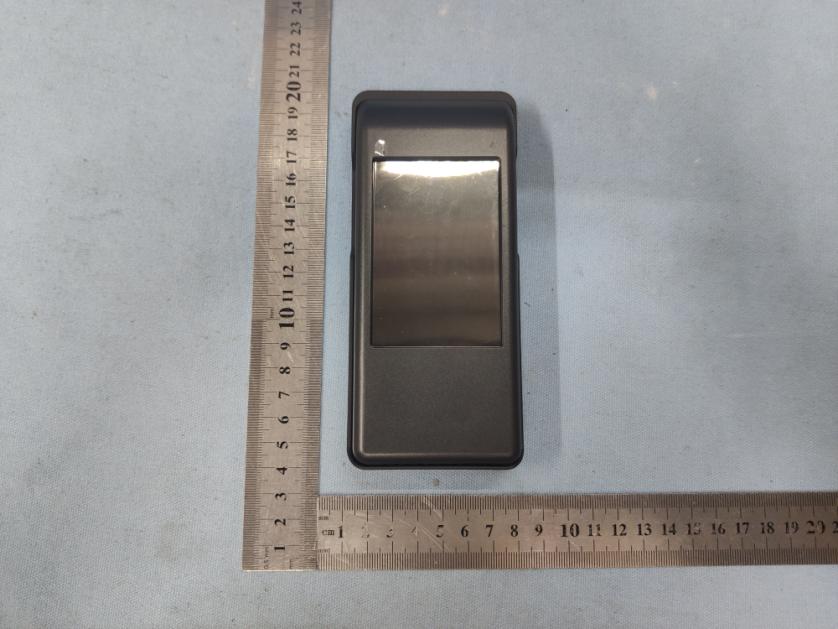

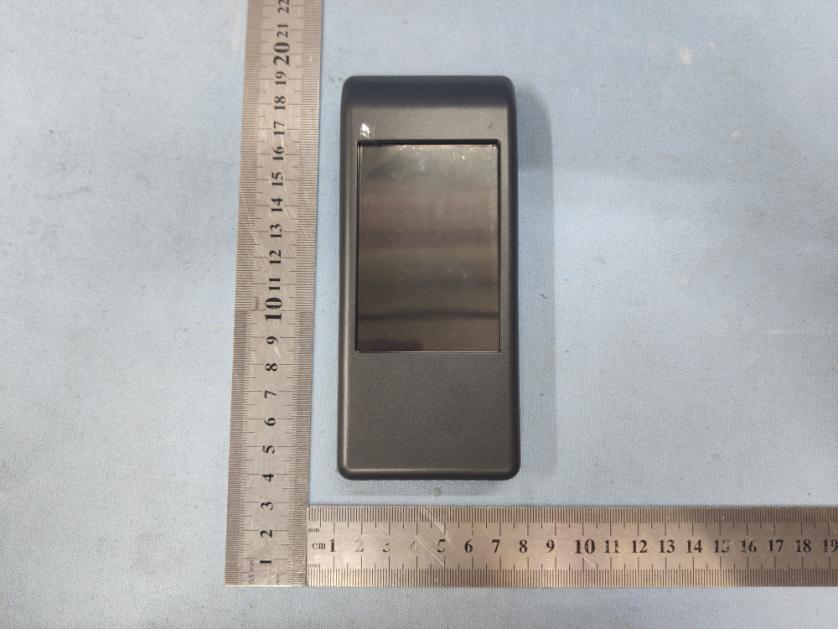

ULE2564-110IFT-RC400IntelliFire Touch Remote Control

1 Hearth & Home Technologies • IFT-RC400U User Manual • 2564-983 • 10/20 User Manual IFT-RC400 IFT-RC400 IntelliFire Touch Remote Control Model: 2564-110 INDICATOR BAR SCREENSCREEN Turn Flame On/Off Toggle this function to turn ON or OFF your appliance. Thermostat Introduction This user manual serves as a quick reference to the screen, functions and indicators on your IntelliFire Touch Remote control. FUNCTIONSFUNCTIONS SELECTION INDEX ROOM TEMPERATURE DISPLAY You can set and maintain your desired room temperature with the thermostat function. This function automatically adjusts your appliance to maintain the desired set temperature (ST). To achieve the most accurate thermostat function, place your remote control in the same general space that you want to have the temperature controlled by your appliance. For best results, keep your remote control away from direct radiant heat from the appliance, adjacent windows and doors, HVAC vents, and direct sunlight. To use the thermostat function, access the main menu screen on your remote, and select thermostat. Next, select your desired set temperature and press SET to confirm the setting. The actual room temperature (RT), measured by your remote control, will be displayed in the upper right corner of the main menu screen. To turn the thermostat function off, select thermostat on the main menu screen and select OFF in the bottom left corner of the temperature setting screen. 1 OFF 2 3 4 The thermostat function will automatically adjust the flame height based on the difference between the RT and the ST. As the RT rises closer to the ST, the flame height will automatically adjust down. During thermostat use, you will not be able to set your desired flame height level. Your appliance will automatically adjust flame height based on the difference between the RT and ST. 2 Hearth & Home Technologies • IFT-RC400U User Manual • 2564-983 • 10/20 Lights* If your appliance is equipped with lighting features, use this function to adjust them to your desired intensity. The lights can be adjusted whether the flame is on or off. Timer For your convenience a timer can be set up to 180 min- utes to turn off your appliance. The timer will turn the flame off automatically at the selected preset time. To use the timer function, press “Timer” on the main screen, select time by using up and down arrows, then press ON. To turn the timer off, select timer from main screen and select OFF. Child Lock A child lock is available underneath the battery cover. When the lock is enabled, the screen will lock and no functions can be selected. The lock icon will appear on the remote control. Flame Height You can set your desired flame height level to affect the ambiance and control the heat output. Your appliance will remember the previous flame height setting and adjust the flame to that level 10 seconds after start. Realistic Ember Bed If your appliance is equipped with the realistic ember bed, you can use this function when appliance is on and when appliance is off you can adjust the standard interior lighting. Crystal Whites If your appliance is equipped with the white strip LED lights, you can use this function to adjust the desired intensity when appliance is on or off. RGB Lights If your appliance is equipped with the RGB lights, you can use this function to adjust the desired intensity when appliance is on or off. You will also be able to select one of the seven colors or select a scrolling color spectrum of the seven colors. Heat Management HM1 If your appliance is a Primo or has Smart Wall option and you are using the Heat-Zone option it would be connected to the HM1. HM1 will automatically turn on the heat zones when the IFT-ECM tells the heat zone to turn on . There is no fan speed adjustment on the HM1. HM2 If your appliance is a Primo and you wanted to have a Heat-Out option, it would be connected to HM2. This IFT- ECM will automatically turn on the HM2 if no accessory is connected to the HM1 port. If you have both HM1 and HM2 with proper accessories, you can go back and forth between HM1 and HM2. It will always start on HM1, there is no fan speed adjustment on the HM2. HM3 If your appliance has an adjustable Heat-Zone option, it would be connected to the HM3 port. This port will give the customer the ability to adjust the Heat-Out three speeds and on or off. HM4 If your appliance has an adjustable Heat-Out option, it would be connected to the HM4 port. This port will give the customer the ability to adjust the Heat-Out three speeds and on or off. FUNCTIONSFUNCTIONS Thermostat with Heat Management If your appliance is using any of the HM1-HM4 ports on the IFT-PACM the remote control will adjust the flame height and blower settings to better maintain a consistent heating value. 3 Hearth & Home Technologies • IFT-RC400U User Manual • 2564-983 • 10/20 HOT This indicates that the appliance is still hot for 20 minutes after teh appliance is turned off. Remote Control Battery Remote control battery life indicator. If the batteries on your remote are low, a notification will display on the screen asking you to ‘Replace Remote Batteries’ or ‘Must Replace Remote Batteries to Operate Appliance’. Refer to Replace Remote Batteries Section. Note: To extend the time between replacing batteries, Lithium Ion and rechargeable NiMH AAA batteries can be used. INDICATORSINDICATORS Cold Climate This function turns on a small pilot flame and keeps the air inside your appliance warm while not in use. It is a useful feature in colder weather to minimize condensa- tion on the appliance glass. Note: This feature is disabled when a Power Vent is installed on the appliance. Note: The continuous pilot will automatically turn OFF after 166 hours if appliance is not actively used. If Flame ON is activated before 166 hours, the automatic timer will re-start. Temperature Display You can toggle the temperature display between °F and °C by tapping on the Room Temperature display. * = Optional Feature…
