ULECDR2FElectric Room Heater

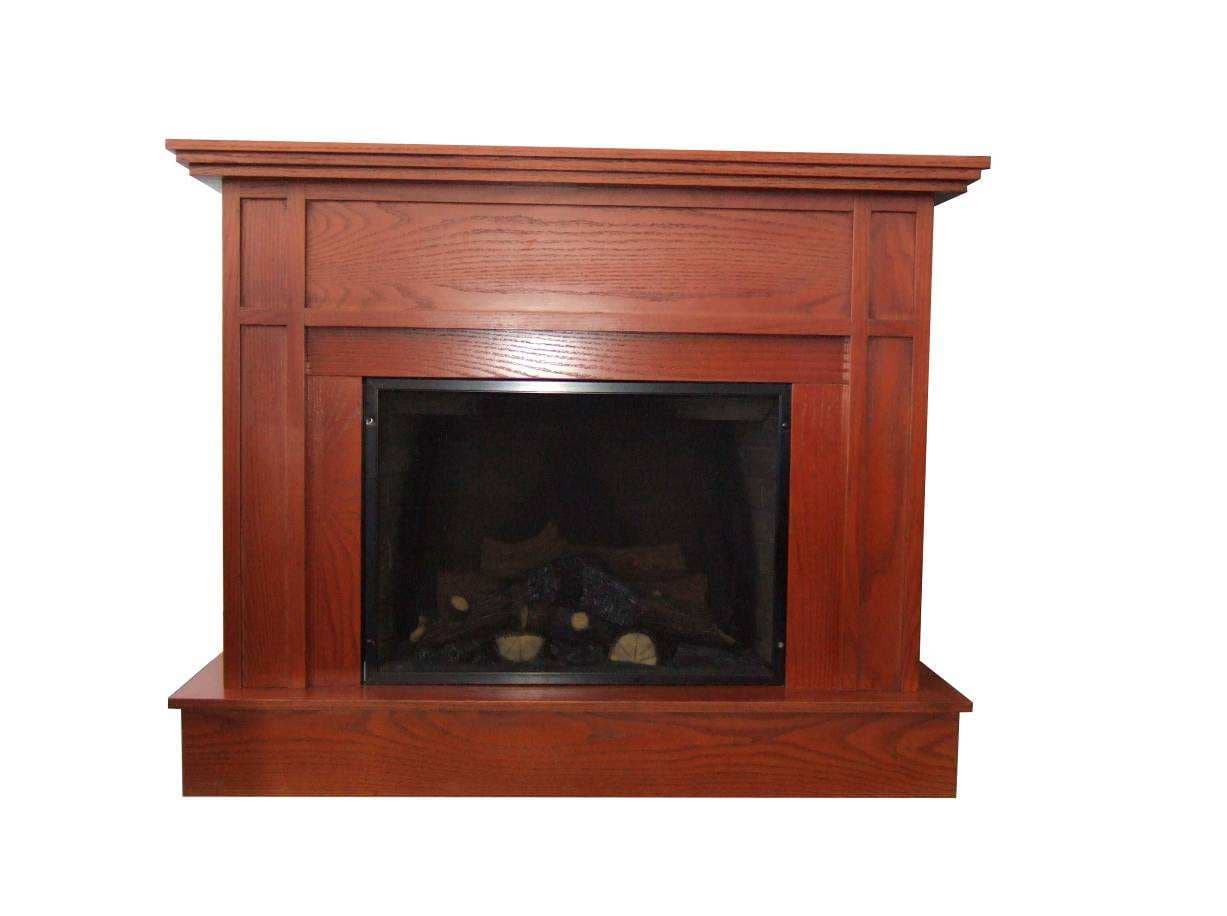

1 4050-308 Rev A 9/13/2007 MODEL: SFE-26 BUILDER BOX INSTALLER / CONSUMER SAFETY INFORMATION PLEASE READ THIS MANUAL BEFORE INSTALLING AND USING APPLIANCE WARNING IF THE INFORMATION IN THIS MANUAL IS NOT FOLLOWED EXACTLY, AN ELECTRICAL SHOCK OR FIRE MAY RESULT, CAUSING PROPERTY DAMAGE, PERSONAL INJURY OR LOSS OF LIFE TUV LISTED AS SFE-26 Homeowner’s Installation & Operating Manual NOTE: The device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation. ANSI / UL 2021. FIXED OR LOCATION DEDICATED ELECTRIC ROOM HEATER. INSTALLER: DO NOT DISCARD THIS MANUAL— LEAVE FOR HOME OWNER SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE. 2 4050-308 Rev A 9/13/2007 Congratulations! Congratulations on selecting a Simplifyre electric fireplace. The unit you have selected is designed to provide the utmost in safety, reliability and efficiency. As the owner of a new fireplace, you’ll want to read and carefully follow all of the instructions contained in this owner’s manual. Pay special attention to all cautions and warnings. This owner’s manual should be retained for future reference. We suggest you keep it with your other important documents and product manuals. The information contained in this owner’s manual unless noted otherwise, applies to all models. Your new Simplifyre electric fireplace will give you years of durable use and trouble-free enjoyment. Welcome to the Hearth & Home Technologies family of fireplace products! TABLE OF CONTENTS PLEASE READ THE INSTALLATION & OPERATION INSTRUCTIONS BEFORE USING THIS APPLIANCE. Important Instructions 3 Unpacking 4 Locating Your Electric Fireplace 4 Clearance to Combustibles 4 Electrical Specifications 4 Framing 4 Hardwire Electrical Connections 4 Optional-Wall switch/Thermostat 4 Finishing 4 Framing Dimensions 5 Operating Instructions 6 Remote Control Initialization 6 Electrical Wiring Diagram 7 Service Instructions 7 Replacing the Light Bulb 7 Screen Cleaning 7 Maintenance of Motors 7 Replacement Parts Replacement Parts List 8 Warranty 9 3 4050-308 Rev A 9/13/2007 When using electrical heaters, basic precautions should always be followed to reduce the risk of fire, electric shock and injury to persons, including the following: • Read all instructions before using this heater. • This heater is hot when in use. To avoid burns, do not let bare skin touch hot surfaces. If provided, use handles when moving this heater. Keep combustible m a t e r i a l s , such as furniture, pillows, bedding, papers, clothes and curtains away from sides and rear of heater, and at least 36 in. (914 mm) from the front. • Extreme caution is necessary when any heater is used by or near children or invalids and whenever the heater is left operating and unattended. • Always unplug heater when not in use. • Do not operate any heater with a damaged cord or plug or after the heater malfunctions, has been dropped or damaged in any manner. Return heater to authorized service facility for examination, electrical or mechanical adjustment, or repair. • Do not use outdoors. • This heater is not intended for use in bathrooms, laundry areas and similar indoor locations. Never locate heater where it may fall into a bathtub or other water container. • Do not run cord under carpeting. Do not cover cord with throw rugs, runners, or the like. Arrange cord away from traffic areas and where it will not be tripped over. Do not coil cord. • To disconnect heater, turn controls to “OFF” then remove plug from outlet. • Do not insert or allow foreign objects to enter any ventilation or exhaust opening as this may cause an electric shock or fire, or damage the heater. • To prevent a possible fire, do not block air intakes or exhaust in any manner. • An heater has hot and arcing or sparking parts inside. Do not use it in areas where gasoline, paint, or flammable liquids are used or stored. • Use this heater only as described in this manual. Any other use not recommended by the manufacturer may cause fire, electric shock, or injury to persons. • Always use properly grounded, fused and polarized outlets. • Always use ground fault protection where required by electrical code. • Always disconnect power before performing any cleaning, maintenance or relocation of the heater. • To prevent a possible fire, do not burn wood or other materials in this heater. • To prevent electric shock or fire, always use a certified electrician should new circuits or outlets be required. • When transporting or storing the heater, keep in a dry place free from excessive vibration and store as to avoid damage. • SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE. • Changes or modification not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. IMPORTANT INSTRUCTIONS 4 4050-308 Rev A 9/13/2007 WARNING Do not use this fireplace if any part of it has been under water. Immediately call a qualified service technician to inspect and replace any of the electrical system if necessary. Carefully remove packaging from the unit. The front screen is held in place with four Phillips head screws. To remove the screen, extract the screws. Grasp the screen frame and pull out. ELECTRICAL SPECIFICATIONS Voltage: 120 V AC, 60 Hz Total Amps: 11.25 AMP Total Watts: 1350 Watts Heater Rating: 1300 Watts/4415 BTU LOCATING YOUR ELECTRIC FIREPLACE Your new electric fireplace may be installed virtually anywhere in your home. However, when choosing a location ensure that the general instructions are followed. For best results, install out of direct sunlight. Power supply service must be either completed or placed within the heater prior to finishing to avoid reconstruction. Protective cover may stay on during framing, but must be removed before final finishing. Once final finishing has been completed, the …

Text truncated - open the document above for the full version.

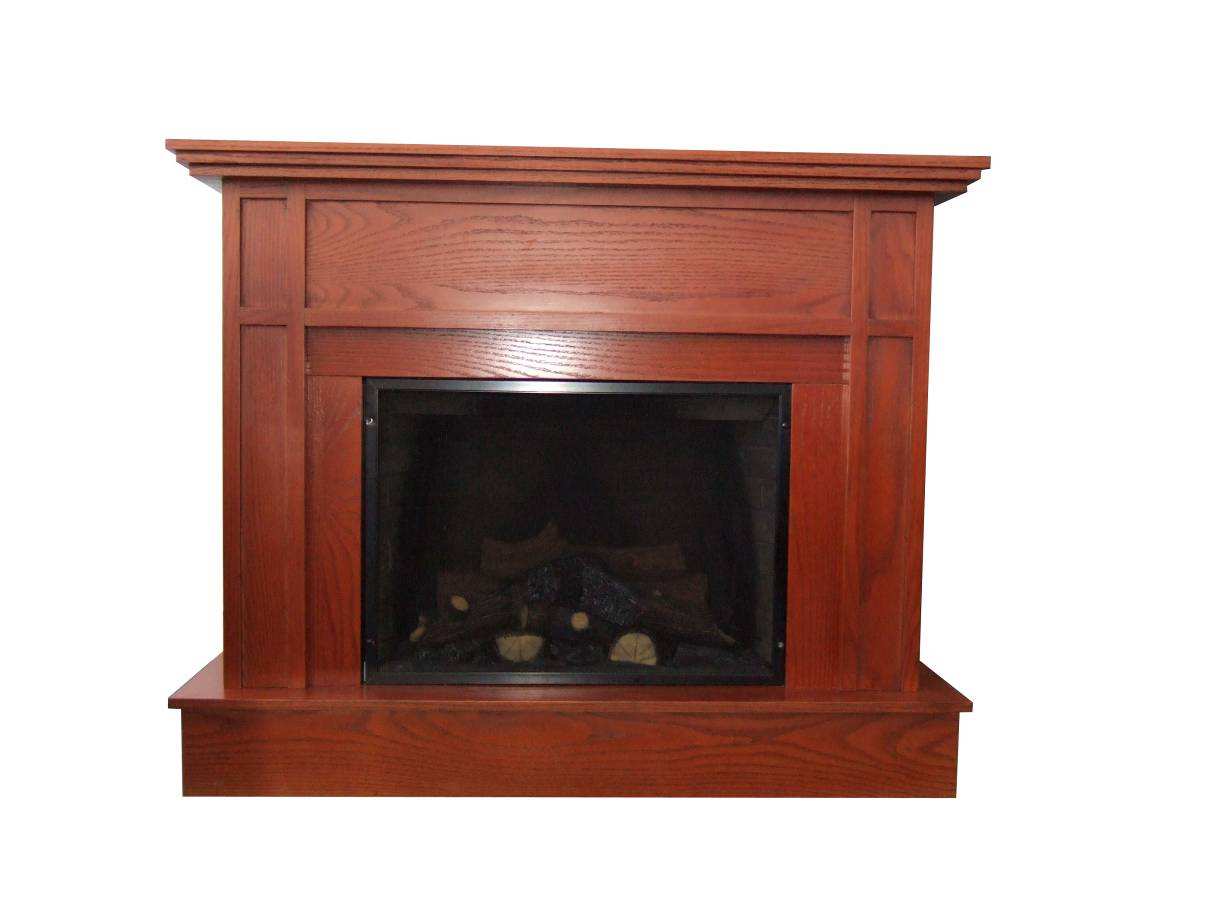

1 4050-311 Rev A 9/13/2007 TUV LISTED AS MODEL SFE-26C INSTALLED IN WOOD CABINET IDENTIFIED AS: SFE-MEDIA26-BK MEDIA CABINET BLACK SFE-CDLB26W CORTLAND LIGHT BROWN SFE-MKLB26W MACKINTOSH LIGHT BROWN SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE. 2 4050-311 Rev A 9/13/2007 Congratulations! Congratulations on selecting a Simplifyre electric fireplace. The unit you have selected is designed to provide the utmost in safety, reliability and efficiency. As the owner of a new fireplace, you’ll want to read and carefully follow all of the instructions contained in this owner’s manual. Pay special attention to all cautions and warnings. This owner’s manual should be retained for future reference. We suggest you keep it with your other important documents and product manuals. The information contained in this owner’s manual unless noted otherwise, applies to all models. Your new Simplifyre electric fireplace will give you years of durable use and trouble-free enjoyment. Welcome to the Hearth & Home Technologies family of fireplace products! TABLE OF CONTENTS PLEASE READ THE INSTALLATION & OPERATION INSTRUCTIONS BEFORE USING THIS APPLIANCE. Important Instructions 3 Unpacking 4 Locating Your Electric Fireplace 4 Electrical Specifications 4 Electrical Connections 4 Optional-Wall switch/Thermostat 4 Operating Instructions 5 Remote Control Initialization 5 Electrical Wiring Diagram 6 Service Instructions 6 Replacing the Light Bulb 6 Screen Cleaning 6 Maintenance of Motors 6 Replacement Parts 7 Replacement Parts List 7 Warranty 8 3 4050-311 Rev A 9/13/2007 When using electrical heaters, basic precautions should always be followed to reduce the risk of fire, electric shock and injury to persons, including the following: • Read all instructions before using this heater. • This heater is hot when in use. To avoid burns, do not let bare skin touch hot surfaces. If provided, use handles when moving this heater. Keep combustible m a t e r i a l s , such as furniture, pillows, bedding, papers, clothes and curtains away from sides and rear of heater, and at least 12 in. (305 mm) from the front. • Extreme caution is necessary when any heater is used by or near children or invalids and whenever the heater is left operating and unattended. • Always unplug heater when not in use. • Do not operate any heater with a damaged cord or plug or after the heater malfunctions, has been dropped or damaged in any manner. Return heater to authorized service facility for examination, electrical or mechanical adjustment, or repair. • Do not use outdoors. • This heater is not intended for use in bathrooms, laundry areas and similar indoor locations. Never locate heater where it may fall into a bathtub or other water container. • Do not run cord under carpeting. Do not cover cord with throw rugs, runners, or the like. Arrange cord away from traffic areas and where it will not be tripped over. Do not coil cord. • To disconnect heater, turn controls to “OFF” then remove plug from outlet. • Do not insert or allow foreign objects to enter any ventilation or exhaust opening as this may cause an electric shock or fire, or damage the heater. • To prevent a possible fire, do not block air intakes or exhaust in any manner. • An heater has hot and arcing or sparking parts inside. Do not use it in areas where gasoline, paint, or flammable liquids are used or stored. • Use this heater only as described in this manual. Any other use not recommended by the manufacturer may cause fire, electric shock, or injury to persons. • Always use properly grounded, fused and polarized outlets. • Always use ground fault protection where required by electrical code. • Always disconnect power before performing any cleaning, maintenance or relocation of the heater. • To prevent a possible fire, do not burn wood or other materials in this heater. • To prevent electric shock or fire, always use a certified electrician should new circuits or outlets be required. • When transporting or storing the heater, keep in a dry place free from excessive vibration and store as to avoid damage. • SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE. • Avoid the use of an extension cord because the extension cord may over heat and cause a risk of fire. However, if you have to use an extension cord, the cord shall be No. 16 AWG minimum size and rated not less than 1875 watts. • Changes or modification not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. IMPORTANT INSTRUCTIONS 4 4050-311 Rev A 9/13/2007 WARNING Do not use this fireplace if any part of it has been under water. Immediately call a qualified service technician to inspect and replace any of the Carefully remove packaging from the unit. The front screen is held in place with four Phillips head screws. To remove the screen, extract the screws. Grasp the screen frame and pull out. ELECTRICAL SPECIFICATIONS Voltage: 120 V AC, 60 Hz Total Amps: 11.25 AMP Total Watts: 1350 Watts Heater Rating: 1300 Watts/4415 BTU LOCATING YOUR ELECTRIC FIREPLACE Your new electric fireplace may be installed virtually anywhere in your home. However, when choosing a location ensure that the general instructions are followed. For best results, install out of direct sunlight. Power supply service must be either completed or placed within the heater prior to finishing to avoid reconstruction. Protective cover may stay on during framing, but must be removed before final finishing. Once final finishing has been completed, the protective cover can be used to protect the heater until final installation is complete. An optional ledger board may be used to attach the Cabinet to the wall if permitted by local code. CORD ELECTRICAL CONNECTION WARNING: Electrical outlet wiring must comply with local building codes and all other applicable regulations to reduce the risk of fire, electrical shock, and injury. A 15 AMP, 120 Volt, 60 Hz circuit with a properly grounded outlet is required. Preferably…

Text truncated - open the document above for the full version.

Produkte Products Prüfbericht - Nr.: Test Report No.: 15023661 001 Seite 33 von 40 Page 33 of 40 13 Appendix 4: Block diagram, schematics, PCB layout and component lists Block diagram Receiver block diagram

Produkte Products Prüfbericht - Nr.: Test Report No.: 15023661 001 Seite 21 von 40 Page 21 of 40 10 Appendix 1: External photos SFE-26C Front side Back side Produkte Products Prüfbericht - Nr.: Test Report No.: 15023661 001 Seite 22 von 40 Page 22 of 40 External photos SFE-26 Front side Back side Produkte Products Prüfbericht - Nr.: Test Report No.: 15023661 001 Seite 23 von 40 Page 23 of 40 External photos SFE-26 Left side Right side Produkte Products Prüfbericht - Nr.: Test Report No.: 15023661 001 Seite 24 von 40 Page 24 of 40 External photos SFE-26 Top side Bottom side

Produkte Products Prüfbericht - Nr.: Test Report No.: 15023661 001 Seite 32 von 40 Page 32 of 40 12 Appendix 3: FCC labels and locations Label Location indication

Produkte Products Prüfbericht - Nr.: Test Report No.: 15023661 001 Seite 25 von 40 Page 25 of 40 11 Appendix 2: Internal photos SFE-26 Produkte Products Prüfbericht - Nr.: Test Report No.: 15023661 001 Seite 26 von 40 Page 26 of 40 Internal photos SFE-26 LED PCB Produkte Products Prüfbericht - Nr.: Test Report No.: 15023661 001 Seite 27 von 40 Page 27 of 40 Internal photos SFE-26 Main part Produkte Products Prüfbericht - Nr.: Test Report No.: 15023661 001 Seite 28 von 40 Page 28 of 40 Internal photos SFE-26 Switching power unit Produkte Products Prüfbericht - Nr.: Test Report No.: 15023661 001 Seite 29 von 40 Page 29 of 40 Internal photos SFE-26 Switching power unit Produkte Products Prüfbericht - Nr.: Test Report No.: 15023661 001 Seite 30 von 40 Page 30 of 40 Internal photos SFE-26 Control PCB Produkte Products Prüfbericht - Nr.: Test Report No.: 15023661 001 Seite 31 von 40 Page 31 of 40 Internal photos SFE-26 RF module

1 4050-308 Rev A 9/13/2007 MODEL: SFE-26 BUILDER BOX INSTALLER / CONSUMER SAFETY INFORMATION PLEASE READ THIS MANUAL BEFORE INSTALLING AND USING APPLIANCE WARNING IF THE INFORMATION IN THIS MANUAL IS NOT FOLLOWED EXACTLY, AN ELECTRICAL SHOCK OR FIRE MAY RESULT, CAUSING PROPERTY DAMAGE, PERSONAL INJURY OR LOSS OF LIFE TUV LISTED AS SFE-26 Homeowner’s Installation & Operating Manual NOTE: The device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation. ANSI / UL 2021. FIXED OR LOCATION DEDICATED ELECTRIC ROOM HEATER. INSTALLER: DO NOT DISCARD THIS MANUAL— LEAVE FOR HOME OWNER SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE. 2 4050-308 Rev A 9/13/2007 Congratulations! Congratulations on selecting a Simplifyre electric fireplace. The unit you have selected is designed to provide the utmost in safety, reliability and efficiency. As the owner of a new fireplace, you’ll want to read and carefully follow all of the instructions contained in this owner’s manual. Pay special attention to all cautions and warnings. This owner’s manual should be retained for future reference. We suggest you keep it with your other important documents and product manuals. The information contained in this owner’s manual unless noted otherwise, applies to all models. Your new Simplifyre electric fireplace will give you years of durable use and trouble-free enjoyment. Welcome to the Hearth & Home Technologies family of fireplace products! TABLE OF CONTENTS PLEASE READ THE INSTALLATION & OPERATION INSTRUCTIONS BEFORE USING THIS APPLIANCE. Important Instructions 3 Unpacking 4 Locating Your Electric Fireplace 4 Clearance to Combustibles 4 Electrical Specifications 4 Framing 4 Hardwire Electrical Connections 4 Optional-Wall switch/Thermostat 4 Finishing 4 Framing Dimensions 5 Operating Instructions 6 Remote Control Initialization 6 Electrical Wiring Diagram 7 Service Instructions 7 Replacing the Light Bulb 7 Screen Cleaning 7 Maintenance of Motors 7 Replacement Parts Replacement Parts List 8 Warranty 9 3 4050-308 Rev A 9/13/2007 When using electrical heaters, basic precautions should always be followed to reduce the risk of fire, electric shock and injury to persons, including the following: • Read all instructions before using this heater. • This heater is hot when in use. To avoid burns, do not let bare skin touch hot surfaces. If provided, use handles when moving this heater. Keep combustible m a t e r i a l s , such as furniture, pillows, bedding, papers, clothes and curtains away from sides and rear of heater, and at least 36 in. (914 mm) from the front. • Extreme caution is necessary when any heater is used by or near children or invalids and whenever the heater is left operating and unattended. • Always unplug heater when not in use. • Do not operate any heater with a damaged cord or plug or after the heater malfunctions, has been dropped or damaged in any manner. Return heater to authorized service facility for examination, electrical or mechanical adjustment, or repair. • Do not use outdoors. • This heater is not intended for use in bathrooms, laundry areas and similar indoor locations. Never locate heater where it may fall into a bathtub or other water container. • Do not run cord under carpeting. Do not cover cord with throw rugs, runners, or the like. Arrange cord away from traffic areas and where it will not be tripped over. Do not coil cord. • To disconnect heater, turn controls to “OFF” then remove plug from outlet. • Do not insert or allow foreign objects to enter any ventilation or exhaust opening as this may cause an electric shock or fire, or damage the heater. • To prevent a possible fire, do not block air intakes or exhaust in any manner. • An heater has hot and arcing or sparking parts inside. Do not use it in areas where gasoline, paint, or flammable liquids are used or stored. • Use this heater only as described in this manual. Any other use not recommended by the manufacturer may cause fire, electric shock, or injury to persons. • Always use properly grounded, fused and polarized outlets. • Always use ground fault protection where required by electrical code. • Always disconnect power before performing any cleaning, maintenance or relocation of the heater. • To prevent a possible fire, do not burn wood or other materials in this heater. • To prevent electric shock or fire, always use a certified electrician should new circuits or outlets be required. • When transporting or storing the heater, keep in a dry place free from excessive vibration and store as to avoid damage. • SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE. • Changes or modification not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. IMPORTANT INSTRUCTIONS 4 4050-308 Rev A 9/13/2007 WARNING Do not use this fireplace if any part of it has been under water. Immediately call a qualified service technician to inspect and replace any of the electrical system if necessary. Carefully remove packaging from the unit. The front screen is held in place with four Phillips head screws. To remove the screen, extract the screws. Grasp the screen frame and pull out. ELECTRICAL SPECIFICATIONS Voltage: 120 V AC, 60 Hz Total Amps: 11.25 AMP Total Watts: 1350 Watts Heater Rating: 1300 Watts/4415 BTU LOCATING YOUR ELECTRIC FIREPLACE Your new electric fireplace may be installed virtually anywhere in your home. However, when choosing a location ensure that the general instructions are followed. For best results, install out of direct sunlight. Power supply service must be either completed or placed within the heater prior to finishing to avoid reconstruction. Protective cover may stay on during framing, but must be removed before final finishing. Once final finishing has been completed, the …

Text truncated - open the document above for the full version.

1 4050-311 Rev A 9/13/2007 TUV LISTED AS MODEL SFE-26C INSTALLED IN WOOD CABINET IDENTIFIED AS: SFE-MEDIA26-BK MEDIA CABINET BLACK SFE-CDLB26W CORTLAND LIGHT BROWN SFE-MKLB26W MACKINTOSH LIGHT BROWN SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE. 2 4050-311 Rev A 9/13/2007 Congratulations! Congratulations on selecting a Simplifyre electric fireplace. The unit you have selected is designed to provide the utmost in safety, reliability and efficiency. As the owner of a new fireplace, you’ll want to read and carefully follow all of the instructions contained in this owner’s manual. Pay special attention to all cautions and warnings. This owner’s manual should be retained for future reference. We suggest you keep it with your other important documents and product manuals. The information contained in this owner’s manual unless noted otherwise, applies to all models. Your new Simplifyre electric fireplace will give you years of durable use and trouble-free enjoyment. Welcome to the Hearth & Home Technologies family of fireplace products! TABLE OF CONTENTS PLEASE READ THE INSTALLATION & OPERATION INSTRUCTIONS BEFORE USING THIS APPLIANCE. Important Instructions 3 Unpacking 4 Locating Your Electric Fireplace 4 Electrical Specifications 4 Electrical Connections 4 Optional-Wall switch/Thermostat 4 Operating Instructions 5 Remote Control Initialization 5 Electrical Wiring Diagram 6 Service Instructions 6 Replacing the Light Bulb 6 Screen Cleaning 6 Maintenance of Motors 6 Replacement Parts 7 Replacement Parts List 7 Warranty 8 3 4050-311 Rev A 9/13/2007 When using electrical heaters, basic precautions should always be followed to reduce the risk of fire, electric shock and injury to persons, including the following: • Read all instructions before using this heater. • This heater is hot when in use. To avoid burns, do not let bare skin touch hot surfaces. If provided, use handles when moving this heater. Keep combustible m a t e r i a l s , such as furniture, pillows, bedding, papers, clothes and curtains away from sides and rear of heater, and at least 12 in. (305 mm) from the front. • Extreme caution is necessary when any heater is used by or near children or invalids and whenever the heater is left operating and unattended. • Always unplug heater when not in use. • Do not operate any heater with a damaged cord or plug or after the heater malfunctions, has been dropped or damaged in any manner. Return heater to authorized service facility for examination, electrical or mechanical adjustment, or repair. • Do not use outdoors. • This heater is not intended for use in bathrooms, laundry areas and similar indoor locations. Never locate heater where it may fall into a bathtub or other water container. • Do not run cord under carpeting. Do not cover cord with throw rugs, runners, or the like. Arrange cord away from traffic areas and where it will not be tripped over. Do not coil cord. • To disconnect heater, turn controls to “OFF” then remove plug from outlet. • Do not insert or allow foreign objects to enter any ventilation or exhaust opening as this may cause an electric shock or fire, or damage the heater. • To prevent a possible fire, do not block air intakes or exhaust in any manner. • An heater has hot and arcing or sparking parts inside. Do not use it in areas where gasoline, paint, or flammable liquids are used or stored. • Use this heater only as described in this manual. Any other use not recommended by the manufacturer may cause fire, electric shock, or injury to persons. • Always use properly grounded, fused and polarized outlets. • Always use ground fault protection where required by electrical code. • Always disconnect power before performing any cleaning, maintenance or relocation of the heater. • To prevent a possible fire, do not burn wood or other materials in this heater. • To prevent electric shock or fire, always use a certified electrician should new circuits or outlets be required. • When transporting or storing the heater, keep in a dry place free from excessive vibration and store as to avoid damage. • SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE. • Avoid the use of an extension cord because the extension cord may over heat and cause a risk of fire. However, if you have to use an extension cord, the cord shall be No. 16 AWG minimum size and rated not less than 1875 watts. • Changes or modification not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. IMPORTANT INSTRUCTIONS 4 4050-311 Rev A 9/13/2007 WARNING Do not use this fireplace if any part of it has been under water. Immediately call a qualified service technician to inspect and replace any of the Carefully remove packaging from the unit. The front screen is held in place with four Phillips head screws. To remove the screen, extract the screws. Grasp the screen frame and pull out. ELECTRICAL SPECIFICATIONS Voltage: 120 V AC, 60 Hz Total Amps: 11.25 AMP Total Watts: 1350 Watts Heater Rating: 1300 Watts/4415 BTU LOCATING YOUR ELECTRIC FIREPLACE Your new electric fireplace may be installed virtually anywhere in your home. However, when choosing a location ensure that the general instructions are followed. For best results, install out of direct sunlight. Power supply service must be either completed or placed within the heater prior to finishing to avoid reconstruction. Protective cover may stay on during framing, but must be removed before final finishing. Once final finishing has been completed, the protective cover can be used to protect the heater until final installation is complete. An optional ledger board may be used to attach the Cabinet to the wall if permitted by local code. CORD ELECTRICAL CONNECTION WARNING: Electrical outlet wiring must comply with local building codes and all other applicable regulations to reduce the risk of fire, electrical shock, and injury. A 15 AMP, 120 Volt, 60 Hz circuit with a properly grounded outlet is required. Preferably…

Text truncated - open the document above for the full version.
