ULECDT2FRemote Control for Electric Room Heater

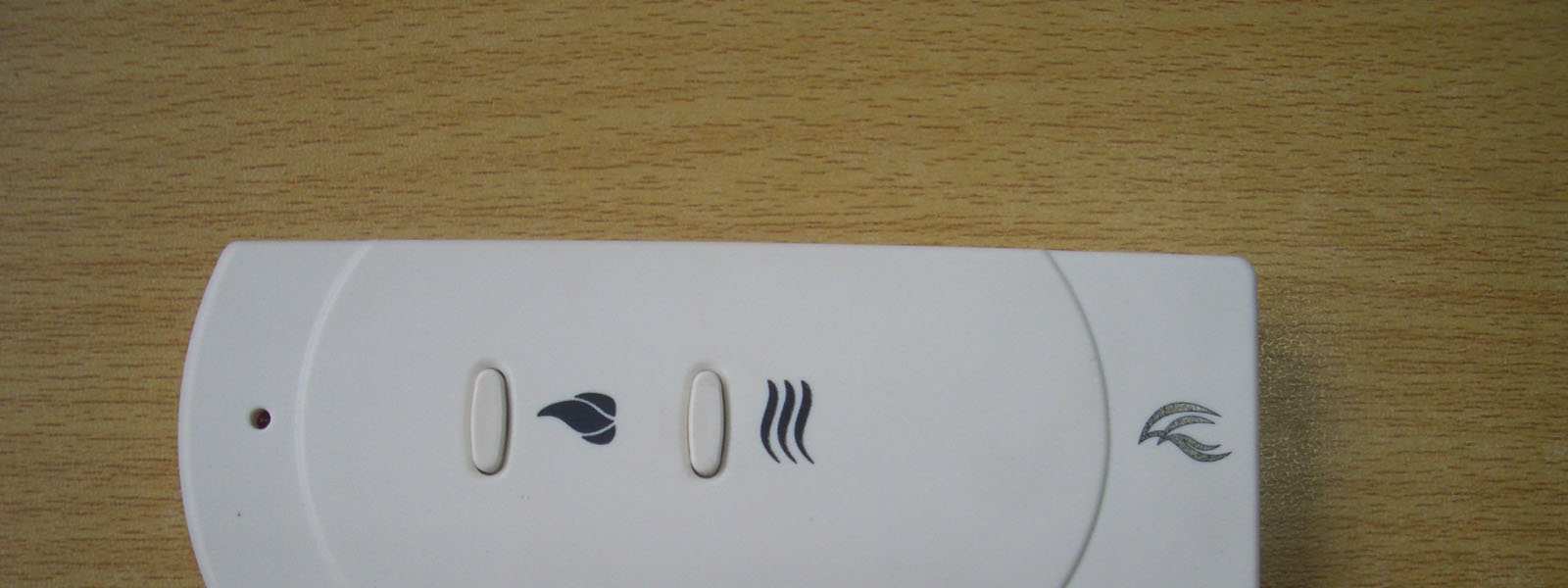

Produkte Products Prüfbericht - Nr.: Test Report No.: 15023662 001 Seite 19 von 27 Page 19 of 27 10 Appendix 1: External photos Front side Back side

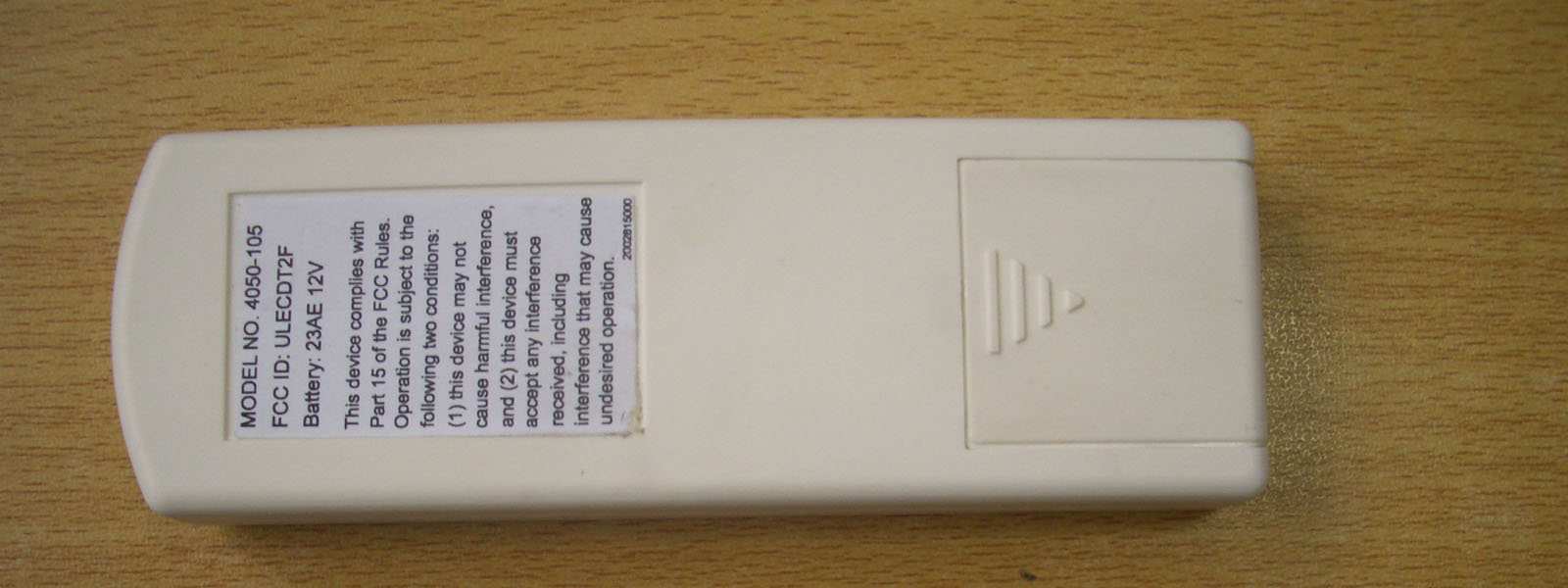

Produkte Products Prüfbericht - Nr.: Test Report No.: 15023662 001 Seite 23 von 27 Page 23 of 27 12 Appendix 3: FCC label and location Label Location indication

Produkte Products Prüfbericht - Nr.: Test Report No.: 15023662 001 Seite 20 von 27 Page 20 of 27 11 Appendix 2: Internal photos Produkte Products Prüfbericht - Nr.: Test Report No.: 15023662 001 Seite 21 von 27 Page 21 of 27 Internal photos Produkte Products Prüfbericht - Nr.: Test Report No.: 15023662 001 Seite 22 von 27 Page 22 of 27 Internal photos

Produkte Products Prüfbericht - Nr.: Test Report No.: 15023662 001 Seite 25 von 27 Page 25 of 27 Schematics

Produkte Products Prüfbericht - Nr.: Test Report No.: 15023662 001 Seite 2 von 27 Page 2 of 27 TEST SUMMARY 5.1.1RADIATED EMISSION OF CARRIER FREQUENCY Result: Passed 5.1.2S PURIOUS RADIATED EMISSIONS Result: Passed 5.1.3B ANDWIDTH MEASUREMENT Result: Passed Produkte Products Prüfbericht - Nr.: Test Report No.: 15023662 001 Seite 3 von 27 Page 3 of 27 Contents 1TEST SITES ...................................................................................................................................................... 2 1.1T EST FACILITIES........................................................................................................................................... 2 1.2L IST OF TEST AND MEASUREMENT INSTRUMENTS........................................................................................ 2 2GENERAL PRODUCT INFORMATION ...................................................................................................... 2 2.1P RODUCT FUNCTION AND INTENDED USE..................................................................................................... 2 2.2C IRCUIT DESCRIPTION.................................................................................................................................. 2 2.3R ATINGS AND SYSTEM DETAILS................................................................................................................... 2 2.4I NDEPENDENT OPERATION MODES............................................................................................................... 2 2.5S UBMITTED DOCUMENTS.............................................................................................................................. 2 2.6R ELATED SUBMITTAL(S) GRANTS................................................................................................................. 2 3TEST SET-UP AND OPERATION MODES ................................................................................................. 2 3.1P RINCIPLE OF CONFIGURATION SELECTION.................................................................................................. 2 3.2T EST OPERATION AND TEST SOFTWARE....................................................................................................... 2 3.3S PECIAL ACCESSORIES AND AUXILIARY EQUIPMENT.................................................................................... 2 3.4C OUNTERMEASURES TO ACHIEVE EMC COMPLIANCE.................................................................................. 2 4TEST METHODOLOGY ................................................................................................................................. 2 4.1R ADIATED EMISSION..................................................................................................................................... 2 4.2F IELD STRENGTH CALCULATION................................................................................................................... 2 5TEST RESULT .................................................................................................................................................. 2 5.1.1Radiated Emission of Carrier Frequency ............................................................................................ 2 5.1.2Spurious Radiated Emissions ............................................................................................................... 2 5.1.3Bandwidth Measurement...................................................................................................................... 2 6PHOTOGRAPHS OF THE TEST SET-UP .................................................................................................... 2 7LIST OF TABLES............................................................................................................................................. 2 8LIST OF FIGURES........................................................................................................................................... 2 9LIST OF PHOTOGRAPHS ............................................................................................................................. 2 10APPENDIX 1: EXTERNAL PHOTOS ........................................................................................................... 2 11APPENDIX 2: INTERNAL PHOTOS............................................................................................................. 2 12APPENDIX 3: FCC LABEL AND LOCATION ............................................................................................ 2 13APPENDIX 4: BLOCK DIAGRAM, SCHEMATICS, PCB LAYOUT AND COMPONENT LISTS ...... 2 Produkte Products Prüfbericht - Nr.: Test Report No.: 15023662 001 Seite 4 von 27 Page 4 of 27 1 Test Sites 1.1 Test Facilities Laboratory: TÜV Rheinland (Shanghai) Laboratory Address: Building 2, No. 777 Guangzhong Road West, Shanghai 200072, P.R. China The used test equipments below 1GHz are in accordance with CISPR 16-1 series standards for measurement of radio interference. 1.2 List of Test and Measurement Instruments Table 1: List of Test and Measurement Equipment No.Equipment Model Serial no. Cal. due date 1.Spectrum analyzer FSP30 100192 10.06.2008 2. EMI test receiver ESCI 100280 03.12.2007 3. Broadband antenna BTA-H 040005H 20.03.2008 4. Double ridged broadband horn antenna BBHA 9120 D 9120D-434 21.06.2008 5. DC power supplier 0-60V/2A 0502073 08.08.2008 6. Broadband coaxial preamplifier BBV 9718 9718-012 12.04.2008 Produkte Products Prüfbericht - Nr.: Test Report No.: 15023662 001 Seite 5 von 27 Page 5 of 27 2 General Product Information 2.1 Product Function and Intended Use The equipment under test (EUT) is a transmitter for the electric room heater operating at 433.920MHz. The transmitter has two push-to-operate switches that will automatically and immediately deactivate the transmitter when the switch is released, hence transmitter will cease operating within not more than 5 seconds of being re…

Text truncated - open the document above for the full version.

Produkte Products Prüfbericht - Nr.: Test Report No.: 15023662 001 Seite 16 von 27 Page 16 of 27 6 Photographs of the Test Set-Up Photograph 1: Set-up for radiated emissions Produkte Products Prüfbericht - Nr.: Test Report No.: 15023662 001 Seite 17 von 27 Page 17 of 27 Photograph 2: Set-up for bandwidth measurement
