ULZ-TPV03Tai-Safety-H Tire Pressure Monitoring System

Installation and Operating Instructions for Tire Pressure Monitoring System Model No. TPV03 Contents 1. System Introduction 2. Safety Notices 3. Applicable Vehicles 4. System Package Content 5. Operation and Installation of Wireless Tire Pressure Monitoring System 5.1 Installation and Mounting of Digital Receiver 5.1.1 Utilize the Cooling Vent Holder to fasten the Digital Receiver 5.1.2 Replace Mounted-on-Air-Outlet Digital Receiver 5.2 Installation and Demounting of Transmitter 5.2.1 Mounting the Tire with Transmitter on Wheel Rim 5.2.2 De-Mounting Tire with Transmitter Inside 6. Digital Receiver Function Description 6.1 Digital Receiver Diagram, Display Control and Indicators 6.2 Digital Receiver Button Function Description 7. Alarms and Warnings 7.1 Pressure Threshold Alarm and Warning 7.2 Temperature Threshold Alarm and Warning 7.3 No Data Received 8. General Set Up Mode 8.1 Manual Pressure Threshold Setting 8.1.1 Manual Low Pressure Threshold Setting 8.1.2 Manual High Pressure Threshold Setting 8.2 Manual Temperature Threshold Setting 8.3 Reset 8.4 Restore Factory-Preset Value 8.5 Recall Last Measured Tire Pressure and Temperature Values 8.6 Transmitter ID Input Via Auto Learning Feature -- “Search Tx” 8.7 Exit General Set Up Mode 9. Special Set Up Mode 9.1 Tire Exchange Mode 9.2 Transmitter ID Change Mode 9.3 Set Pressure Unit Mode 9.4 Set Temperature Unit Mode 9.5 Display Wheel Location Mode 9.6 Exit Special Set Up Mode 10. Limit Warranty 10.1 Warranty Service 10.2 This Limited Warranty Provided by Mobiletron Does Not Cover 11. Things to Notice 12. Component List 13. Technical Specifications 13.1 Transmitter 13.2 Digital Receiver 14. Tire Rotation Table 1. System Introduction (1) TPV03 is a wireless tire pressure monitoring system with sensor/transmitter mounted on each wheel plus a set of Receiver with Display placed in driver's cabin. Highly accurate sensors collect tire pressure and temperature data then transmitted by wireless radio to Digital Receiver. (2) The System monitors the data of tires with LCD digital display thus driver can be well-informed with most updating data of tires while driving. The Digital Receiver will alert immediately with beeps, bright yellow LED and backlight of LCD while pressure and/or temperature are/is out of factory-preset critical limits. Therefore, the product can alert the driver to the abnormal condition of tire pressure and/ or tire temperature, and it will reduce the possible danger caused by abnormal tire pressure and tire temperature. 2. Safety Notices (1) The System is designed to measure and display the active data, i.e. pressure and temperature, in tires, and provides the alert or warning when the System detects the pressure or/and the temperature of tires is/are out of threshold setting. The driver shall have the responsibility to react with attentiveness to the alert or warning. Abnormal tire pressure and temperature should be checked and they should be recovered to the normal values ASAP to avoid danger. (2) This product has to be properly installed and programmed by qualified personnel according to this User Manual. 3. Applicable Vehicles This system is suitable for all kinds of 4-wheel vehicles less than 4500 kgs (10000 pounds). 4. System Package Content (1) Digital Receiver: 1 Unit (2) Cooling Vent Holder: 1 set ( inc. two Fixing slices ) (3) Antenna: 1 Unit (4) DC Power Cable: 1 Unit (5) Transmitter: 4 Units (6) Installation Parts for Transmitter (Nut, Core and Washer – each 4 pcs ) (7) TX rubber ring A : 4 pc (8) TX rubber ring B : 4 pc (7) User Manual: 1 pc 5. Operation and Installation of Wireless Tire Pressure Monitoring System 5.1 Installation and Demounting of Digital Receiver 5.1.1 Utilize the Cooling Vent Holder to fasten the Digital Receiver onto the Air Outlet in driver’s cabin (1) Fasten the Cooling Vent Holder onto the backside of the Digital Receiver. (2) Screw the Antenna into the Digital Receiver. (3) Fasten the Digital Receiver with the Cooling Vent Holder onto the Air Outlet in the front seat. (4) Plug the DC Power Cable into the Vehicle Cigarette Lighter Socket and Digital Receiver Power Jack. (5) Turn on the Vehicle Power and confirm if the LCD Display shows 4 “??P”. ??P ??P ??P ??P 5.1.2 Replace Mounted-on-Air-Outlet Digital Receiver (1) Disconnect Digital Receiver from Vehicle Cigarette Lighter Socket, pay attention to the hanging way of the Cooling Vent Holder, then take the Digital Receiver from the air outlet in the front seat carefully. (2) Follow procedures 7.1 (1), (2), (3), (4), (5) to install a new Digital Receiver. 5.2 Installation and Demounting of Transmitter Caution: The product should be installed by qualified technicians. The technicians need to follow the installation procedures, making sure that the transmitters are properly installed and undamaged. The tools and instruction in this user manual are used by technicians from vehicle manufacturer or garage. It is suggested that general consumer cooperates with the responsible people from the purchasing place or the authorized installation garage; general consumer should get professional training, then he just could install the product by himself. Otherwise, Mobiletron, will not offer any warranty if he installs the product by himself. Tools Required ¾ Tire Changing Equipment ¾ Tire Balancing Equipment ¾ Torque Wrench 5.2.1 Mounting the Tire with Transmitter on Wheel Rim Notes Pair Valve Tag that has the same color as the color of text on ID Number Label of Transmitter for the identical tire as indicated in below brackets. (1) Prepare the Transmitter to pass through the valve hole which is positioned on the steel, aluminum or aluminum alloy wheel rim. (2) Pass the Transmitter through the valve hole and the rubber circle will push up the inside of the valve. (3) Attach the Rubber Ring B that is the spare part of Transmitter from the outside of the wheel rim onto the valve hole. (4) Attach the Washer that is the spare part of Transmitter from the o…

Text truncated - open the document above for the full version.

Helen Zhao Sent: Monday, October 23, 2006 10:51 PM Subject: FW: FW: MOBILETRON ELECTRONICS CO.,LTD., FCC ID: ULZ-TPV03, Assessment NO.: AN06T6247, Notice#1 10/24/2006 From: vicky.liu on behalf of application Sent: Mon 10/23/2006 7:44 PM To: Helen Zhao Subject: Re:FW: MOBILETRON ELECTRONICS CO.,LTD., FCC ID: ULZ-TPV03, Assessment NO.: AN06T6247, Notice#1 Dear Helen: Thank you for your e-mail,please see my belowing reply(951024). And if still have any problems,please let me know,thank you. -----Original Message----- Sent: Monday, October 23, 2006 5:50 PM Subject: MOBILETRON ELECTRONICS CO.,LTD., FCC ID: ULZ-TPV03, Assessment NO.: AN06T6247, Notice#1 Question #1: The user manual does not contain FCC15.19 labelling information and 15.21 user information. Please revised the user manual. Ans:Please find the updated file. Question #2: The request for confidential letter lists an incorrect FCC ID. Please update the confidential letter. Ans:Please find the updated file. Question #3: This is for your information. On Form 731, the product code is not a FCC Identifier, for this case, you should enter "-TPV03" as product code, not "ULZ-TPV03". Ans:Thanks you for offering this information to me.I will notice afterwards. Best Regards, Helen Zhao The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information within 30 days of the original e-mail date may result in application dismissal and forfeiture of the filing fee. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the e-mail address listed below the name of the sender.

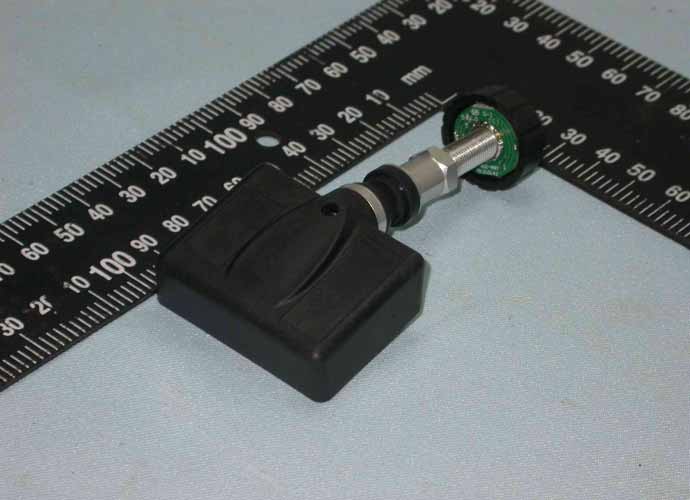

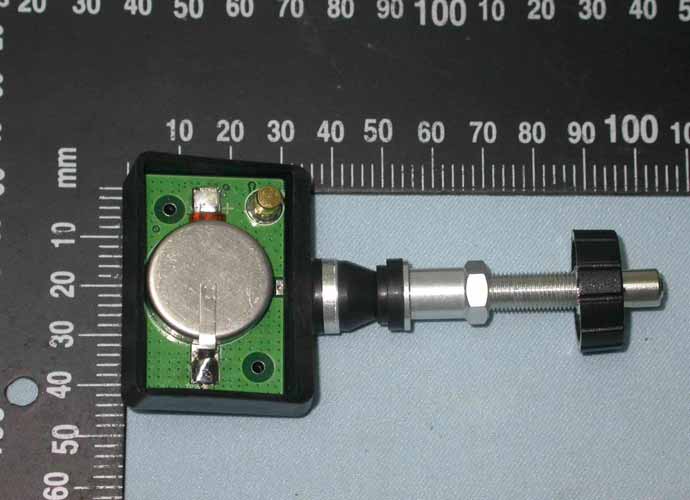

Compliance Certification Services Inc.Report No.60821301 Page 1 of 5 External Photo Compliance Certification Services Inc.Report No.60821301 Page 2 of 5 Internal Photo

Tai-Safety-H Tire Pressure Monitoring System Model No: TPV03 FCC IDULZ-TPV03 Label Here

Compliance Certification Services Inc.Report No.60821301 Page 3 of 5 Compliance Certification Services Inc.Report No.60821301 Page 4 of 5 Compliance Certification Services Inc.Report No.60821301 Page 5 of 5 Internal Photo

Compliance Certification Services Inc.FCC ID ULZ-TPV03 Report No.60821301-RP1 Page 1 of 25 FCC 47 CFR PART 15 SUBPART C TEST REPORT For Tai-Safety-H Tire Pressure Monitoring System Model : TPV03 Trade Name : MOBILETRON Issued for MOBILETRON ELECTRONICS CO.,LTD. 39,Sec.3,Chung-Ching Rd.,Ta-Ya,Taichung Hsien,Taiwan 428 Issued by Compliance Certification Services Inc. Hsinchu Lab. Rm. 258, Bldg. 17, NO.195, Sec.4 Chung HsingRd., ChuTung Chen, Hsinchu, Taiwan 310, R.O.C TEL: (03) 591-0068 FAX: (03) 582-5720 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. Ltd. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Compliance Certification Services Inc.FCC ID ULZ-TPV03 Report No.60821301-RP1 Page 2 of 25 TABLE OF CONTENTS TITLE PAGE NO. 1. TEST REPORT CERTIFICATION........................................................................................... 3 2. EUT DESCRIPTION.................................................................................................................. 4 2.1 DESCRIPTION OF EUT & POWER ..................................................................................................4 3. DESCRIPTION OF TEST MODES .......................................................................................... 4 4. TEST METHODOLOGY............................................................................................................5 5. FACILITIES AND ACCREDITATIONS .................................................................................. 5 5.1 FACILITIES ........................................................................................................................................5 5.2 EQUIPMENT ......................................................................................................................................5 5.3 LABORATORY ACCREDITATIONS LISTINGS .................................................................................5 5.4 TABLE OF ACCREDITATIONS AND LISTINGS ..............................................................................6 6. CALIBRATION AND UNCERTAINTY .................................................................................... 7 6.1 MEASURING INSTRUMENT CALIBRATION ...................................................................................7 6.2 MEASUREMENT UNCERTAINTY .....................................................................................................7 7. SETUP OF EQUIPMENT UNDER TEST................................................................................ 8 8. FCC PART 15.231 REQUIREMENTS...................................................................................... 9 8.1 20DB BANDWIDTH ...........................................................................................................................9-10 8.2 LIMIT OF TRANSMISSION TIME .....................................................................................................11-12 8.3 DUTY CYCLE CORRECTION FACTOR............................................................................................13-14 8.4 RADIATED EMISSIONS.....................................................................................................................15-18 8.4.1 TRANSMITTER RADIATED EMISSION BELOW 1 GHz ................................................. 19 8.4.2 TRANSMITTER RADIATED EMISSION ABOVE 1 GHz.................................................. 20-22 9. ANTENNA REQUIREMENT .................................................................................................... 23 9.1 STANDARD APPLICABLE.................................................................................................................23 9.2 ANTENNA CONNECTED CONSTRUCTION ....................................................................................23 APPENDIX SETUP PHOTOS....................................................................................................... 24-25 Compliance Certification Services Inc.FCC ID ULZ-TPV03 Report No.60821301-RP1 Page 3 of 25 1. TEST REPORT CERTIFICATION Applicant MOBILETRON ELECTRONICS CO.,LTD. Address 39,Sec.3,Chung-Ching Rd.,Ta-Ya,Taichung Hsien,Taiwan 428 Equipment Under Test Tai-Safety-H Tire Pressure Monitoring System Model TPV03 Trade Name MOBILETRON Tested Date August 21 ~ 28, 2006 APPLICABLE STANDARD STANDARD TEST RESULT FCC Part 15 Subpart C:2004 AND ANSI C63.4:2003 No non-compliance noted WE HEREBY CERTIFY THAT: The measurements shown in the attachment were made in accordance with the procedures indicated, and the energy emitted by the equipment was found to be within the limits applicable. We assume full responsibility for the accuracy and completeness of these measurements and vouch for the qualifications of all persons taking them. Compliance Certification Services Inc.FCC ID ULZ-TPV03 Report No.60821301-RP1 Page 4 of 25 2. EUT DESCRIPTION 2.1 DESCRIPTION OF EUT & POWER Product Name Tai-Safety-H Tire Pressure Monitoring System Model Number TPV03 Trade Name MOBILETRON Channel Number 1 Frequency Range 433.92 MHz Modulation Technique FSK Transmitter Classification Mobile Antenna Type Print PCB Antenna, Antenna Gain : 1 dBi Power Source Mercury Battery : 3.6V Remark: 1. The sample selected for test was engineering sample that approximated to production product and was provided by manufacturer. 2. This submittal(s) (test report) is intended for FCC ID: ULZ-TPV03 filing to comply with Section 15.207,15.209 and 15.231 of the FCC Part 15, Subpart C Rules. 3. For more details, please refer to the User’s manual of the EUT. 3. DESCRIPTION OF TEST MODES The EUT had been tested under operating condition. There are one channel have been tested as following : Channel Frequency (MHz) 1 433.92 NoteThe field strength of spurious emission was measured in the following position: EUT stand…

Text truncated - open the document above for the full version.

Compliance Certification Services Inc.FCC ID ULZ-TPV03 Report No.60821301-RP1 Page 24 of 25 APPENDIX SETUP PHOTOS RADIATED RF MEASUREMENT SETUP Compliance Certification Services Inc.FCC ID ULZ-TPV03 Report No.60821301-RP1 Page 25 of 25
