ULZ-TX008Tire Pressure Monitoring System

Installation and Operating Instructions For Tire Pressure Monitoring System Model No. TX008 Contents 1. System Introduction 2. Safety Features 3. Applicable Vehicles 4. Installation Tools Required 5. Mounting the Tire with Transmitter on Wheel Valve 6. Transmitter Technical Specifications 1. System Introduction 1.1 TX008 is a wireless tire pressure monitoring system with sensors and transmitters mounted in each tire. Highly accurate sensors collect tire pressure and temperature data which is transmitted to a Digital Display Receiver. 1.2 The System monitors the tire data with a LCD display which informs the driver of the condition of the tires while driving. The Digital Receiver will immediately alert with a beeping sound, a bright yellow LED and the backlight of the LCD when tire pressure and/or temperature are outside of factory-preset critical limits. The wireless tire pressure monitoring system will alert the driver to the unsafe tire or temperature condition and thereby reduce the possibility of an accident. 2. Safety Features 2.1 The System is designed to measure and display active data, i.e. pressure and temperature, in tires, and provides a warning when the System detects tire pressure and/or temperature is above or below preset critical limits. It is the driver’s responsibility to react to a warning. Abnormal tire pressure and temperature must be checked and brought back to within the preset safe limits to avoid dangerous driving conditions. 2.2 This product must be properly installed and programmed by qualified personnel according to this User Manual. 3. Applicable Vehicles This system is suitable for use on trucks, buses, and trailers. 4. Installation Tools Required ¾ Tire Balancing Equipment. ¾ Torque Wrench. 5. Mounting the Tire with Transmitter on Wheel Valve Please follow the installation steps below. Once the installation completed, please rebalance the tire again. The fixed torque for spinning the transmitter suggested to set at 9~10 Kgf.cm (1) Start to install transmitter onto the tire (2) Spin the transmitter onto the inner tire valve NoteThe fixed torque suggested to be set at 9~10 Kgf.cm. Transmitter for better tire rebalancing (3) One-wheel installation is completed. (4) Repeat the steps (1)~(3) until all wheels installation completed. 6. Transmitter Technical Specifications 6.1 Operation Condition Description Value Accuracy Units Pressure Range 0 ~ 180 +/- 5 PSI Rated Pressure 240 - PSI -40 ~ +85 +/- 3 Operating Temperature -40 ~ +185 +/- 5 Operating Humidity 0 ~ 100 - % 6.2 Radio Frequency Transmitter Description Value Units Central Frequency 433.92 MHz 6.3 General Specification Description Value Units Weight 21.5 Gram 6.4 Power Description Value Units Power Source 3.6 Vdc Battery Life 4 years or Over 500,000 km Year or km 1. The device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. 2.FCC RF Radiation Exposure Statement: The equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20 centimeters between the radiator and your body. 3. This device and its antenna(s) must not be co-located or operating in conjunction with any other antenna or transmitter. 4. Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user authority to operate the equipment.

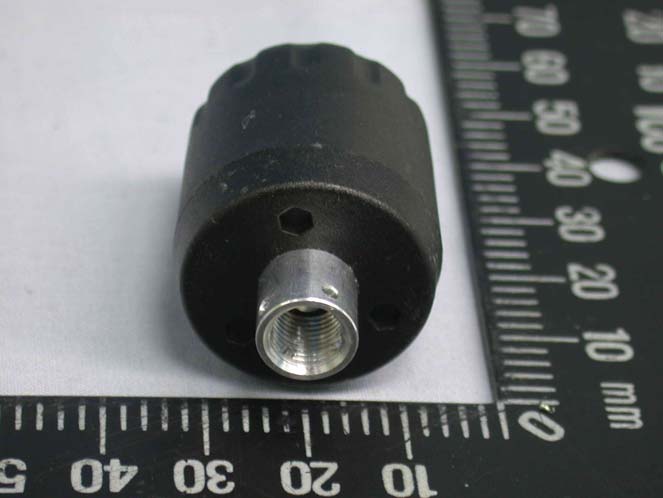

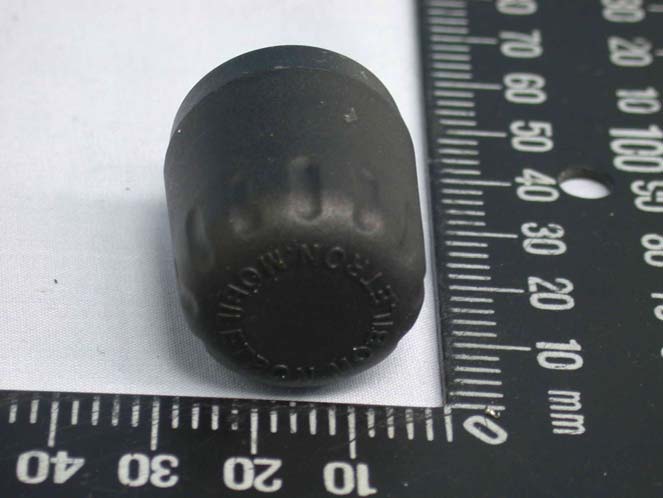

Compliance Certification Services Inc. Report No.70824301 Page 1 of 5 External Photo Compliance Certification Services Inc. Report No.70824301 Page 2 of 5

TX008

Compliance Certification Services Inc. Report No.70824301 Page 3 of 5 Internal Photo Compliance Certification Services Inc. Report No.70824301 Page 4 of 5 Compliance Certification Services Inc. Report No.70824301 Page 5 of 5

Compliance Certification Services Inc.FCC ID ULZ-TX008 Report No.70824301-RP1 Page 1 of 24 FCC 47 CFR PART 15 SUBPART C TEST REPORT For Tire Pressure Monitoring System Model : TX008 Trade Name : MOBILETRON Issued for MOBILETRON ELECTRONICS CO., LTD. 39, Sec. 3, Chung-Ching Rd., Ta-Ya, Taichung Hsien, Taiwan 428 Issued by Compliance Certification Services Inc. Hsinchu Lab. Rm. 258, Bldg. 17, NO.195, Sec.4 Chung HsingRd., ChuTung Chen, Hsinchu, Taiwan 310, R.O.C TEL: (03) 591-0068 FAX: (03) 582-5720 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. The client should not use it to claim product endorsement by TAF, NVLAP or any government agencies. The test results in the report only apply to the tested sample. Compliance Certification Services Inc.FCC ID ULZ-TX008 Report No.70824301-RP1 Page 2 of 24 TABLE OF CONTENTS TITLE PAGE NO. 1. TEST REPORT CERTIFICATION........................................................................................... 3 2. EUT DESCRIPTION.................................................................................................................. 4 2.1 DESCRIPTION OF EUT & POWER.................................................................................... 4 3. DESCRIPTION OF TEST MODES .......................................................................................... 4 4. TEST METHODOLOGY............................................................................................................5 5. FACILITIES AND ACCREDITATIONS .................................................................................. 5 5.1 FACILITIES .......................................................................................................................... 5 5.2 EQUIPMENT ........................................................................................................................ 5 5.3 LABORATORY ACCREDITATIONS LISTINGS................................................................... 5 5.4 TABLE OF ACCREDITATIONS AND LISTINGS ................................................................ 6 6. CALIBRATION AND UNCERTAINTY .................................................................................... 7 6.1 MEASURING INSTRUMENT CALIBRATION ..................................................................... 7 6.2 MEASUREMENT UNCERTAINTY....................................................................................... 7 7. SETUP OF EQUIPMENT UNDER TEST................................................................................ 8 8. FCC PART 15.231 REQUIREMENTS...................................................................................... 9 8.1 20DB BANDWIDTH .............................................................................................................9-10 8.2 LIMIT OF TRANSMISSION TIME ....................................................................................... 11-12 8.3 DUTY CYCLE CORRECTION FACTOR ............................................................................. 13-14 8.4 RADIATED EMISSIONS ...................................................................................................... 15-18 8.4.1 TRANSMITTER RADIATED EMISSION BELOW 1 GHz .......................................... 19 8.4.2 TRANSMITTER RADIATED EMISSION ABOVE 1 GHz ........................................... 20 8.5 POWERLINE CONDUCTED EMISSIONS .......................................................................... 21-22 9. ANTENNA REQUIREMENT .................................................................................................... 23 9.1 STANDARD APPLICABLE................................................................................................... 23 9.2 ANTENNA CONNECTED CONSTRUCTION ...................................................................... 23 APPENDIX SETUP PHOTOS....................................................................................................... 24 Compliance Certification Services Inc.FCC ID ULZ-TX008 Report No.70824301-RP1 Page 3 of 24 1. TEST REPORT CERTIFICATION Applicant MOBILETRON ELECTRONICS CO., LTD. Address 39, Sec. 3, Chung-Ching Rd., Ta-Ya, Taichung Hsien, Taiwan 428 Equipment Under Test Tire Pressure Monitoring System Model TX008 Trade Name MOBILETRON Tested Date August 24 ~ September 07, 2007 APPLICABLE STANDARD STANDARD TEST RESULT FCC Part 15 Subpart C:2006 AND ANSI C63.4:2003 No non-compliance noted WE HEREBY CERTIFY THAT: The measurements shown in the attachment were made in accordance with the procedures indicated, and the energy emitted by the equipment was found to be within the limits applicable. We assume full responsibility for the accuracy and completeness of these measurements and vouch for the qualifications of all persons taking them. Compliance Certification Services Inc.FCC ID ULZ-TX008 Report No.70824301-RP1 Page 4 of 24 2. EUT DESCRIPTION 2.1 DESCRIPTION OF EUT & POWER Product Name Tire Pressure Monitoring System Model Number TX008 Trade Name MOBILETRON Channel Number 1 Frequency Range 433.92 MHz Modulation Technique FSK Transmitter Classification Mobile Antenna Type PCB Antenna, Antenna Gain : 0 dBi Power Source 3VDC (From Power Battery) Remark: 1. The sample selected for test was engineering sample that approximated to production product and was provided by manufacturer. 2. This submittal(s) (test report) is intended for FCC ID: ULZ-TX008 filing to comply with Section 15.207,15.209 and 15.231 of the FCC Part 15, Subpart C Rules. 3. For more details, please refer to the User’s manual of the EUT. 3. DESCRIPTION OF TEST MODES The EUT had been tested under operating condition. There are one channel have been tested as following : Channel Frequency (MHz) 1 433.92 NoteThe field strength of spu…

Text truncated - open the document above for the full version.

Compliance Certification Services Inc.FCC ID ULZ-TX008 Report No.70824301-RP1 Page 24 of 24 APPENDIX SETUP PHOTOS RADIATED RF MEASUREMENT SETUP
