GM650 / TX-01 1 1.1 SYSTEM 2 1.2.1.1 CONTROL BOX： NO. FUNCTION REMARK 1 LED Red / Green 2 ON / REMOTE / OFF Main switch 3 Batteries 6VDC = AA*4 4 Learn button 5 4 PIN TERMINAL GM650 / TX-01 3 1.2.1.2 REMOTE CONTROLLER (TX-01)： NO. FUNCTION REMARK 1 LED RED 2 ON BUTTON Relay CLOSE 3 （HI） OUTPUT 5V(+) 4 (LOW) OUTPUT 5V(-) 5 OFF BUTTON RELAY OPEN 6 BATTERY 12VDC GM650 / TX-01 4 1.3 Operational Description 1.3.1MAIN SWITCH 1.3.1.1 OFF/REMOTE/ON 1.3.1.1.1 ON: RELAY CLOSE 1.3.1.1.2 Remote: SYSTEM INTO REMOTE MODE 1.3.1.1.3 OFF: SYSTEM OFF Ps: SWITCH FROM OFF TO ON POSTION: OUTPUT 5V(+) THEN RELAY CLOSE SWITCH FROM OFF TO REMOTE POSTION: OUTPUT 5V(-) THEN INTO REMOTE MODE 1.3.2 REMOTE CONTROLLER 1.3.2.1 ON: RELAY CLOSE 1.3.2.2 : OUTPUT 5V(+) 1.3.2.3 : OUTPUT 5V(-)\ 1.3.2.4 OFF: RELAY OPEN ÆOUTPUT 5V(+) GM650 / TX-01 5 FCC Warning Notice: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. GM650 / TX-01

Main MCU:MDT10P55B1SInternal OSC= 4MHz Battery Regulator:Vout = 3.3V Switch 5 Switch 4 Switch 3 HI Switch 2 3.3V Switch 1 OFF RF ICPT4450ASK transmitter SAW 315MHz

RF_160, Issue 04 Grand Mate Co., Ltd Declaration of Authorization We Name: Grand Mate Co., Ltd Address: No. 30 Lugong S 2nd Rd, Lugang Town City: Changhua Hsien 505 Country: Taiwan Declare that: Name Representative of agent: Joyce Liao (1) Agent Company name: A Test Lab Techno Corp Address: No.140-1, Changan Street City: Bade City, Taoyuan County Country:Taiwan is authorized to apply for Certification of the following product(s): Product description: TX-01 Remote controller Type designation: TX-01/650A/B Trademark: GRANDMATE Validity/ expiry date: 2016/04/14 on our behalf. Date: 2015/10/14 City: Taiwan Name: Chin-Ying Huang (2) Function: General Manager Signature: ............................... Notes: (1): Required for FCC application (2): For FCC it must be the Grantee Code “owner” or the authorized agent.

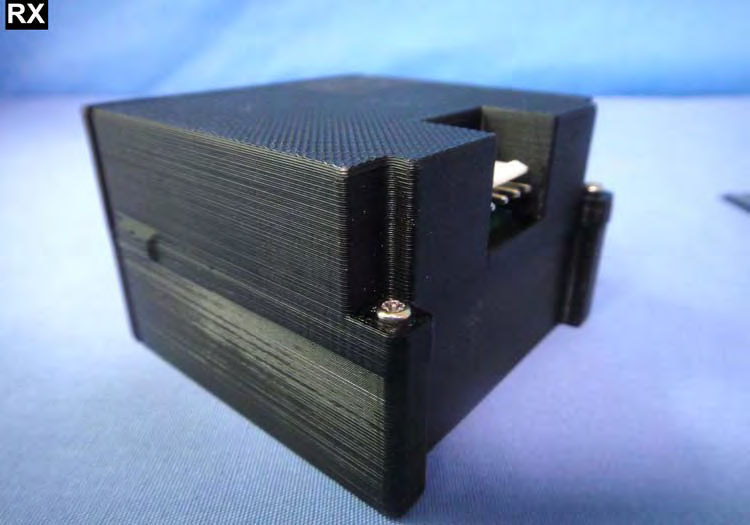

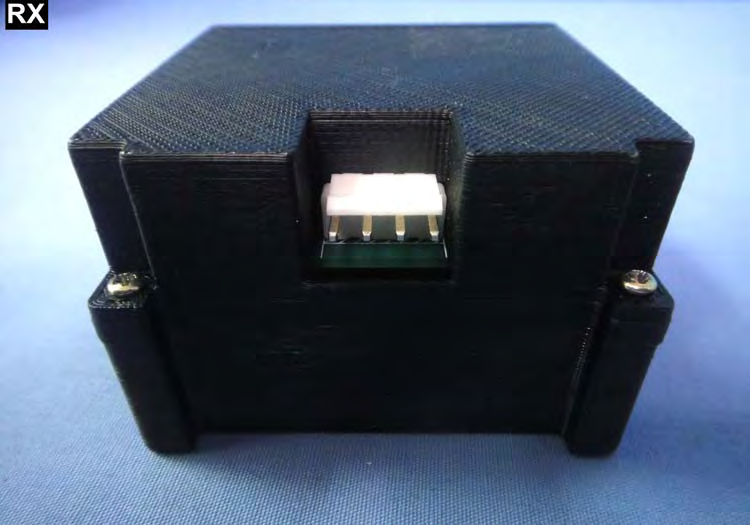

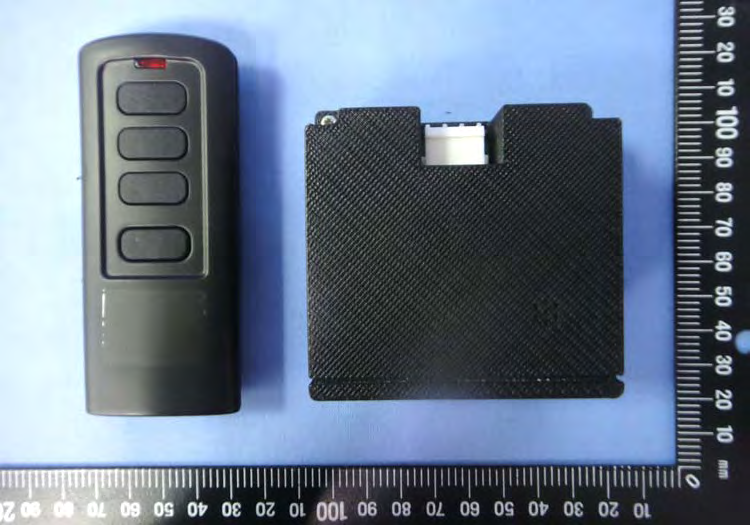

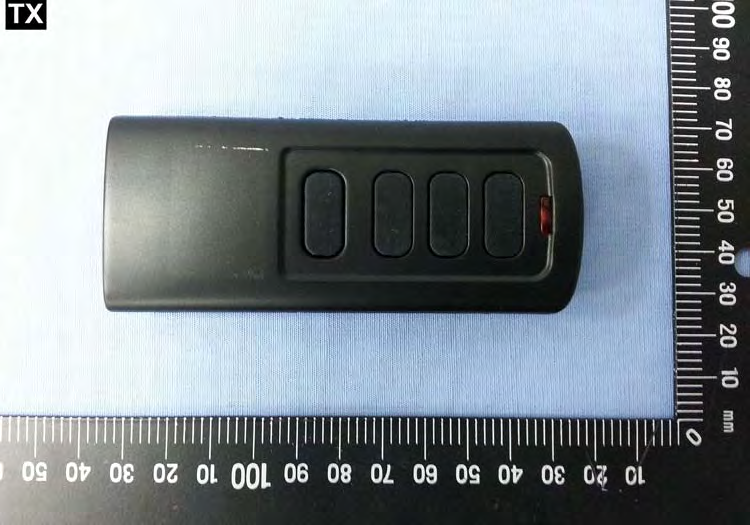

1 of 6 External Photos Model Number: TX-01/650A/B FCC ID: UPMTX-01 2 of 6 EUT Photo 1 ) EUT Photo 2 ) 3 of 6 EUT Photo 3 ) EUT Photo 4 ) 4 of 6 EUT Photo 5 ) EUT Photo 6 ) 5 of 6 EUT Photo 7 ) EUT Photo 8 ) 6 of 6 EUT Photo 9 ) EUT Photo 10 )

ID Label info & Label Location FCC ID : UMPTX-01

1 of 9 Internal Photos Model Number: TX-01/650A/B FCC ID: UPMTX-01 2 of 9 EUT Photo 1 ) EUT Photo 2 ) 3 of 9 EUT Photo 3 ) EUT Photo 4 ) 4 of 9 EUT Photo 5 ) EUT Photo 6 ) 5 of 9 EUT Photo 7 ) EUT Photo 8 ) ANT. 6 of 9 EUT Photo 9 ) EUT Photo 10 ) 7 of 9 EUT Photo 11 ) EUT Photo 12 ) ANT. 8 of 9 EUT Photo 13 ) EUT Photo 14 ) 9 of 9 EUT Photo 15 ) EUT Photo 16 )

1 Operational Description 1.1MAIN SWITCH 1.1.1 OFF/REMOTE/ON 1.1.1.1 ON: RELAY CLOSE 1.1.1.2 Remote: SYSTEM INTO REMOTE MODE 1.1.1.3 OFF: SYSTEM OFF Ps : SWITCH FROM OFF TO ON POSTION: OUTPUT 5V(+) THEN RELAY CLOSE SWITCH FROM OFF TO REMOTE POSTION: OUTPUT 5V(-) THEN INTO REMOTE MODE 1.2 REMOTE CONTROLLER 1.2.1 ON: RELAY CLOSE 1.2.2 : OUTPUT 5V(+) 1.2.3 : OUTPUT 5V(-)\ 1.2.4 OFF: RELAY OPEN ÆOUTPUT 5V(+) 1.3 RF frequency is 315 MHz and transform by ASK. GM650 / TX-01 Antenna Type Antenna Gain PCB Antenna 0.5 dBi Antenna Specification Frequency Range 315 MHz

1 2 3 4 56 ABCD 6 5 4 3 2 1 D CBA Title Number Revision Size B Date: 24-Sep-2015 Sheet of File: D:\DATA\Protel3\GM650A D3\GM650A D3.ddb Drawn By: RC3 GND LED1 LED RED R5 560R VDD 1 RB5/OSC1/CLKIN 2 RB4/OSC2/CLKOUT 3 RB3/MCLR/VPP 4 RC5/TOCKI 5 RC4 6 RC3 7 RB1 12 RB2 11 VSS 14 RB0 13 RC0 10 RC1 9 RC2 8 U2MDT10P55B1S BT112V C5 0.1 μ F TX-01 RF ANT C11 220pF Y2 SAW 315MHz L2 150nH L1 56nH L310nH R62.7K R810K OSCOUT 1 VSS 2 PAOUT 3 DIN 4 VDD 5 OSCIN 6 U3PT4450 +3.3V C78.2pF C83.3pF R9 220 Ω Vin 1 GND 2 Vout 3 U1LM1114-3.3M3B C20.1uF C30.1uF +3.3V C4 22uF C110uF R1 47K C6 0.1 μ F ENABLELOCK 315MHz S5SFA-12-04V ASK315MHz A1 AME-LIGHTING CO.,LTD. OFF S1 R2 56K LO S2 R101K ON S4 HI S3

FCC 47 CFR PART 15 SUBPART C RF Test Report Applicant ： Grand Mate Co., Ltd Address ： No. 30 Lugong S 2nd Rd, Lugang Town, Changhua Hsien 505,Taiwan Product Type ： TX-01 Remote controller Trade Name ： GRANDMATE Model Number ： TX-01/650A/B Applicable Standard ： FCC 47 CFR PART 15 SUBPART C ANSI C63.10:2013 Application Purpose ： Original Receive Date ： Aug. 03, 2015 Test Period ： Aug. 10 ~ 13, 2015 Issue Date ： Nov. 09, 2015 Issue by A Test Lab Techno Corp. No. 140-1, Changan Street, Bade City, Taoyuan County 334, Taiwan R.O.C. Te l：+886-3-2710188 / Fax：+886-3-2710190 T aiwan Accreditation Foundation accreditation number: 1330 Note: This report shall not be reproduced except in full, without the written approval of A Test Lab Techno Corp. This document may be altered or revised by A Test Lab Techno Corp. personnel only, and shall be noted in the revision section of the document. The client should not use it to claim product endorsement by TAF, or any government agencies. The test results in the report only apply to the tested sample. Report Number: 1508FR13 1 of 23 A Test Lab Techno Corp. Revision History Rev. Issue Date Revisions Revised By 00 Nov. 09, 2015 Initial Issue Report Number: 1508FR13 2 of 23 A Test Lab Techno Corp. Verification of Compliance Issued Date: 2015/11/09 Applicant : Grand Mate Co., Ltd Address : No. 30 Lugong S 2nd Rd, Lugang Town, Changhua Hsien 505,Taiwan Product Type : TX-01 Remote controller Trade Name : GRANDMATE Model Number : TX-01/650A/B FCC ID : UMPTX-01 EUT Rated Voltage : TX: DC 12V (23A Battery *1PCS) RX: DC 6V ( AA Battery * 4PCS) Test Voltage : TX: DC 12V, RX: DC 6V Applicable Standard : FCC 47 CFR PART 15 SUBPART C ANSI C63.10:2013 Application Purpose ： Original Test Result : Complied Performing Lab. : A Test Lab Techno Corp. No. 140-1, Changan Street, Bade City, Taoyuan County 334, Taiwan R.O.C. Te l：+886-3-2710188 / Fax：+886-3-2710190 T aiwan Accreditation Foundation accreditation number: 1330 http://www.atl-lab.com.tw/e-index.htm A Test Lab Techno Corp. tested the above equipment in accordance with the requirements set forth in the above standards. All indications of Pass/Fail in this report are opinions expressed by A Test Lab Techno Corp. based on interpretations and/or observations of test results. Measurement Uncertainties were not taken into account and are published for informational purposes only. The test results show that the equipment tested is capable of demonstrating compliance with the requirements as documented in this report. Approved By ： Reviewed By ： (Manager) (Fly Lu) (Testing Engineer) (Eric Ou Yang) Report Number: 1508FR13 3 of 23 A Test Lab Techno Corp. TABLE OF CONTENTS 1 General Information ........................................................................................................ 5 1.1. Summary of Test Result.......................................................................................... 5 1.2. Measurement Uncertainty....................................................................................... 5 2 EUT Description............................................................................................................... 6 3 Test Methodology............................................................................................................ 7 3.1. Mode of Operation .................................................................................................. 7 3.2. EUT Exercise Software........................................................................................... 7 3.3. Configuration of Test System Details ......................................................................8 3.4. Test Site Environment ............................................................................................. 8 4 Test Results ..................................................................................................................... 9 4.1. Radiated Emissions Measurement ......................................................................... 9 4.2. 20dB Bandwidth Measurement............................................................................. 21 Report Number: 1508FR13 4 of 23 A Test Lab Techno Corp. 1 General Information 1.1. Summary of Test Result Reference FCC Part 15.231 Test Results Remark 15.207 Ac Power Conducted Emission N/A This device uses DC power source. 15.231(a) Transmitter Deactivation Time PASS ---- 15.231(b) Transmitter Field Strength of Emissions PASS ---- 15.231(c) Bandwidth of the Emission PASS ---- The test results of this report relate only to the tested sample(s) identified in this report. Manufacturer or whom it may concern should recognize the pass or fail of the test result. 1.2. Measurement Uncertainty Test Item Frequency Range Uncertainty (dB) 9kHz ~ 150kHz 2.7 Conducted Emission 150kHz ~ 30MHz 2.8 30MHz ~ 1000MHz 6.300 1000MHz ~ 18000MHz 5.474 18000MHz ~ 26500MHz 5.630 Radiated Emission 26500MHz ~ 40000MHz 5.054 Report Number: 1508FR13 5 of 23 A Test Lab Techno Corp. 2 EUT Description Applicant Grand Mate Co., Ltd No. 30 Lugong S 2nd Rd, Lugang Town, Changhua Hsien 505,Taiwan Manufacturer Grand Mate Co., Ltd No. 30 Lugong S 2nd Rd, Lugang Town, Changhua Hsien 505,Taiwan Product Type TX-01 Remote controller Trade Name GRANDMATE Model Number TX-01/650A/B FCC ID UMPTX-01 Frequency Range 315 MHz Modulation Type AKS Number of Channels 1 Channel Antenna Type PCB Antenna Report Number: 1508FR13 6 of 23 A Test Lab Techno Corp. 3 Test Methodology 3.1. Mode of Operation Test Mode Mode 1: Transmitter Mode Mode 2: Receiver Mode Then, the above highest fundamental level mode of the configuration of the EUT and antenna was chosen for all final test items. By preliminary testing and verifying three axis (X, Y and Z) position of EUT transmitted status, it was found that “Z axis” position was the worst, then the final test was executed the worst condition and test data were recorded in this report. X axis mode Y axis mode Z axis mode 3.2. EUT Exercise …
