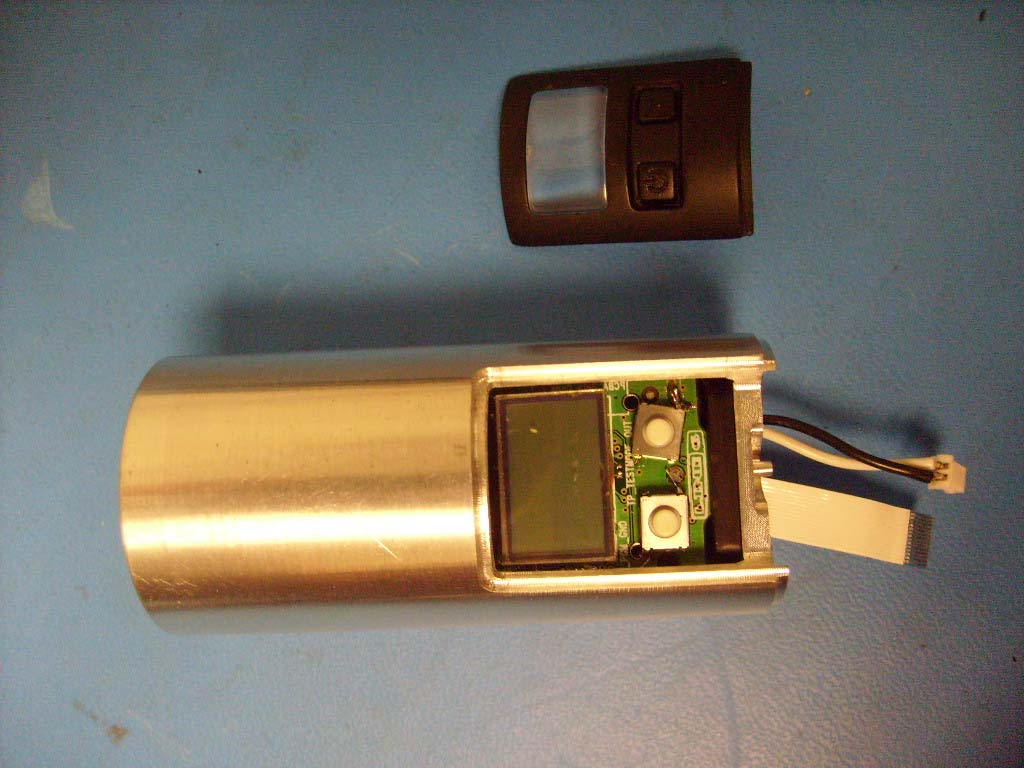

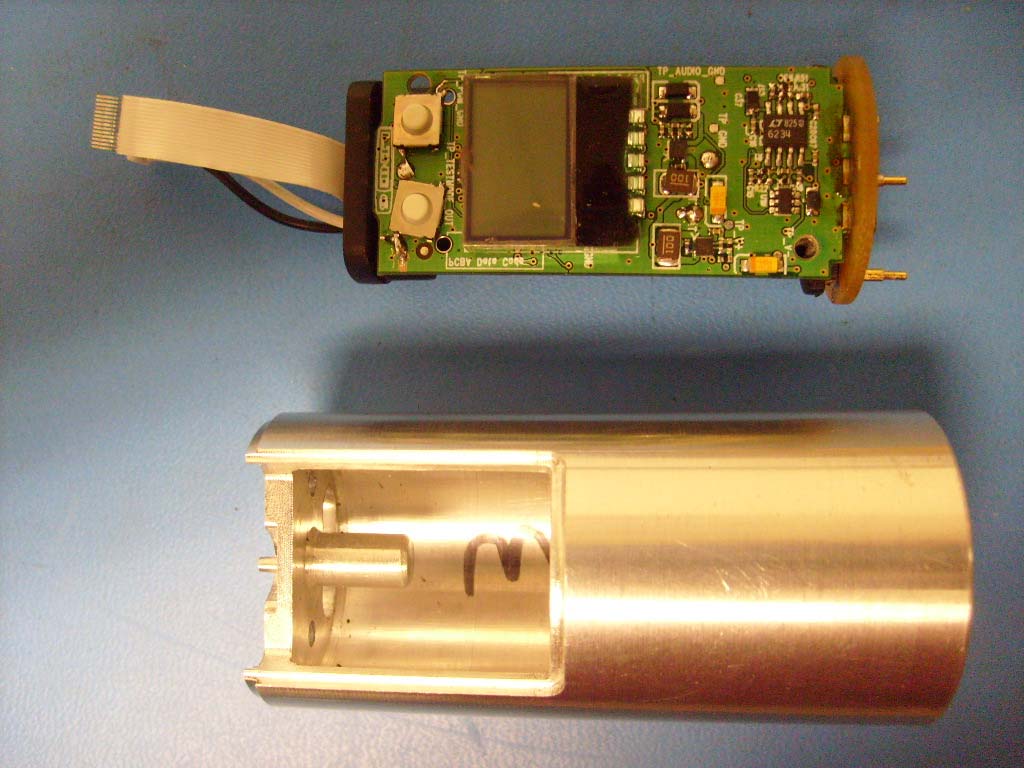

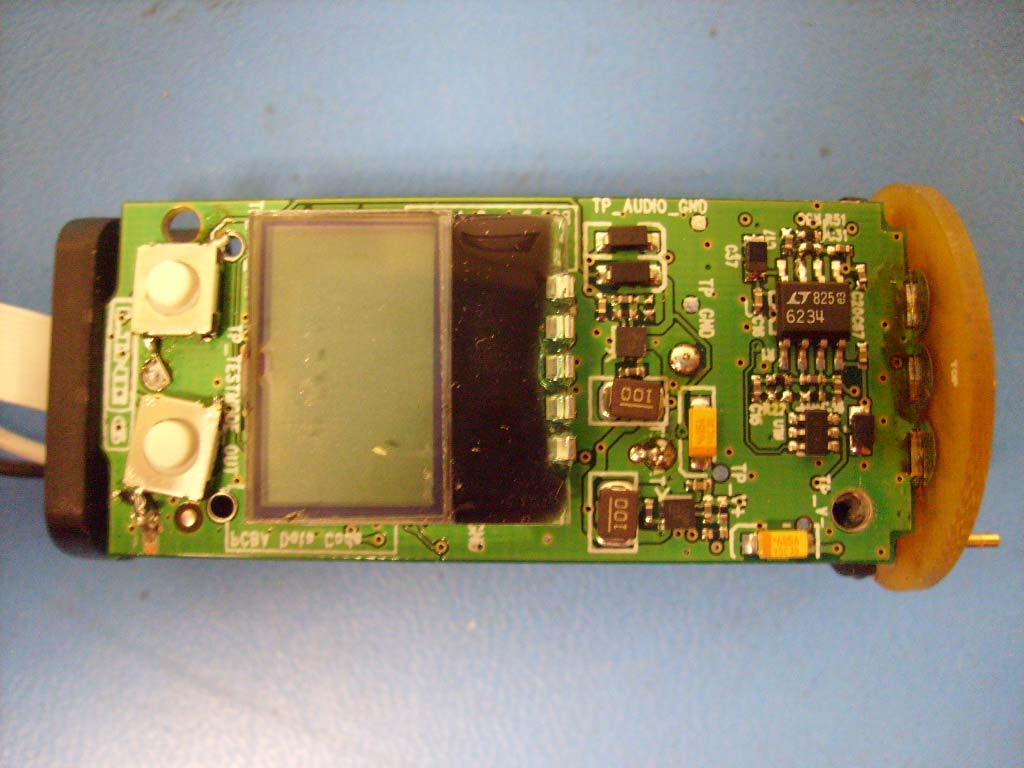

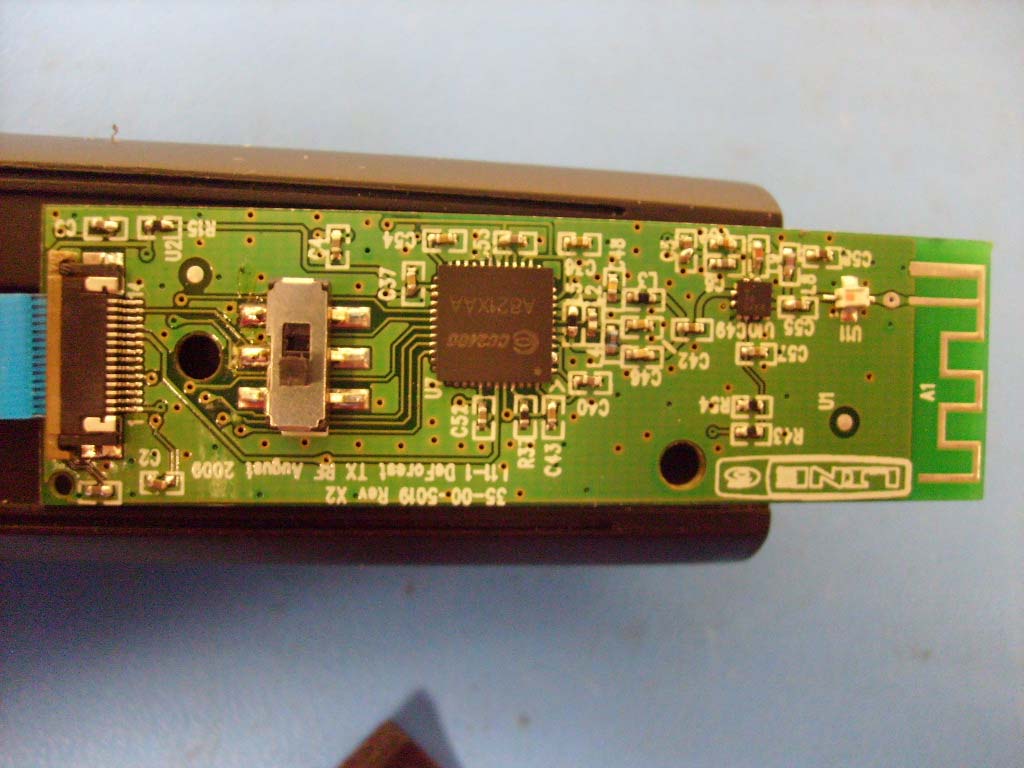

UOB916THH122.4 GHz Wireless handheld Microphone

Pilot’s Handbook Manuel de pilotage Pilotenhandbuch Pilotenhandboek Manual del Piloto 取扱説明書 See www.line6.com/manuals for Advance Guide 40-00-0246 Advanced Users Guide available @ www.line6.com/manuals Rev A ® THH12 Important Safety Instructions WARNING : TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THE APPLIANCE TO RAIN OR MOISTURE. WARNING : TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT REMOVE SCREWS. NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CERTIFICATION THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. Warning: Changes or modifications not expressly approved in writing by Line 6 may void the users authority to operate this equipment. RF Exposure Statement: This transmitter must not be co-located or operated in conjunction with any other antenna or transmitter. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radi-ate radio frequency energy and, if not in-stalled and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numerique de la classe B est conforme a la norme NMB-003 du Canada. The FCC compliance sticker is attached to the THH12 battery compartment. Remove the THH12 base by unscrewing counter clockwise to see this compliance sticker. N222 You should read these Important Safety Instructions. Keep these instructions in a safe place Before using your THH12, carefully read the applicable items of these operating instructions and the safety suggestions. 1. Obey all warnings in the THH12 manual. 2. Only use non-rechargeable alkaline batteries in the transmitter. 3. Do not perform service operations beyond those described in the THH12. Service is required when the apparatus has been damaged in any way, such as: • liquid has been spilled or objects have fallen into the apparatus • the unit has been exposed to rain or moisture • the unit does not operate normally or changes in performance in a significant way • the unit is dropped or the enclosure is damaged. 4. Do not place near heat sources, such as radiators, heat registers, or appliances which produce heat. 5. Guard against objects or liquids entering the device. Do not use or place unit near water. 6. Do not step on cords. Do not place items on top of cords so that they are pinched or leaned on. Pay particular attention to the cord at the plug end and the point where it connects to the device. 7. Always switch transmitter off when not in use for extended periods of time for extended battery life. 8. Clean only with a damp cloth. 9. Only use attachments/accessories specified by the manufacturer. 10. Prolonged listening at high volume levels may cause irreparable hearing loss and/or damage. Always be sure to practice “safe listening.” Basic OperatiOn 1. Power/Set Button - Power Function: Press once to turn the unit on. The LCD backlight will glow blue for 10 seconds then it will fade out automatically. Press and hold 3 seconds to turn the unit off. Set Function: This is used for controlling the LCD interface. Use this button to put the transmitter in different modes of operation and confirm selected values. 2. Select Button - This is used for controlling the LCD interface. Use to change parameter selections or control the mute on and mute off function. 3. LCD Panel - Whenever a button is first pushed, the LCD backlight will awaken by glowing blue. This allows you to view current transmitter performance status and sets up the programming of operating channel, RF power level, mute and lockout modes. HandHeld lcd interface Operation - Edit Channel Press Set once to power on transmitter or wake up the LCD (backlight should glow blue). Press Set one more time to put the transmitter in Channel Select mode (“CH. #” will continuously blink). Press Select once to choose this mode (”CH.” will stay solid and the “#” will blink). Press Select again to choose the desired channel. Once you’ve made your final selection, press Set once to put the transmitter on the new channel. LCD will glow blue for 10 seconds and then fade off automatically. Operation - Mute Mode Press Set once to power on transmitter or wake up the LCD (backlight should glow blue). Press Set two times to put the transmitter in mute mode (“MUTE” and “OFF” will continuously blink). Press Select once to choose this mode (”MUTE” will stay solid and the “OFF” will blink). Press Select again to engage Mute mode (“ON” will now be displayed). Press Set to confirm Mute mode operation (LCD backlight will now glow red). While in this mode, audio signal will be absent at the receiver’s output. Pressing the Select button during operation will toggle between Mute on and Mute off. Every time Mute is on, the LCD backlight will continuously glow red. When Mute off is selected, the LCD backligh…

Text truncated - open the document above for the full version.

4960 Del Mar Ave Suite 10, Rocklin, CA 9577 818-575-600ph 916-625-0885fx September 3, 2009 MET Laboratories, Inc 914 West Patapsco Ave Baltimore, MD 21230 RE: Confidentiality Request for THH12 Wireless Handheld Microphone FCC ID UOB916THH12. To Whom It May Concern: This letter serves as an official request for confidentiality under FCC Rule Sections 0.457 & 0.459. We have requested that the schematic diagrams, block diagram and theory of operation for the THH12 Wireless Handheld Microphone required to be submitted with this application be withheld from public review. The information within this application contains propriety information (trade secrets) regarding the circuit operation and capabilities specific values of components, circuit design and system architecture which are the results of our extensive investment in research and development. Without the disclosed information, competitive organizations would take considerable more time to asses and develop a workable competitive product. Since this is a new product in an existing market, we believe that is these documents are disclosed to our competitors, it would harm our ability to compete in this market. We therefore formally request that the materials contained in this envelope be kept strictly confidential and not made available for inspection by another party, except on a need to know basis for the sole purpose of the certification process. If you have any I may be reached at 818- 575-3981 Sincerely, Guy Coker Principal Wireless Designer Line 6 Inc

4095 DelMar Ave # 10, Rocklin, CA 95677 818-575-3600ph 916-625-0885fx October 27, 2009 MET Laboratories, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: LETTER OF EXEMPTION To Whom It May Concern: We, the undersigned, seek exemption in regards to FCC Part 15.19 Labeling Requirements. Our device is compliant however; there is not a practical solution for adhering a sticker with the FCC 15.19 statement to the product as required. The FCC 15.19 statement is printed in the product manual. Sincerely, Guy Coker, Principal Wireless Engineer Line 6

Align and attach sticker to microphone battery door. Sticker is centered in area. 1mm 1mm 1mm 1mm Print White Ink ARTWORK STICKER PLACEMENT ON THH12 (FOR REFERENCE ONLY) Cut sticker to this dieline 30.14mm 40.64mm Line 6 26580 Agoura Road • Calabasas, CA 91302 • USA voice (818) 575-3733 fax (818) 575-3601 [email protected] Part Name/Number Prepared byJason Lynn Revision A Color Page 1 of 2 Silkscreen onto Line 6 part #30-27-0441 Print on black vinyl sticker. Use RoHS compliant White ink only. Use dieline provided to trim sticker. Finished sticker dimensions are 30.14 mm x 40.64 mm Sticker Battery THH12 L11-1 Part # 40-25-0200 Revisions A Released to production. 11/17/09 FCC ID: UOB916THH12 IC: 6768A-916THH12 Made in China Designed in U.S.A. Pat. Pending 008WWA090152 FCC ID: UOB916THH12 IC: 6768A-916THH12 Made in China Designed in U.S.A. Pat. Pending 008WWA090152

Electromagnetic Compatibility Line 6 Intentional Radiators THH12 CFR Title 47, Part 15B, 15.247; RSS-210, Issue 7, June 2007 & ICES-003 MET Report: EMCSS81856-FCC247 Rev. 1 © 2009, MET Laboratories, Inc. Page 26 of 56 DOC-EMC702 6/18/2009 Electromagnetic Compatibility Criteria for Intentional Radiators § 15.247(b) RF Exposure RF Exposure Requirements: §1.1307(b)(1) and §1.1307(b)(2): Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission’s guidelines. RF Radiation Exposure Limit: §1.1310: As specified in this section, the Maximum Permissible Exposure (MPE) Limit shall be used to evaluate the environmental impact of human exposure to radiofrequency (RF) radiation as specified in Sec. 1.1307(b), except in the case of portable devices which shall be evaluated according to the provisions of Sec. 2.1093 of this chapter. MPE Limit Calculation: EUT’s operating frequencies @ 2402-2478 MHz ; highest conducted power = 8.80dBm (peak) therefore, Limit for Uncontrolled exposure: 1 mW/cm 2 or 10 W/m 2 EUT maximum antenna gain = 2dBi PCB Equation from page 18 of OET 65, Edition 97-01 S = PG / 4R 2 or R = √PG / 4S where, S = Power Density (1 mW/cm 2 ) P = Power Input to antenna (7.59mW) G = Antenna Gain (1.58 numeric) S = (7.59*1.58 / 4*3.14*20.02)= (12.02 / 5024) = 0.0024 mW/cm2@ 20cm separation

MET Laboratories, Inc. Safety Certification - EMI - Telecom Environmental Simulation 914 WEST PATAPSCO AVENUE ! BALTIMORE, MARYLAND 21230-3432 ! PHONE (410) 354-3300 ! FAX (410) 354-3313 33439 WESTERN AVENUE ● UNION CITY, CALIFORNIA 94587 ● PHONE (510) 489-6300 ● FAX (510) 489-6372 3162 BELICK STREET ● SANTA CLARA, CALIFORNIA 95054 ● PHONE (408 748-3585 ● FAX (510) 489-6372 The Nation’s First Licensed Nationally Recognized Testing Laboratory December 24, 2009 Line 6 4095 Del Mar Ave # 10 Rocklin, CA 95677 Dear Michealle Coker, Enclosed is the EMC Wireless test report for compliance testing of the Line 6, THH12 as tested to the requirements of Title 47 of the CFR, Ch. 1 (10-1-06 ed.), Part 15, Subpart B, ICES-003, Issue 4 February 2004 for a Class B Digital Device and FCC Part 15 Subpart C, RSS-210, Issue 7, June 2007 for Intentional Radiators. Thank you for using the services of MET Laboratories, Inc. If you have any questions regarding these results or if MET can be of further service to you, please feel free to contact me. Sincerely yours, MET LABORATORIES, INC. Jennifer Warnell Documentation Department Reference: (\Line 6\EMCSS81856-FCC247 Rev. 2) Certificates and reports shall not be reproduced except in full, without the written permission of MET Laboratories, Inc. Electromagnetic Compatibility Line 6 Cover P age THH12 CFR Title 47, Part 15B, 15.247; RSS-210, Issue 7, June 2007 & ICES-003 MET Report: EMCSS81856-FCC247 Rev. 2 © 2009, MET Laboratories, Inc. Page ii of vii DOC-EMC702 6/18/2009 Electromagnetic Compatibility Criteria Test Report for the Line 6 THH12 Tested under the FCC Certification Rules contained in Title 47 of the CFR, Parts 15 Subpart B & ICES-003 for Class B Digital Devices & 15.247 Subpart C & RSS-210, Issue 7, June 2007 for Intentional Radiators MET Report: EMCSS81856-FCC247 Rev. 2 December 24, 2009 Prepared For: Line 6 4095 Del Mar Ave # 10 Rocklin, CA 95677 Prepared By: MET Laboratories, Inc. 3162 Belick St. Santa Clara, CA 95054 Electromagnetic Compatibility Line 6 Cover P age THH12 CFR Title 47, Part 15B, 15.247; RSS-210, Issue 7, June 2007 & ICES-003 MET Report: EMCSS81856-FCC247 Rev. 2 © 2009, MET Laboratories, Inc. Page iii of vii DOC-EMC702 6/18/2009 Electromagnetic Compatibility Criteria Test Report for the Line 6 THH12 Tested under the FCC Certification Rules contained in Title 47 of the CFR, Parts 15 Subpart B & ICES-003 for Class B Digital Devices & 15.247 Subpart C & RSS-210, Issue 7, June 2007 for Intentional Radiators Anderson Soungpanya, Project Engineer Jennifer Warnell Electromagnetic Compatibility Lab Documentation Department Engineering Statement: The measurements shown in this report were made in accordance with the procedures indicated, and the emissions from this equipment were found to be within the limits applicable. I assume full responsibility for the accuracy and completeness of these measurements, and for the qualifications of all persons taking them. It is further stated that upon the basis of the measurements made, the equipment tested is capable of operation in accordance with the requirements of the FCC Rules Parts 15B, 15.247 and Industry Canada standards ICES-003, Issue 4 February 2004, RSS-210, Issue 7, June 2007 under normal use and maintenance. Shawn McMillen, Wireless Manager, Electromagnetic Compatibility Lab Electromagnetic Compatibility Line 6 Report S tatus THH12 CFR Title 47, Part 15B, 15.247; RSS-210, Issue 7, June 2007 & ICES-003 MET Report: EMCSS81856-FCC247 Rev. 2 © 2009, MET Laboratories, Inc. Page iv of vii DOC-EMC702 6/18/2009 Report Status Sheet Revision Report Date Reason for Revision  November 25, 2009 Initial Issue. 1 December 2, 2009 Editorial corrections. 2 December 24, 2009 Editorial corrections. Electromagnetic Compatibility Line 6 Table of Conte nts THH12 CFR Title 47, Part 15B, 15.247; RSS-210, Issue 7, June 2007 & ICES-003 MET Report: EMCSS81856-FCC247 Rev. 2 © 2009, MET Laboratories, Inc. Page v of vii DOC-EMC702 6/18/2009 Table of Contents I. Executive Summary .................................................................................................................................................1 A. Purpose of Test ...................................................................................................................................................2 B. Executive Summary ............................................................................................................................................2 II. Equipment Configuration .......................................................................................................................................3 A. Overview.............................................................................................................................................................4 B. References...........................................................................................................................................................5 C. Test Site ..............................................................................................................................................................5 D. Description of Test Sample.................................................................................................................................5 E. Equipment Configuration....................................................................................................................................7 F. Support Equipment .............................................................................................................................................7 G. Ports and Cabling Information ............................................................................................................................7 H. Mode of Operation..............................................................................................................................................7 I. Method of M…

Text truncated - open the document above for the full version.

Electromagnetic Compatibility Line 6 Unintentional Radiators THH12 CFR Title 47, Part 15B, 15.247; RSS-210, Issue 7, June 2007 & ICES-003 Radiated Emission Limits Test Setup Photog raph 1. Metallic Enclosure, Test Setup MET Report: EMCSS81856-FCC247 Rev. 1 © 2009, MET Laboratories, Inc. Page 13 of 56 DOC-EMC702 6/18/2009 Electromagnetic Compatibility Line 6 Unintentional Radiators THH12 CFR Title 47, Part 15B, 15.247; RSS-210, Issue 7, June 2007 & ICES-003 Photograph 2. Metallic Enclosure, Antenna View MET Report: EMCSS81856-FCC247 Rev. 1 © 2009, MET Laboratories, Inc. Page 14 of 56 DOC-EMC702 6/18/2009 Electromagnetic Compatibility Line 6 Unintentional Radiators THH12 CFR Title 47, Part 15B, 15.247; RSS-210, Issue 7, June 2007 & ICES-003 Photog raph 3. Metallic Enclosure, Back View MET Report: EMCSS81856-FCC247 Rev. 1 © 2009, MET Laboratories, Inc. Page 15 of 56 DOC-EMC702 6/18/2009 Electromagnetic Compatibility Line 6 Intentional Radiators THH12 CFR Title 47, Part 15B, 15.247; RSS-210, Issue 7, June 2007 & ICES-003 Plot 14. Radiated Spurious Emissions, High Channel Photograph 4. Radiated Spurious Emission, Test Setup MET Report: EMCSS81856-FCC247 Rev. 1 © 2009, MET Laboratories, Inc. Page 31 of 56 DOC-EMC702 6/18/2009 Electromagnetic Compatibility Line 6 Intentional Radiators THH12 CFR Title 47, Part 15B, 15.247; RSS-210, Issue 7, June 2007 & ICES-003 Photograph 5. Band Edge, Test Setup MET Report: EMCSS81856-FCC247 Rev. 1 © 2009, MET Laboratories, Inc. Page 34 of 56 DOC-EMC702 6/18/2009
