UOJ-DG01TDigital Audio Transmitter

Comfort Digisystem User manual Comfort Digisystem Microphone DM05 US / English Microphone DM05 2 User manual Table of contents Page 1) Introduction to the Comfort Digisystem 3 2) Regulatory information 3 3) Functions of the Microphone DM05 4 4) Included accessories 4 5) Getting started 5 6) Settings 5 7) Pair 6 8) More functions 6 9) Radio range and channels 7 10) Trouble shooting 7 11) Battery maintenance 7 12) Service and warranty 8 13) Technical data 8 14) Important safety instructions 9 Microphone DM05 3 1) Introduction to the Comfort Digisystem Thank you for choosing Comfort Digisystem. The products are easy to use, whether you use a hearing aid or not. Before using the product, please read this User manual carefully. Using the Microphone DM05 transmitter, the signal is transferred digitally, resulting in an excellent clear sound. The Comfort Digisystem products feature SecureStream Technology – a unique, patented digital technology allowing eavesdrop-secure radio transfer in real time. Presenting the Microphone DM05 The Microphone DM05 is the world’s smallest wireless microphone for the digital transfer of sound to earpieces. This radio signal is encoded so that no one else can hear what is being said. The microphone is extremely discreet and can be simply attached to clothes with a clip. The Microphone DM05 is equipped with a voice AGC (Automatic Gain Control) to maintain a comfortable sound level at all times. The DM05 is pre-programmed with 10 channels. Additional channels can be used in combination with other Digisystem products. 2) Regulatory information Comfort Digisystem products are not to be used as a substi- tute to the hearing aids and should be used in accordance with the specifications and recommendations provided by your physician. It is recommended that customers keep the volume control in the lowest position, when turning on the device. If not, the sound could potentially cause harm to the customers’ hear- ing. Comfort Audio is not liable for damages arising from usage of the equipment not in accordance with the instructions provided by Comfort Audio. Comfort Audio shall not be liable for performance problems and/or damages caused in any way by customer’s modification of any part of the equipment. Federal Communications Commission Statement, This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC ID: UOJ-DG01T Industry Canada, This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and 2) this device must accept any interference, including interfer- ence that may cause undesired operation of the device. IC ID: 6769A-DG01T ETL Conforms to UL Standard for Safety for Audio, Video and Similar electronic apparatus – Safety Requirements UL 60065, Issue:2003/06/30 Ed:7 Rev:2007/12/11 Certified to CSA Standard for Safety for Audio, Video and Similar electronic apparatus – Safety Requirements CAN/ CSA-C22.2 No. 60065:03, Issued 2003/04/01 Ed:1 Amendment 1:2006 Intertek ETL Control number: 4002355 WARNING! Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protec- tion against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communi- cations. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. DANGER! DO NOT USE the COMFORT DIGISYSTEM products if you have a PACEMAKER or other implanted device. The Comfort Digisystem products could cause the pacemaker or other implanted device to malfunction and cause serious injury or death. Microphone DM05 4 3) Functions - Microphone DM05 Omnidirectional microphone On / Off Charging socket Function indicator Pairing button Clips Hole to secure neck pendant 4) Included accessories • Charger A11 • Split cable • Necklace clip on For other accessories, please visit our website www.comfortaudio.us Microphone DM05 5 5) Getting started Charging The Microphone DM05 is chargeable. Charge the DM05 at least two hours before using it the first time. An empty battery is fully charged within two hours. During charging, the function indicator shows red. Once the function indicator shows green, the unit is fully charged and switches to automatic float charging. The unit is automatically switched off when charging. INPUT 5V 220mA Connecting a charger to the Microphone DM05 Please note: Only use the charger supplied by Comfort Audio. Changing the battery without the assistance of an authorized dealer will void the Limited Warranty. First time use Switch on the transmitter by pressing the On/Off button for around two seconds. Function indicator ON. The Microphone DM05 is a microphone for closer range. It works best within approx. 12 inches (30 cm). Attach the DM05 to your clothes using the clip. The DM05 i…

Text truncated - open the document above for the full version.

ES Instrucciones de seguridad importantes FR Importantes consignes de sécurité ENG Important safety instructions MA0354 1) Read these instructions. 2) Keep these instructions. 3) Heed all warnings. 4) FolIow all instructions. 5) Do not use this apparatus near water. 6) Clean only with dry cloth. 7) Do not use near any heat sources such as radia- tors heat registers stoves, or other apparatus (including amplifiers) that produce heat. 8) Do not defeat the safety purpose of the polarized or arounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet consult an electrician for replacement of the obsolete outlet. (Only when using polarized plug) 9) Protect the power cord from being walked on or pinched particularly at plugs convenience receptacles. and the point where they exit from the apparatus. 10) Only use attachments/accessories specified by Comfort Audio. 11) Unplug this apparatus during Iightning storms or when unused for long periods of time. 12) Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way such as power-supply cord or plug is damaged Iiquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture does not operate normally or has been dropped. 13) Start listening at a low volume. 14) Too high a volume can seriously damage your hearing. 15) Don’t disassemble the product. 16) Should the product break open because of damage, service should only be done by qualified service personnel. 17) Never use a transmitter or receiver set to a non- permitted frequency. Check with the frequency authority in the country where the equipment is to be used. 18) The product contains sensitive electronic equip-The product contains sensitive electronic equip- ment and must be handled carefully. 19) Never charge product in closed, unaired spaces such as handbags, cases or other closed storage bags. 20) Only use batteries and power supply specified by Comfort Audio. 21) You must not change the battery yourself; please contact your point of purchase. 22) CAUTION! Danger of explosion if battery is incor- rectly replaced. 23) The product shall not be exposed to excessive heat such as sunshine, fire or the like. ENG Important safety instructions 1) Lea estas instrucciones. 2) Conserve estas instrucciones. 3) Haga caso de todas las advertencias. 4) Siga todas las instrucciones. 5) No use este aparato cerca del agua. 6) Límpielo sólo con un paño seco. 7) No lo use cerca de fuentes de calor como estufas o rejillas de aire caliente de los radiadores u otros aparatos (incluyendo amplificadores) que generen calor. 8) No desactive la función de seguridad de la clavija polarizada o de toma a tierra. Una clavija polarizada tiene dos patillas, una más ancha que la otra. Una clavija de toma a tierra tiene dos patillas y una tercera punta a tierra. La patilla ancha o la tercera punta se incluyen para su seguridad. Si la clavija que se adjunta no se adapta a la toma de que dispone, consulte a un electricista para sustituir la toma obsoleta. (Sólo si usa una clavija polarizada) 9) Proteja el cable de corriente de pisadas o do- bleces, particularmente en los enchufes y en el punto en que salen del aparato. 10) Use sólo fijaciones/accesorios especificados por Comfort Audio. 11) Desenchufe el aparato durante las tormentas o si no lo va a usar durante periodos de tiempo prolongados. ES Instrucciones de seguridad importantes 1) Lisez ces instructions. 2) Conservez ces instructions. 3) Respectez tous les avertissements. 4) Suivez toutes les instructions. 5) N’utilisez pas cet appareil près de l’eau. 6) Nettoyez uniquement avec un chiffon sec. 7) N’utilisez pas ce produit près d’une source de chaleur comme des radiateurs, des poêles de chauffage ou tout autre appareil (y compris les amplificateurs) générant de la chaleur. 8) N’éliminez pas la sécurité des prises polarisées ou de mise à la terre. Une fiche polarisée a deux lames avec une lame plus large que l’autre. Les prises de terre ont deux lames et une troisième broche de terre. La lame large ou la troisième broche assurent votre sécurité. Si la fiche fournie ne convient pas à votre prise, consultez un électricien pour qu’il change la prise. (Uniquement si vous utilisez la fiche polarisée) 9) Protégez le cordon d’alimentation contre les piétinements et les coincements, en particulier au niveau des récepteurs et au point de sortie de l’appareil. 10) Utilisez uniquement des accessoires indiqués par Comfort Audio. 11) Débranchez l’appareil durant les orages ou s’il n’est pas utilisé pendant de longues périodes de temps. 12) Confiez toute réparation à du personnel qualifié. Un entretien est requis lorsque l’appareil a été endommagé de quelque façon que ce soit, par exemple le cordon d’alimentation ou la fiche sont endommagés, du Iiquide a été renversé sur l’appareil, des objets sont tombés dans l’appareil, l’appareil a été exposé à la pluie ou l’humidité et ne fonctionne plus normalement ou l’appareil a fait une chute. 13) Commencez l’écoute à un faible volume. 14) Un volume trop élevé peut endommager sérieusement votre ouïe. 15) Ne démontez pas le produit. 16) Si le produit s’ouvre en raison de dommages, la réparation ne doit être effectuée que par du personnel qualifié. 17) N’utilisez jamais un émetteur ou un récepteur réglé sur une fréquence non autorisée. Contrôlez auprès des autorités concernées du pays dans lequel l’équipement est utilisé. FR Importantes consignes de sécurité DO NOT USE the COMFORT DIGISYSTEM products if you have a PACEMAKER or other implanted device. The Comfort Digisystem products could cause the pacemaker or other implanted device to malfunction and cause serious injury or death. NO USE los productos COMFORT DIGISYSTEM si lleva i…

Text truncated - open the document above for the full version.

Codec Crystal 26 .0 MHz uP LI - ION Charger LDO Antenna F=904-926MHz Microphone DC - jack for charging Battery +3V Slottsmöllan SE-302 31 Halmstad SWEDEN Tel. +46 35 260 16 50 www.comfortaudio.com Block Diagram Microphone DM05-US Crystal 16.384MHz Radio transmitter

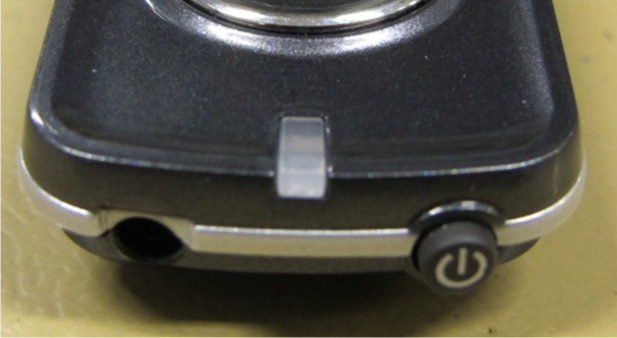

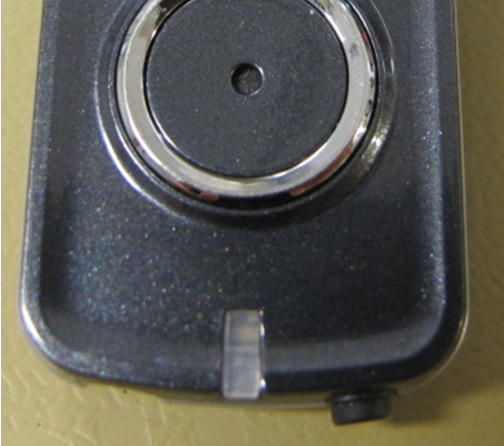

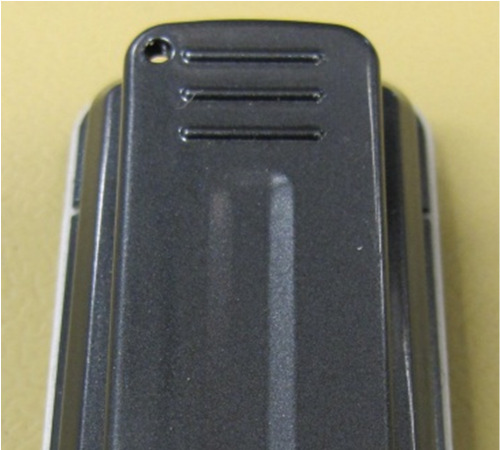

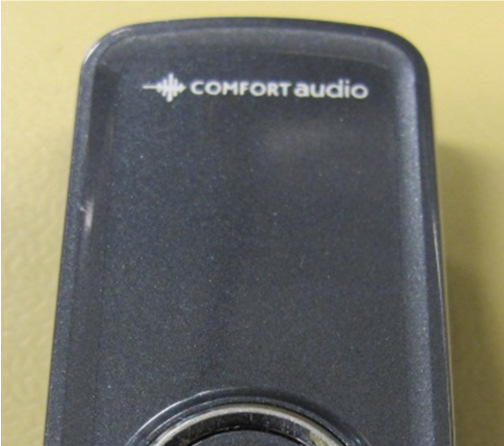

Comfort Audio Inc 350 South Northwest Highway, Suite 300 | Park Ridge, IL 60068 | USA Phone +1 (847) 656 5450 | Fax +1 (847) 656 5201 E-mail info @ comfortaudio.com | www.comfortaudio.com External photos: Microphone DM05 Front Rear Comfort Audio Inc 350 South Northwest Highway, Suite 300 | Park Ridge, IL 60068 | USA Phone +1 (847) 656 5450 | Fax +1 (847) 656 5201 E-mail info @ comfortaudio.com | www.comfortaudio.com Left side Right side Top Bottom

Comfort Audio Inc 350 South Northwest Highway, Suite 300 | Park Ridge, IL 60068 | USA Phone +1 (847) 656 5450 | Fax +1 (847) 656 5201 E-mail info @ comfortaudio.com | www.comfortaudio.com Label information: Microphone DM05-US A label with article number, article description, serial number, FCC ID and IC ID is attached on the rear side of the product under the clip. Label attached on the rear side of the product under the clip.

Comfort Audio Inc 350 South Northwest Highway, Suite 300 | Park Ridge, IL 60068 | USA Phone +1 (847) 656 5450 | Fax +1 (847) 656 5201 E-mail info @ comfortaudio.com | www.comfortaudio.com Internal photos: Microphone DM05 Rear enclosure part removed Bottom PCB view Comfort Audio Inc 350 South Northwest Highway, Suite 300 | Park Ridge, IL 60068 | USA Phone +1 (847) 656 5450 | Fax +1 (847) 656 5201 E-mail info @ comfortaudio.com | www.comfortaudio.com Top PCB view

Comfort Audio Inc 350 South Northwest Highway, Suite 300 | Park Ridge, IL 60068 | USA Phone +1 (847) 656 5450 | Fax +1 (847) 656 5201 E-mail info @ comfortaudio.com | www.comfortaudio.com Operational description of Microphone DM05 The transmitter, Microphone DM05, is picking up sound by means of an inbuilt microphone. The audio is amplified and converted to digital format and transmitted to, via radio, the receiver. The receiver converted the radio signal to analogue audio and amplifies it. The user can listen via headphones or neck-loop. The Comfort Audio Microphone DM05 and Receiving device from Comfort Audio are paired together. The digital transmission gives a very good speech reception. The system is a Binary (two-level) FSK modulation, operation in 902-928 MHz band with a 6dB bandwidth greater than 500 KHz and continuous transmission. The antenna used is internal with a peak gain of -3.5dBd and average gain of -4.7dBd. The maximum output power (antenna gain included) is -3dBm. The system is used in a classrooms or business presentation environments. The Microphone DM05 has an inbuilt Li-Ion polymer battery (nominal voltage of 3.7v). The battery is charged via a power supply, which is connected to the mains.

TEST REPORT FROM RFI GLOBAL SERVICES LTD Test of: DM05-US FCC ID: UOJ-DG01T IC Certification Number: 6769A-DG01T To: FCC Part 15.247: 2010 Subpart C, RSS-210 Issue 8 December 2010 & RSS-Gen Issue 3 December 2010 Test Report Serial No: RFI-RPT-RP79705JD01A This Test Report Is Issued Under The Authority Of Chris Guy, Head of Global Approvals:: Checked By: Ian Watch Signature: Date of Issue: 24 March 2011 This report is issued in Adobe Acrobat portable document format (PDF). It is only a valid copy of the report if it is being viewed in PDF format with the following security options not allowed: Changing the document, Selecting text and graphics, Adding or changing notes and form fields. This report may not be reproduced other than in full, except with the prior written approval of RFI Global Services Ltd. The results in this report apply only to the sample(s) tested. TEST REPORT SERIAL NO: RFI-RPT-RP79705JD01A VERSION 2.0 ISSUE DATE: 24 MARCH 2011 Page 2 of 32 RFI Global Services Ltd This page has been left intentionally blank. TEST REPORT SERIAL NO: RFI-RPT-RP79705JD01A VERSION 2.0 ISSUE DATE: 24 MARCH 2011 RFI Global Services Ltd Page 3 of 32 Table of Contents 1. Customer Information .................................................................................................................. 4 2. Summary of Testing ..................................................................................................................... 5 2.1. General Information 5 2.2. Summary of Test Results 5 2.3. Methods and Procedures 6 2.4. Deviations from the Test Specification 6 3. Equipment Under Test (EUT) ....................................................................................................... 7 3.1. Identification of Equipment Under Test (EUT) 7 3.2. Description of EUT 7 3.3. Modifications Incorporated in the EUT 7 3.4. Additional Information Related to Testing 8 3.5. Support Equipment 8 4. Operation and Monitoring of the EUT during Testing ............................................................... 9 4.1. Operating Modes 9 4.2. Configuration and Peripherals 9 5. Measurements, Examinations and Derived Results ................................................................ 10 5.1. General Comments 10 5.2. Test Results 11 5.2.1. Idle AC Conducted Spurious Emissions 11 5.2.2. Idle Mode Radiated Spurious Emissions 13 5.2.3. Transmitter 6 dB Bandwidth 16 5.2.4. Transmitter 20 dB Bandwidth 18 5.2.5. Transmitter Power Spectral Density 20 5.2.6. Transmitter Maximum Peak Output Power 22 5.2.7. Transmitter Radiated Emissions 24 5.2.8. Transmitter Radiated Emissions 26 5.2.9. Transmitter Band Edge Radiated Emissions 30 6. Measurement Uncertainty .......................................................................................................... 31 Appendix 1. Test Equipment Used ................................................................................................ 32 TEST REPORT SERIAL NO: RFI-RPT-RP79705JD01A VERSION 2.0 ISSUE DATE: 24 MARCH 2011 Page 4 of 32 RFI Global Services Ltd 1. Customer Information Company Name: Comfort Audio AB Address: Slottsmallan Halmstad 302 31 Sweden TEST REPORT SERIAL NO: RFI-RPT-RP79705JD01A VERSION 2.0 ISSUE DATE: 24 MARCH 2011 RFI Global Services Ltd Page 5 of 32 2. Summary of Testing 2.1. General Information Specification Reference: 47CFR15.247 Specification Title: Code of Federal Regulations Volume 47 (Telecommunications) 2010: Part 15 Subpart C (Intentional Radiators) - Section 15.247 Specification Reference: 47CFR15.107 and 47CFR15.109 Specification Title: Code of Federal Regulations Volume 47 (Telecommunications) 2010: Part 15 Subpart B (Unintentional Radiators) - Sections 15.107 and 15.109 Specification Reference: 47CFR15.209 Specification Title: Code of Federal Regulations Volume 47 (Telecommunications) 2010: Part 15 Subpart C (Intentional Radiators) – Section 15.209 Specification Reference: RSS-Gen Issue 3 December 2010 Specification Title: General Requirements and Information for the Certification of Radio Apparatus Specification Reference: RSS-210 Issue 8 December 2010 Specification Title: Licence-exempt Radio Apparatus (All Frequency Bands): Category I Equipment. Site Registration: FCC: 209735; Industry Canada: 3245B-2 Location of Testing: RFI Global Services Ltd, Wade Road, Basingstoke, Hampshire, RG24 8AH. Test Dates: 6 March 2011 to 14 March 2011 2.2. Summary of Test Results FCC Reference (47CFR) IC Reference Measurement Result Part 15.107(a) RSS-Gen 7.2.4 Idle Mode AC Conducted Emissions Part 15.109 RSS-Gen 4.10/6.1 Idle Mode Radiated Spurious Emissions Part 15.247(a)(2) RSS-Gen 4.6.2 RSS-210 A8.2(a) Transmitter 6 dB Bandwidth Part 2.1049 RSS-Gen 4.6.1/4.6.3 Transmitter 20 dB Bandwidth Part 15.247(e) RSS-210 A8.2(b) Transmitter Power Spectral Density Part 15.247(b)(3) RSS-Gen 4.8 RSS-210 A8.4(4) Transmitter Maximum Peak Output Power Part 15.247(d)/ 15.209(a) RSS-Gen 4.9 RSS-210 A8.5 Transmitter Radiated Emissions Part 15.247(d) RSS-Gen 4.9 RSS-210 A8.5 Transmitter Band Edge Radiated Emissions Key to Results = Complied = Did not comply TEST REPORT SERIAL NO: RFI-RPT-RP79705JD01A VERSION 2.0 ISSUE DATE: 24 MARCH 2011 Page 6 of 32 RFI Global Services Ltd 2.3. Methods and Procedures Reference: ANSI C63.4 (2009) Title: American National Standard for Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz. Reference: ANSI C63.10 (2009) Title: American National Standard for Testing Unlicensed Wireless Devices 2.4. Deviations from the Test Specification For the measurements contained within this test report, there were no deviations from, additions to, or exclusions from the test specification identified above. TEST REPORT SERIAL NO: RFI-RPT-RP79705JD01A VERSION 2.0 ISSUE DATE: 24 MARCH 2011 RFI Global Services Ltd Page 7 of 32 3. Equipment Under Test (EUT) 3.1. Identification of Equipment Under Test (EUT) Brand Name: Comfort Audio Model Name or Number…

Text truncated - open the document above for the full version.
